Chery Industrial | 40'x40'x15' Double Truss Shipping Container Canopy Shelter | SC000131

Gold Mountain Shipping Container Canopy Shelter

Overview

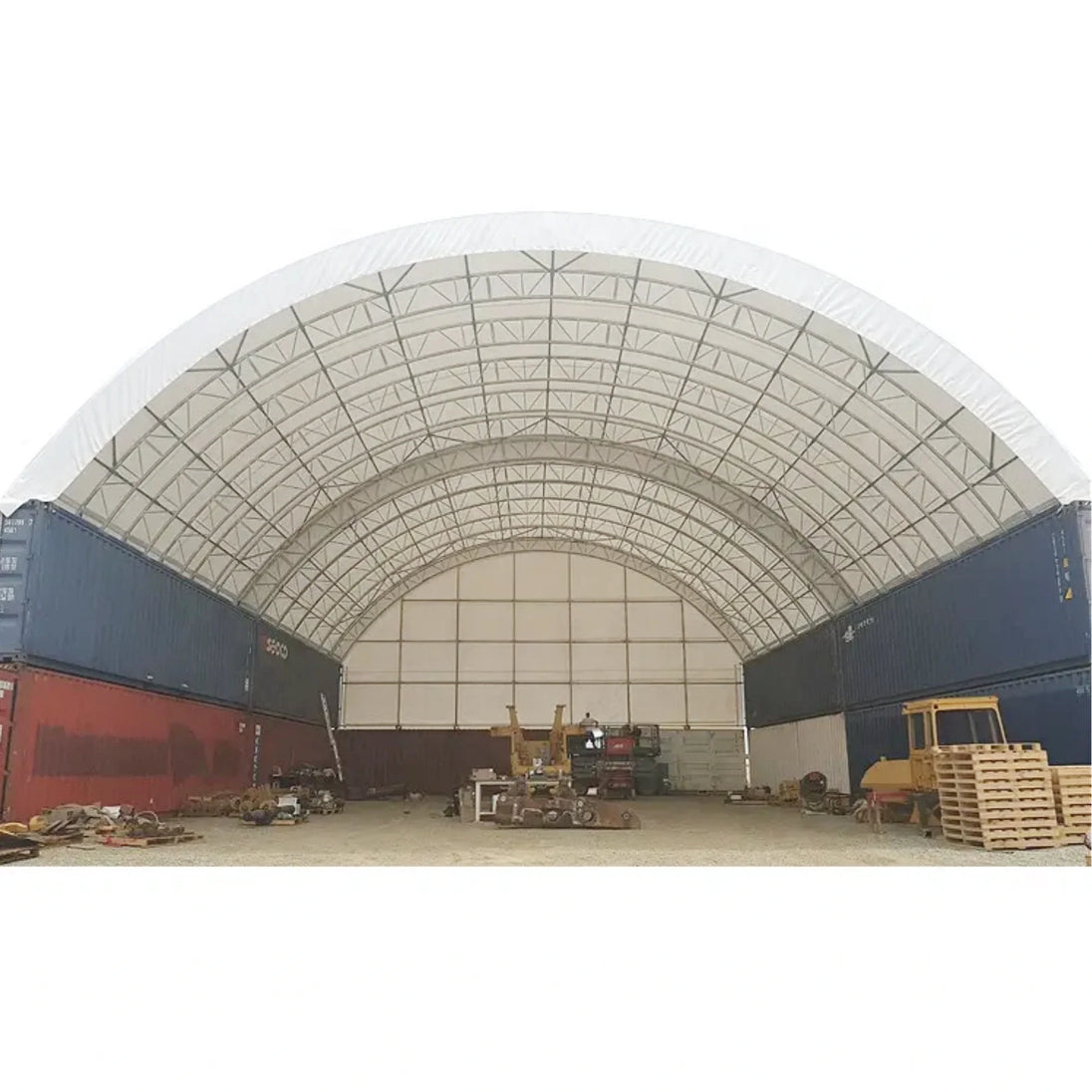

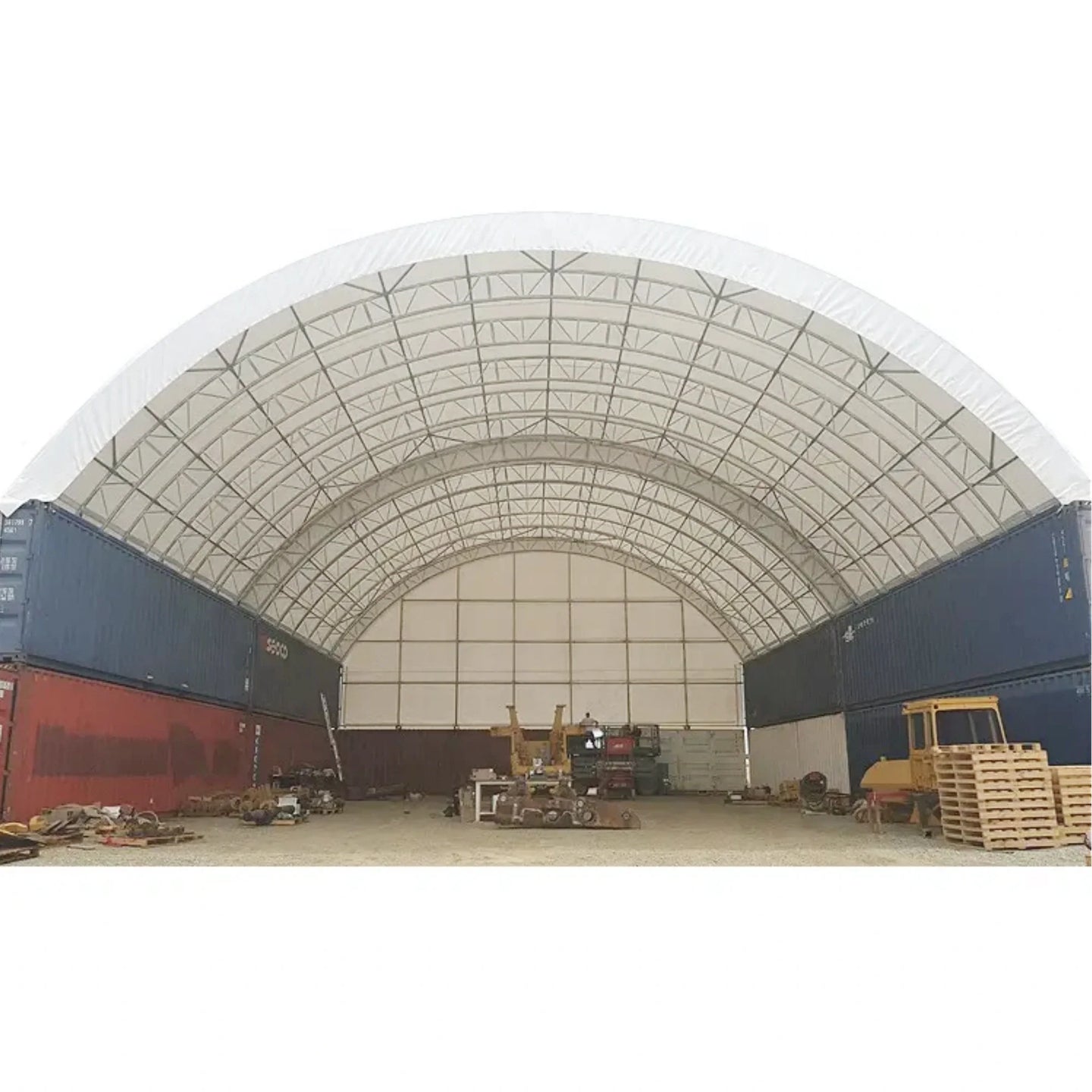

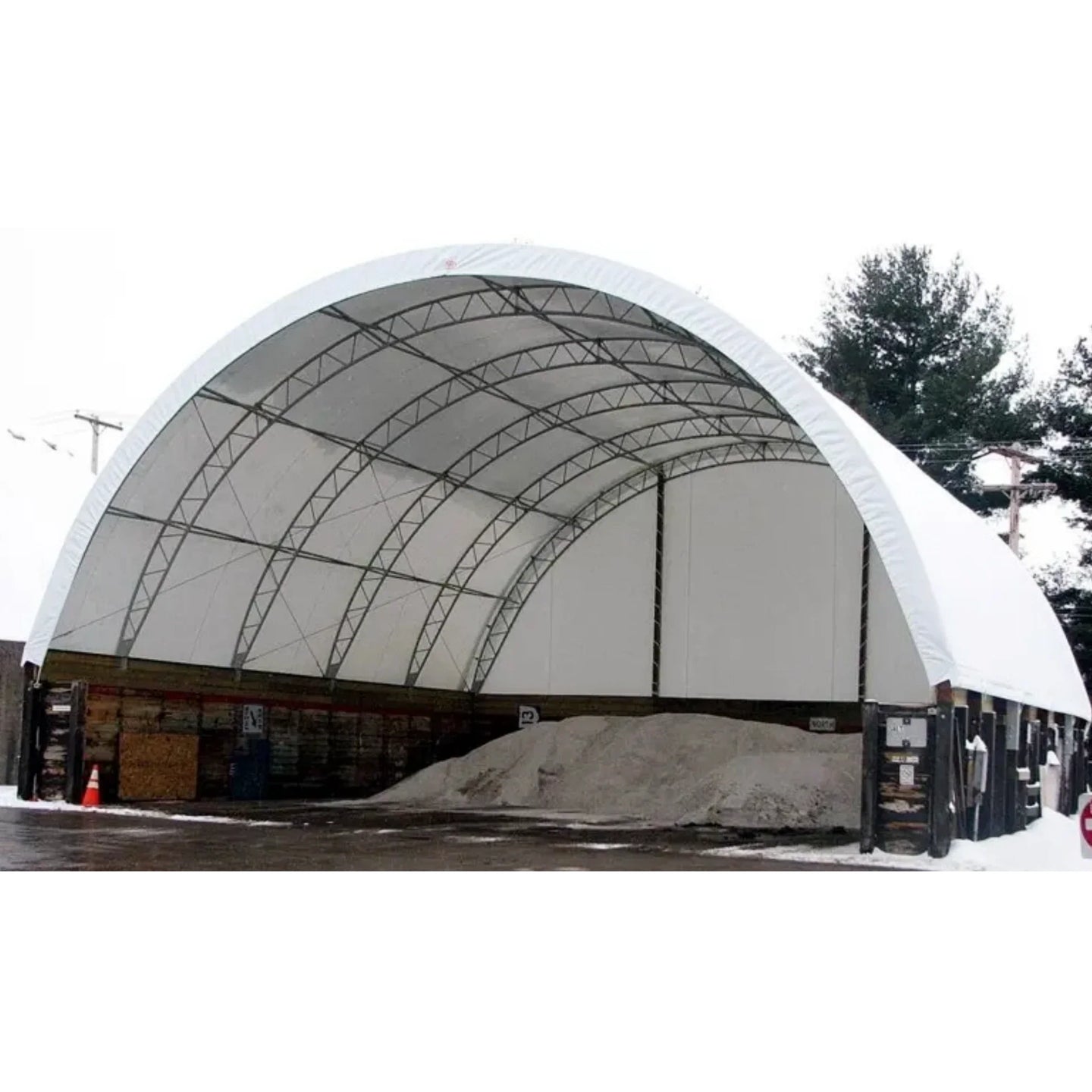

The Gold Mountain Shipping Container Canopy Shelter is a large, durable shelter for outdoor storage or a workspace. It measures 40x40x15 ft and offers space for big equipment, vehicles, or an outdoor area to work. It uses a double-truss steel frame with heavy-duty galvanized steel. It’s designed to fit over two standard shipping containers. Optional front or back walls add extra storage and security.

Benefits

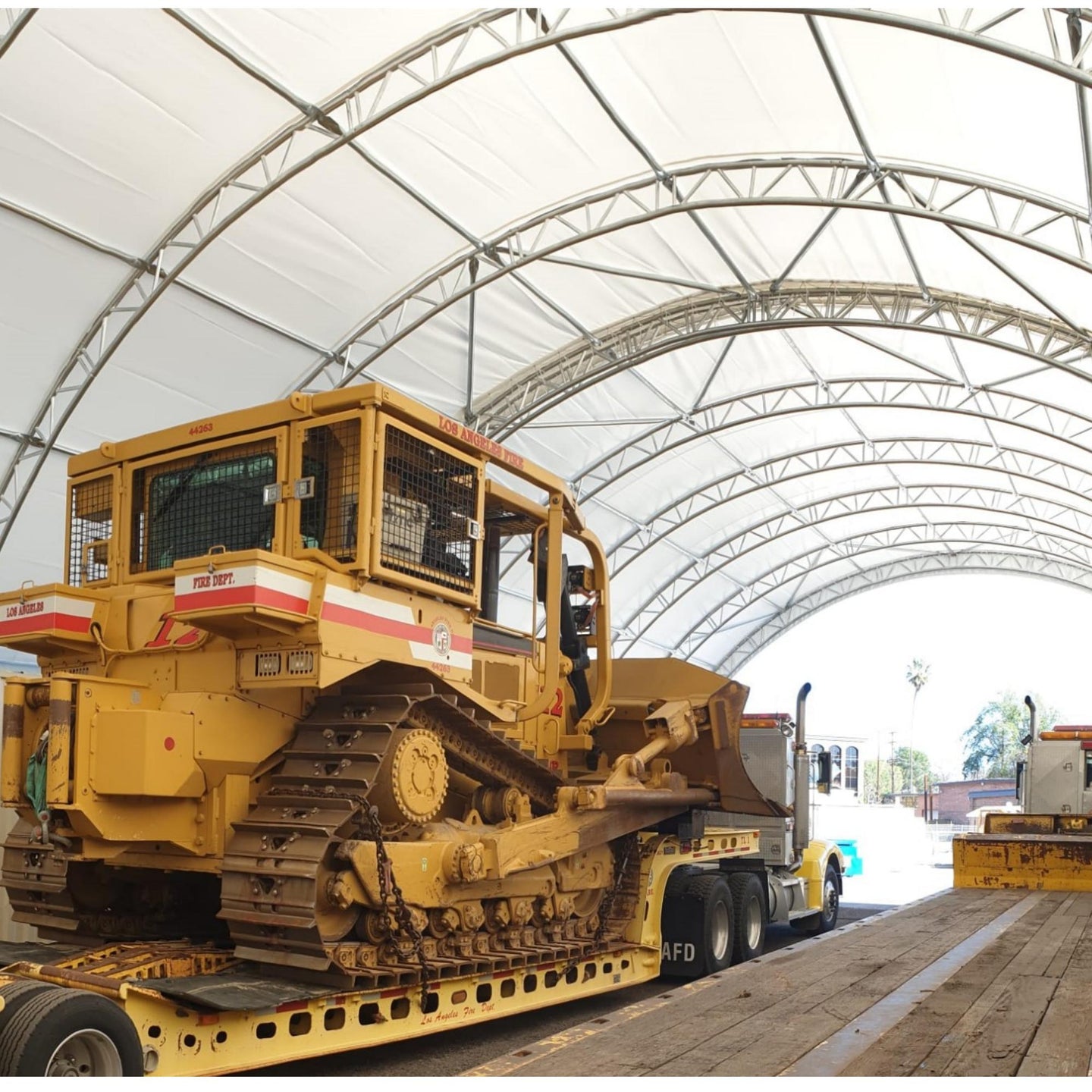

• Generous space for equipment, vehicles, or an outdoor workspace
• Robust double-truss frame for long life

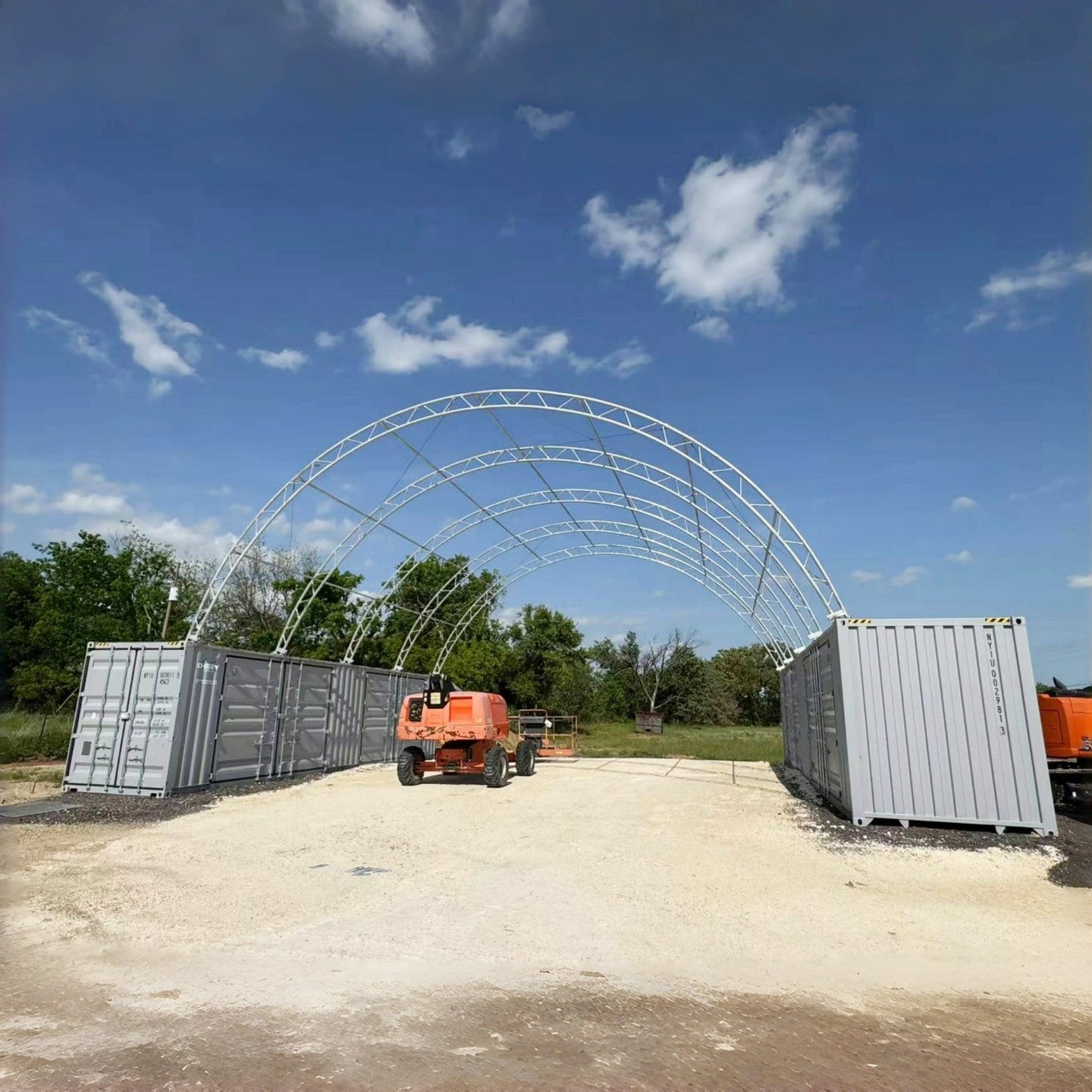

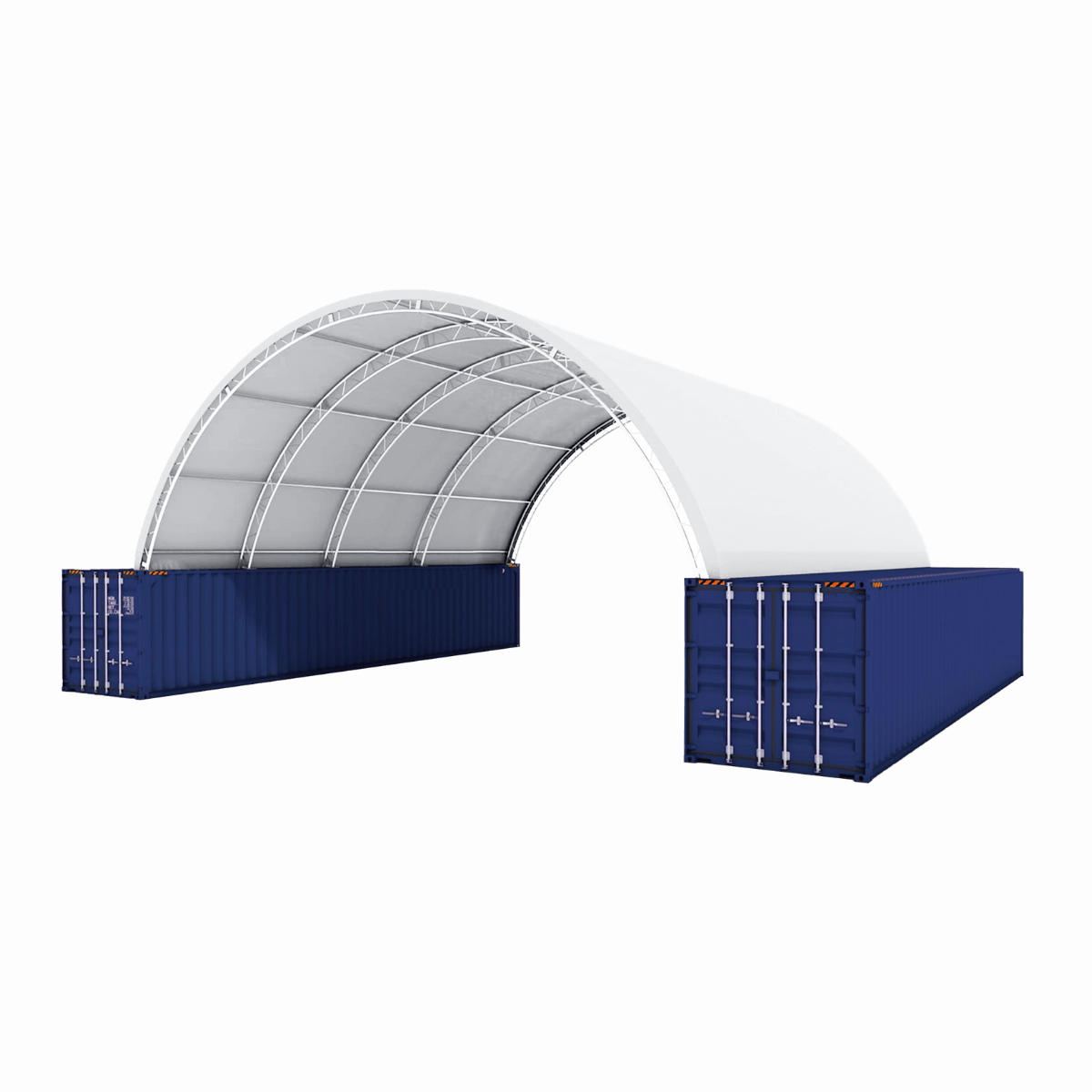

• Fits over two standard shipping containers
• Long-lasting materials with options for different fabric weights
• Waterproof and UV-resistant fabrics with fire-retardant options
• Optional front and back walls for extra storage and security
• Relatively easy DIY installation with twist-lock and clamp hardware
• Safety-compliant tarpaulins (PFAS-free; REACH compliant)
• Expect years of use from tarpaulins and a frame rated for the long haul

Features

• Model: C404015 Dome Container Shelter

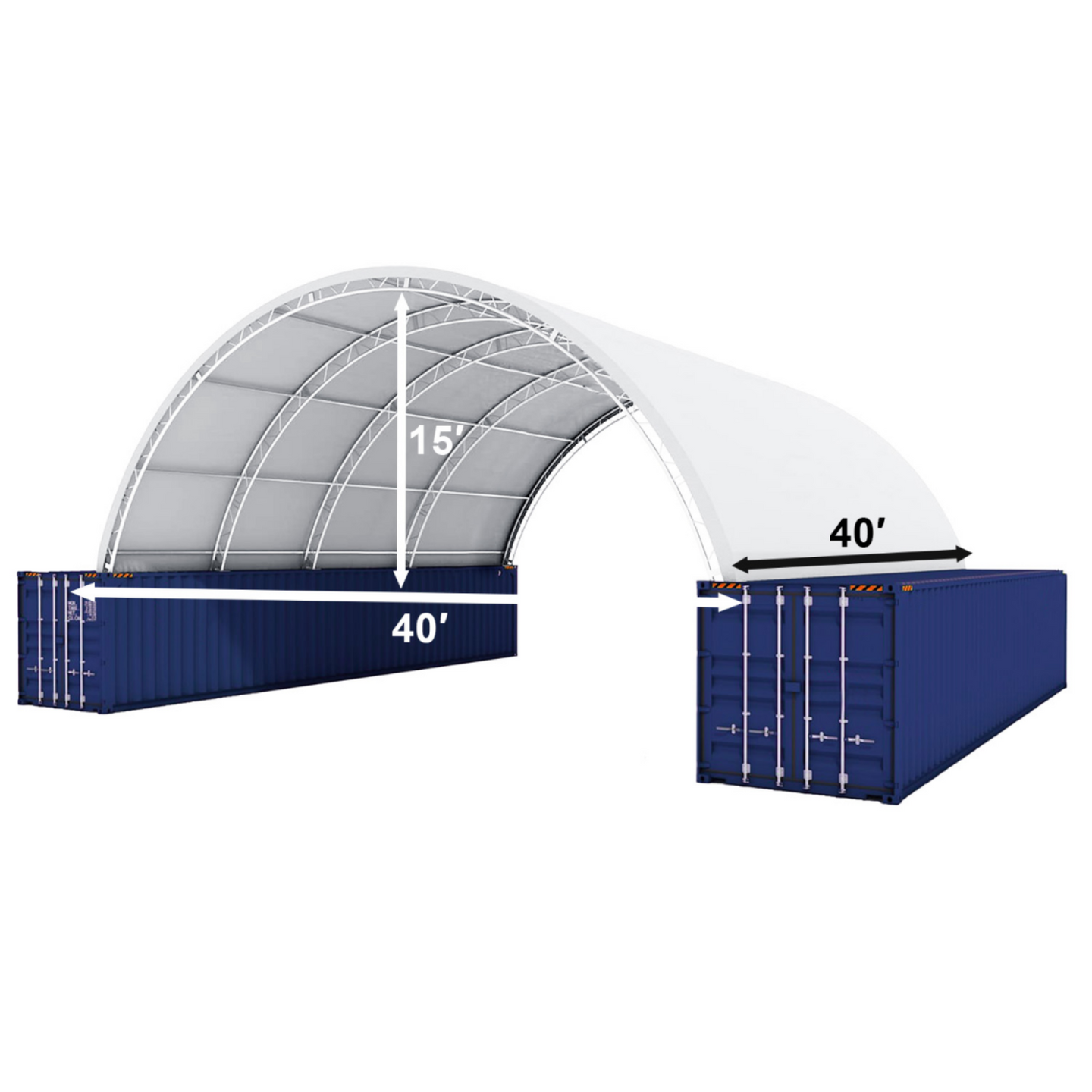

• Dimensions: W40 x L40 x H15 ft

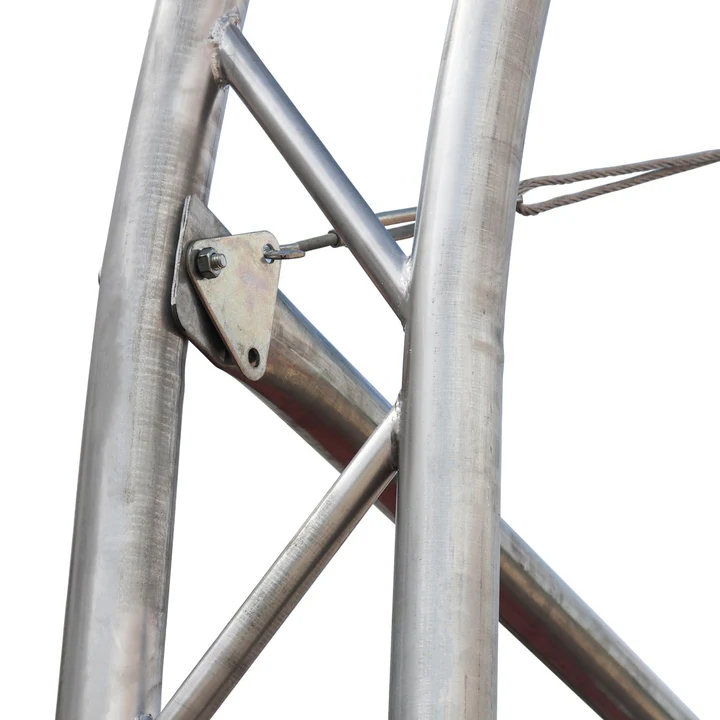

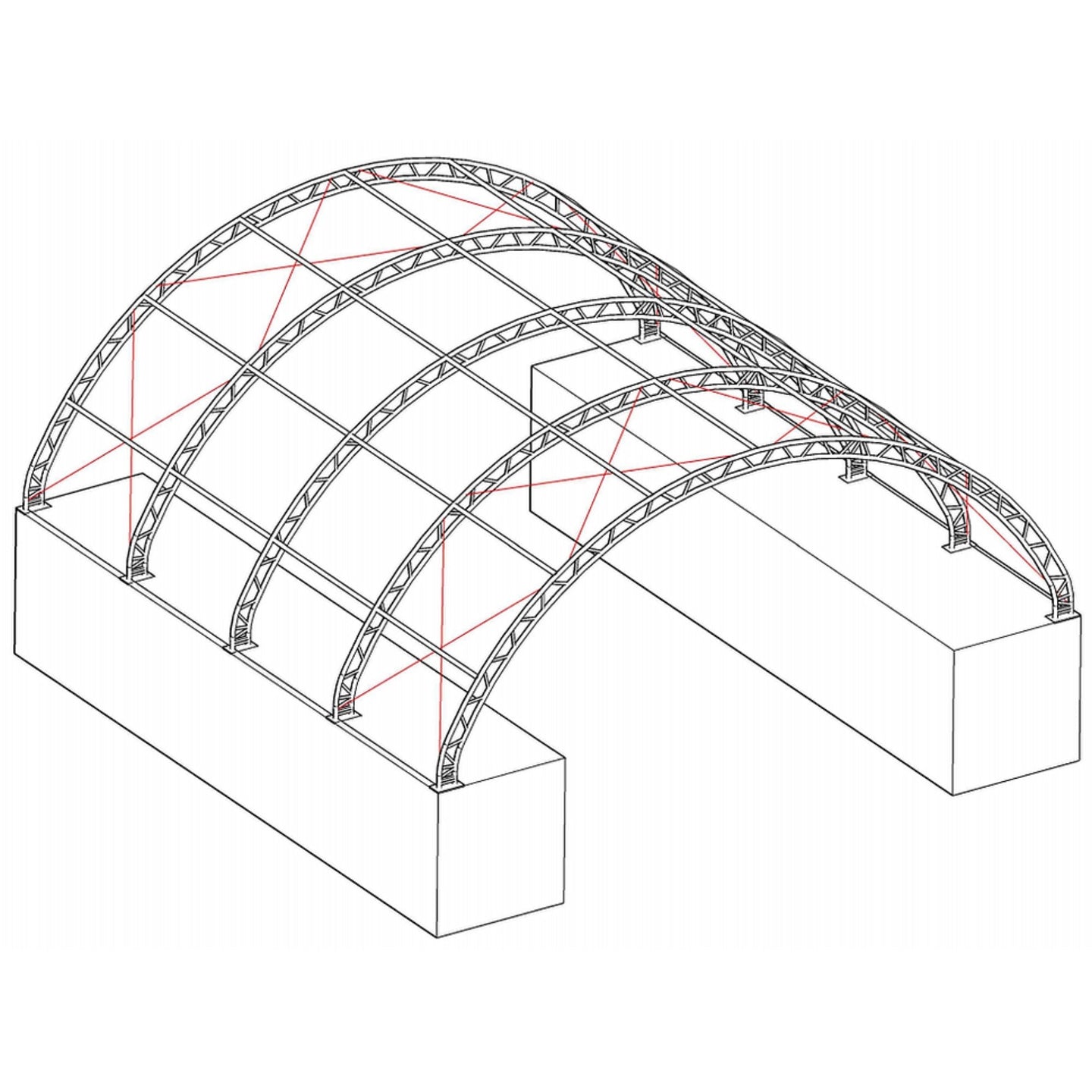

• Frame: Double Truss Galvanized Tube
• Steel structure: High-Grade Hot Dip Galvanized Steel
• Fabric options: 11oz PE, 15oz PVC, 22oz PVC, 23oz PVC, 32oz PVC tarpaulins
• Fabric features: Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning
• Temperature range: -22 to 158 °F

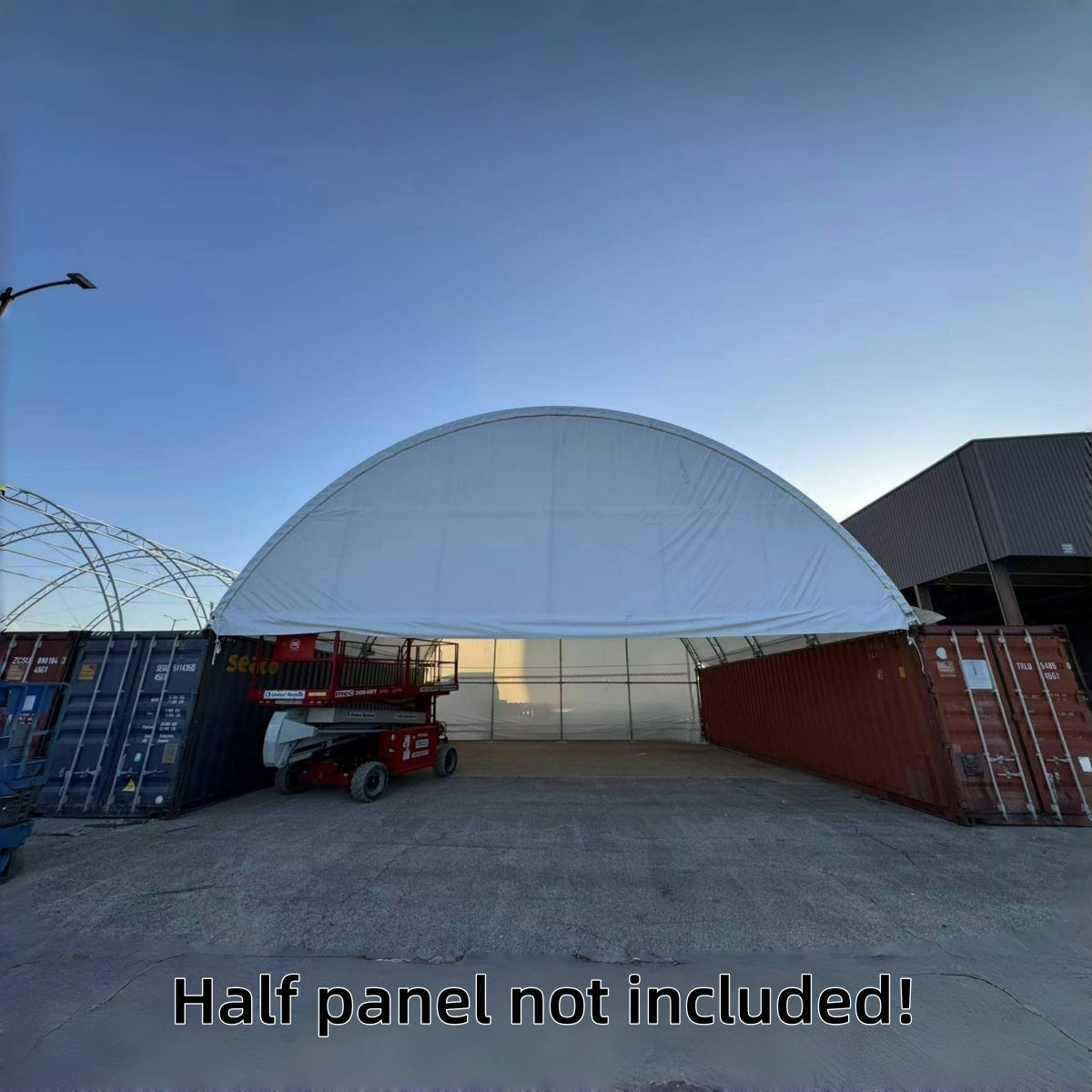

• Front/Back walls: Optional Front Panel and Rear Panel
• Arch Ø: 60x1.5 mm
• Purlin Ø: 48x1.5 mm

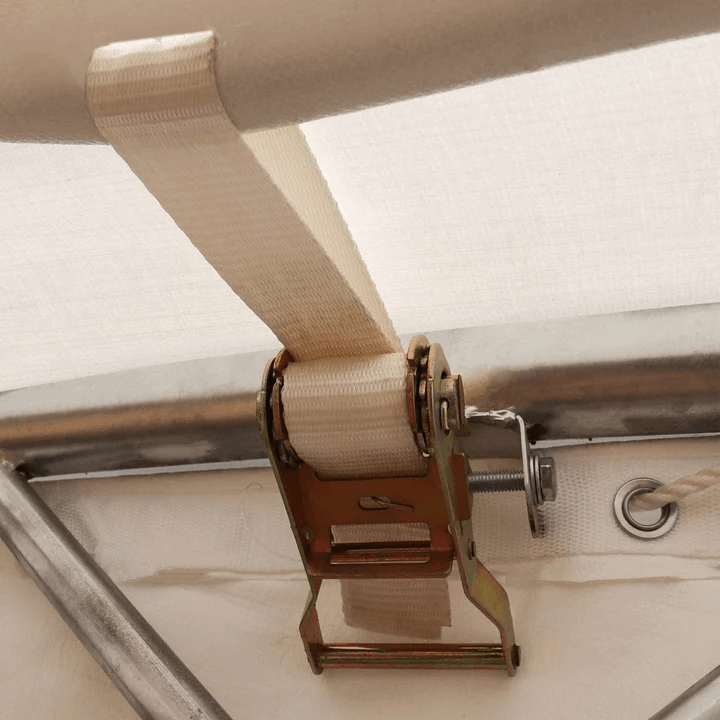

• Tension system: Pipe and Ratchet tie-down

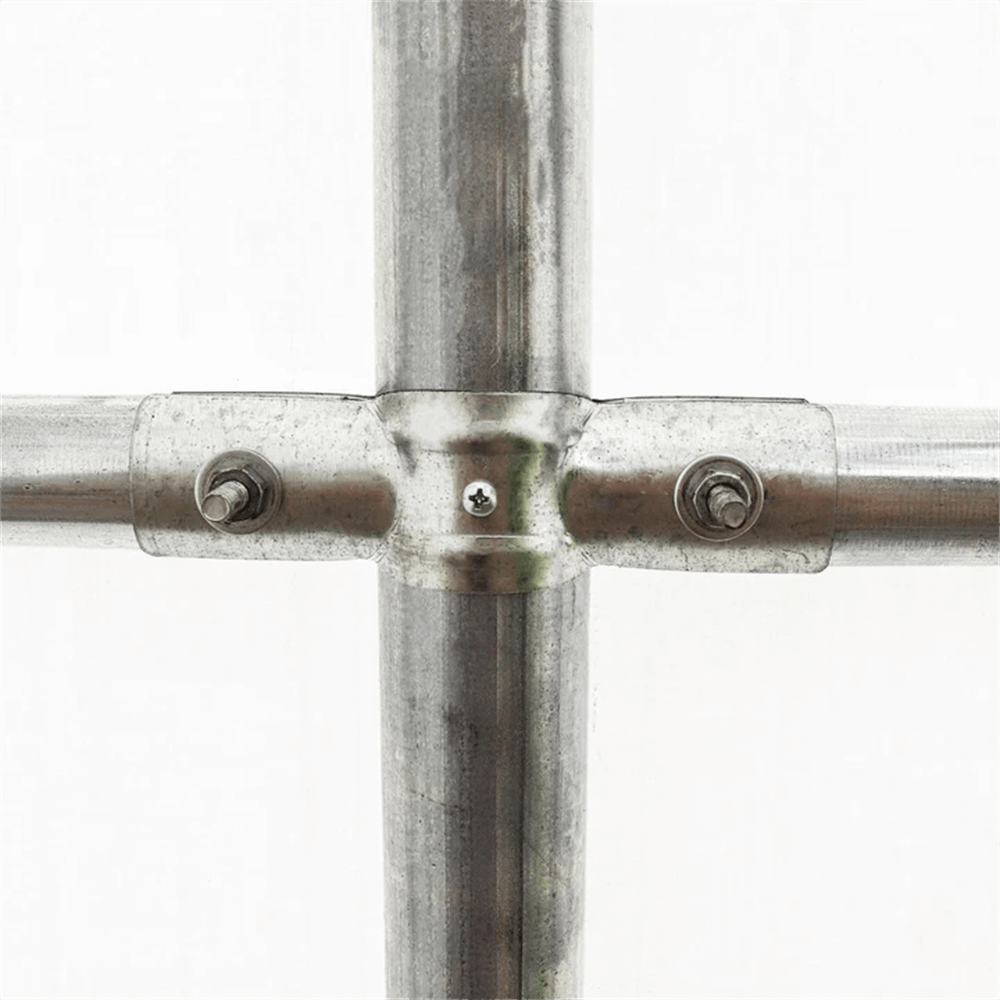

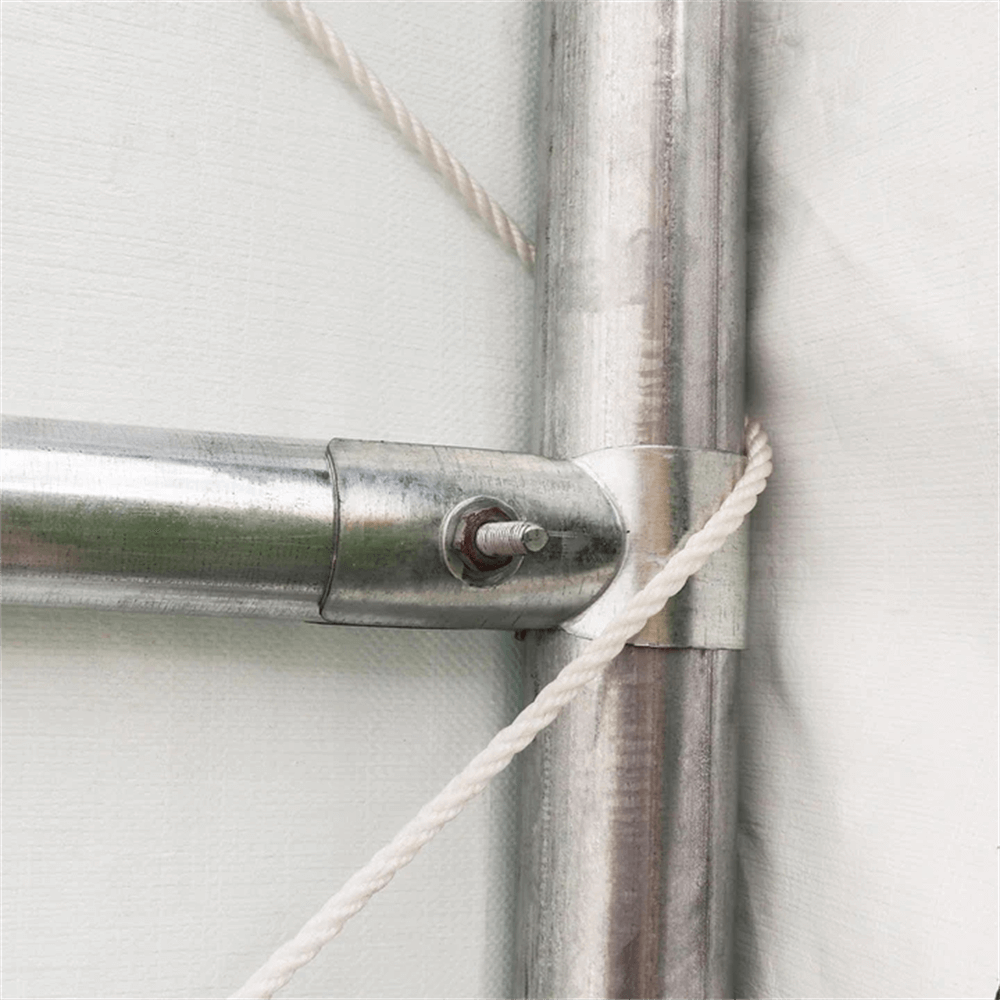

• Easy installation: Twist lock and clamp

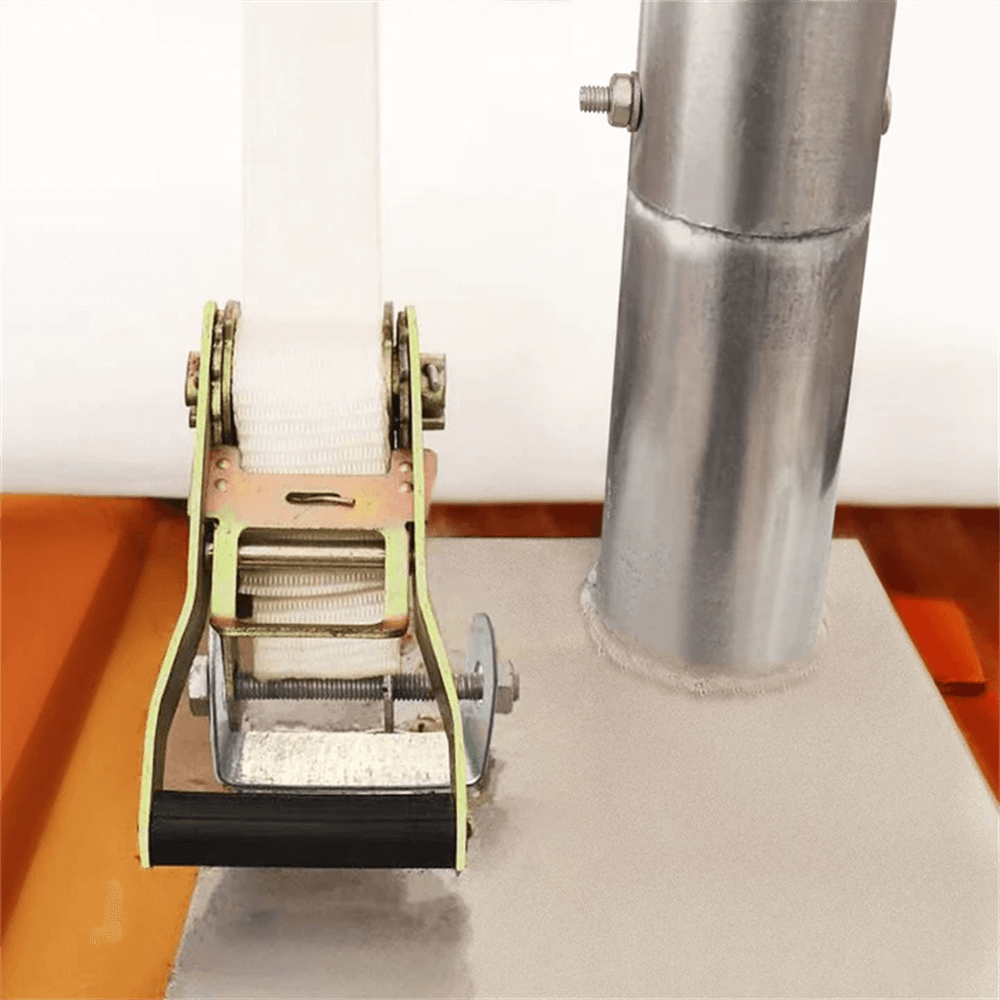

• Weld: Base plates must be welded on the containers
• Assembly time (DIY with 4 people): Shelter ~2 days; Front or back wall ~0.5 day per wall
• Safety: PFAS-free tarpaulin; EU REACH compliant
• Tarp lifespan: 7-10 years (depends on fabric type and environment)
• Frame lifespan: 15+ years
• Warranty: PE tarpaulin 2 years; PVC tarpaulin 8 years

Specifications

• Model: C404015 Dome Container Shelter
• Dimensions: W40 x L40 x H15 ft
• Frame: Double Truss Galvanized Tube
• Steel structure: High-Grade Hot Dip Galvanized Steel
• Fabric options: 11oz PE, 15oz PVC, 22oz PVC, 23oz PVC, 32oz PVC
• Fabric features: Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning
• Temperature range: -22 to 158 °F
• Front/Back walls: Optional Front Panel and Rear Panel
• Arch Ø: 60x1.5 mm
• Purlin Ø: 48x1.5 mm
• Tension system: Pipe and Ratchet
• Easy installation: Twist lock and clamp
• Weld: Base plates must be welded on containers
• Average assembly time (DIY with 4 people): Shelter 2 days; Front or back wall 0.5 day per wall
• Safety: PFAS-free tarpaulin; EU REACH compliant
• Tarp lifespan: 7-10 years
• Frame lifespan: 15+ years
• Warranty: PE 2 years; PVC 8 years
• Note: Lifespan refers to material durability, not installation
