Minn Kota | Fortrex 80

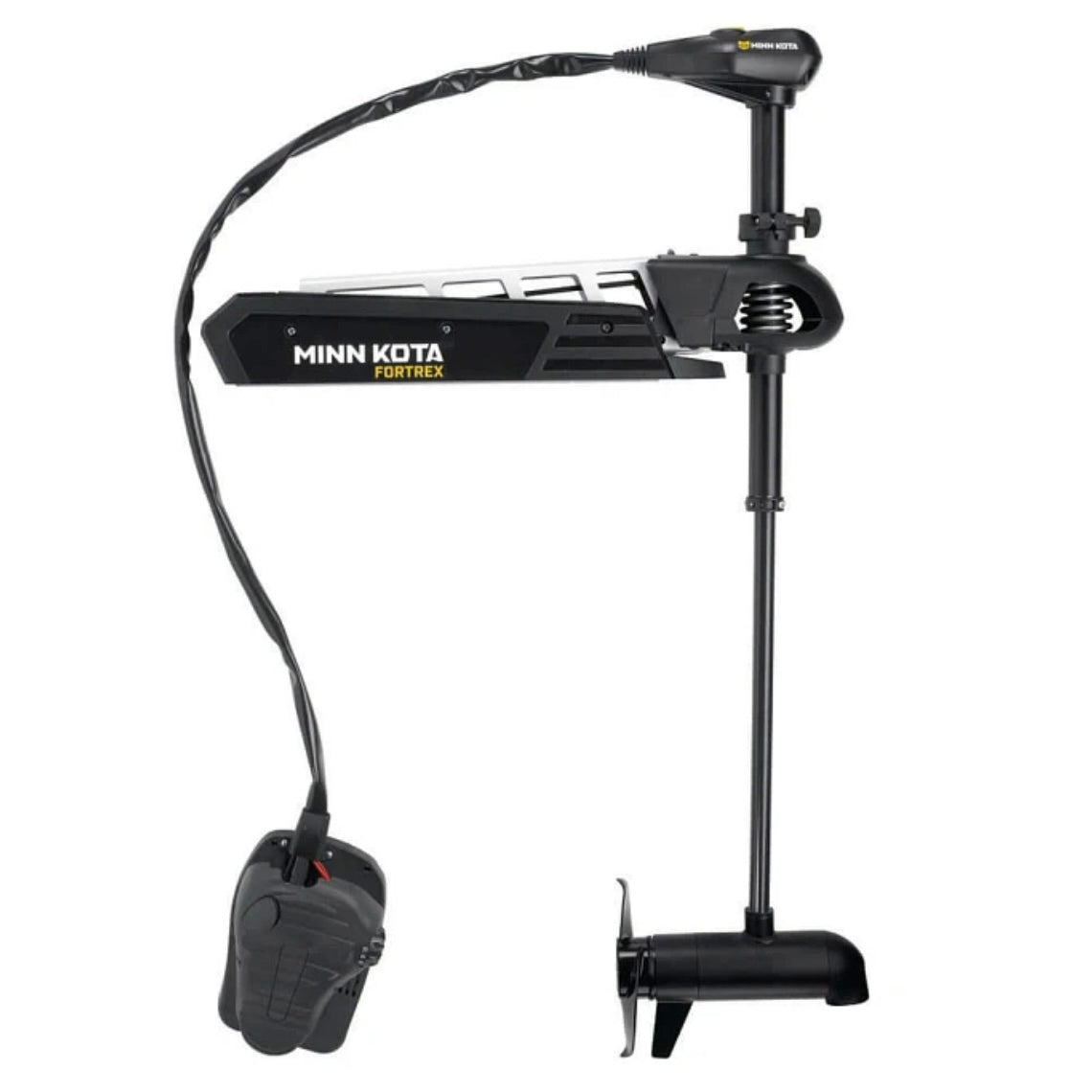

Minn Kota Fortrex 80 – 24V, 80 lbs Thrust, Cable Steer Trolling Motor

The Fortrex 80 is built for anglers who demand rock-solid reliability and rugged performance in harsh freshwater conditions. Featuring a bulletproof aluminum mono-arm, lift-assist gas spring, and ultra-responsive cable steering, this motor is made for serious fishing.

Key Features:

• 80 lbs Thrust (24V) – Ideal for boats up to 4,000 lbs

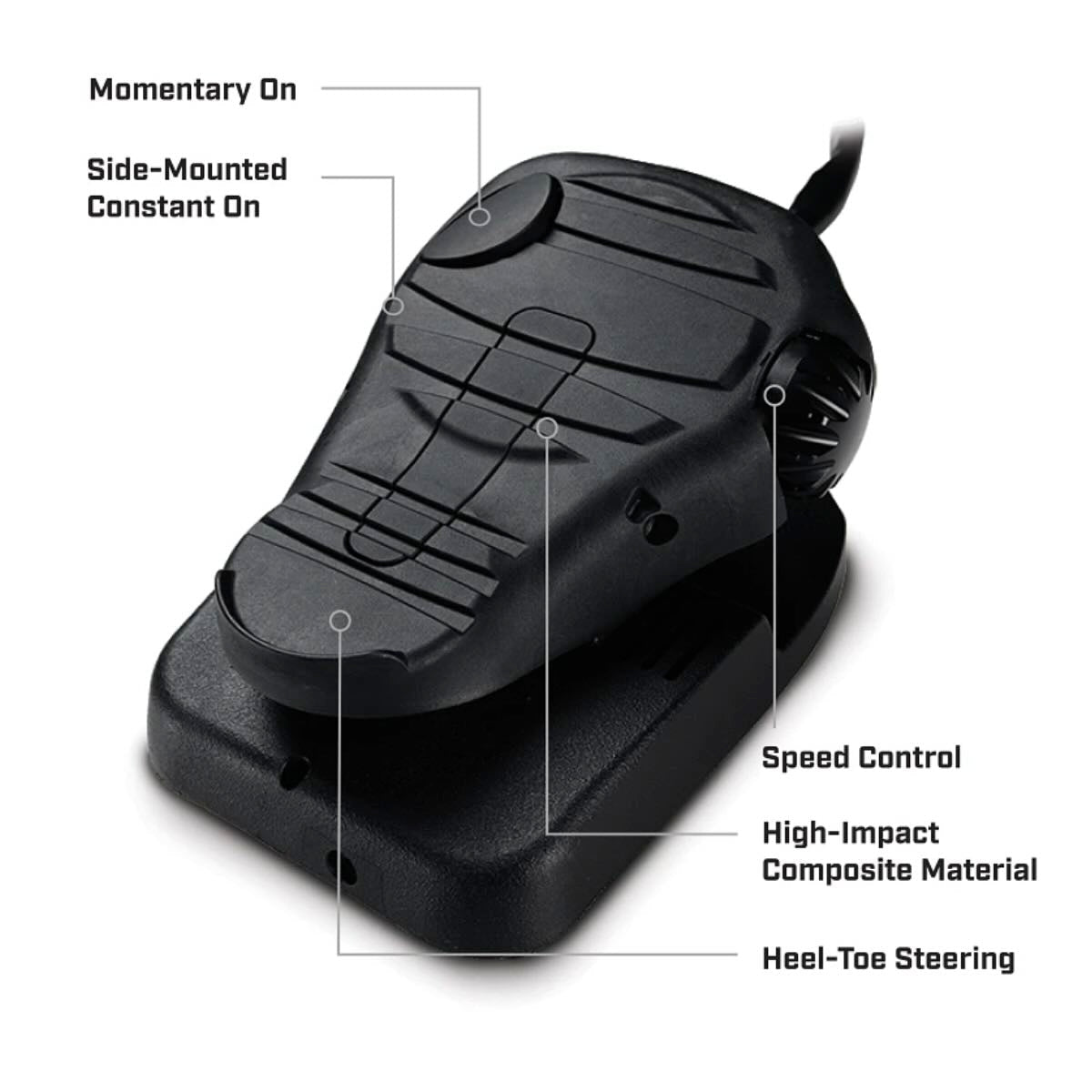

• Cable-Steer Foot Pedal – Precise heel/toe steering with speed dial

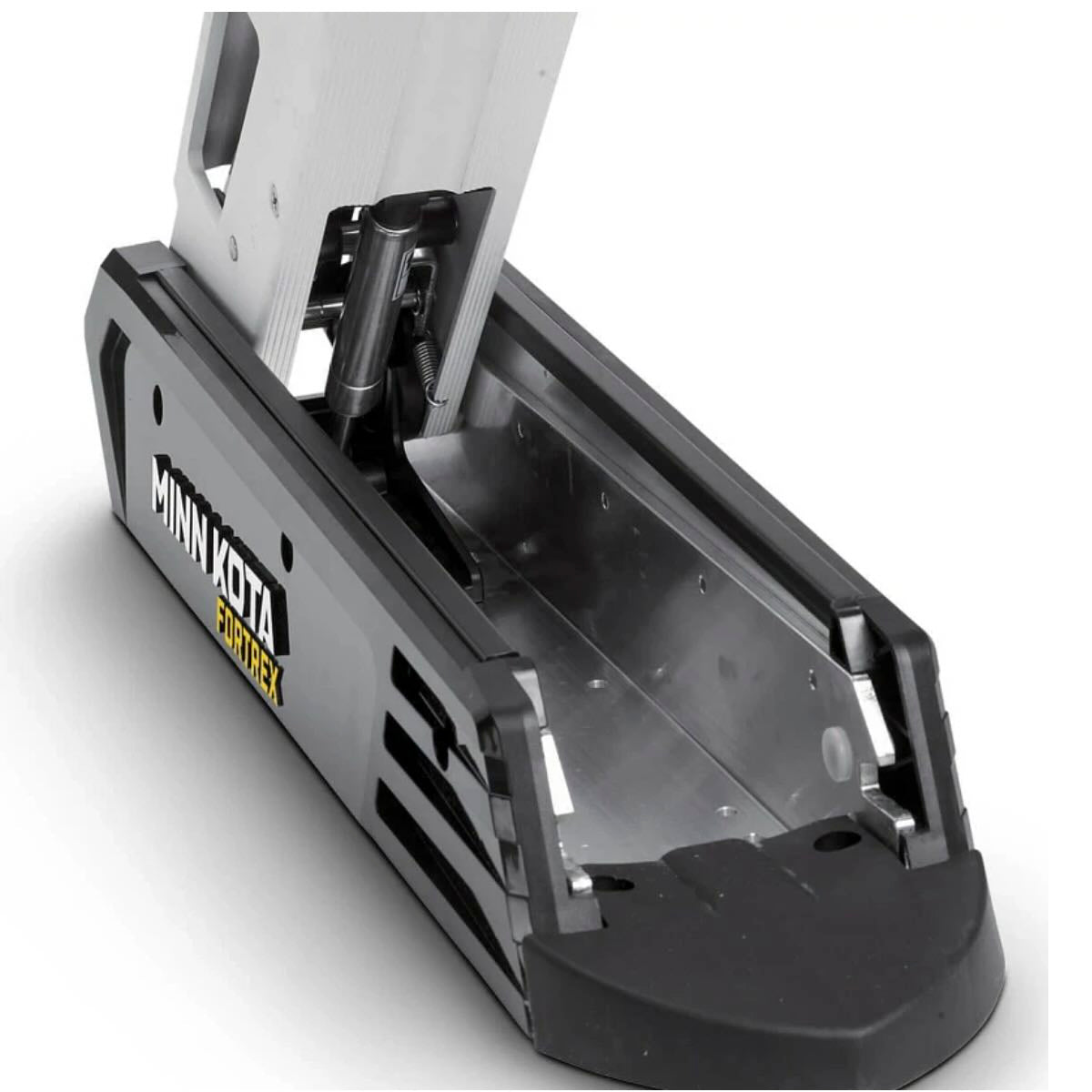

• Lift-Assist System – Gas spring makes stow/deploy smooth and easy

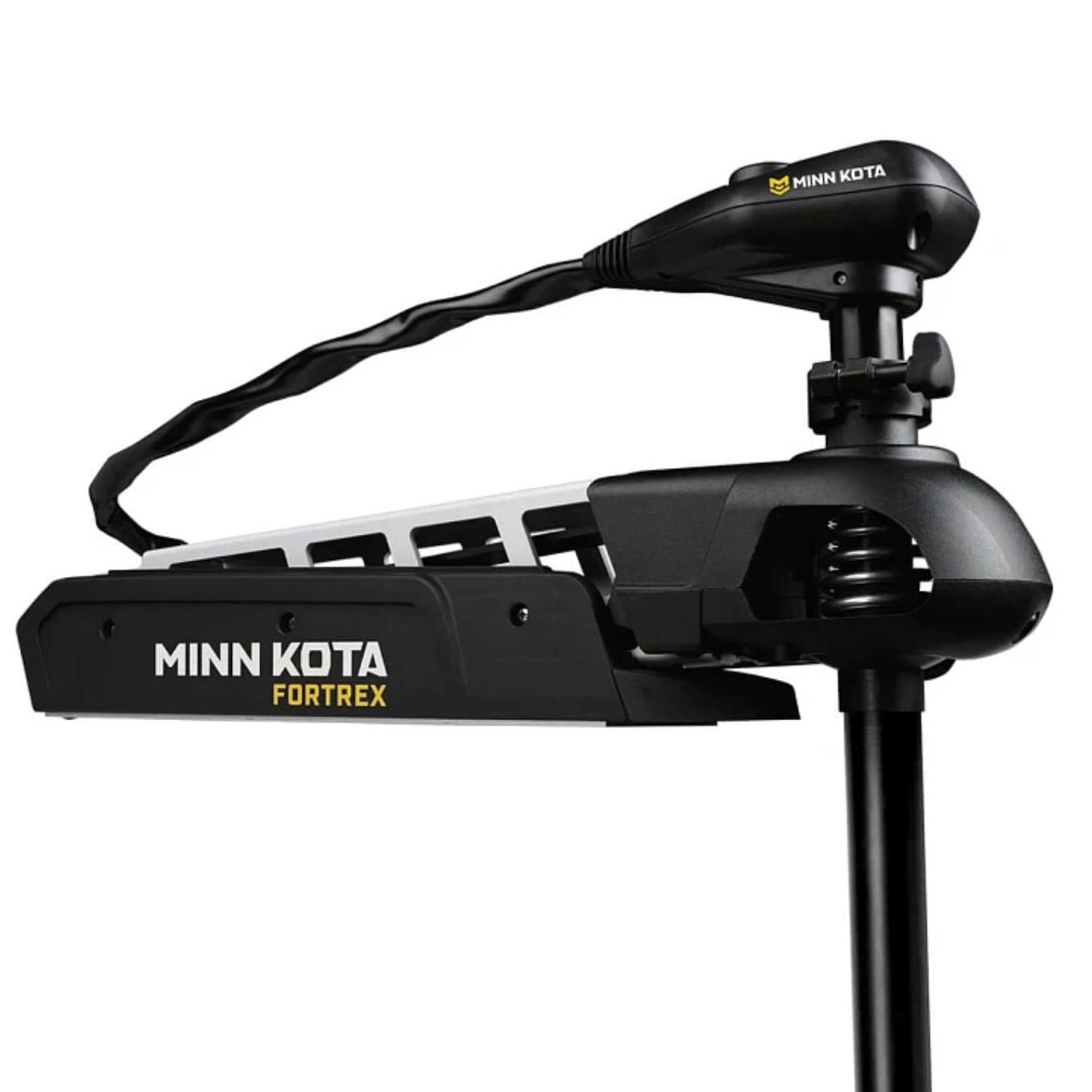

• Aluminum Mono-Arm – One-piece design adds strength and durability

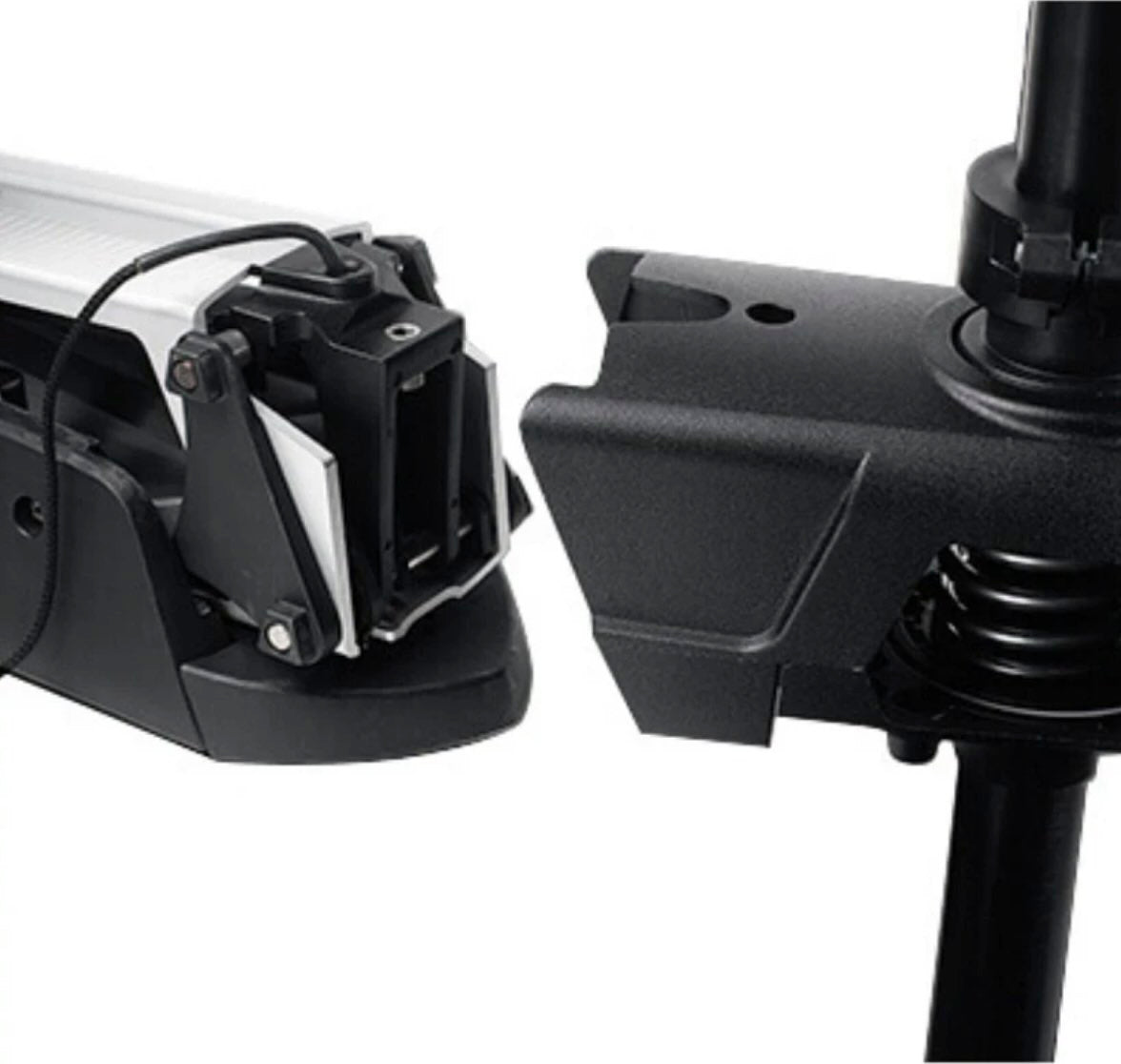

• BowGuard 360° – Spring-loaded breakaway mount protects your motor

• Digital Maximizer – Extends battery life with variable speed control

• Dual Spectrum CHIRP Sonar – Fishfinder compatibility with select models

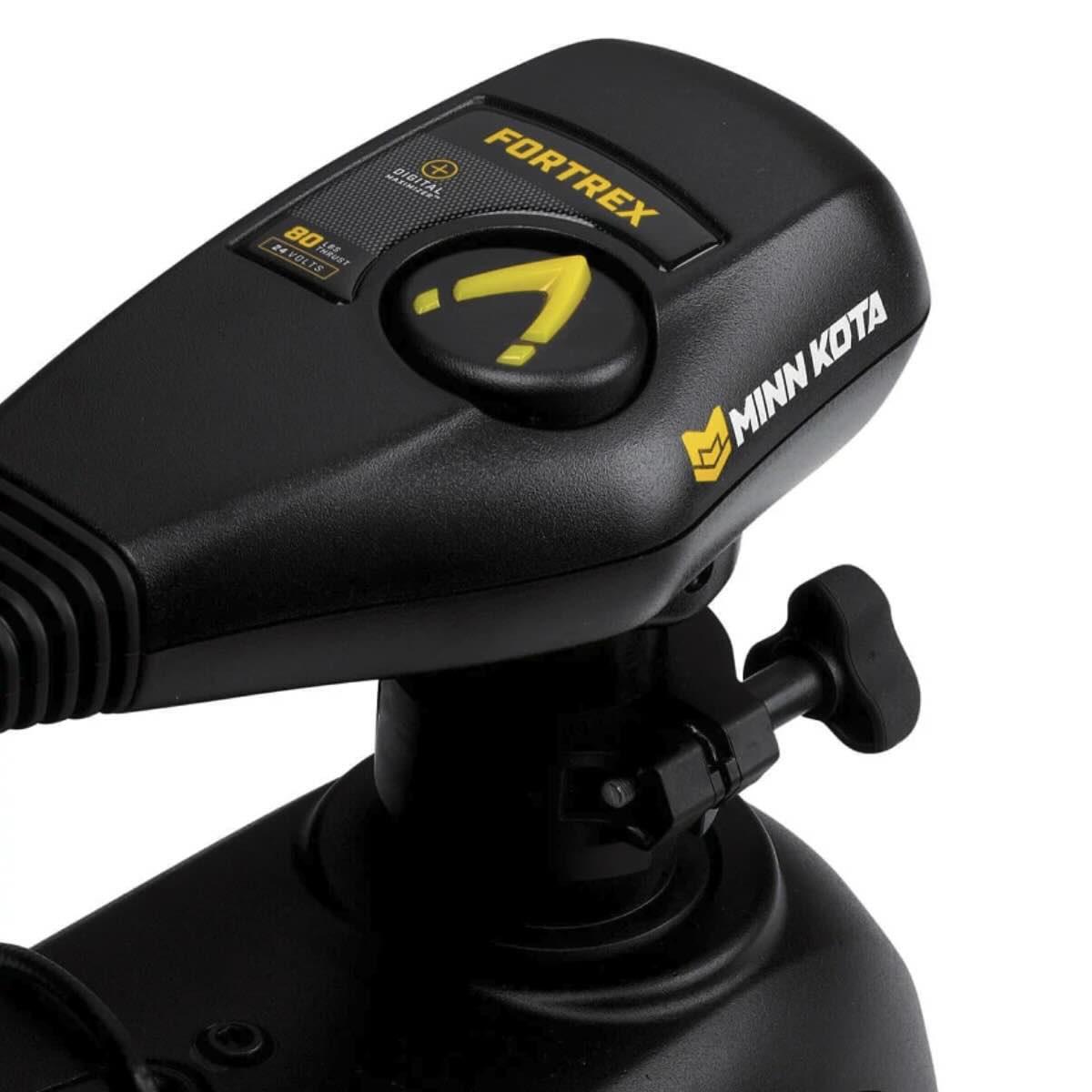

• Illuminated Directional Indicator – Navigate confidently in low light

• Weedless Wedge 2 Prop – Designed to power through thick vegetation

• Composite Shaft – Guaranteed for life

Specs:

• Voltage: 24V

• Shaft Lengths: 45" or 52"

• Max Amp Draw: 56 amps

• Speed Control: Variable

• Power Leads: 5 ft

• Pedal Cord: 5 ft

• Mount Dimensions:

  • 45" shaft: 26.7" x 6"

  • 52" shaft: 30.5" x 6"

• Installation: Bolts directly to the bow with included hardware (top-mount option available if under-deck access is limited)

Battery & Runtime:

• Battery Setup: Two 12V marine batteries required (not included)

• Estimated Run Times (per 100Ah battery):

  • 20+ hrs at low speeds

  • ~3.6 hrs at 50% throttle

  • ~1.8 hrs at full power

Included in the Box:

• Fortrex 80 trolling motor

• Foot pedal (approx. 12" x 9" x 7.5")

• Mounting hardware

• Power leads

• Owner’s manual

Warranty:

• Composite Shaft: Lifetime guarantee

• Motor: 2-year coverage, supported by nationwide Minn Kota service centers

Recommended For:

Freshwater v-hulls, bass boats, pontoons, and general fishing boats up to 25 feet.
