SUNGOLD POWER | 8KW HYBRID SOLAR INVERTER UL1741 STANDARD

HIGHLIGHT:

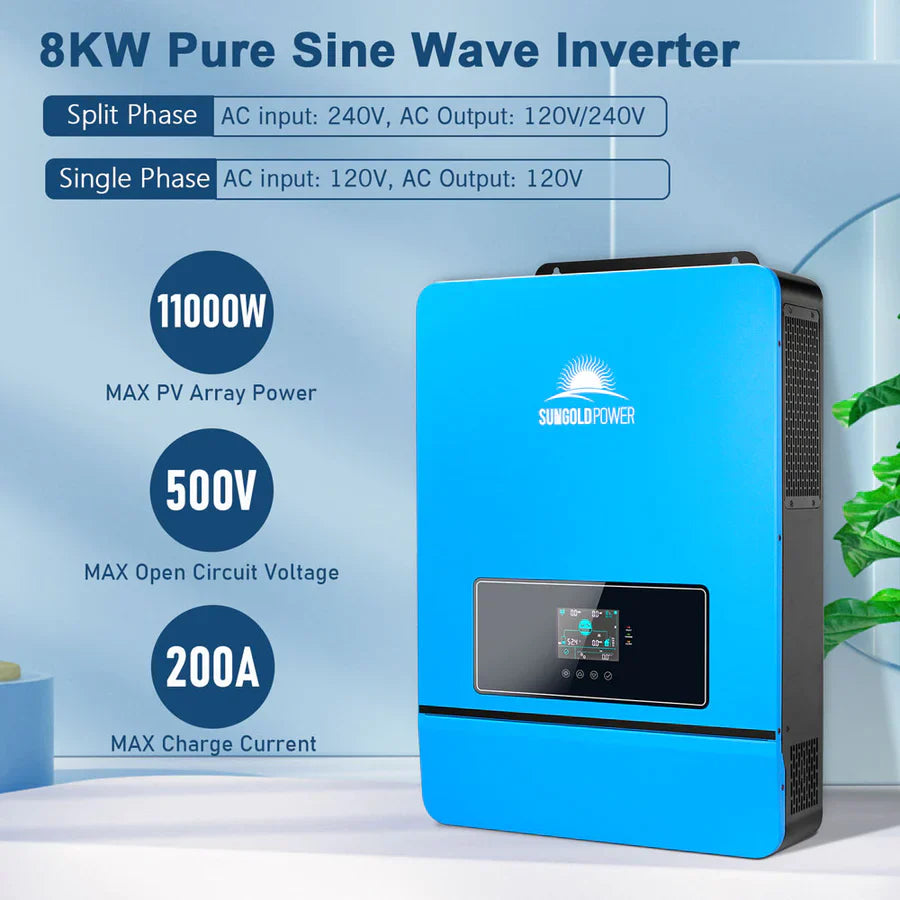

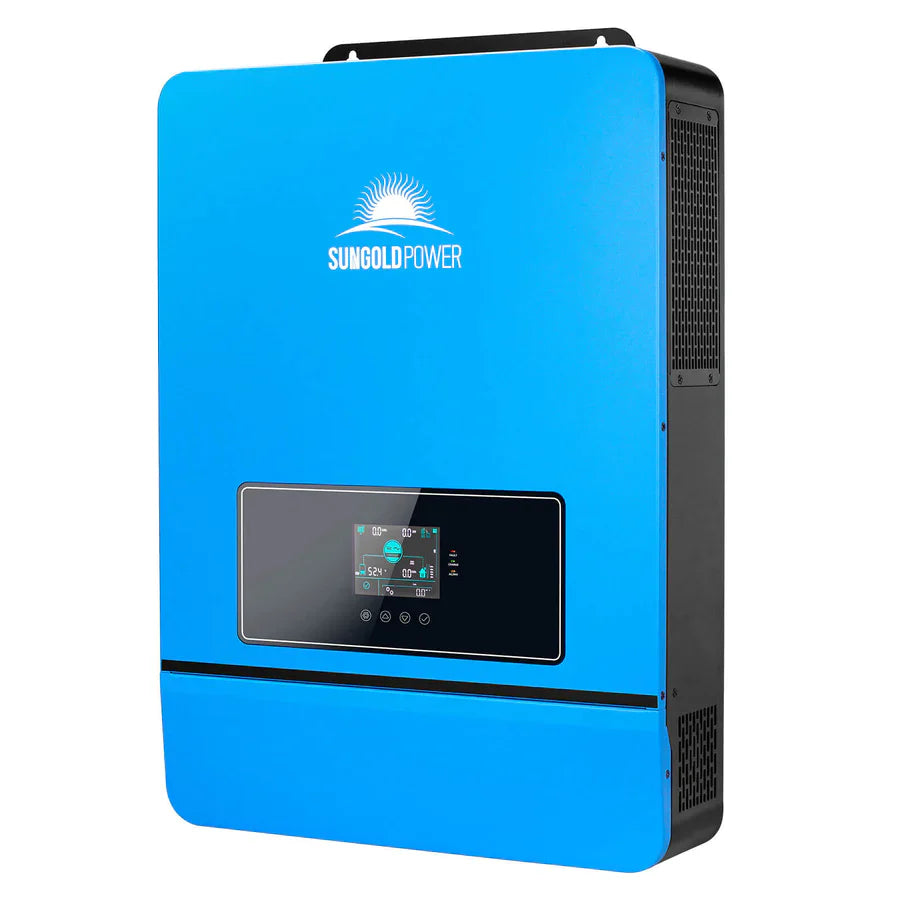

• All-in-One Unit: This 8KW Pure Sine Wave Solar Inverter features a maximum 200A battery charger and includes two built-in MPPT solar controllers. It supports an open circuit voltage of up to 500VDC and offers split-phase (120V/240V) or single-phase (120V) output. A WiFi module is included, enabling users to monitor the inverter's operating status and parameters through a mobile app.

  ★ Stable AC Output and Smart Protection: With a rated output power of 8000W and a maximum peak power of 16,000W, it can handle loads up to 6HP. The inverter offers protection against PV input over-voltage/current, AC input over-voltage, battery over-voltage, and overload, ensuring stable performance.

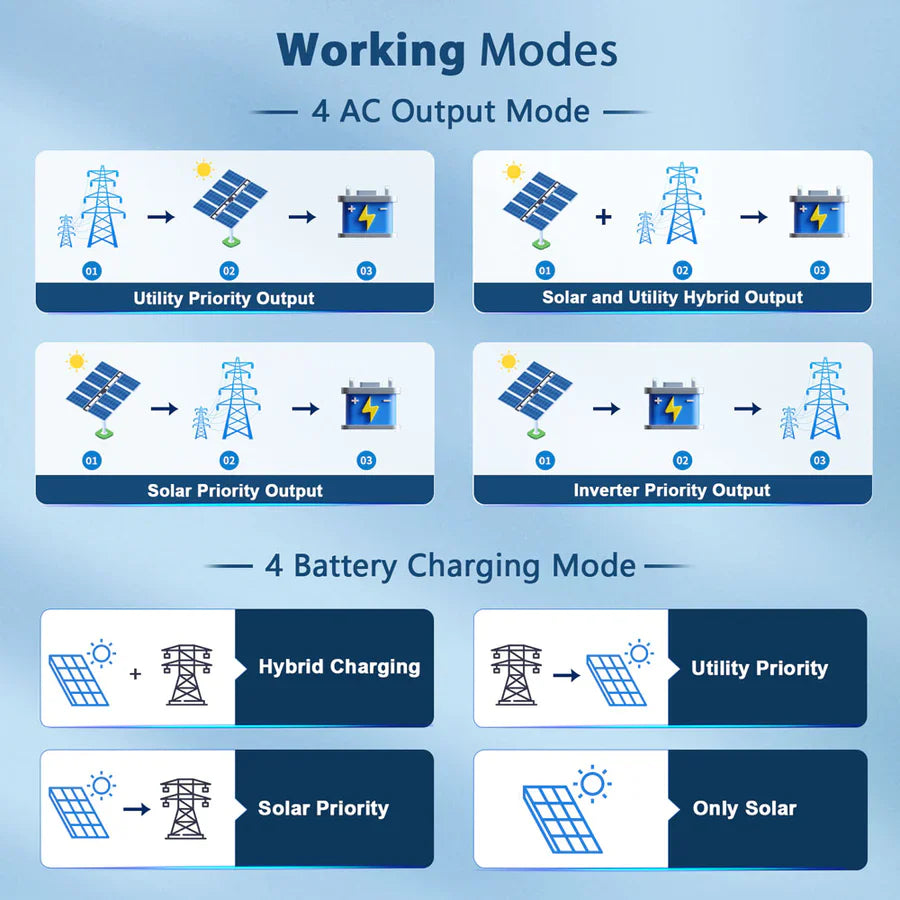

  ★ Four Charging/Output Modes: The inverter provides various modes, including Hybrid Charging, Utility Priority Charging, Solar Priority Charging, and Only Solar Charging. It also features four output modes: Utility Priority, Solar and Utility Hybrid, Solar Priority, and Inverter Priority to suit your specific needs.

  ★ Time-Slot Charging/Discharging Function: The SPH series includes a time-slot feature, allowing users to set different charging and discharging periods based on local peak and valley tariffs. This enables efficient use of utility power and PV energy.

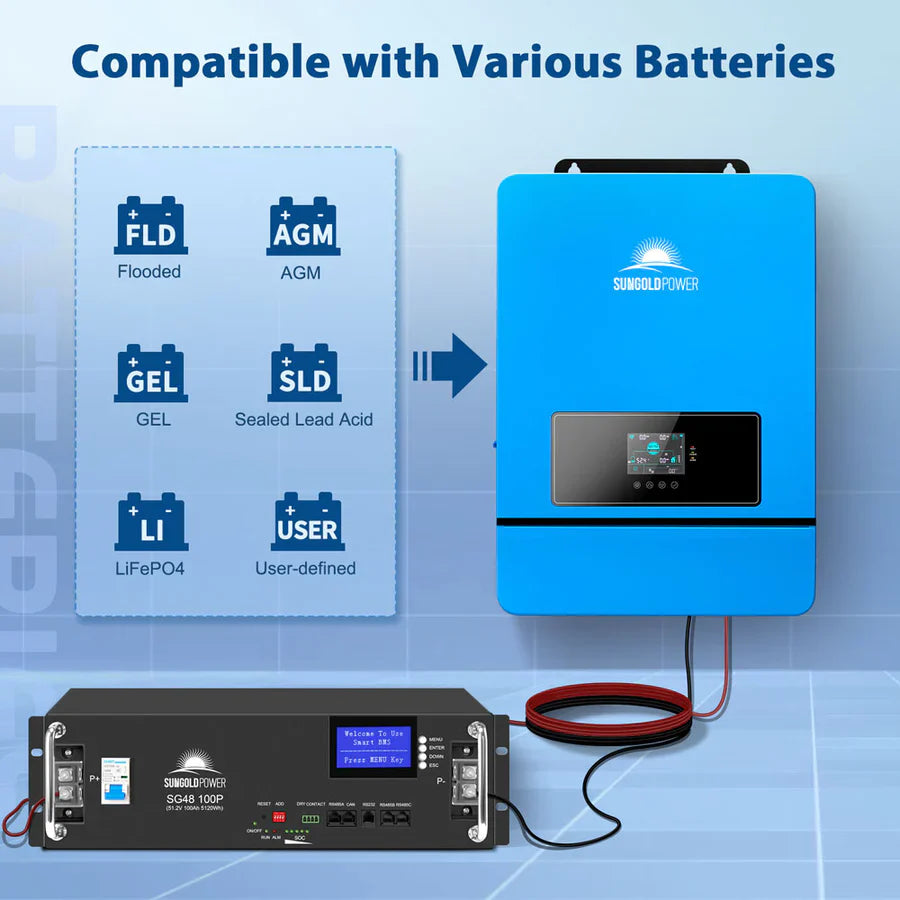

  ★ Battery Compatibility: Compatible with 48V AGM/Sealed, Gel, Flooded, Lithium batteries, and includes a User Mode for all battery types. It also supports battery-free operation, allowing mains power and photovoltaics to activate the lithium battery when dormant. Communication options include CAN, USB, and RS485 for use with SunGoldPower batteries.
