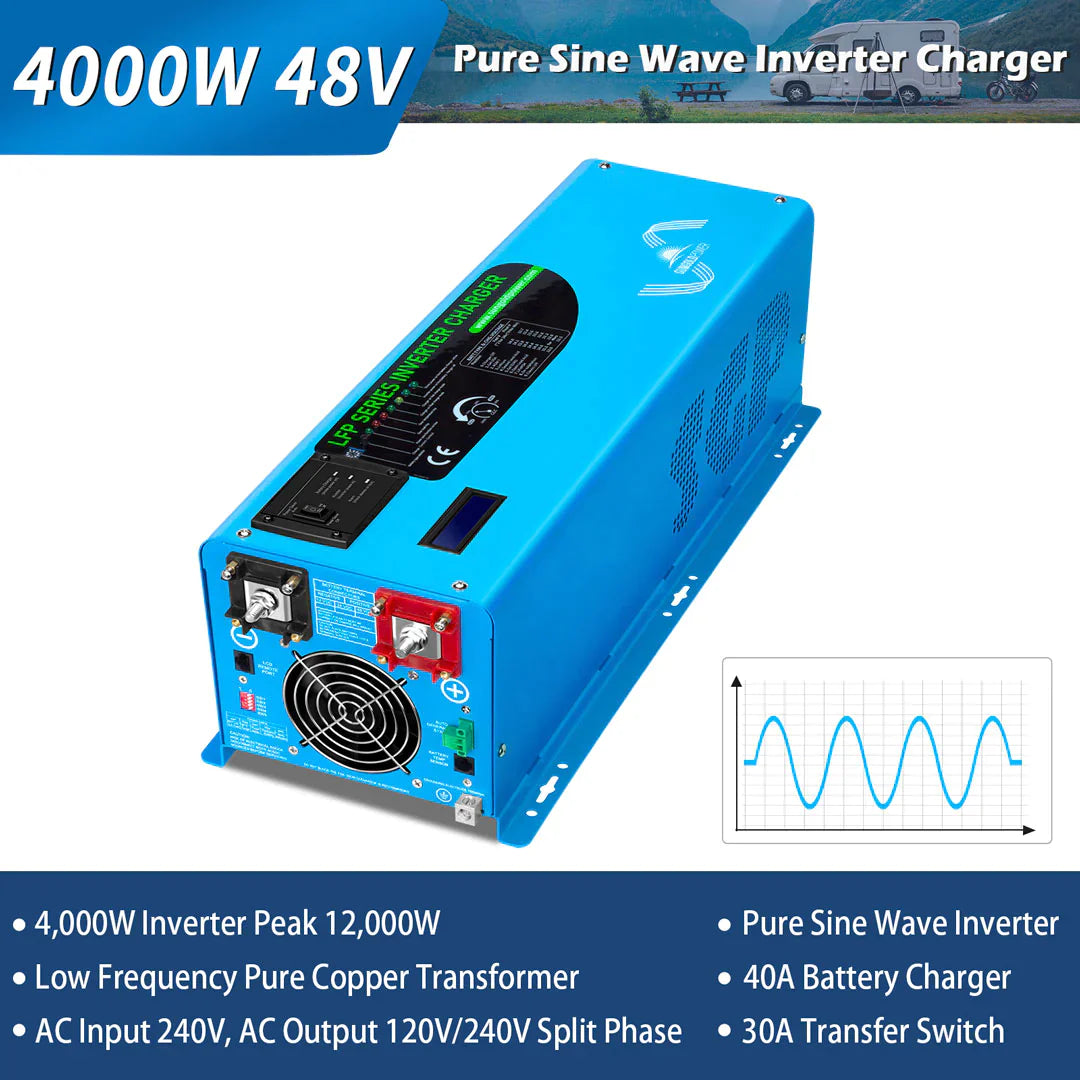

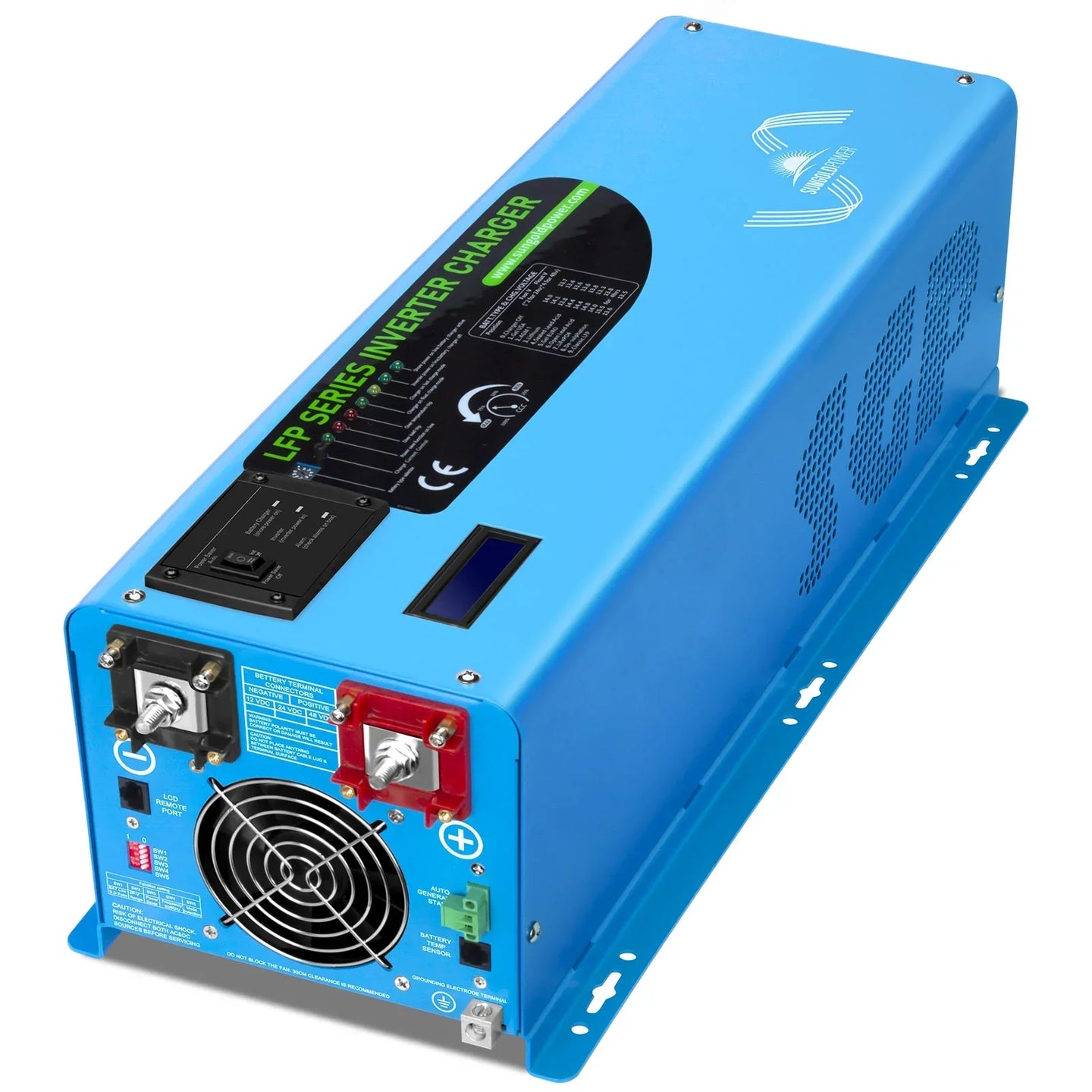

SUNGOLD POWER | 4000W DC 48V SPLIT PHASE PURE SINE WAVE INVERTER WITH CHARGER UL1741 STANDARD

The SunGoldPower LFP 4000 Watt DC 48V AC 120/240 Split Phase Inverter Charger is a high-quality, low-frequency power inverter designed for powering small homes, businesses, RV systems, trailers, or boats. This versatile inverter charger is ideal for off-grid setups or as an emergency backup supply.

This split-phase inverter requires a 240VAC input and can output 110/120 or 220/230/240VAC. It can also deliver either 50 or 60Hz via the SW4 switch. With the ability to produce two legs of 110V, it’s well-suited for both residential and commercial applications that utilize a 220 panel.

Key Features: ★ The inverter converts 48V DC power stored in batteries into AC electricity to run tools and appliances. ★ It includes a built-in 40 amp battery charger, enabling the grid or generator to recharge the batteries. ★ The transfer switch automatically toggles between shore power and battery power within 10 milliseconds.

Product Information

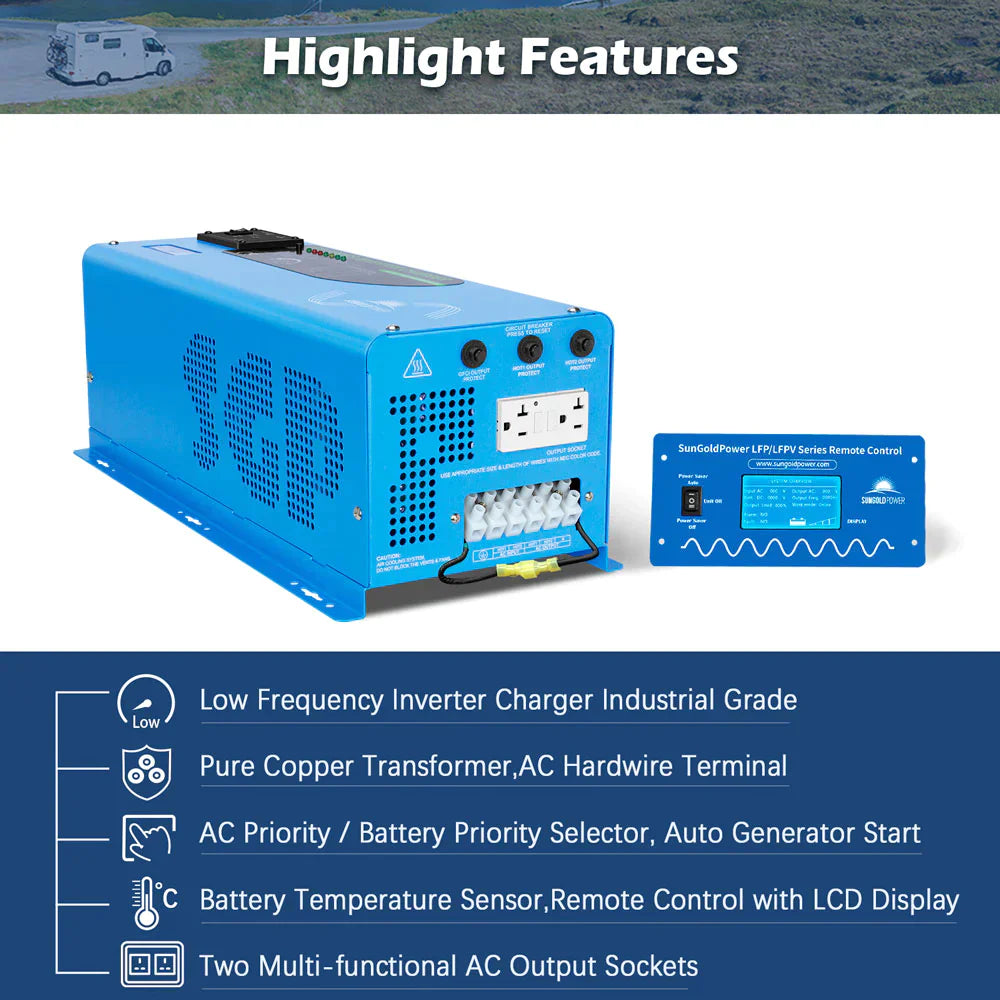

HIGHLIGHT:

• The LFP Series Pure Sine Wave Inverter combines an inverter, battery charger, and AC auto-transfer switch into one unit. It operates at low frequency, features low idle current, includes a BTS cable, and comes with a remote control. It meets UL1741 standards.

  ★ This split-phase, 4000-watt inverter requires a 240VAC input and can deliver 120VAC or 240VAC output to power various appliances. It is capable of producing 50 or 60Hz output via the SW4 switch.

  ★ AC/Battery Priority: The inverter is set to prioritize AC power by default, with the option to switch to battery priority using the SW5 switch.

  ★ Adjustable Charging Current: The maximum charge current can be set from 0% to 100% using a linear switch.

  ★ Auto Gen Start: The inverter can activate a generator when the battery voltage is low and will automatically shut it off once charging is complete.

  Main Features

  • 4000W Low Frequency Pure Sine Inverter with Charger.
  • AC/Battery Priority Selector.
  • Automatic Generator Start.
  • Safe and Convenient Design.
  • Capable of powering a variety of appliances.
  • LCD Display and Remote Control included.
  • Low Idle Power Consumption.
  • 9 battery type settings for the charger.
  • Multi-Stage Smart Charger rated at 40±5A (can be disabled).
  • Typical transfer time of 10 milliseconds.

  Inverter Output

  • Continuous Output Power: 4000W
  • Surge Rating: 12000W (for 20 seconds)
  • AC Output: 120V and 240V
  • AC Input: 240V
  • Output Wave: Pure Sine Wave (bypass mode)
  • Maximum Transfer Time: 10ms
  • Nominal Efficiency: >88%

  DC Input

  • Nominal Input Voltage: 48.0Vdc
  • Minimum Start Voltage: 40.0Vdc
  • Low Battery Alarm: 42.0Vdc - 44.0Vdc
  • Low Battery Trip: 40.0Vdc - 42.0Vdc (selectable by SW1)
  • High Voltage Alarm: 64.0Vdc
  • Low Battery Voltage Restart: 52Vdc
  • Idle Consumption: 48W
  • Power Saver Mode Idle Consumption: 19W

  AC Charger

  • Charger Rate: 40±5A
  • AC Input Range (Grid or Generator): 140V - 270VAC / 184V - 253VAC (selectable by SW2)
  • Overcharge Protection Shutdown: 62.8V
  • Selectable Charge Settings based on battery type
  • Adjustable Charge Current: Off 0% - 100%
  • 3-Step Intelligent Battery Charger

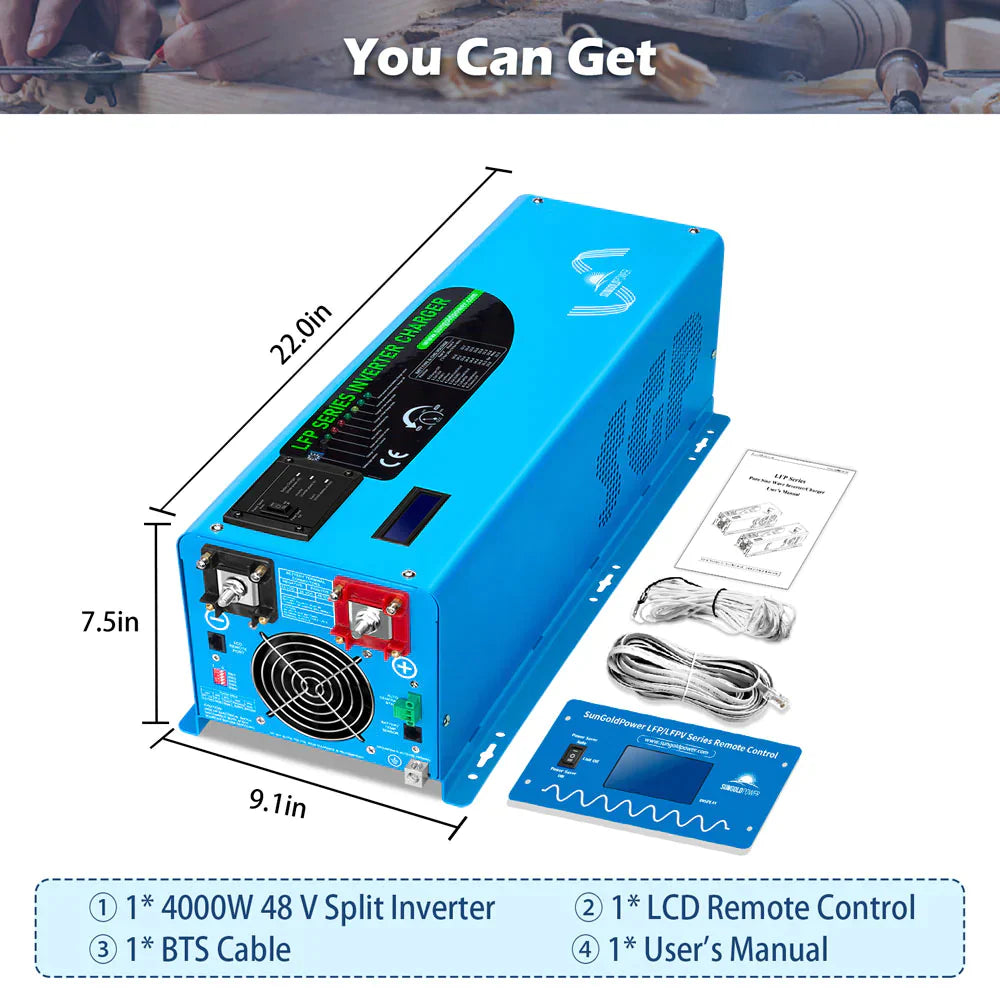

  Packaging

  • 4000W 48V Low Frequency Pure Sine Inverter
  • English Manual
  • Remote Control
  • BTS Cable
  • Unit Weight: 55 lbs
  • Unit Size: 22 x 9.1 x 7.5 inches
  • Shipping Weight: 64 lbs
  • Shipping Size: 27 x 13.4 x 13 inches
