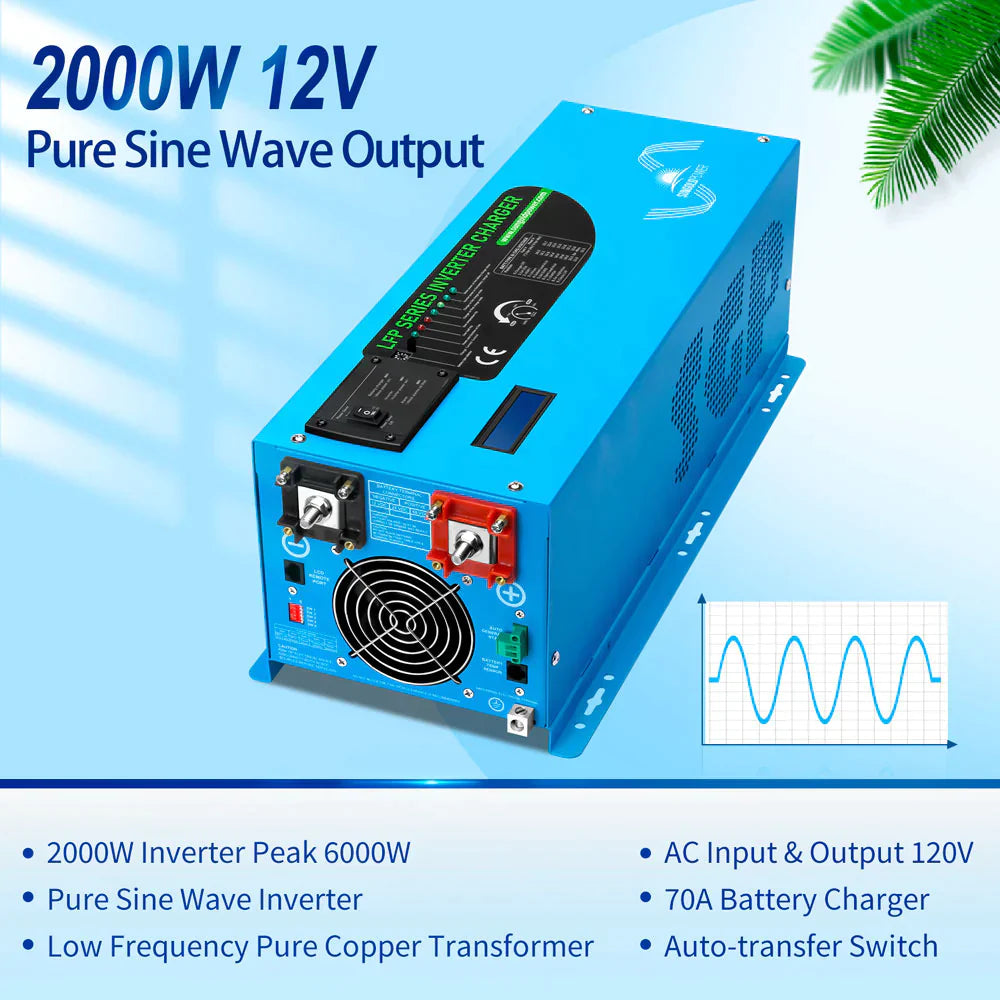

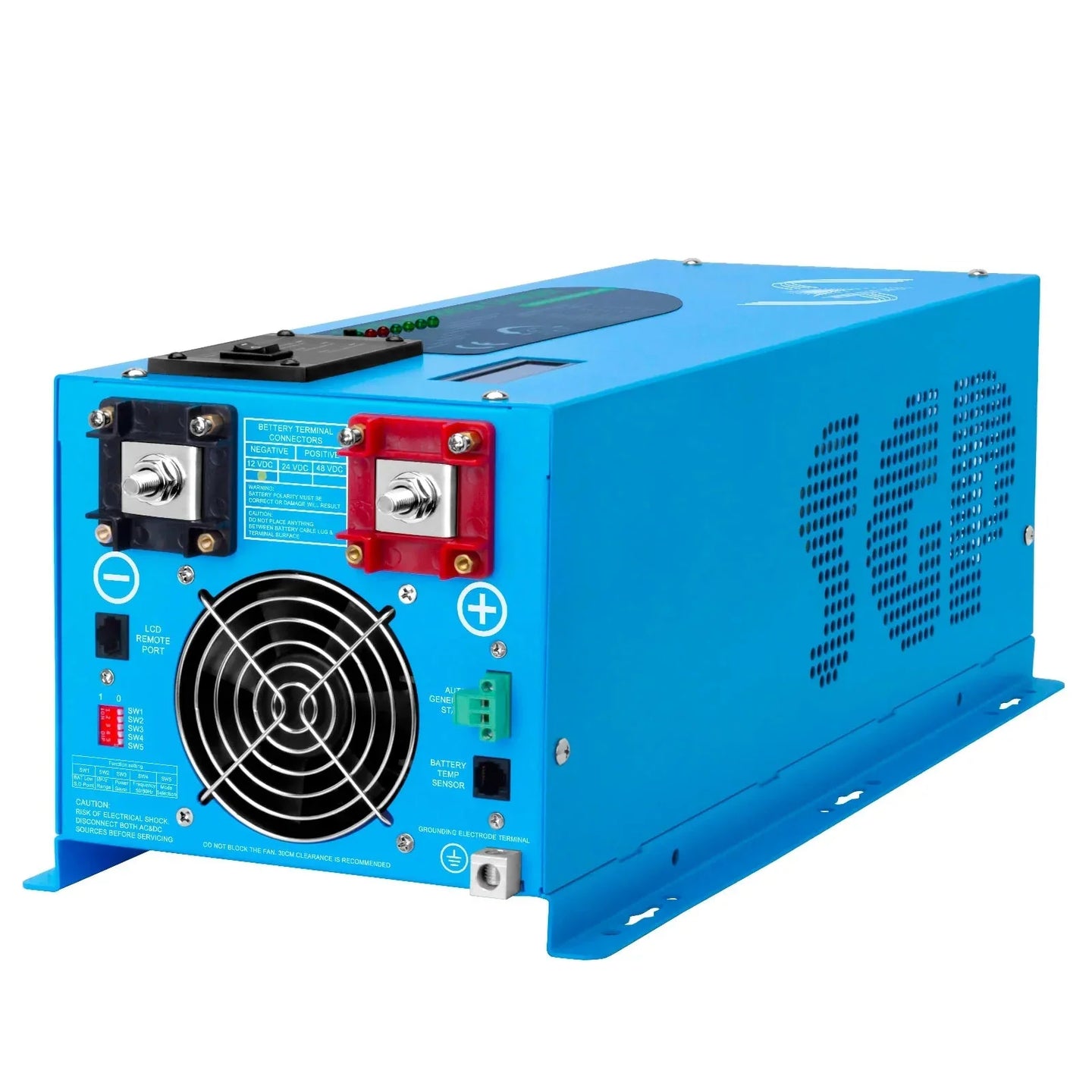

SUNGOLD POWER | 2000W DC 12V PURE SINE WAVE INVERTER WITH CHARGER

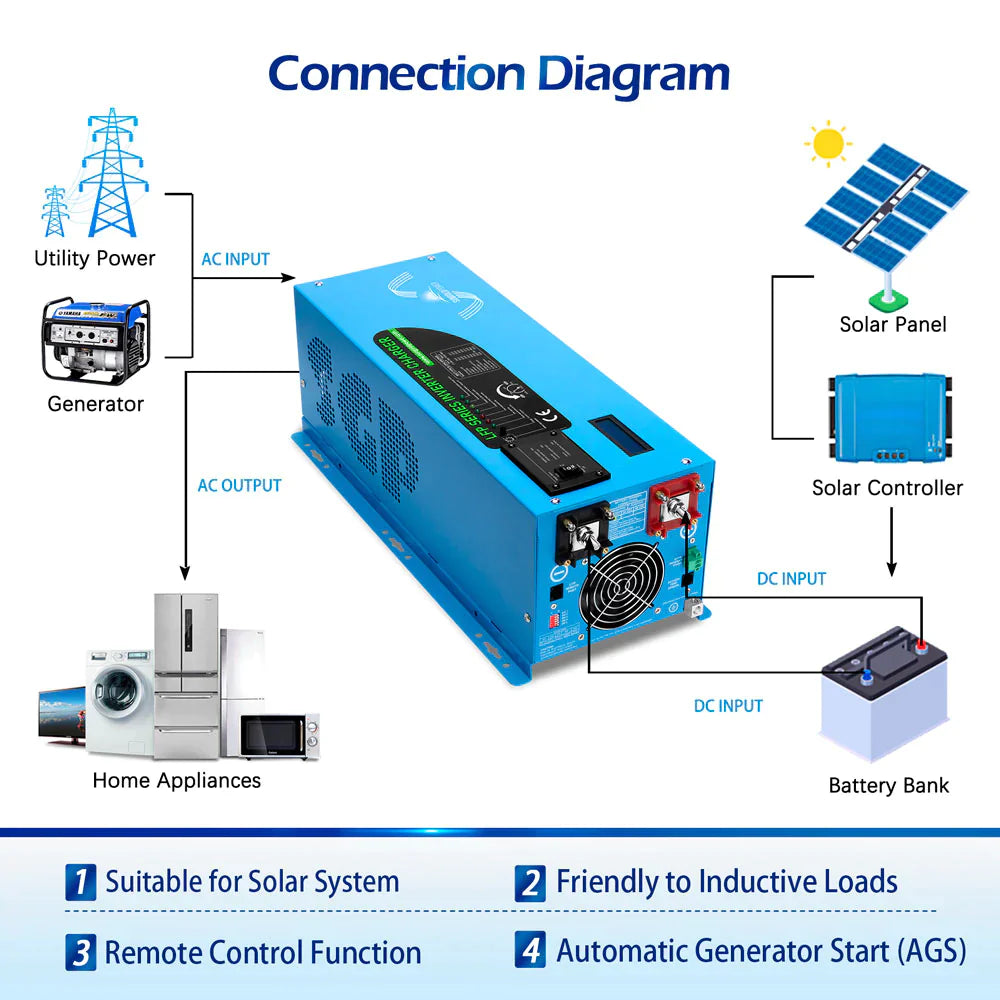

If you're in search of a high-quality pure sine-wave inverter with a powerful charger, the SunGoldPower low frequency inverter is the perfect option. This unit integrates an inverter, battery charger, and transfer switch into one complete system. It features a 12V DC to 120V AC conversion and boasts a 300% surge capacity for 20 seconds, making it ideal for supporting tools and equipment for extended periods. Commonly found in RVs, trailers, motorhomes, and truck campers, this inverter is an excellent choice for backup or off-grid power solutions. It requires a 120VAC input and can provide 120VAC output for various appliances, with the ability to output at 50 or 60Hz via the SW4 switch.

Product Information

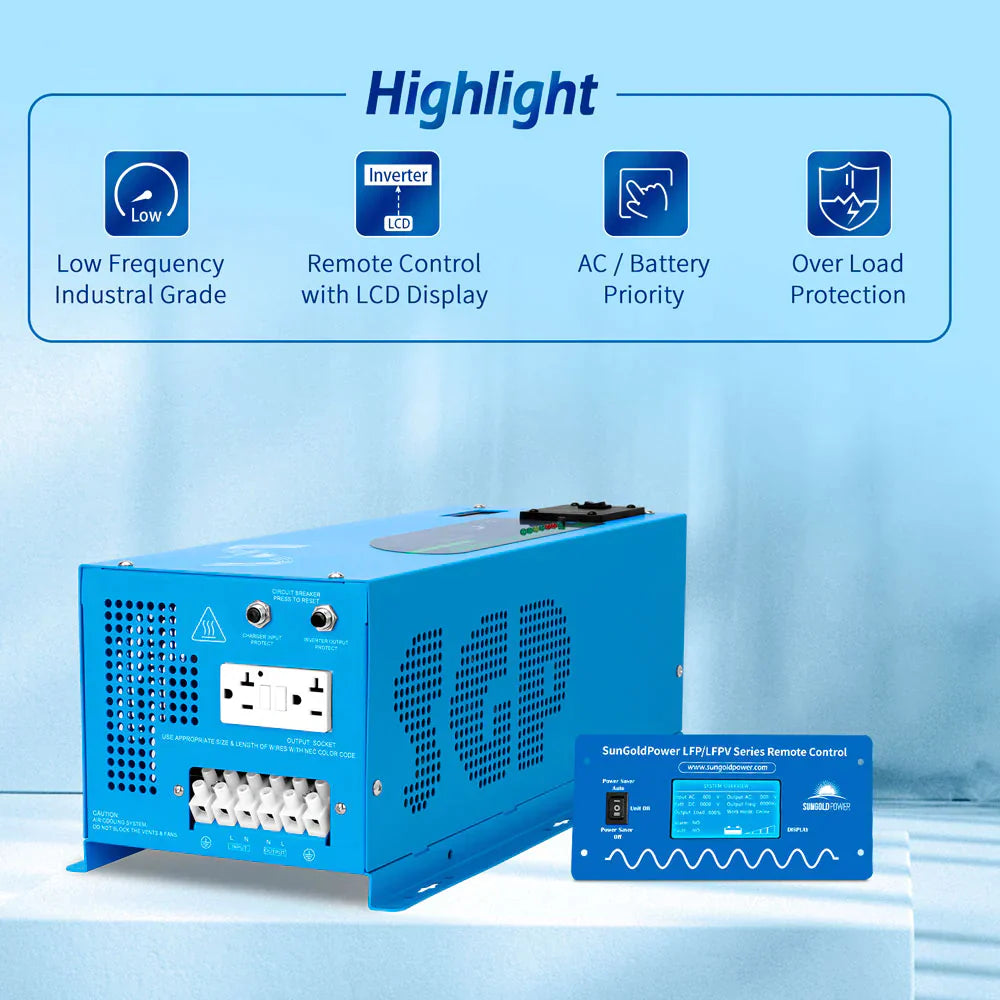

Highlight:

• The LFP Series 2000-Watt Pure Sine Wave Inverter combines an inverter, battery charger, and AC auto-transfer switch in one unit. It features low frequency, minimal idle current, a BTS cable, and remote control.

  ★ This 2000-watt inverter requires a 120VAC input and can deliver a 120VAC output to power various appliances, with a frequency output of either 50 or 60Hz via the SW4 switch.

  ★ AC/Battery Priority: By default, the inverter prioritizes AC, but you can switch to battery priority using the SW5 switch.

  ★ Adjustable Charging Current: The maximum charge current can be set from 0% to 100% using a linear switch.

  ★ Auto Gen Start: The inverter can automatically start a generator when battery voltage is low and will shut it off once charging is complete.

  Main Features

  • 2000W Low Frequency Pure Sine Inverter with Charger.
  • AC/Battery Priority Selector.
  • Automatic Generator Start.
  • GFCI Socket for safety and convenience.
  • Capable of powering various appliances.
  • LCD Display with Remote Control and BTS included.
  • Low idle consumption.

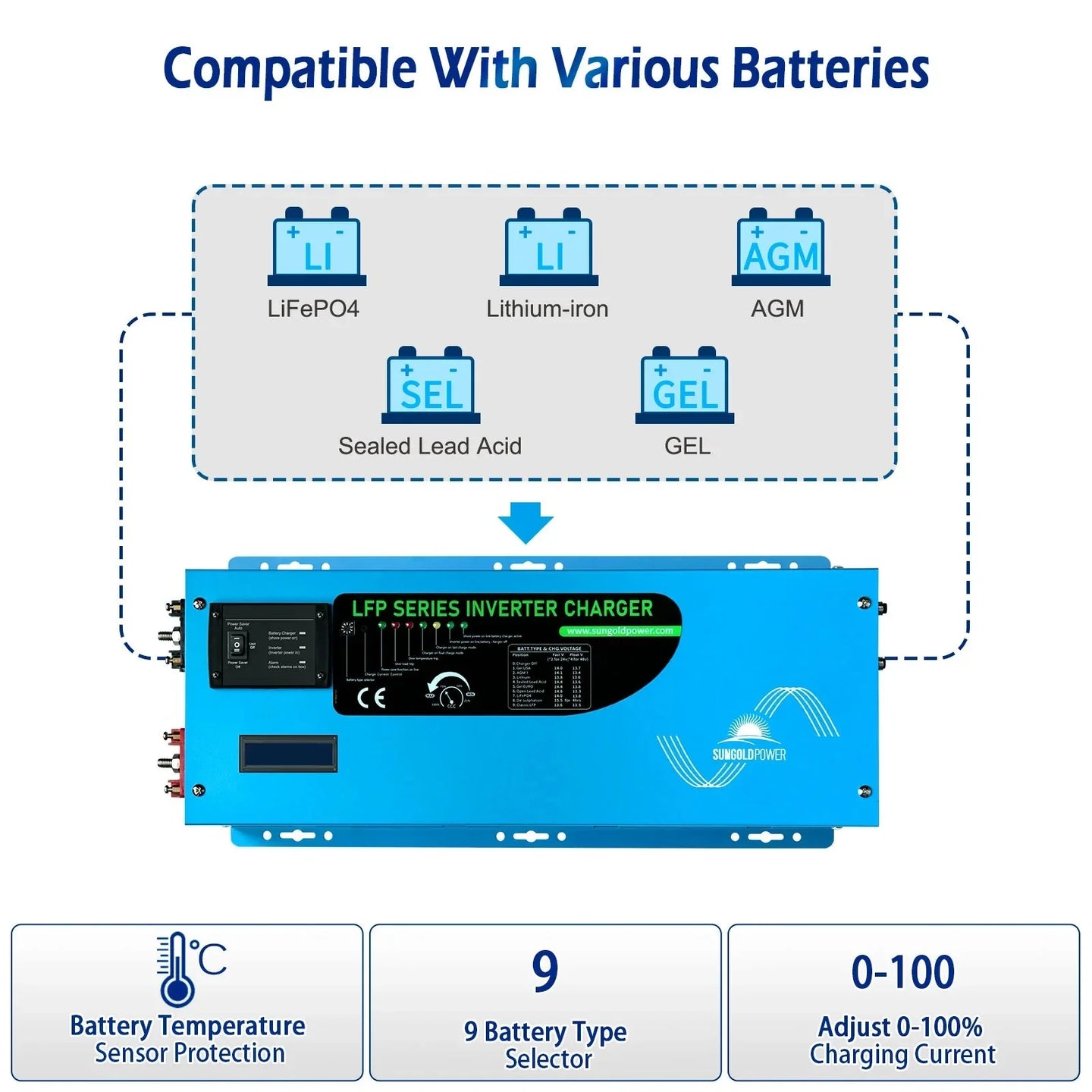

  • Nine battery type settings for the charger.
  • Multi-stage smart charger with a rate of 70±5A, which can be disabled.
  • Typical transfer time of 10 milliseconds.

  Inverter Output

  • Continuous Output Power: 2000W
  • Surge Rating: 6000W (for 20 seconds)
  • AC Output: 120VAC
  • AC Input: 120VAC
  • Output Waveform: Pure Sine Wave (bypass mode)
  • Typical Transfer Time: 10ms (maximum)
  • Nominal Efficiency: >88%

  DC Input

  • Nominal Input Voltage: 12.0Vdc
  • Minimum Start Voltage: 10.0Vdc
  • Low Battery Alarm: 10.5Vdc - 11.0Vdc
  • Low Battery Trip: 10.0Vdc - 10.5Vdc (selectable via SW1)
  • High Voltage Alarm: 16.0Vdc
  • Low Battery Voltage Restart: 13Vdc
  • Idle Consumption: 28W
  • Power Saver Mode Idle Consumption: 13W

  AC Charger

  • Charge Rate: 70±5A
  • AC Input Range (from Grid or Generator): 90V-135VAC/100V-135VAC (selectable via SW2)
  • Overcharge Protection Shutdown: 15.7V
  • Selectable Charge Settings based on battery type, with adjustable current from 0% to 100%
  • 3-step intelligent battery charger

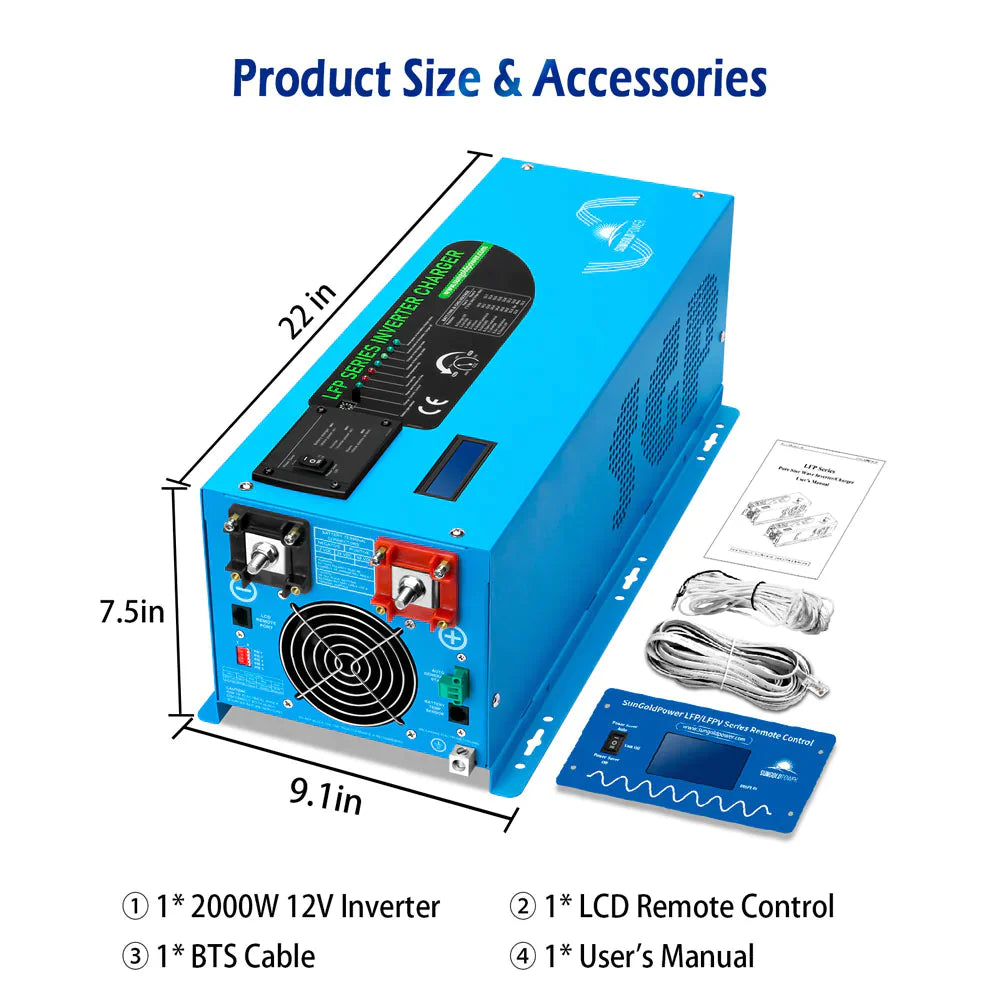

  Packaging

  • 2000W 12V Low Frequency Pure Sine Inverter
  • English Manual
  • Remote Control
  • BTS Cable
  • Unit Weight: 41.9 lbs
  • Unit Dimensions: 22 x 9.1 x 7.5 inches
  • Shipping Weight: 50.3 lbs
  • Shipping Dimensions: 26.8 x 13.4 x 13 inches
