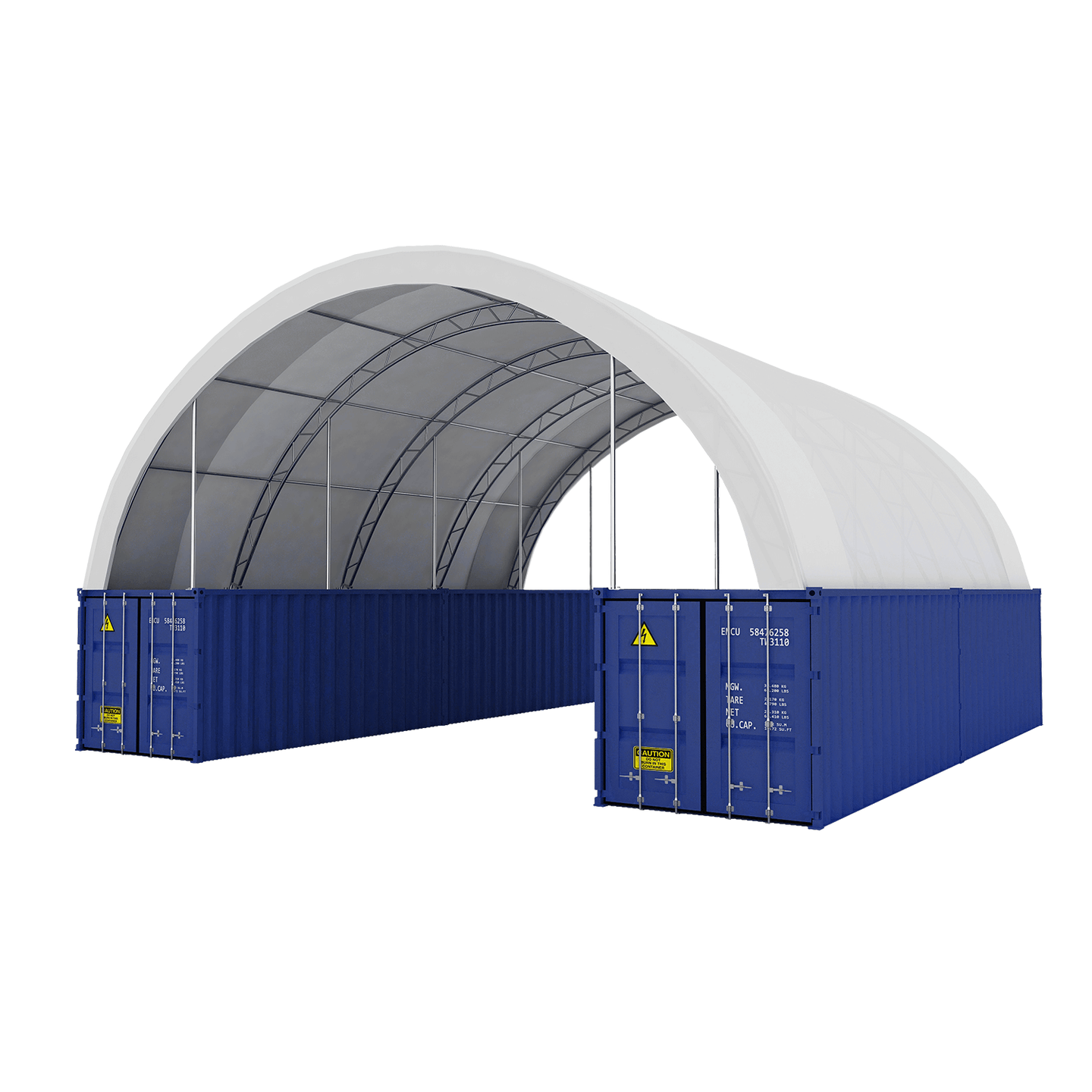

Shipping Container Canopy Shelter Double Truss 40'x40'x15'

Overview

Durable, spacious shelter built for all-weather protection. It uses a robust double truss system for stability and long life. Great for storing vehicles, equipment, or supplies. Simple to assemble and ready to protect what you value.

Benefits

• All-weather protection for vehicles, equipment, and supplies.
• Double truss design adds stability in wind and snow.
• No interior poles; full interior space is usable.
• Long-lasting frame with hot-dip galvanized steel.
• Versatile for industrial, commercial, and agricultural use.

Features

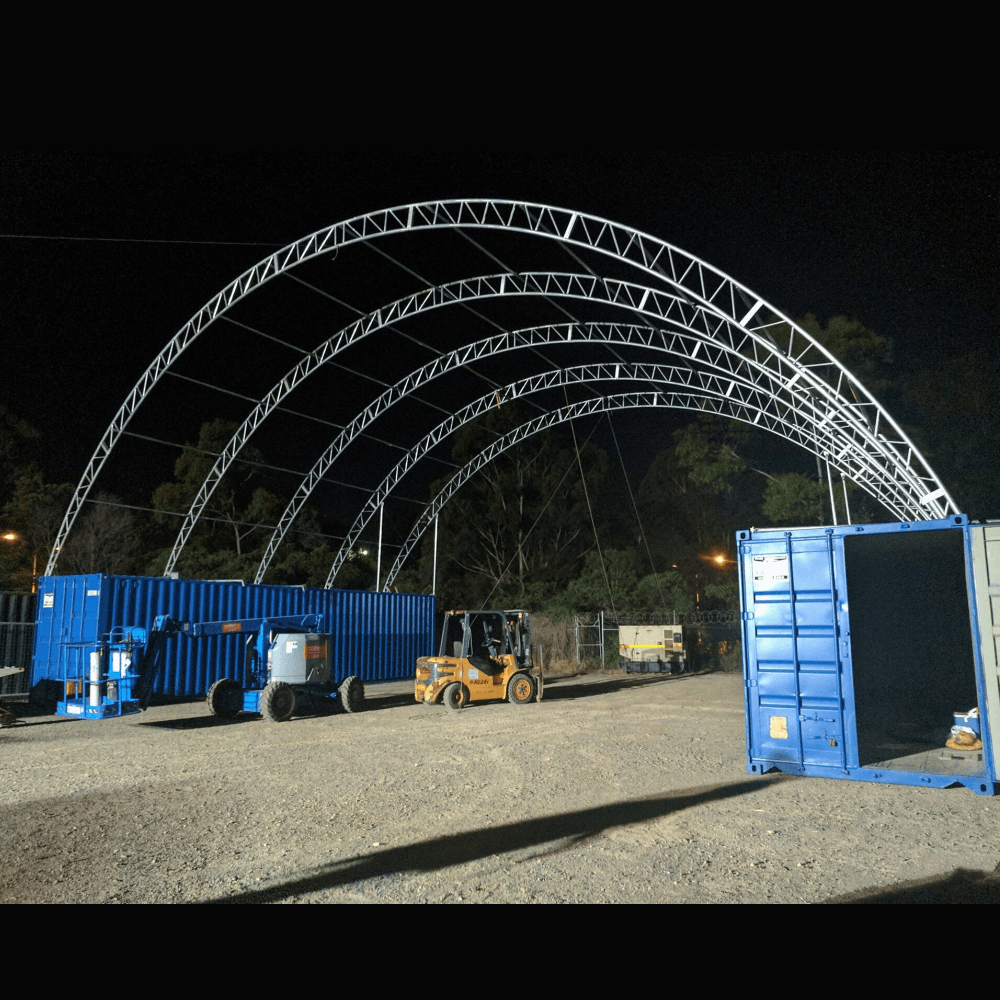

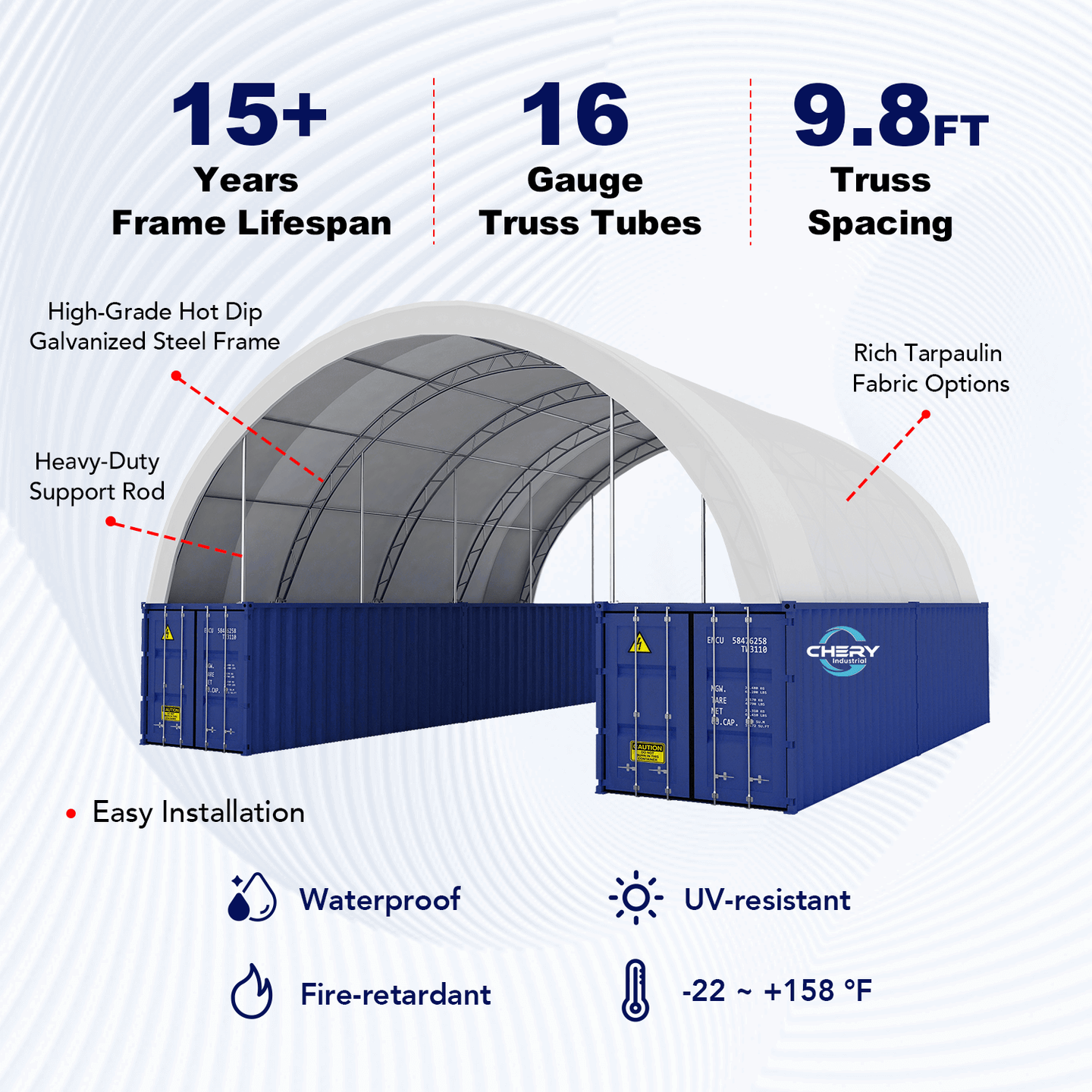

• Double Truss galvanized tube frame for stability.
• High-grade hot-dip galvanized steel structure.
• Fabric options range from 11oz PE to 32oz PVC tarpaulins.
• Fabric features: waterproof, UV-resistant, fire-retardant, self-cleaning.
• Temperature range: -22 to +158 °F.
• Arch Interval: 9.8 ft; Arch Ø: Ø60x1.5 mm; Purlin Ø: Ø48x1.5 mm.
• Tension system: pipe and ratchet tie-down; Easy installation: twist-lock and clamp; Weld: base plates welded to containers.
• Installation assumes setup on the inner edge of the container; outer-edge setup needs extra support tubes.
• Heavy-duty PVC cover designed for winter; frame resists wind and snow.
• DIY assembly time: shelter about 2 days with 4 people; front or back wall adds about ½ day per wall.

Specifications

• Model: C4040S Dome Container Shelter

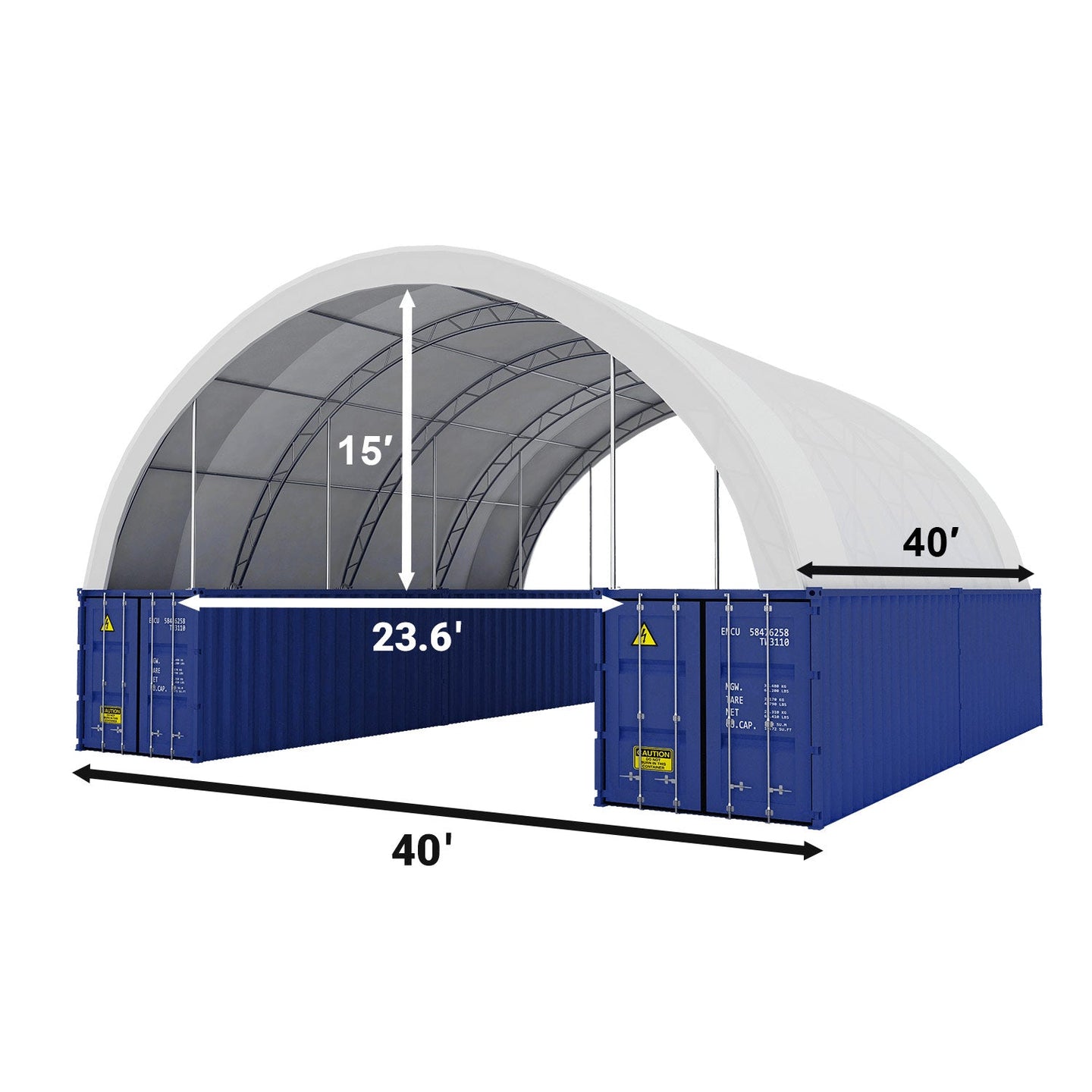

• Dimension (ft): W40 x L40 x H15
• Frame: Double Truss Galvanized Tube
• Steel Structure: High-Grade Hot Dip Galvanized Steel
• Fabric options: 11oz PE (300 gsm); 15oz PVC (450 gsm); 22oz PVC (610 gsm); 23oz PVC (650 gsm); 32oz PVC (900 gsm)
• Fabric Features: Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning
• Temperature resistance: -22 to +158 °F
• Arch Interval: 9.8 ft
• Arch Ø: Ø60x1.5
• Purlin Ø: Ø48x1.5
• Tension System: Pipe and Ratchet Tie-Down
• Easy Installation: Twist-lock and clamp installation
• Weld: Base plates need to be welded on the containers
• Average assembly time for DIY with 4 persons: Shelter 2 days; Front or back wall ½ day per wall
• Safety: PFAS-free and EU REACH compliant
• Tarp Lifespan: 7-10 years
• Frame Lifespan: 15+ years
• Warranty: PE 2 years; PVC 8 years
