FEATURES

• IP65-rated waterproof and dustproof design ensures reliable performance in various environmental conditions.
• Customizable color settings with the integrated RGB LED bar.
• Built-in Wi-Fi for mobile monitoring (App required).
• Alternative input port for generator connection and emergency loads.
• Optional external CT sensor for ensuring 100% self-consumption.
• Programmable power supply priority for PV, battery, or grid.
• Integrated communication port for BMS (RS485).
• Adjustable charging current and voltage for user customization.
• Supports parallel operation of up to 6 units.

TECH SPECS

Specifications:

• Maximum PV Input Power: 7500W
• Rated Output Power: 6000VA / 6000W
• Parallel Capability: Yes, up to 6 units

INPUT:

• Maximum DC Voltage: 600VDC
• Start-up / Initial Feeding Voltage: 120VDC / 160VDC
• MPPT Voltage Range: 120VDC – 550VDC
• Frequency Range: 50Hz / 60Hz (Auto-detection)

OUTPUT:

• Output Voltage Waveform: Pure Sine Wave
• Nominal Output Voltage: 120VAC (P-N) / 208VAC (P-P) / 240VAC (P-P)
• Output Voltage Range: 105.5V – 132VAC per phase
• Nominal Output Current: 25A per phase

BATTERY:

• Battery Voltage: 40VDC – 62VDC
• Maximum Charging Current: 120A
• Efficiency (DC to AC): 91%

OPERATING ENVIRONMENT:

• Operating Temperature Range: -25°C to 60°C (Derating above 45°C)

PHYSICAL:

• Dimensions: 8.5 x 20.3 x 27.6 in (215.5 x 515 x 700 mm with extension box)
• Net Weight: 90.4 lb / 41 kg

User Manual & Specification

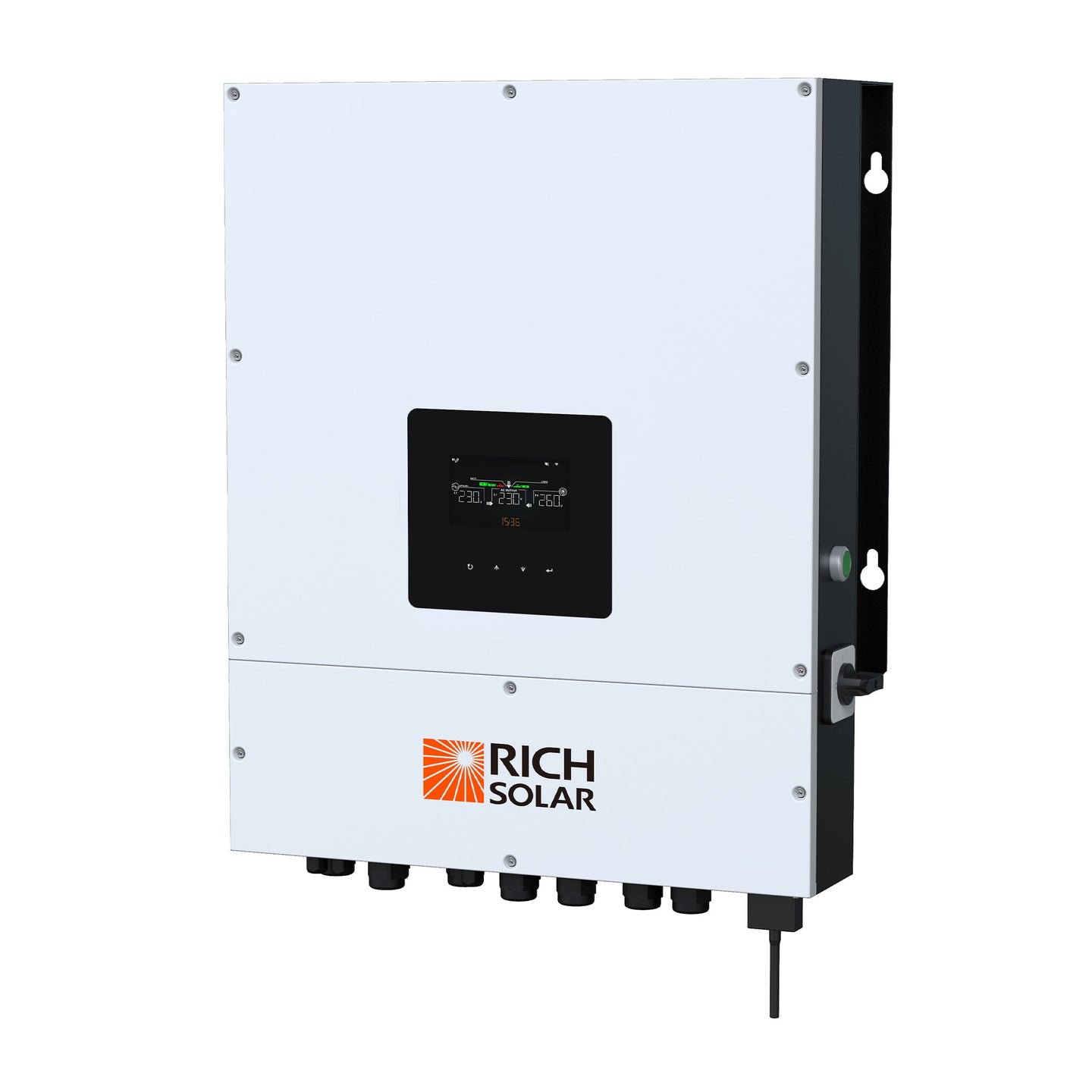

6000 Watt 48 Volt Off-grid Hybrid Inverter
