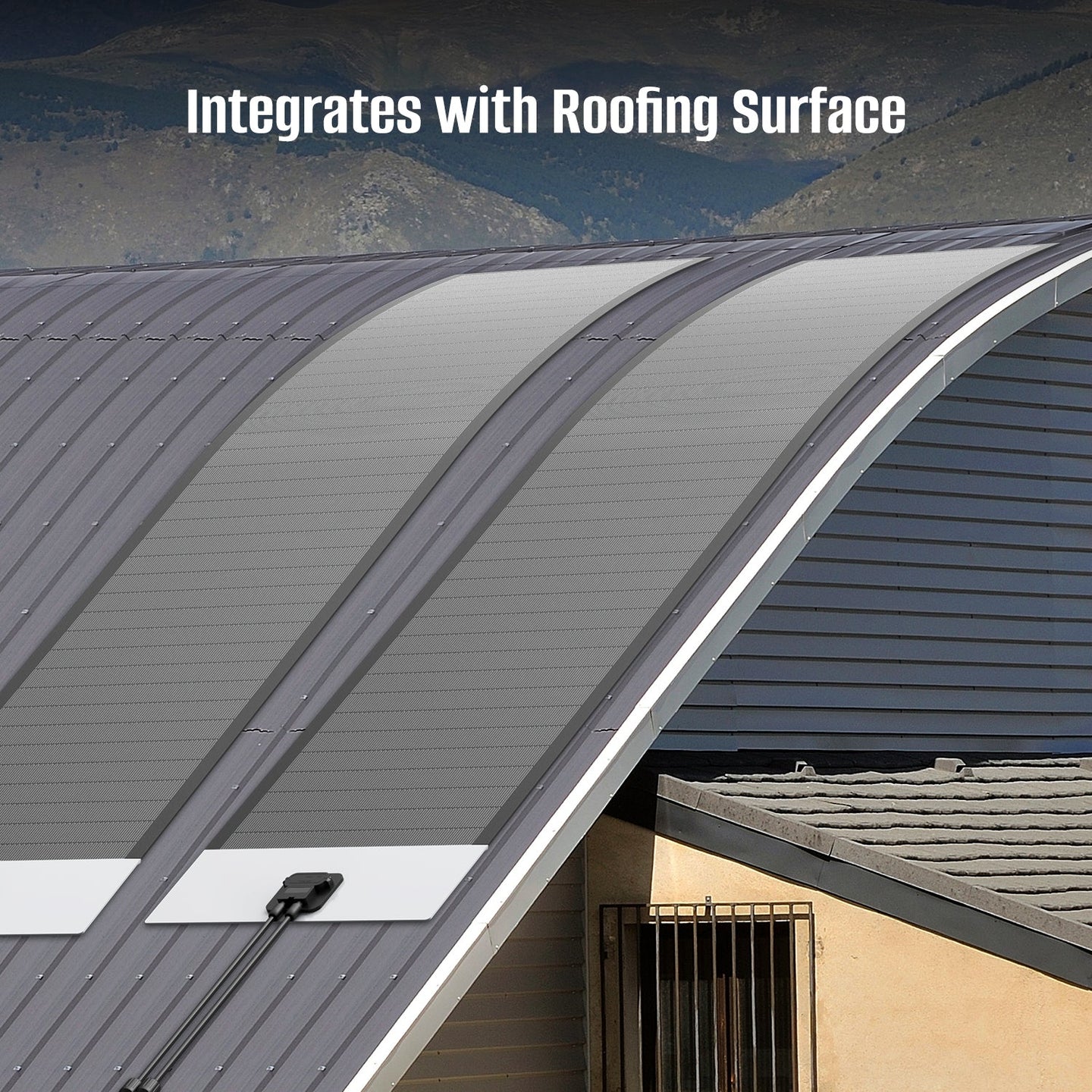

Seamless Roof Integration

• Simple installation with an adhesive mounting system
• No need for mounting hardware
• No roof penetration required
• Eliminates wind load concerns
• Low-profile design

Flexible Solar Panels

• Compatible with various roof types (marine, RVs, vans, residential, etc.)
• Conforms to roof contours for a custom fit
• Built for durability and weather resistance

Adhesive Mounting System

• Special adhesive materials designed for rooftop use
• No screws required for installation
• Reduces wear and tear on your roof
• Theft-resistant design

Lightweight System

• Flexible installation options to suit different setups
• Minimizes stress on the roof structure
• Aerodynamically designed

High Efficiency

• Utilizes advanced CIGS technology
• High light absorption rate
• Performs well in diverse lighting conditions
• Tolerates shade effectively

Protection Tip

Built-in Components

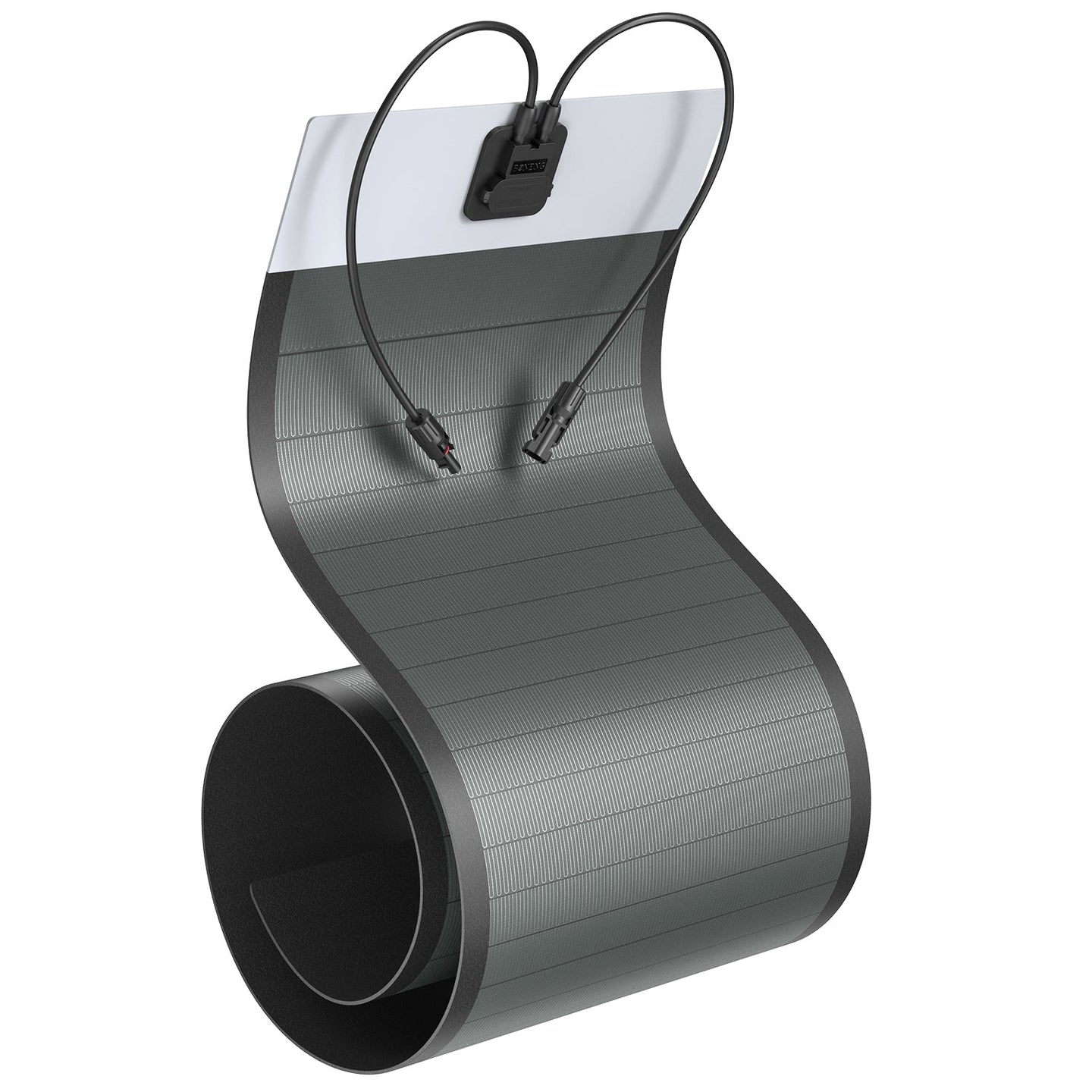

• 80W Flexible Solar Panel
• CIGS Cell Technology
• Panel Leads (Pair): 12AWG, 2ft each

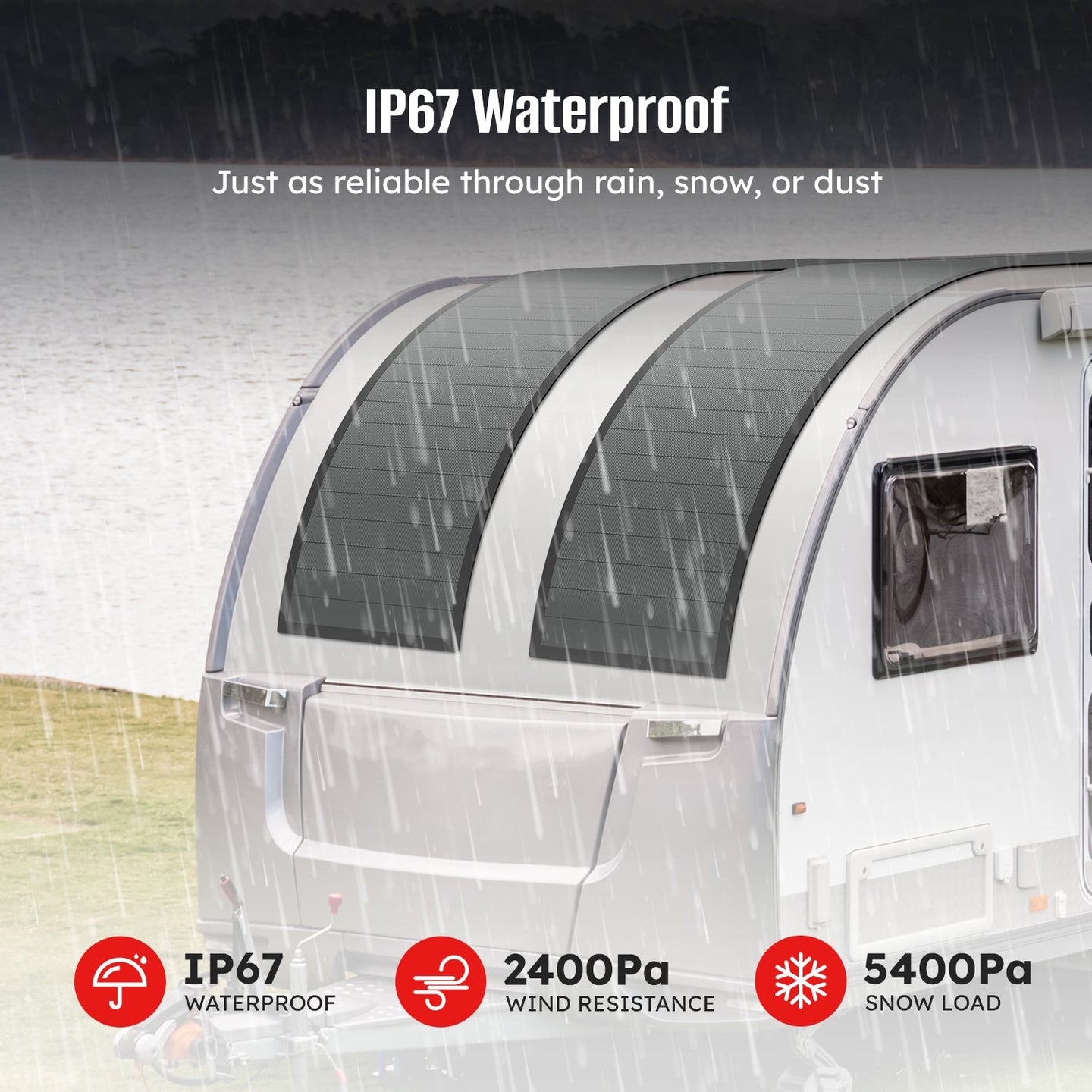

• IP67-rated waterproof junction box
• IP67-rated waterproof connectors

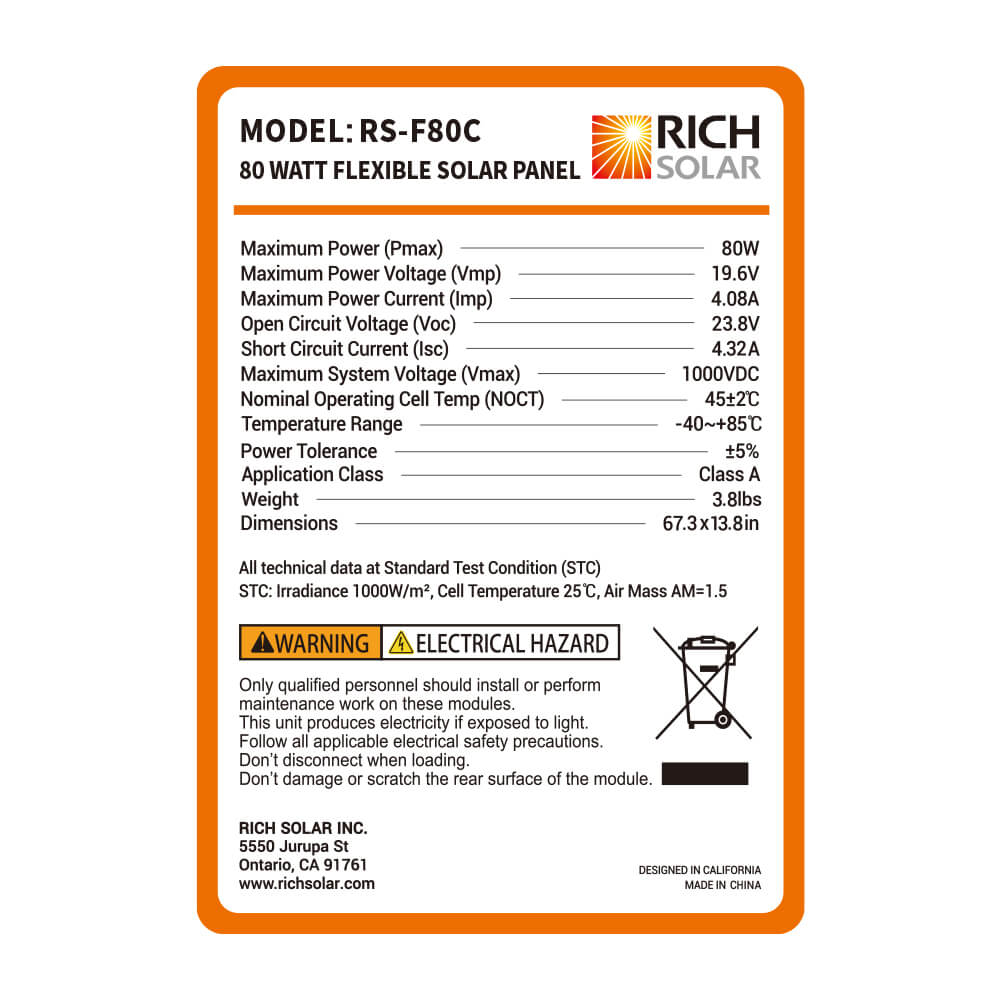

Specifications

• Maximum Power (Pmax): 80W
• Maximum Power Voltage (Vmp): 19.6V
• Maximum Power Current (Imp): 4.08A
• Open Circuit Voltage (Voc): 23.8V
• Short Circuit Current (Isc): 4.32A
• Maximum System Voltage (Vmax): 1000VDC
• Max Series Fuse Rating: 10A
• Weight: 3.8 lbs
• Dimensions: 67.3 x 13.8 inches
