Everything You Need to Go Fully Off-Grid!

Embark on your off-grid adventure with this comprehensive travel trailer solar system, featuring flexible solar panels ideal for RVs and tiny homes. Start your solar journey today and experience the best value on the market!

Shipped directly from California – and we offer free technical support! Call us with any questions!

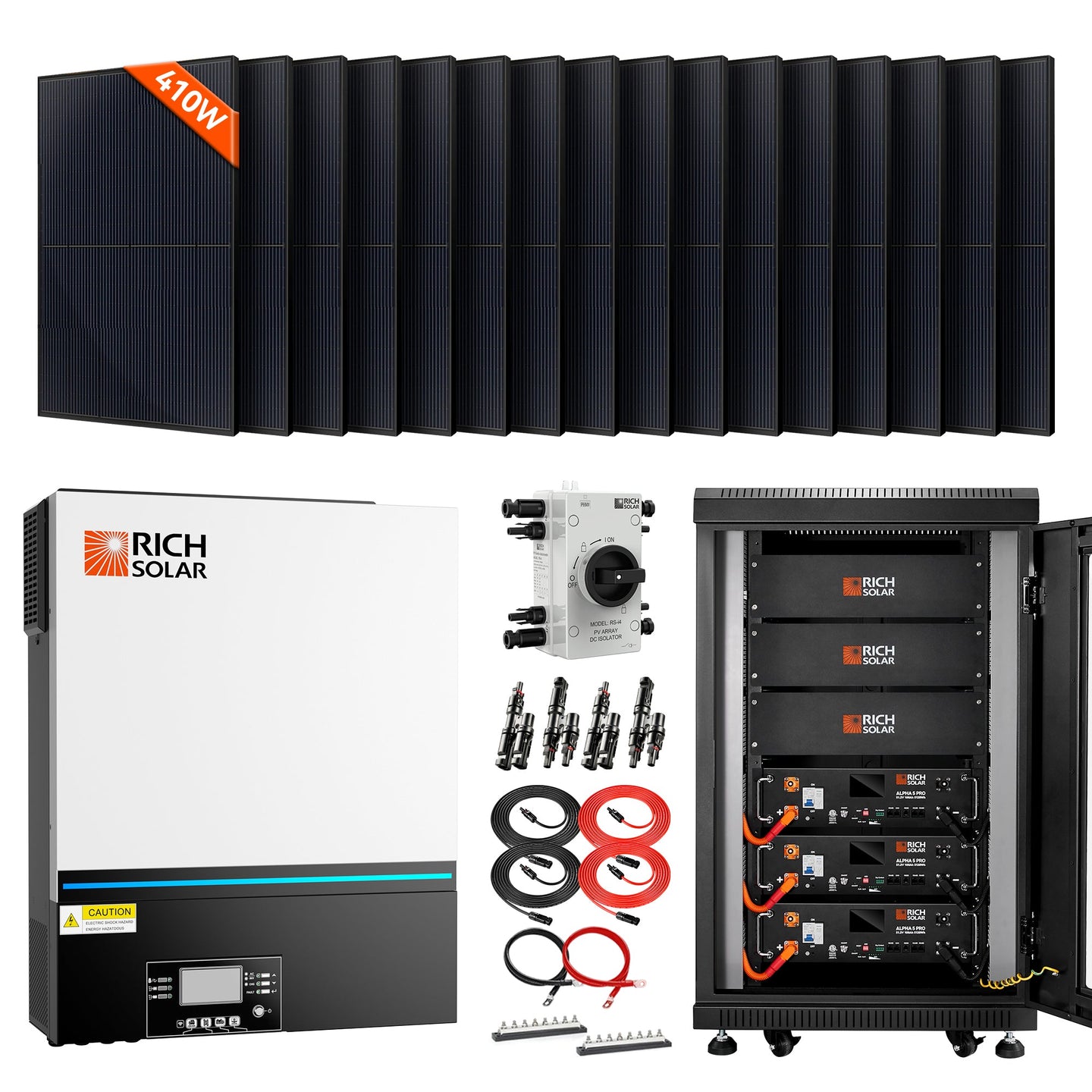

The Kit Includes:

Solar Panel Options:

🗹 16 x MEGA 410W Monocrystalline Solar Panels (RS-M410)
🗹 1 x 6500W (6.5kW) 48V Off-Grid Hybrid Solar Inverter (RS-H6548)
🗹 3 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Batteries (RS-B5121P1)
🗹 1 x Free Battery Rack (RS-RK)
🗹 1 x Solar PV DC Quick Disconnect Switch (RS-i4)

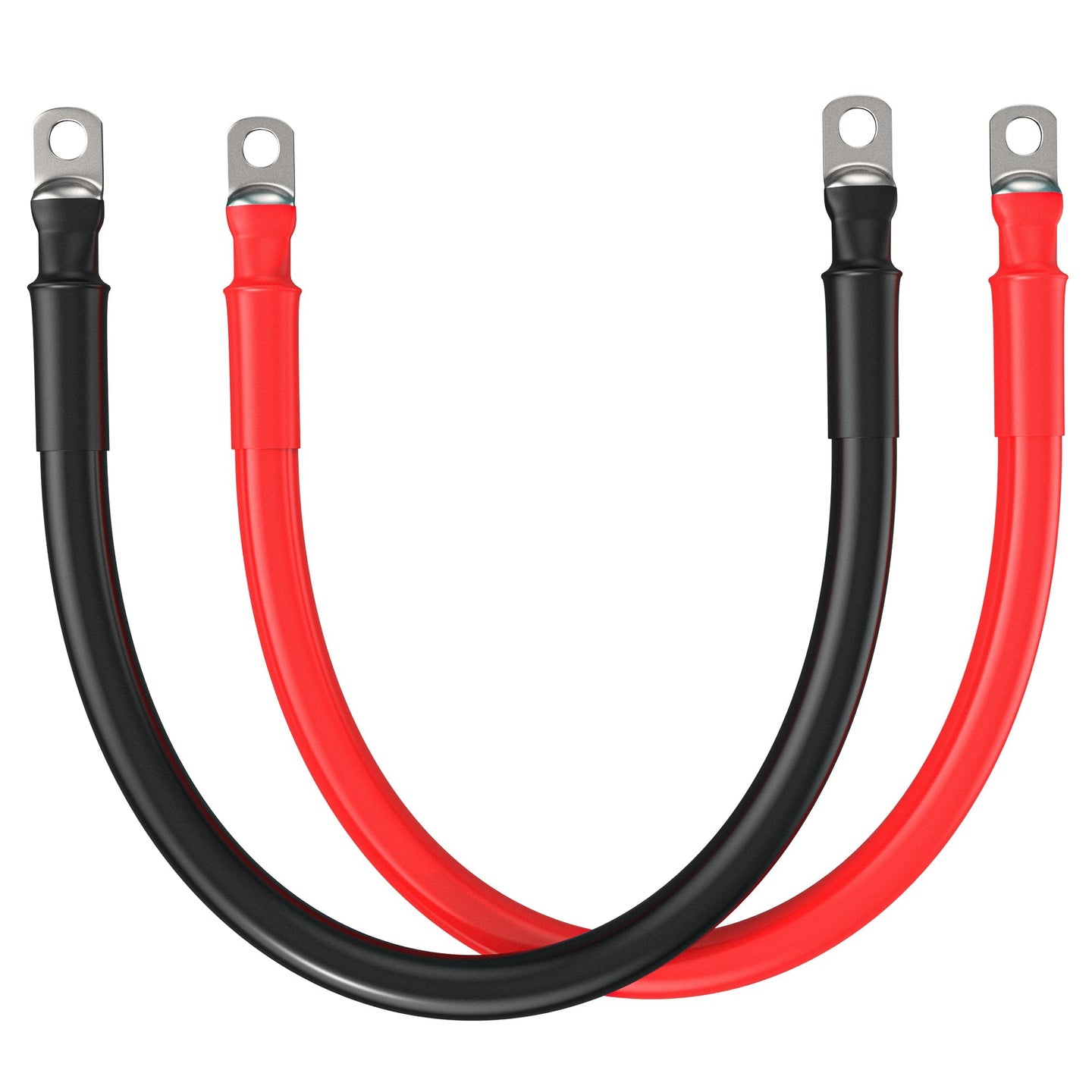

🗹 2 x 4-Foot 2/0 Gauge AWG Wire Set 3/8" (RS-2/0A4F3)

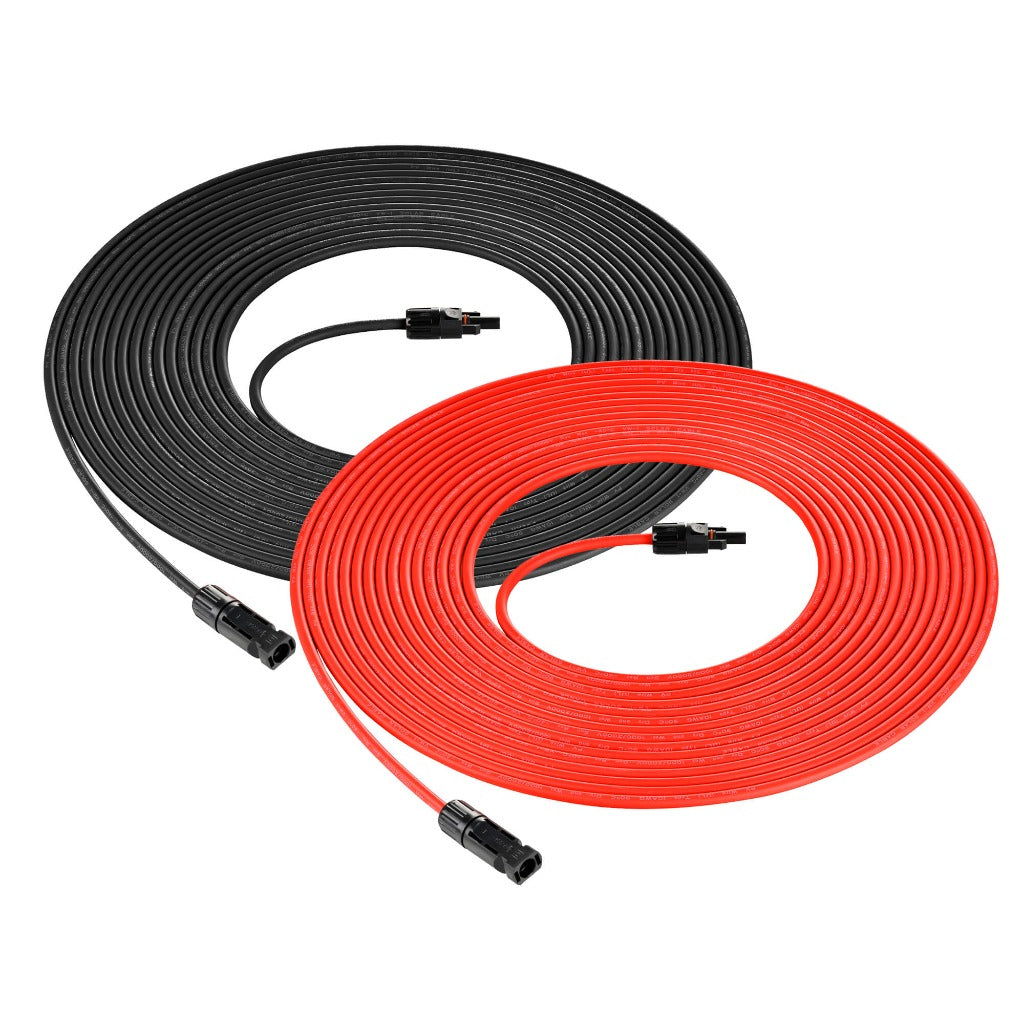

🗹 4 x 10 Gauge 50-Foot Solar Extension Cables (RS-50102)

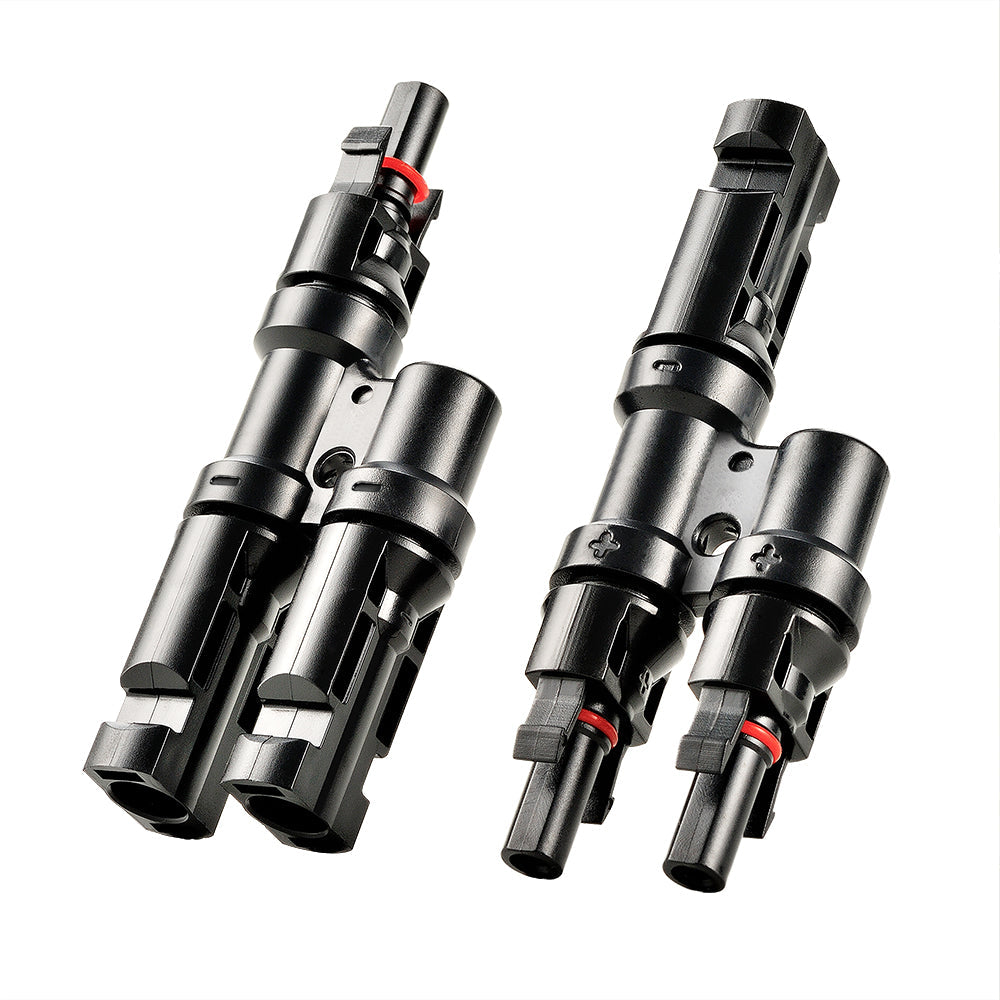

🗹 2 x Y Branch Parallel Connectors (2-to-1) (RS-T2)
🗹 2 x Busbar 600 AMP

This complete off-grid solar setup provides you with everything you need to power your RV, tiny home, or remote cabin. Get ready for an eco-friendly, self-sufficient lifestyle with our easy-to-install system!

How to Setup 6548 Hybrid Inverter in Split-Phase or Parallel Operations

When Not to Update the Firmware on the 6548 Hybrid Inverter

ALPHA 5 PRO | Overview, Unboxing, & Parallel Setup

Technical Specifications

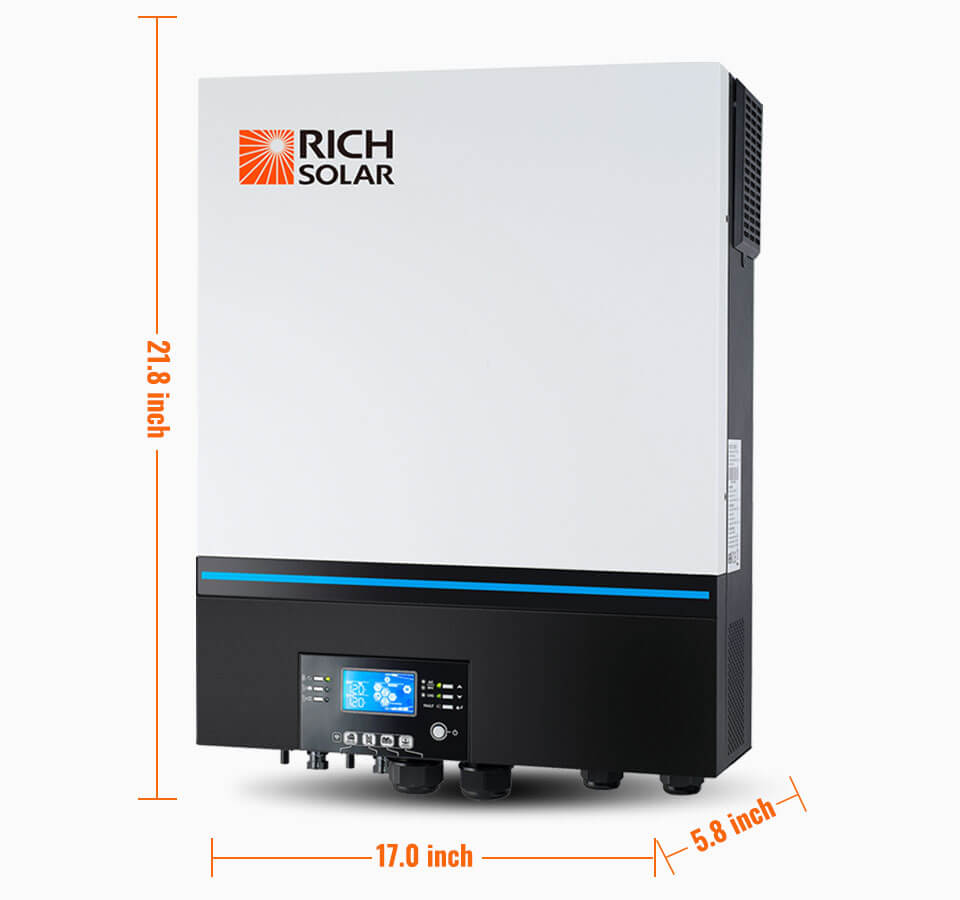

6500W 48V Off-Grid Hybrid Solar Inverter (RS-H6548)

• Rated Power: 6500W / 6500VA
• Parallel Capability: Yes, up to 6 units
• Input Voltage: 120 VAC
• Frequency Range: 50 Hz / 60 Hz (Auto Sensing)
• Efficiency (Peak): 90% ~ 93%
• Waveform: Pure Sine Wave
• Battery Voltage: 48 VDC
• Solar Charger Type: MPPT
• Max PV Array Power: 8000W (4000W x 2)
• MPPT Operating Voltage Range: 90 ~ 230 VDC
• Max PV Array Open Circuit Voltage: 250 VDC
• Max Charge Current: 120A
• Dimensions (DxWxH): 5.8 x 17.0 x 21.8 inches
• Weight: 40.6 lbs
• Communication Interface: USB / RS232 / RS485 / Wi-Fi / Dry Contact
• Safety Compliance: UL Certified
• Warranty: 5 Years

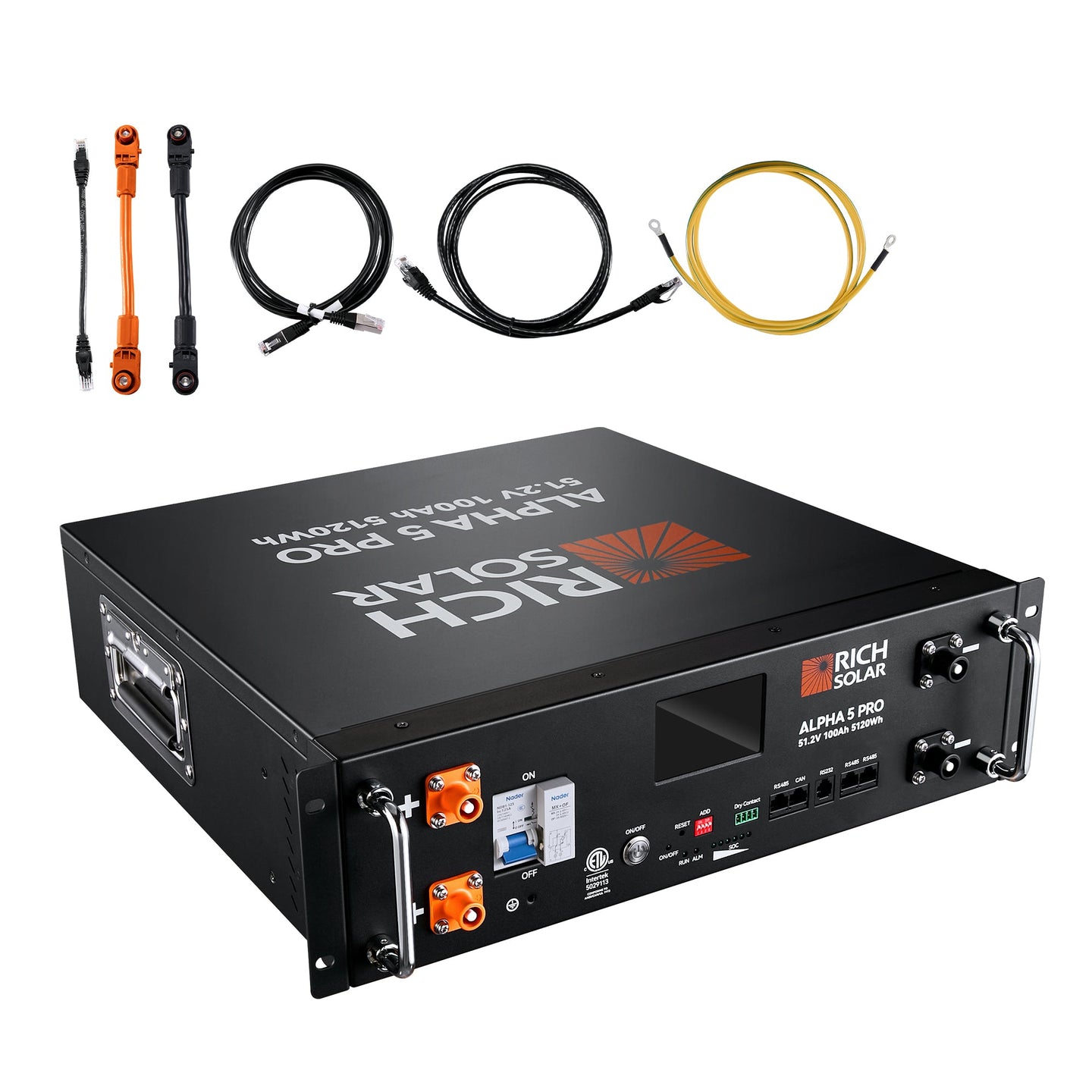

ALPHA 5 | 51.2V 100Ah Server Rack Lithium Iron Phosphate Battery (RS-B5121P1)

• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Expected Cycle Life: >7000 Cycles
• Energy: 5.12kWh
• Continuous Charge Current: 100A
• Continuous Discharge Current: 100A
• Waterproof Rating: IP65
• Dimensions: 17.7" L x 17.8" W x 5.2" H
• Weight: 99.2 lbs
• Warranty: 10 Years Manufacturer Defect

MEGA 410W Monocrystalline Solar Panel (RS-M410)

• Maximum Power (Pmax): 410W
• Maximum Power Voltage (Vmp): 31.3V
• Maximum Power Current (Imp): 13.1A
• Maximum System Voltage (Vmax): 1500VDC
• Module Efficiency: 20.97%
• Weight: 45.2 lbs
• Dimensions: 67.9" x 44.6" x 1.2"
• Warranty: 25 Years

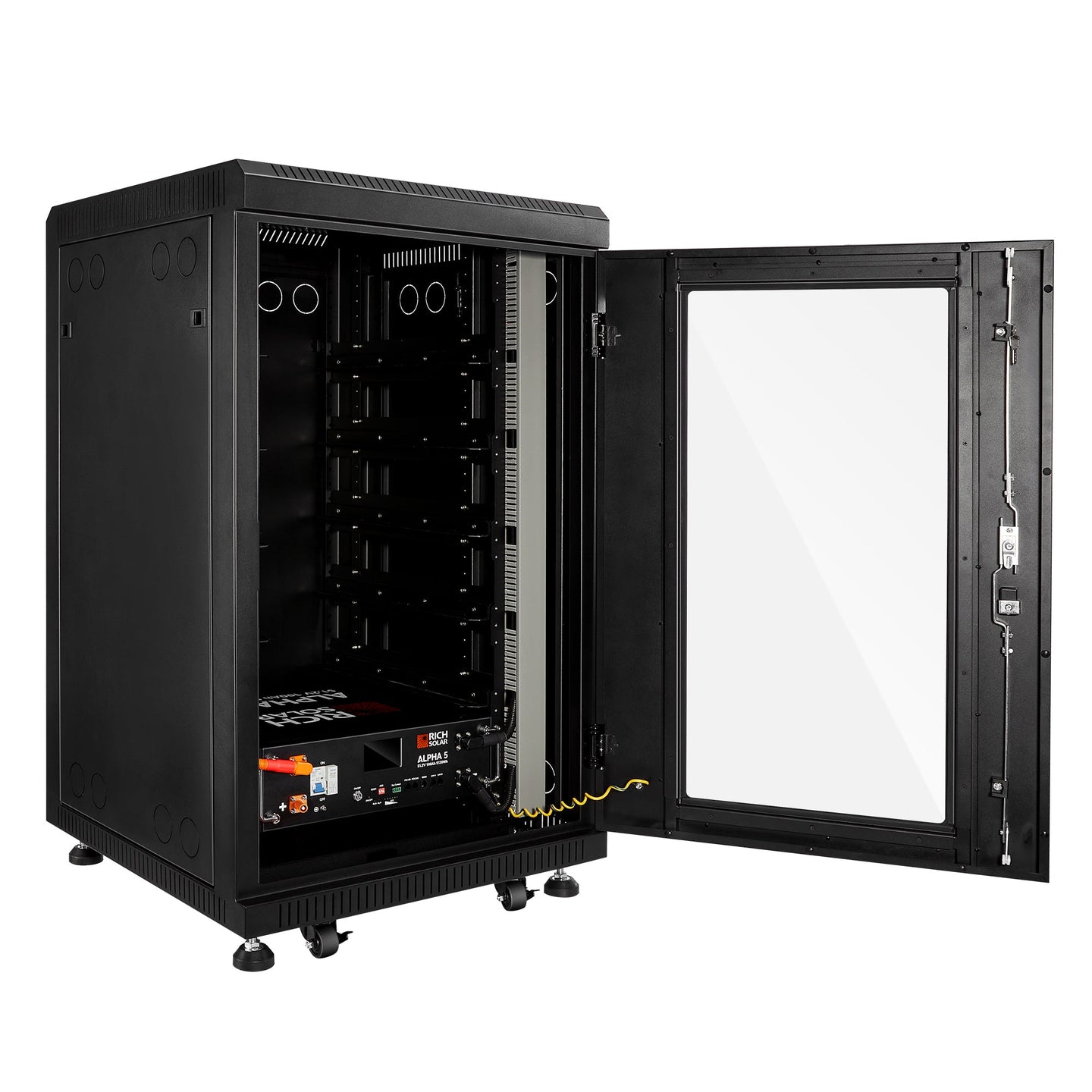

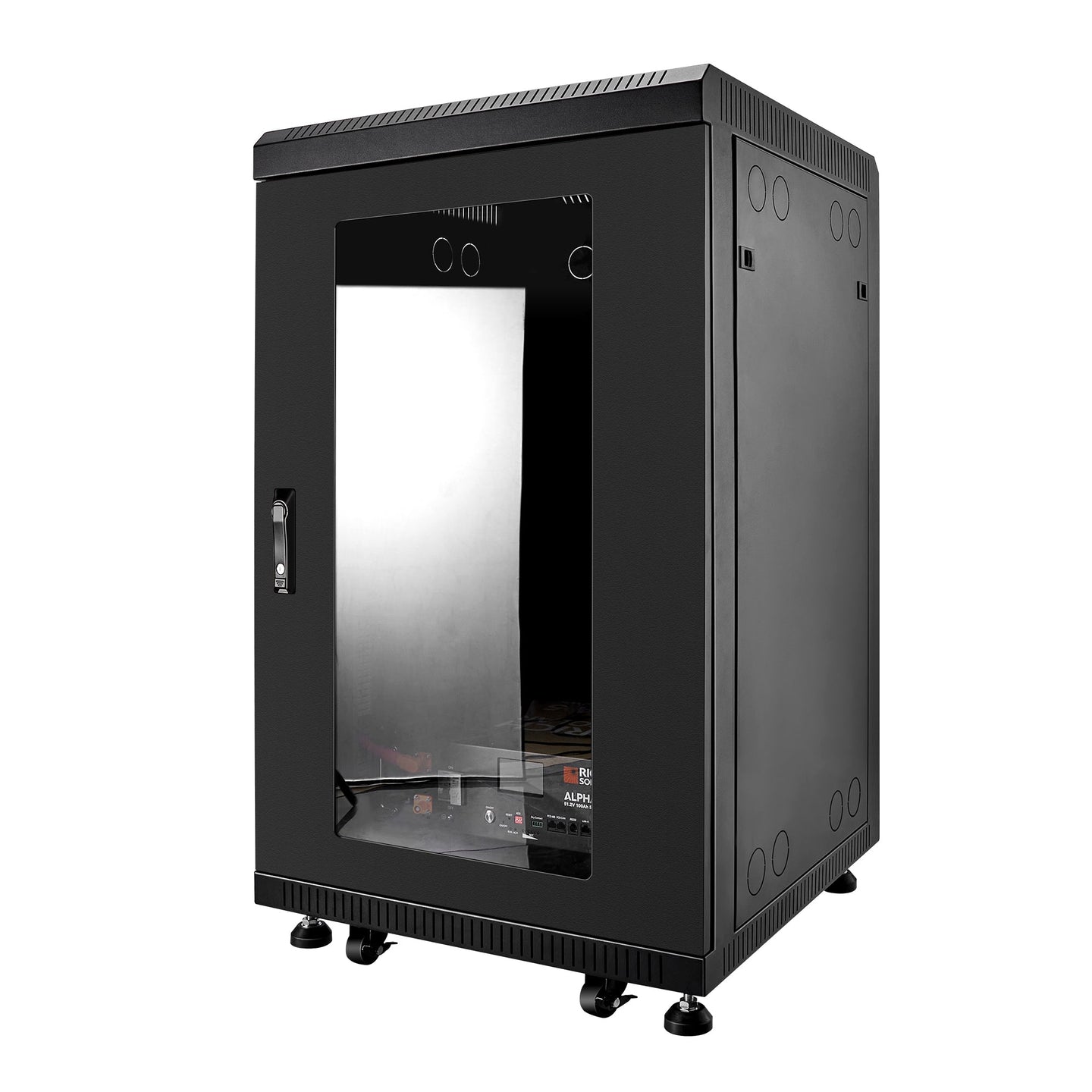

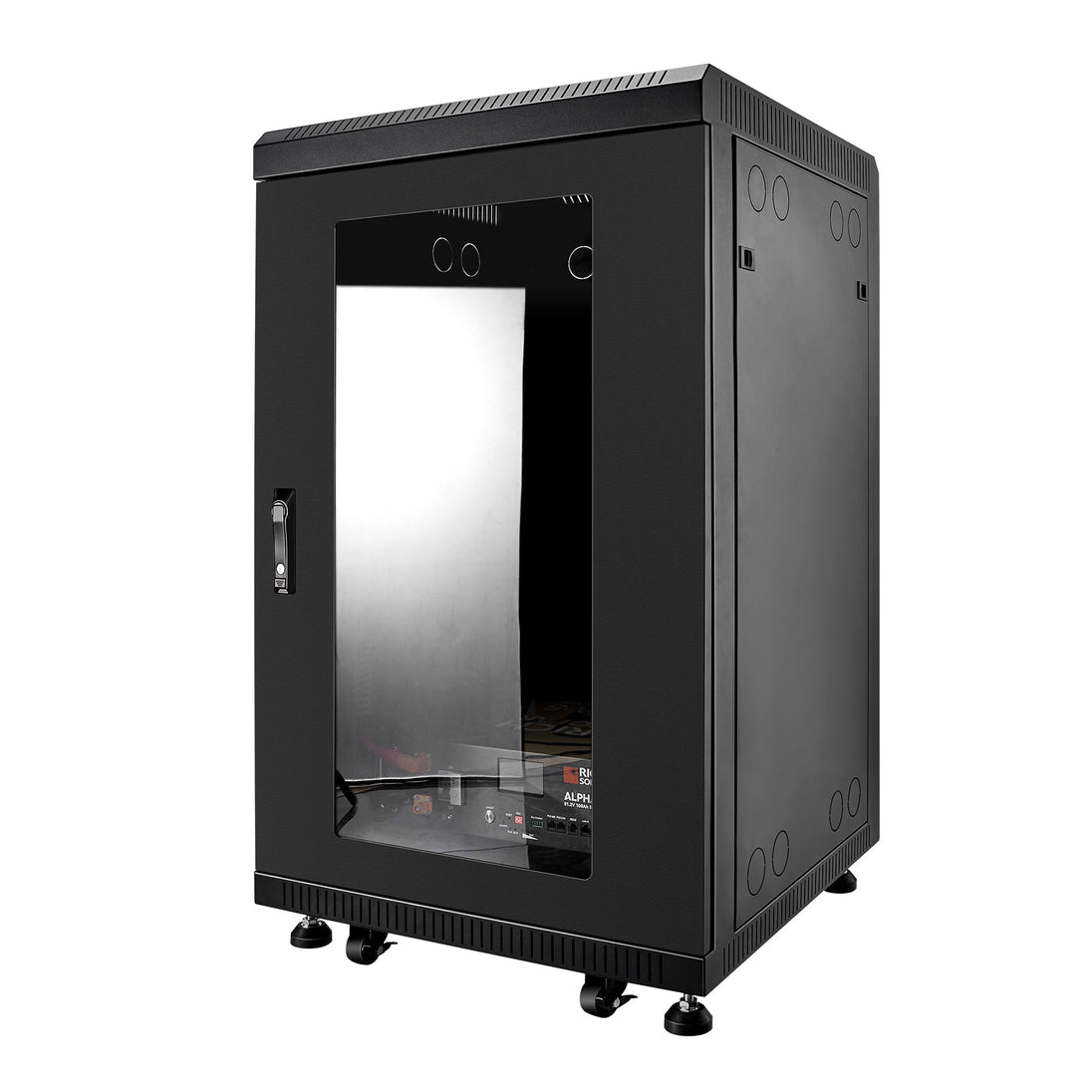

Battery Server Rack

• Dimensions (LxWxH): 27.6" x 27.6" x 44"
• Weight: 196 lbs

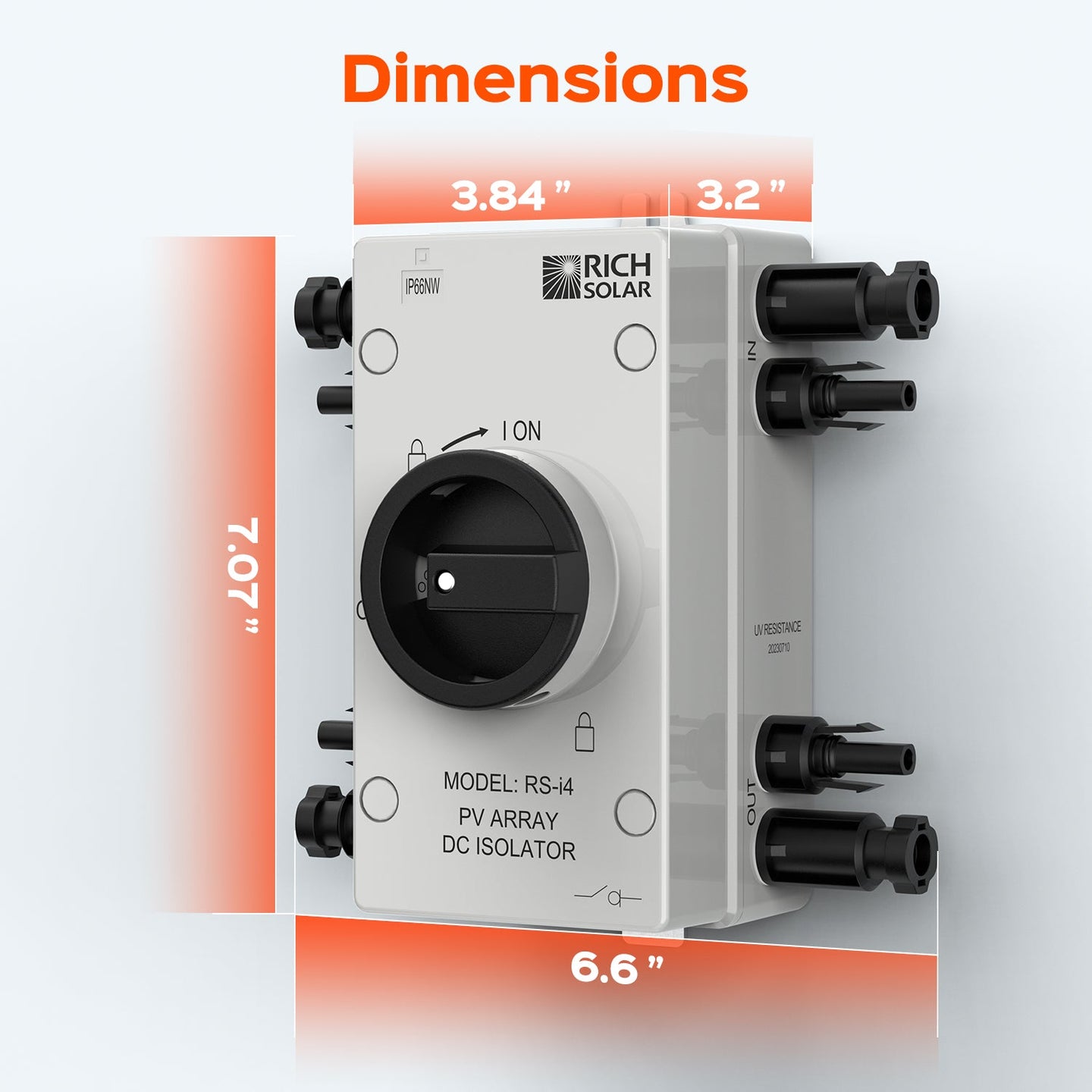

Solar PV DC Quick Disconnect Switch (RS-i4)

• Voltage: 1500 Volts @ 32 Amps
• Waterproof Rating: IP66NW
• Dimensions (HxWxD): 7.1" x 6.8" x 4.3"
• Weight: 1.7 lbs
• Warranty: 10 Years
