RUiXU | 10kW Single/Split-Phase Off-Grid Inverter | SUNON10

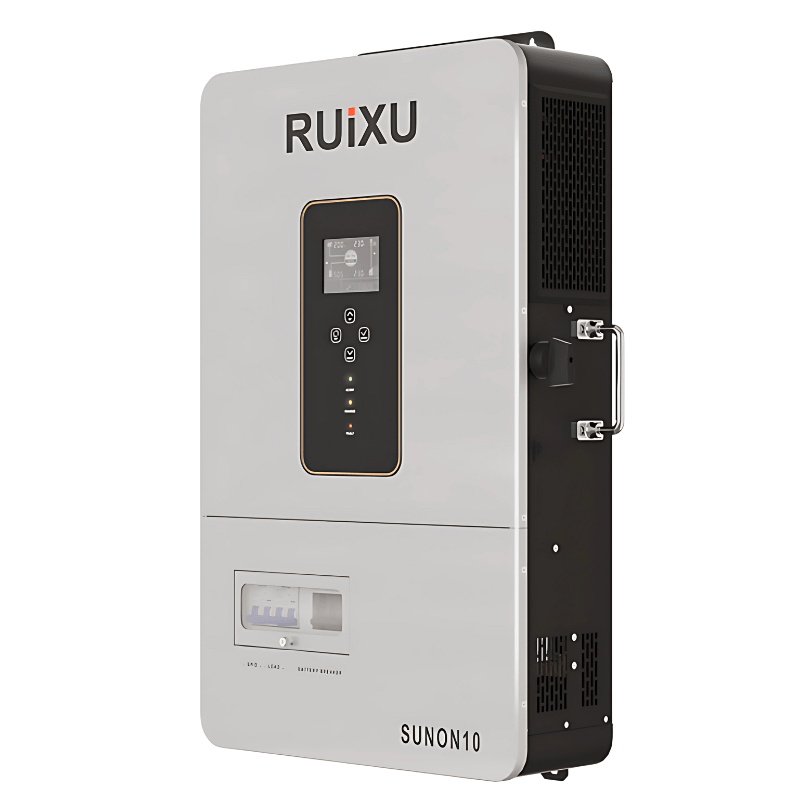

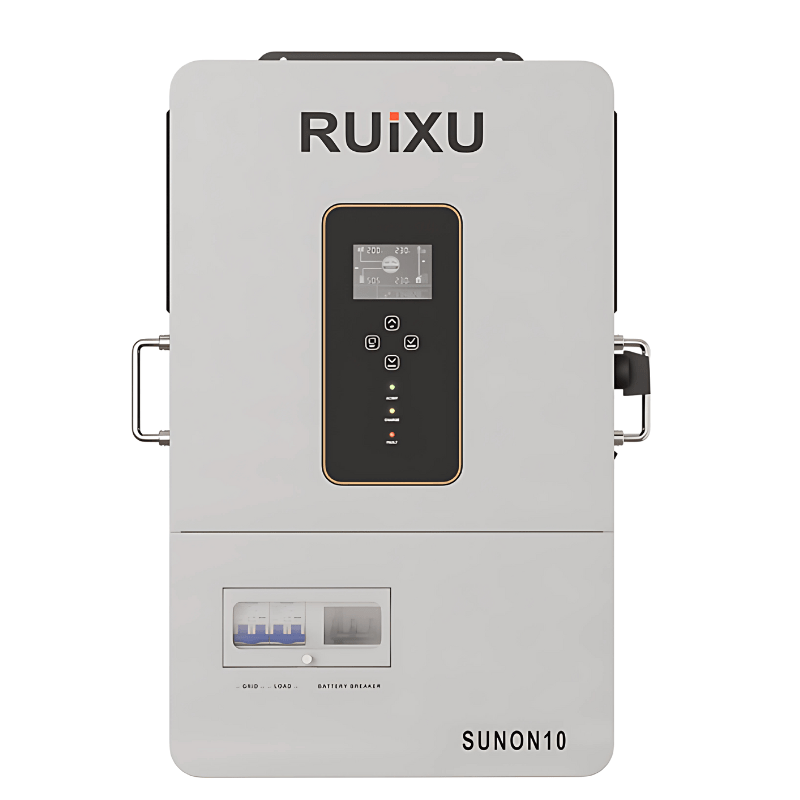

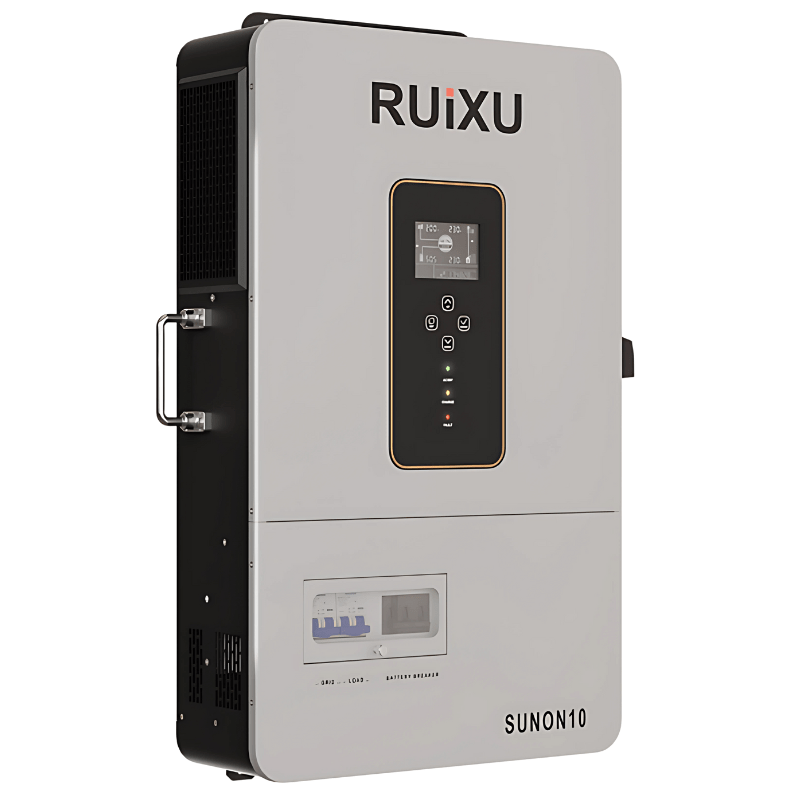

RUiXU SUNON10 10kW Single/Split-Phase Off-Grid Inverter

The RUiXU SUNON10 10kW Off-Grid Inverter is a powerful, scalable, and intelligent energy management solution engineered for both standalone off-grid systems and hybrid grid-connected applications. Designed to pair seamlessly with 48V lithium or lead-acid battery systems, it delivers reliable, efficient energy for residential, commercial, and industrial use.

With a built-in 200A MPPT solar charge controller, the SUNON10 maximizes solar harvesting efficiency and ensures stable, rapid charging. Certified under UL1741, it offers exceptional safety and reliability while supporting advanced monitoring via its integrated WiFi dongle and CAT6 communication cable—allowing users to track system performance and make adjustments in real time.

This inverter supports both 120V and 240V split-phase output, making it capable of powering everything from small home appliances to heavy-duty industrial equipment. Its parallel capability allows up to six units to operate together, scaling total power capacity up to 60kW, making it ideal for larger installations.

Built for reliability, flexibility, and convenience, the SUNON10 includes features such as time-scheduled charge/discharge settings, SUB hybrid mode for combined solar and grid charging, and an integrated 200A circuit breaker for enhanced protection and system safety.

Key Features

• Off-Grid and Hybrid Operation: Functions as a standalone off-grid inverter or in combination with grid power for hybrid setups.

• High Output Power: Provides 10kW continuous output and 20kVA maximum surge capacity for demanding applications.

• Split-Phase Output: Supports 120/240V operation, suitable for both residential and commercial electrical systems.

• Integrated 200A MPPT Controller: Delivers rapid, stable, and efficient solar charging up to 200A.

• Parallel Expansion: Connect up to six inverters in parallel for a total power capacity of 60kW.

• Advanced Monitoring: Includes WiFi and CAT6 communication for real-time system tracking and management.

• Smart Charging Modes: Features SUB mode and programmable time-based charging for energy optimization.

• Battery Flexibility: Compatible with 48V lithium-ion (LiFePO₄) and lead-acid batteries.

• Built-In Safety: Equipped with a 200A circuit breaker and multiple protective systems for safe operation.

• UL1741 Certified: Ensures compliance with high safety and performance standards.

Applications
The RUiXU SUNON10 is designed for a variety of off-grid and hybrid installations, including:

• Off-Grid Homes and Cabins: Provides dependable power in areas without utility access.

• Commercial and Industrial Energy Storage: Supports large-scale backup and energy management systems.

• Remote Solar Installations: Ideal for remote locations, agricultural setups, and islanded solar systems.

• Hybrid Solar + Grid Systems: Enables seamless integration of renewable and grid power sources for maximum efficiency.

What’s Included

• (1) RUiXU SUNON10 10kW Inverter

• (1) 200cm CAT6 Communication Cable for Battery Connection

• (1) WiFi Dongle for Remote Monitoring

• (1) Operation Manual

• (1) Set of Parallel 4AWG Cables per Battery

Reliable Off-Grid Power with a 3-Year Limited Warranty
Engineered for energy independence and resilience, the RUiXU SUNON10 10kW Off-Grid Inverter provides long-lasting performance and scalability for modern solar energy systems. Backed by a 3-year limited manufacturer’s warranty, it’s a dependable choice for powering homes, businesses, and remote sites with confidence and efficiency.

Technical Specifications
Rated Output Power: 10,000W
Maximum Output Power: 20,000VA
Battery Type: Lithium-Ion (LiFePO₄) or Lead-Acid
Battery Voltage Range: 40V – 60V
Maximum Solar Charging Current: 200A
Dimensions (H × W × D): 28.5" × 17.6" × 5.9"
Weight: 61.7 lbs
Certification: UL1741
Shipping Restriction: Ships with battery orders; additional shipping fees apply if purchased separately.

Frequently Asked Questions
What battery types are compatible with this inverter?
The SUNON10 supports 48V lithium-ion (LiFePO₄) and lead-acid batteries.

Can this inverter work in grid-tied setups?
While designed primarily for off-grid systems, it also supports hybrid solar-grid operation through SUB mode.

Can multiple units be connected together?
Yes. Up to six inverters can operate in parallel for a combined total output of 60kW.

Does it include a monitoring system?
Yes. The SUNON10 comes with WiFi and CAT6 connectivity for live monitoring through mobile apps or web platforms.

Is the inverter suitable for large solar arrays?
Yes. The 200A MPPT controller supports high solar input and ensures maximum conversion efficiency.

What kind of warranty does it include?
The SUNON10 includes a 3-year limited warranty covering manufacturing defects and system reliability.
