MRCOOL

MRCOOL | DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit | DIYM448HPW09C410

SKU DIYM448HPW09C410
$7,920.00
$7,200.00
$7,920.00
$7,200.00

✅ Authorized Online Dealer
🚚 Free Shipping + No Sales Tax (exclusions may apply)
💲 Lowest Price Guarantee
📦 Fast 4-7 Day Delivery
🏭 Backed By Manufacturer Warranty
❓ Questions? Contact Us: +1 (734) 228-0441 or support@offgridselection.com
MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410
MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410 MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM448HPW09C410

Product Description

4th Generation MRCOOL Mini Split — 48,000 BTU DIY Multi-Zone System

Overview

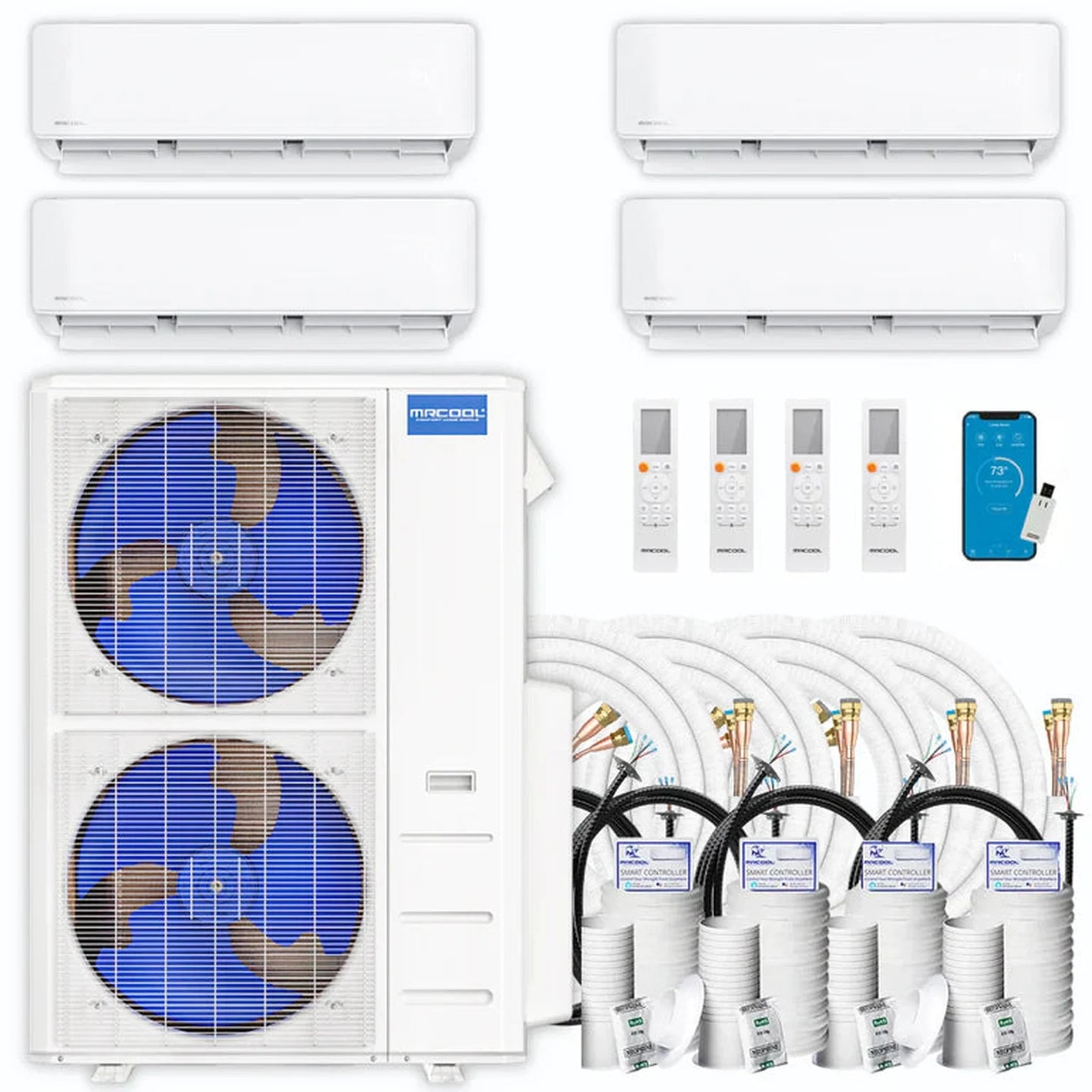

Introducing the 4th Generation MRCOOL Mini Split, an all-inclusive solution for cooling and heating up to four separate rooms. This package includes the DIY 48,000 BTU Multi-Zone Condenser, two 9,000 BTU Wall Mounted Air Handlers, one 12,000 BTU Wall Mounted Air Handler, and one 24,000 BTU Wall Mounted Air Handler. Also included are four remotes and four 50 ft. Installation Kits for seamless setup. The standout feature is its user-friendly design for easy self-installation.

Benefits

  • All-in-one kit to cool and heat up to four rooms.
  • DIY installation saves time and money.
  • Energy efficient at 20.5 SEER.
  • Heats down to 5°F.
  • Lifetime compressor warranty via the MR COOL Care Program.

Features

  • Condenser features: 48,000 BTU, 5 zones, 20.5 SEER. All-weather heating down to 5°F. Limited lifetime compressor warranty (via MR COOL Care Program).

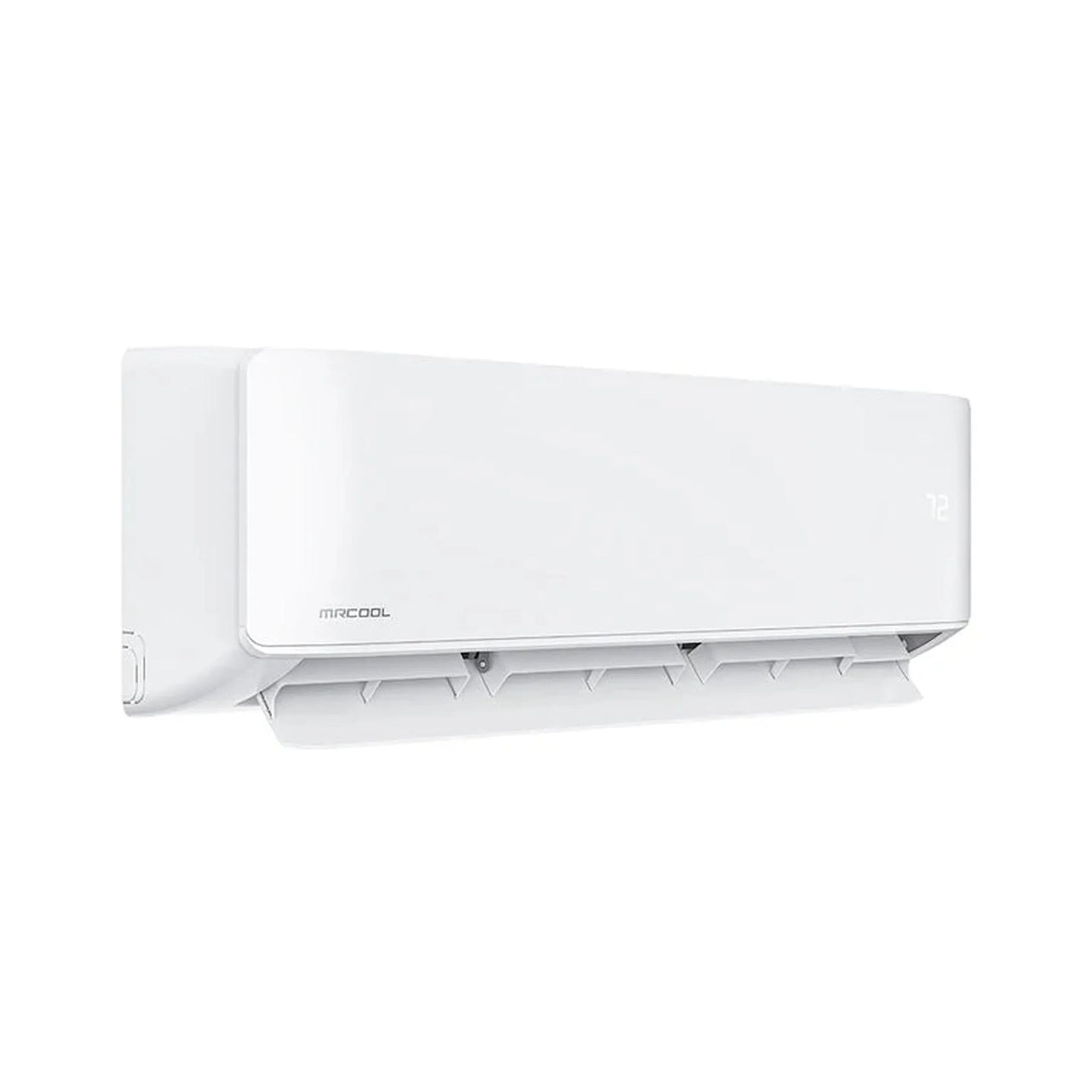

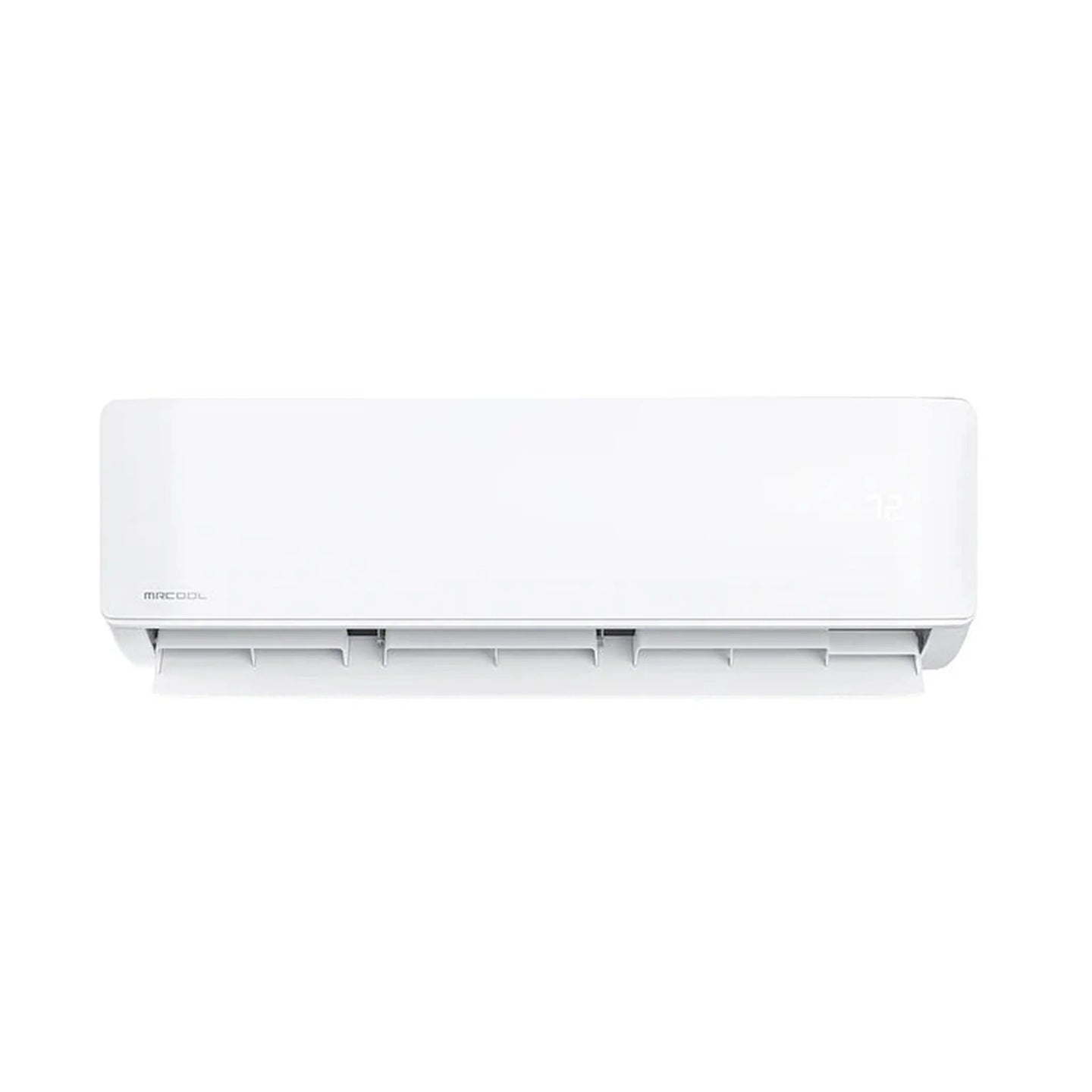

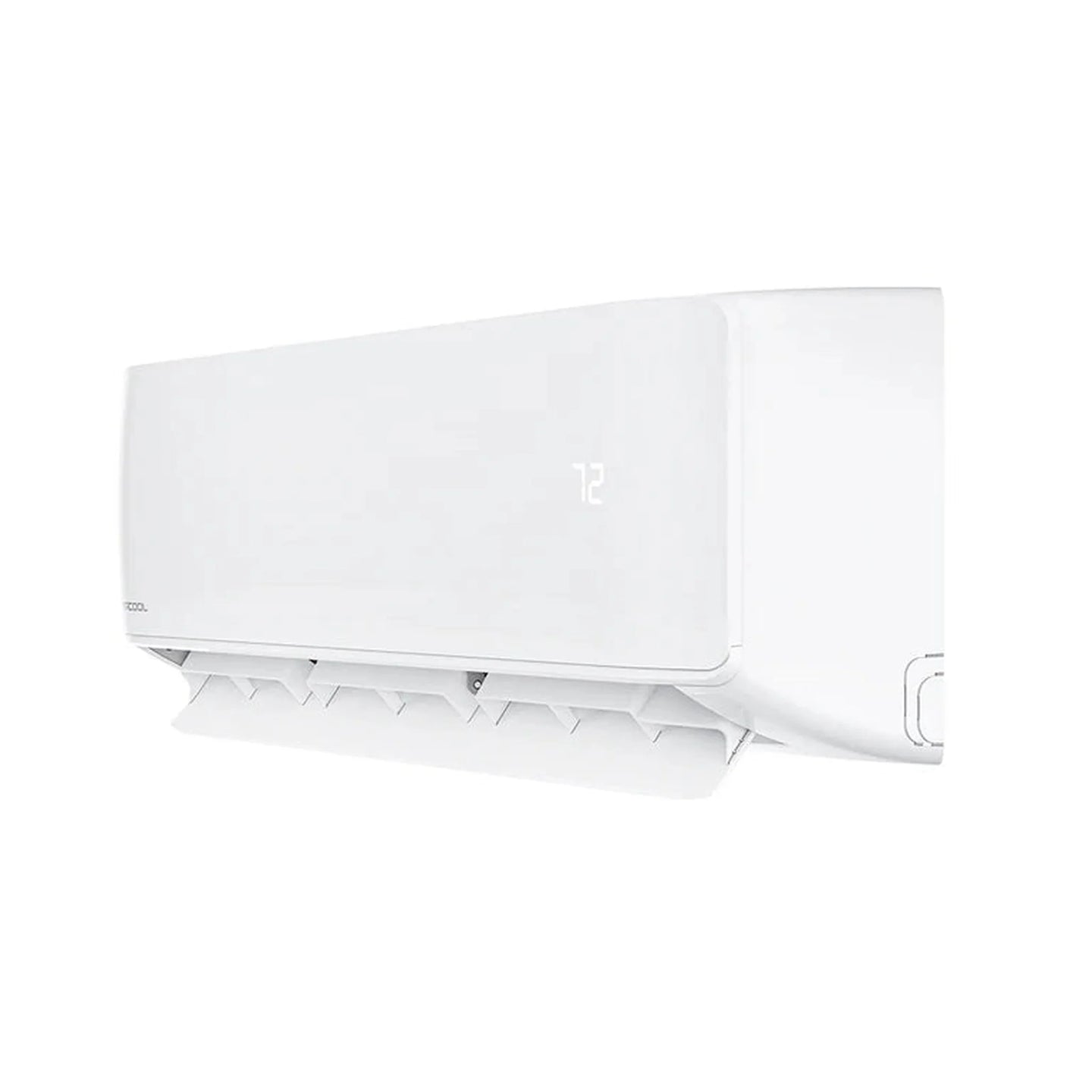

  • Air Handler — 9K BTU (Qty: 2):

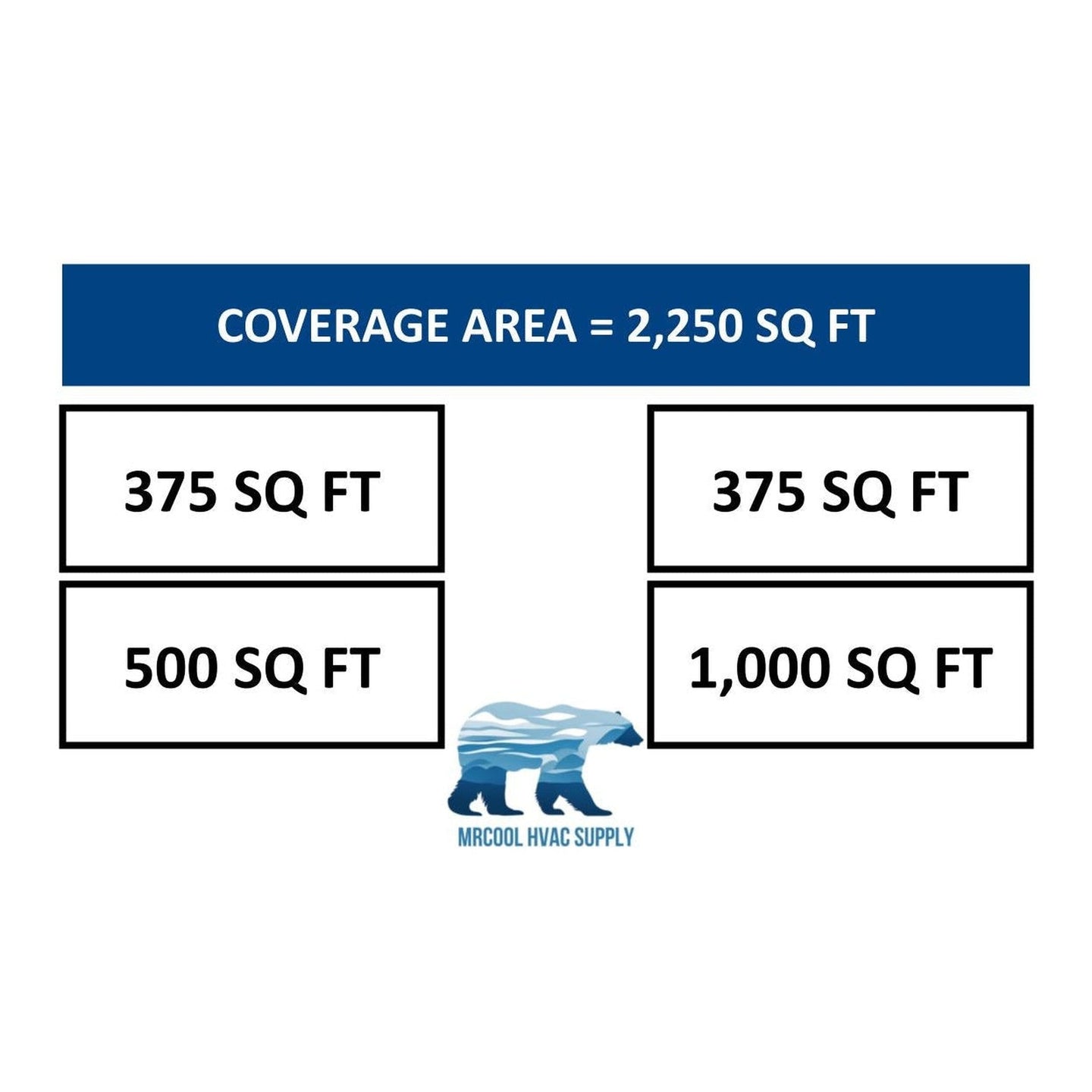

    • Covers up to 375 sq. ft.
    • Modes: COOL, HEAT, AUTO, DRY, SLEEP.
    • Smart control via Apple or Android Smart HVAC app.

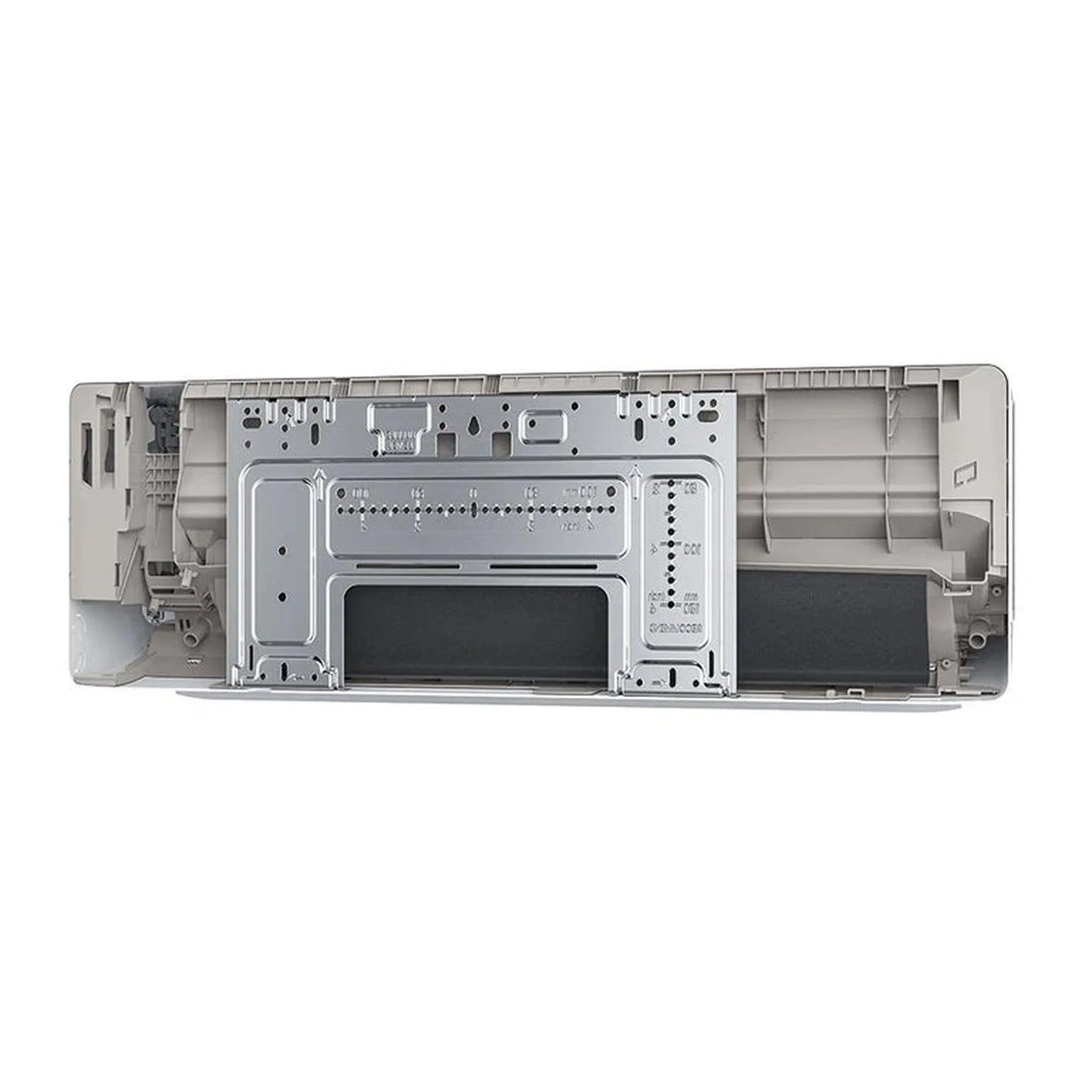

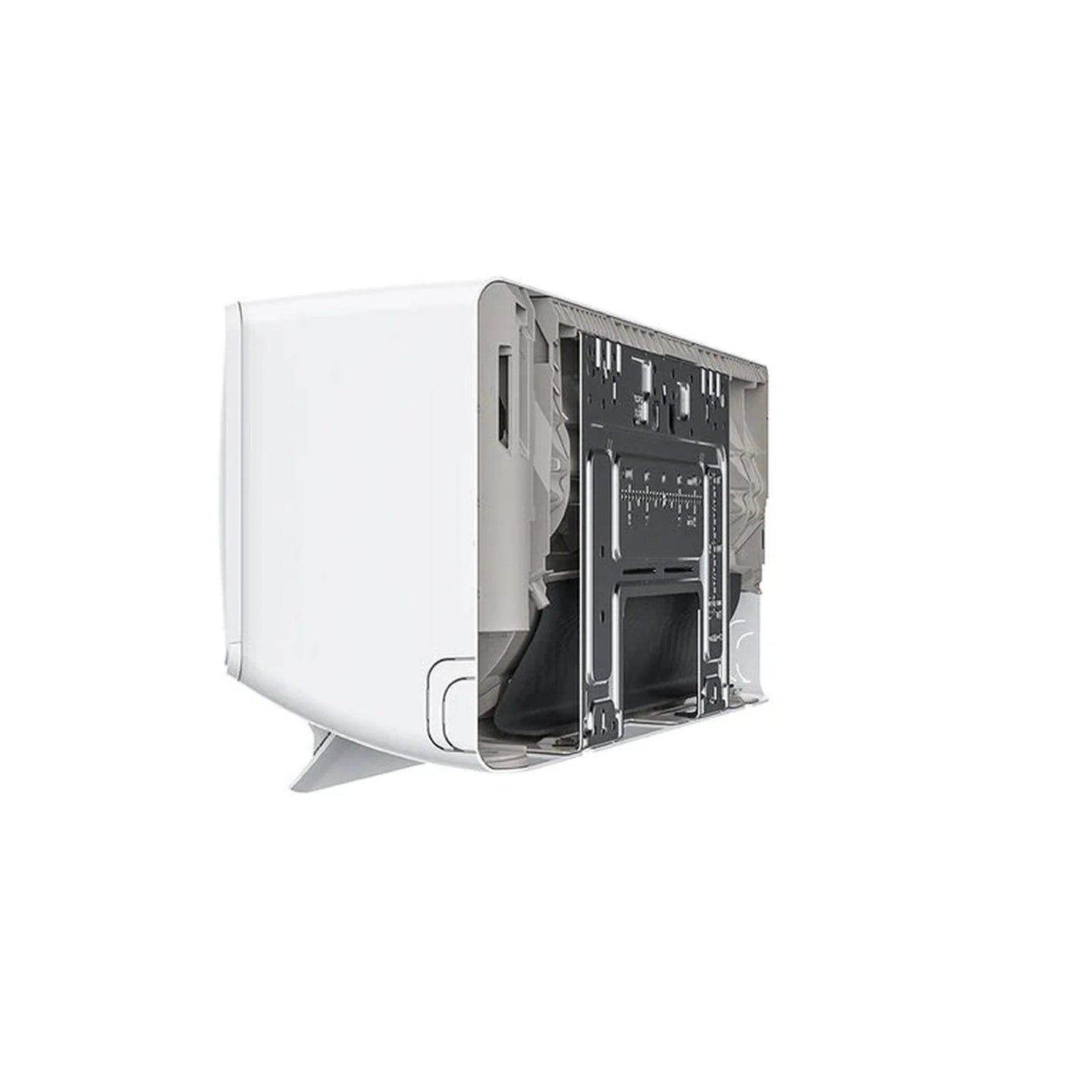

    • Lightweight and easy on interior walls with mounting plate.
  • Air Handler — 12K BTU (Qty: 1):
    • Covers up to 500 sq. ft.
    • Modes: COOL, HEAT, AUTO, DRY, SLEEP.
    • Smart control via Apple or Android Smart HVAC app.
    • Lightweight and easy on interior walls with mounting plate.
  • Air Handler — 24K BTU (Qty: 1):
    • Covers up to 1,000 sq. ft.
    • Modes: COOL, HEAT, AUTO, DRY, SLEEP.
    • Smart control via Apple or Android Smart HVAC app.
    • Lightweight and easy on interior walls with mounting plate.

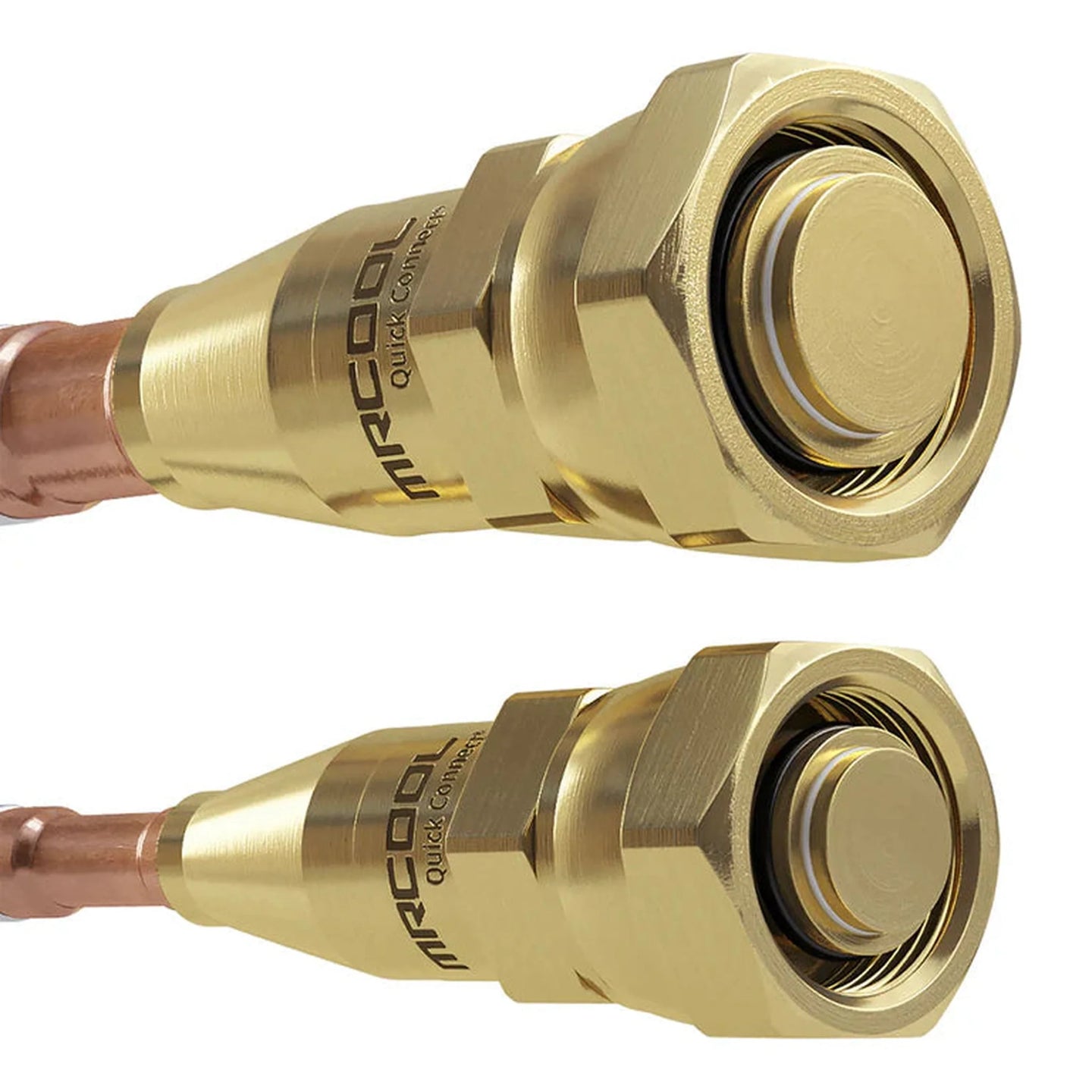

  • Line Sets:
    • Line Set 50 ft. (Qty: 4): Connects condenser to the 9K, 12K, and 18K indoor units. Pre-charged with R-410A. DIY installation.
    • Line Set 50 ft. 3/8 x 5/8 (Qty: 1): For DIY 24K & 36K indoor, 4th Generation. Pre-charged with R-410A. DIY installation.

Specifications

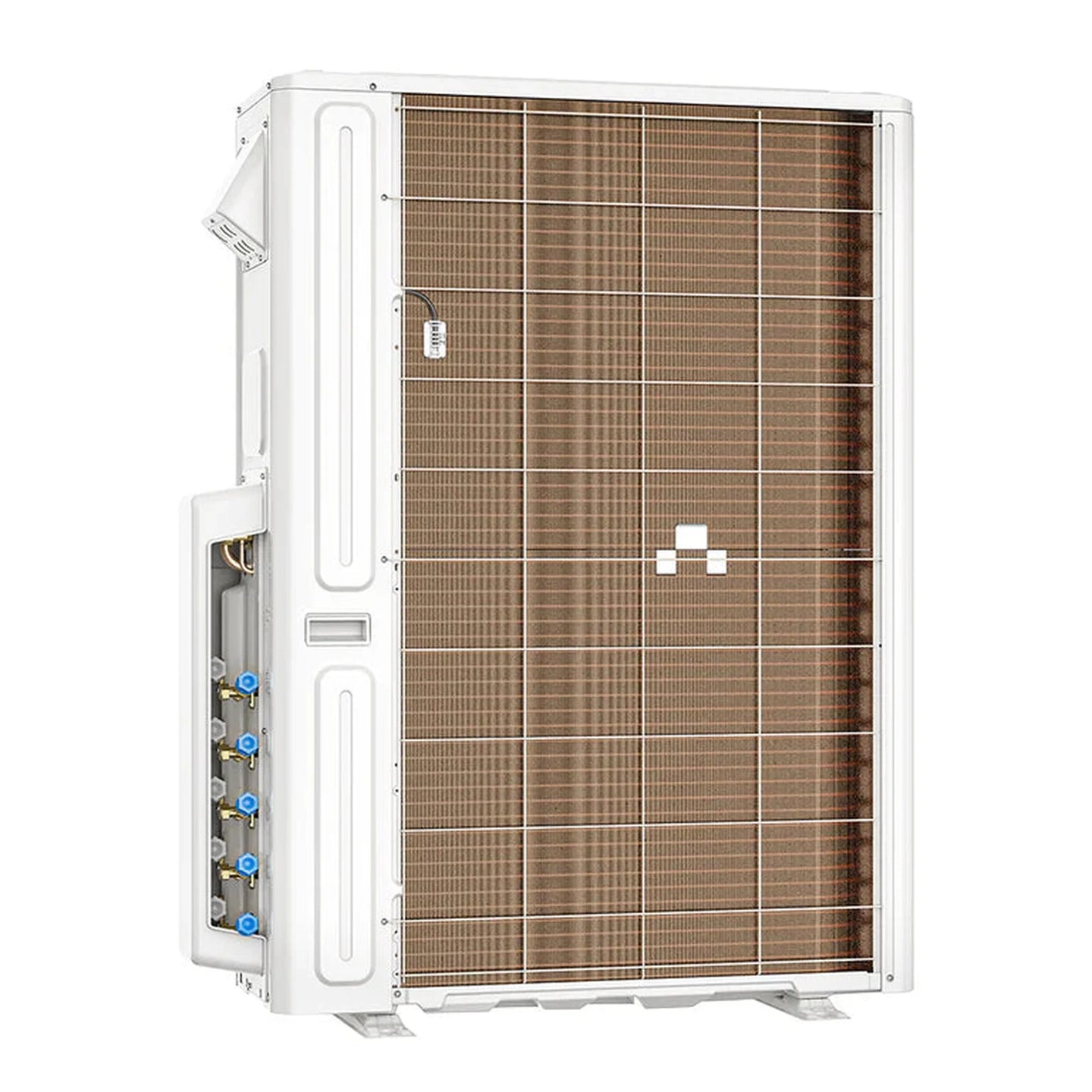

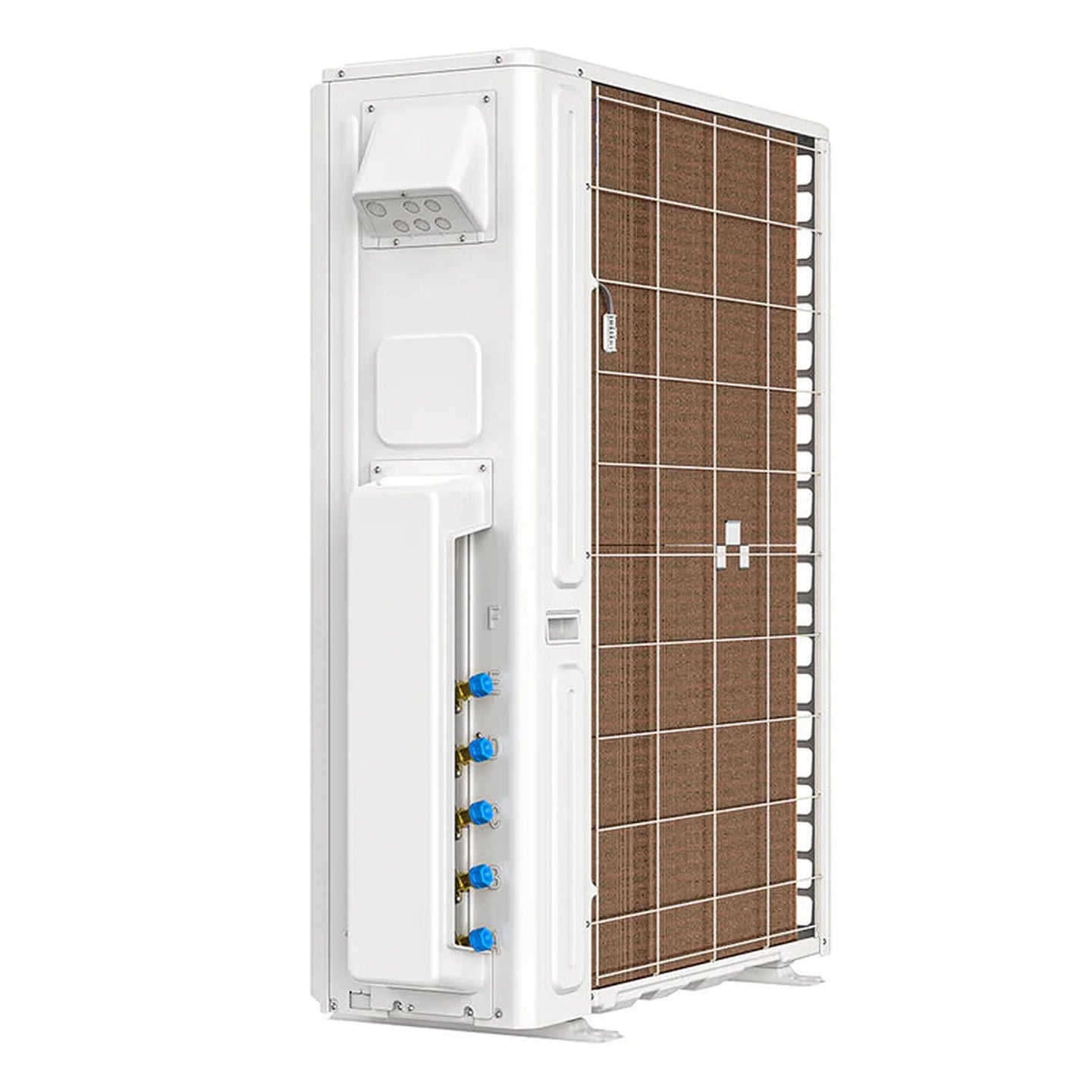

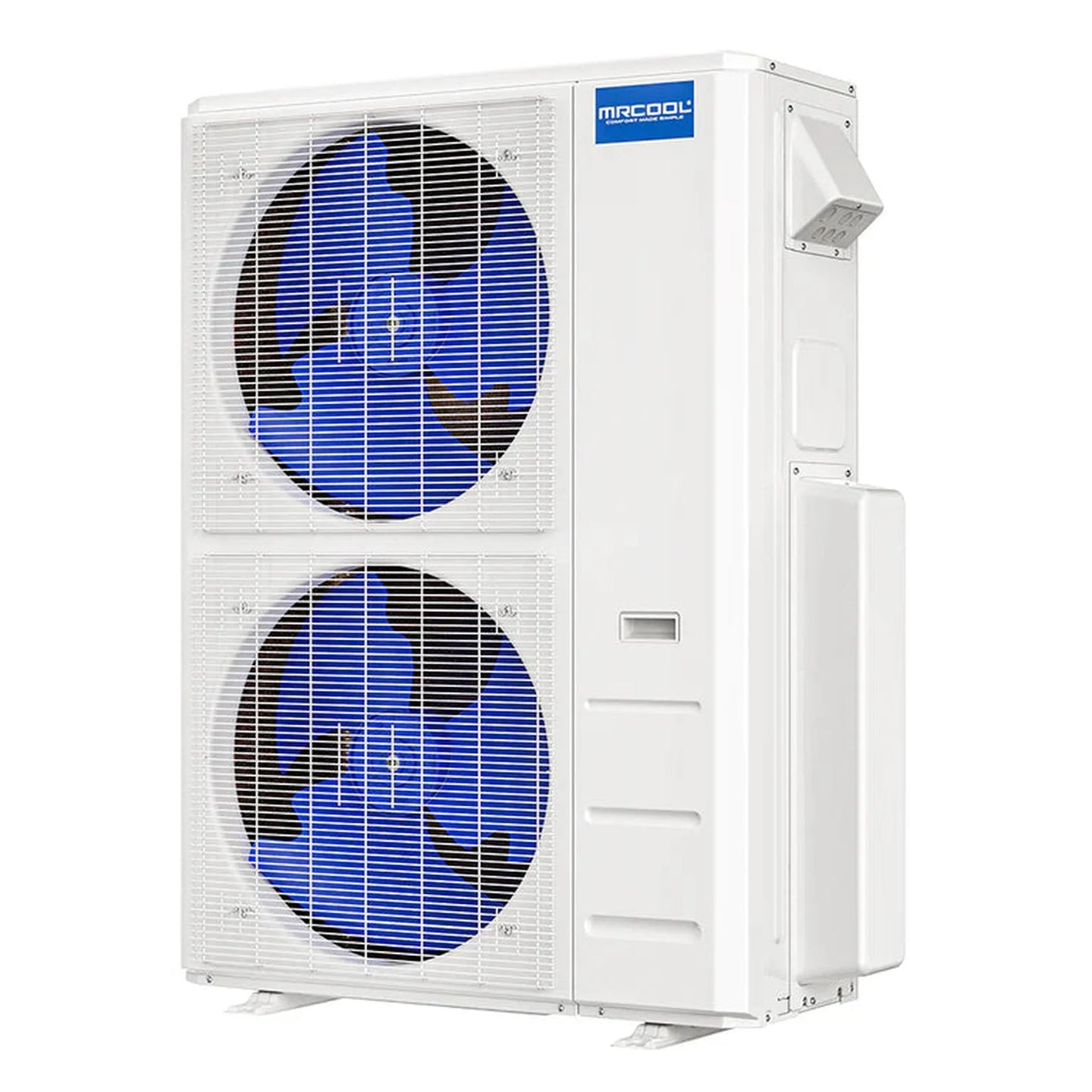

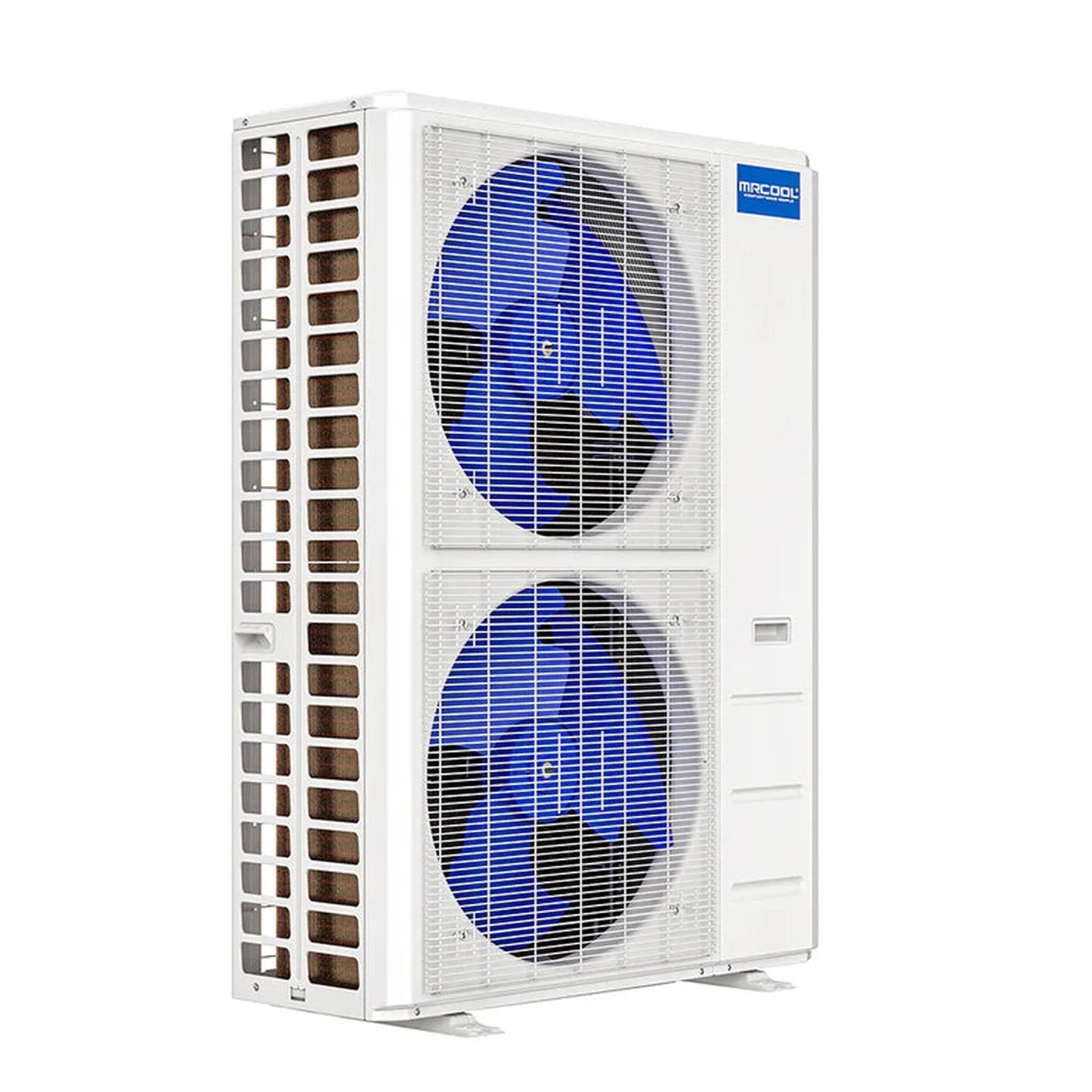

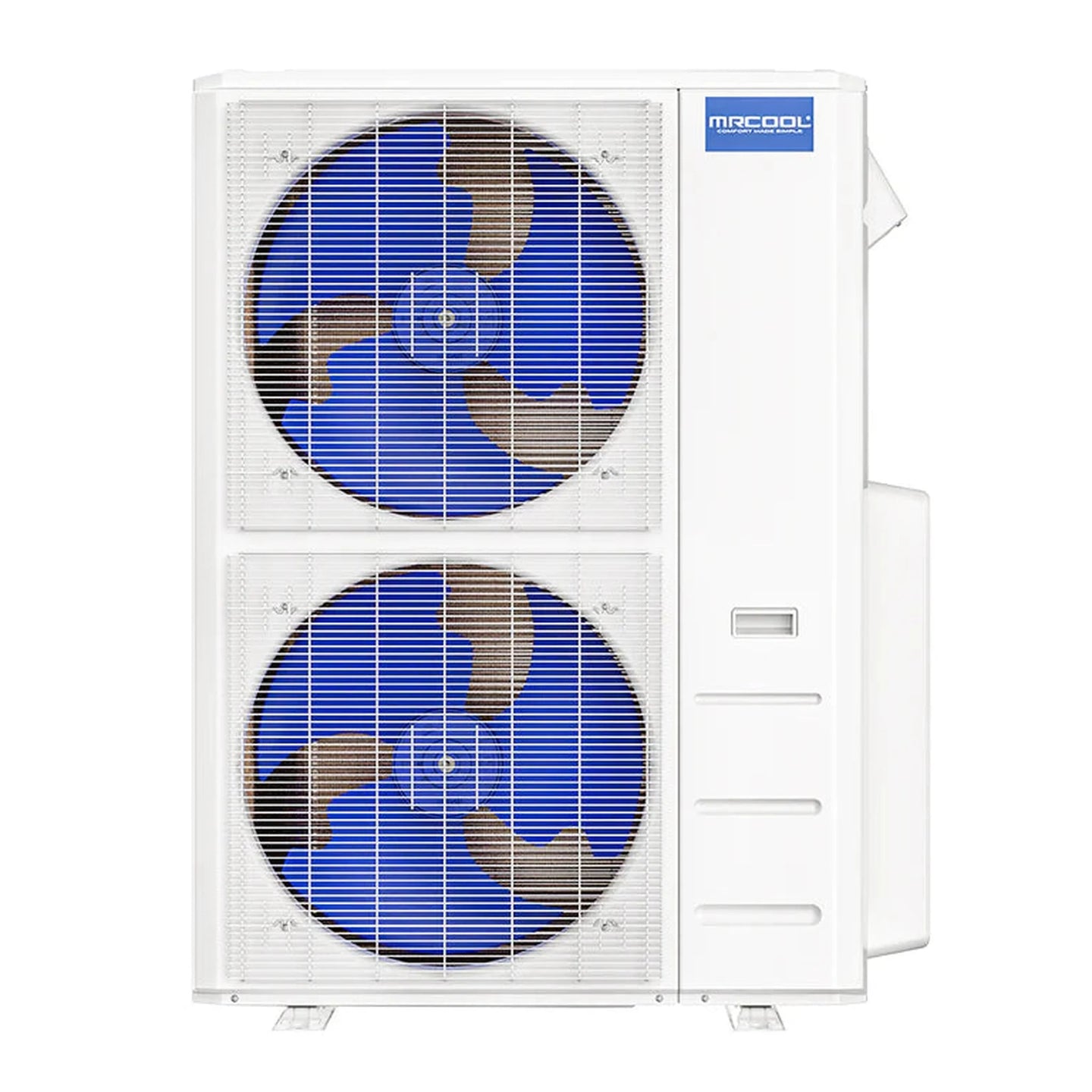

Condenser Specifications



Product Dimensions 37.48"W x 16.34"D x 52.48"H
Cooling Capacity 48,000 BTU
Heating Capacity 48,000 BTU
Zone Capacity 5
Min Ambient Cool 5F ~ 122F
Min Ambient Heat 5F ~ 75.2F
SEER 20.5
EER 11
Voltage Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase)X
Registered Warranty 7 Years Replacement on Condenser, 5 Years Parts


Air Handler 9K BTU



Product Dimensions 31.57"W x 7.44"D x 11.69"H
Mount Type Wall
Cooling Capacity 9,000 BTU
Heating Capacity 9,000 BTU
Registered Warranty 5 Years Parts
Modes Auto - auto selects from Cool, Heat or Fan-Only
Dry - dehumidify
Cool
Heat
Fan Only
Quiet
Sleep


Air Handler 12K BTU



Product Dimensions 31.57"W x 7.44"D x 11.69"H
Mount Type Wall
Cooling Capacity 12,000 BTU
Heating Capacity 12,000 BTU
Registered Warranty 5 Years Parts
Modes Auto - auto selects from Cool, Heat or Fan-Only
Dry - dehumidify
Cool
Heat
Fan Only
Quiet
Sleep


Air Handler 24K BTU



Product Dimensions 42.52"W x 8.90"D x 13.19"H
Mount Type Wall
Cooling Capacity 23,000 BTU
Heating Capacity 25,000 BTU
Registered Warranty 5 Years Parts
Modes Auto - auto selects from Cool, Heat or Fan-Only
Dry - dehumidify
Cool
Heat
Fan Only
Quiet
Sleep

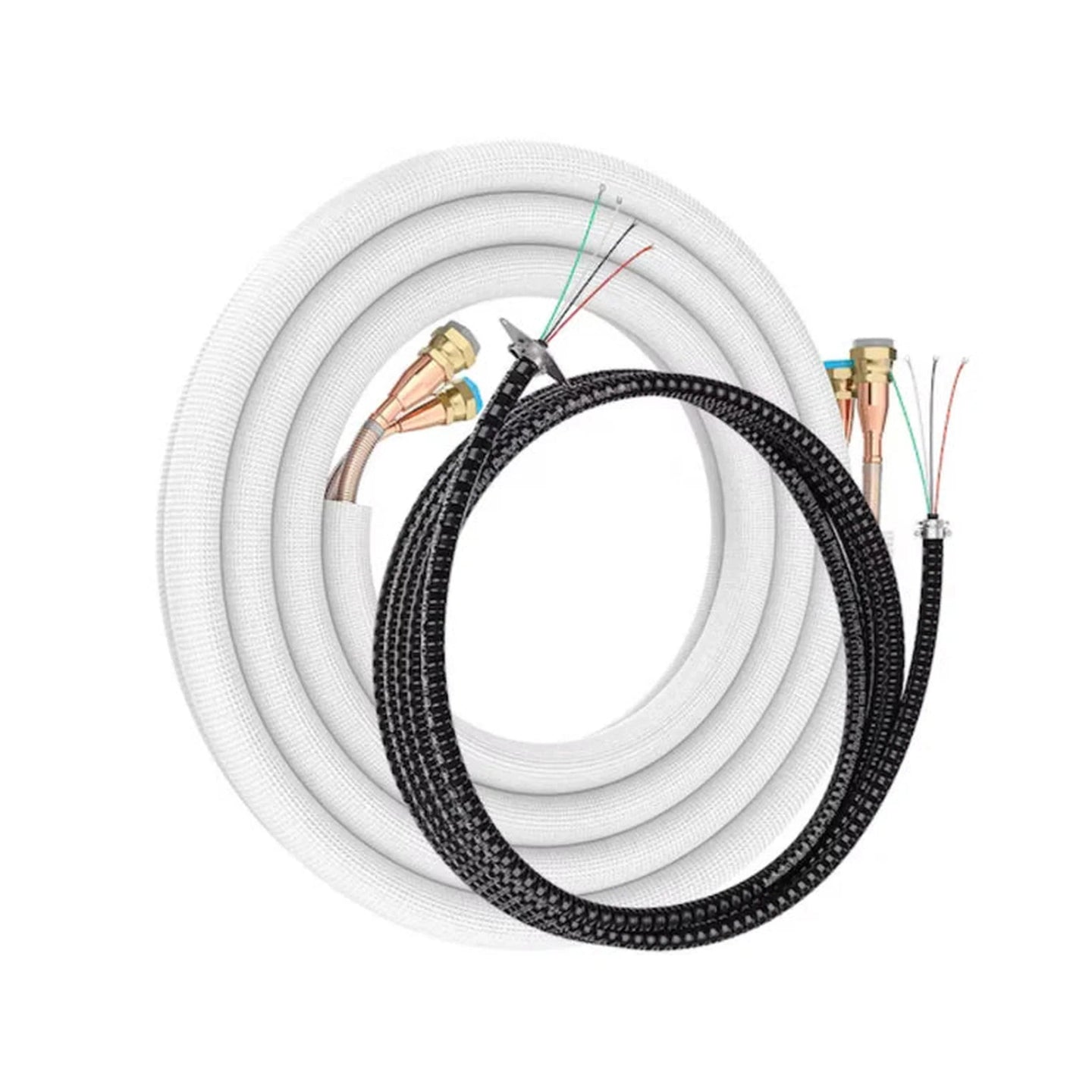

Line Set



Length 50 Feet
Liquid Line Size 3/8"
Suction Line Size 5/8"


Line Set



Length 50 Feet
Liquid Line Size 1/4"
Suction Line Size 1/2"

Information and Guides

Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate
