MRCOOL | DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit | DIYM448HPW07C140

4th Generation MRCOOL Mini Split — 5-Zone DIY Multi Zone System

Overview

Introducing the 4th Generation MRCOOL Mini Split, a comprehensive solution designed to efficiently cool and heat up to four distinct rooms. Included in this package are essential components to facilitate seamless installation and operation:

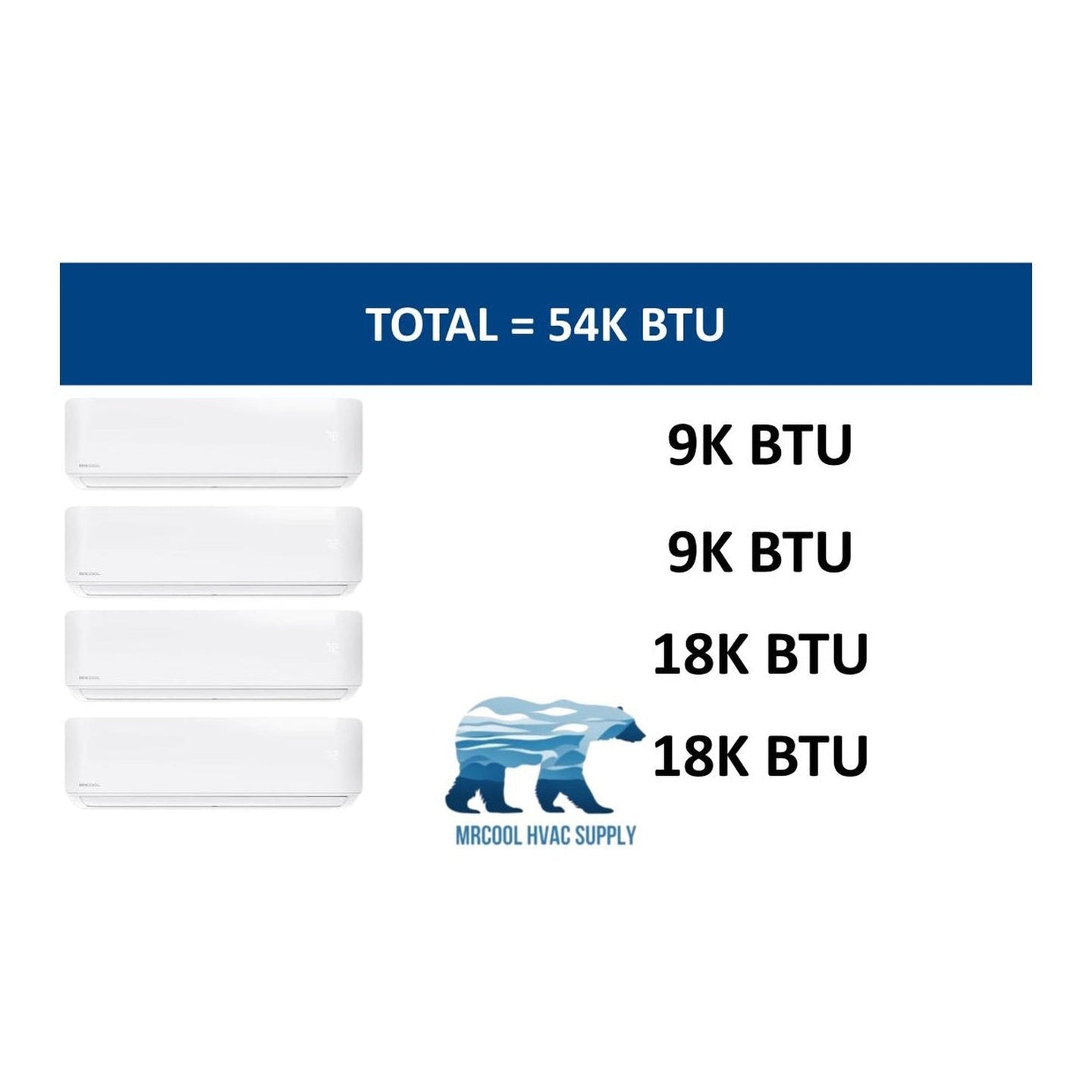

• MRCOOL DIY Multi Zone 5-Zone Condenser, 4th Gen Series, DIY-MULTI5-48HP230C
• MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-09-HP-WMAH-230C25 (x2)
• MRCOOL DIY 4th Generation 18K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-18-HP-WMAH-230C25 (x2)
• MRCOOL DIY 35ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, 4th Generation, DIY35-1412C (x4)

Benefits

• Energy efficiency: up to 20.5 SEER when paired with select MRCOOL air handlers.
• All-weather performance: heating down to 5°F.
• Lifetime warranty: industry’s sole limited lifetime compressor warranty. Register with the MRCOOL Care Program to activate.

Features

• Condenser
  • Energy Efficiency: 20.5 SEER when paired with select MRCOOL air handlers.
  • All-Weather Performance: heating down to 5°F.
  • Lifetime Warranty: lifetime compressor warranty after registering with MRCOOL Care.
• Air Handler (9K BTU, Quantity 2)

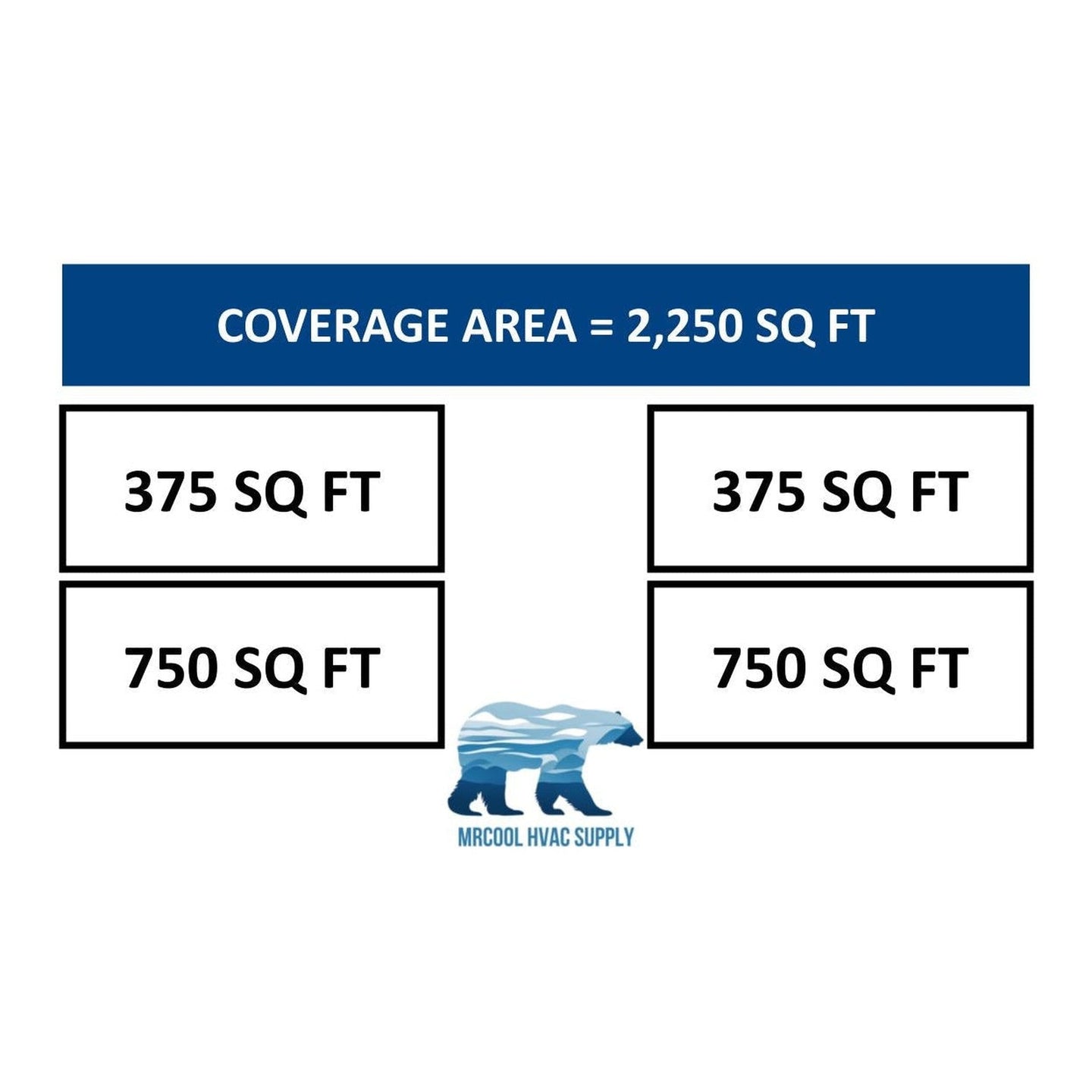

  • Coverage: up to 375 sq. ft. per unit.
  • Modes: COOL, HEAT, AUTO, DRY, SLEEP.
  • Smart Control: manage via Apple or Android phone with the Smart HVAC app.
  • Easy Installation: lightweight and compact; mounts on interior walls with the provided plate.
• Air Handler (18K BTU, Quantity 2)
  • Coverage: up to 750 sq. ft. per unit.
  • Modes: multiple options for customized comfort.
  • Smart Control: remote management through your smartphone.
  • Easy Installation: designed for simple interior-wall mounting.
• Line Set (35 ft., Quantity 4)
  • Copper line set provides a reliable connection between condenser and air handlers.
  • Pre-charged with the precise amount of R-410A refrigerant.
  • DIY installation simplifies setup and saves time.
• Additional Options
  • Customize your setup with extra line sets and a coupler kit for specific applications.
• Included Accessories
  • Installation-friendly tools and accessories to ensure a smooth setup.

Specifications

Condenser Specifications

Air Handler 9K BTU

Air Handler 18K BTU

Line Set

Information and Guides

Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate
