MRCOOL | DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit | DIYM448HPW07C00

MRCOOL DIY 4th Generation Multi-Zone Mini Split

Overview

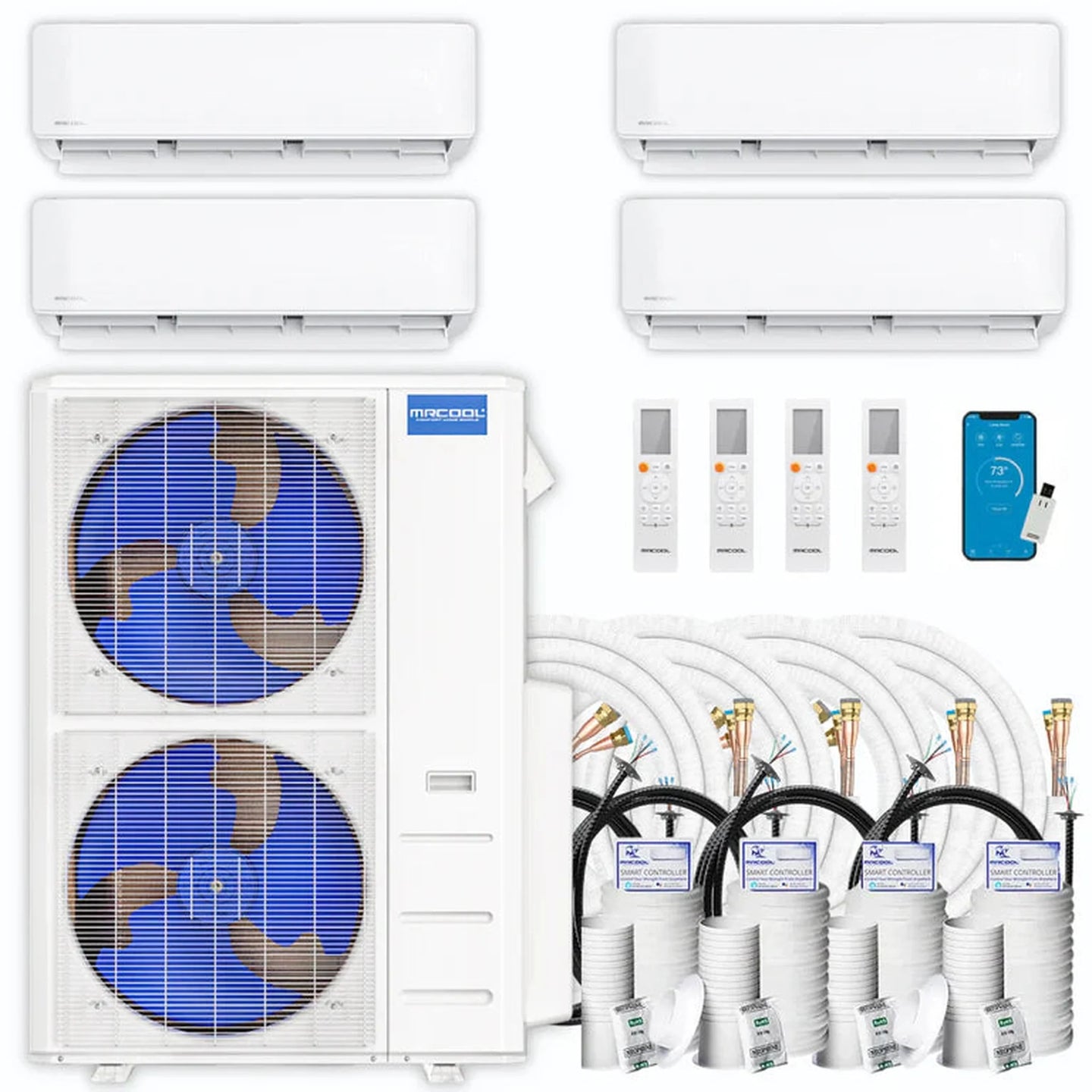

Introducing the 4th Generation MRCOOL DIY Multi Zone Mini Split. It cools and heats up to four rooms with ease. This package includes the DIY 48,000 BTU Multi-Zone Condenser, two 9,000 BTU wall-mounted air handlers, two 18,000 BTU wall-mounted air handlers, four remotes, and four 16 ft. installation kits. It’s designed for a straightforward install you can do yourself.

Enhanced Wi?Fi engineering gives you flexible installation options, virtually anywhere, and you won’t need specialized tools or expensive gear to get it running.

Benefits

• Easy DIY installation. No need for a certified technician.
• Install virtually anywhere thanks to practical Wi?Fi integration and tool-free setup.
• One condenser, four air handlers. Cool and heat up to four rooms as a single system.
• Keep costs down by handling the install yourself.

Features

• Condenser: 4th Gen 5-Zone Condenser, 48,000 BTU total. Works with select MRCOOL air handlers. 20.5 SEER efficiency when paired.
• Heating: Capable of operating in temperatures as low as 5°F.
• Warranty: Limited lifetime compressor warranty (register with MRCOOL Care Program to activate).
• Air Handler (9K BTU, 2 units): Up to 375 sq ft per unit; modes COOL, HEAT, AUTO, DRY, SLEEP; smart control via the Smart HVAC app; lightweight and easy to mount.
• Air Handler (18K BTU, 2 units): Up to 750 sq ft per unit; same modes and app control; easy mounting on interior walls.
• Line Set (16 ft, 4 units): Copper line sets connecting condenser to air handlers; pre-charged with R-410A; DIY-friendly installation.
• Smart control: Compatible with Apple or Android smartphones via the Smart HVAC app.
• Remotes & kits: Includes four remotes and four 16 ft installation kits.
• Expansion options: Additional line sets and coupler kits available for customized setups.
• System balance: When all air handlers run together, total BTU will not exceed the condenser’s 48K rating.

Specifications

Condenser Specifications

Air Handler 9K BTU

Air Handler 18K BTU

Line Set
