MRCOOL

MRCOOL | DIY Mini Split - 54,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit | DIYM348HPW03C00

SKU DIYM348HPW03C00

Regular price: $6,161.10
Sale price: $5,601.00

Regular price: $6,161.10
Sale price: $5,601.00

✅ Authorized Online Dealer
🚚 Free Shipping + No Sales Tax (exclusions may apply)
💲 Lowest Price Guarantee
📦 Fast 4-7 Day Delivery
🏭 Backed By Manufacturer Warranty
❓ Questions? Contact Us: +1 (734) 228-0441 or support@offgridselection.com

Quantity

Product Description

4th Generation MRCOOL DIY Mini Split — 3 Rooms, 48K BTU, DIY Install

Overview

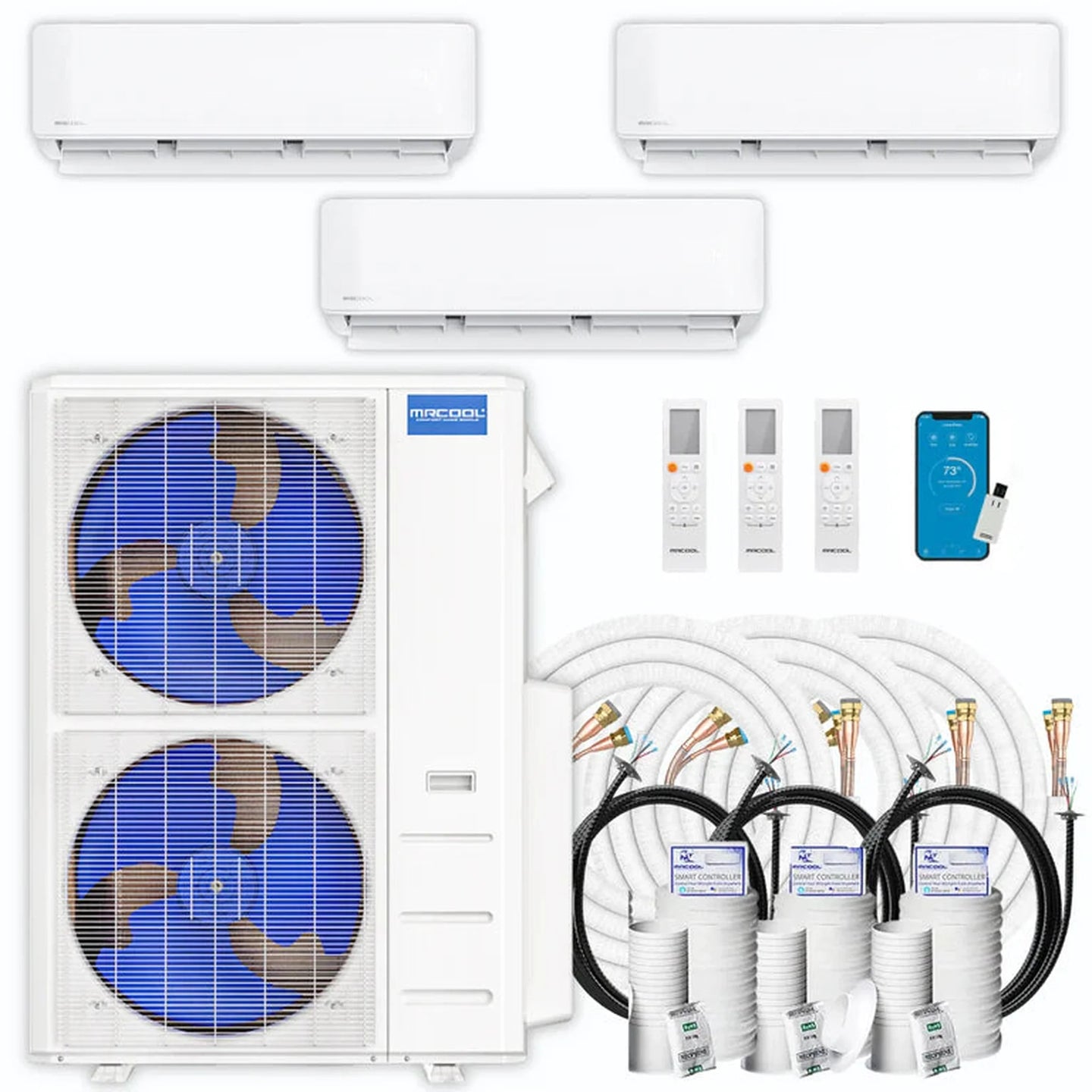

Meet the 4th Gen MRCOOL DIY Multi Zone Mini Split. It covers three rooms with a 48,000 BTU condenser and three 18,000 BTU wall-mounted air handlers. Each air handler comes with its remote and a 16 ft. installation kit. The standout feature is DIY installation—you can set it up yourself.

Benefits

DIY installation saves time and money.
Cools or heats three rooms with one system.
Impressive energy efficiency up to 20.5 SEER.
All-weather heating down to 5°F.
Limited lifetime compressor warranty (via MRCOOL Care Program).

Features

4th Gen DIY Multi Zone Condenser, 48,000 BTU, 230V, 5-Zone capability.

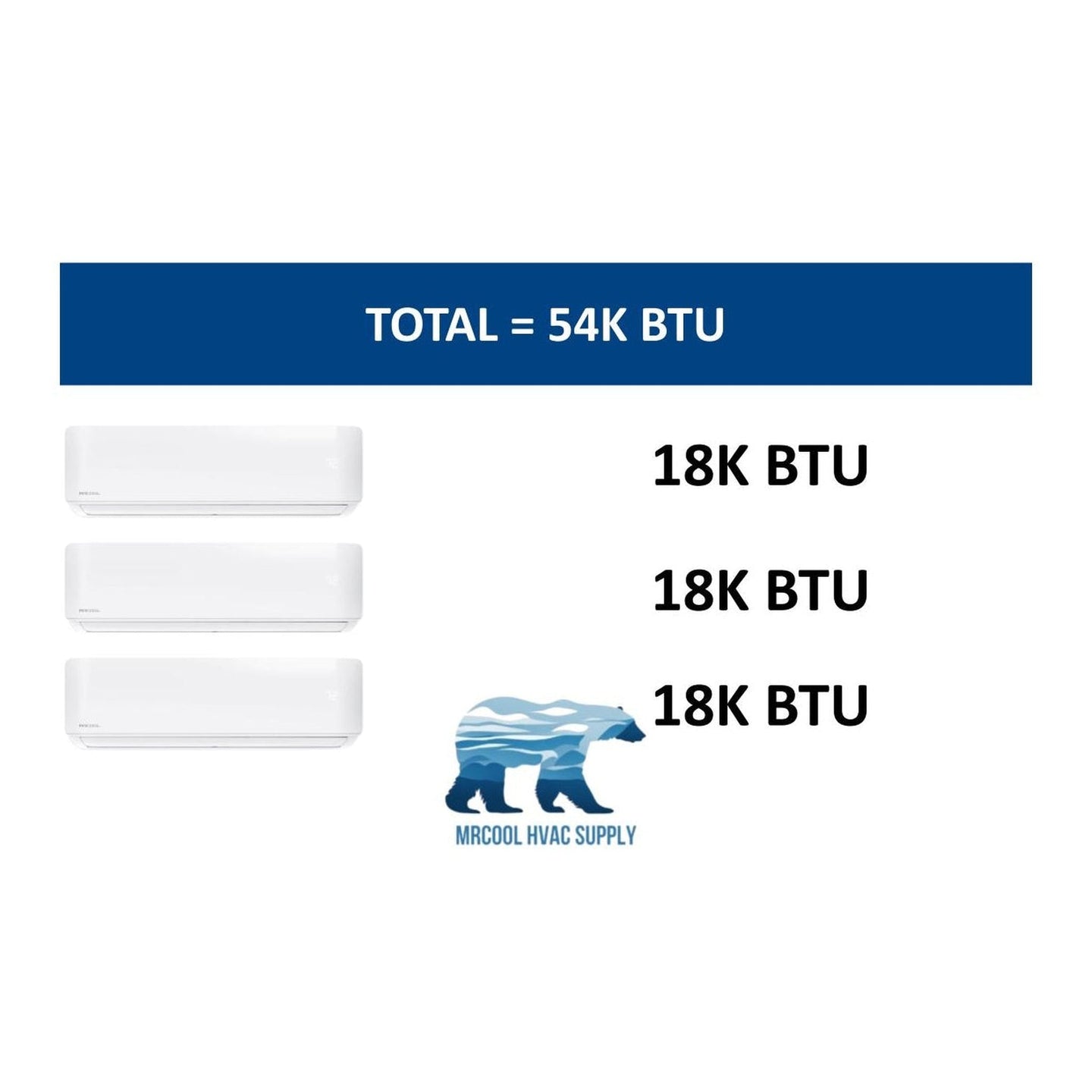

Three 18,000 BTU wall-mounted air handlers with Enhanced WiFi, 230V.

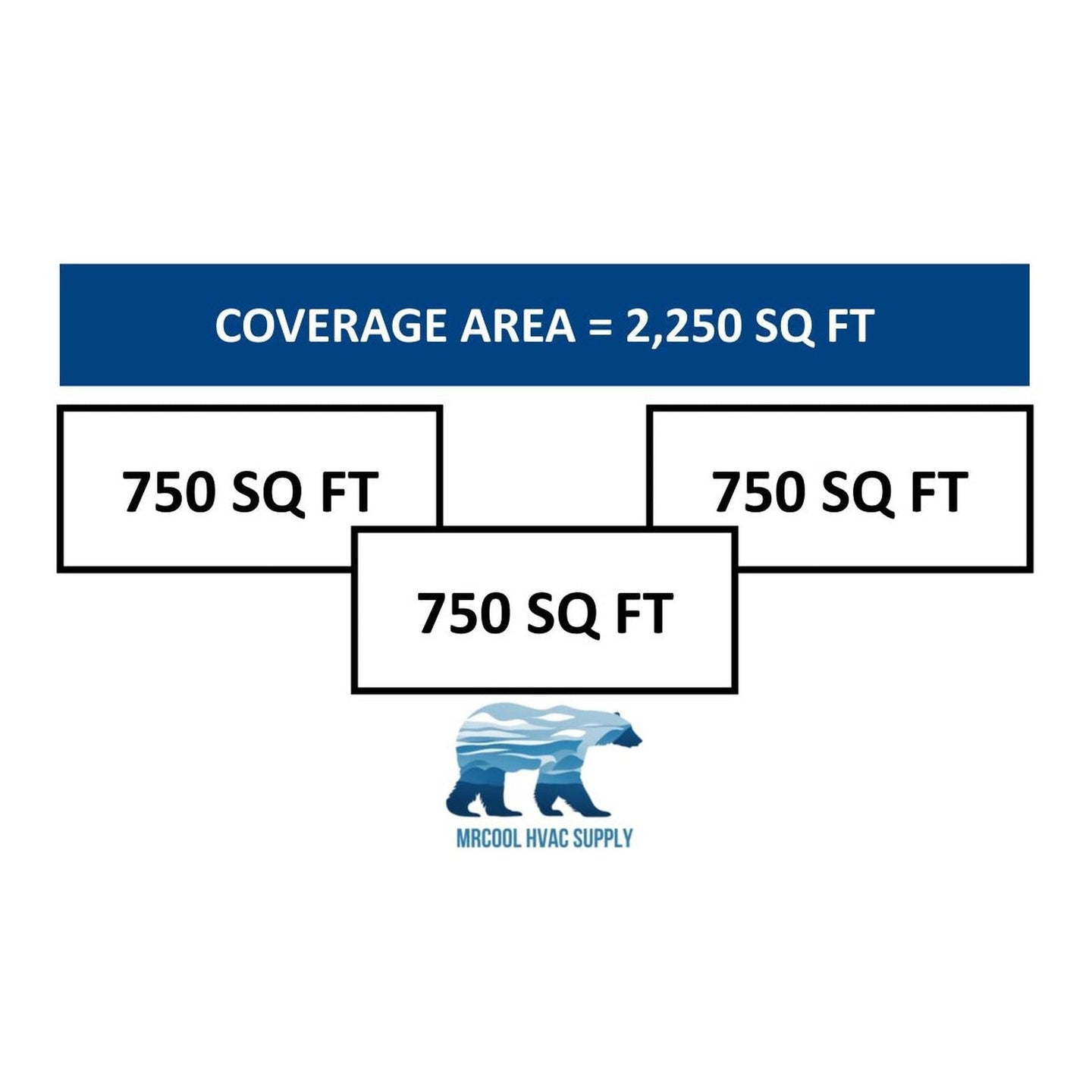

Air handlers deliver up to 750 sq ft coverage each.
Multiple operating modes: COOL, HEAT, AUTO, DRY, SLEEP.
Smart control via Apple or Android Smart HVAC app.
Lightweight, compact air handlers for easy wall installation with included mounting plate.
16 ft line sets, pre-charged with R-410A, for DIY setup.
Remote control included with each air handler.

Specifications

Condenser Specifications

Product Dimensions	37.48"W x 16.34"D x 52.48"H
Cooling Capacity	48,000 BTU
Heating Capacity	48,000 BTU
Zone Capacity	5
Cool Mode - Outdoor Operating Temperature Range	5F ~ 122F
Heat Mode - Outdoor Operating Temperature Range	5F ~ 75.2F
SEER	20.5
EER	11
Voltage	Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase)
Registered Warranty	7 Years Replacement on Condenser, 5 Years Parts

Air Handler 18K BTU

Product Dimensions	42.52"W x 8.90"D x 13.19"H
Mount Type	Wall
Cooling Capacity	18,000 BTU
Heating Capacity	18,000 BTU
Registered Warranty	5 Years Parts
Modes	Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep
