MRCOOL | DIY Mini Split - 54,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump | DIY-B-348HP121824

SKU DIY-B-348HP121824

Regular price: $5,429.60
Sale price: $4,936.00

Regular price: $5,429.60
Sale price: $4,936.00

✅ Authorized Online Dealer
🚚 Free Shipping + No Sales Tax (exclusions may apply)
💲 Lowest Price Guarantee
📦 Fast 4-7 Day Delivery
🏭 Backed By Manufacturer Warranty
❓ Questions? Contact Us: +1 (734) 228-0441 or support@offgridselection.com

Quantity

Product Description

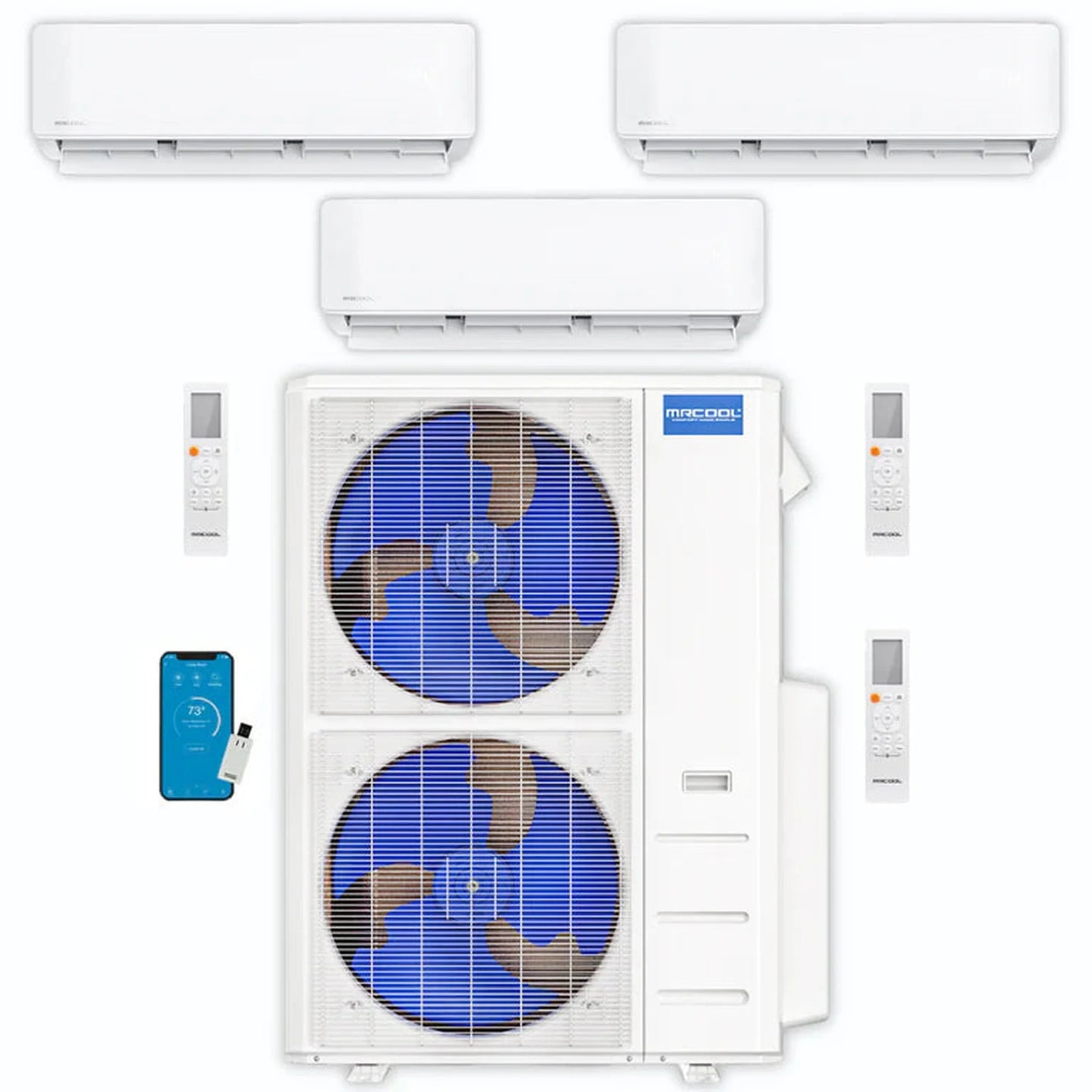

4th Generation MRCOOL DIY Mini Split — 48K BTU Multi-Zone System

Overview

Introducing the 4th Generation MRCOOL DIY Mini Split, an all-inclusive solution designed to efficiently cool and heat residential or commercial spaces. This comprehensive package comprises a 48K BTU Multi-Zone Condenser along with separate 12K, 18K, and 24K BTU Wall Mount Air Handlers. The hallmark feature of this system is its user-friendly installation process, empowering users to set it up without the need for costly HVAC technicians or specialized tools.

Products Included:

MRCOOL DIY Multi Zone 5-Zone 48K BTU Condenser, 4th Gen Series, DIY-MULTI5-48HP230C
MRCOOL DIY 4th Generation 12K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-12-HP-WMAH-230C25
MRCOOL DIY 4th Generation 18K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-18-HP-WMAH-230C25
MRCOOL DIY 4th Generation 24K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-24-HP-WMAH-230C25

Operating all air handlers simultaneously ensures their combined BTU output stays within the limits of the condenser's 48K BTU rating.

Please note: Lineset and communication wire for each air handler are not included. Make sure to add them to your order.

Specifications

Condenser

Product Dimensions	37.48"W x 16.34"D x 52.48"H
Cooling Capacity	48,000 BTU
Heating Capacity	48,000 BTU
Zone Capacity	5
Cool Mode - Outdoor Operating Temperature Range	5°F ~ 122°F
Heat Mode - Outdoor Operating Temperature Range	5°F ~ 75.2°F
SEER2	20.50
EER2	11
HSPF2	9.2
Voltage	Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase)
Registered Warranty	7 Years Replacement on Condenser, 5 Years Parts

Air Handler 12K BTU

Product Dimensions	31.57"W x 7.44"D x 11.69"H
Mount Type	Wall
Cooling Capacity	12,000 BTU
Heating Capacity	12,000 BTU
Registered Warranty	5 Years Parts
Modes	Auto (Auto selects Cool, Heat or Fan-Only) Cool Heat Dry Fan Only Sleep

Air Handler 18K BTU

Product Dimensions	34.61"W x 8.90"D x 13.19"H
Mount Type	Wall
Cooling Capacity	18,000 BTU
Heating Capacity	18,000 BTU
Registered Warranty	5 Years Parts
Modes	Auto (Auto selects Cool, Heat or Fan-Only) Cool Heat Dry Fan Only Sleep

Air Handler 24K BTU

Product Dimensions	42.52"W x 8.90"D x 13.19"H
Mount Type	Wall
Cooling Capacity	23,000 BTU
Heating Capacity	25,000 BTU
Registered Warranty	5 Years Parts
Modes	Auto (Auto selects Cool, Heat or Fan-Only) Cool Heat Dry Fan Only Sleep
