MRCOOL | DIY Mini Split - 54,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump | DIY-B-348HP090936

MRCOOL 4th Gen DIY Mini Split — 48K BTU Multi-Zone System

Overview

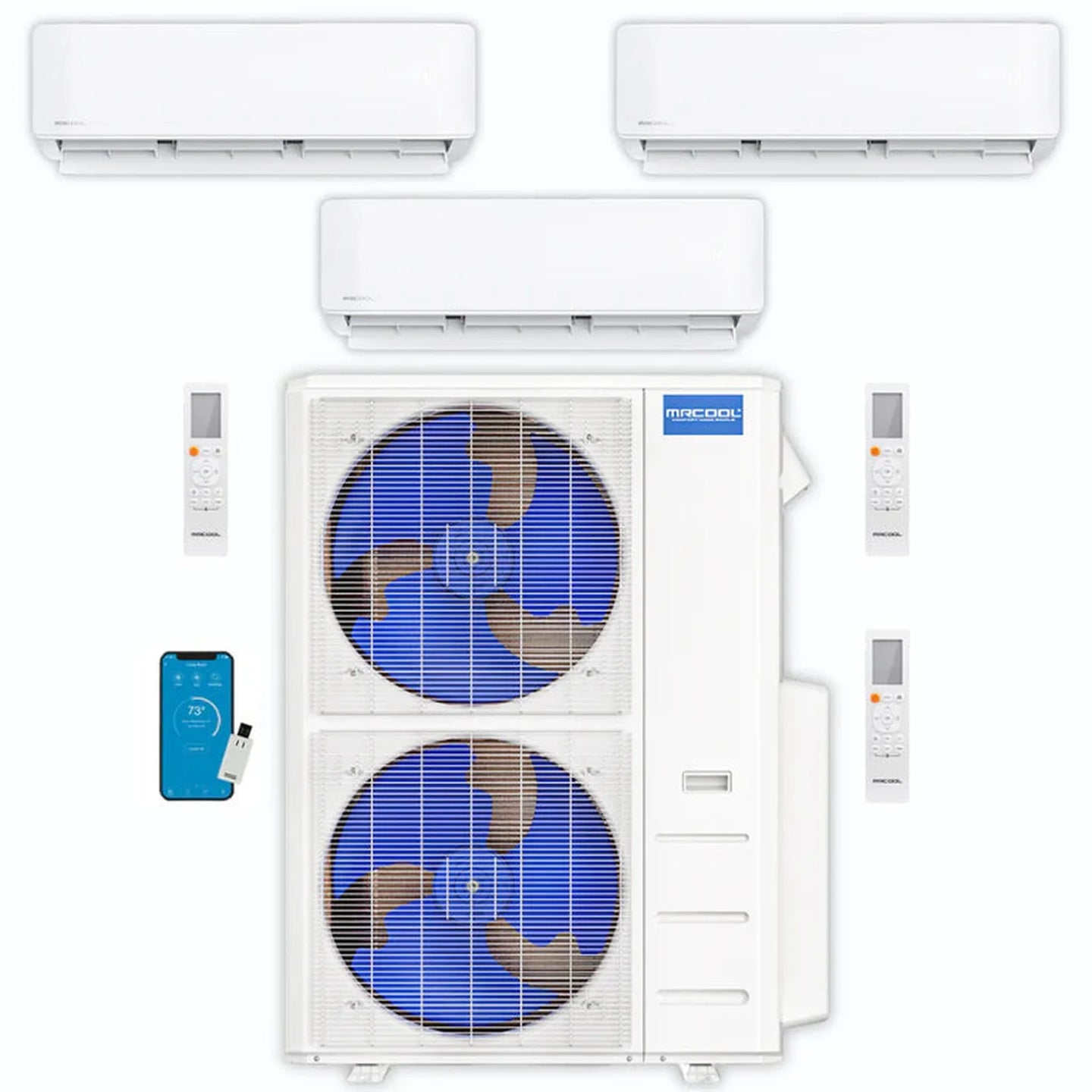

Discover the DIY-friendly MRCOOL 4th Generation mini split. This package includes a 48,000 BTU DIY condenser, two 9,000 BTU wall-mounted air handlers, one 36,000 BTU wall-mounted air handler, and three remotes. The system is designed for easy, do-it-yourself installation.

Benefits

• DIY installation capability. No professional install required (linesets not included).
• 5-zone capacity with a 48K BTU condenser, designed to work with multiple air handlers.
• Energy efficiency: up to 20.5 SEER when paired with select MRCOOL air handlers.
• Operates in cold temps down to 5°F for reliable heating.
• Lifetime compressor warranty (activate by registering for the MRCOOL Care Program).
• Smart control via the Smart HVAC app on Apple or Android devices.
• Remote included: 3 remotes for flexible control.

Features

• Included components: MRCOOL DIY Multi Zone 5-Zone 48K BTU Condenser (4th Gen), SKU: DIY-MULTI5-48HP230C; MRCOOL DIY 4th Gen 9K BTU Wall Mount Air Handler 230V with Enhanced WiFi (SKU: DIY-09-HP-WMAH-230C25) ×2; MRCOOL DIY 4th Gen 36K BTU Wall Mount Air Handler 230V with Enhanced WiFi (SKU: DIY-36-HP-WMAH-230C25).
• 9K BTU air handlers: each covers up to 375 sq ft; modes COOL, HEAT, AUTO, DRY, and SLEEP; smart app control; lightweight with mounting plates for easy installation.
• 36K BTU air handler: covers up to 1,500 sq ft; same modes and smart app control; lightweight with mounting plate for easy installation.

Specifications

Condenser

Air Handler 9K BTU

Air Handler 36K BTU

Information and Guides

Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate
