MRCOOL | DIY Mini Split - 51,000 BTU 5 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit | DIY548HP090909121250

MRCOOL DIY 4th Gen 5-Zone Mini Split System

Overview

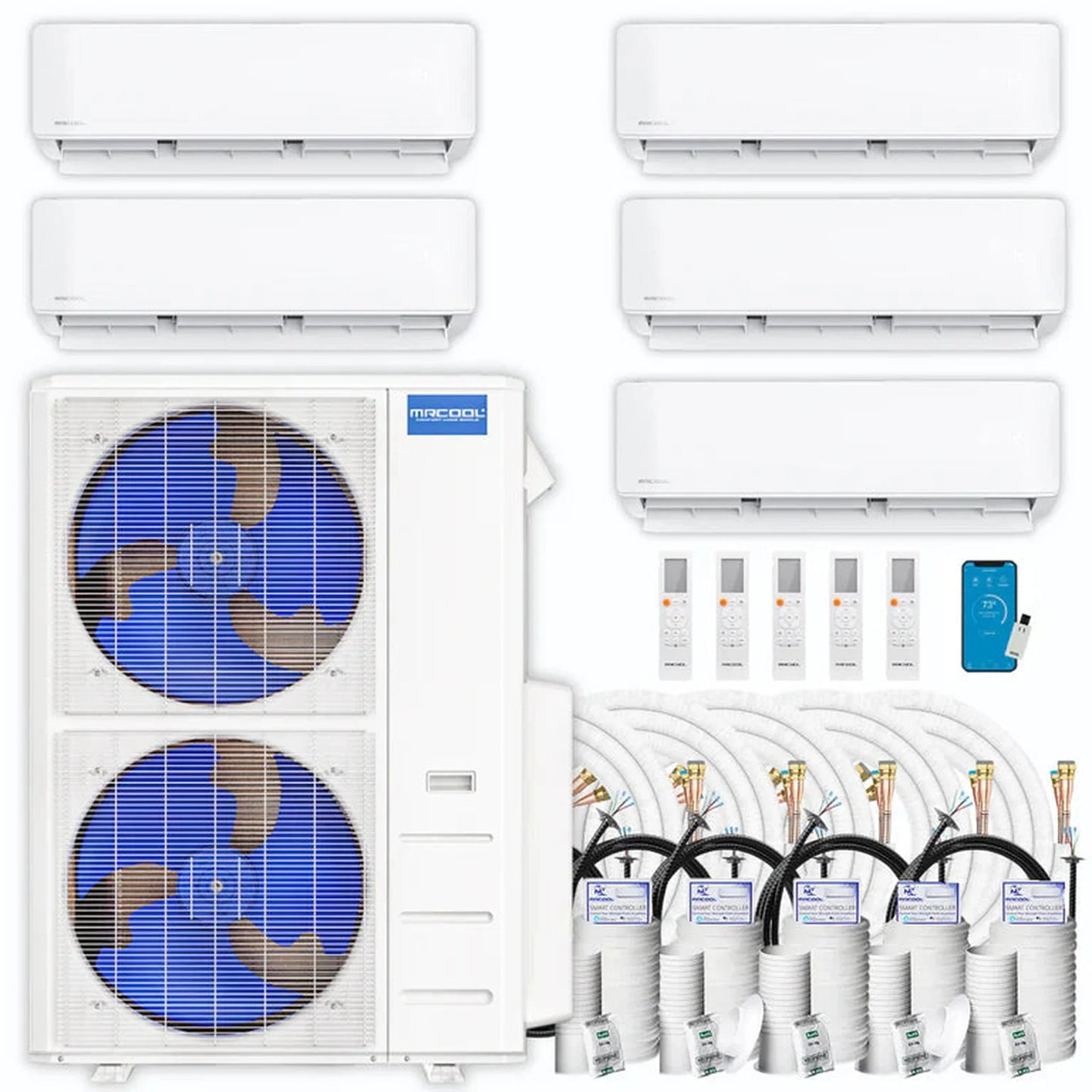

This 4th generation MRCOOL DIY Multi-Zone system cools and heats up to five rooms. The package includes everything for a DIY installation: a 48,000 BTU multi-zone condenser, three 9,000 BTU wall-mounted air handlers, two 12,000 BTU wall-mounted air handlers, five remotes, and five 50 ft installation kits. It’s designed for easy self-installation, so you can handle the setup without a professional.

Benefits

• DIY installation saves time and money by skipping professional labor.
• Energy efficient when paired with MRCOOL air handlers — up to 20.5 SEER.
• Reliable heating in cold weather, capable down to 5°F.
• Condenser features a limited lifetime compressor warranty via the MRCOOL Care Program.
• True multi-zone comfort with independent control for up to five zones.

Features

• 4th Gen MRCOOL DIY Multi-Zone Condenser, 48,000 BTU, supports 5 zones.

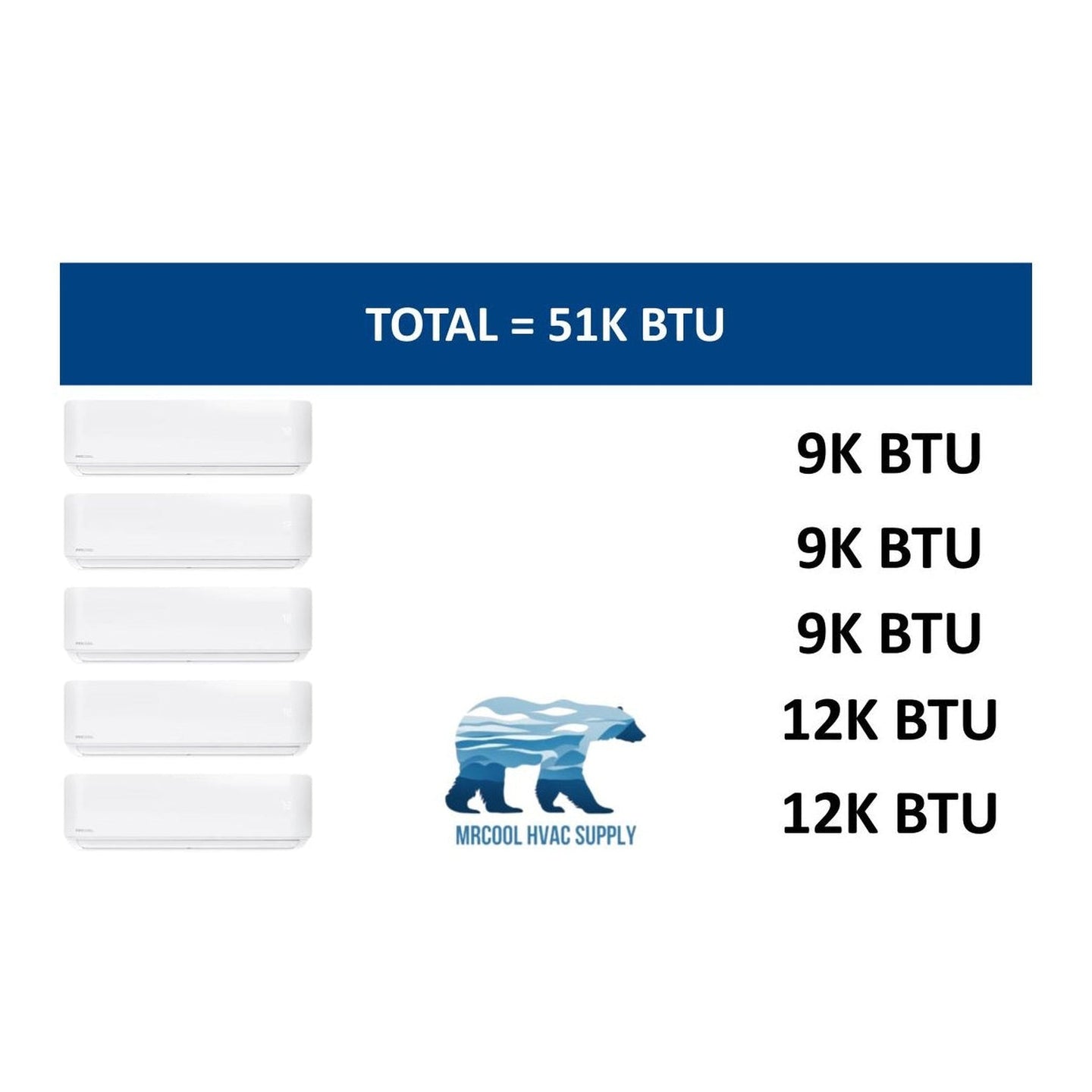

• Air handlers: three 9,000 BTU units and two 12,000 BTU units, all with Enhanced WiFi.
• Five remotes included for individual zone control.
• Five 50 ft installation kits included for simple routing and setup.
• Line sets are pre-charged with R-410A refrigerant.
• One line set per indoor unit is required for proper operation in a multi-zone system.
• Smart HVAC app control lets you manage each unit from iOS or Android devices.
• Each air handler supports multiple modes: COOL, HEAT, AUTO, DRY, and SLEEP.
• Simple mounting plates and compact design ease wall installation for most interiors.

Specifications

Condenser

Air Handler 9K BTU

Air Handler 12K BTU

Line Set

Information and Guides

Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate
