MRCOOL | DIY Mini Split - 51,000 BTU 5 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit | DIY548HP090909121225

MRCOOL DIY 4th Gen 5-Zone Mini Split System

Overview

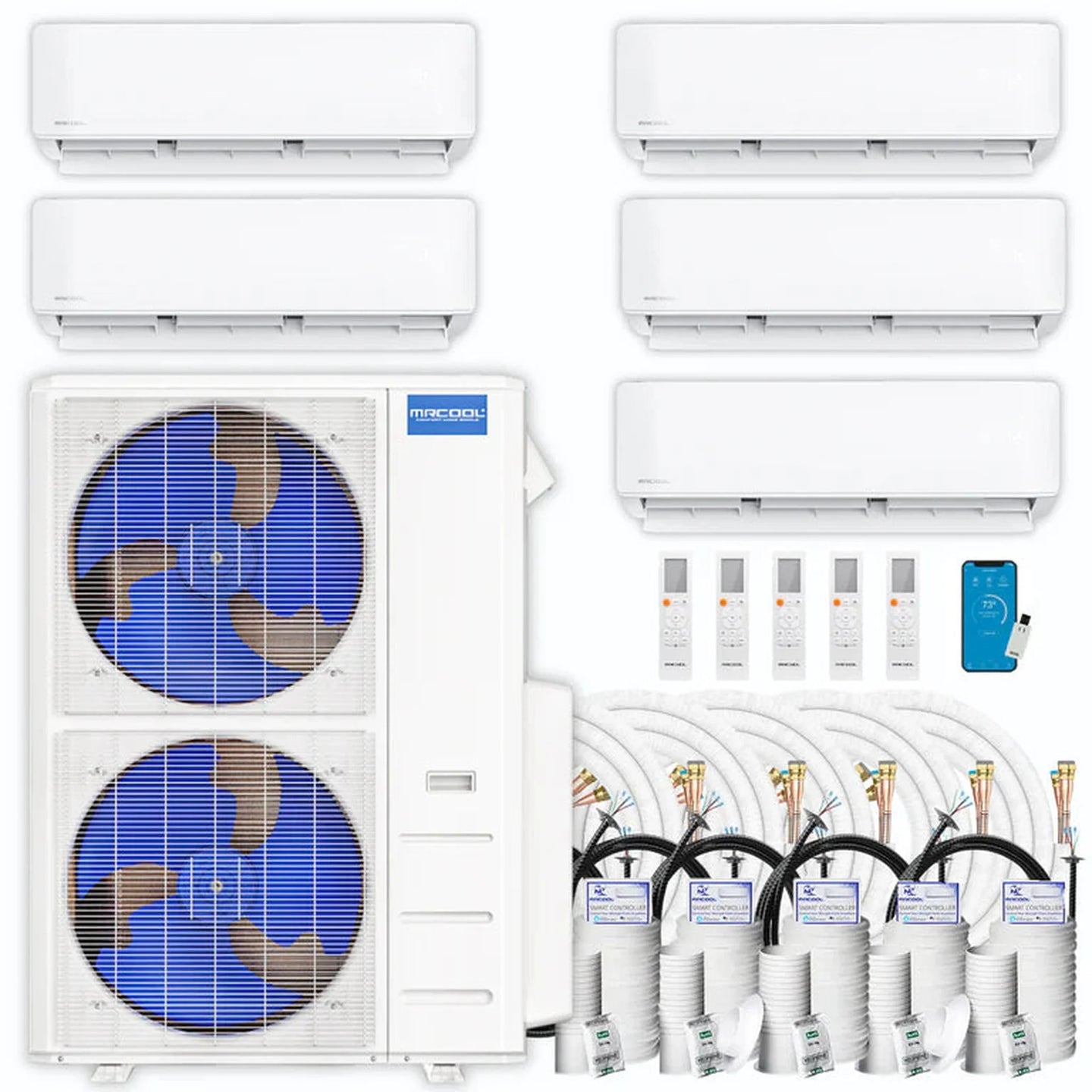

This 4th Generation MRCOOL Mini Split system is designed to efficiently cool and heat up to five distinct rooms. The package includes everything you need: a DIY 48,000 BTU Multi-Zone Condenser, three 9,000 BTU Wall Mounted Air Handlers, two 12,000 BTU Wall Mounted Air Handlers, five remotes, and five 25 ft. installation kits. The highlight of this system is its DIY installation capability, allowing you to set it up with ease!

Package Includes

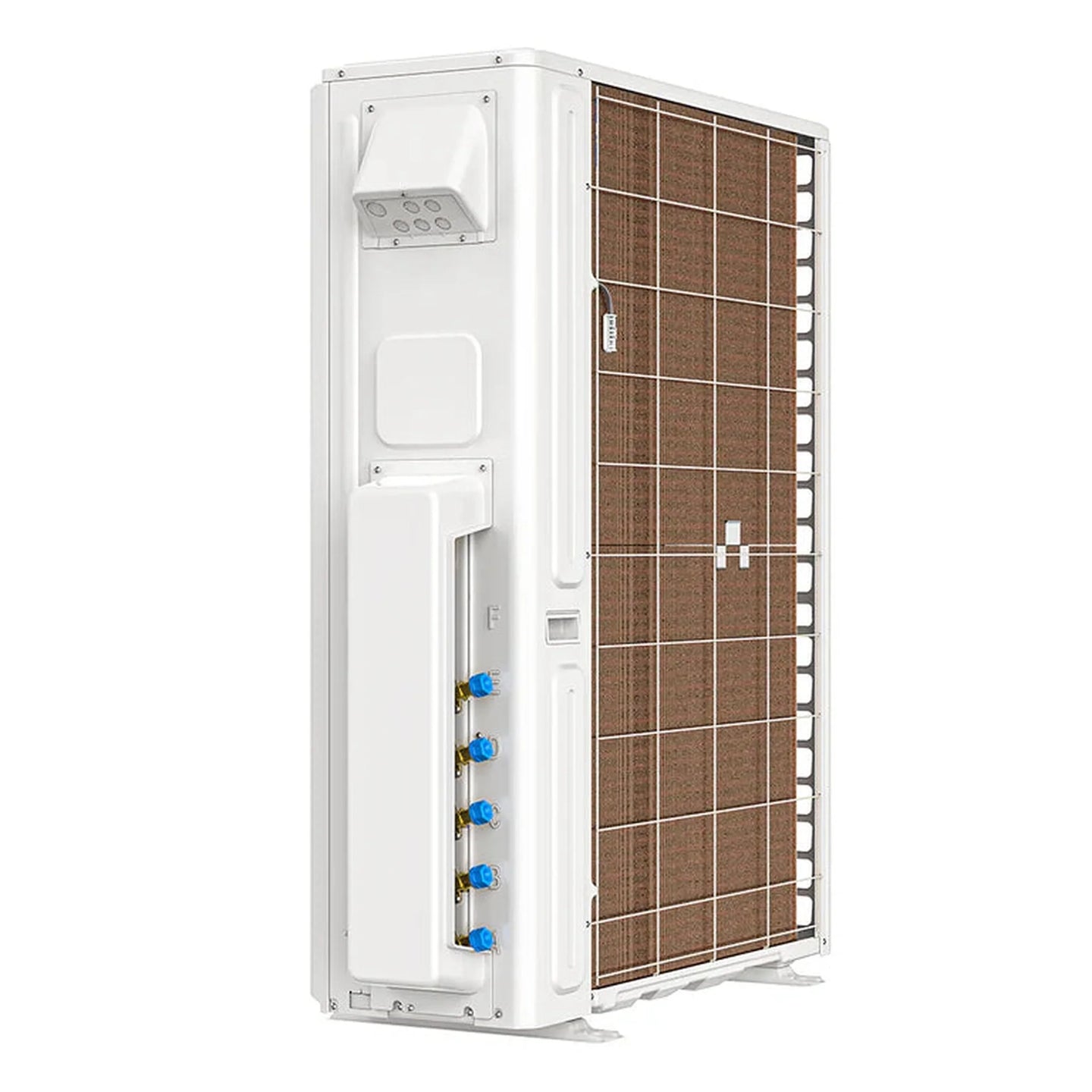

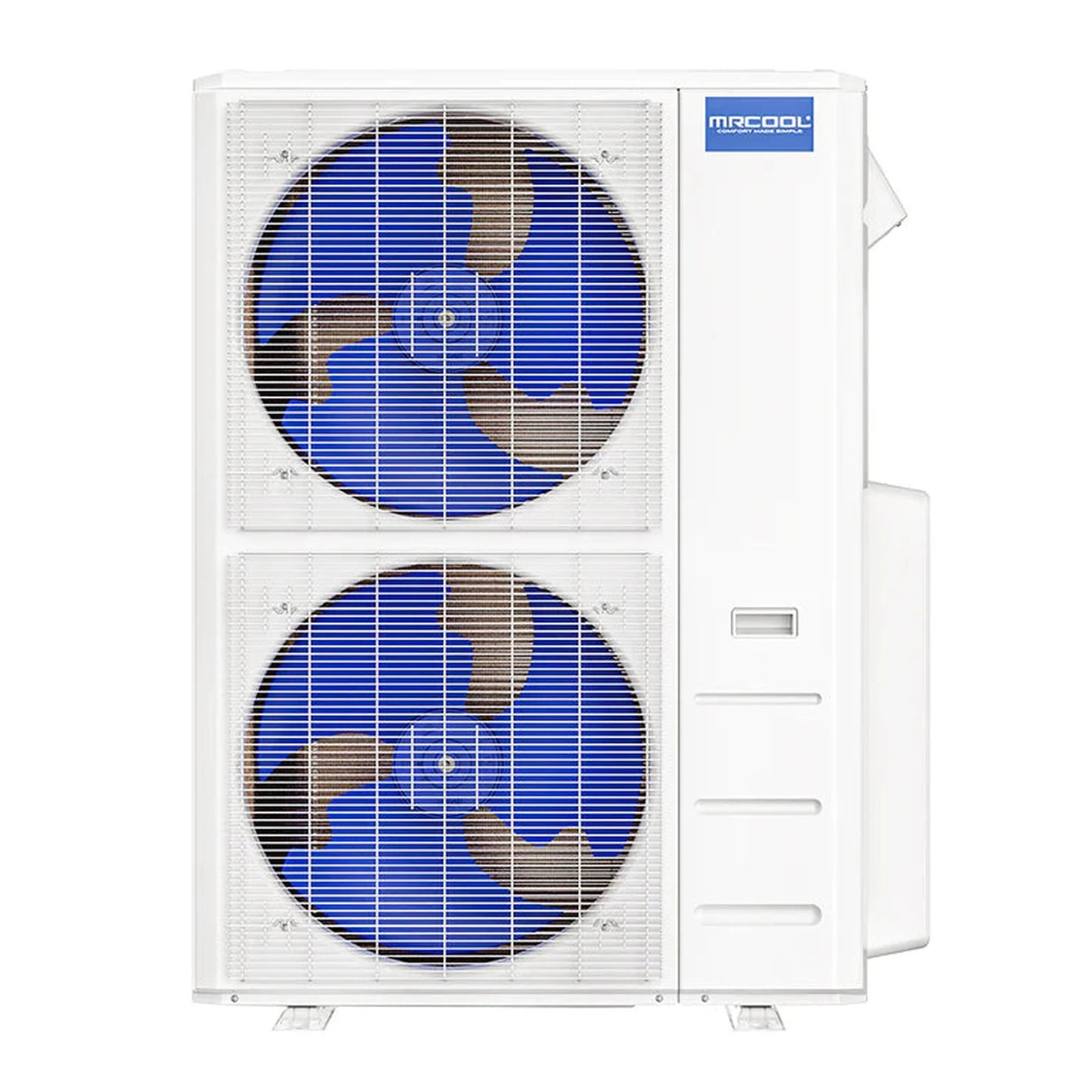

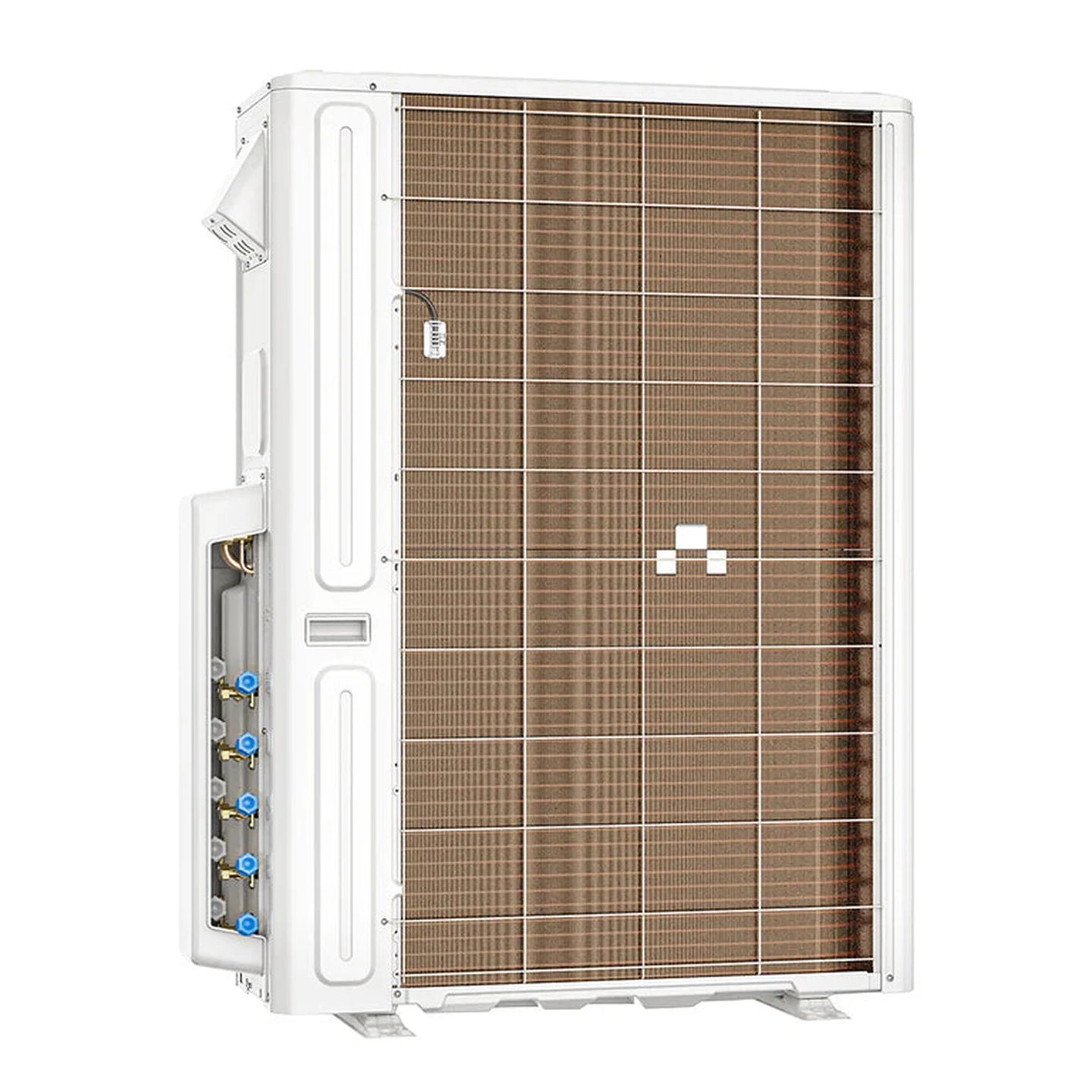

• MRCOOL DIY Multi Zone 5-Zone Condenser, 4th Gen Series, SKU: DIY-MULTI5-48HP230C

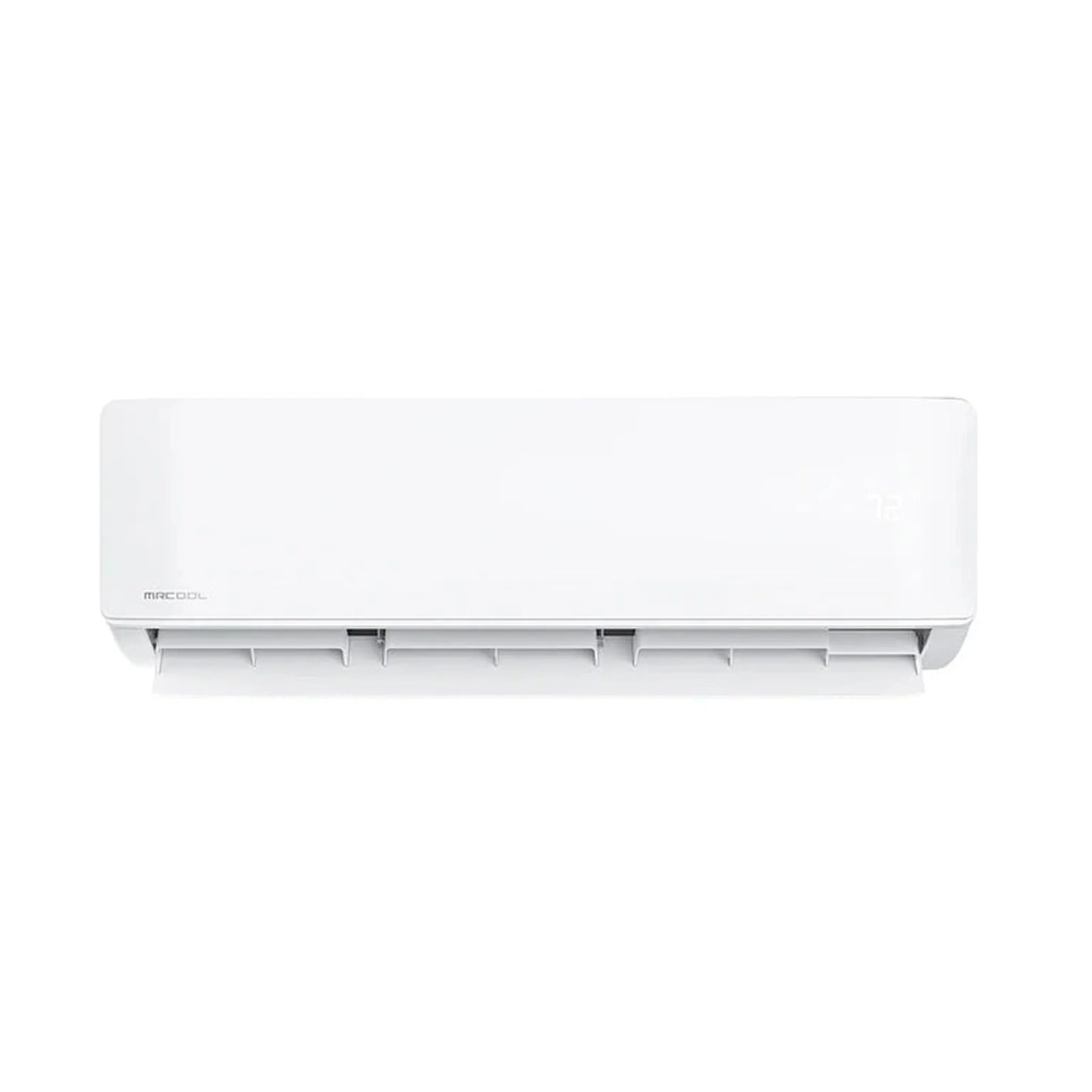

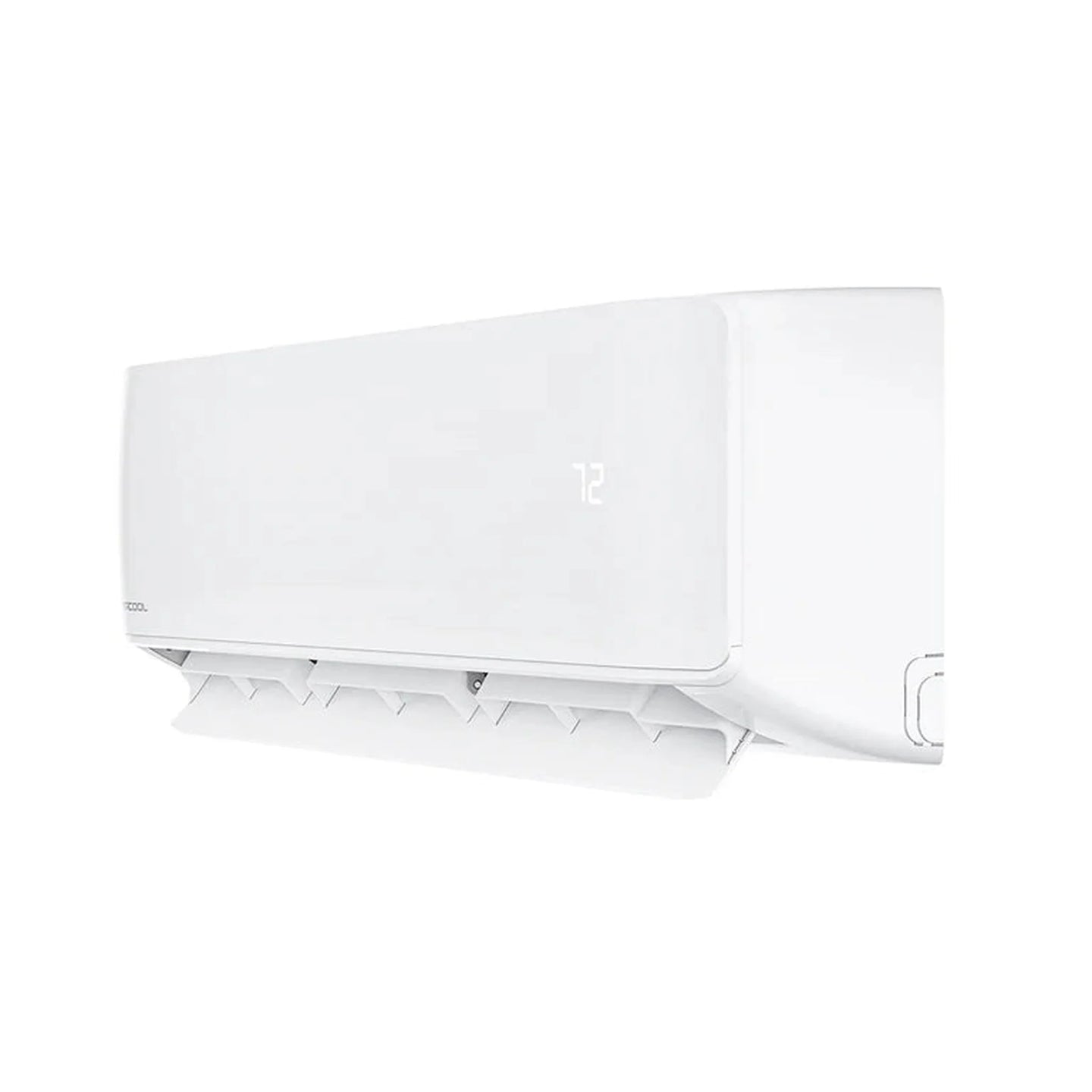

• MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, SKU: DIY-09-HP-WMAH-230C25 (x3)
• MRCOOL DIY 4th Generation 12K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, SKU: DIY-12-HP-WMAH-230C25 (x2)

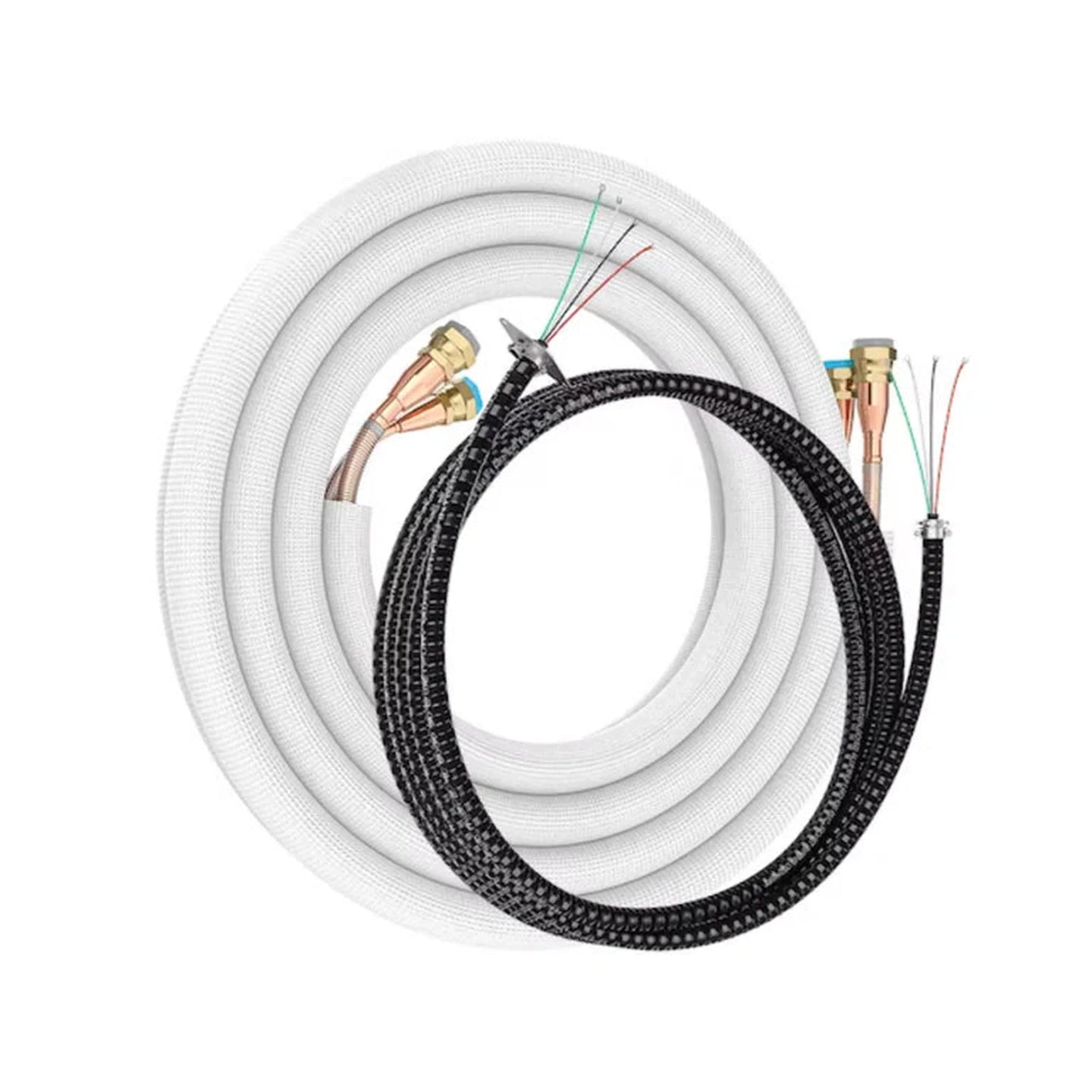

• MRCOOL 25ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, SKU: DIY25-1412 (x5)

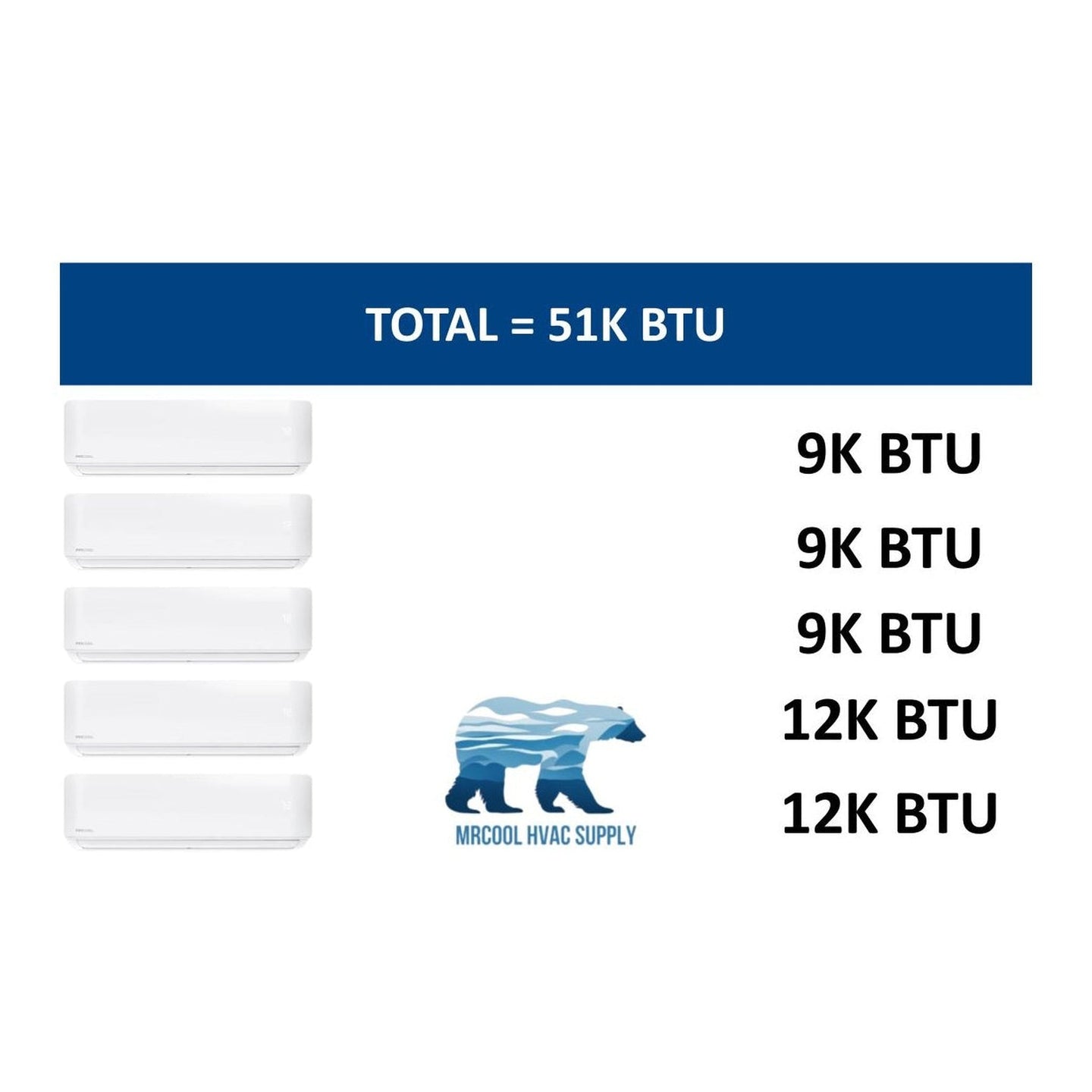

When all air handlers operate simultaneously, their total BTU output must remain within the condenser's BTU rating. Therefore, the combined BTU output from the air handlers will not exceed the 48K BTU capacity of the condenser.

Benefits

• DIY installation saves money and time. No wasteful trips for a pro.
• Energy efficient: SEER 20.5 when paired with MRCOOL air handlers.
• Heats down to 5°F. Works in cold weather.
• Five-zone setup handles up to five rooms. All must stay under the 48K BTU condenser rating.
• Lifetime compressor warranty with MRCOOL Care registration.

Features

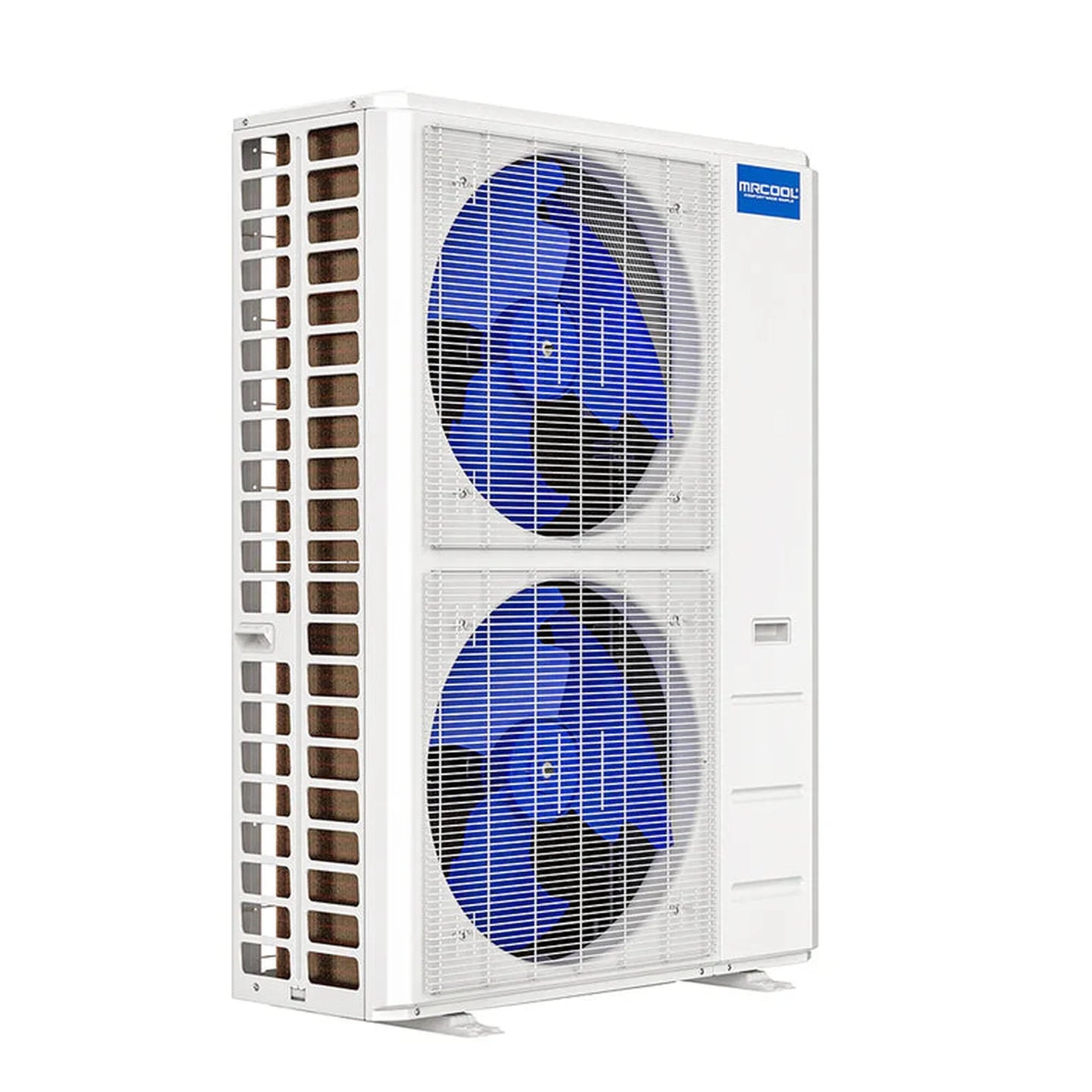

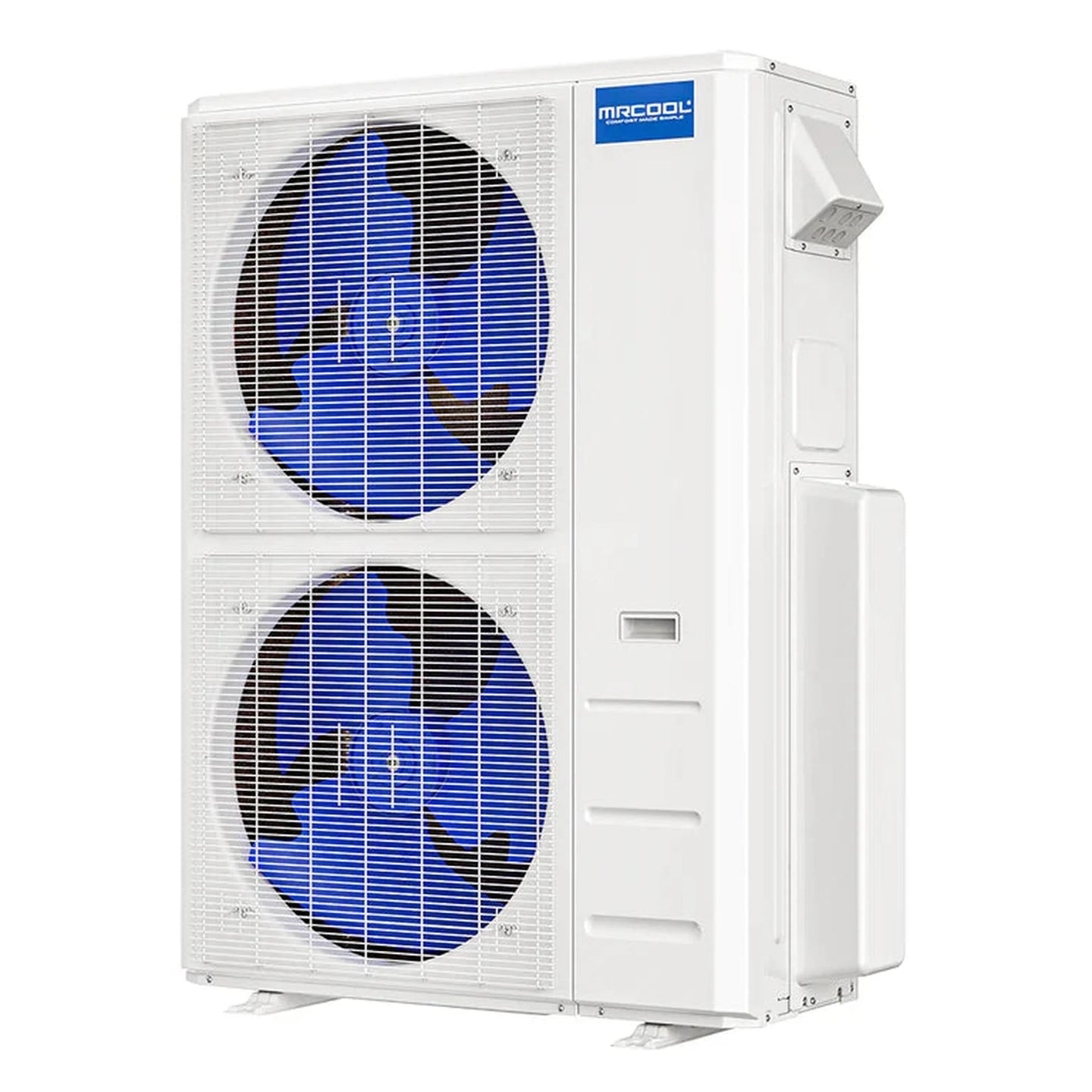

• Condenser: 48,000 BTU, 5-zone capacity, SEER 20.5 with compatible air handlers.
• Condenser environment: Works in temperatures as low as 5°F for heating.
• Warranty: Limited lifetime compressor warranty via MRCOOL Care registration.

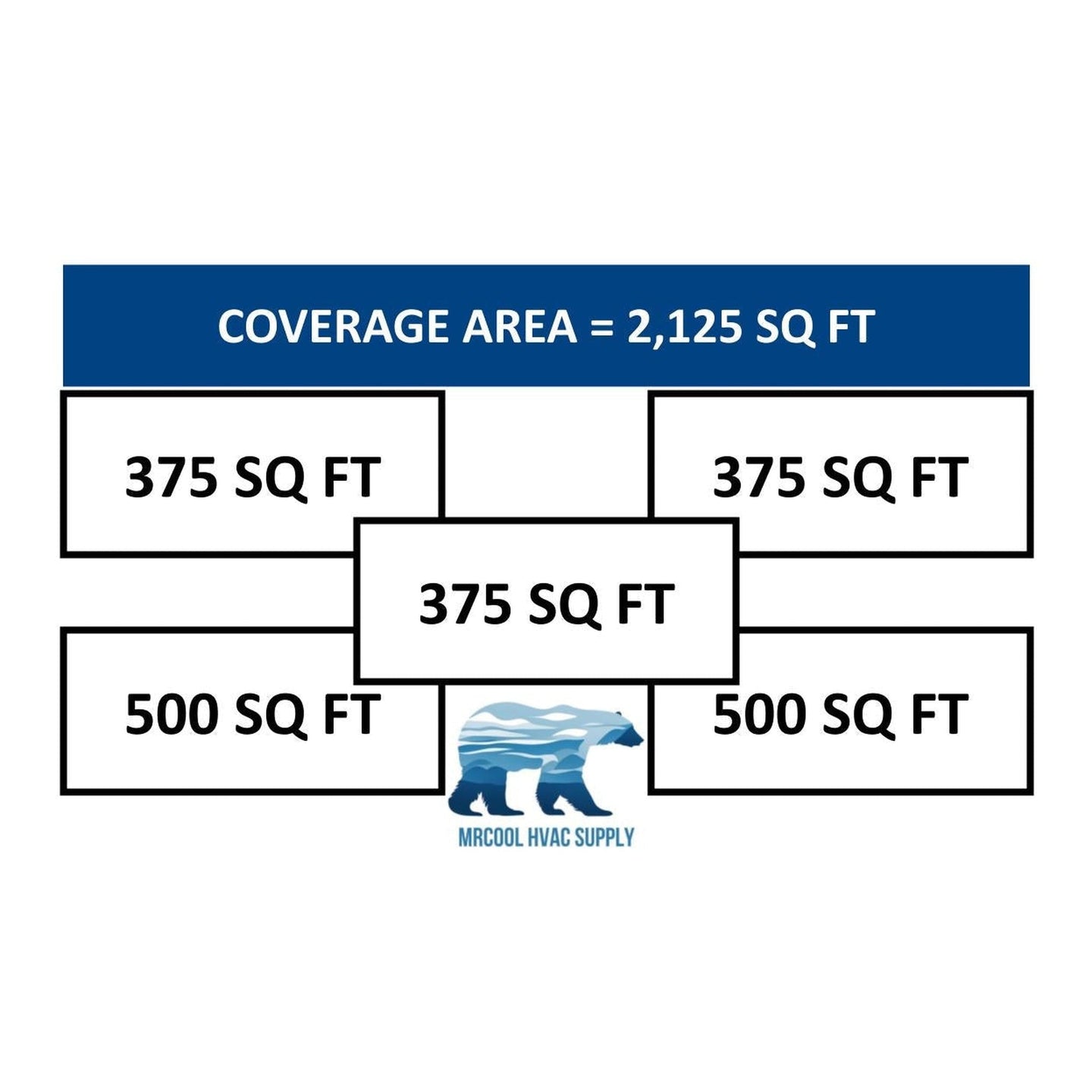

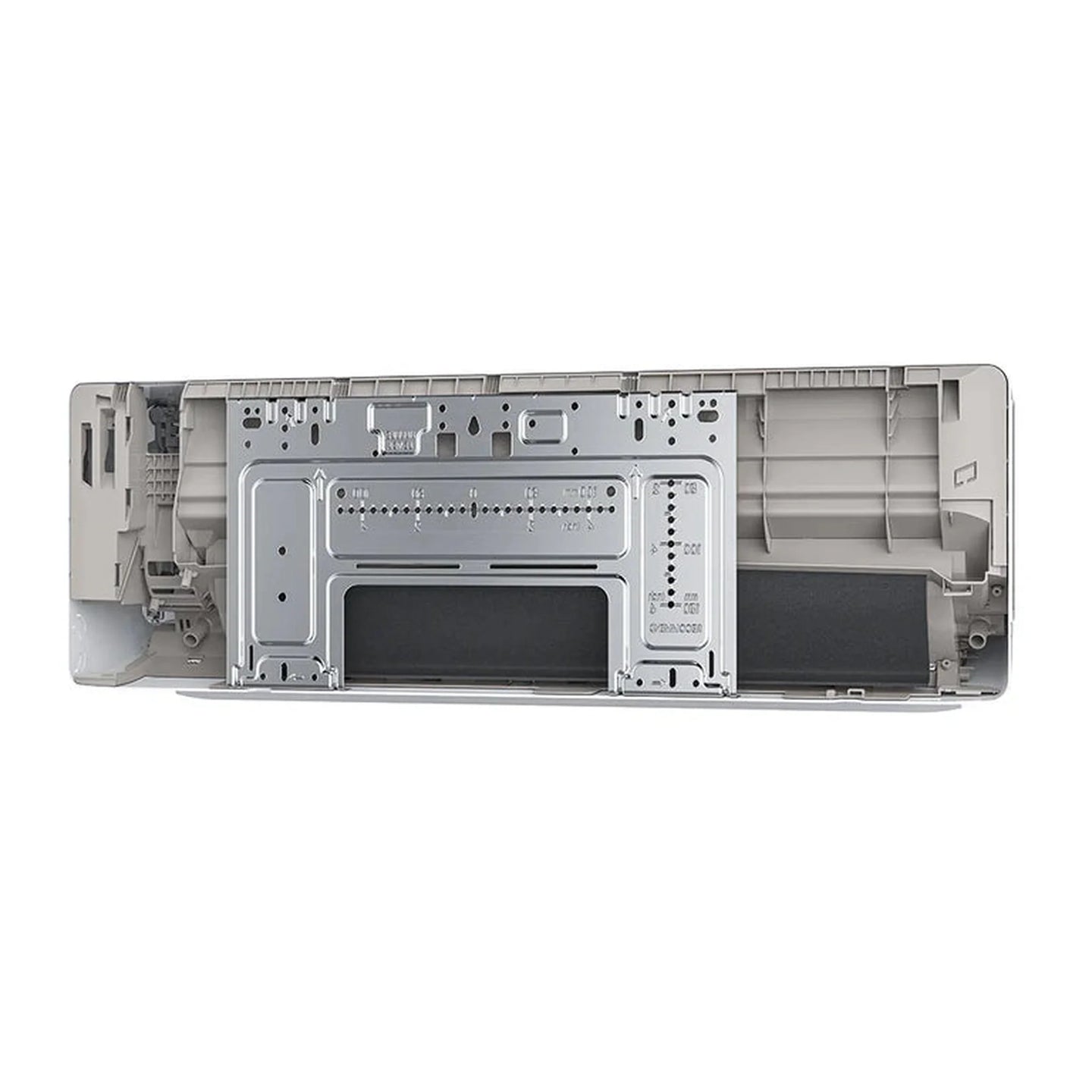

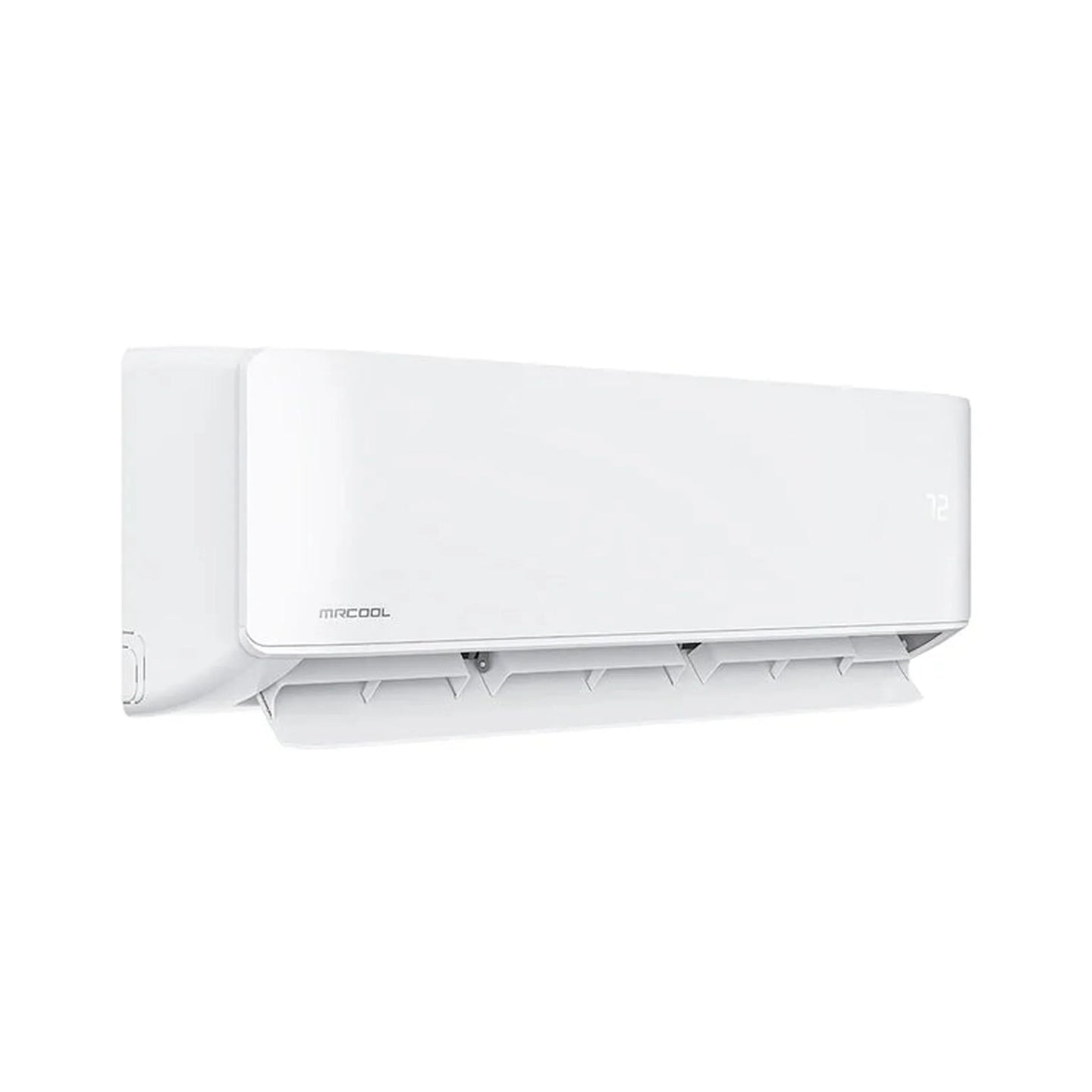

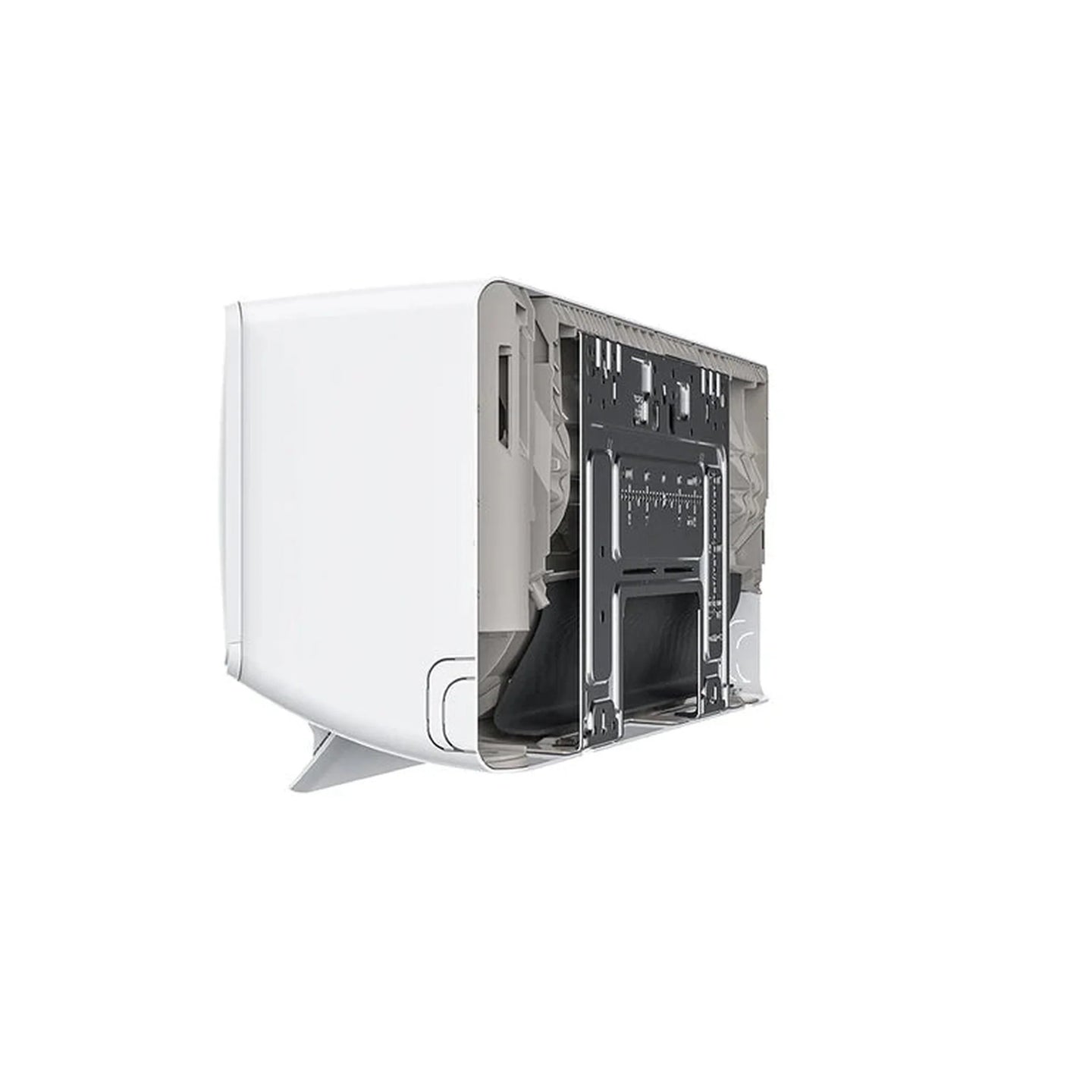

• Air Handler, 9K BTU (x3): Cooled/heated area up to 375 sq. ft per unit; modes COOL, HEAT, AUTO, DRY, SLEEP; Smart HVAC app control; lightweight and easy to install with mounting plate.
• Air Handler, 12K BTU (x2): Cooled/heated area up to 500 sq. ft per unit; modes COOL, HEAT, AUTO, DRY, SLEEP; Smart HVAC app control; lightweight and easy to install with mounting plate.

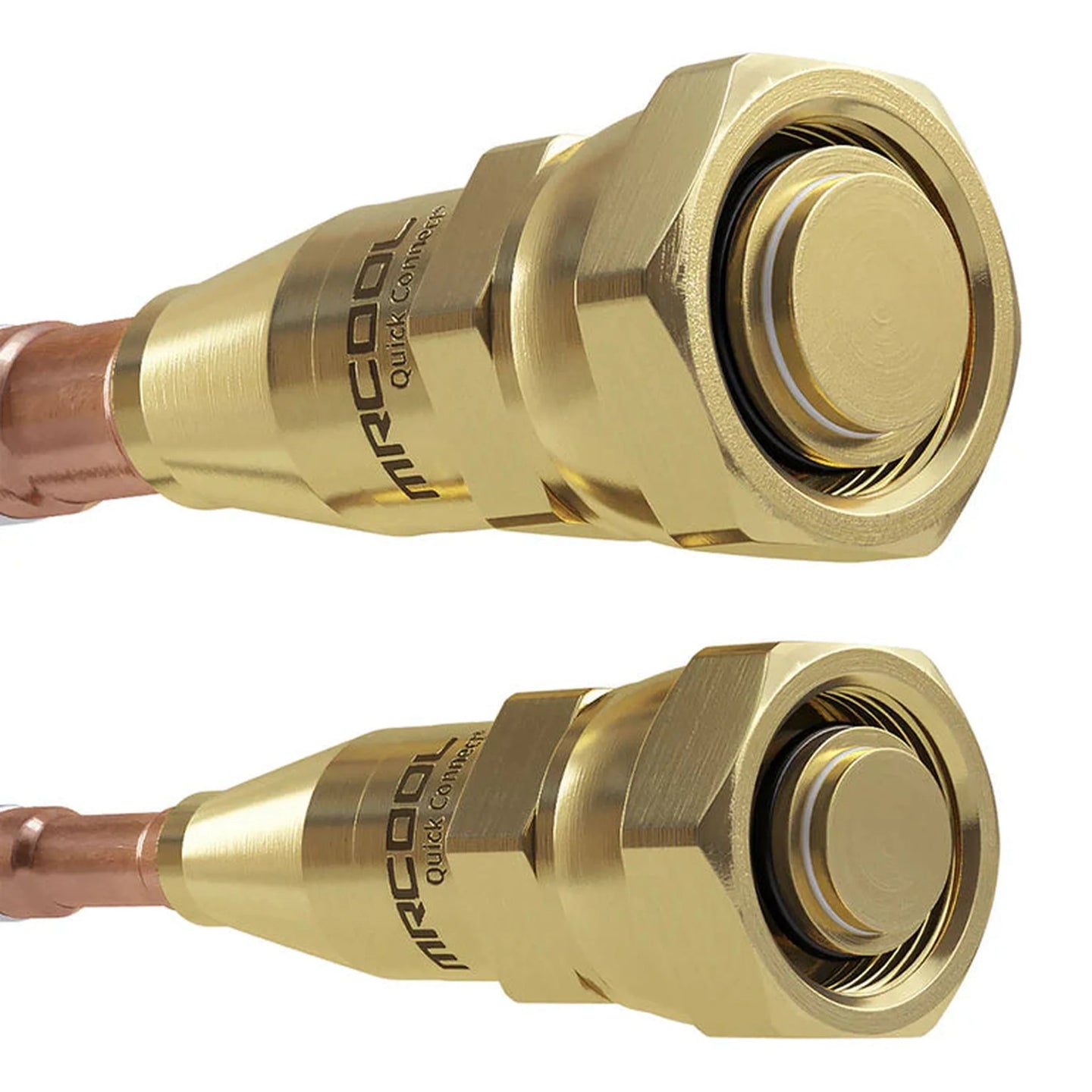

• Line Set, 25 ft. (x5): Pre-charged with exact R-410A refrigerant; one line set per indoor unit for multi-zone systems; DIY-friendly and cost-saving.

Specifications

Condenser

Air Handler 9K BTU

Air Handler 12K BTU

Line Set
