MRCOOL | DIY Mini Split - 51,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit | DIYM448HPW08C217

MRCOOL 4th Gen DIY Multi Zone 48K BTU Mini Split System

Overview

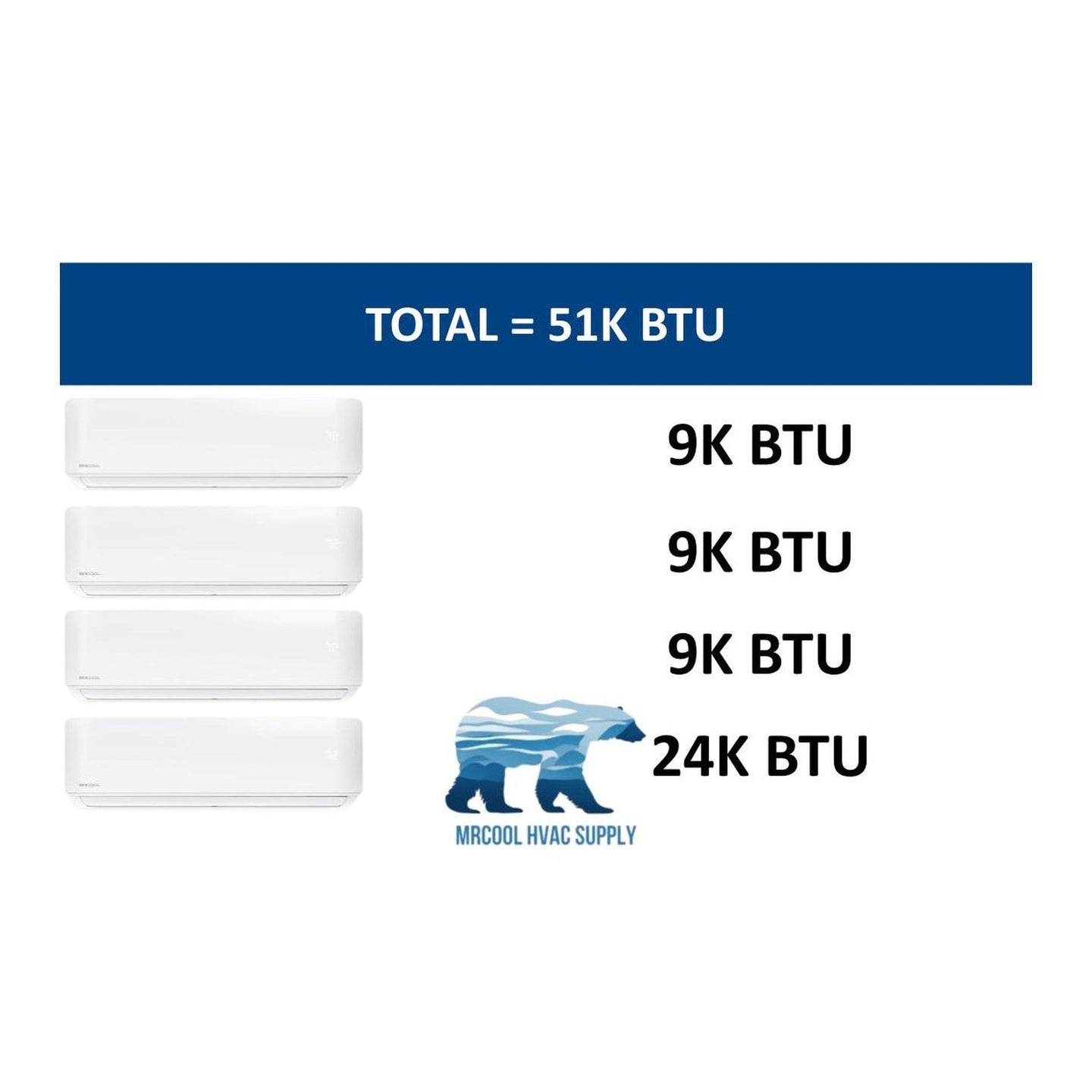

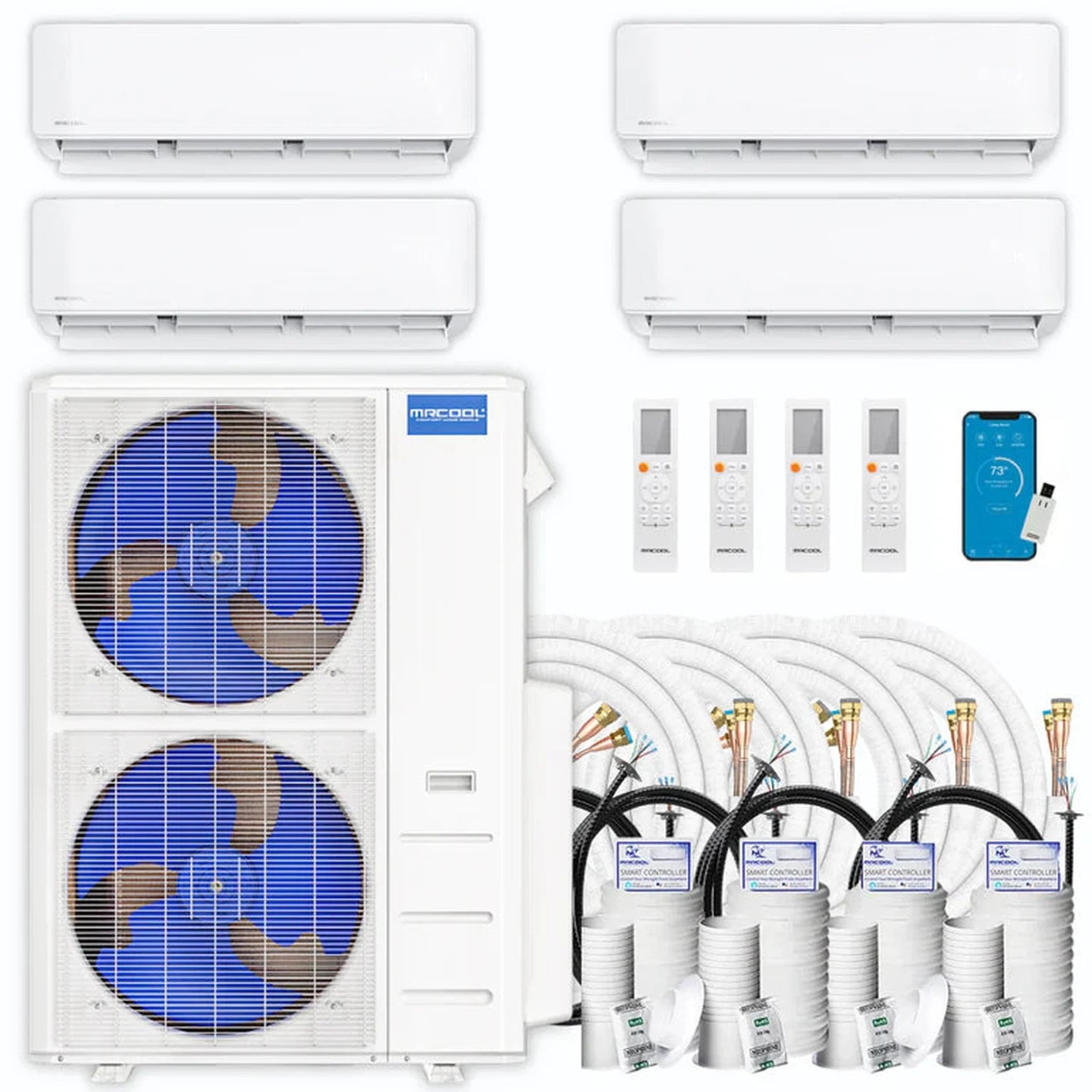

This 4th Generation MRCOOL mini split covers four rooms. It includes a DIY 48,000 BTU multi-zone condenser, three 9,000 BTU wall mounted air handlers, one 24,000 BTU wall mounted air handler, four remotes, and four 35 ft installation kits. It’s designed for DIY installation.

Benefits

• DIY installation saves money and time.
• Energy efficient: up to 20.5 SEER with select MRCOOL air handlers.
• Heats even when outdoor temps drop to 5°F.
• Lifetime compressor warranty when you register for MRCOOL Care.
• The air handlers’ combined BTU output will not exceed the 48K BTU condenser rating.

Features

• Condenser: 5-zone capable, energy efficient 20.5 SEER; supports multiple indoor units.
• Works in cold environments: heating down to 5°F.
• Lifetime warranty: limited lifetime compressor warranty with MRCOOL Care registration.

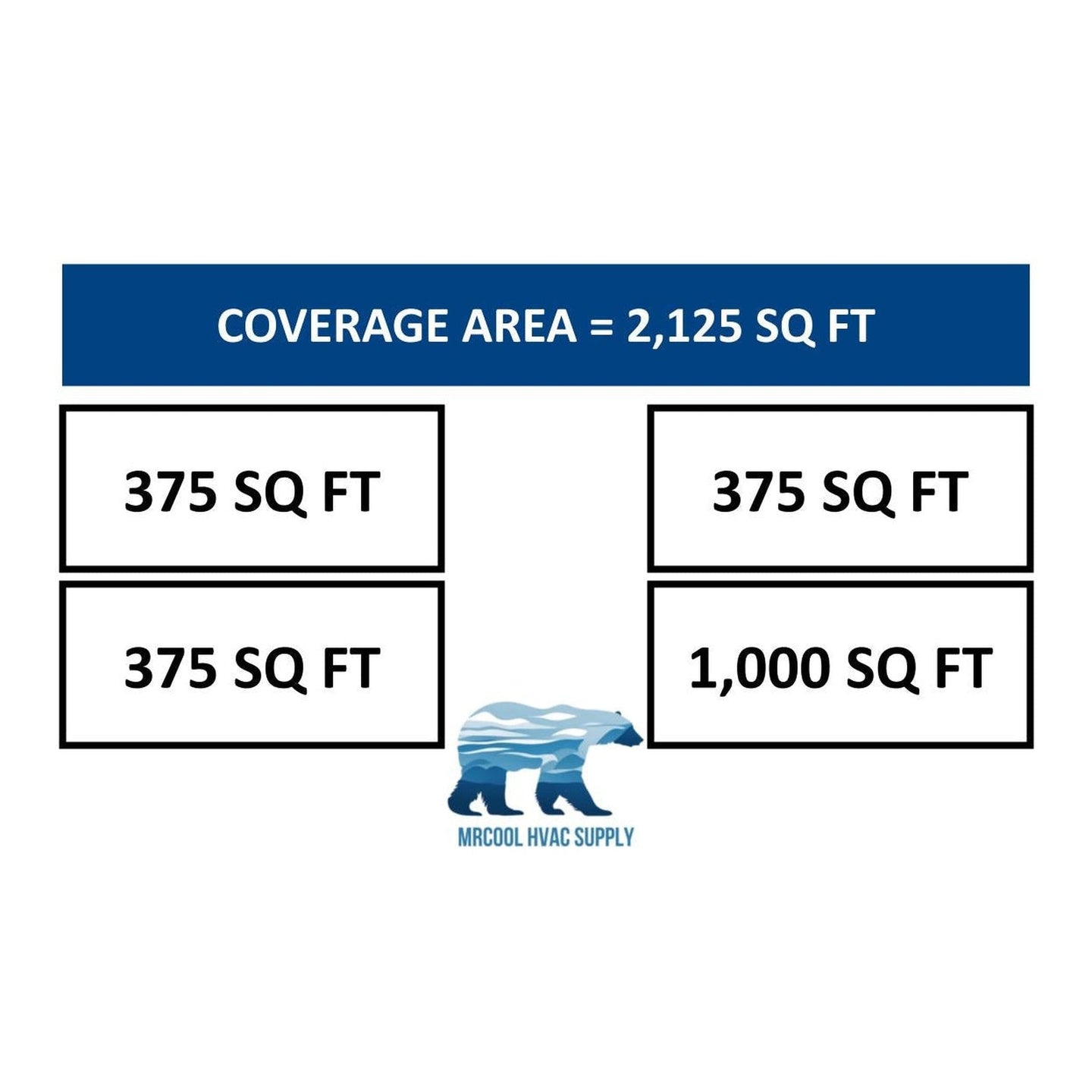

• Air Handler, 9K BTU (x3): covers up to 375 sq ft each; modes include COOL, HEAT, AUTO, DRY, and SLEEP; controllable via the Smart HVAC app on iOS/Android; easy wall installation with the included mounting plate.
• Air Handler, 24K BTU (1): covers up to 1,000 sq ft; same modes and app control; easy wall installation with mounting plate.
• Line Sets: four 35 ft linesets for connections; pre-charged with R-410A refrigerant; DIY installation.
• Remotes: four remotes included for separate zones.

Specifications

Condenser Specifications

Air Handler 9K BTU

Air Handler 24K BTU

Line Set

Line Set
