MRCOOL DIY Mini Split — 4th Gen, 48K BTU Multi?Zone System

Overview

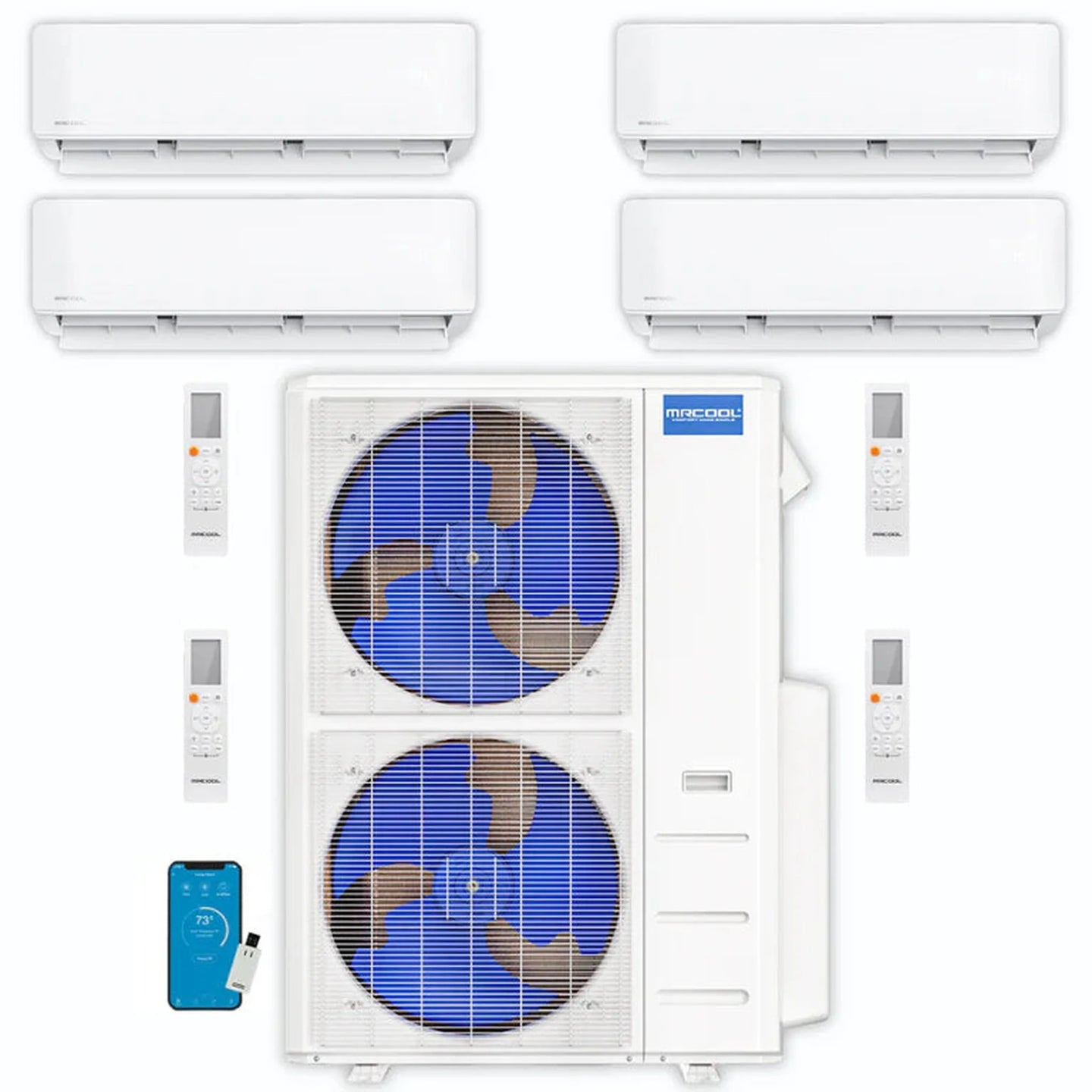

Introducing the 4th Generation MRCOOL DIY Mini Split, a comprehensive solution for cooling and heating residential, commercial, or other spaces with ease. This package equips you with all essential components, comprising a 48K BTU Multi?Zone Condenser and a set of air handlers, including one 9K, two 12K, and one 18K BTU Wall Mount Air Handler. What sets this system apart is its DIY installation feature, eliminating the need for costly HVAC technicians or specialized equipment.

Benefits

• DIY installation avoids the need for HVAC technicians or specialized equipment.
• Includes all essential components: 48K BTU condenser plus air handlers for multiple zones.
• If all air handlers operate concurrently, their combined BTU output will not exceed the condenser’s 48K BTU rating.

Features

• Condenser 48K BTU: 20.5 SEER efficiency; operates in temperatures down to -5°F; 7?year compressor and 5?year parts warranty. Lifetime compressor coverage available with MRCOOL Care Program registration.
• Air Handler 9K BTU: covers 180–375 sq ft; modes COOL, HEAT, AUTO, DRY, and SLEEP; controlled via the Smart HVAC app on Apple or Android devices; lightweight with mounting plate for easy interior-wall installation.
• Air Handler 12K BTU (Qty: 2): covers 250–500 sq ft each; same modes and app control; lightweight with mounting plate for easy interior-wall installation.
• Air Handler 18K BTU: covers 375–750 sq ft; same modes and app control; lightweight with mounting plate for easy interior-wall installation.
• Note: Lineset and communication wire for each air handler are not included and can be added separately.

Specifications

Condenser

Air Handler 9K BTU

Air Handler 12K BTU

Air Handler 18K BTU
