MRCOOL | DIY Mini Split - 48,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit | DIYM348HPW02C69

MRCOOL 4th Gen DIY Multi-Zone 48K BTU Mini Split

Overview

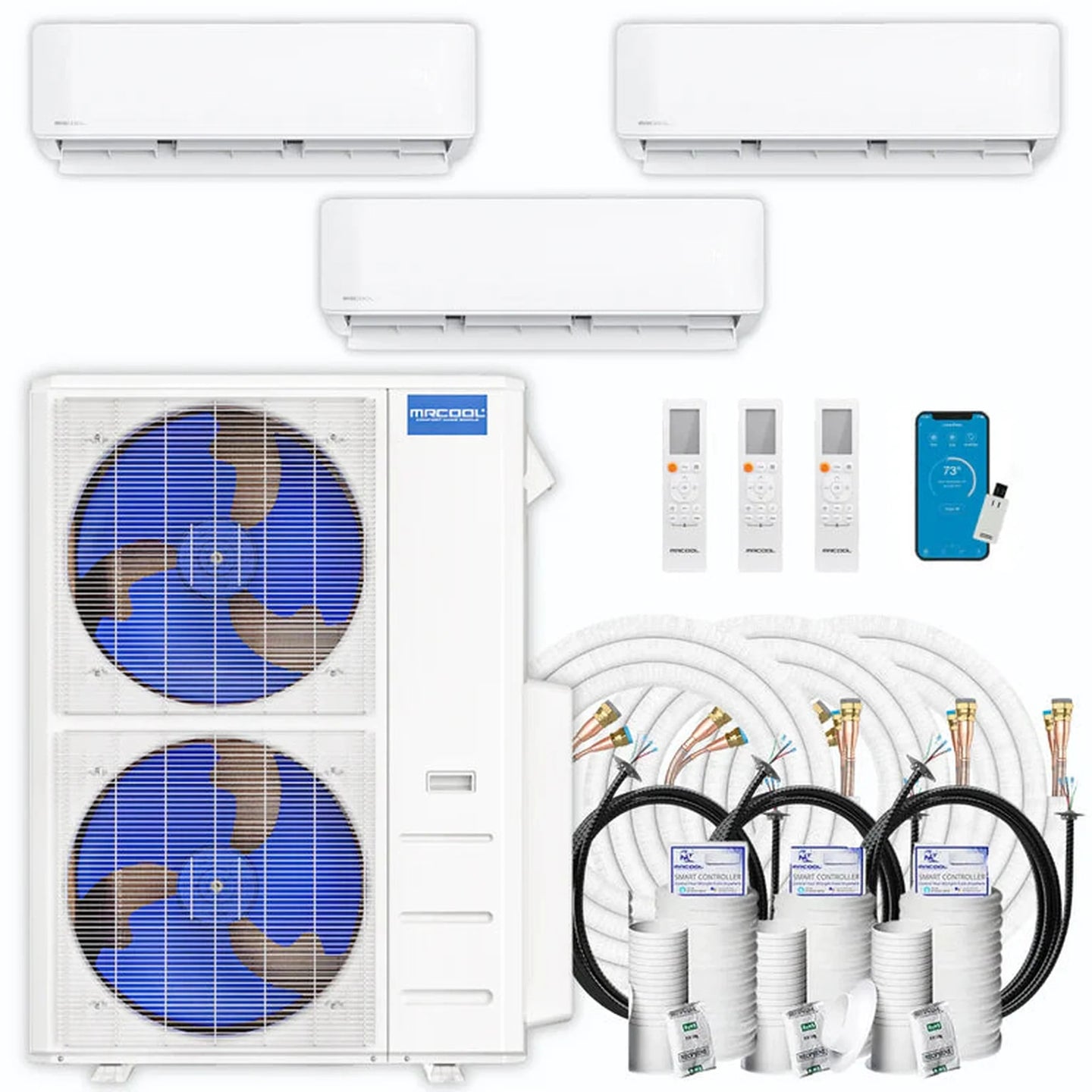

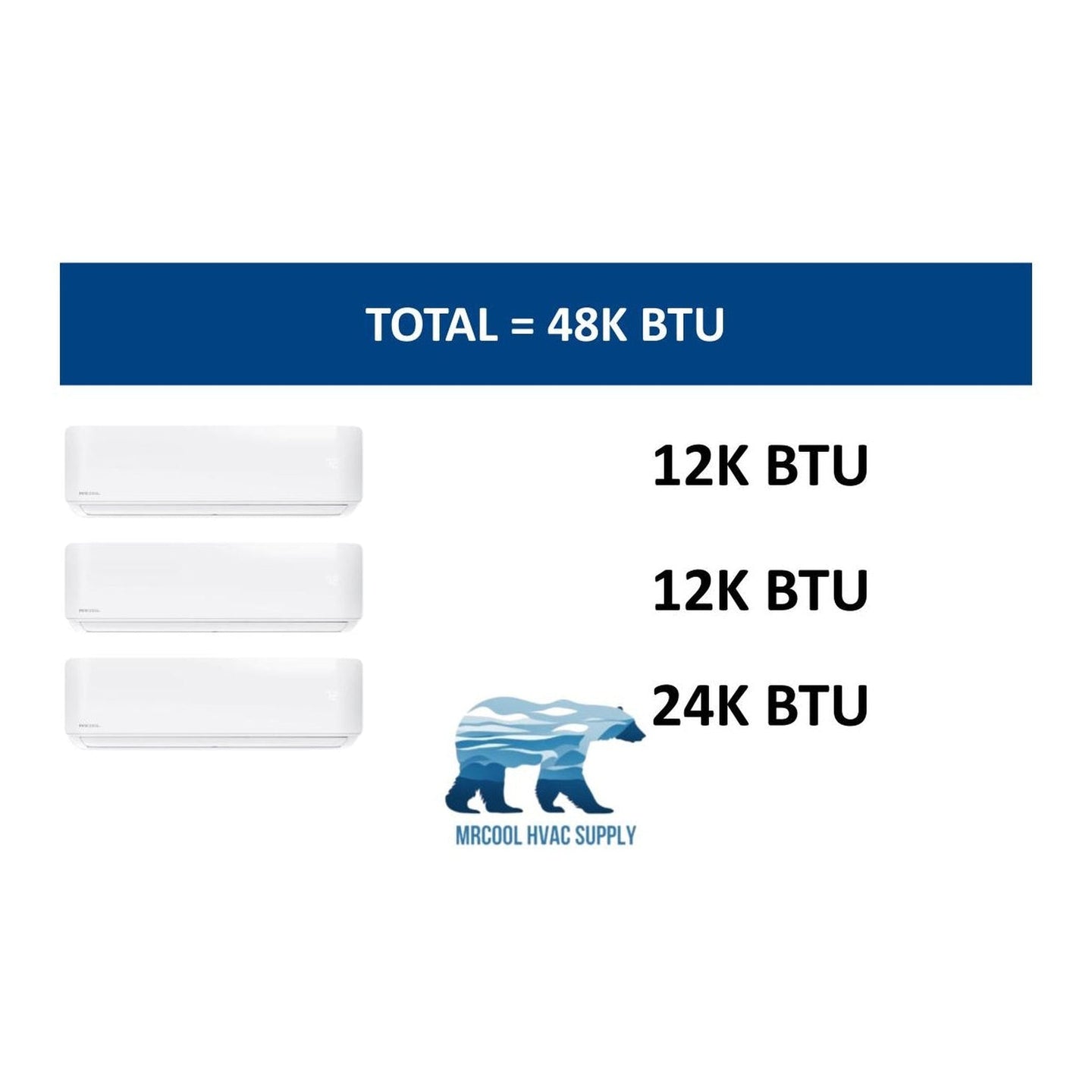

This 4th Generation MRCOOL Mini Split includes everything necessary to cool and heat three different rooms. The package contains: DIY 48,000 BTU Multi-Zone Condenser, two 12,000 BTU Wall Mounted Air Handlers, one 24,000 BTU Wall Mounted Air Handler, three Remotes, and three 35 ft. Installation Kits. The most notable feature is that it allows for self-installation.

Benefits

• Energy efficient: up to 20.5 SEER when paired with select MRCOOL air handlers.
• All-weather heating: works down to -5°F.
• Lifetime warranty: limited lifetime compressor warranty when registered in the MRCOOL Care Program.

Features

• Package Includes:
  • MRCOOL DIY Multi-Zone 5-Zone Condenser, 4th Gen Series, DIY-MULTI5-48HP230C
  • MRCOOL DIY 12k BTU Ductless Mini Split Air Handler, Energy Star, 4th Gen, DIY-12-HP-WMAH-230C25 (x2)
  • MRCOOL DIY 4th Generation 24K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-24-HP-WMAH-230C25
  • MRCOOL DIY 35ft 3/8 x 5/8 Lineset for DIY 24K, 36K Indoor, 4th Generation, DIY35-3858C
  • MRCOOL DIY 35ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, 4th Generation, DIY35-1412C (x2)
• DIY installation: designed for self-installation to save time and money.
• Line sets: 35 ft sets included; pre-charged with R-410A refrigerant.
• Air handlers offer multiple modes: COOL, HEAT, AUTO, DRY, and SLEEP.
• Smart control: monitor and control via Apple or Android Smart HVAC app.

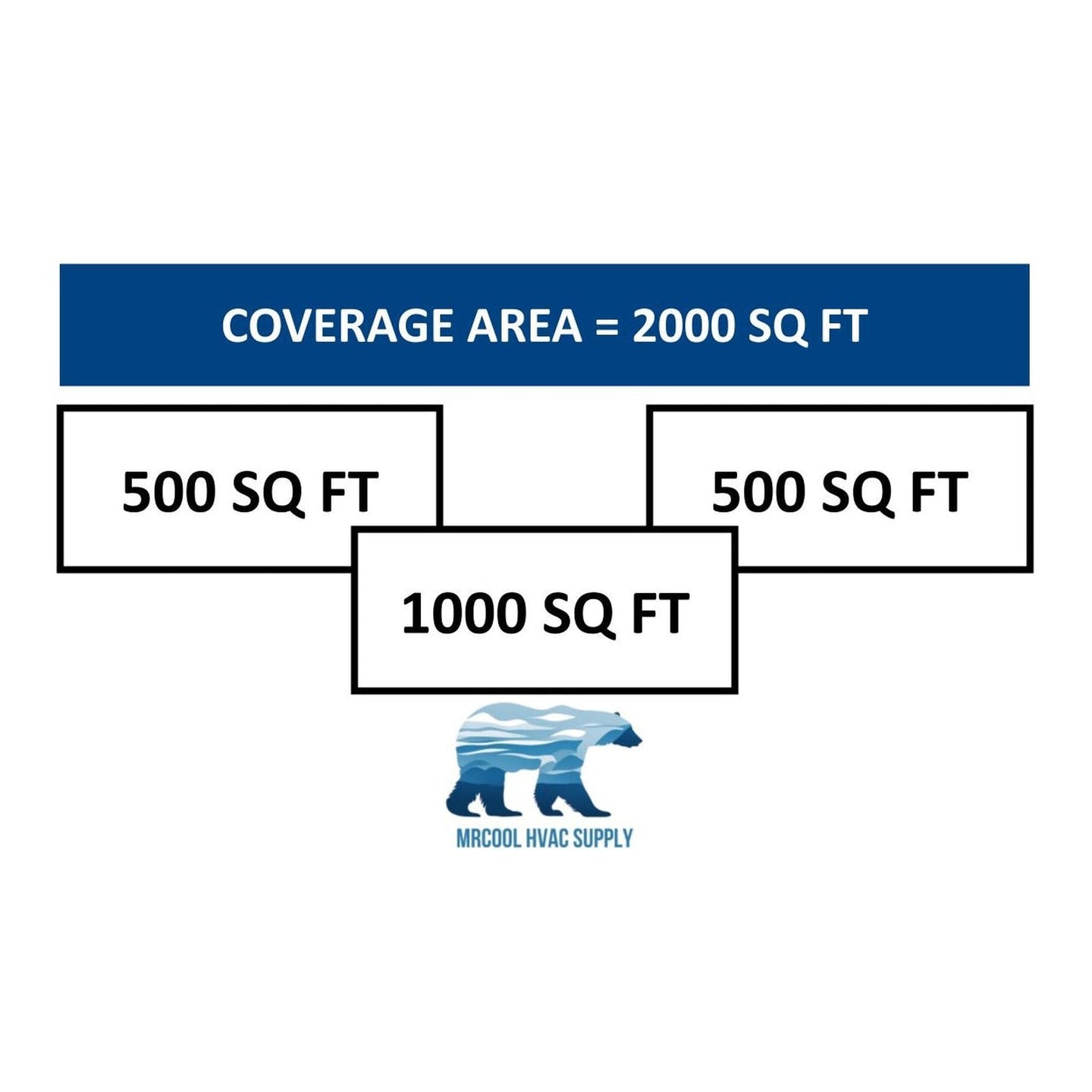

• Coverage: 12K BTU handlers cover up to 500 sq. ft; 24K BTU handler covers up to 1,000 sq. ft.

Specifications

Condenser Specifications

Air Handler 12K BTU

Air Handler 24K BTU

Line Set

Line Set
