MRCOOL | DIY Mini Split - 45,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump | DIY-B-448HP09121212

MRCOOL DIY 4th Generation 48K BTU Multi-Zone Mini Split System

Overview

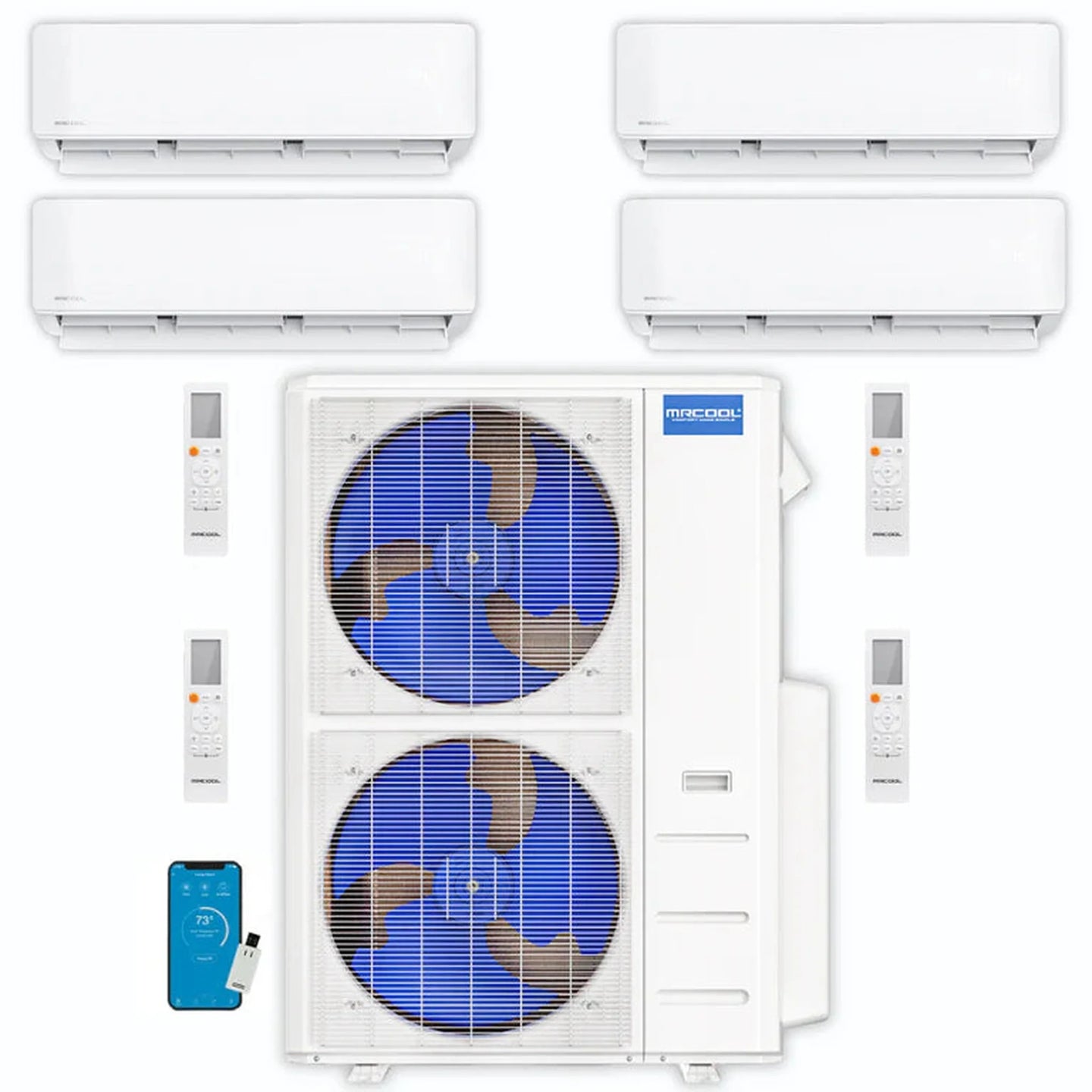

This 4th Generation MRCOOL Mini Split system includes a DIY 48,000 BTU Multi-Zone Condenser, one 9,000 BTU Wall Mounted Air Handler, three 12,000 BTU Wall Mounted Air Handlers, and four remotes. The big win is you can install it yourself.

Benefits

• DIY installation is possible.
• Energy efficient: up to 20.5 SEER when paired with select MRCOOL air handlers.
• Heats reliably down to 5°F.
• Lifetime compressor warranty when you register with MRCOOL Care.

Features

• Package Includes: MRCOOL DIY Multi Zone 5-Zone 48K BTU Condenser (4th Gen), DIY-MULTI5-48HP230C.
• MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler (230V) with Enhanced WiFi, DIY-09-HP-WMAH-230C25.
• MRCOOL DIY 4th Gen 12K BTU Wall Mount Air Handler (230V) with Enhanced WiFi, DIY-12-HP-WMAH-230C25 (x3).
• Linesets are not included. Add them separately.
• All units run on 230V power and include mounting plates for easy interior-wall installation.
• Smartphone control via the Smart HVAC app (Apple or Android) for the air handlers.
• Lightweight, compact design makes installation on most interior walls straightforward.

Specifications

Condenser

Air Handler 9K BTU

Air Handler 12K BTU
