MRCOOL | DIY Mini Split - 45,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kits | DIY-B-348HP091818-25

4th Generation MRCOOL DIY Mini Split — 48K BTU Multi-Zone System

Overview

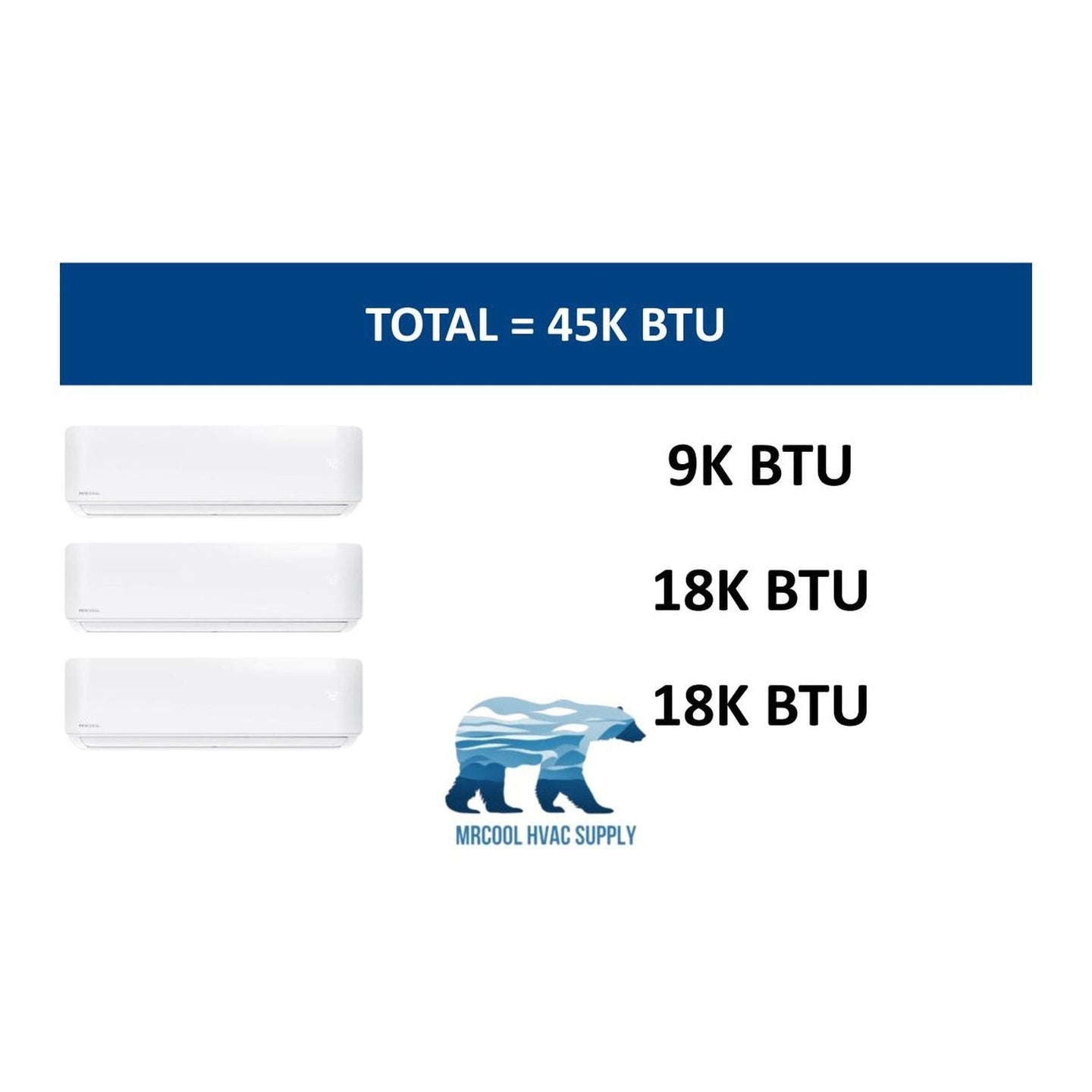

Meet the 4th generation MRCOOL DIY Mini Split. It’s an all-in-one kit to cool and heat residential or commercial spaces. This package includes the 48K BTU Multi-Zone Condenser, a 9K BTU Wall Mount Air Handler, two 18K BTU Air Handlers, and three installation kits. You can install it yourself, avoiding costly HVAC technicians or specialized equipment.

Benefits

• DIY installation lets you skip professional service and extra equipment.
• All-in-one package with essential components ready to go.
• Energy efficient: the condenser delivers about 20.5 SEER2.
• Works in cold weather, heating down to -5°F.
• Potential savings on installation costs.
• Warranty options: 7-year compressor, 5-year parts, with a lifetime compressor option through MRCOOL Care registration.

Features

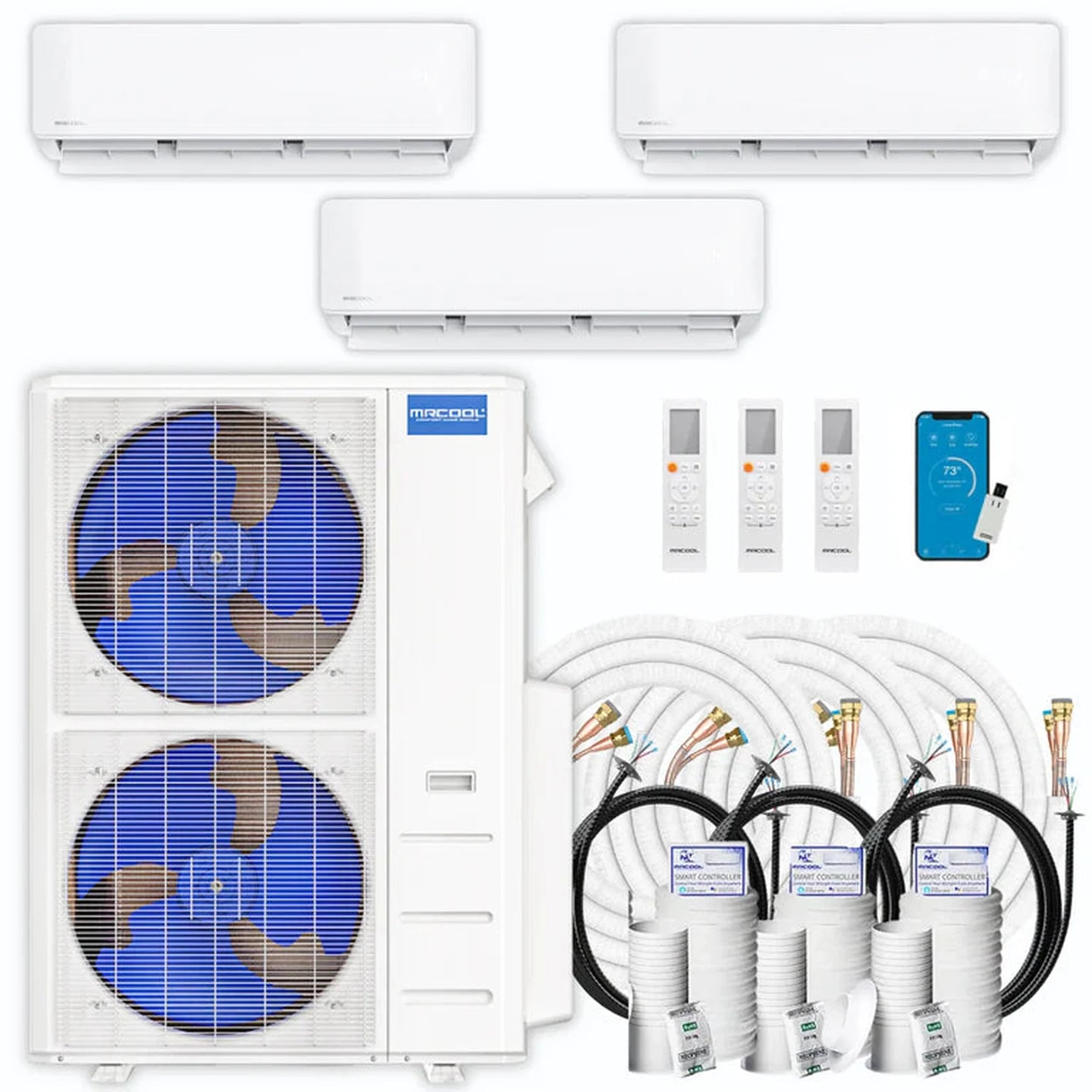

• Included products: MRCOOL DIY Multi Zone 5-Zone 48K BTU Condenser, 4th Gen Series (DIY-MULTI5-48HP230C); MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi (DIY-09-HP-WMAH-230C25); MRCOOL DIY 4th Generation 18K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi (DIY-18-HP-WMAH-230C25) – (x2); MRCOOL 25ft 1/4 x 1/2 Pre-Charged Lineset for DIY 9K, 12K & 18K Indoor (DIY25-1412) – (x3).
• WiFi-enabled air handlers for smart control via the Smart HVAC app on Apple or Android.
• Lightweight, compact design for easy installation on most interior walls using the included mounting plates.
• Pre-charged linesets reduce the need for on-site refrigerant charging.

Specifications

Condenser

Air Handler 9K BTU

Air Handler 18K BTU

Line Set

Information and Guides

Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate
