MRCOOL | DIY Mini Split - 42,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit | DIYM448HPW02C140

4th Generation MRCOOL DIY Multi Zone Mini Split — 4 Rooms

Overview

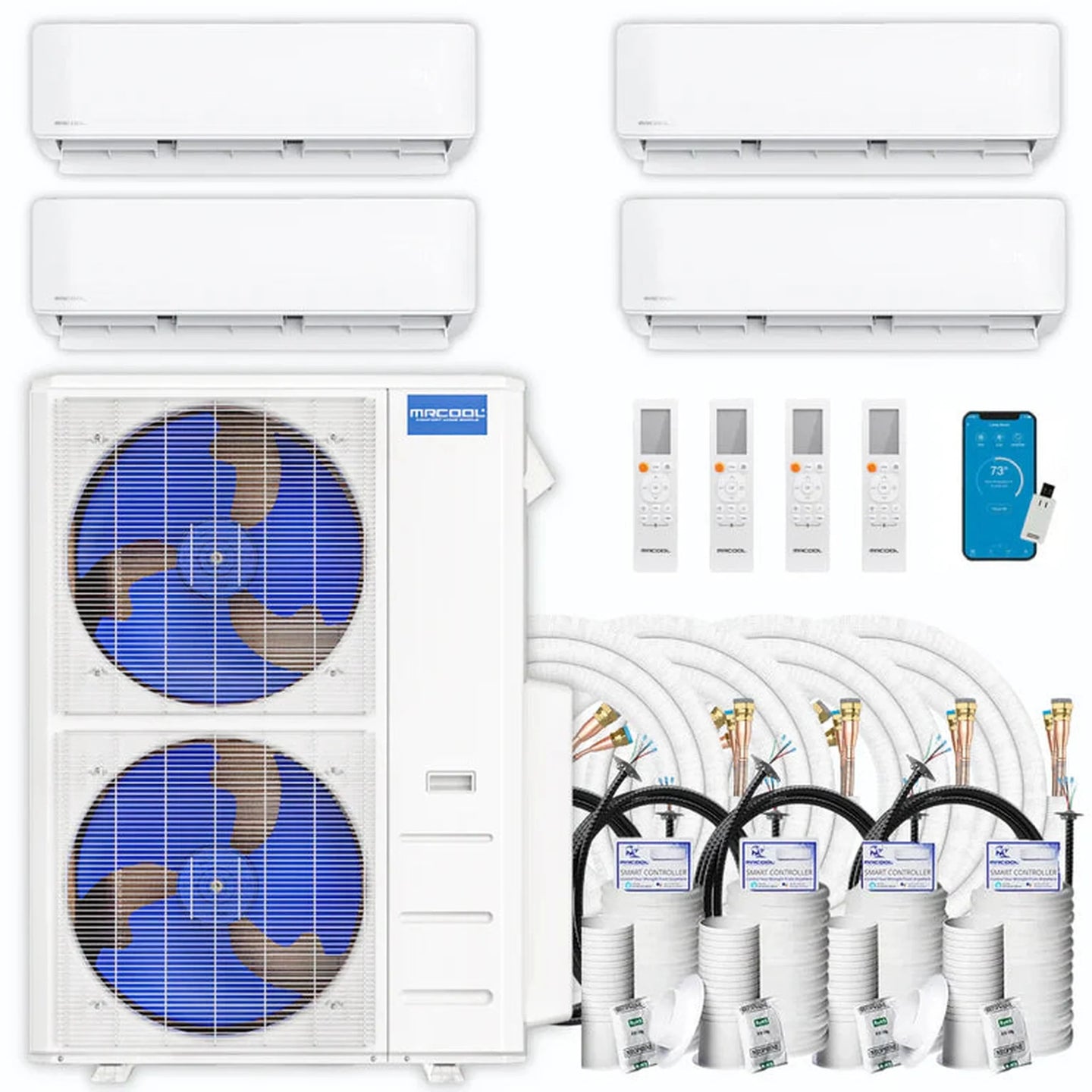

Introducing the 4th Generation MRCOOL Mini Split, a comprehensive cooling and heating solution designed for up to four different rooms. This package includes the DIY 48,000 BTU Multi-Zone Condenser, two 9,000 BTU Wall Mounted Air Handlers, two 12,000 BTU Wall Mounted Air Handlers, four remotes, and four 35 ft. Installation Kits, giving you everything you need for a seamless installation.

Benefits

• DIY installation: set it up yourself. No specialized tools or expensive equipment needed.
• Enhanced Wi?Fi for quick and easy setup.
• MRCOOL DIY Multi: install virtually anywhere.
• Designed for up to four zones—cool or heat up to four rooms.
• Lifetime compressor warranty when you register for MRCOOL Care Program.

Features

• Package Components:
• MRCOOL DIY Multi Zone 5-Zone Condenser, 4th Gen Series, DIY-MULTI5-48HP230C
• MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-09-HP-WMAH-230C25 (x2)
• MRCOOL DIY 4th Generation 12K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-12-HP-WMAH-230C25 (x2)
• MRCOOL DIY 35ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, 4th Generation, DIY35-1412C (x4)
• Condenser Features:
• Energy efficient: up to 20.5 SEER when paired with select MRCOOL air handlers
• All-environment operation: heats even when outdoor temps drop to 5°F
• Lifetime warranty on the compressor (limited) through MRCOOL Care Program registration
• Air Handler, 9K BTU (Quantity 2):
• Covers up to 375 sq. ft.
• Modes: COOL, HEAT, AUTO, DRY, and SLEEP
• Smartphone control via the Smart HVAC app (Apple or Android)
• Lightweight and compact for easy wall installation with the included mounting plate
• Air Handler, 12K BTU (Quantity 2):
• Covers up to 500 sq. ft.
• Modes: COOL, HEAT, AUTO, DRY, and SLEEP
• Smartphone control via the Smart HVAC app
• Lightweight and compact for easy wall installation with the mounting plate
• Line Set 35 ft. (Quantity 4):
• Copper line sets connecting the condenser to the air handlers
• Pre-charged with the exact amount of R-410A refrigerant
• DIY installation available without a certified technician
• Additional Line Sets & Coupler:
• Extra line sets available if the default lengths aren’t enough
• Coupler kit lets you connect two standard line sets together
• This package includes installation-friendly tools and accessories for a smooth setup

Specifications

Condenser Specifications

Air Handler 9K BTU

Air Handler 12K BTU

Line Set
