MRCOOL | DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit | DIYM248HPW00C16

SKU DIYM248HPW00C16
$5,811.30
$5,283.00
$5,811.30
$5,283.00

✅ Authorized Online Dealer
🚚 Free Shipping + No Sales Tax (exclusions may apply)
💲 Lowest Price Guarantee
📦 Fast 4-7 Day Delivery
🏭 Backed By Manufacturer Warranty
❓ Questions? Contact Us: +1 (734) 228-0441 or support@offgridselection.com
MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16
MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16 MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM248HPW00C16

Product Description

MRCOOL 4th Generation DIY Mini Split System – 48K/18K/24K Condenser Kit

Overview

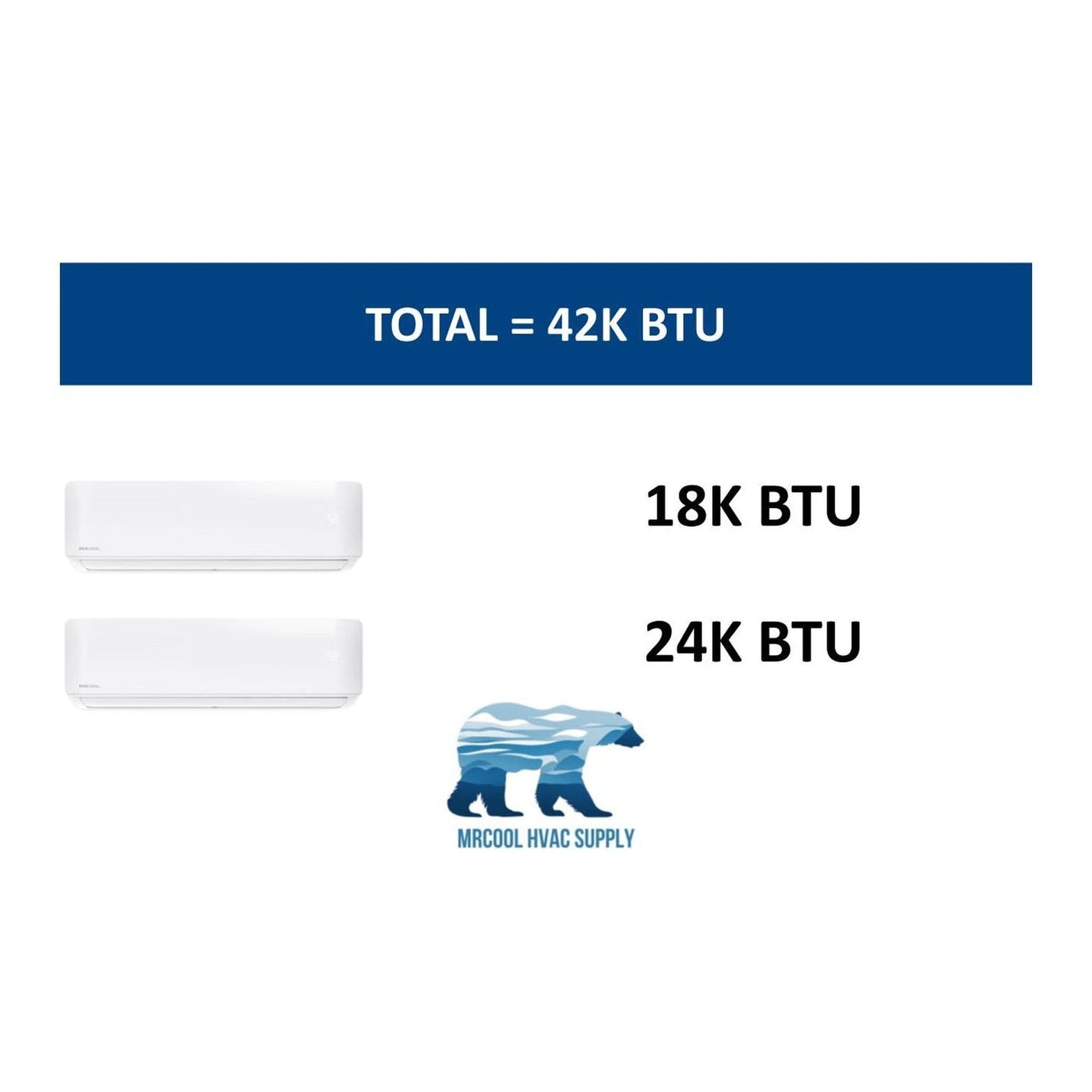

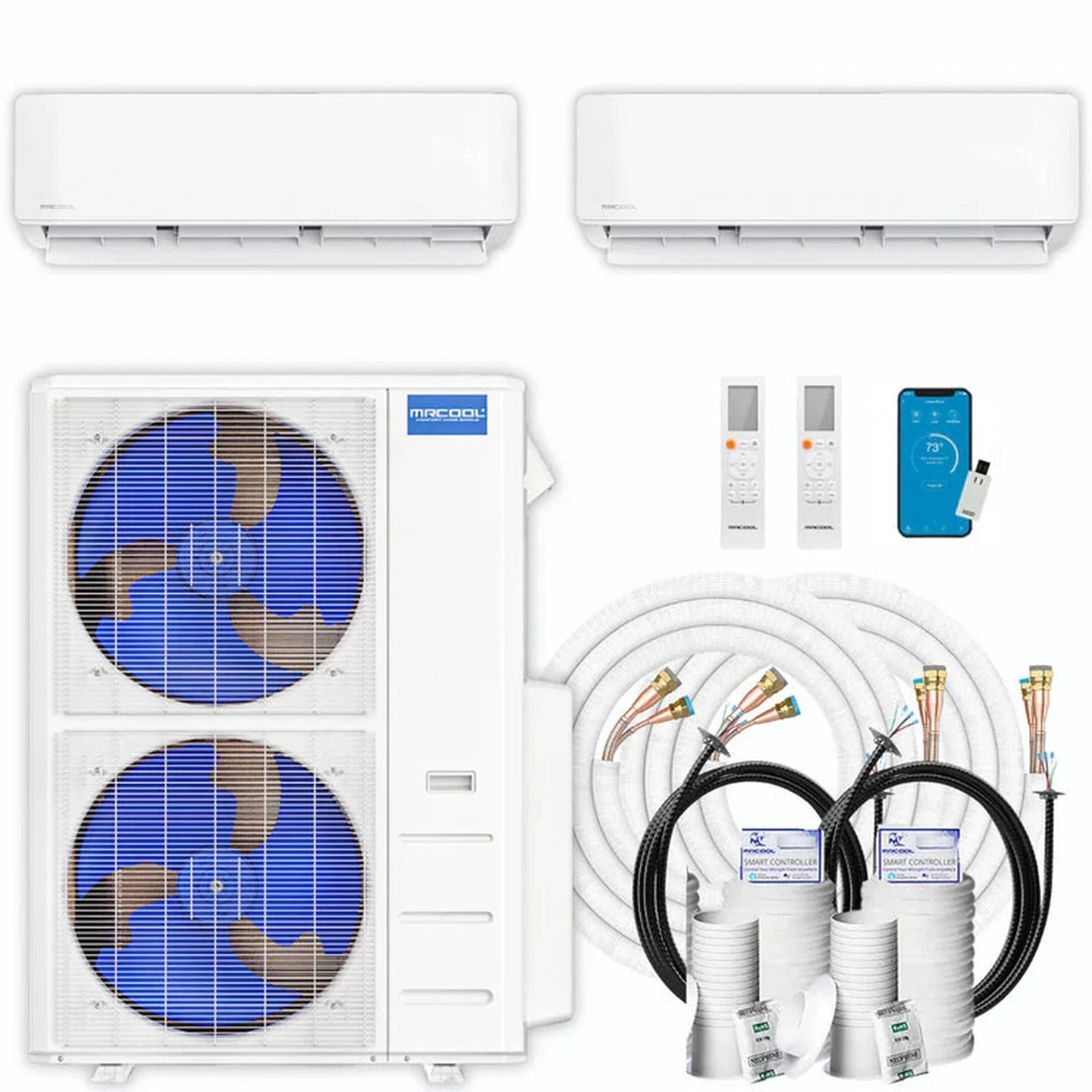

The 4th Generation MRCOOL Mini Split system is designed to efficiently cool and heat two distinct spaces. Included in your package are: a DIY 48,000 BTU Multi-Zone Condenser, an 18,000 BTU Wall-Mounted Air Handler, a 24,000 BTU Wall-Mounted Air Handler, two remotes, and two 35 ft. installation kits. The highlight of this system is its user-friendly installation process, allowing you to set it up yourself!

Package Includes

  • MRCOOL DIY Multi Zone 5-Zone Condenser, 4th Gen Series, SKU: DIY-MULTI5-48HP230C
  • MRCOOL DIY 4th Generation 18K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, SKU: DIY-18-HP-WMAH-230C25
  • MRCOOL DIY 4th Generation 24K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, SKU: DIY-24-HP-WMAH-230C25
  • MRCOOL DIY 35ft 3/8 x 5/8 Lineset for DIY 24K, 36K Indoor, 4th Generation, SKU: DIY35-3858C
  • MRCOOL DIY 35ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, 4th Generation, SKU: DIY35-1412C

Benefits

  • Energy efficient: 5-Zone condenser with SEER 20.5 when paired with compatible MRCOOL air handlers.
  • All environments: Heats down to 5°F.
  • Lifetime warranty: Limited lifetime compressor warranty when you register with the MRCOOL Care Program.

Features

  • Condenser: 5-Zone, SEER 20.5 with compatible MRCOOL air handlers; supports operation in cold temperatures; MRCOOL Care Program warranty.
  • Air Handler 18K BTU: Up to 750 sq ft coverage; modes COOL, HEAT, AUTO, DRY, SLEEP; Smart HVAC app control; lightweight with mounting plate.
  • Air Handler 24K BTU: Up to 1,000 sq ft coverage; modes COOL, HEAT, AUTO, DRY, SLEEP; Smart HVAC app control; lightweight with mounting plate.
  • Line Sets: Two 35 ft linesets—3/8 x 5/8 for the 24K/36K indoor unit and 1/4 x 1/2 for the 9K/12K/18K indoor unit; pre-charged with R-410A refrigerant; DIY installation supported.
  • DIY friendly: All necessary components included for a do-it-yourself installation.

Specifications

Condenser Specifications



Product Dimensions 37.48"W x 16.34"D x 52.48"H
Cooling Capacity 48,000 BTU
Heating Capacity 48,000 BTU
Zone Capacity 5
Cool Mode - Outdoor Operating Temperature Range 5F ~ 122F
Heat Mode - Outdoor Operating Temperature Range 5F ~ 75.2F
SEER 20.5
EER 11
Voltage Requires a minimum of 208V-230V/60HZ/40-6-60A (please check your home meets this electrical requirement prior to purchase)
Registered Warranty 7 Years Replacement on Condenser, 5 Years Parts



Air Handler 18K BTU



Product Dimensions 42.52"W x 8.90"D x 13.19"H
Mount Type Wall
Cooling Capacity 18,000 BTU
Heating Capacity 18,000 BTU
Registered Warranty 5 Years Parts
Modes Auto - auto selects from Cool, Heat or Fan-Only
Dry - dehumidify
Cool
Heat
Fan Only
Quiet
Sleep


Air Handler 24K BTU



Product Dimensions 42.52"W x 8.90"D x 13.19"H
Mount Type Wall
Cooling Capacity 23,000 BTU
Heating Capacity 25,000 BTU
Registered Warranty 5 Years Parts
Modes Auto - auto selects from Cool, Heat or Fan-Only
Dry - dehumidify
Cool
Heat
Fan Only
Quiet
Sleep


Line Set



Length 35 Feet
Liquid Line Size 3/8"
Suction Line Size 5/8"



Line Set



Length 35 Feet
Liquid Line Size 1/4"
Suction Line Size 1/2"

Information and Guides

Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate
