MRCOOL | DIY Mini Split - 39,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit | DIYM448HPW00C84

MRCOOL 4th Generation DIY Mini Split System – 5-Zone Condenser with 4 Indoor Units

Overview

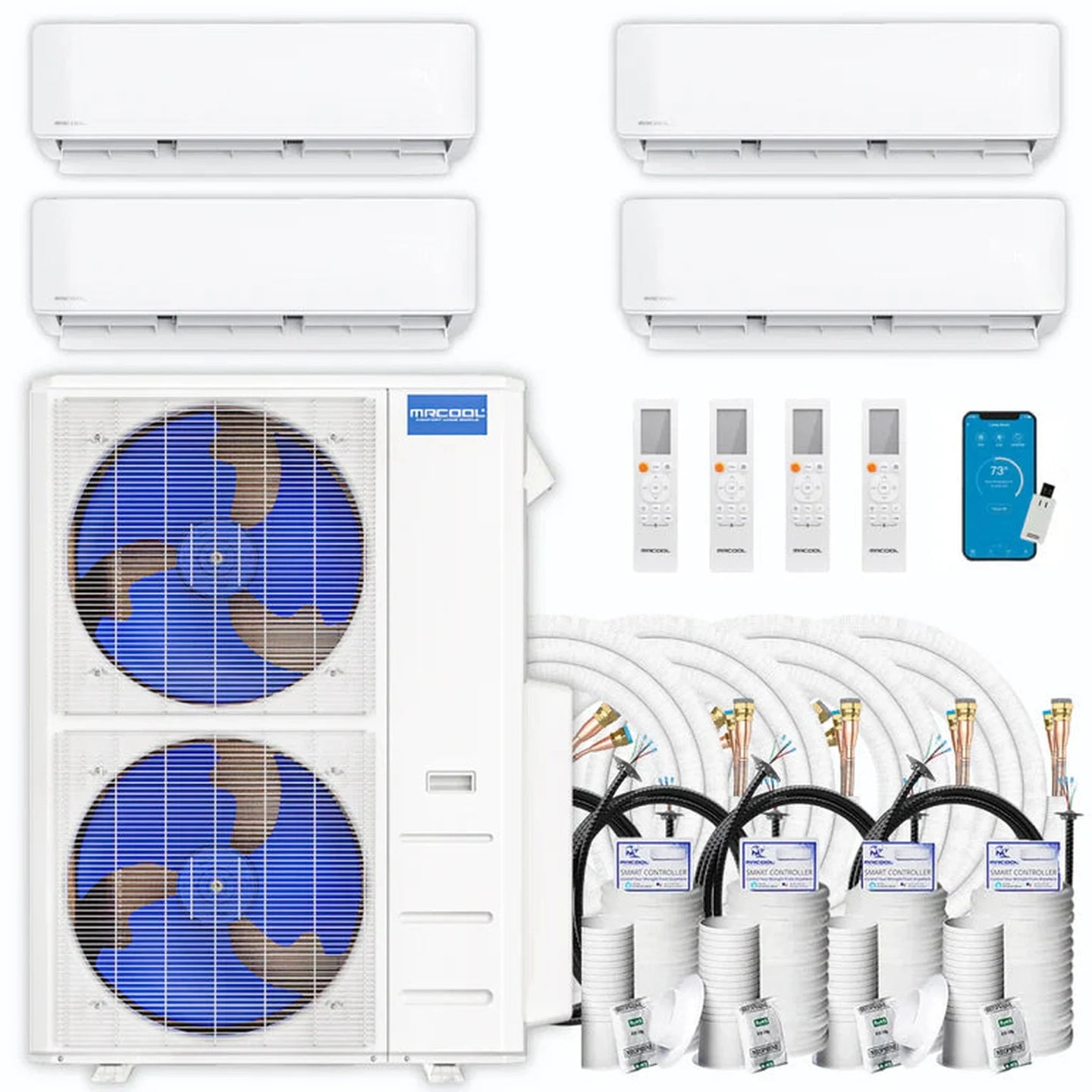

Presenting the 4th Generation MRCOOL Mini Split system, an all-inclusive solution designed to efficiently cool and heat up to four separate rooms. Included in this package are the DIY 48,000 BTU Multi-Zone Condenser, three 9,000 BTU Wall Mounted Air Handlers, one 12,000 BTU Wall Mounted Air Handler, four remotes, and four 25 ft installation kits. The system is designed for a DIY installation, so you can set it up yourself.

Benefits

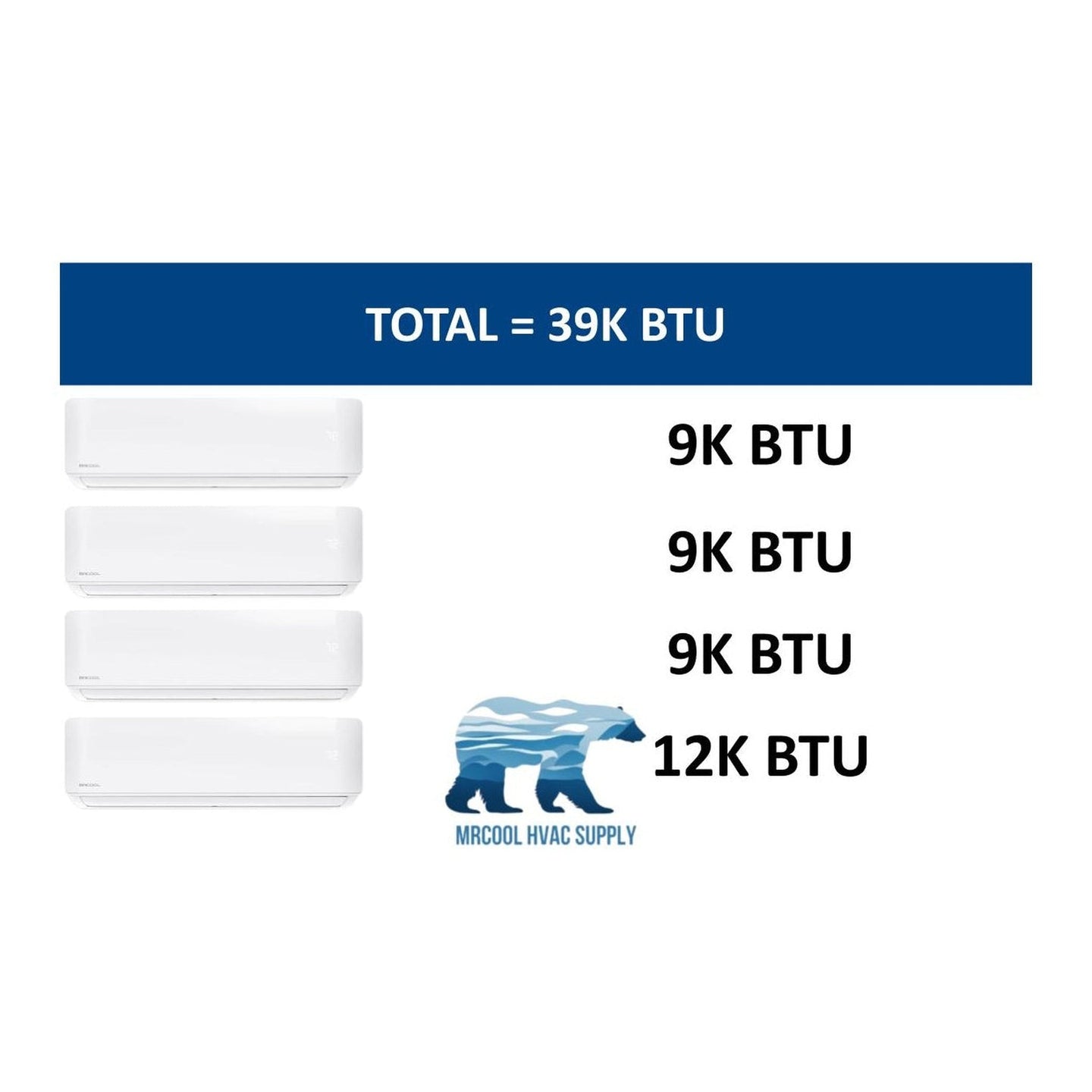

• 5-Zone condenser can support up to 5 zones; this package includes four indoor units (3×9K BTU + 1×12K BTU) for four rooms now, with room to add a fifth if you want.
• Energy efficient: up to 20.5 SEER when paired with select MRCOOL air handlers.
• All-weather heating: works down to 5°F.
• Lifetime compressor warranty on the condenser. Register for MRCOOL Care to activate.
• DIY friendly: install it yourself and save on installation costs.

Features

• Condenser: 4th Gen MRCOOL DIY Multi Zone 5-Zone Condenser; model DIY-MULTI5-48HP230C; 48,000 BTU; supports multiple indoor units.

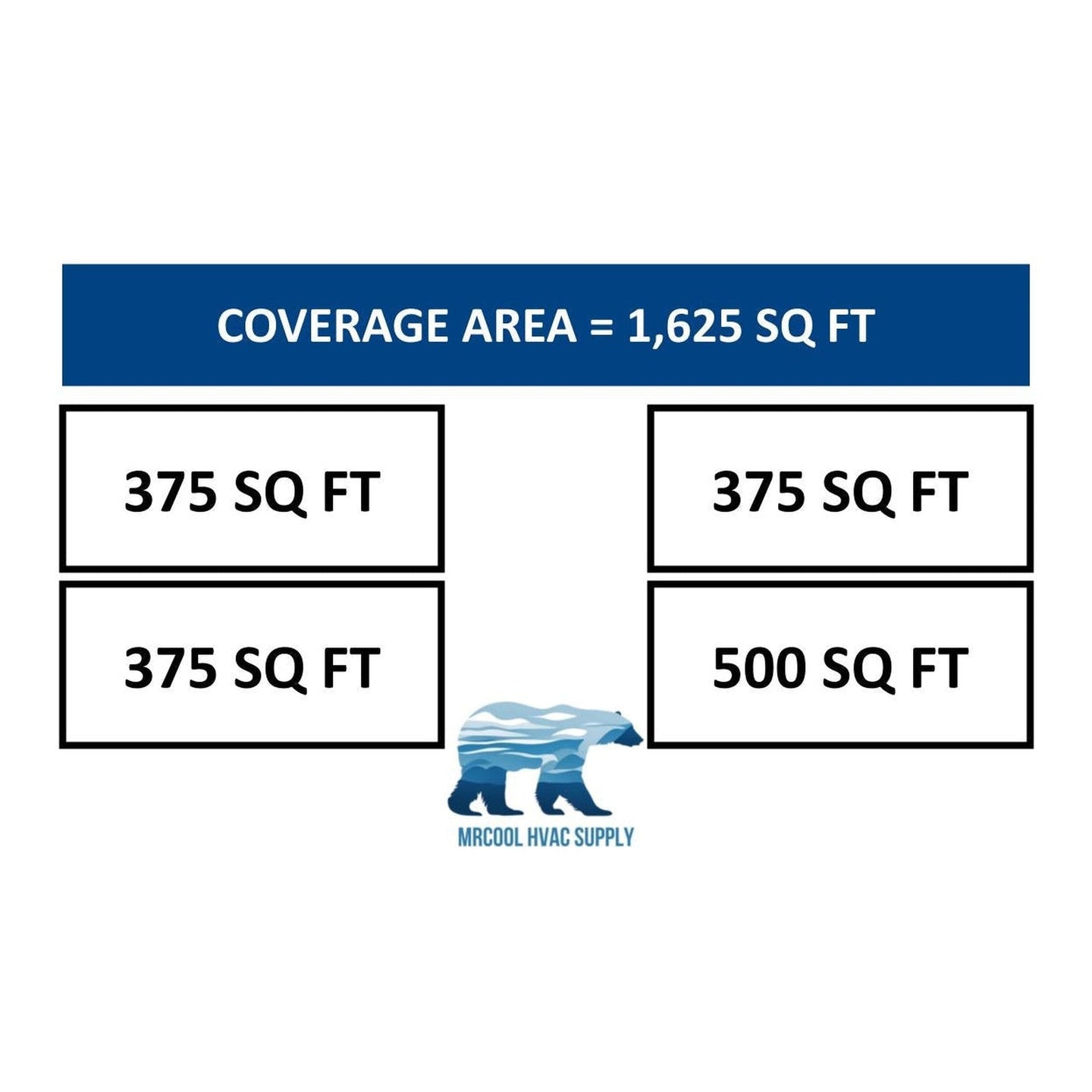

• Air Handler, 9K BTU (x3): covers up to 375 sq ft per unit; modes COOL, HEAT, AUTO, DRY, SLEEP; smart control via Smart HVAC app; lightweight with mounting plate for easy installation.
• Air Handler, 12K BTU (x1): covers up to 500 sq ft; multiple modes; smartphone control; compact design with mounting plate.
• Line Set 25 ft (x4): copper line sets for connections; pre-charged with R-410A refrigerant; DIY installation—no pro required.
• Additional Line Sets & Coupler: extra line sets available; coupler kit allows connecting two line sets for flexibility.

Specifications

Condenser Specifications

Air Handler 9K BTU

Air Handler 12K BTU

Line Set
