MRCOOL

MRCOOL | DIY Mini Split - 39,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump | DIY-BC-448HP09090912

SKU DIY-BC-448HP09090912
$8,284.10
$7,531.00
$8,284.10
$7,531.00

✅ Authorized Online Dealer
🚚 Free Shipping + No Sales Tax (exclusions may apply)
💲 Lowest Price Guarantee
📦 Fast 4-7 Day Delivery
🏭 Backed By Manufacturer Warranty
❓ Questions? Contact Us: +1 (734) 228-0441 or support@offgridselection.com
MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP09090912 MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP09090912 MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP09090912 MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP09090912 MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP09090912 MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP09090912 MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP09090912 MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP09090912 MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP09090912 MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP09090912 MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP09090912 MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP09090912
MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP09090912 MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP09090912 MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP09090912 MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP09090912 MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP09090912 MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP09090912 MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP09090912 MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP09090912 MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP09090912 MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP09090912 MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP09090912 MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP09090912

Product Description

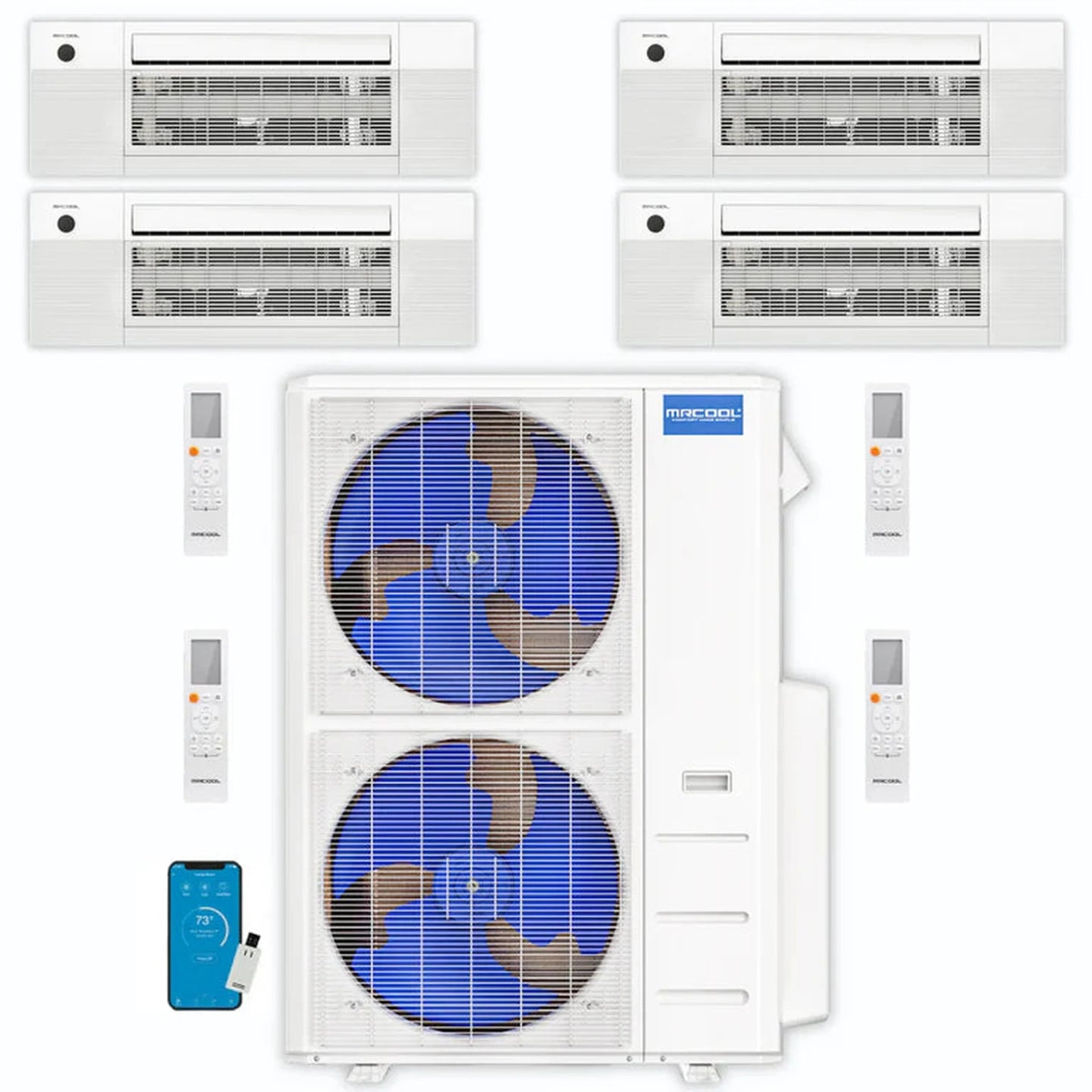

Introducing the 4th Generation MRCOOL Mini Split, featuring a comprehensive package designed for multi-zone comfort control. Included in this set are a DIY 48,000 BTU Multi-Zone Condenser, three 9,000 BTU Ceiling Cassette Air Handlers, one 12,000 BTU Ceiling Cassette Air Handler, and four Remotes, allowing for versatile and customizable climate management. The standout feature? You can effortlessly install it yourself!

Package Contents:

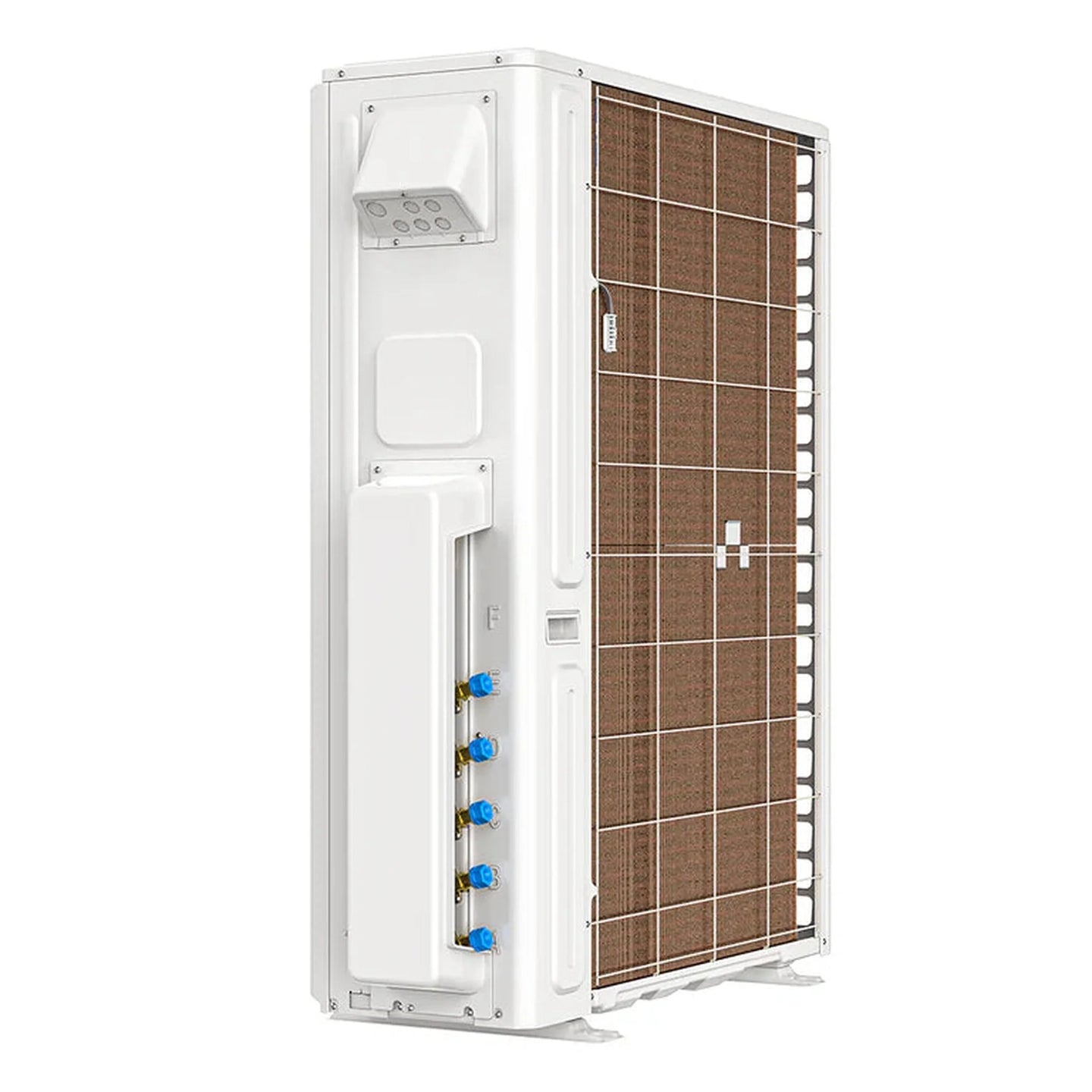

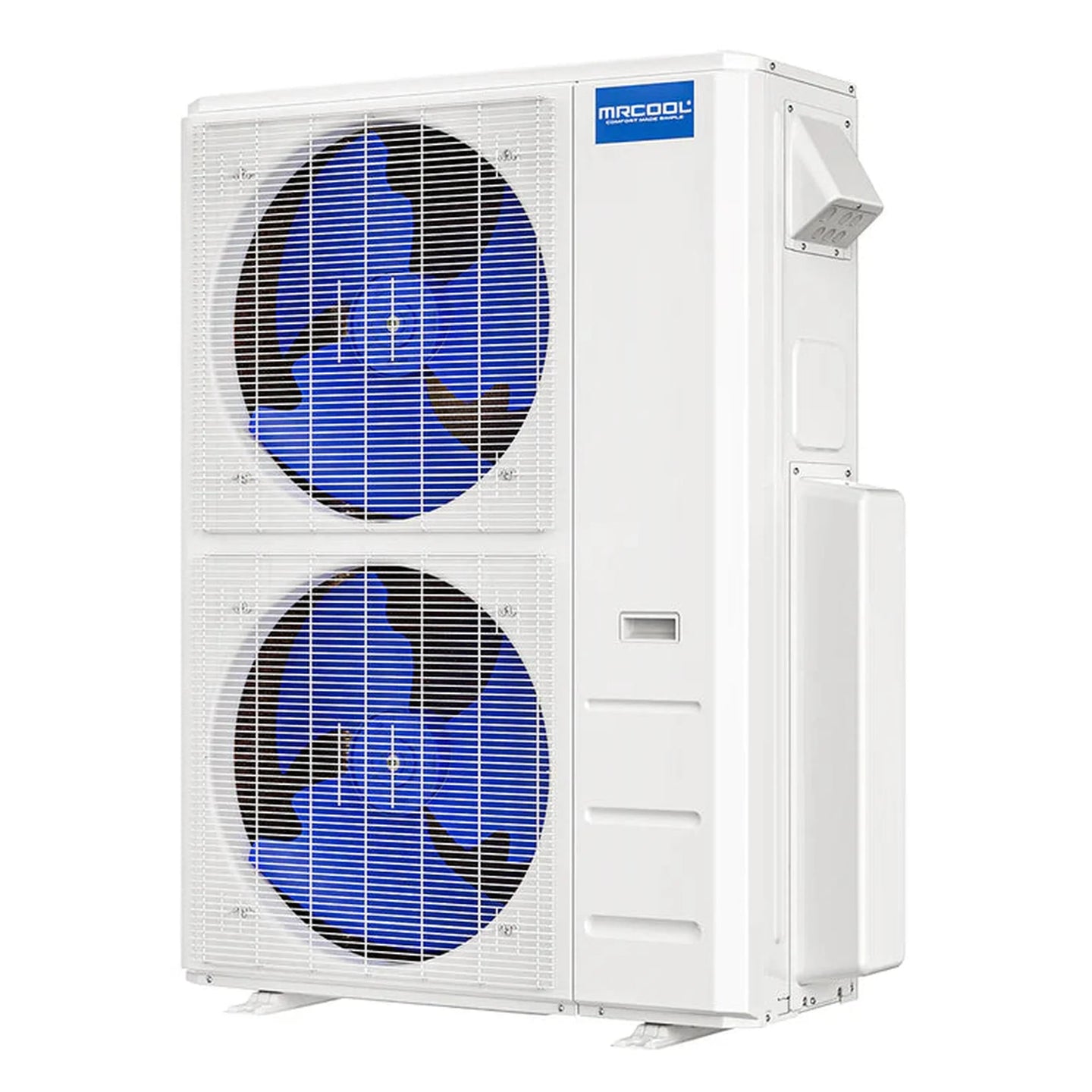

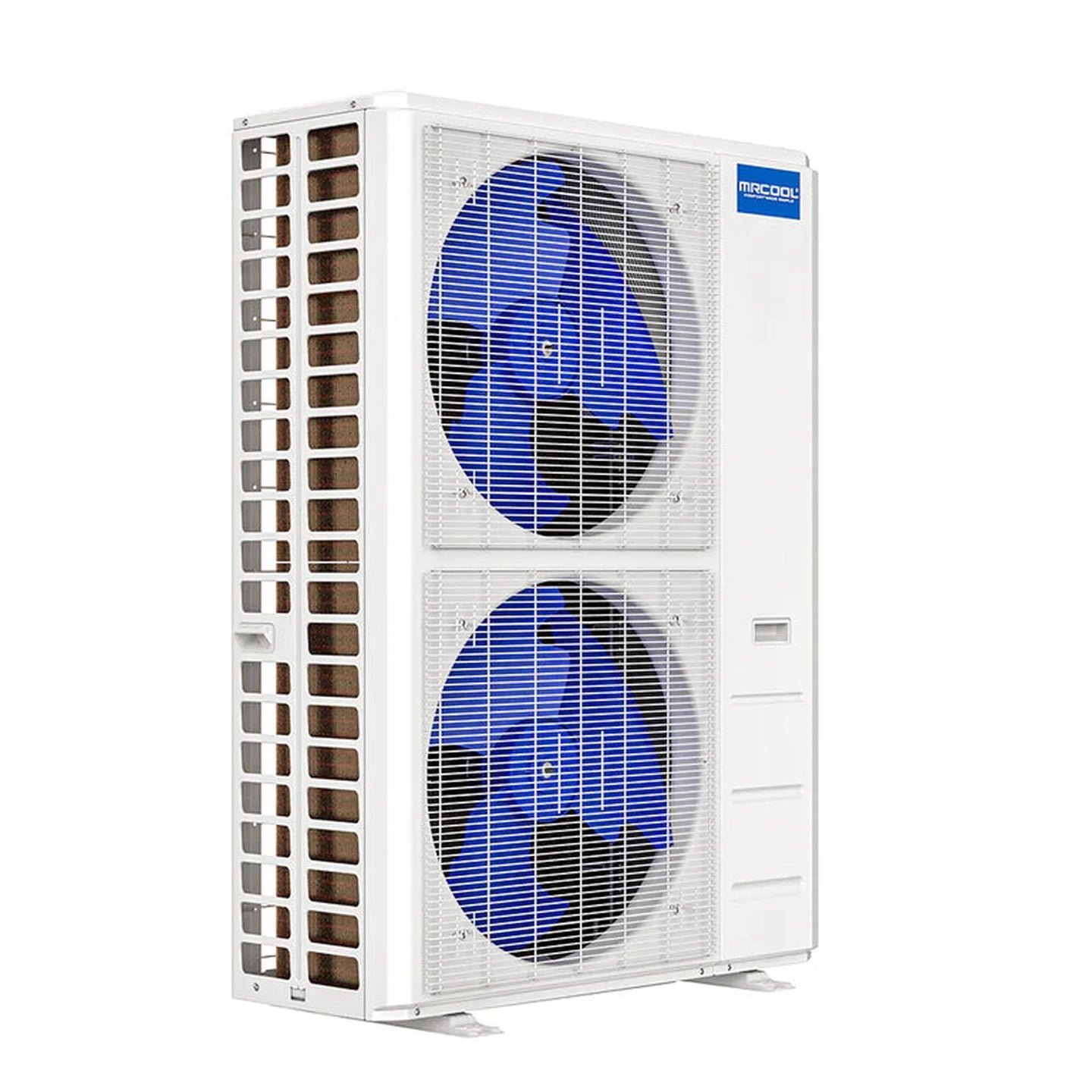

  • MRCOOL DIY Multi Zone 5-Zone 48K BTU Condenser, 4th Gen Series, SKU: DIY-MULTI5-48HP230C

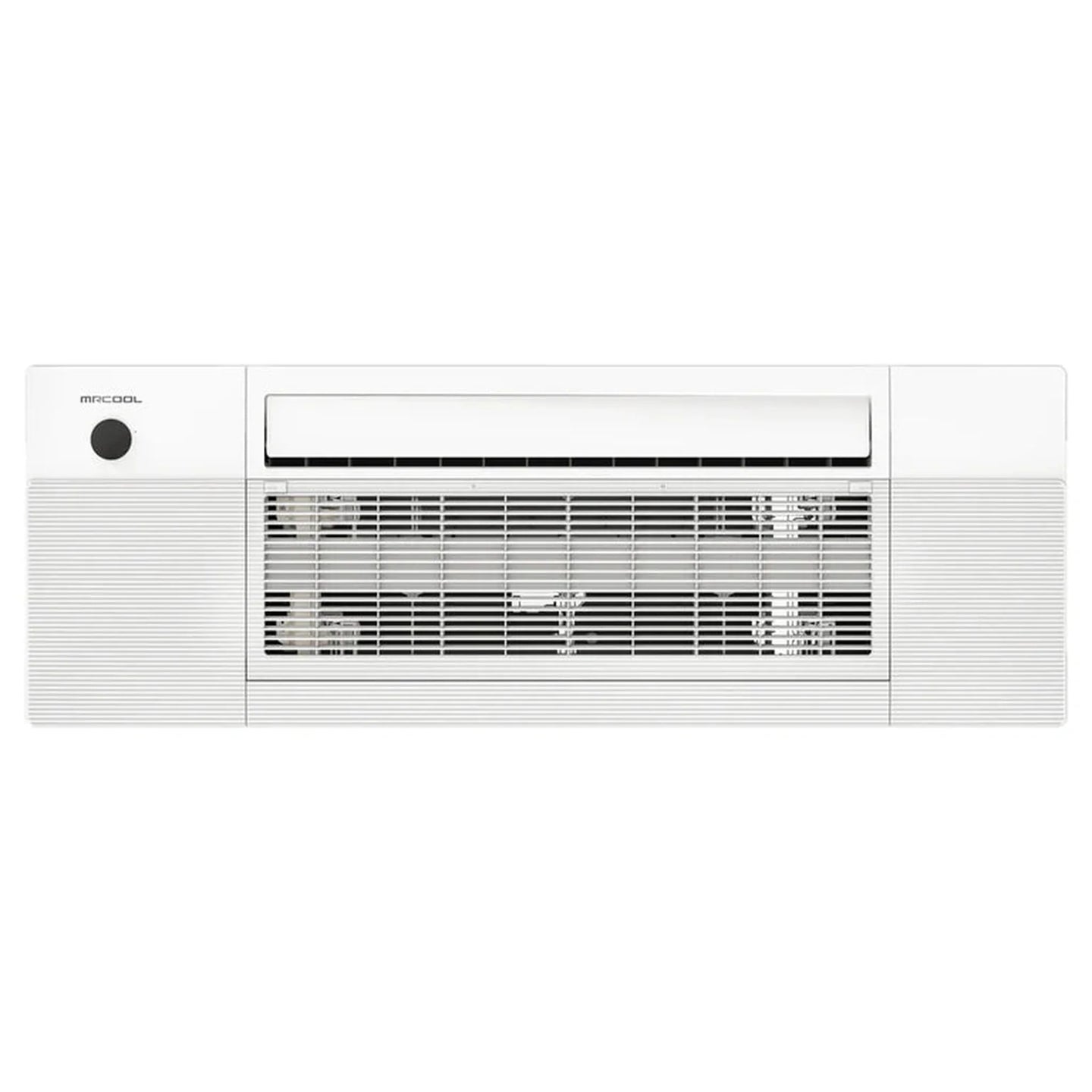

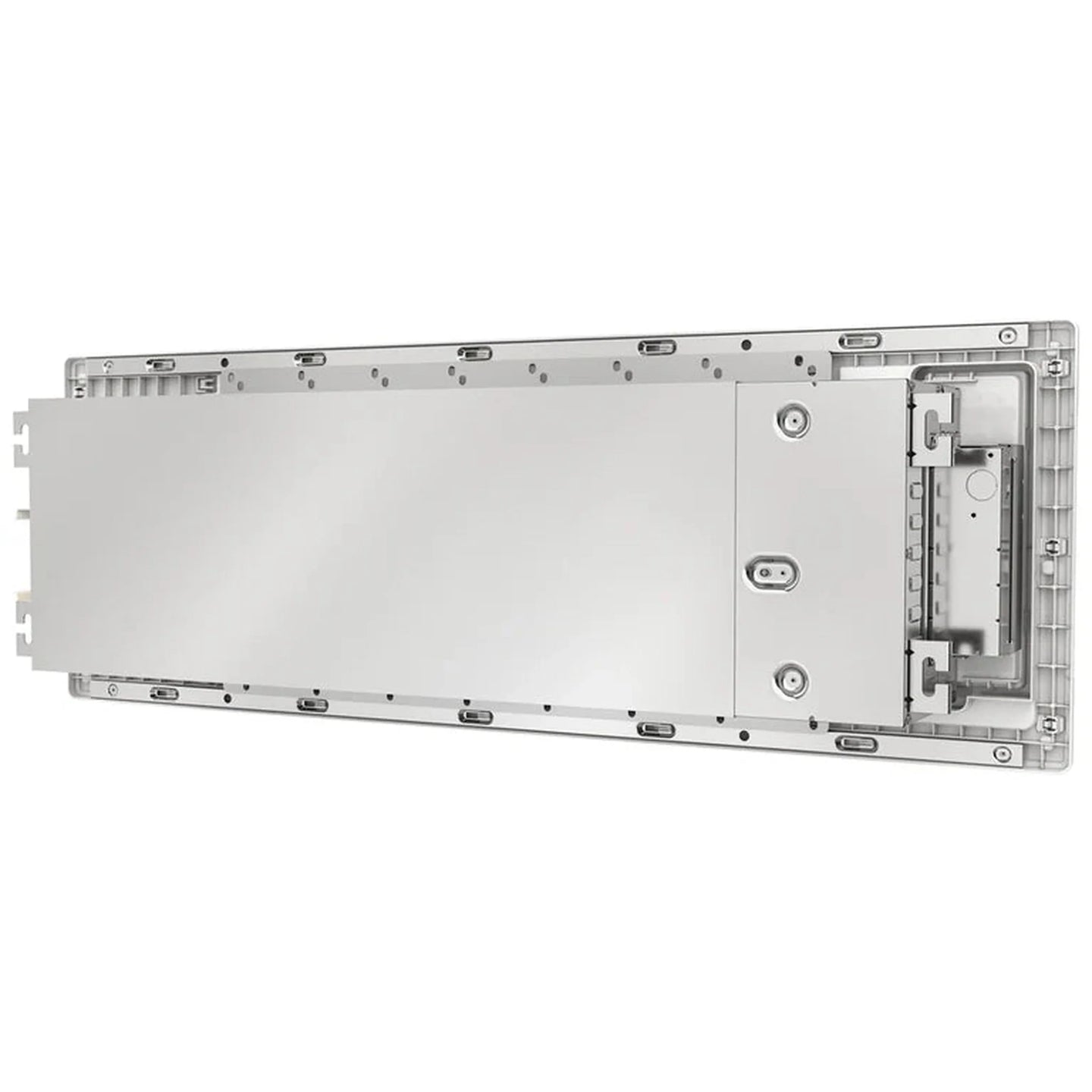

  • MRCOOL DIY Series 9K BTU Ceiling Cassette, SKU: DIYCASSETTE09HP-230C25 (Quantity: 3)
  • MRCOOL DIY Series 12K BTU Ceiling Cassette, SKU: DIYCASSETTE12HP-230C25

Note: Linesets not included, please ensure to add them separately.

Specifications

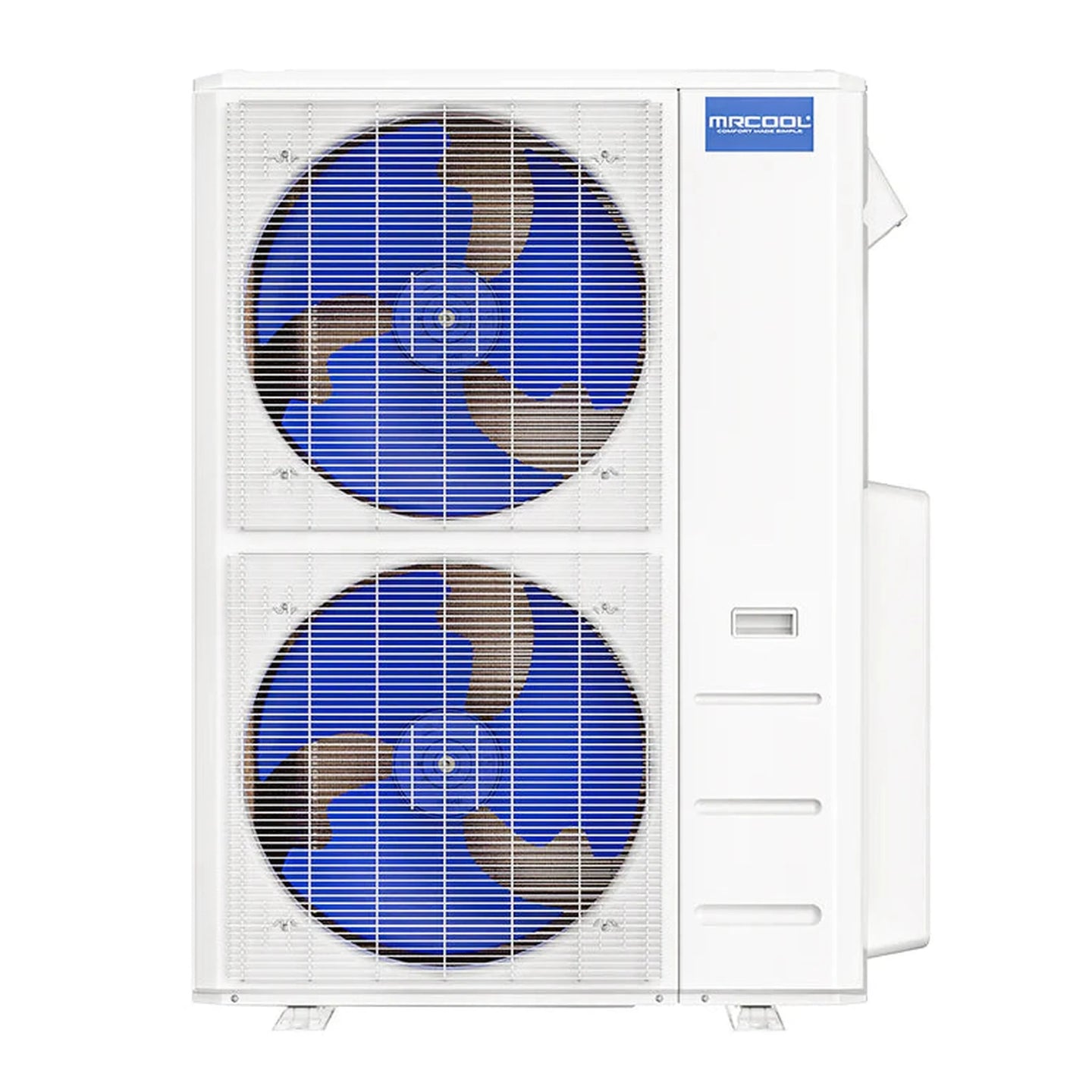

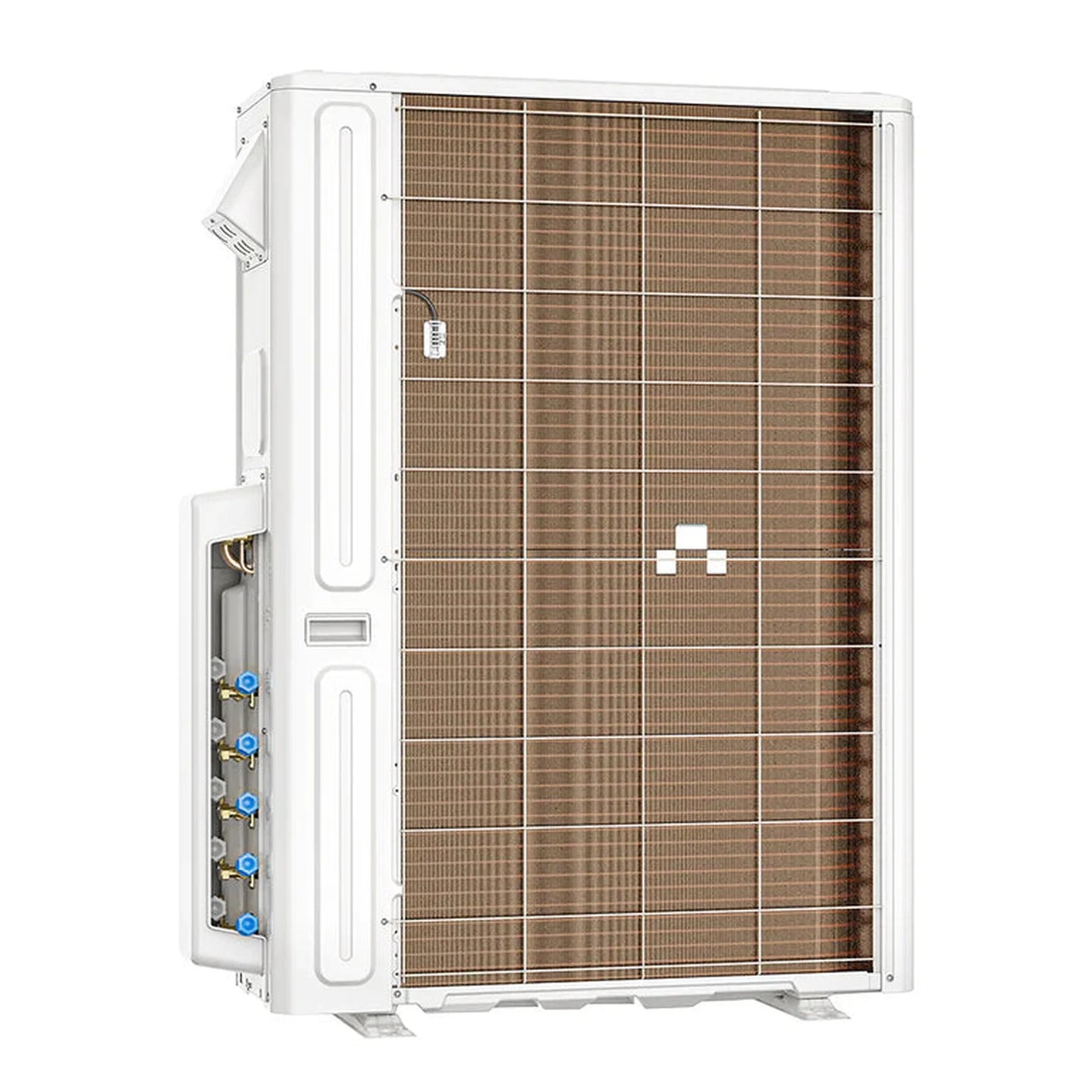

Condenser



Product Dimensions 37.48"W x 16.34"D x 52.48"H
Cooling Capacity 48,000 BTU
Heating Capacity 48,000 BTU
Zone Capacity 5
Cool Mode - Outdoor Operating Temperature Range 5F ~ 122F
Heat Mode - Outdoor Operating Temperature Range 5F ~ 75.2F
SEER 20.5
EER 11
Voltage Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase)
Registered Warranty 7 Years Replacement on Condenser, 5 Years Parts

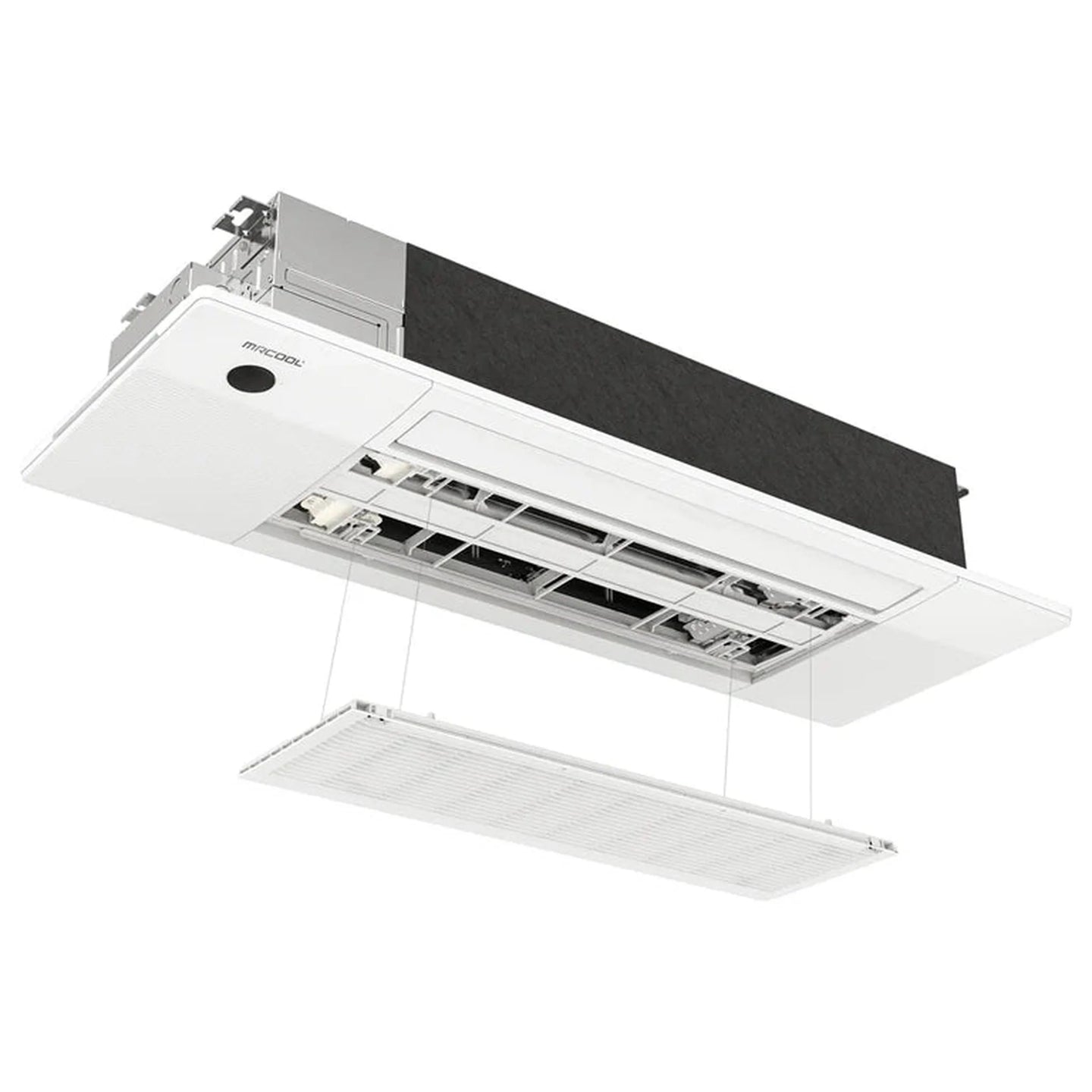

Air Handler 9K BTU



Product Dimensions 50.31"W x 13.19"D x 8.98"H

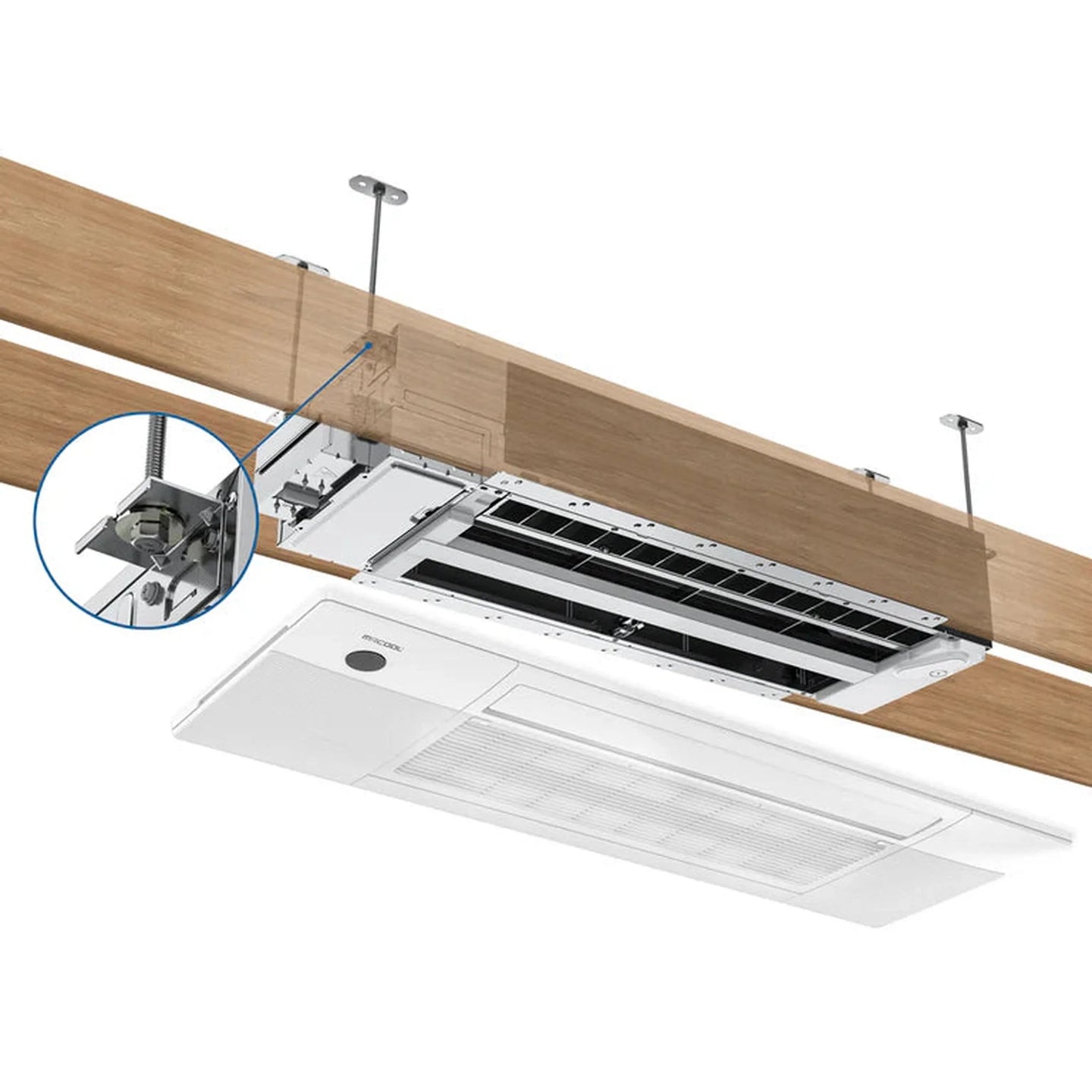

Mount Type Ceiling Cassette
Cooling Capacity 9,000 BTU
Heating Capacity 9,000 BTU
Registered Warranty 5 Years Parts
Modes Auto - Auto selects from Cool, Heat or Fan-Only
Dry - dehumidify
Cool
Heat
Fan Only
Quiet
Sleep


Air Handler 12K BTU



Product Dimensions 50.31"W x 13.19"D x 8.98"H
Mount Type Ceiling Cassette
Cooling Capacity 12,000 BTU
Heating Capacity 12,000 BTU
Registered Warranty 5 Years Parts
Modes Auto - Auto selects from Cool, Heat or Fan-Only
Dry - dehumidify
Cool
Heat
Fan Only
Quiet
Sleep

Information and Guides

Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate
