MRCOOL | DIY Mini Split - 18,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. and 35 ft. Install Kit | DIYM218HPW00C02

SKU DIYM218HPW00C02

Regular price: $3,188.90
Sale price: $2,899.00

Regular price: $3,188.90
Sale price: $2,899.00

✅ Authorized Online Dealer
🚚 Free Shipping + No Sales Tax (exclusions may apply)
💲 Lowest Price Guarantee
📦 Fast 4-7 Day Delivery
🏭 Backed By Manufacturer Warranty
❓ Questions? Contact Us: +1 (734) 228-0441 or support@offgridselection.com

Quantity

Product Description

MRCOOL DIY Multi-Zone 4th Gen Mini Split System

Overview

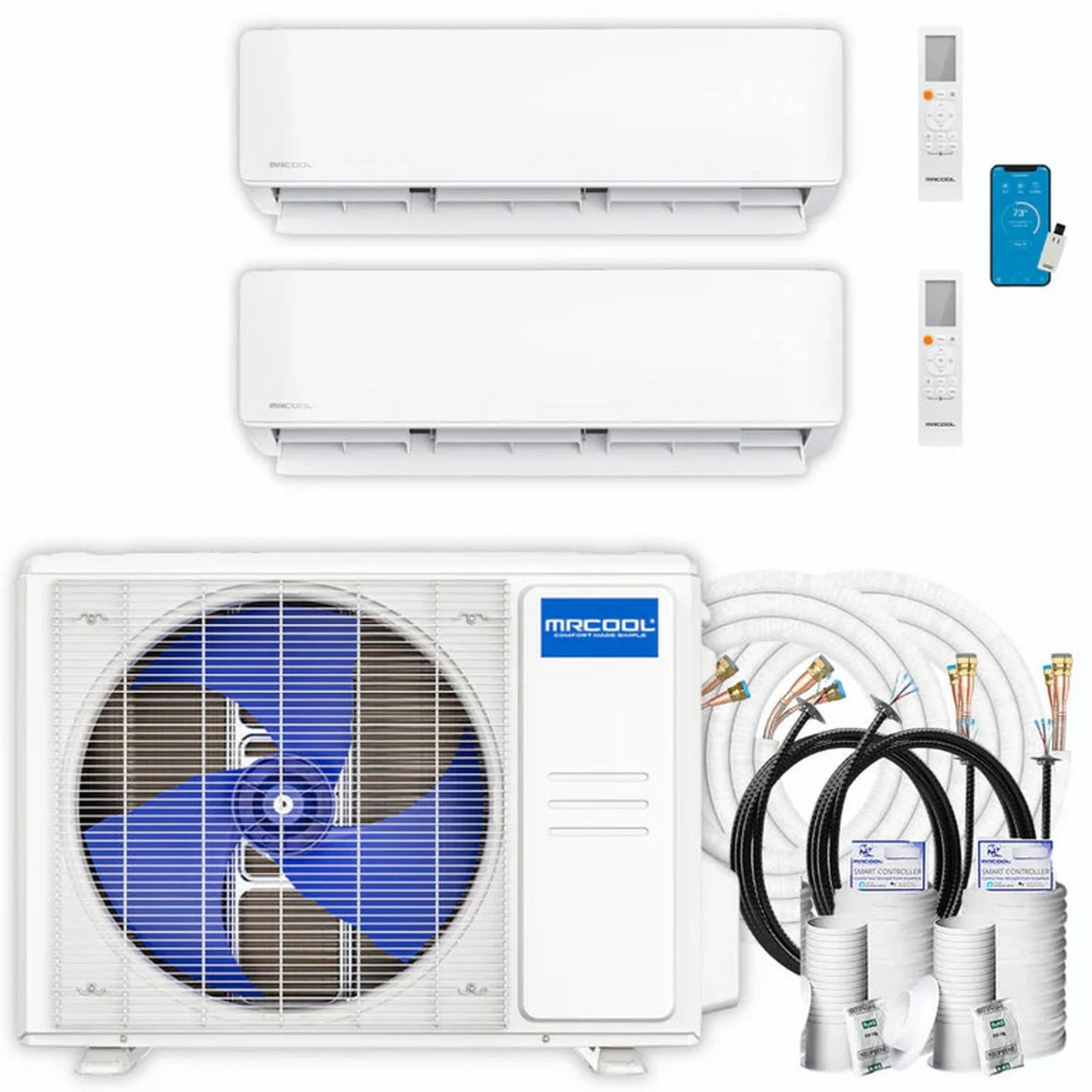

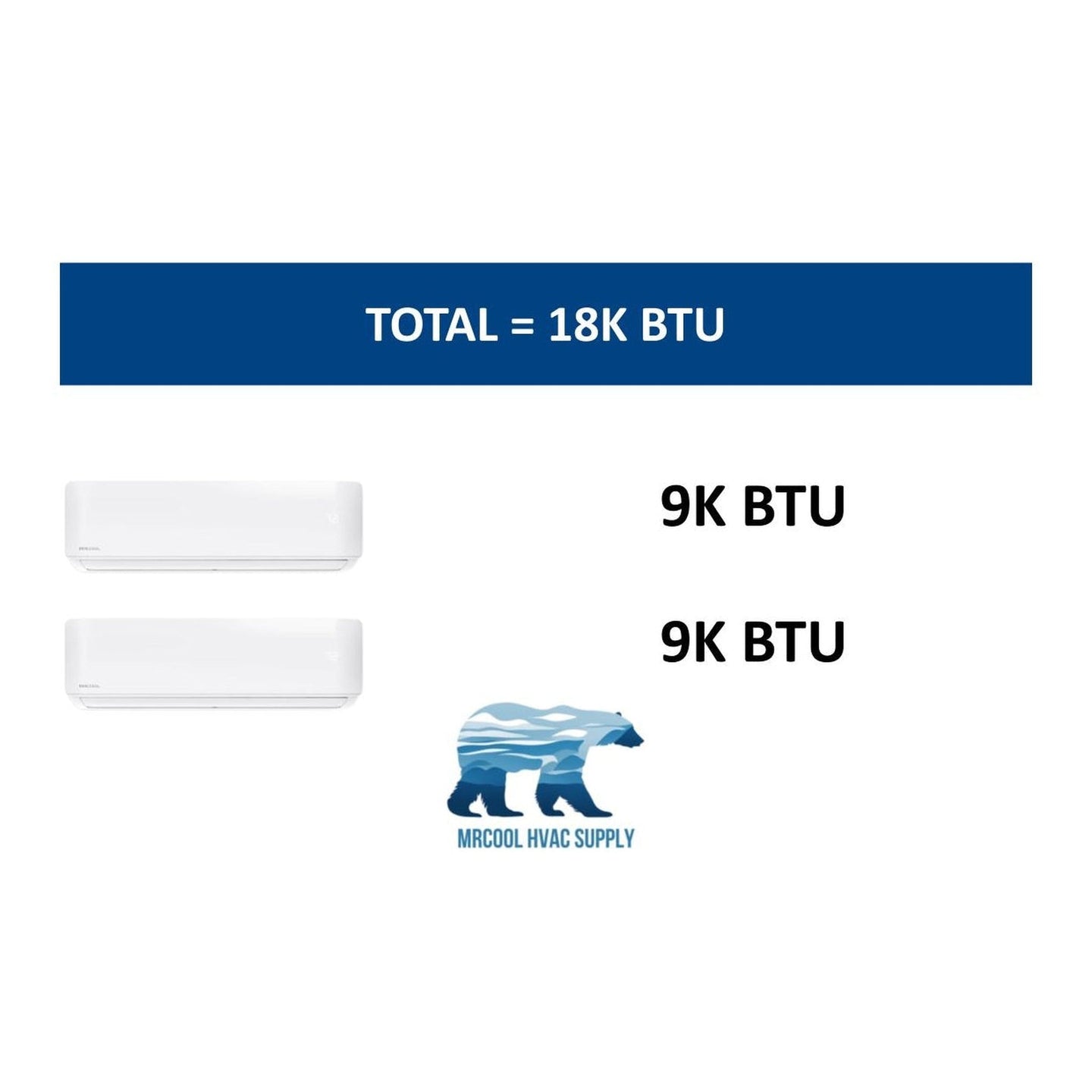

This 4th Generation MRCOOL Mini Split provides an all-in-one solution to heat and cool two spaces. It includes the DIY 18,000 BTU Multi-Zone Condenser, two 9,000 BTU wall-mounted air handlers, two remotes, and 16 ft. and 35 ft. installation kits. The standout feature is a true DIY installation—set it up yourself without special tools or pricey gear. With built-in Wi?Fi, MRCOOL DIY Multi is easy to install and flexible enough for most spaces.

Benefits

DIY installation saves time and money—no certified technician required.
Wi?Fi control via the Smart HVAC app on iOS or Android.
Two-zone capability in one compact condenser for two separate spaces.
Energy efficiency up to 21 SEER when paired with select MRCOOL air handlers.
Operates in temperatures as low as 5°F.
Limited lifetime compressor warranty through the MRCOOL Care program (registration required).

Features

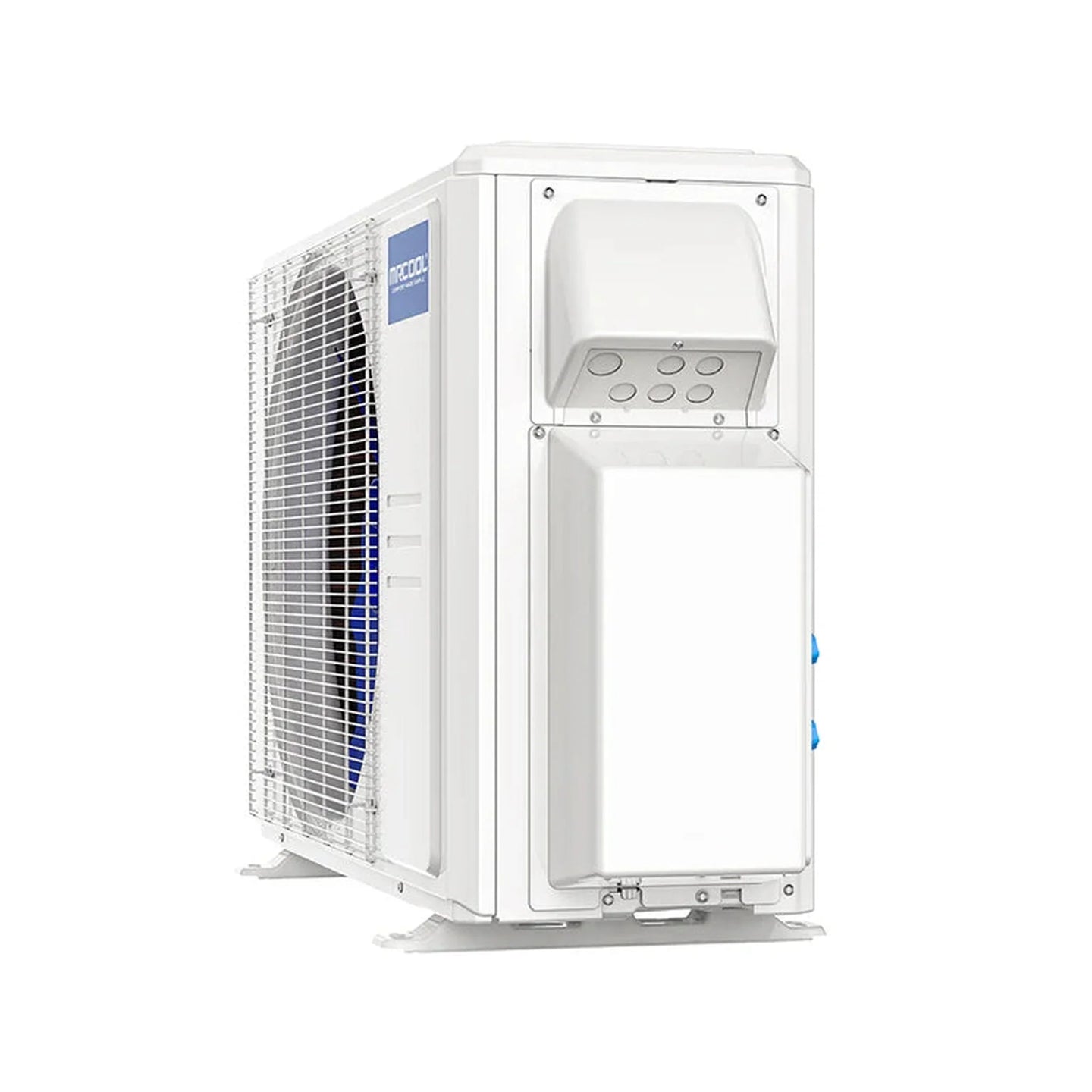

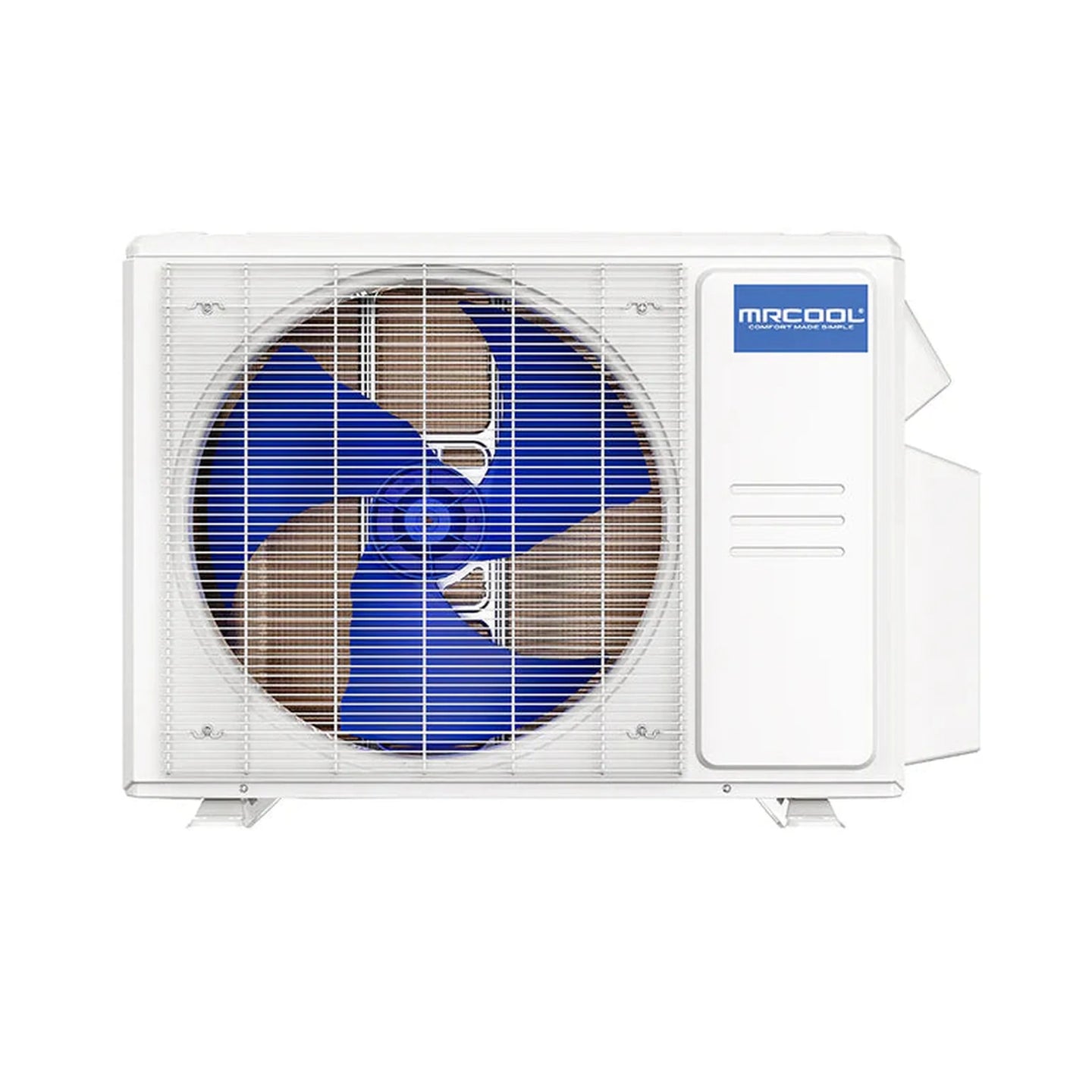

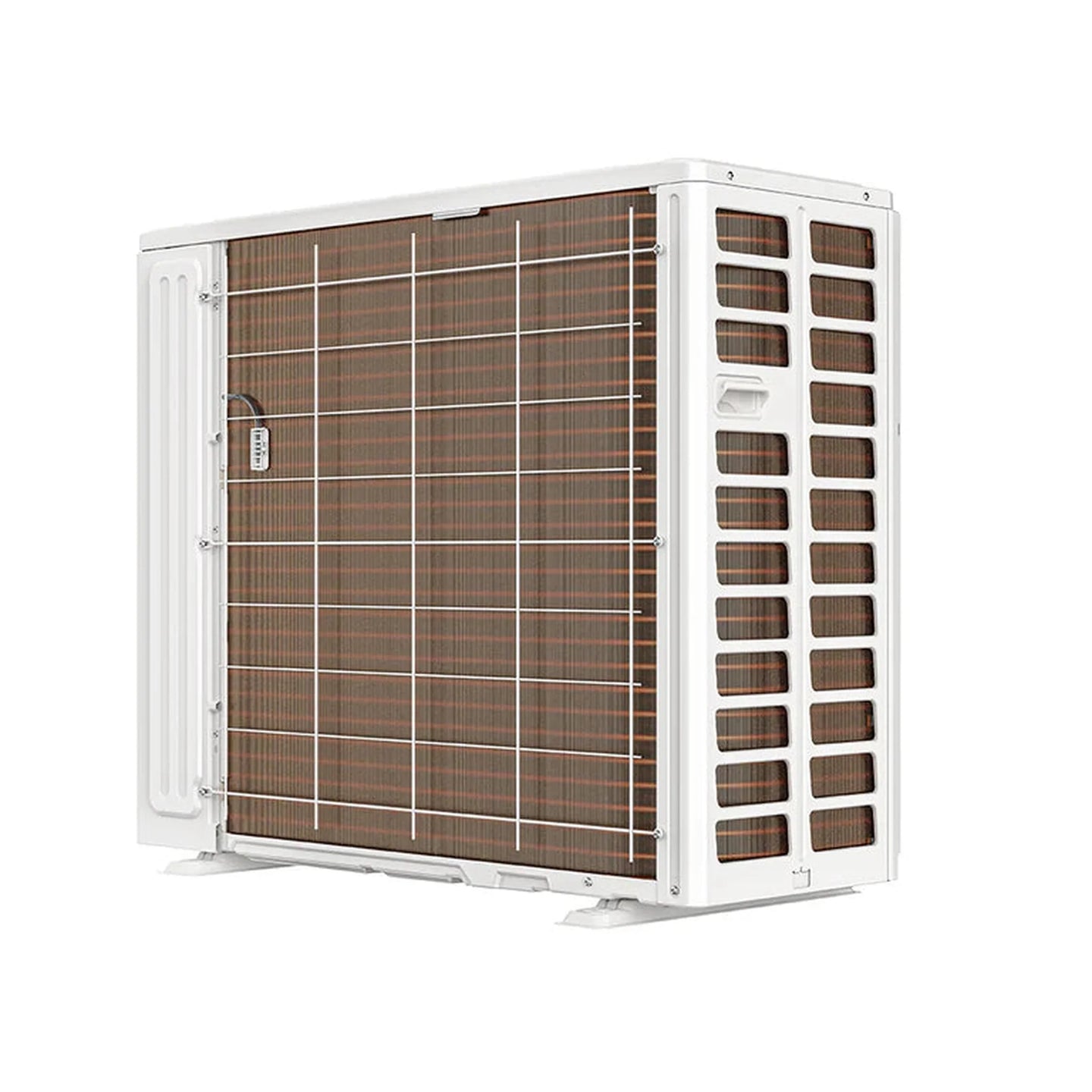

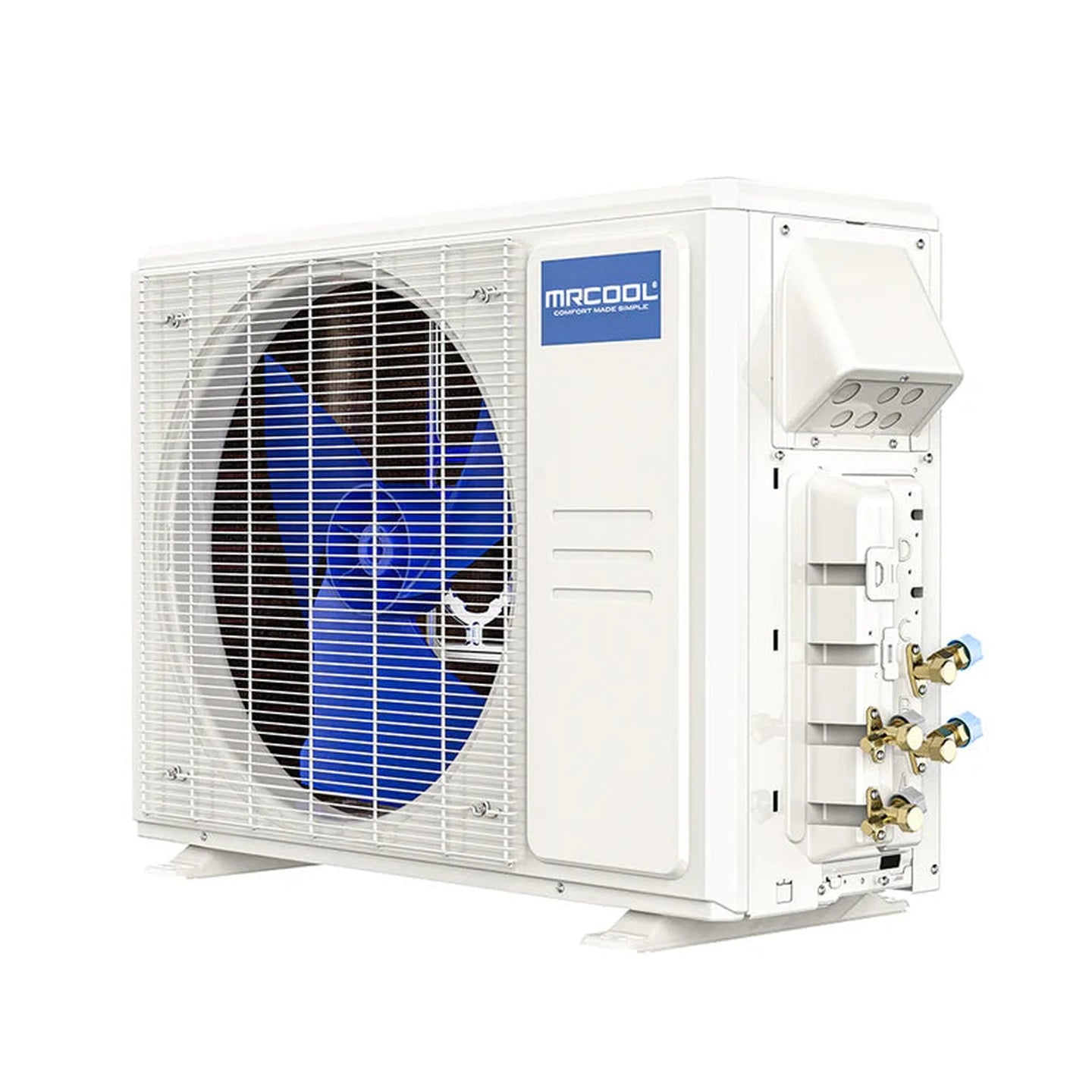

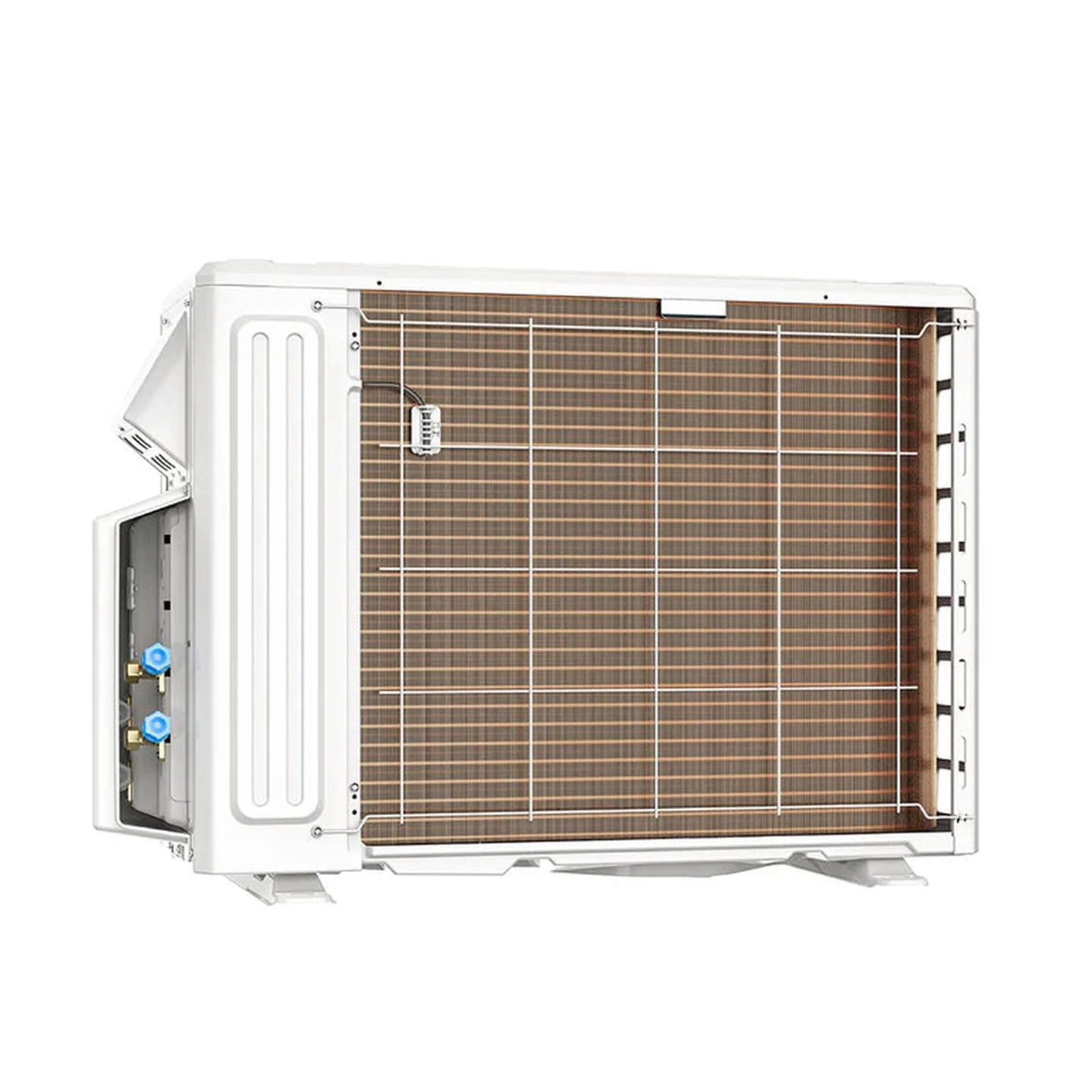

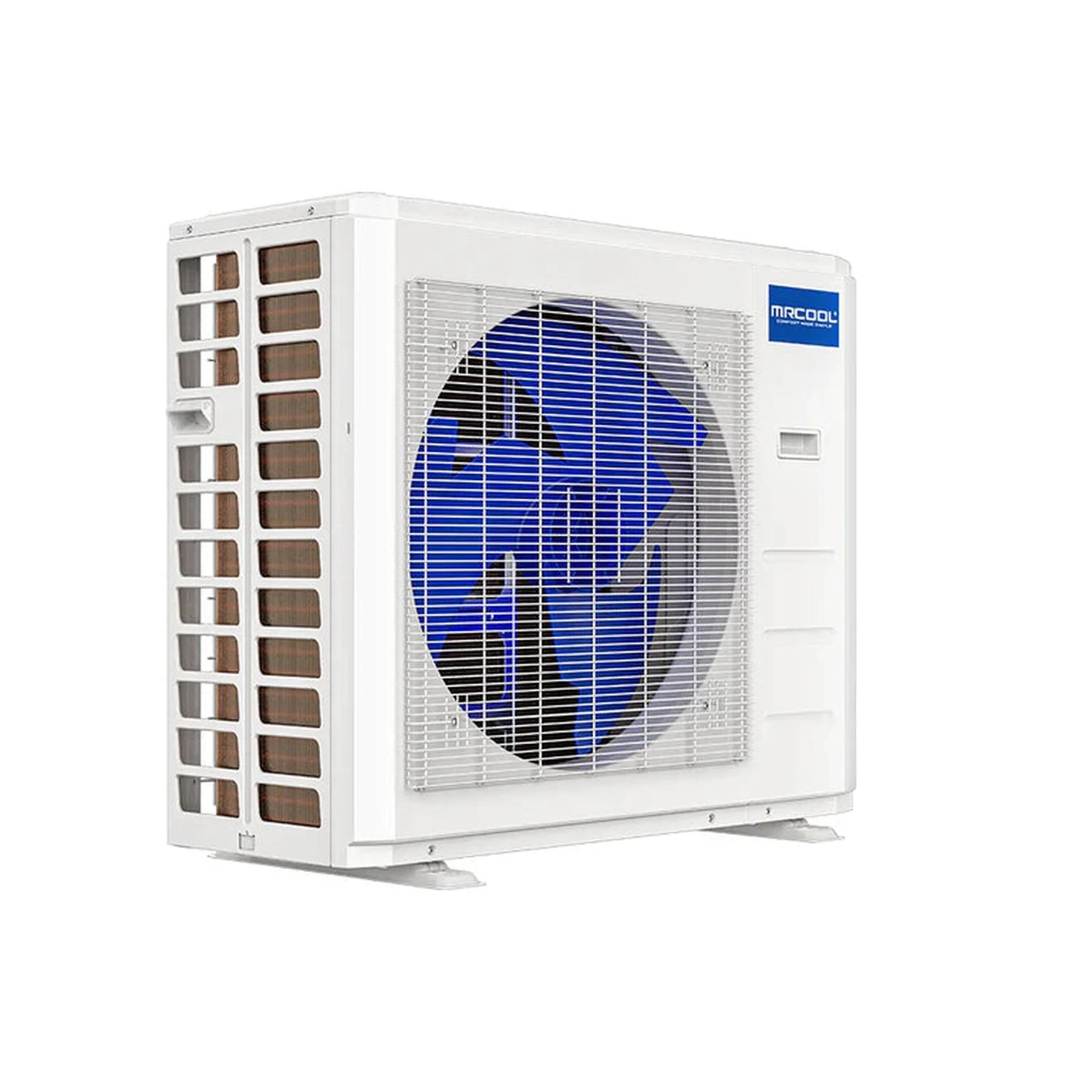

Condenser: DIY Multi-Zone 2-Zone, 18,000 BTU, 4th Gen Series (DIY-MULTI2-18HP230C).

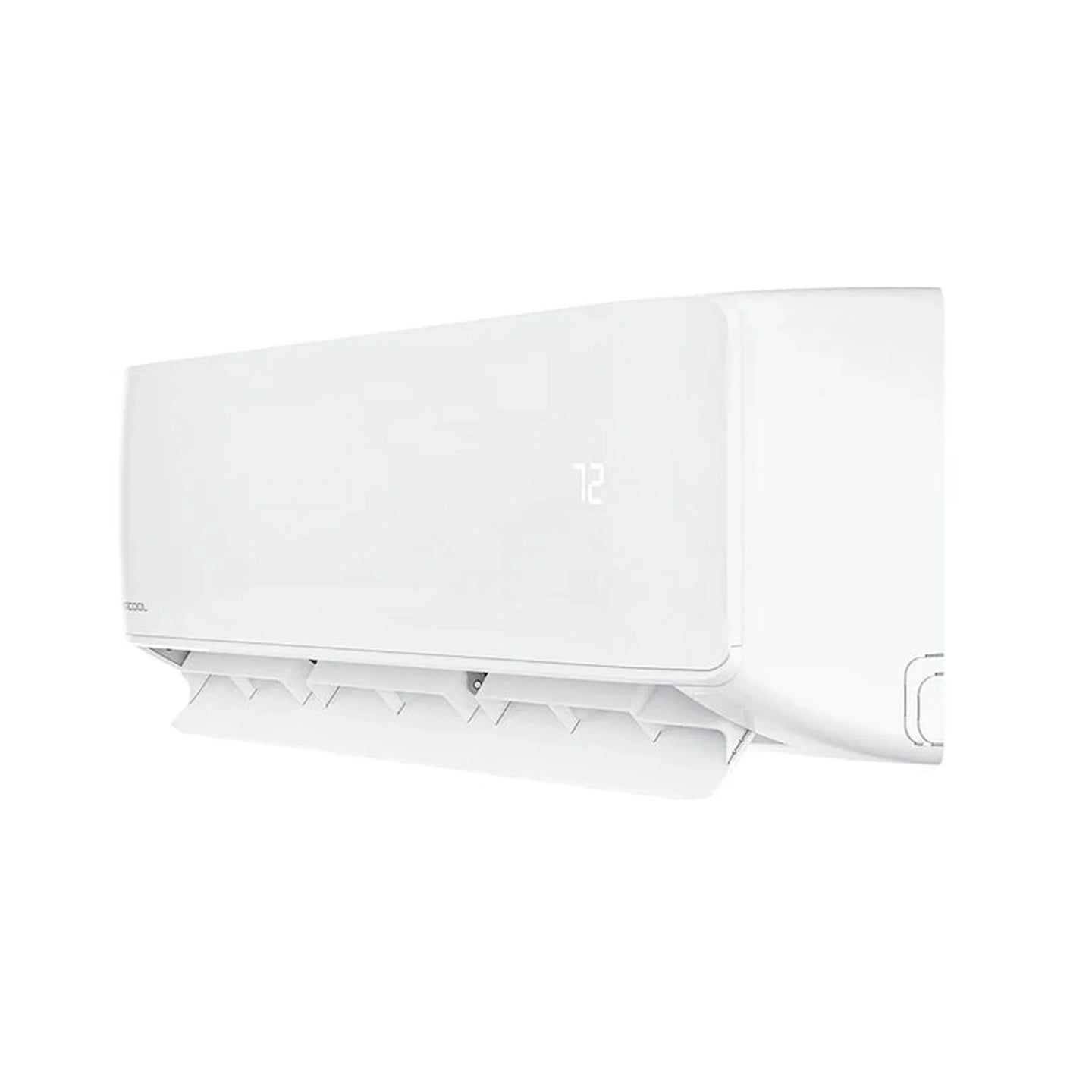

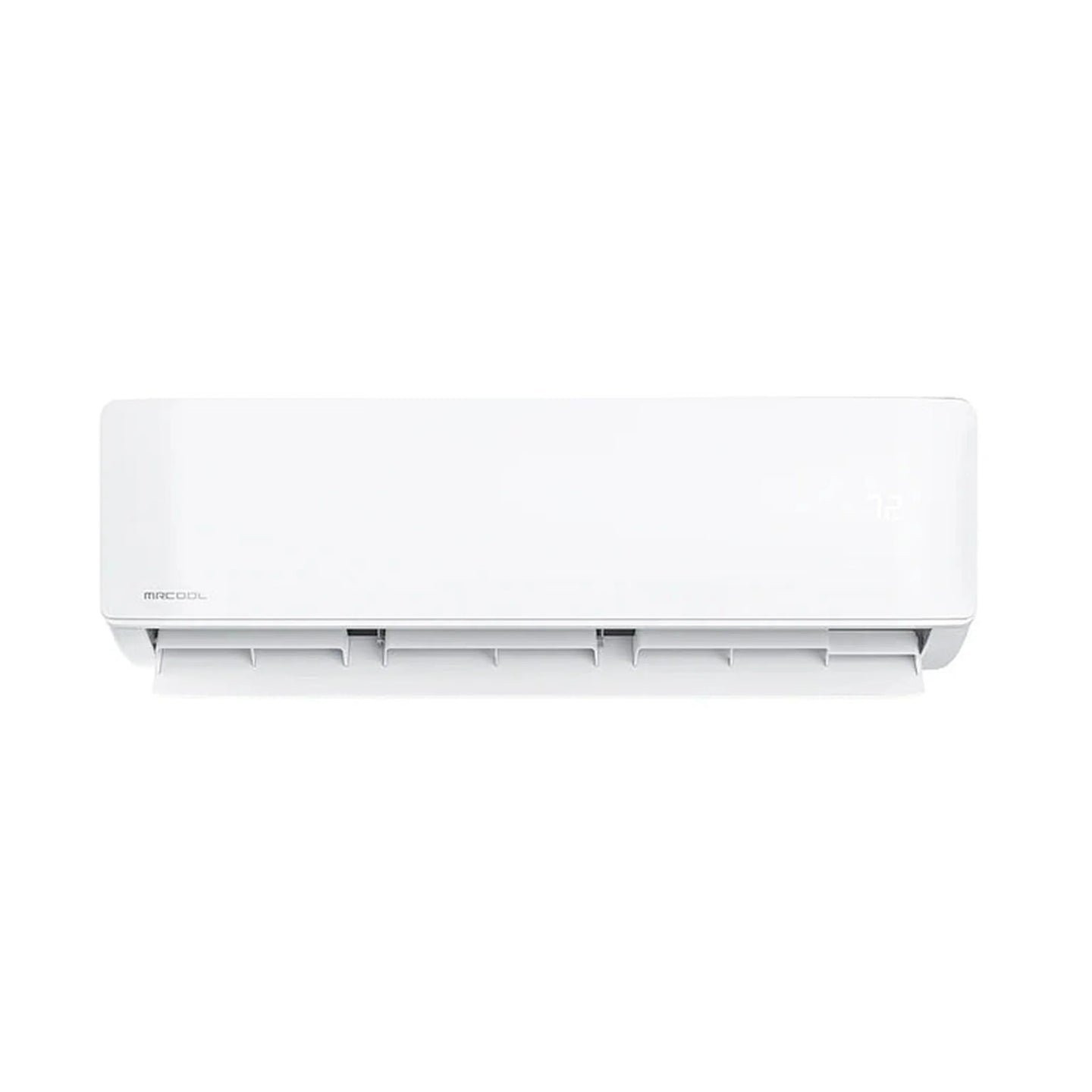

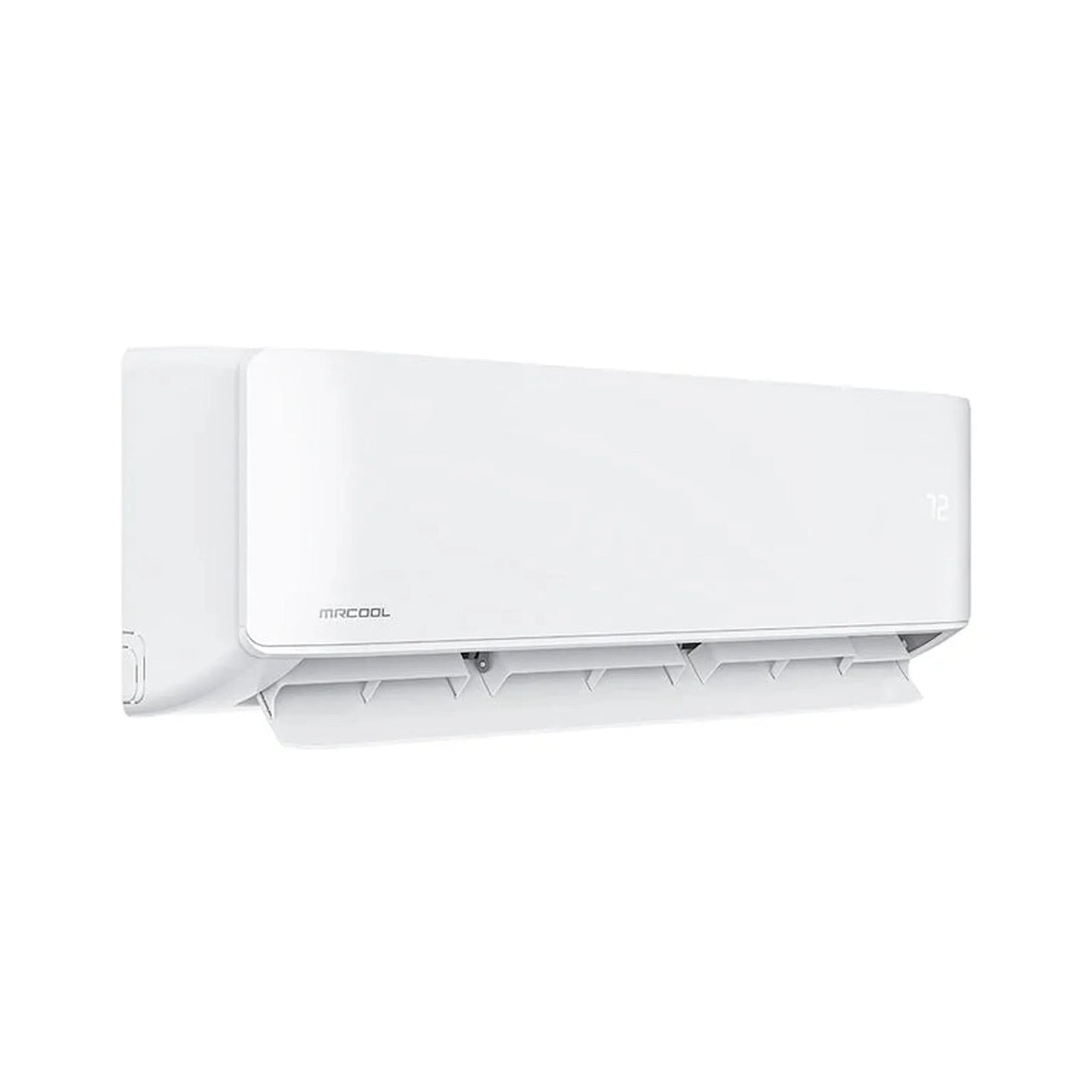

Air Handlers: Two MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handlers, 230V, Enhanced WiFi (DIY-09-HP-WMAH-230C25).

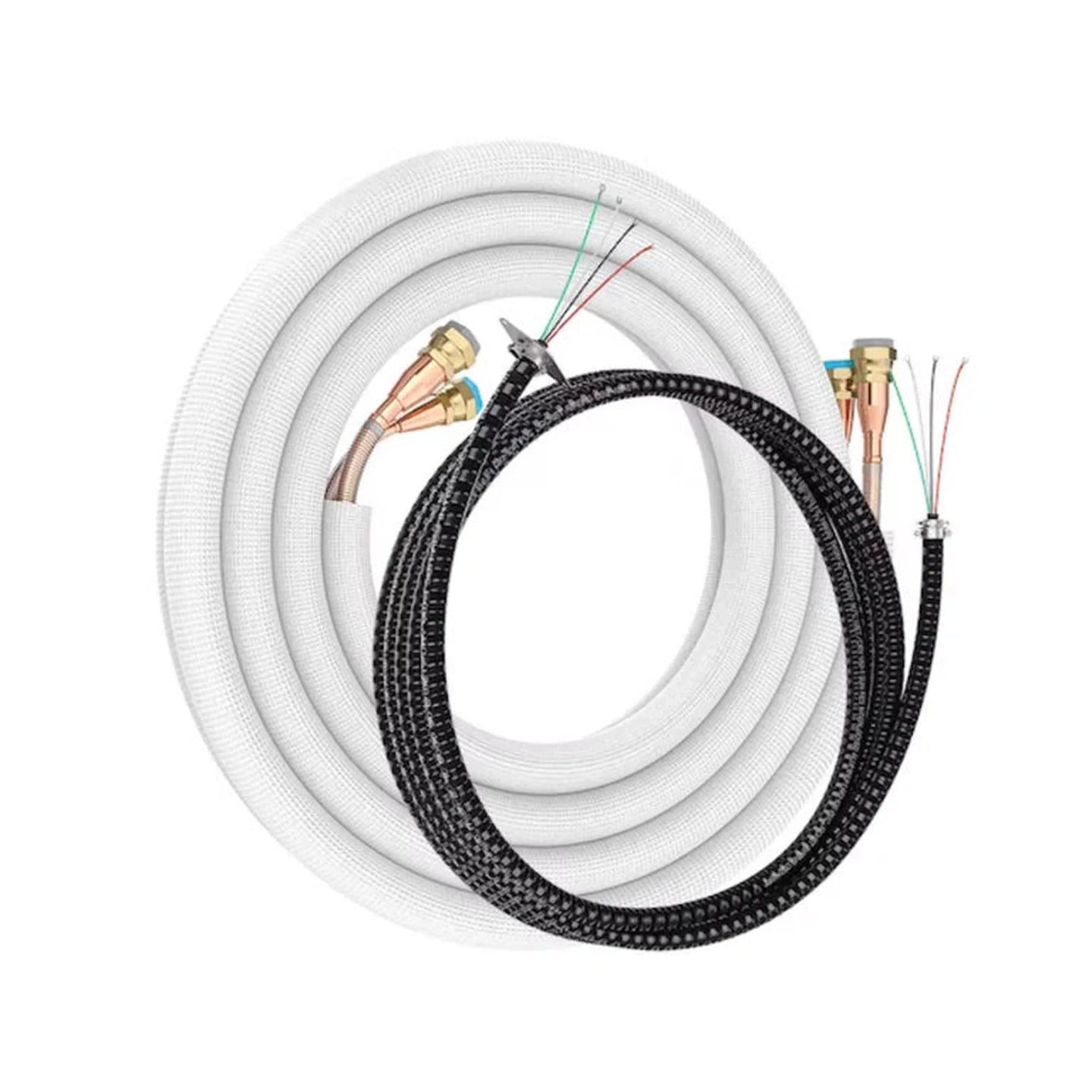

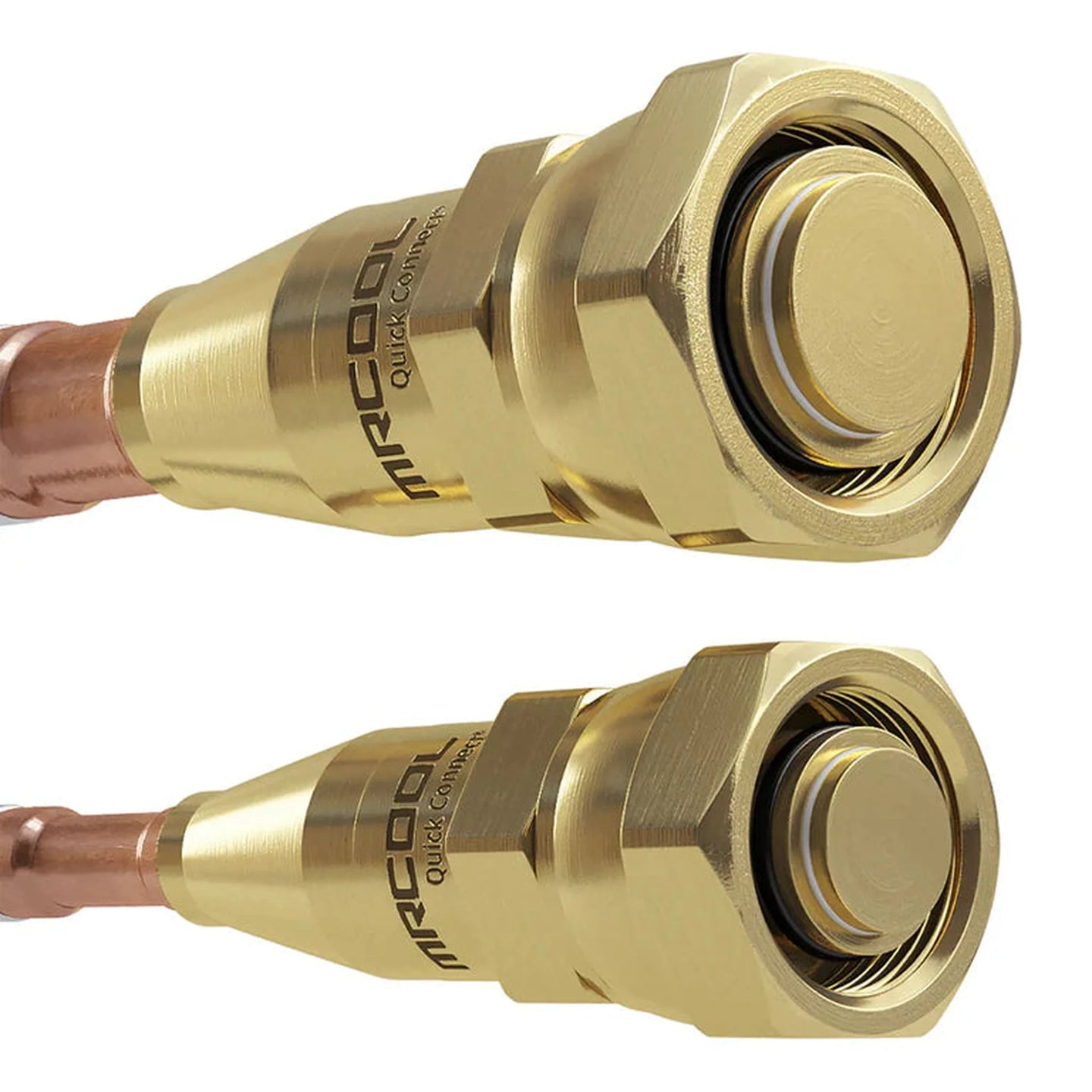

Line Sets: 16 ft. (DIY16-1412) and 35 ft. (DIY35-1412C) pre-charged with R-410A; compatible with 9K, 12K & 18K indoor units.

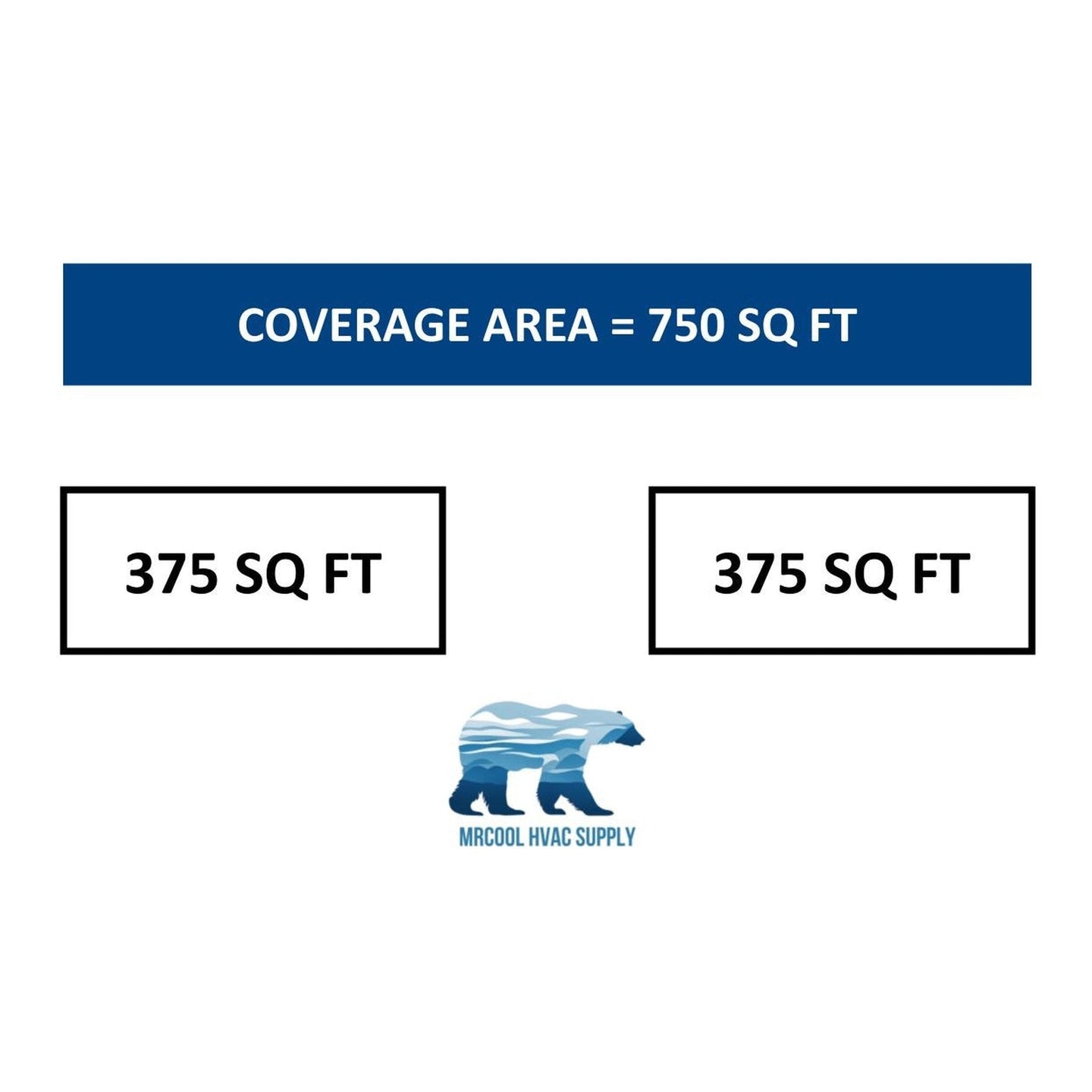

Coverage: Each 9K BTU air handler covers up to 375 sq. ft.
Operation modes: COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
Smart control: Manage via Apple or Android devices through the Smart HVAC app.

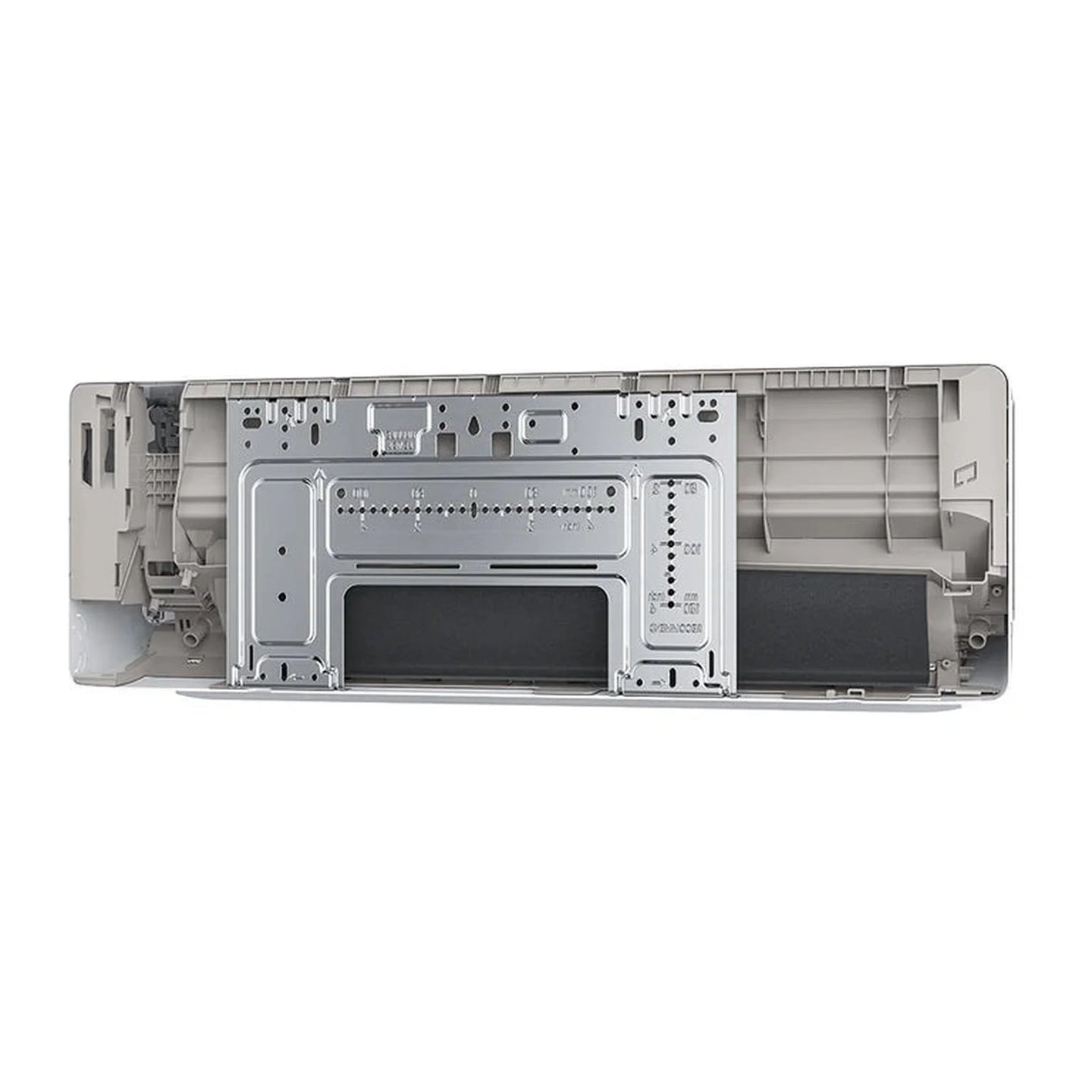

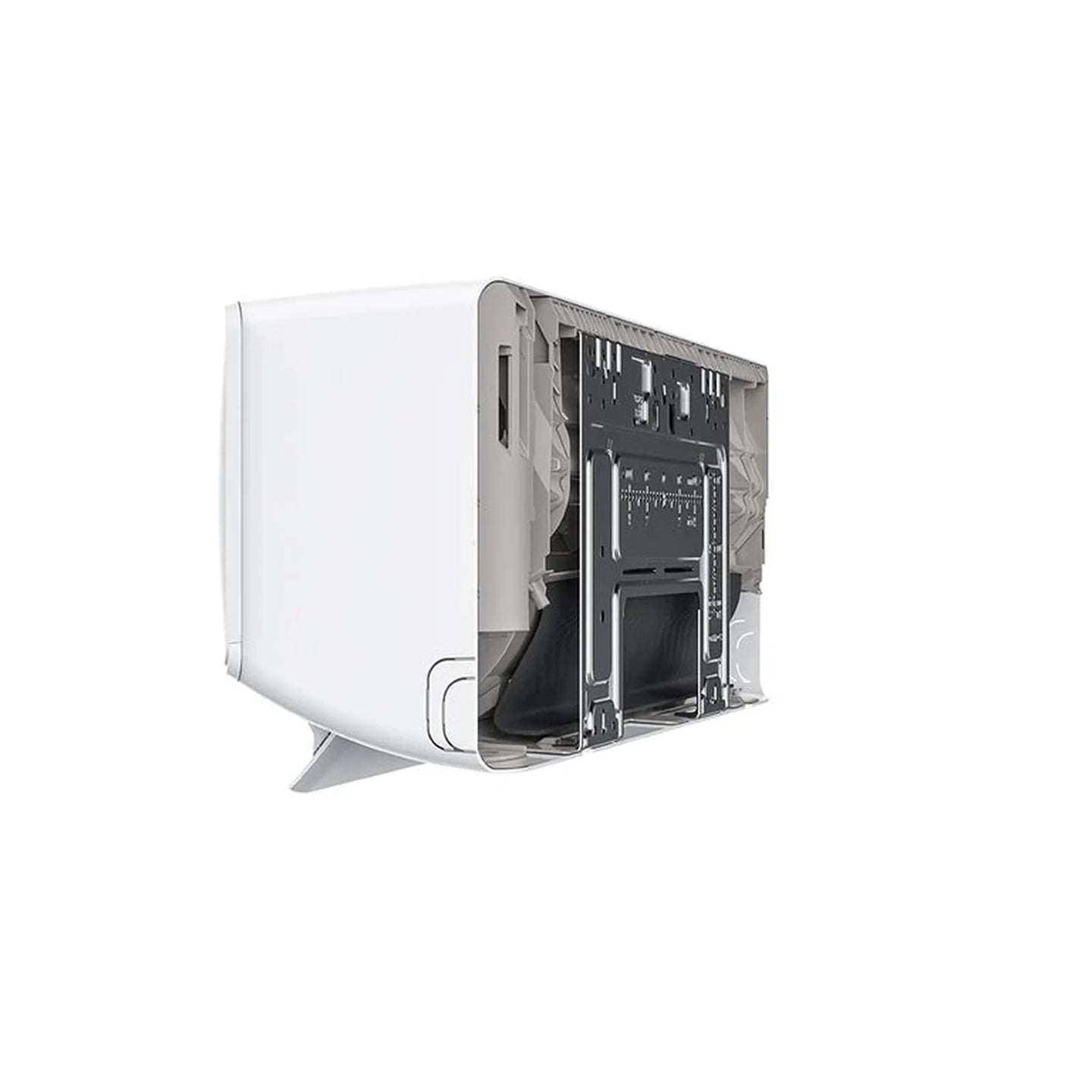

Installation: Compact, lightweight air handlers with mounting plate for easy wall mounting.
Remote: Includes remotes for each air handler (plus optional holder).
DIY friendly: No certified technician required for installation.

Specifications

Condenser Specifications

Product Dimensions	35.04"W x 13.46"D x 26.50"H
Cooling Capacity	18,000 BTU
Heating Capacity	19,000 BTU
Zone Capacity	2
Min Ambient Cool	5F ~ 122F
Min Ambient Heat	-13F ~ 75.2F
SEER	21
EER	12.5
Voltage	Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase)
Registered Warranty	7 Years Replacement on Condenser, 5 Years Parts

Air Handler 9K BTU

Product Dimensions	31.57"W x 7.44"D x 11.69"H
Mount Type	Wall
Cooling Capacity	9,000 BTU
Heating Capacity	9,000 BTU
Registered Warranty	5 Years Parts
Modes	Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep
