MRCOOL | DIY 5th Gen E Star 9K BTU Single Zone Mini Split Complete System with 25ft. Line Set 115V | DIY-09-HP-WM-115D25-O

SKU DIY-09-HP-WM-115D25-O

Regular price: $2,561.90
Sale price: $2,329.00

Regular price: $2,561.90
Sale price: $2,329.00

✅ Authorized Online Dealer
🚚 Free Shipping + No Sales Tax (exclusions may apply)
💲 Lowest Price Guarantee
📦 Fast 4-7 Day Delivery
🏭 Backed By Manufacturer Warranty
❓ Questions? Contact Us: +1 (734) 228-0441 or support@offgridselection.com

Quantity

Product Description

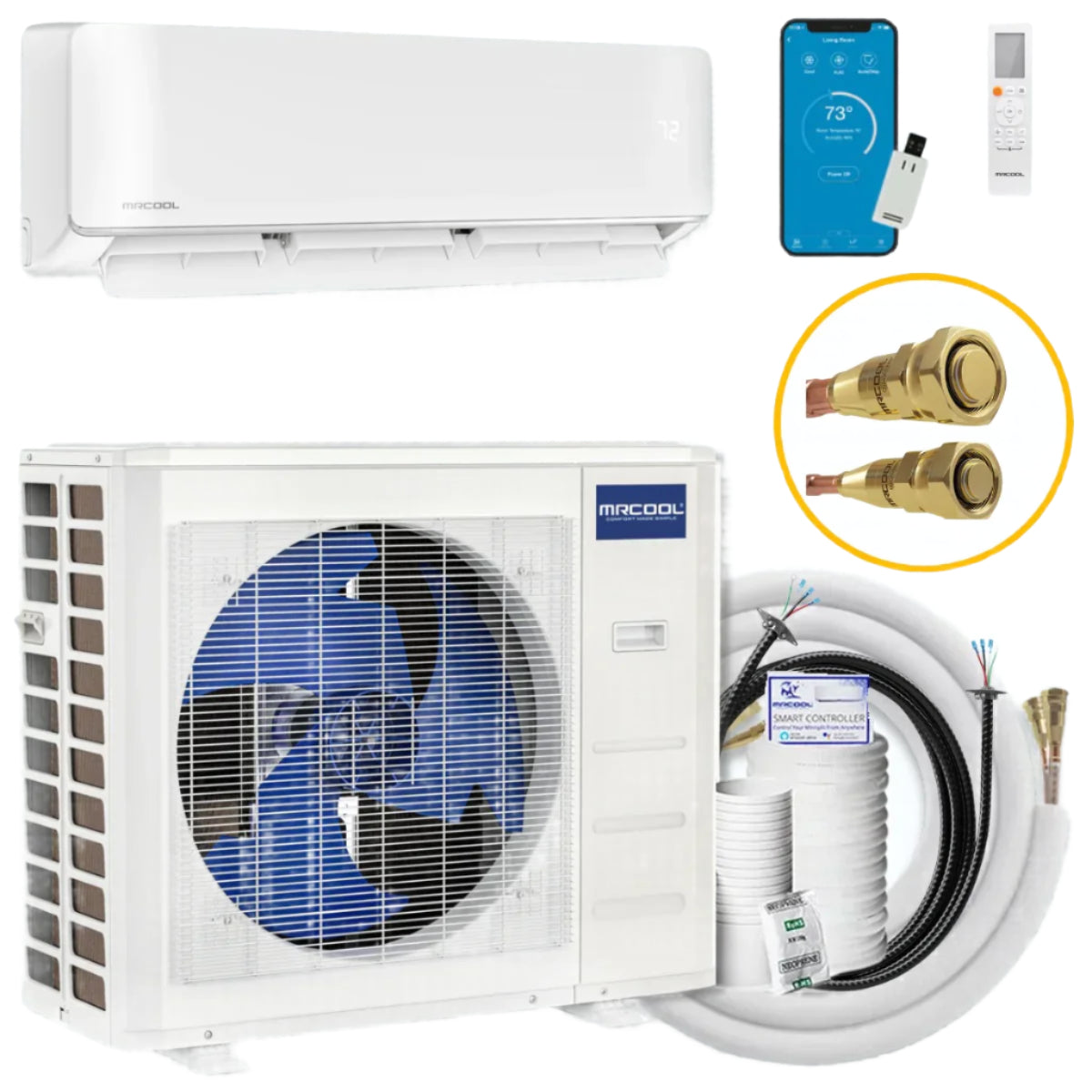

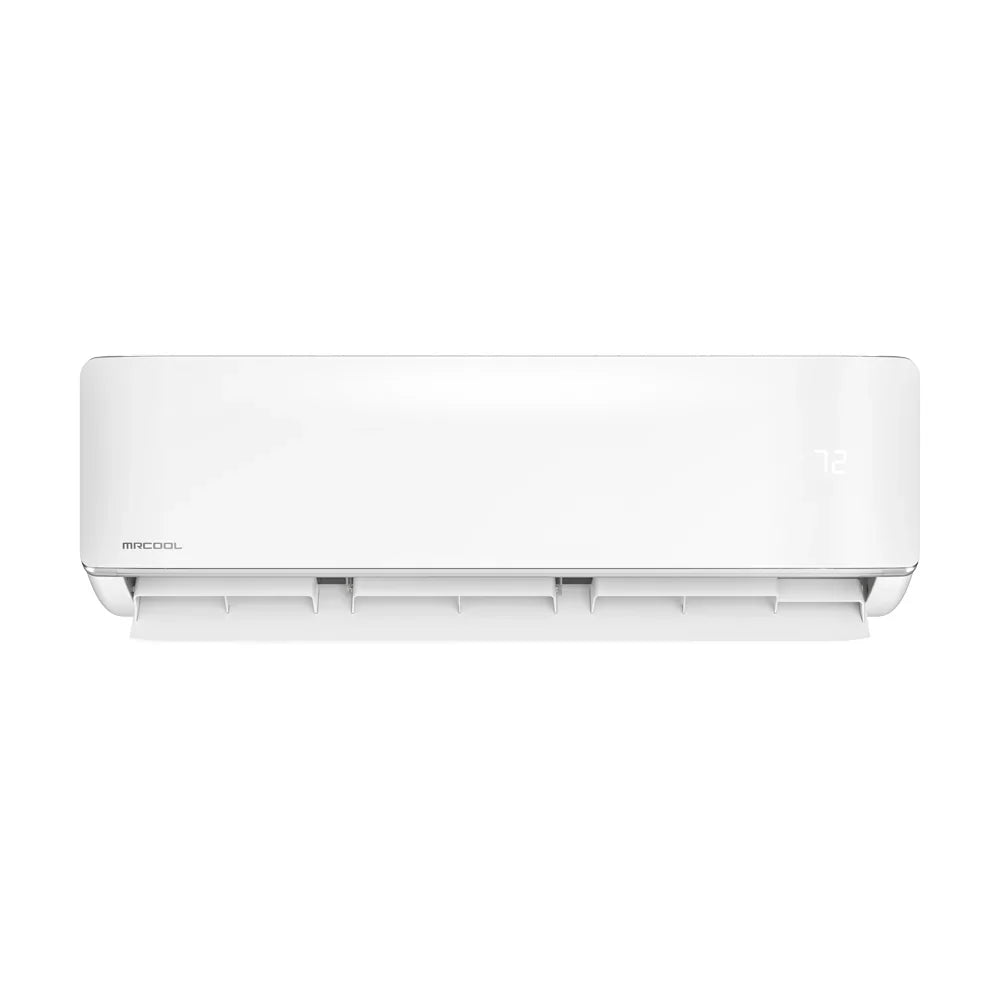

Presenting the 5th Generation MRCOOL DIY 9K BTU Single Zone Mini-Split Air Handler

Overview

Designed to provide efficient heating and cooling for areas ranging from 200 to 350 square feet. This unit offers a hassle-free installation process with a 25-foot QuickConnect line set and DIYPRO cable, allowing for a straightforward setup without the need for specialized tools. Control your indoor climate effortlessly using the wireless remote, SmartHVAC app, or voice commands. Built for durability and energy efficiency, this system is backed by a leading warranty for long-term reliability.

Benefits

Efficient use for 200–350 sq ft spaces.
Hassle-free setup with QuickConnect line set and DIYPRO cable.
Eco-friendly refrigerant with lower GWP than alternatives.
Durable outdoor protection with DIYPRO cable.
Multiple control options for convenience.
Follow Me function for consistent comfort based on remote location.
Dry mode to manage humidity and improve air quality.
Corrosion-resistant protection for long-term performance.
Strong warranty for peace of mind.
Certified performance for safety and reliability.

Features

Simplified DIY Installation: No specialized tools or prior experience required for a seamless setup.

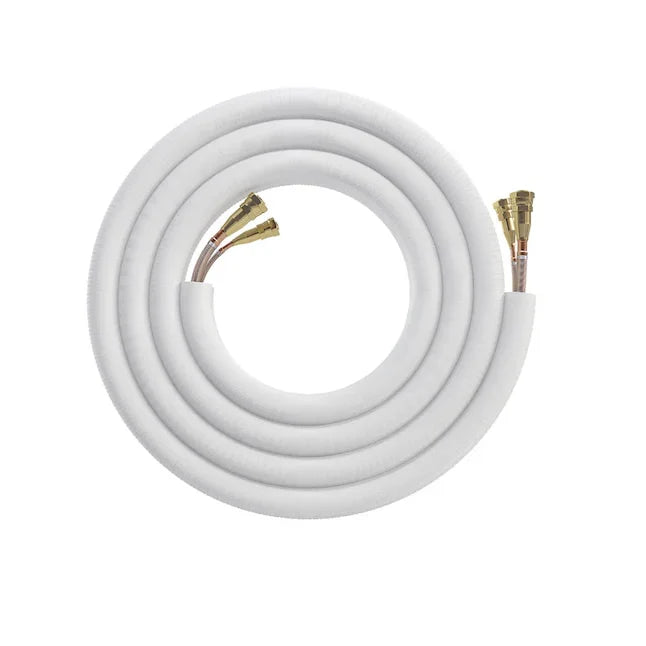

QuickConnect Line Set: Pre-charged with R-454B refrigerant, enabling vacuum-free installation.
Eco-Friendly Refrigerant: Uses R-454B refrigerant with lower Global Warming Potential (GWP).

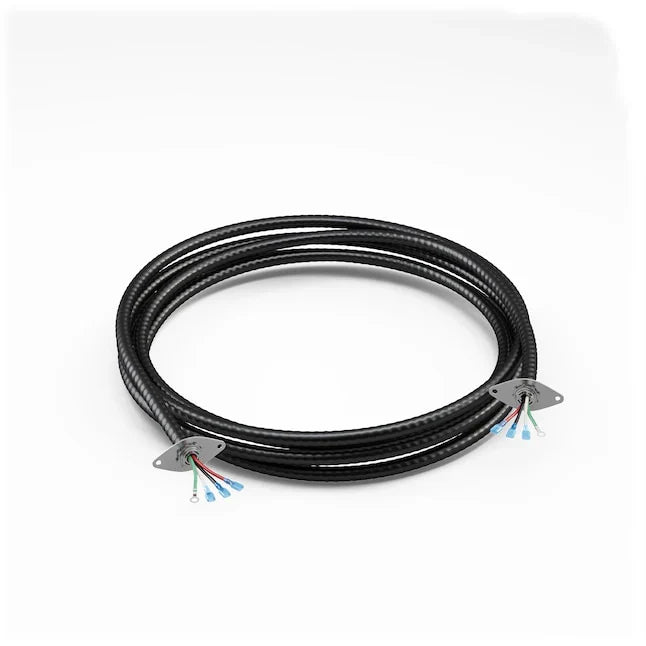

DIYPRO Cable: Replaces traditional electrical conduit, offering durability against outdoor conditions and wildlife interference.

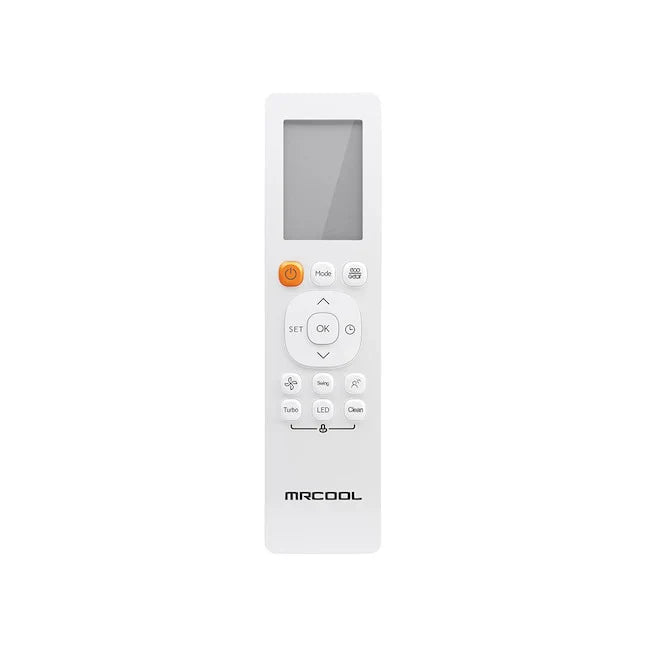

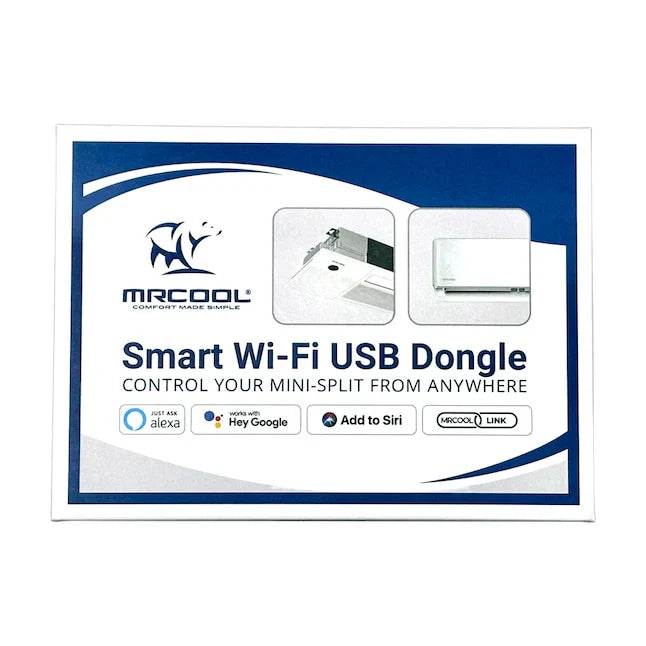

Multiple Control Options: Remote, SmartHVAC app (Apple/Android), or voice control via Alexa and Google Assistant.
Follow Me Function: Adjusts airflow based on remote location for consistent comfort.
Dry Mode: Dehumidifies to regulate indoor moisture and improve air quality.
Corrosion-Resistant Protection: Gold Fin condenser for long-lasting performance, especially coastal areas.

Specifications

Dimensions & Weight

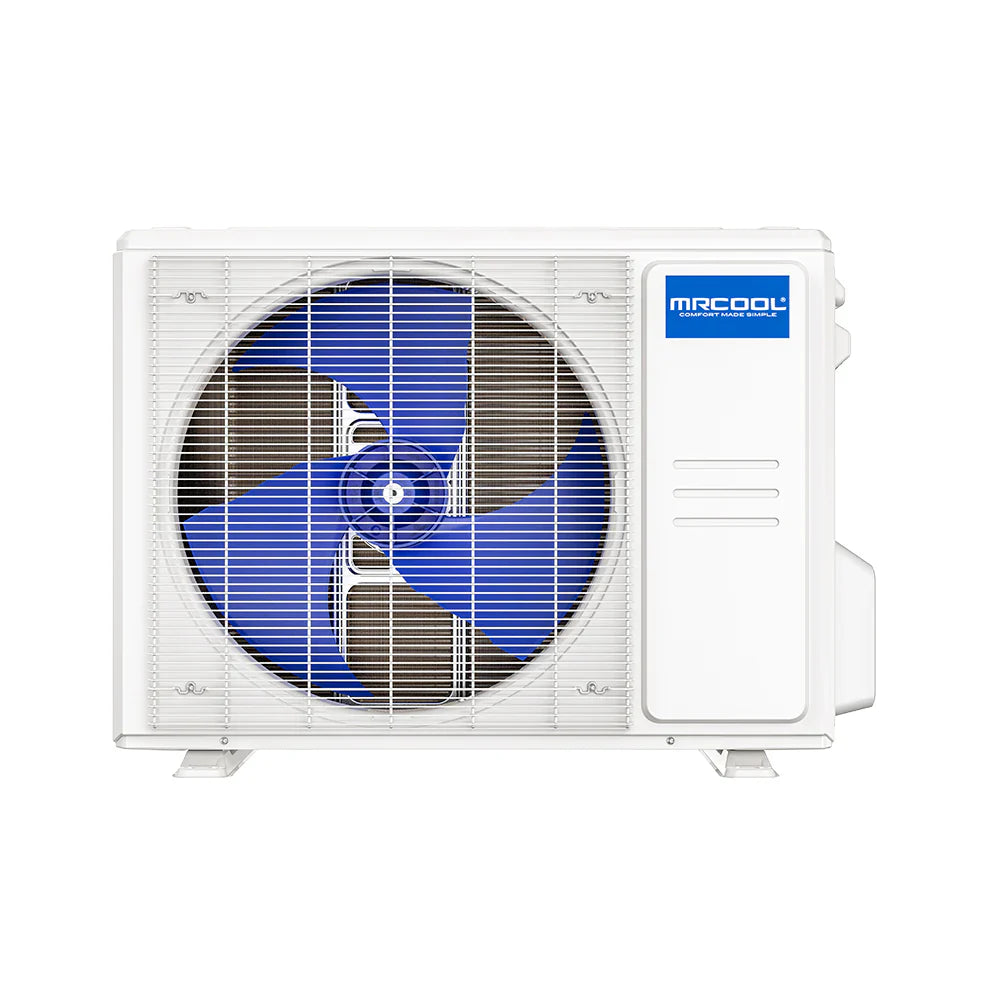

Condenser Dimensions	30.12 W" x 11.93 D" x 21.85 H"

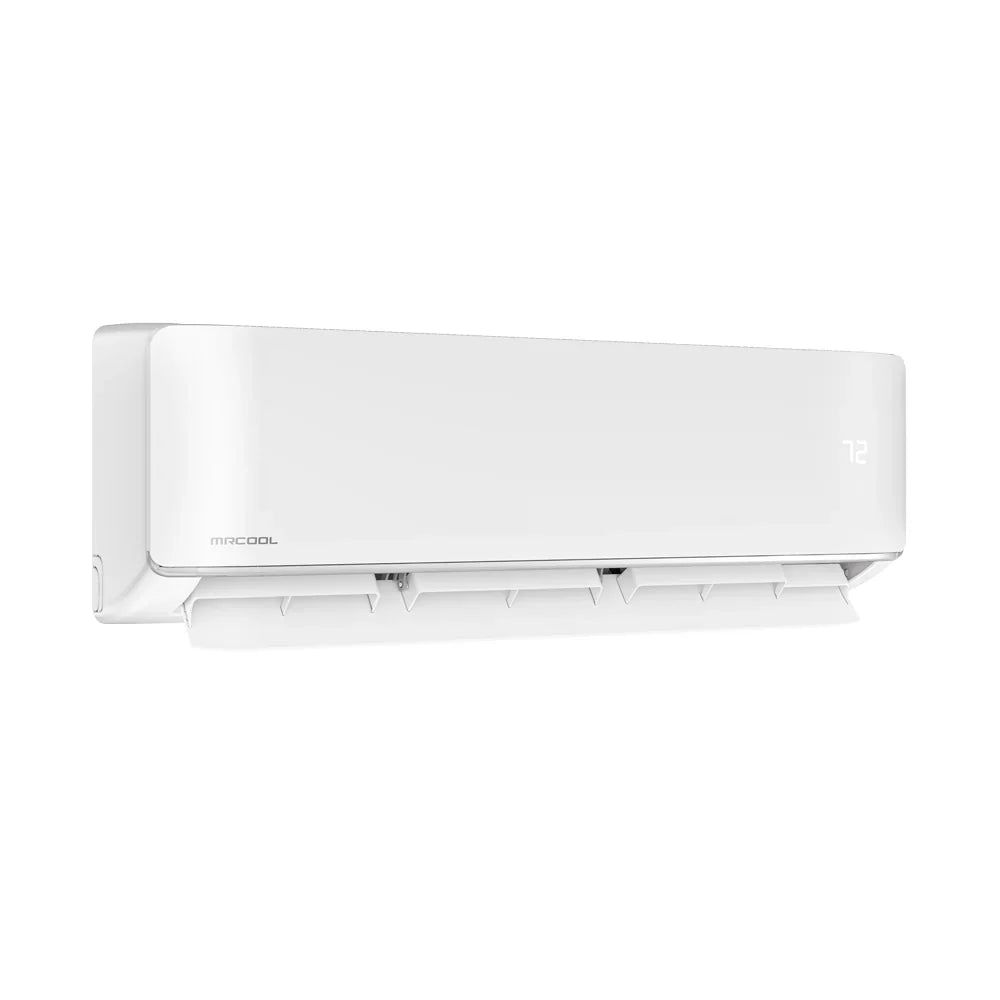

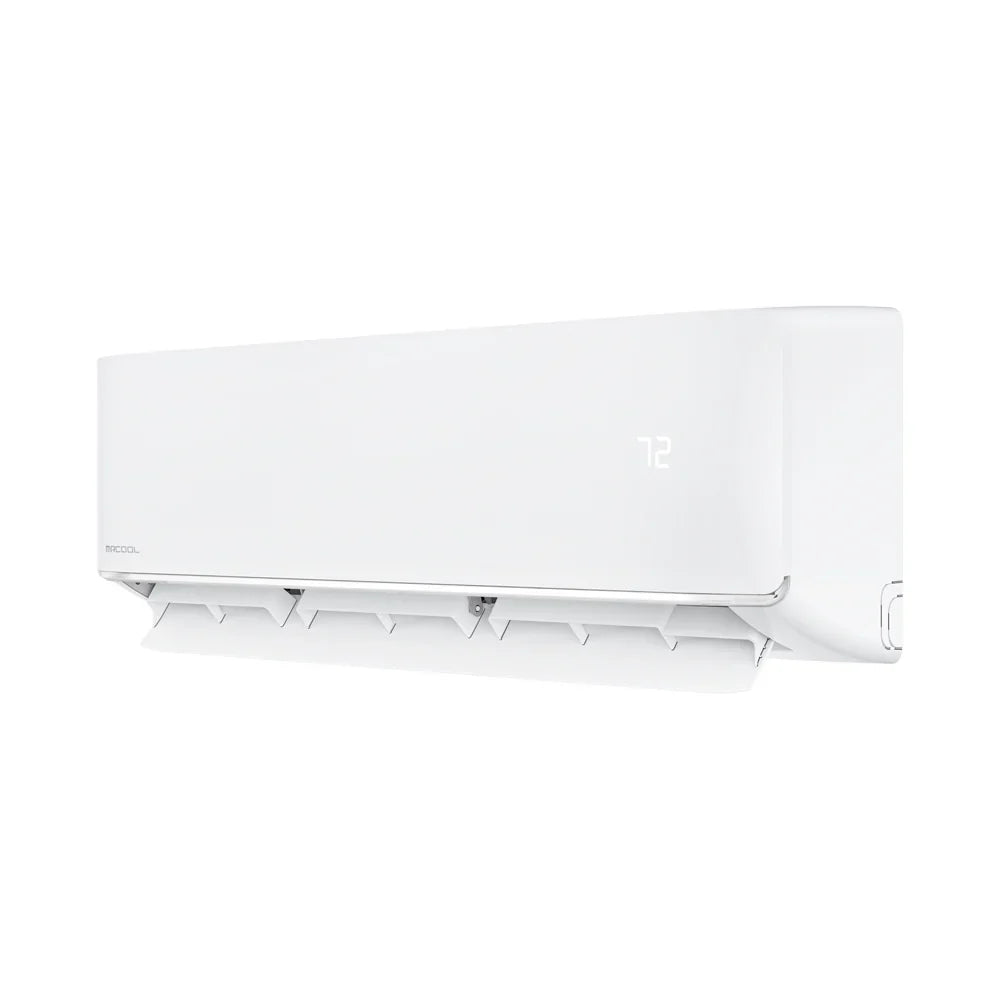

Air Handler Dimensions	31.57 W" x 7.44 D" x 11.69 H"
Condenser Weight	65.48 lbs / 29.7 kg
Air Handler Weight	24.91 lbs / 11.3 kg
Capacity & Performance
Zone Capacity	1
Cooling Capacity	9,000 BTU
EER2	14
SEER2	23.6
Heating Capacity	10,000 BTU
HSPF2-4	11.5
HSPF2-5	8.6
Coverage Area	200 - 350 sq ft.
Outdoor Noise Level	54 dB(A)
Indoor Noise Level (Hi/Mi/Lo)	43.0/39.5/33.5/24.0/18.0 dB(A)
Electrical Requirements
Voltage	115V
Phase	1
Cycle	60 Hz
Max Fuse Breaker	20A
Min Circuit Ampacity	18A
Refrigerant & Piping
Refrigerant Type	R-454B
Refrigerant Volume	30.34 oz
Liquid Line Size	1/4"
Suction Line Size	3/8"
Max Line Set Length	82 ft.
Features
Inverter	DC
Compressor Type	Rotary
Fan Only Option	Yes
Quiet Mode	Yes
Auto Cool	Yes
Wifi Compatibility	Yes
App Compatibility	Yes
Works with IOS	Yes
Works with Android	Yes
Remote Control Included	Yes
Certifications & Warranty
Certifications	UL Listed, ETL Listed, Energy Star Certified, AHRI Certified
Warranty	7 Years Compressor 5 Years Parts Extended Limited Lifetime Replacement If the original owner does not register the unit, the warranty defaults to the standard 5 year parts, 7 year compressor warranty *The original, registered owner must be enrolled in the MrCool Care Program every year in order to qualify for the 7 year full unit replacement for compressor failure and lifetime compressor replacement.
