MRCOOL | DIY 5th Gen E Star 24K BTU Single Zone Mini Split Condenser with 25 ft. Line Set 230V | DIY-24-HP-C-230D25-O

SKU DIY-24-HP-C-230D25-O

Regular price: $2,600.40
Sale price: $2,364.00

Regular price: $2,600.40
Sale price: $2,364.00

✅ Authorized Online Dealer
🚚 Free Shipping + No Sales Tax (exclusions may apply)
💲 Lowest Price Guarantee
📦 Fast 4-7 Day Delivery
🏭 Backed By Manufacturer Warranty
❓ Questions? Contact Us: +1 (734) 228-0441 or support@offgridselection.com

Quantity

Product Description

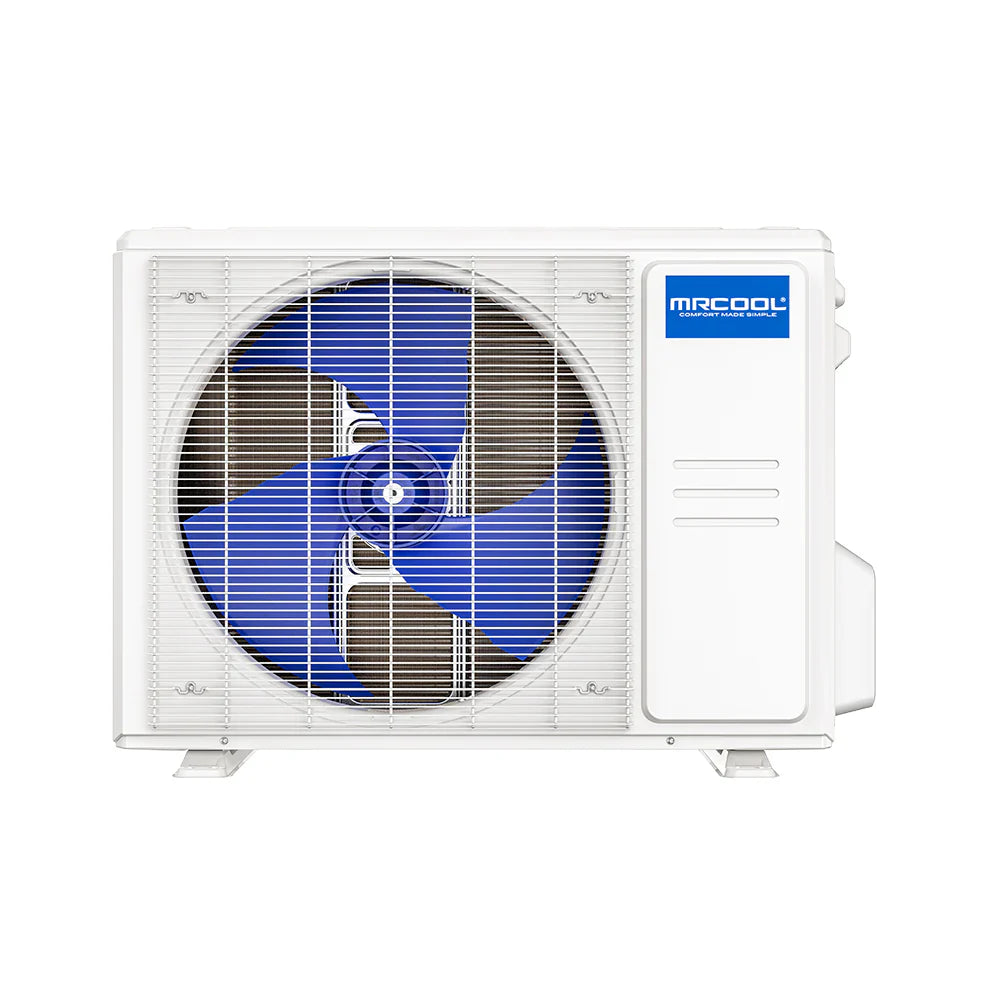

5th Generation MRCOOL DIY 24K BTU Single Zone Mini-Split Condenser

Overview

Meet the 5th generation MRCOOL DIY 24K BTU single-zone mini-split condenser. It heats and cools spaces from 750 to 1,000 square feet. Installation is straightforward and includes a 25-foot QuickConnect line set and a DIYPRO cable for setup without special tools or expertise. Control options include a wireless remote, the SmartHVAC app, and voice command compatibility for a customizable comfort experience. The Gold Fin condenser adds durability and corrosion resistance, ideal for coastal climates. Built for energy efficiency and long-term reliability, this unit is backed by an industry-leading warranty.

Benefits

Effortless DIY Installation: No specialized tools or prior experience needed for a quick and easy setup.
QuickConnect Line Set: Pre-charged with R-454B refrigerant, eliminating the need for a vacuum process.
Eco-Conscious Refrigerant: Uses R-454B refrigerant, which has a lower Global Warming Potential (GWP) than R-410A, reducing environmental impact while enhancing efficiency.
Durable DIYPRO Cable: Removes the need for traditional electrical conduit, offering greater protection against outdoor elements and wildlife.
Gold Fin Condenser: Provides exceptional corrosion resistance, ensuring reliable performance even in coastal climates.
Comprehensive Warranty Coverage: Includes a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty for added peace of mind.
Certified for Quality and Safety: Intertek-listed (5031495) to meet stringent performance and safety standards.

Features

25-foot QuickConnect line set: Included and pre-charged, ready to install.
Control options: Wireless remote, SmartHVAC app, and voice command compatibility.
Gold Fin Condenser: Enhanced corrosion resistance for durability.
Eco-friendly refrigerant: R-454B for lower GWP and efficiency.
Rugged wiring: DIYPRO cable reduces need for conduit and protects against the elements.

Specifications

Dimensions & Weight
Dimensions	37.24 W" x 16.14 D" x 31.89 H"
Weight	112.8 lbs / 55.7 kg
Capacity & Performance
Zone Capacity	1
Cooling Capacity	23,000 BTU
EER2	12.7
SEER2	22.7
Heating Capacity	23,000 BTU
HSPF2-4	9.6
HSPF2-5	7.1
Coverage Area	750 to 1,000 sq ft.
Outdoor Noise Level	58.5 dB(A)
Electrical Requirements
Voltage	208-230V
Phase	1
Cycle	60 Hz
Max Fuse Breaker	25A
Min Circuit Ampacity	24A
Refrigerant & Piping
Refrigerant Type	R-454B
Refrigerant Volume	67.37 oz
Liquid Line Size	3/8"
Suction Line Size	5/8"
Max Line Set Length	164 ft.
Features
Inverter	DC
Compressor Type	Rotary
Fan Only Option	Yes
Quiet Mode	Yes
Auto Cool	Yes
Wifi Compatibility	Yes
App Compatibility	Yes
Works with IOS	Yes
Works with Android	Yes
Remote Control Included	Yes
Certifications & Warranty
Certifications	UL Listed, ETL Listed, Energy Star Certified, AHRI Certified
Warranty	7 Years Compressor 5 Years Parts Extended Limited Lifetime Replacement If the original owner does not register the unit, the warranty defaults to the standard 5 year parts, 7 year compressor warranty *The original, registered owner must be enrolled in the MrCool Care Program every year in order to qualify for the 7 year full unit replacement for compressor failure and lifetime compressor replacement.
