MRCOOL DIY 5th Gen 18K BTU Single Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIY-18-HP-CASS-230D25-O

MRCOOL

MRCOOL | DIY 5th Gen 18K BTU Single Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit | DIY-18-HP-CASS-230D25-O

SKU DIY-18-HP-CASS-230D25-O

Regular price: $3,759.80
Sale price: $3,418.00

Regular price: $3,759.80
Sale price: $3,418.00

✅ Authorized Online Dealer
🚚 Free Shipping + No Sales Tax (exclusions may apply)
💲 Lowest Price Guarantee
📦 Fast 4-7 Day Delivery
🏭 Backed By Manufacturer Warranty
❓ Questions? Contact Us: +1 (734) 228-0441 or support@offgridselection.com

Quantity

Product Description

MRCOOL DIY 5th Gen 18K BTU Mini Split System

Overview

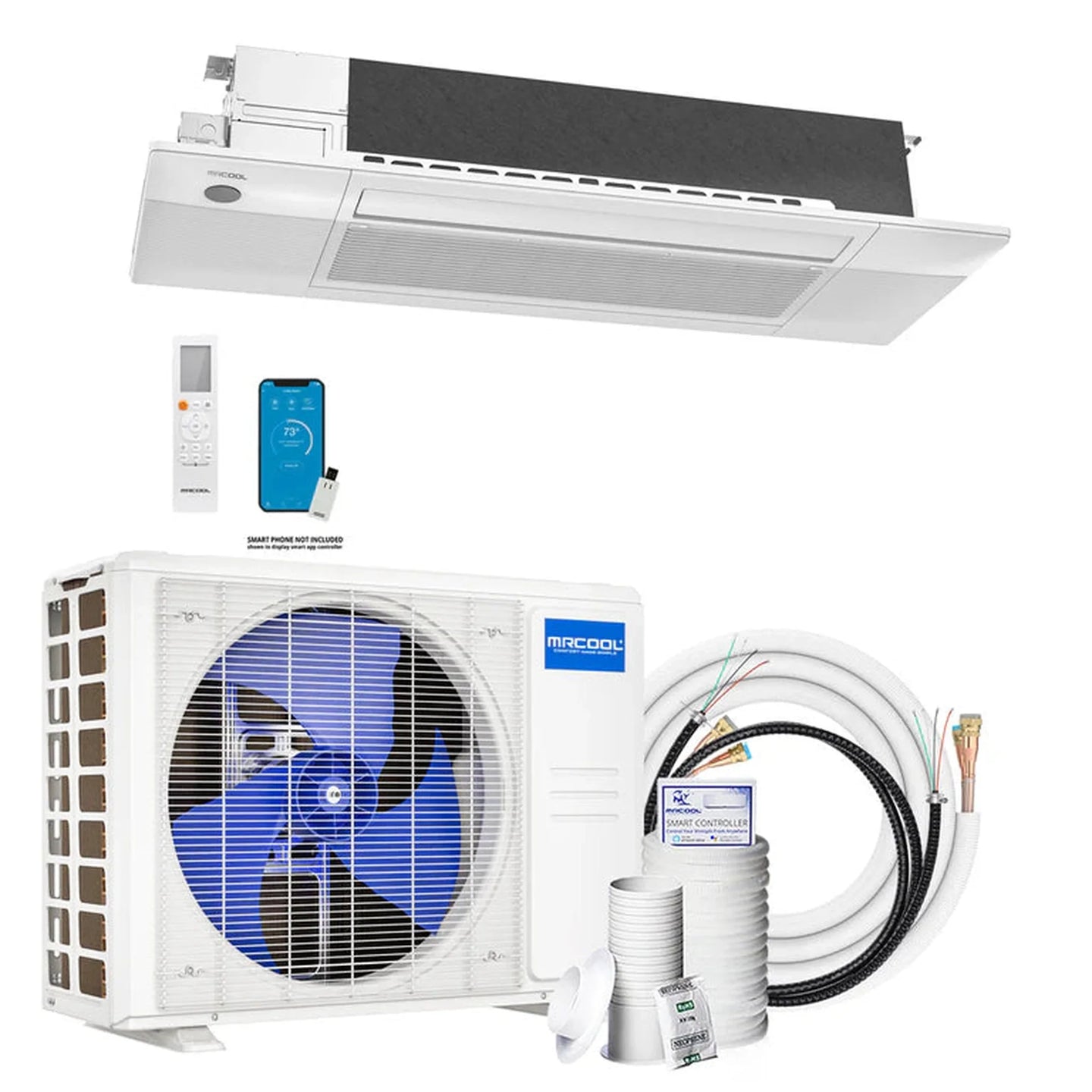

The MRCOOL 5th Generation DIY Mini Split System includes an 18K BTU single-zone condenser, an 18K BTU ceiling cassette air handler, a 25-foot pre-charged lineset, and a remote control. The standout feature: you can install it yourself with ease.

Benefits

Energy efficient when paired with MRCOOL air handlers (22.5 SEER).
Reliable heating down to -22°F.
Lifetime compressor warranty when registered with MRCOOL Care Program.
DIY installation reduces costs while delivering professional-grade performance.

Features

Package Includes:

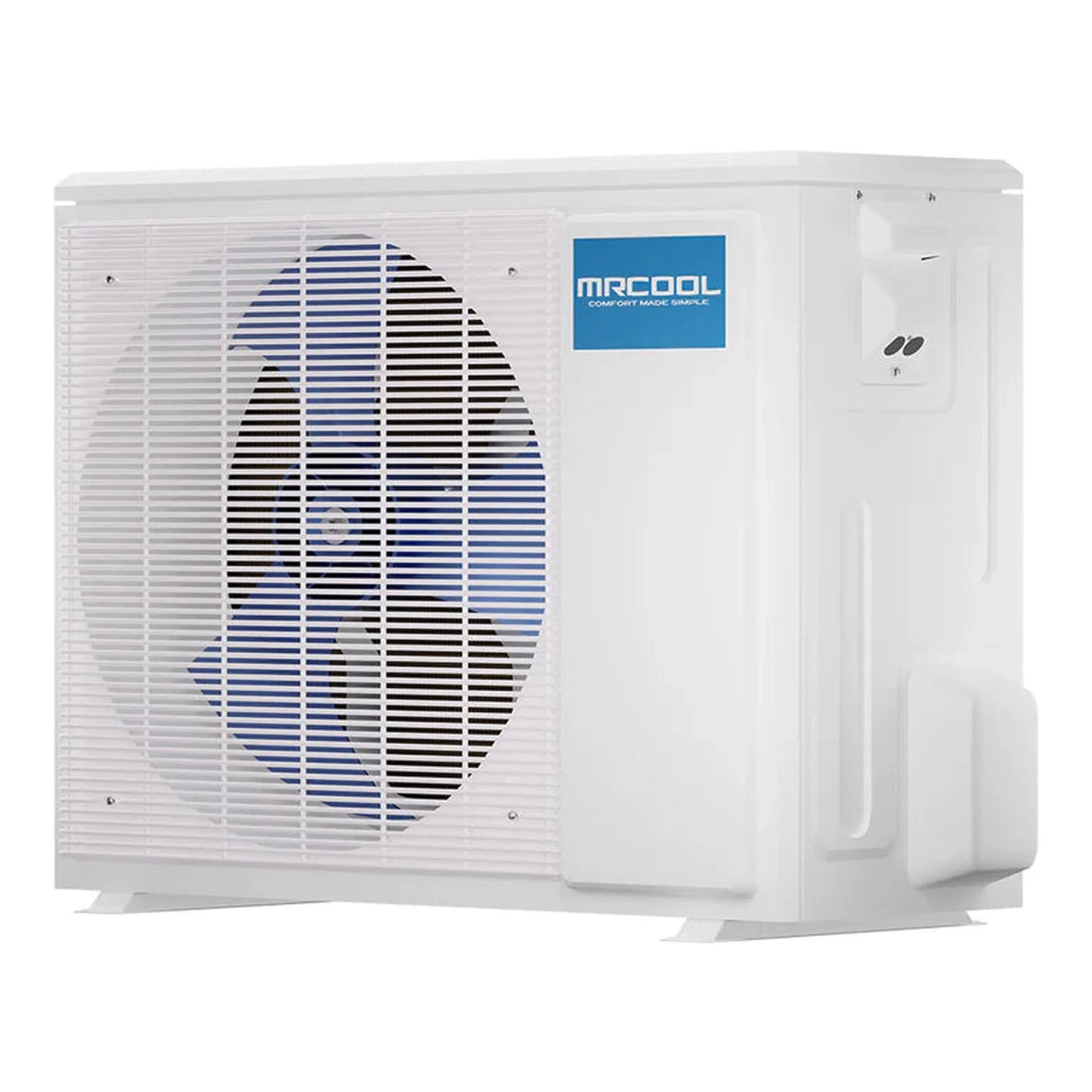

- MRCOOL DIY 5th Gen 18K BTU Heat Pump Condenser (Model: DIY-18-HP-C-230D25-O) with 22.5 SEER and a 25-foot line set.

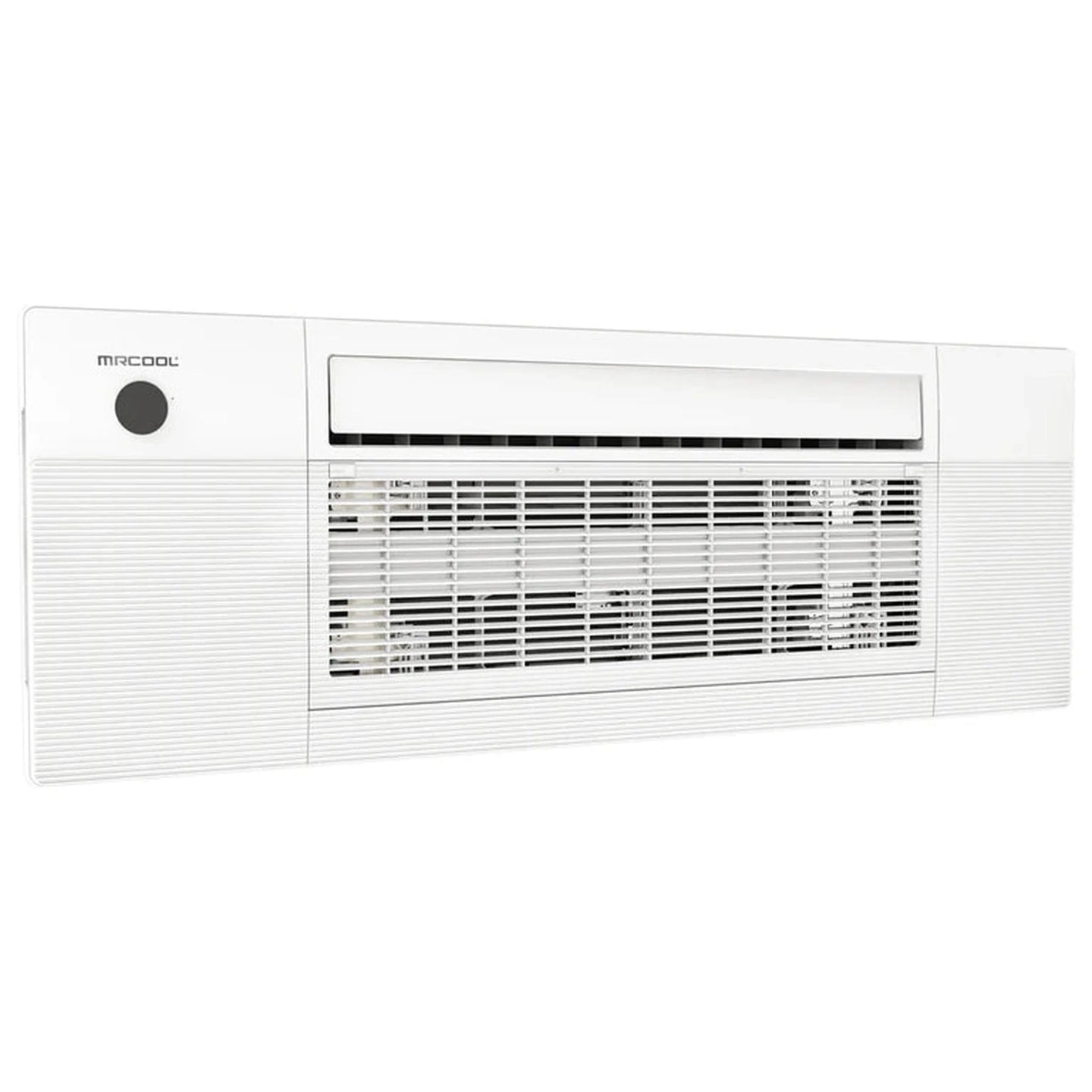

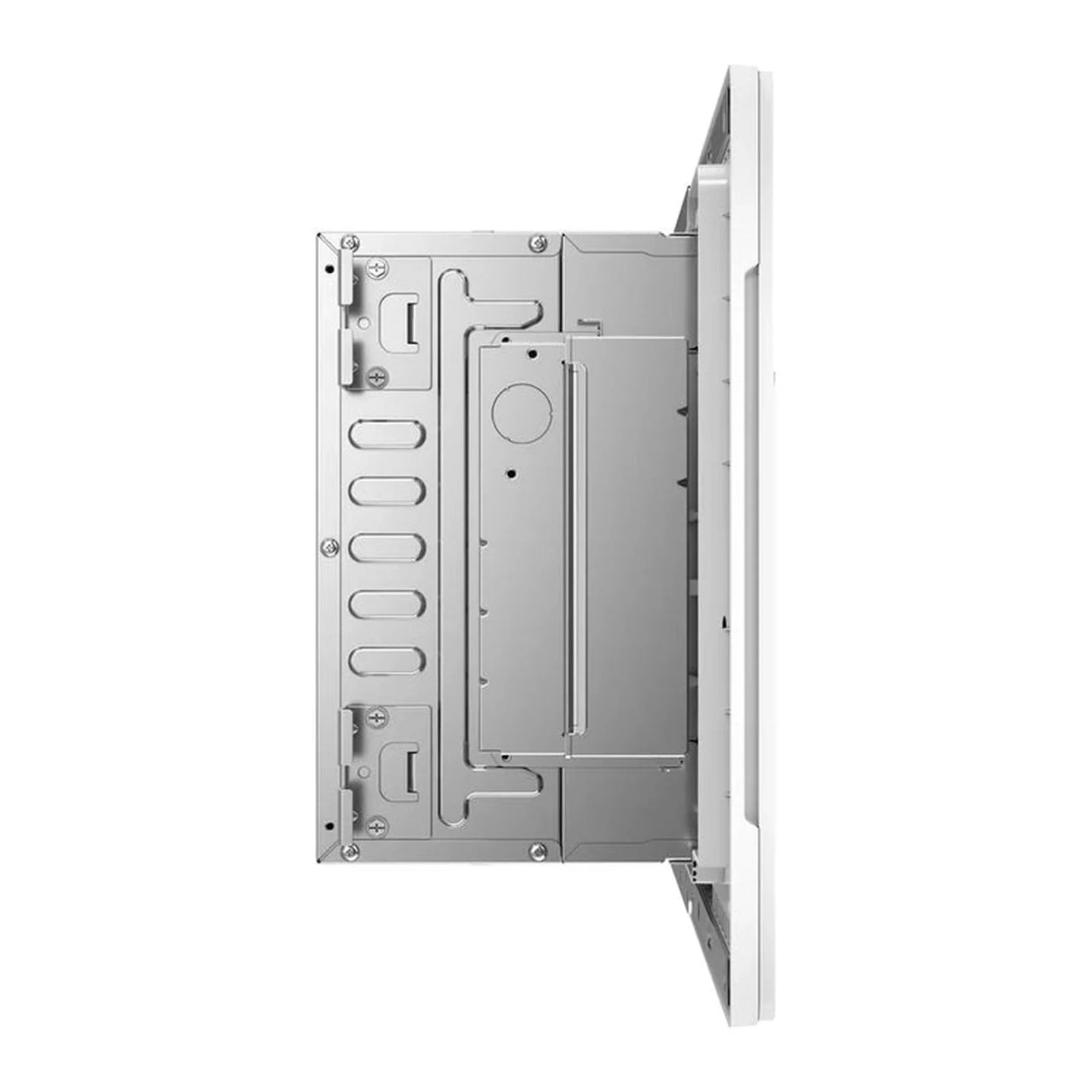

- MRCOOL DIY Series 18K BTU Ceiling Cassette (Model: DIYCASSETTE18HP-230D25-O) for optimal air distribution and low-profile installation.
Condenser: 18K BTU, Qty: 1.
Air Handler: 18K BTU, Qty: 1.
Line Set: 25 ft., Pre-charged with R-410A refrigerant, DIY installation.
Remote control included for easy operation.

Specifications

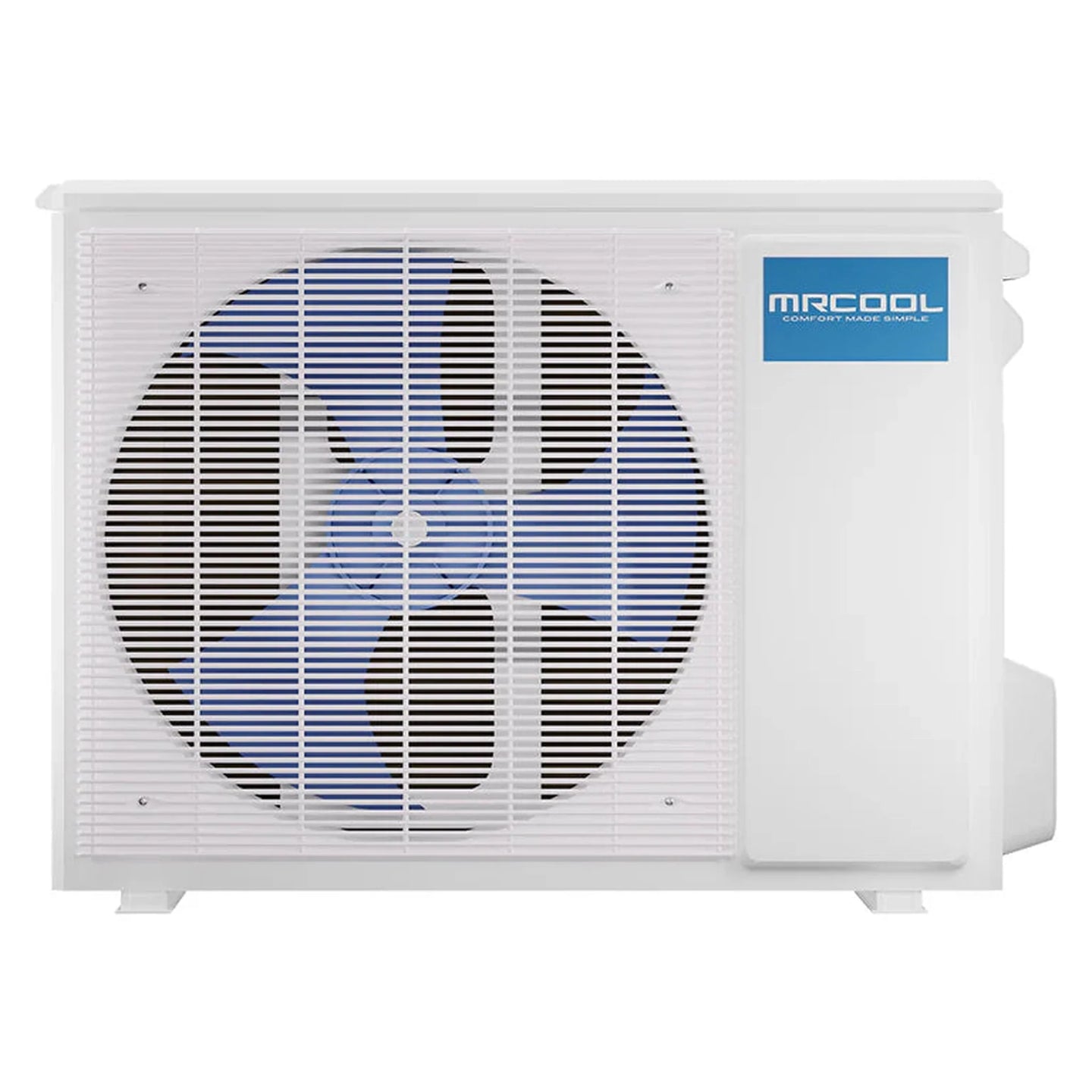

Condenser

Product Dimensions	35.04"W x 13.46"D x 26.50"H
Cooling Capacity	18,000 BTU
Heating Capacity	18,000 BTU
Zone Capacity	1
Cool Mode - Outdoor Operating Temperature Range	-22F ~ 122F
Heat Mode - Outdoor Operating Temperature Range	-22F ~ 75F
SEER	22.5
EER	12.5
Voltage	Requires a minimum of 208V-230V/60HZ/18-20A (please check your home meets this electrical requirement prior to purchase)

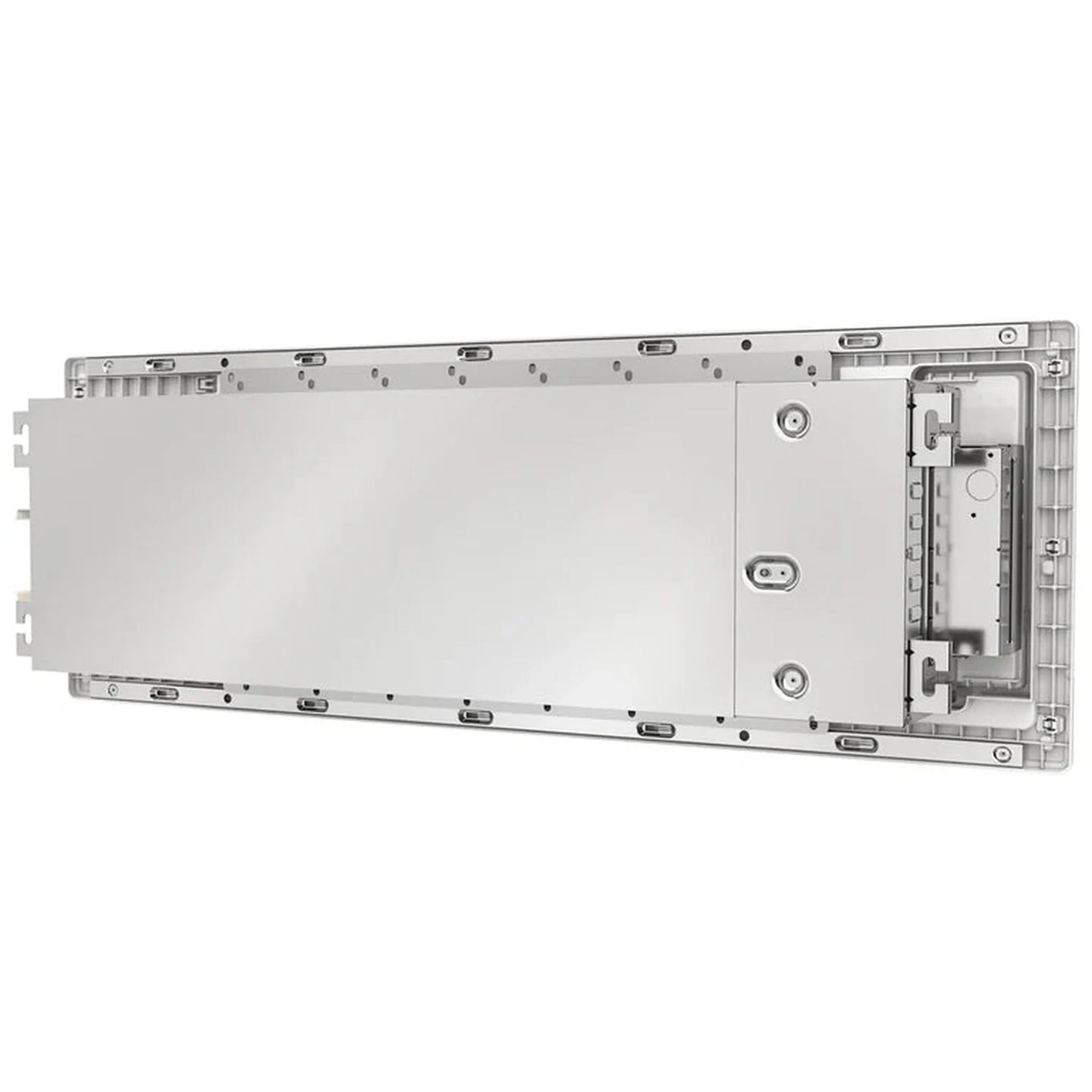

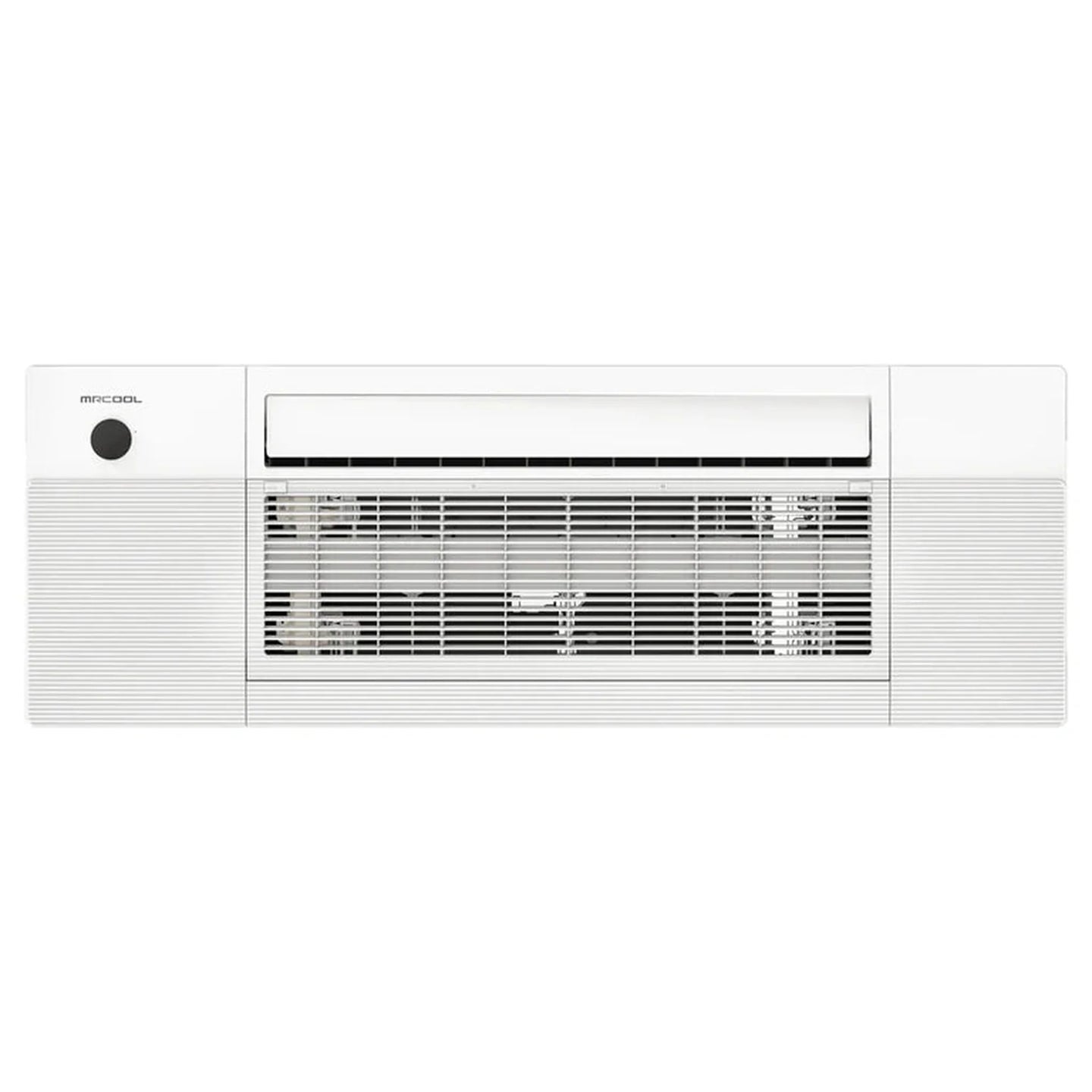

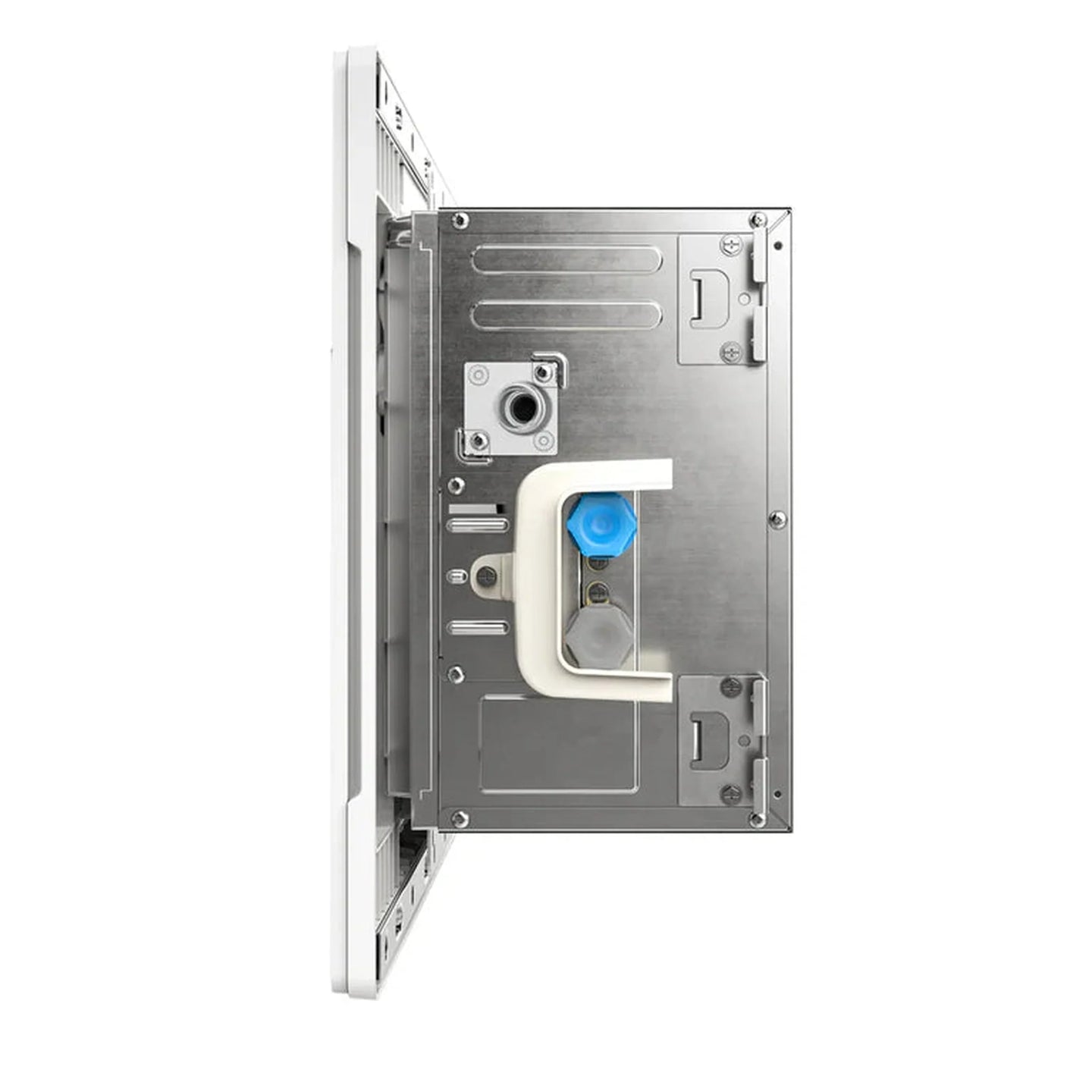

Air Handler 18K BTU

Product Dimensions	50.31"W x 13.19"D x 8.98"H
Mount Type	Ceiling Cassette
Cooling Capacity	18,800 BTU
Heating Capacity	22,700 BTU
Modes	Auto - Auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep
