MRCOOL 4th Gen Advantage 24K BTU Ductless Mini Split Air Conditioner and Heat Pump 230V, A-24-HP-230C

MRCOOL

MRCOOL | 4th Gen Advantage 24K BTU Ductless Mini Split Air Conditioner and Heat Pump 230V | A-24-HP-230C

SKU A-24-HP-230C

Regular price: $1,659.90
Sale price: $1,509.00

Regular price: $1,659.90
Sale price: $1,509.00

✅ Authorized Online Dealer
🚚 Free Shipping + No Sales Tax (exclusions may apply)
💲 Lowest Price Guarantee
📦 Fast 4-7 Day Delivery
🏭 Backed By Manufacturer Warranty
❓ Questions? Contact Us: +1 (734) 228-0441 or support@offgridselection.com

Quantity

Product Description

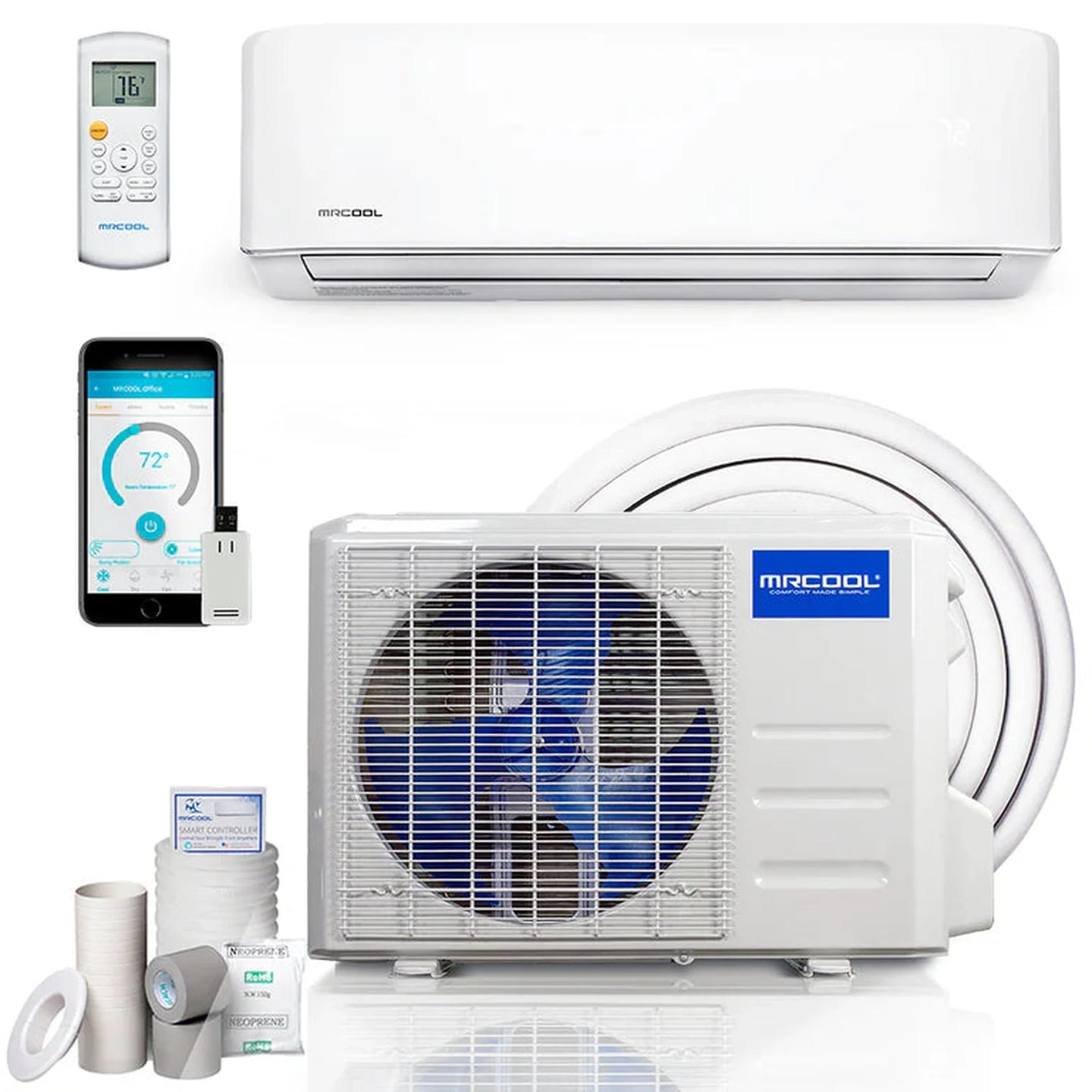

MRCOOL 4th Gen Advantage 24K BTU Ductless Mini Split Air Conditioner and Heat Pump

Overview

Presenting the MRCOOL 4th Gen Advantage 24K BTU Ductless Mini Split Air Conditioner and Heat Pump. It boasts an 18.0 SEER2 rating and is designed for professional HVAC installation. It blends quality, efficiency, quiet operation, and affordability. The included WiFi control module lets you manage the system via the SmartHVAC app, and with Amazon Alexa or Google Assistant.

Benefits

High efficiency: 18.0 SEER2.
Quiet operation.
WiFi control via SmartHVAC app and voice assistants (Alexa/Google).

Features

16 ft Installation Kit Included — all necessary components for setup.
Gold Fin Condenser — resists long-term corrosion, ideal for coastal environments.
SmartHVAC WiFi Control Module — improves setup and functionality for Apple and Android devices; compatible with Amazon Alexa and Google Assistant.
Environmentally Friendly — uses R-410A refrigerant.
Advanced Functions — sleep mode, louver position memory, and auto-restart.

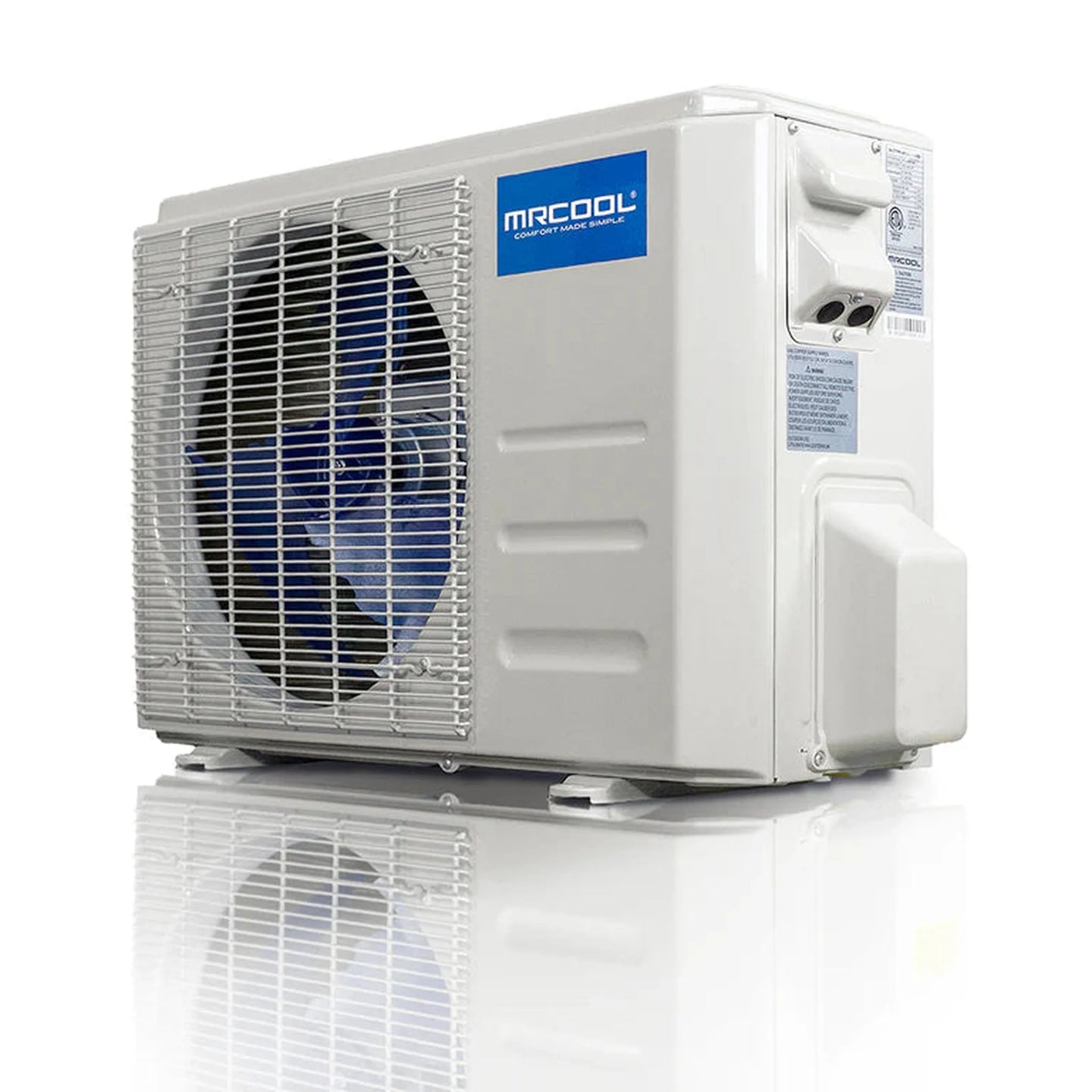

Convenient Design — compact outdoor unit; condenser fan motor is totally enclosed and permanently lubricated for durability.

Specifications

Condenser Specifications
SEER	18
SEER2	18
EER	9
EER2	9
HSPF-4	9.8
HSPF-5	8
HSPF2-4	8.6
HSPF2-5	6.6
COOLING CAPACITY (BTU)	24000
HEATING CAPACITY (BTU)	24000
VOLTAGE (V)	208-230
PHASE	1
CYCLE	60
MAX FUSE BREAKER (A)	30
MIN CIRCUIT AMPACITY (A)	19
COLOR	White
ZONE CAPACITY	1
REFRIGERANT TYPE	R-410A
REFRIGERANT VOLUME (OZ)	62.8
DECIBEL RATING (DBA)	60
LIQUID LINE SIZE	3/8
SUCTION LINE SIZE	5/8
LOW VOLTAGE COMPENSATION	No
OVERLOAD PROTECTION	Yes
UL LISTED	Yes
CSA LISTED	Yes
ETL LISTED	Yes
ENERGY STAR COMPLIANT	No
ENERGY STAR CERTIFIED	No
AHRI CERTIFIED	Yes
REGISTERED WARRANTY	1-Year Compressor, 2-Year Parts and 1-Year Remote
BASE WARRANTY	None
REGISTERED PARTS WARRANTY	2-year
BASE PARTS WARRANTY	None
REGISTERED COMPRESSOR WARRANTY	1-year
BASE COMPRESSOR WARRANTY	None
REGISTERED REMOTE WARRANTY	1-year
BASE REMOTE WARRANTY	None
REGISTERED LABOR WARRANTY	None
BASE LABOR WARRANTY	None
HAS BATTERIES	Yes
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
NET DEPTH (IN)	13.46
NET HEIGHT (IN)	26.50
NET WIDTH (IN)	35.04
NET WEIGHT (LBS)	97.88
GROSS DEPTH (IN)	15.67
GROSS HEIGHT (IN)	29.13
GROSS WIDTH (IN)	39.17
GROSS WEIGHT (LBS)	105

Air Handler Specifications
HSPF-4	9.8
HSPF-5	8
HSPF2-4	8.6
HSPF2-5	6.6
COOLING CAPACITY (BTU)	24000
HEATING CAPACITY (BTU)	24000
VOLTAGE (V)	208-230
PHASE	1
CYCLE	60
MAX FUSE BREAKER (A)	15
MIN CIRCUIT AMPACITY (A)	3
COLOR	White
MAX COVERAGE AREA	1000
ZONE CAPACITY	1
REFRIGERANT TYPE	R-410A
DECIBEL RATING (DBA)	39.5
DECIBEL RATING LOW (DBA)	35
DECIBEL RATING HIGH (DBA)	45.5
LIQUID LINE SIZE	3/8
SUCTION LINE SIZE	5/8
FILTER TYPE	Washable
LOW VOLTAGE COMPENSATION	No
OVERLOAD PROTECTION	Yes
ADJUSTABLE THERMOSTAT	Yes
FAN ONLY OPTION	Yes
QUIET MODE	Yes
SLEEP MODE	No
AUTO COOL	Yes
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REMOTE CONTROL INCLUDED	Yes
UL LISTED	Yes
CSA LISTED	Yes
ETL LISTED	Yes
ENERGY STAR COMPLIANT	No
ENERGY STAR CERTIFIED	No
AHRI CERTIFIED	Yes
REGISTERED WARRANTY	1-Year Compressor, 2-Year Parts and 1-Year Remote
BASE WARRANTY	None
REGISTERED PARTS WARRANTY	2-year
BASE PARTS WARRANTY	None
REGISTERED COMPRESSOR WARRANTY	1-year
BASE COMPRESSOR WARRANTY	None
REGISTERED REMOTE WARRANTY	1-year
BASE REMOTE WARRANTY	None
REGISTERED LABOR WARRANTY	None
BASE LABOR WARRANTY	None
HAS BATTERIES	Yes
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
NET DEPTH (IN)	8.90
NET HEIGHT (IN)	13.19
NET WIDTH (IN)	42.52
NET WEIGHT (LBS)	29.98
GROSS DEPTH (IN)	16.34
GROSS HEIGHT (IN)	12.60
GROSS WIDTH (IN)	45.47
GROSS WEIGHT (LBS)	39
