Chery Industrial | W70'xL120'xH28' Double Truss Storage Shelter | SUISS7012028DPOZ228FT

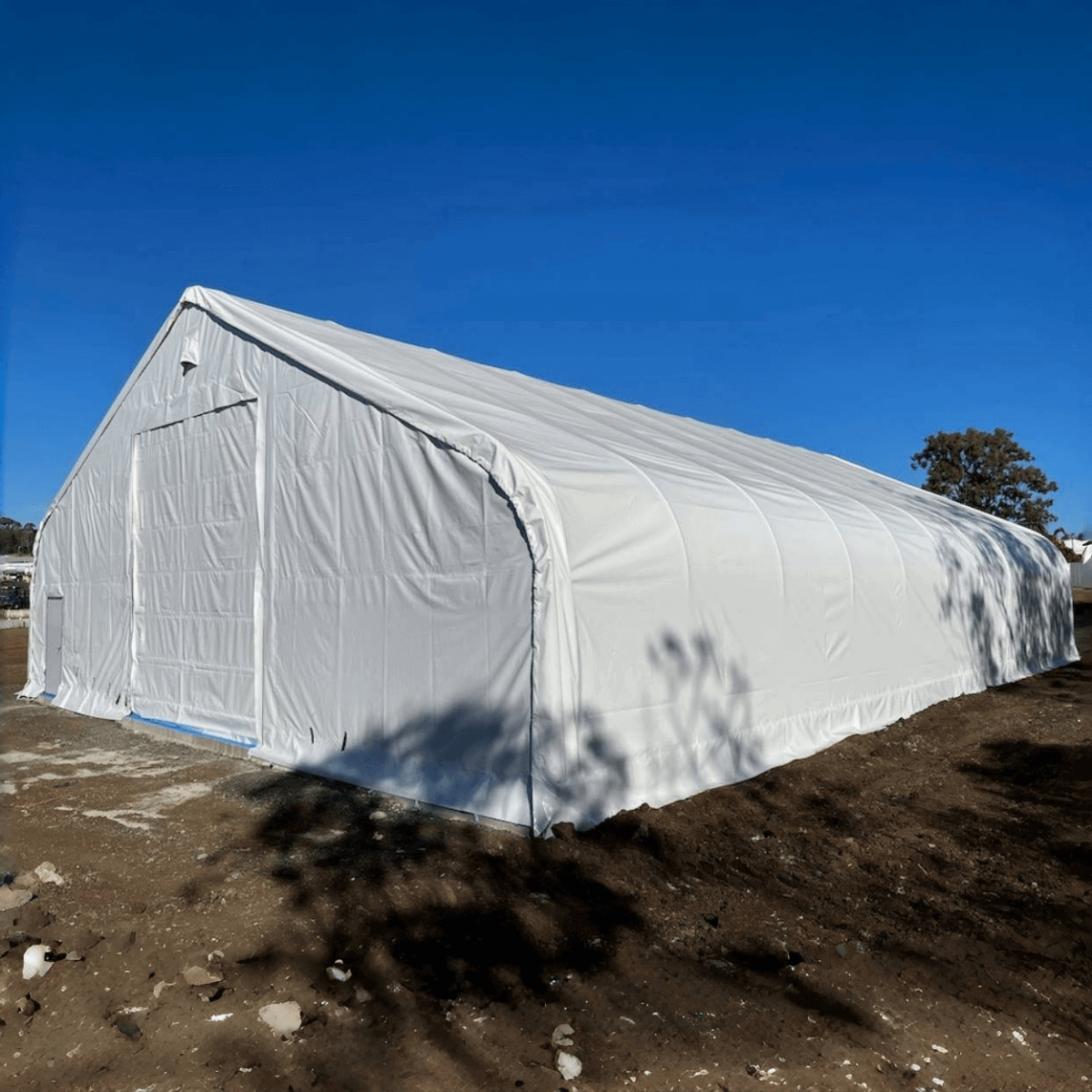

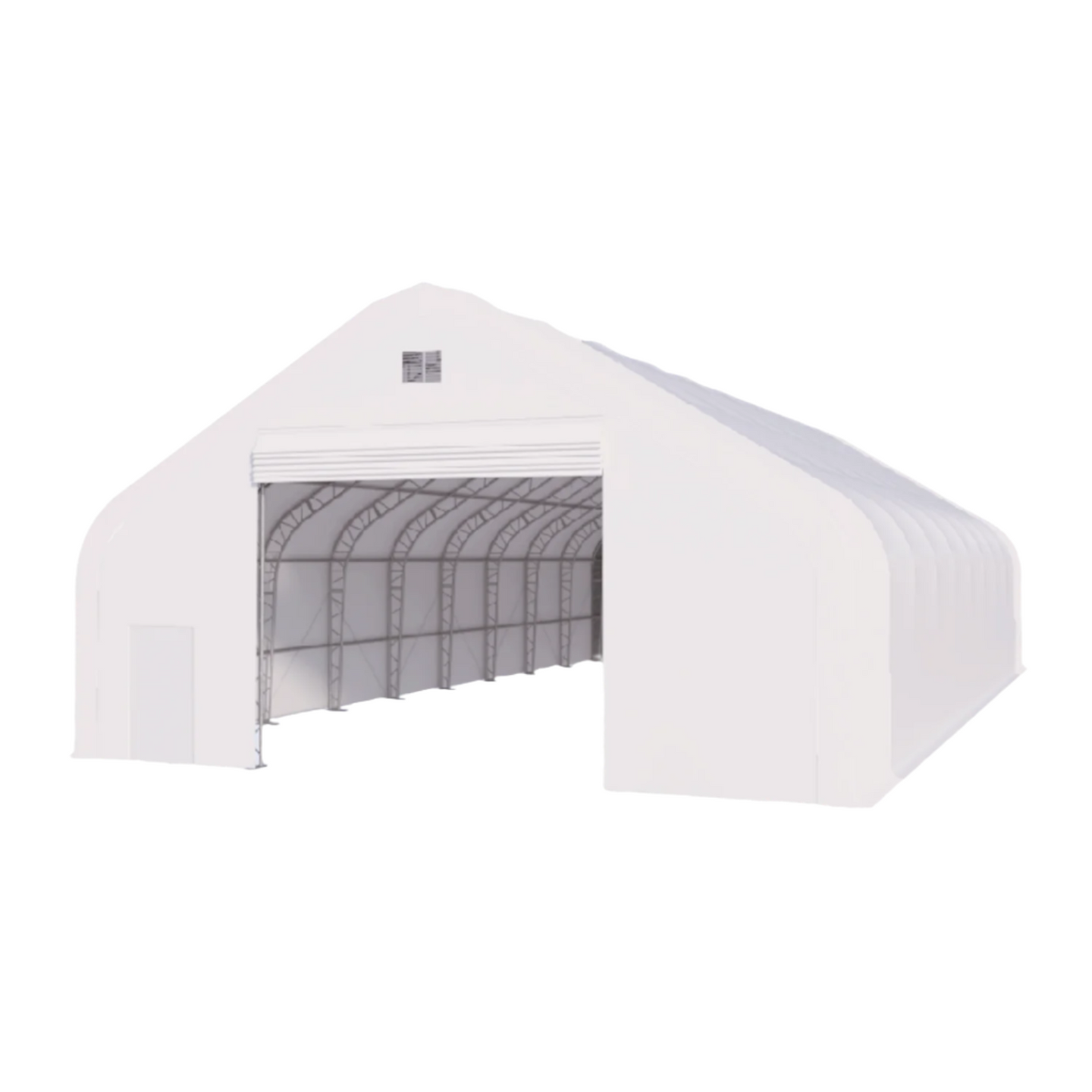

Double Truss Storage Shelter, W70'xL120'xH28'

Overview

Size is W70' x L120' x H28'. A sturdy shelter for large storage needs. Built with a high-strength steel frame and weather?resistant fabric. Ideal for agricultural, industrial, and commercial use. Protects your assets from the elements. Easy to install and built to last.

Benefits

• Durable high-strength steel frame that holds up over time.
• Weather-resistant fabric protects from snow, wind, rain, and UV.
• Suitable for agricultural, industrial, and commercial applications.
• Easy to install; DIY assembly is straightforward with the right crew.

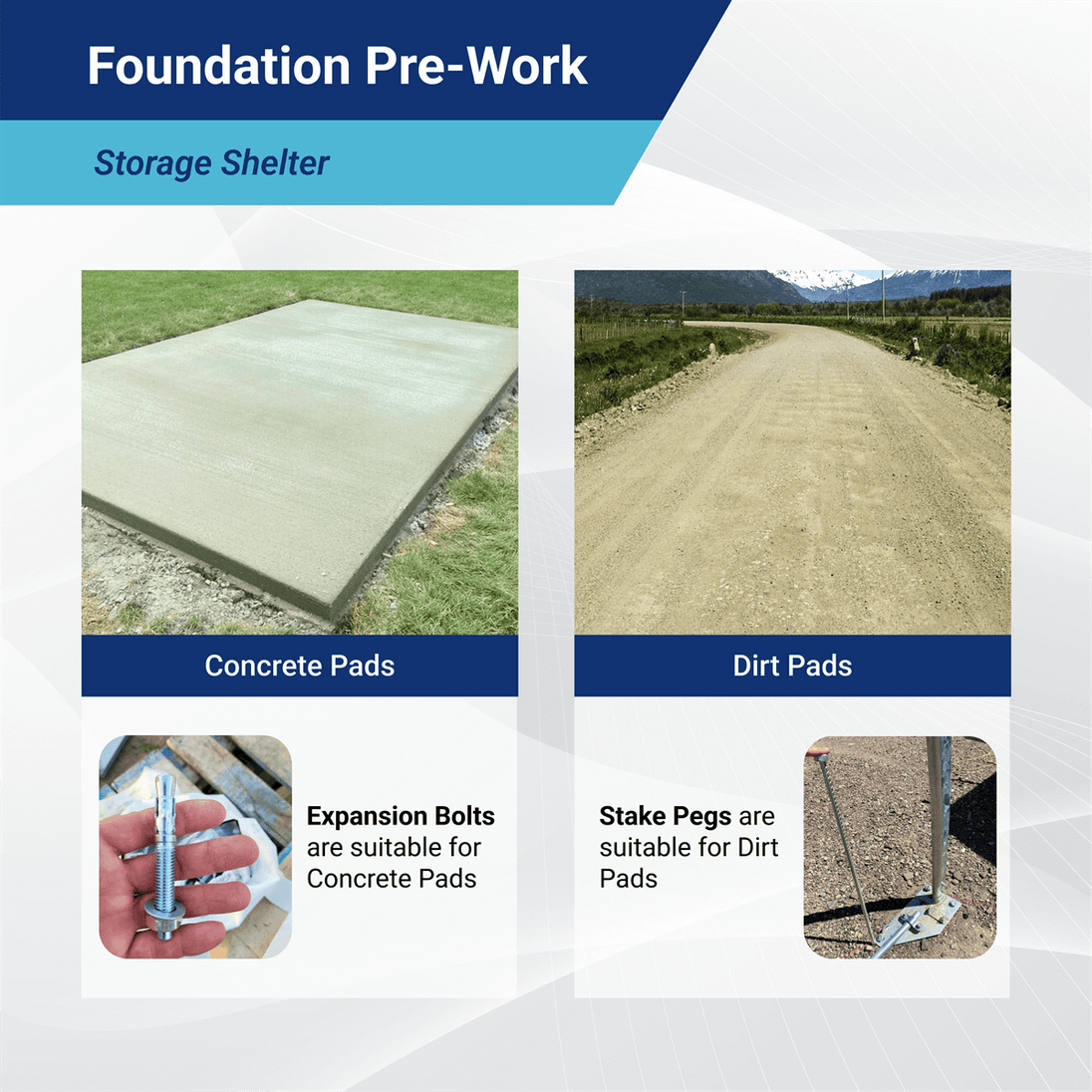

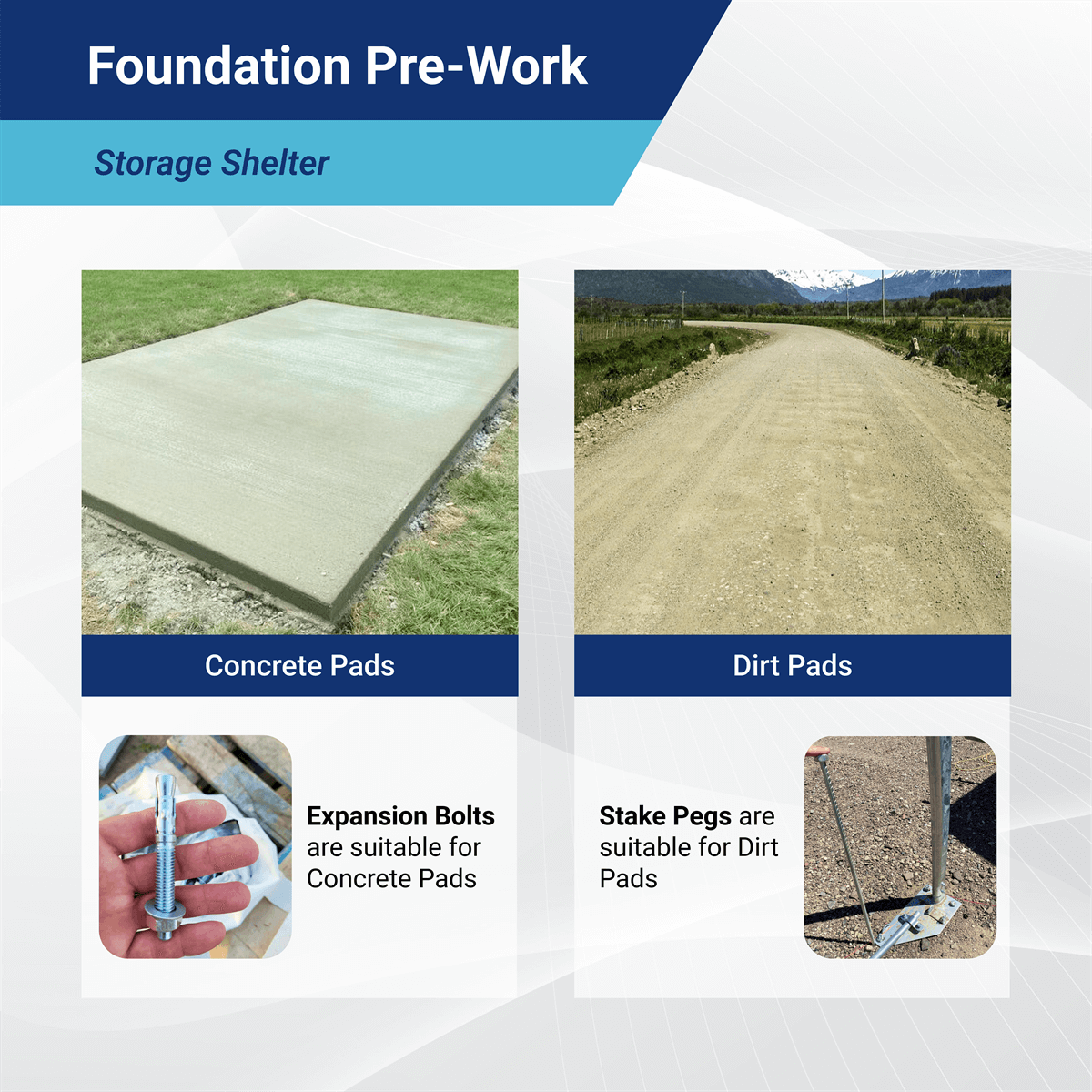

• Stake pegs are replaced by expansion bolts. If you need stake pegs, contact customer service to place an order.
• No building permits required for many setups.

Features

• No building permits required.
• Suitable for different purposes, from residential to commercial.
• Galvanized steel structure resists rust and corrosion.
• Weatherproof, UV resistant, and fire retardant materials.
• PVC cover provides daylight without needing electricity.
• Easy entry and exit with double doors at both ends.
• Double Truss design adds strength and stability.

Specifications

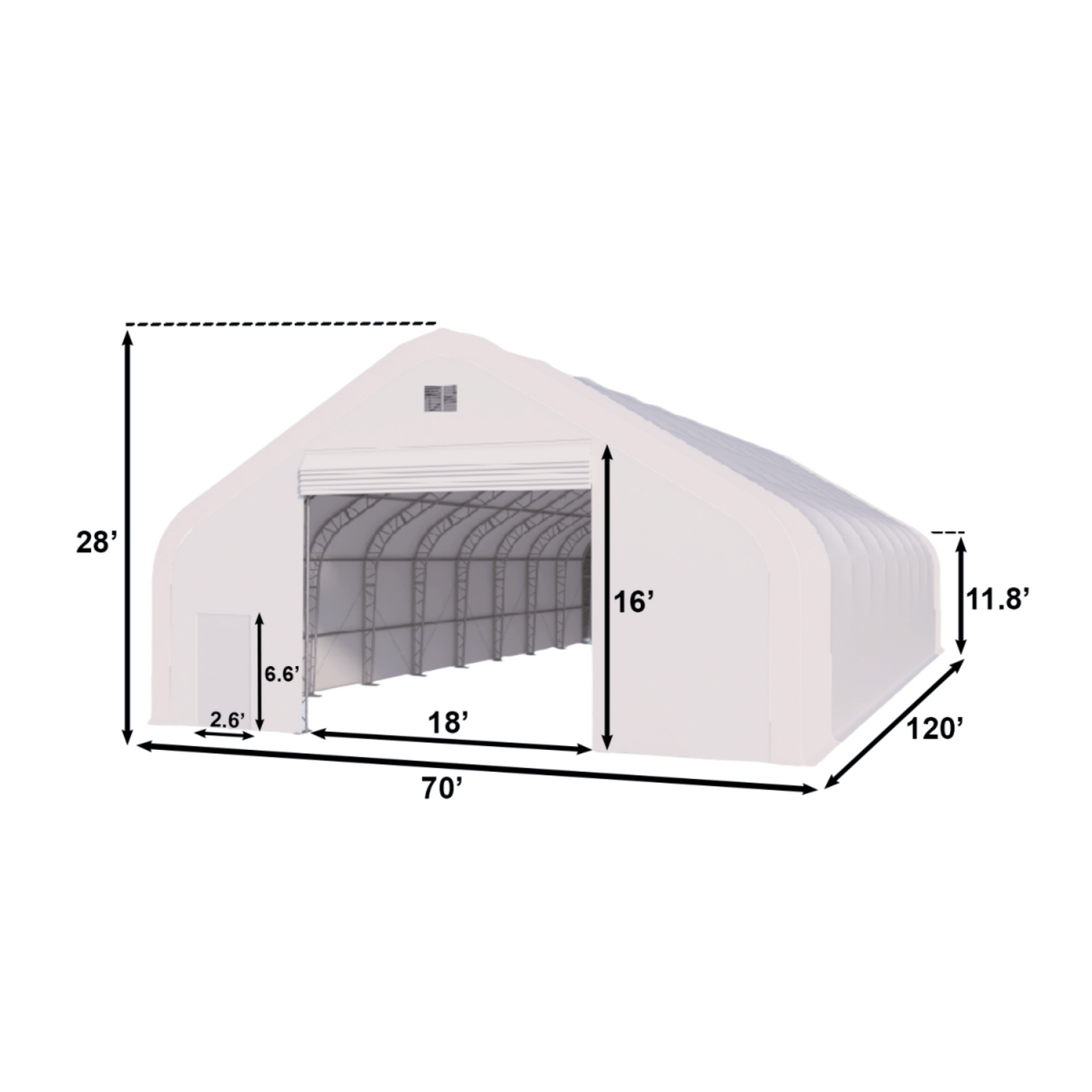

• Dimensions (WxLxH): 70'x120'x28'
• Side-wall Height: 11.8 ft

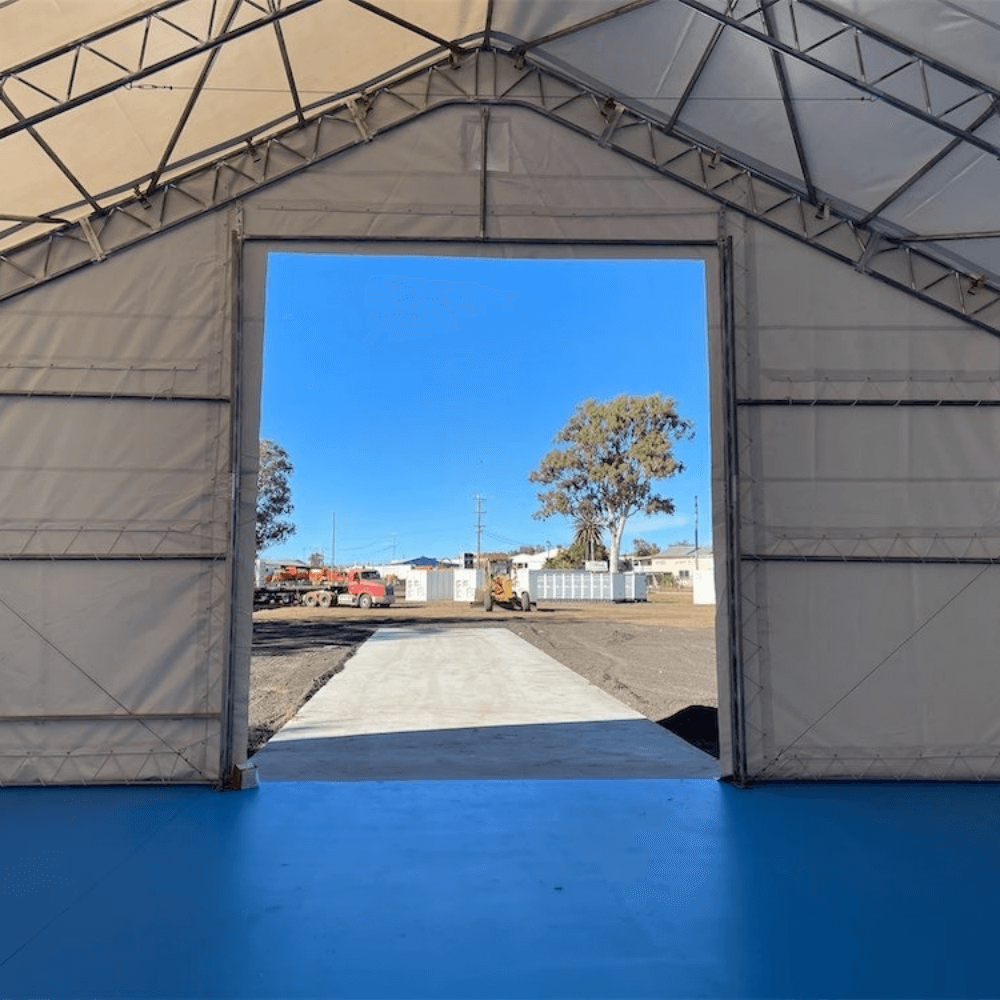

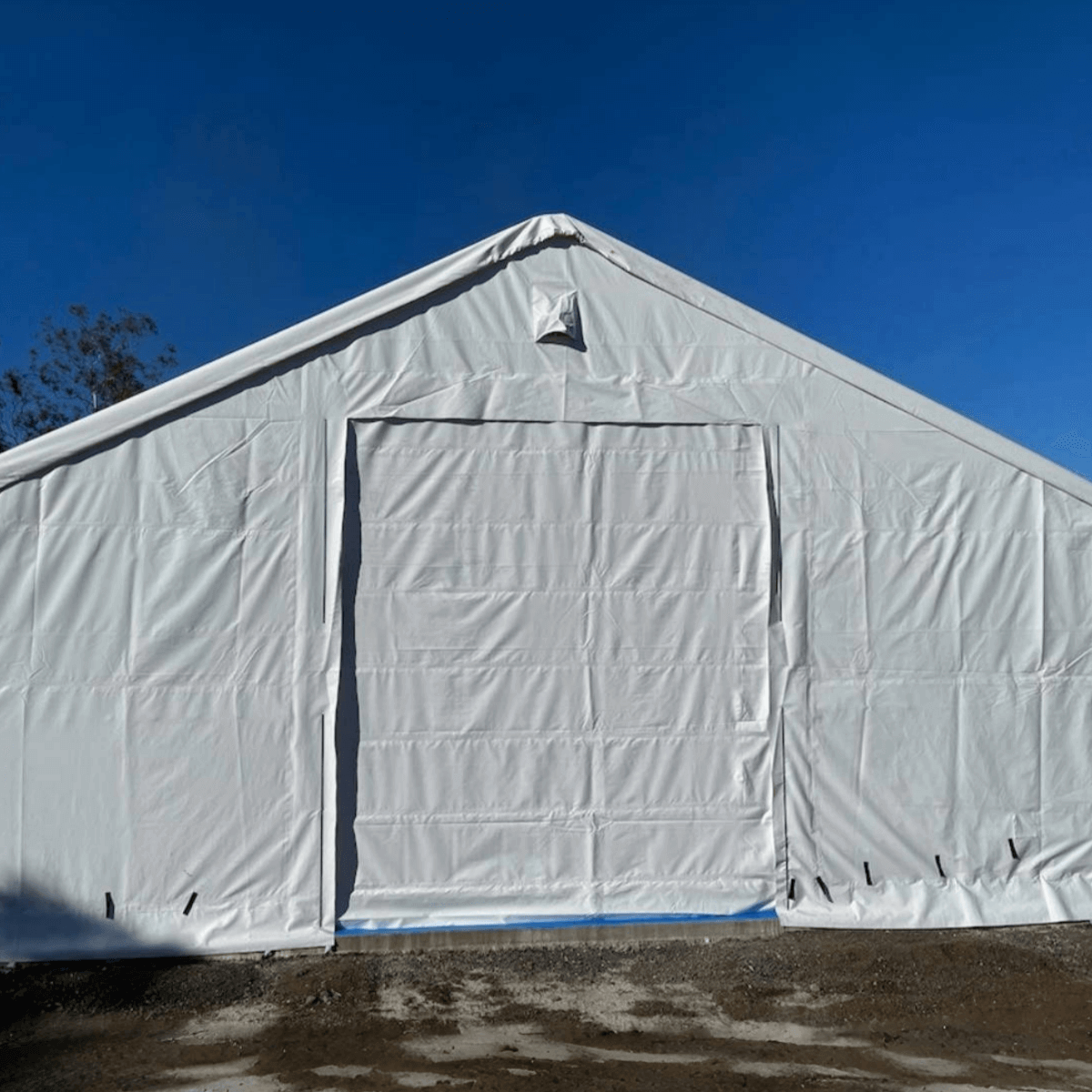

• Door size (Front & Rear): 18'x16'
• Door Type: Mechanical Rollup Door

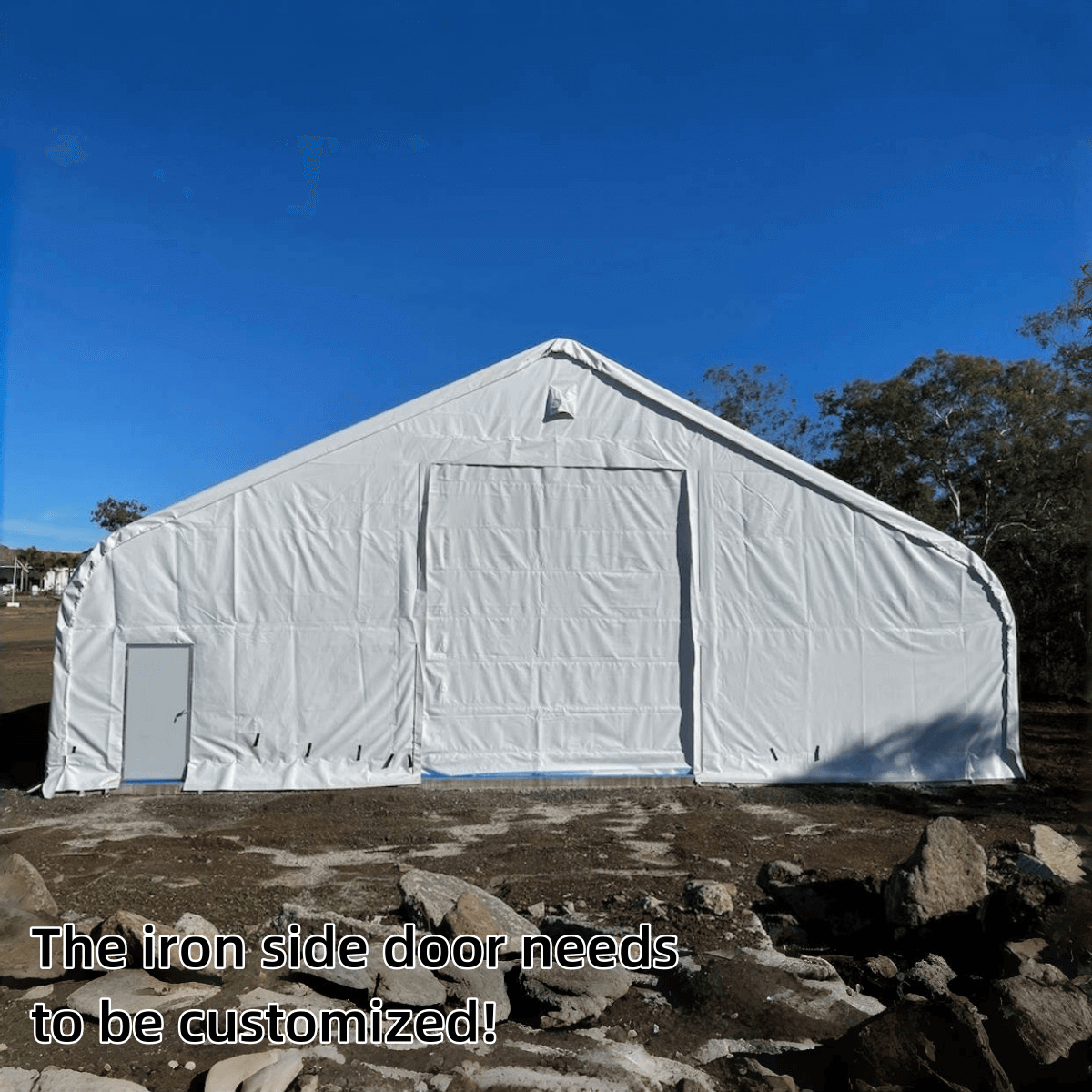

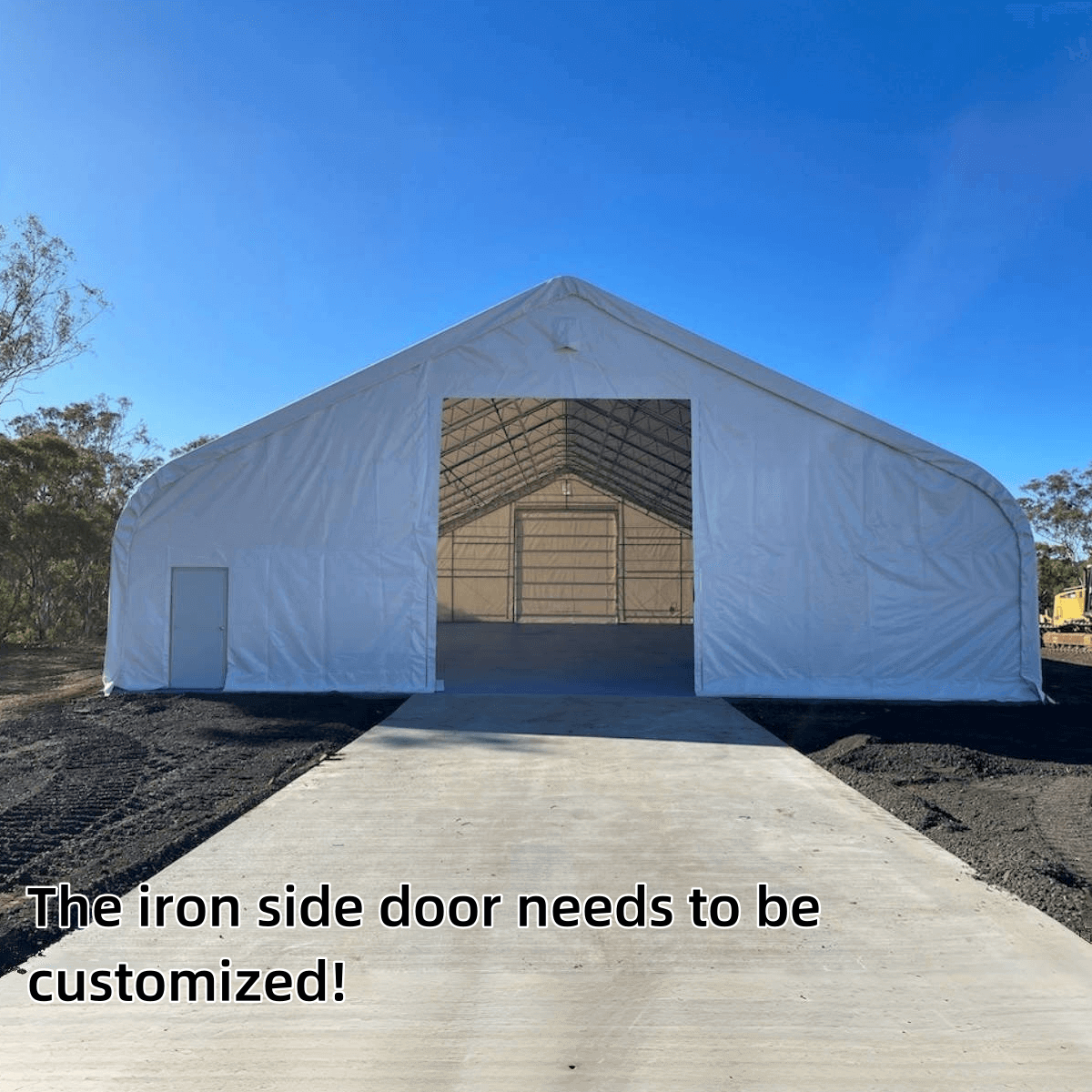

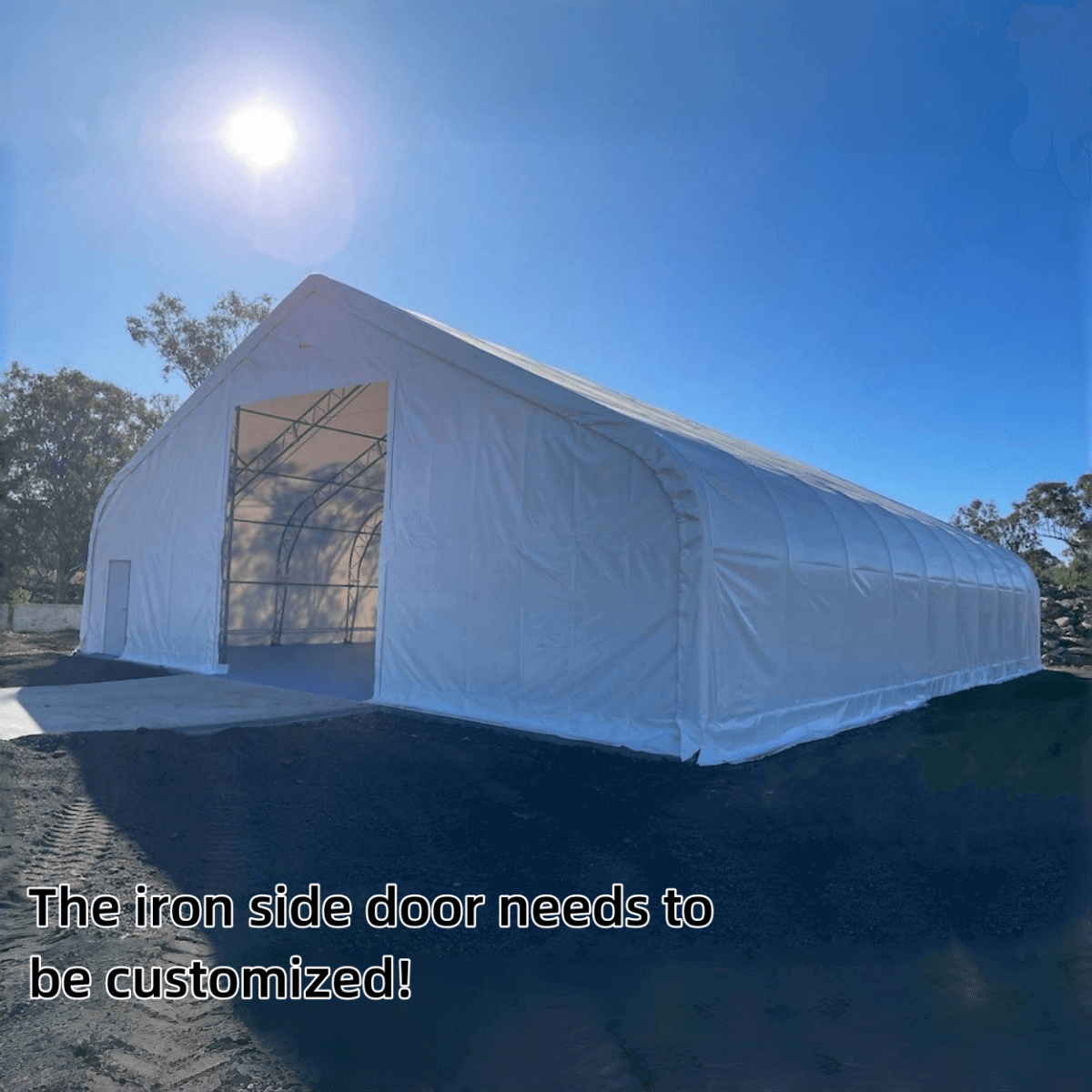

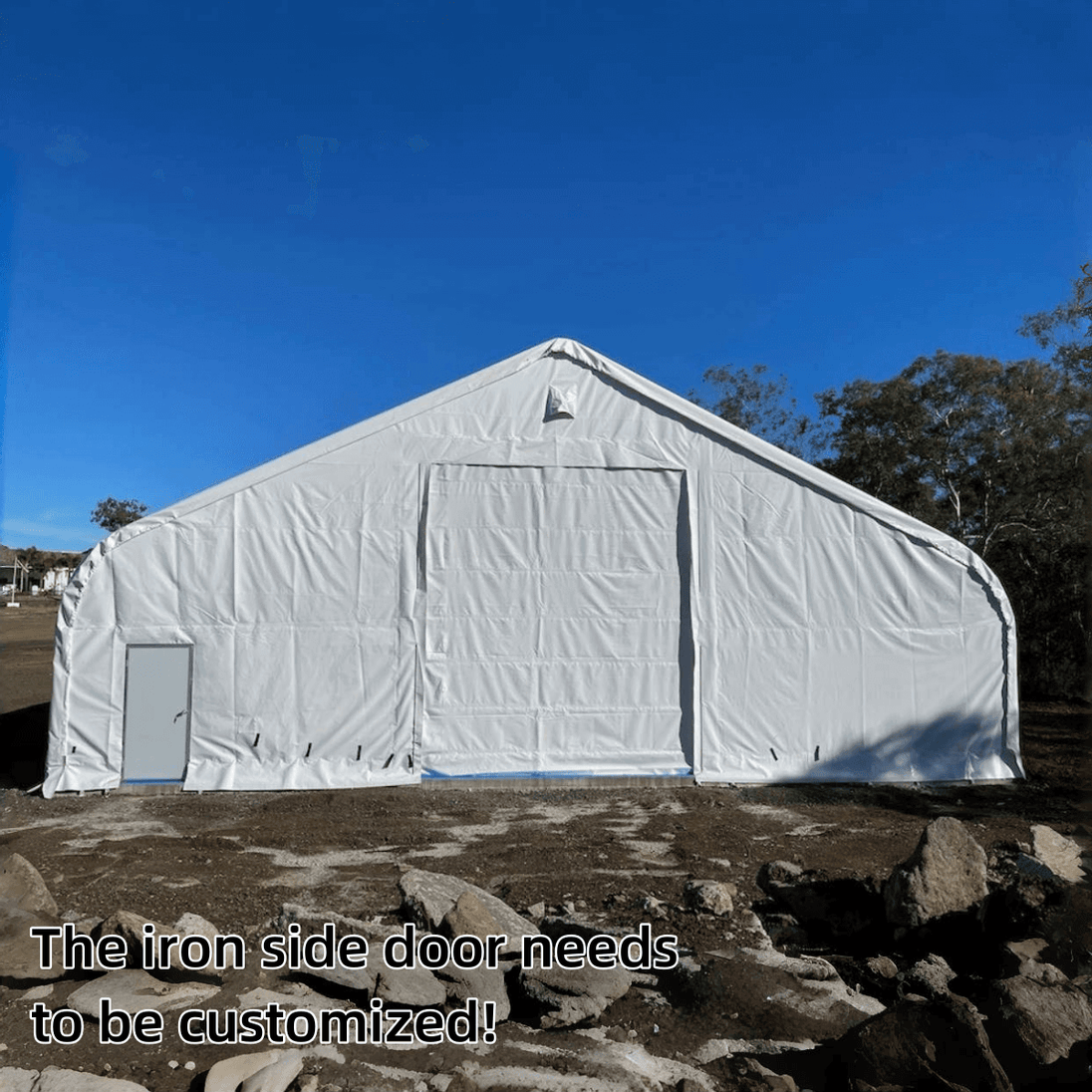

• Man Door (WxH): 2.6'x6.6'

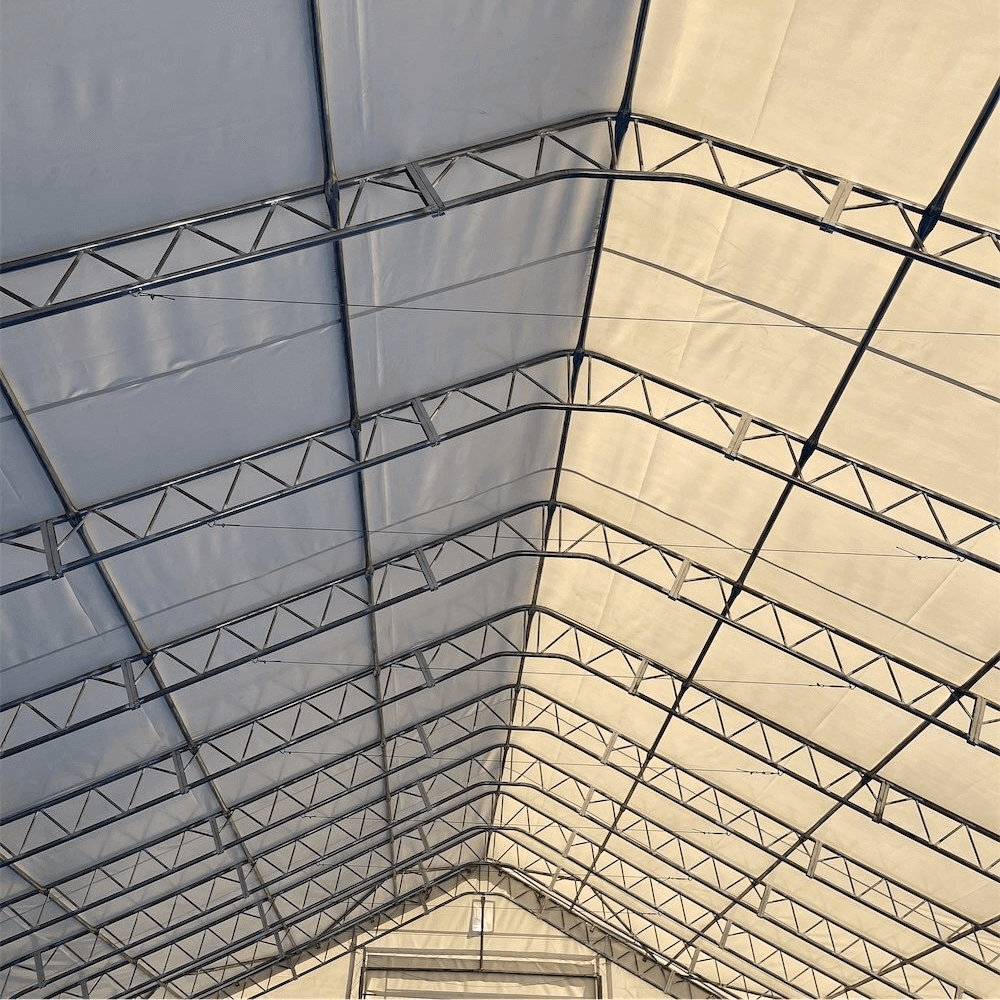

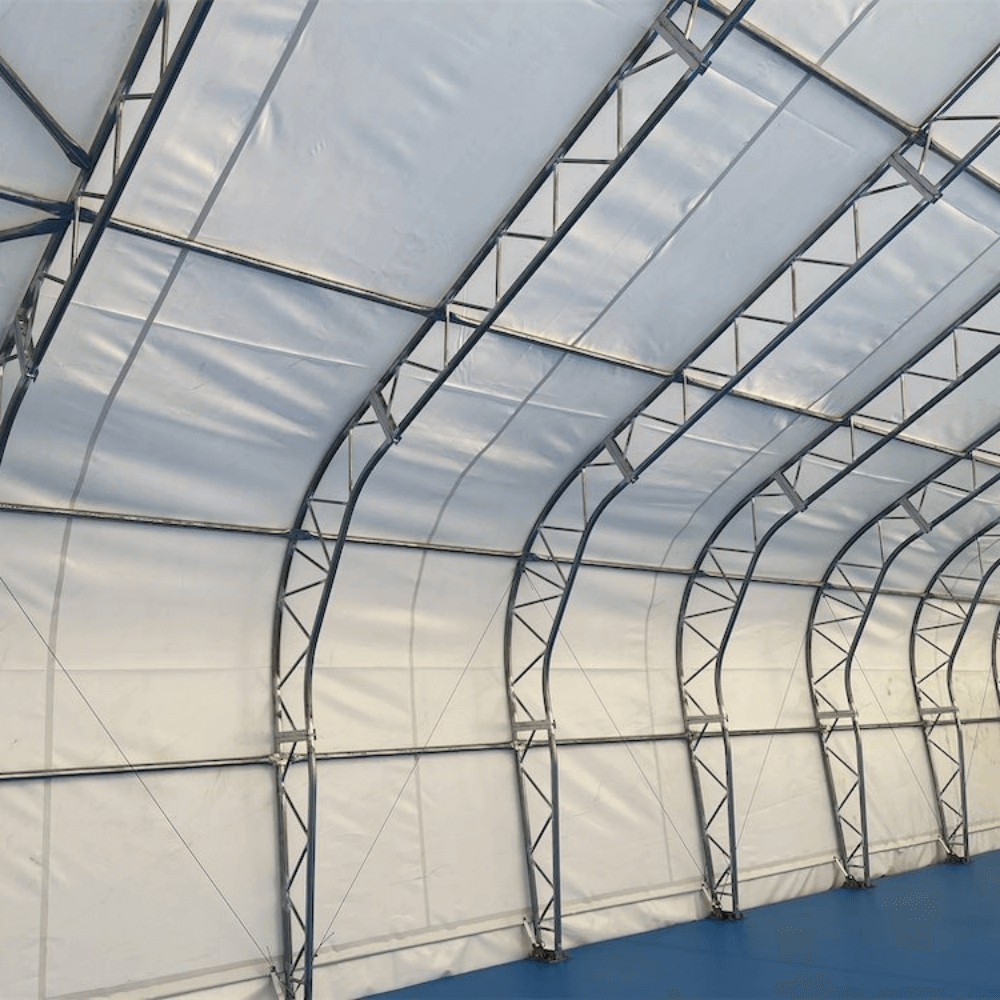

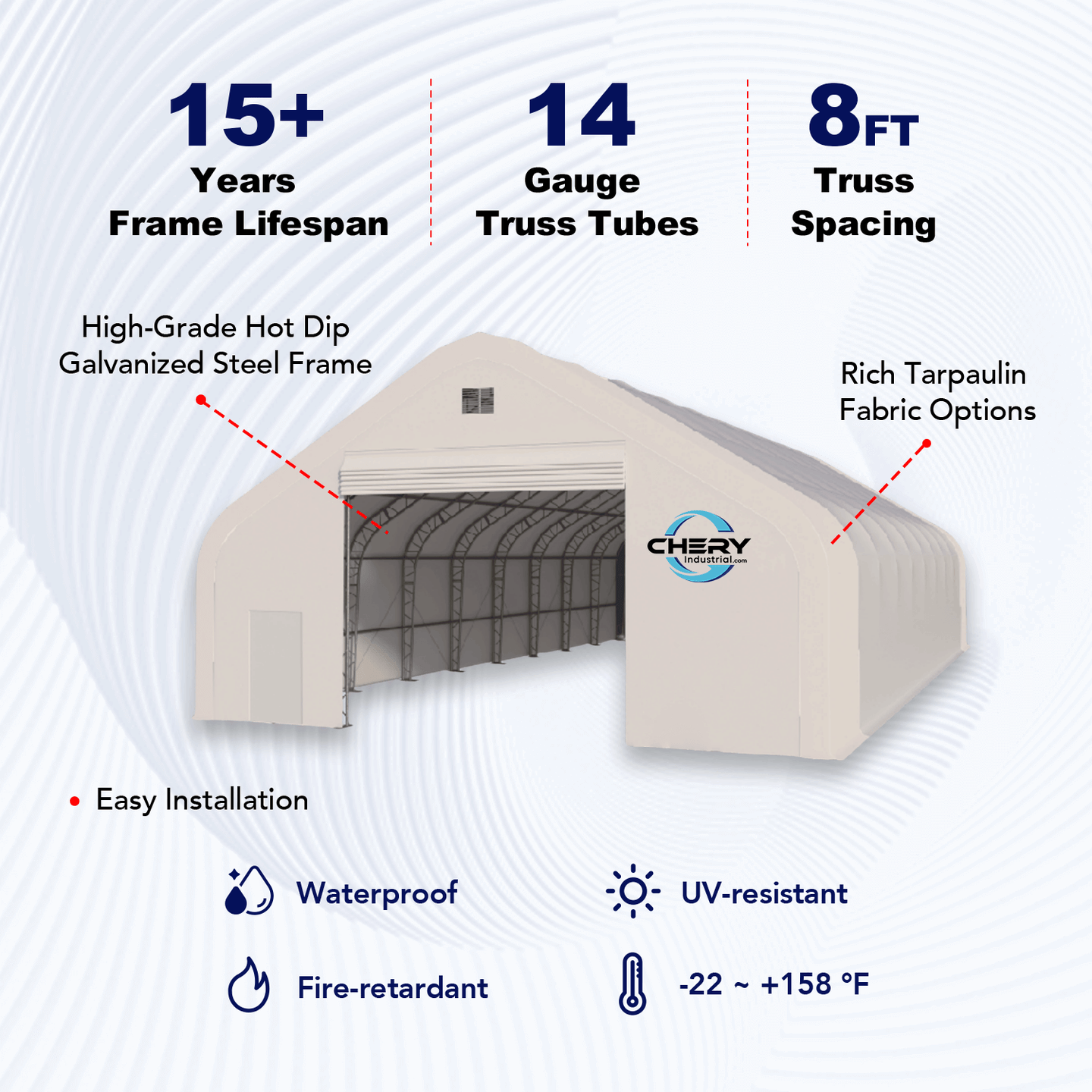

• Frame: Double Truss Galvanized Tube
• Steel Frame: Hot Dip Galvanized Steel
• Truss Tube: 14 Gauge
• Tarp Fabric: PE or PVC
• Tarp Color (customizable): White with Green/Red Edge
• Temperature Resistance: -22 to +158 °F
• Arch Ø: Ø76x2.0mm
• Purlin Ø: Ø60x1.5mm
• Arch Spacing: 8 ft
• Number of Arch: 16

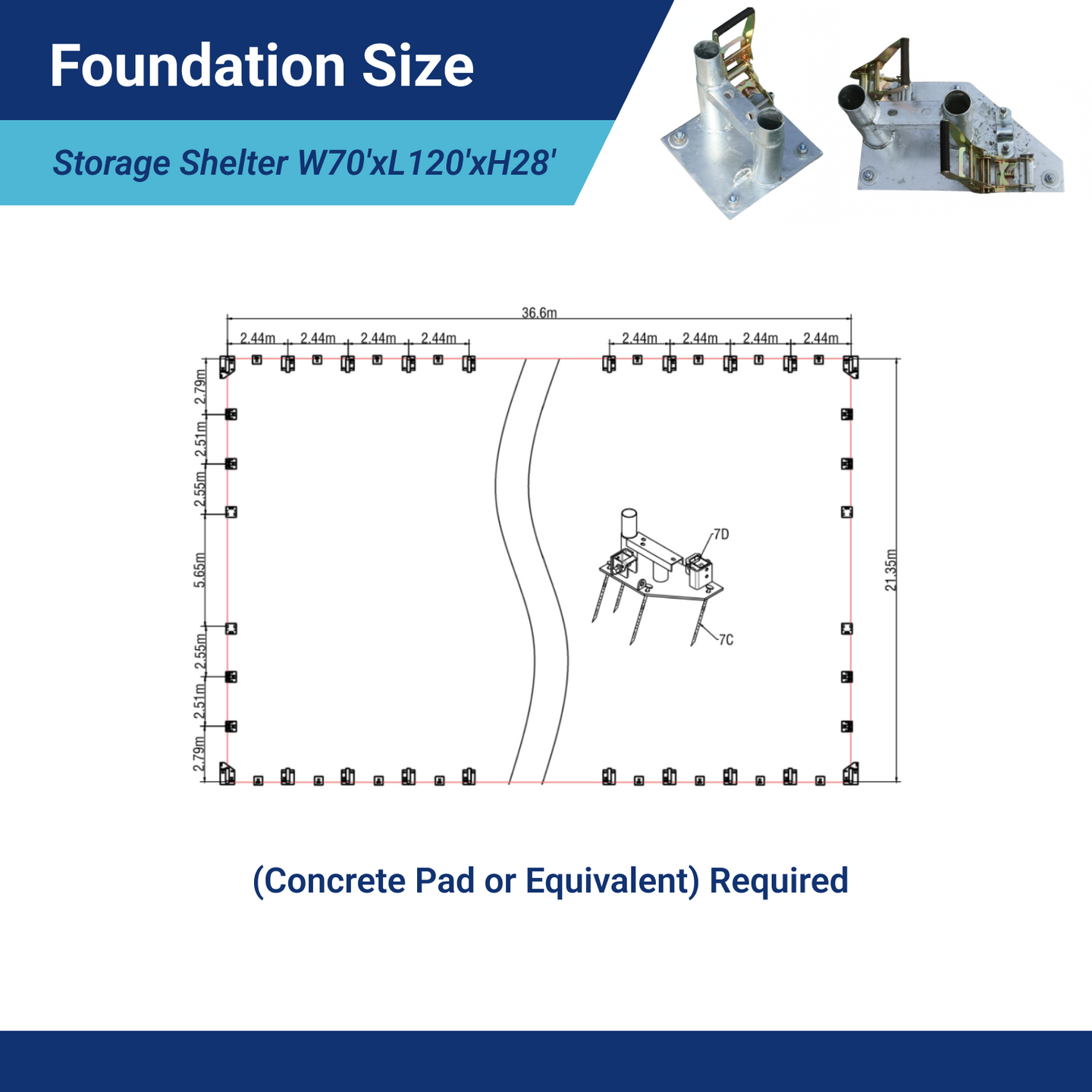

• Number of Anchor Plates: 32
• Tension System: Pipe and Ratchet Tie-Down System
• Average Assembly Time for DIY with 4 persons: 5 Days

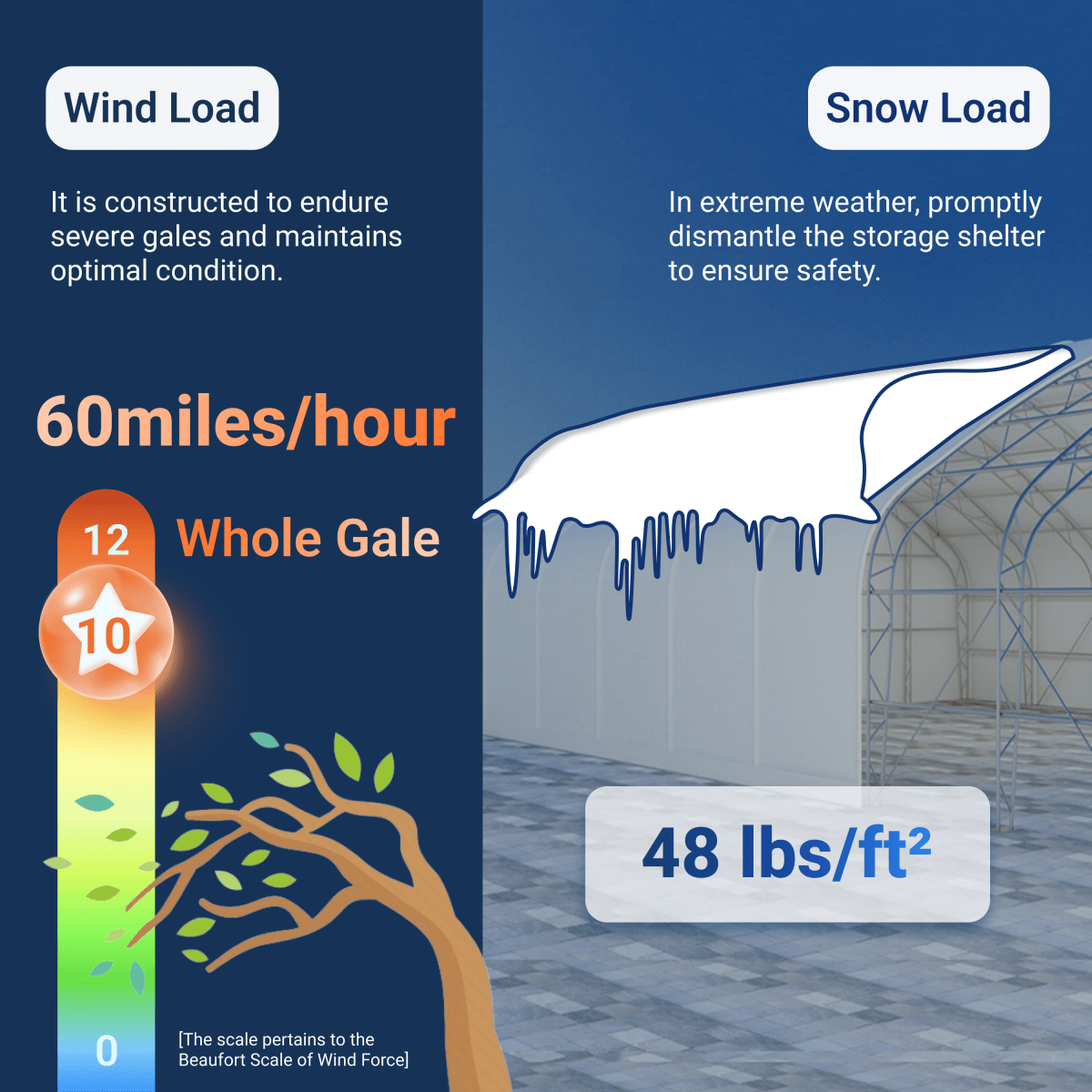

• Snow Load: 48 lbs/ft²
• Wind Load: 60 mph
• Tarp Lifespan: 7–10 years, depending on fabric and environment
• Frame Lifespan: 15+ Years
• Warranty: PE 2 Years; PVC 8 Years
• Fabric (Optional): Economical 11oz/m² (300 gsm) PE tarpaulin; Heavy Duty PVC tarpaulins at 16oz/m² (450 gsm), 22oz/m² (610 gsm), 26oz/m² (750 gsm), 32oz/m² (900 gsm). Please contact us to order.
