Chery Industrial | W50'xL80'xH23' Double Truss Storage Shelter | SUISS508023DPOZ26

Gold Mountain Double Truss Storage Shelter

Overview

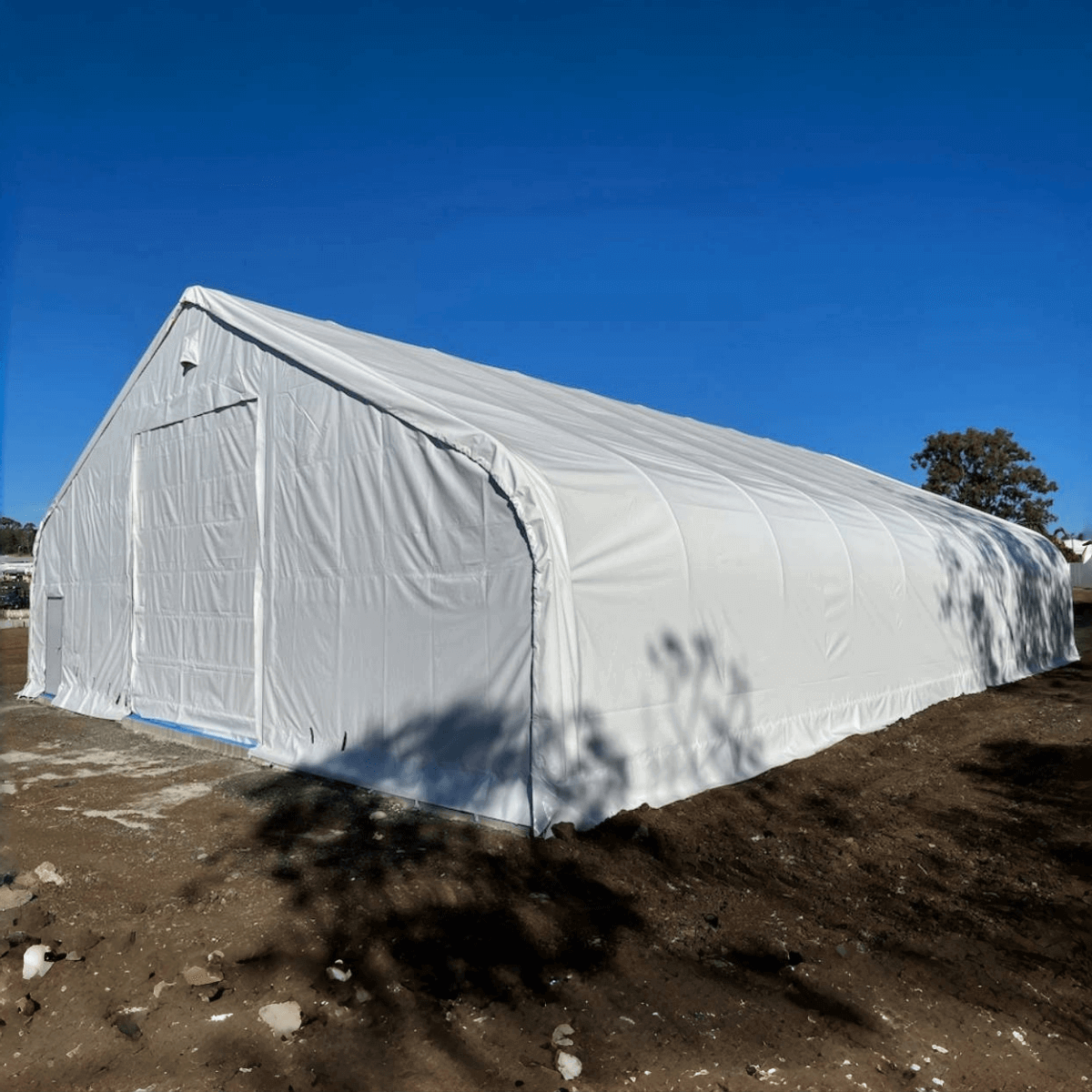

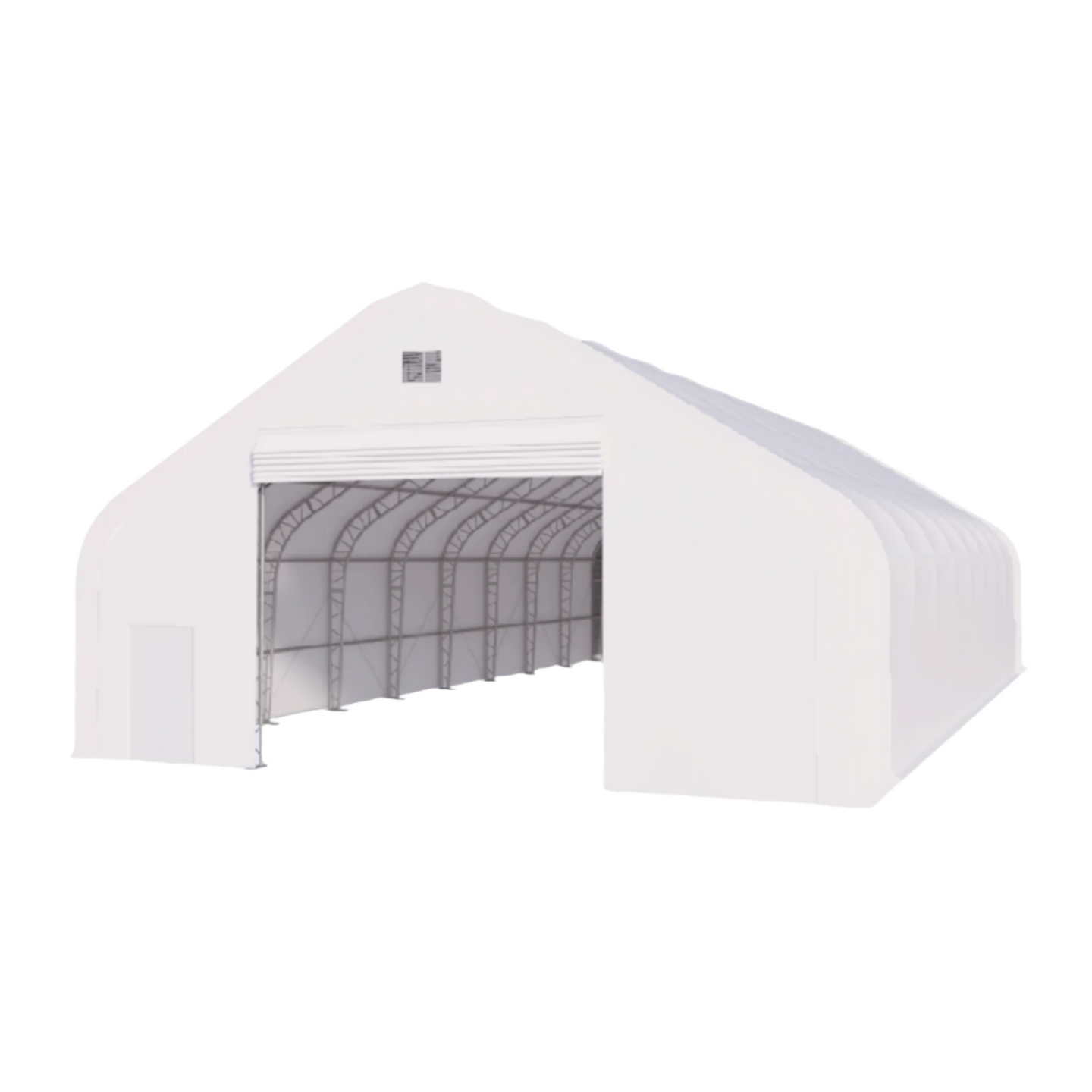

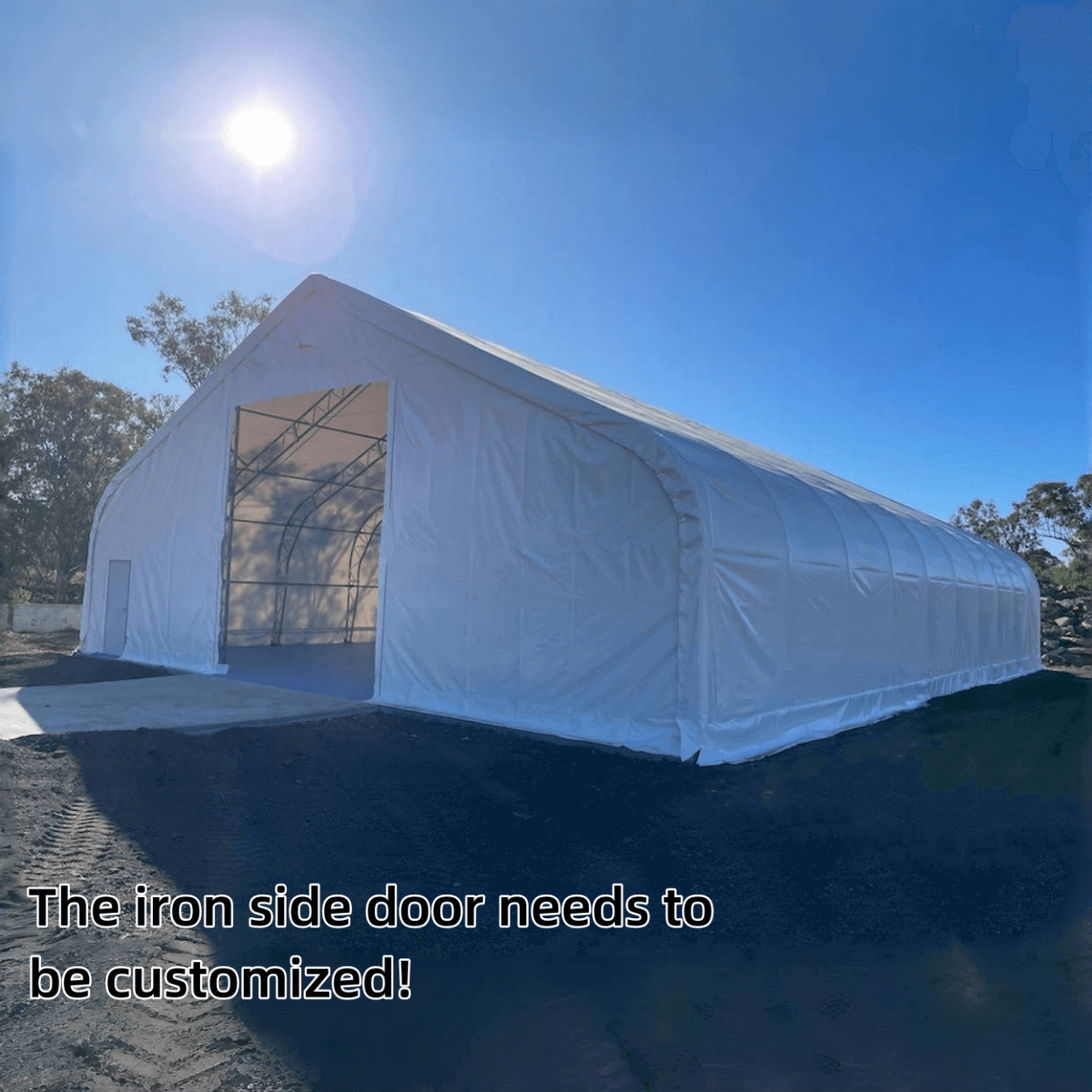

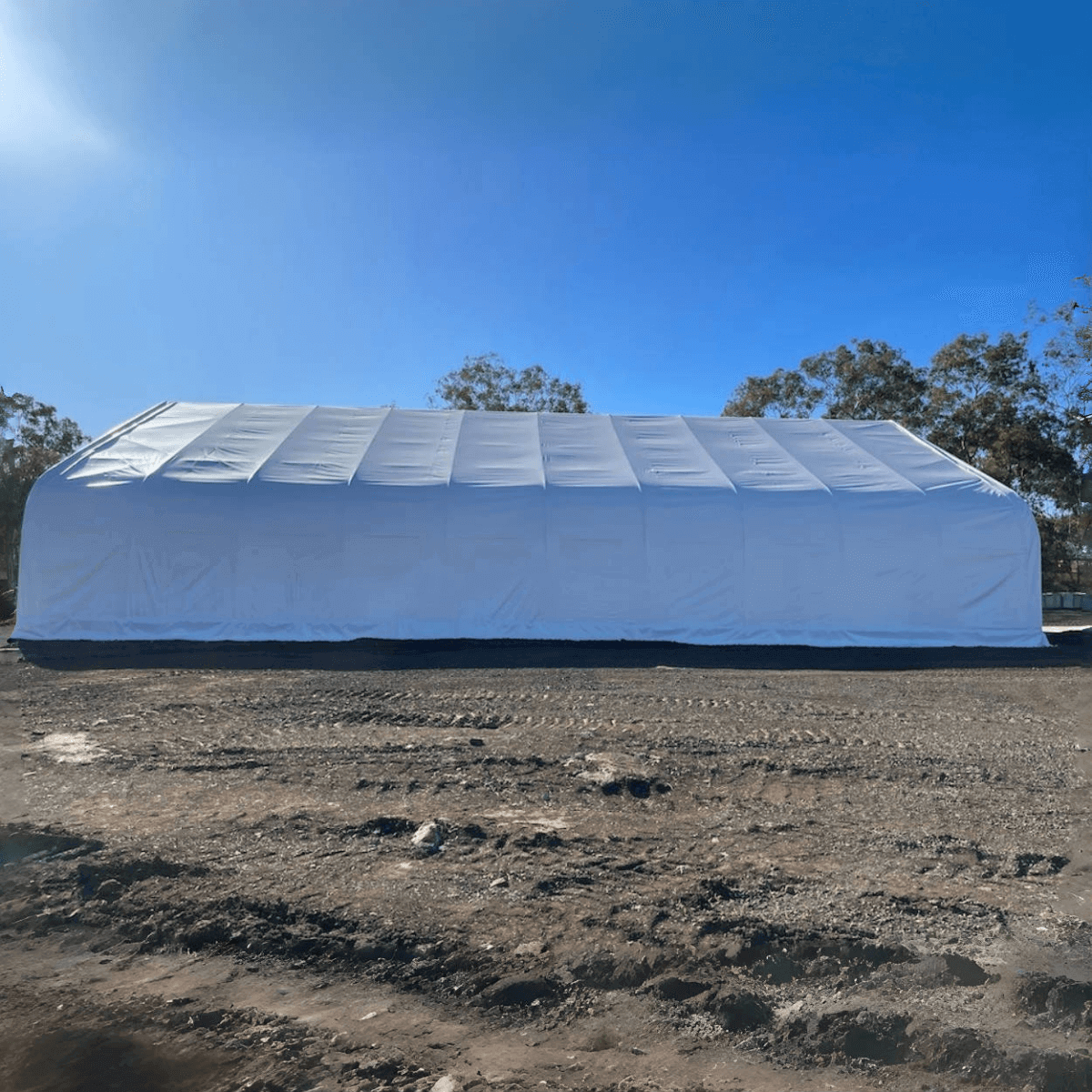

A sturdy shelter sized W50' x L80' x H23'. Its double truss design adds stability in tough weather. Heavy-duty PVC or PE fabric keeps out the elements. With a 23-foot height, it fits large equipment and inventory. Suitable for commercial or industrial use, and the peak helps with snow removal.

Benefits

• Stable structure for harsh elements.
• Large interior space for equipment, machinery, or inventory.
• High clearance to accommodate tall items.
• Weatherproof, UV resistant, and fire retardant.
• No building permits required where allowed.
• Frame built to resist rust and corrosion; long lifespan.
• Natural daylight from the PVC cover; no electricity needed for lighting.

Features

• No building permits required*.
• 50' wide, 80' long, 23' high storage space.
• Versatile for residential, commercial, or industrial use.
• Galvanized steel frame, resistant to rust and corrosion.
• Weatherproof against snow, storms, wind, and water; UV resistant; fire retardant.
• PVC cover provides daylight during the day.

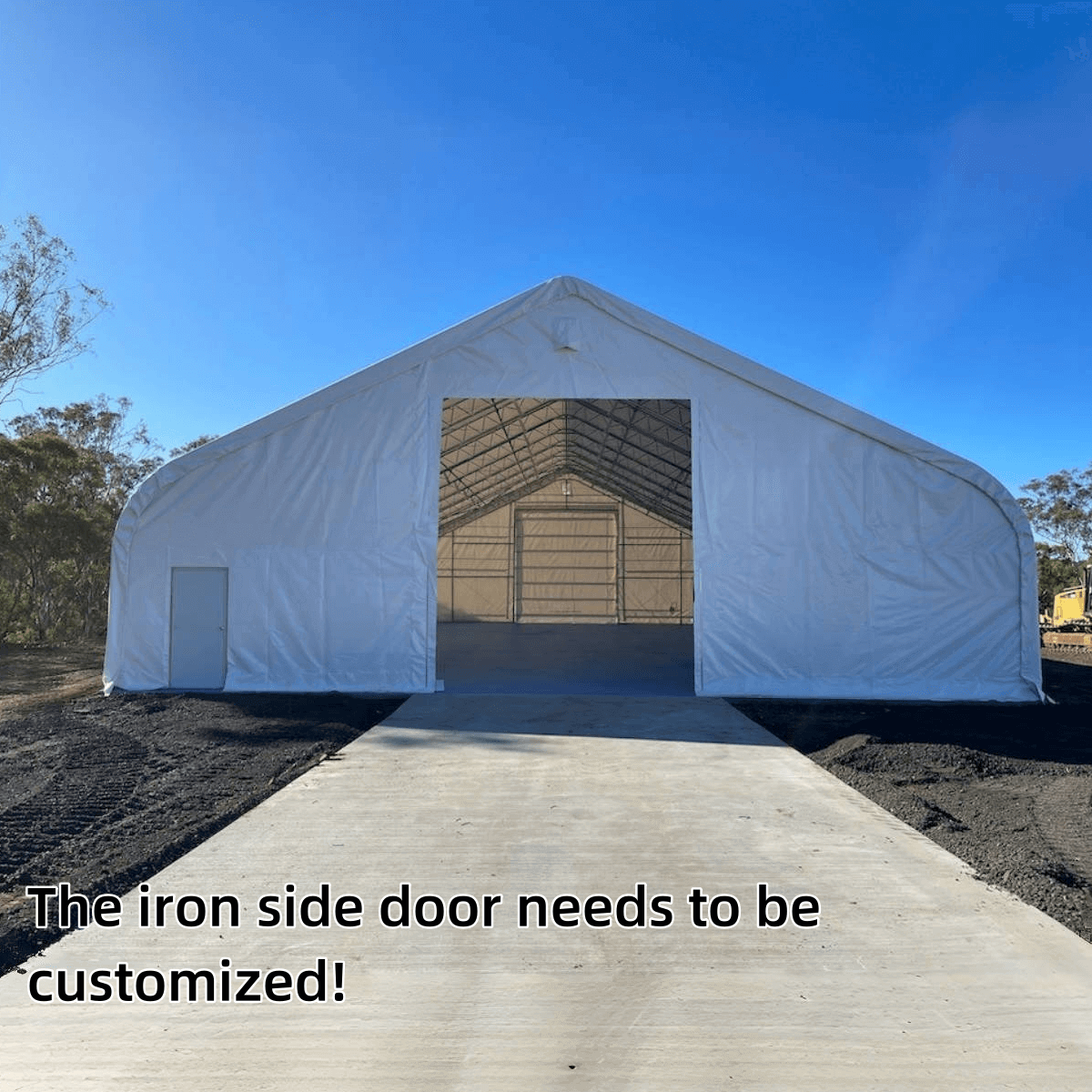

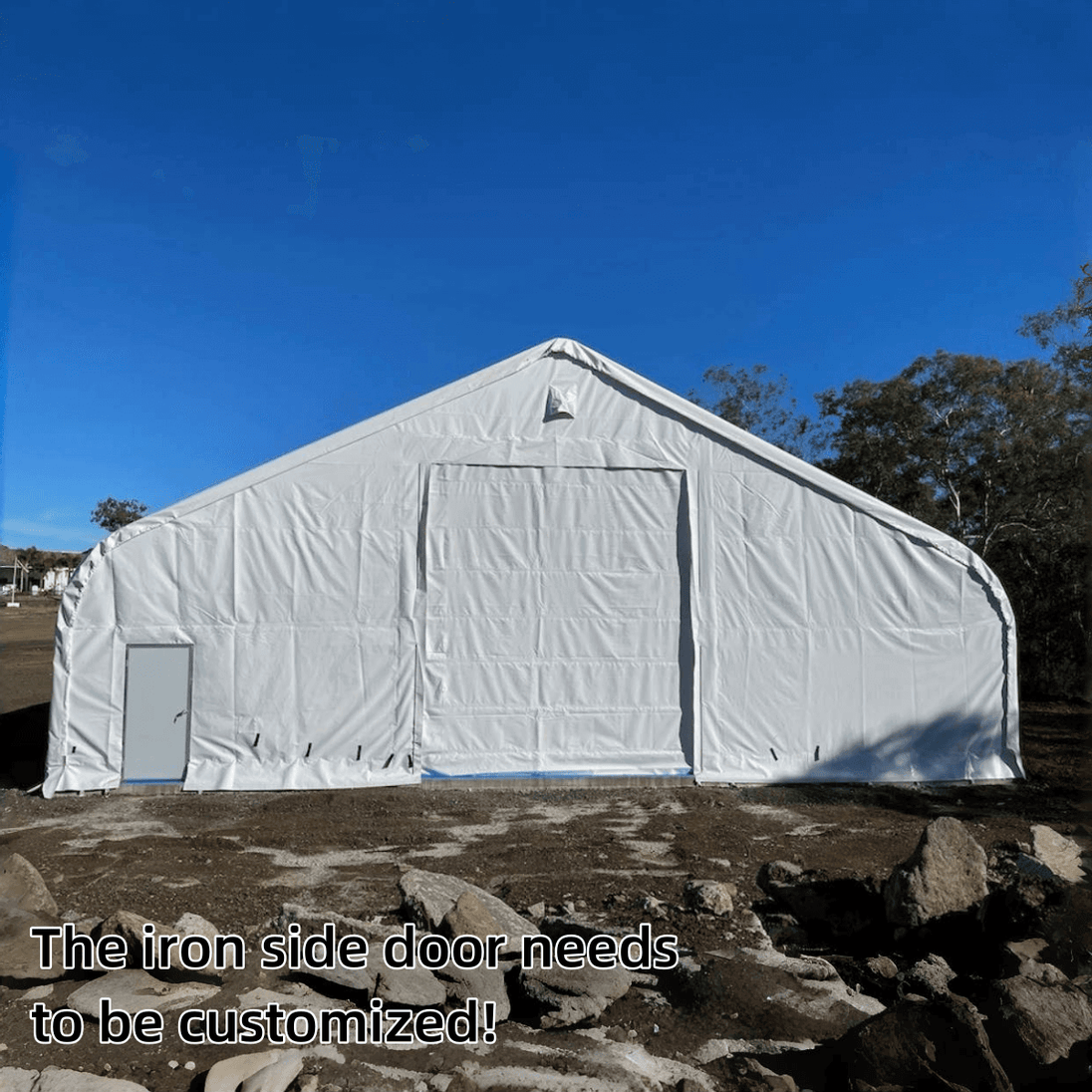

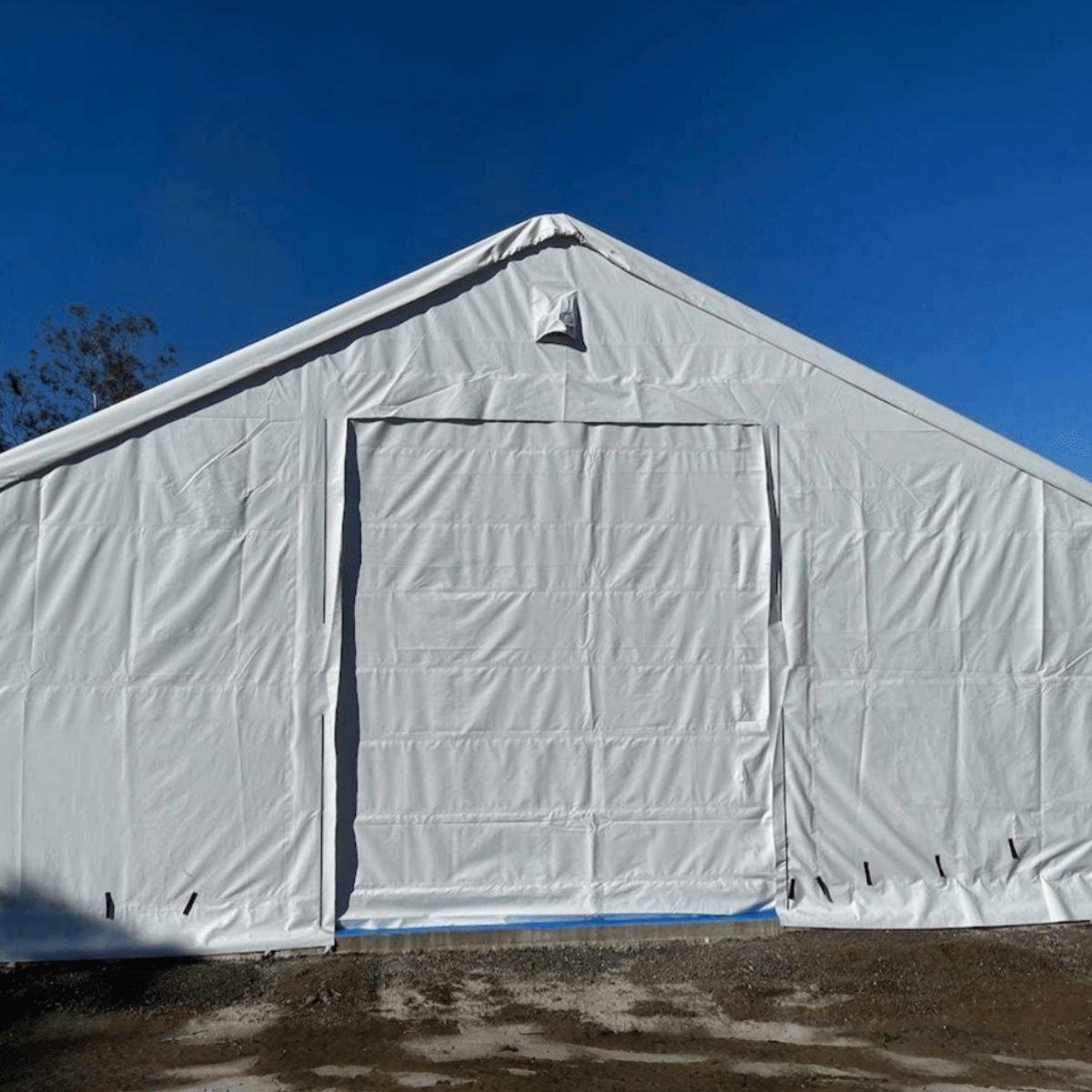

• Double doors at both ends for easy entry and exit.

Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.

Specifications

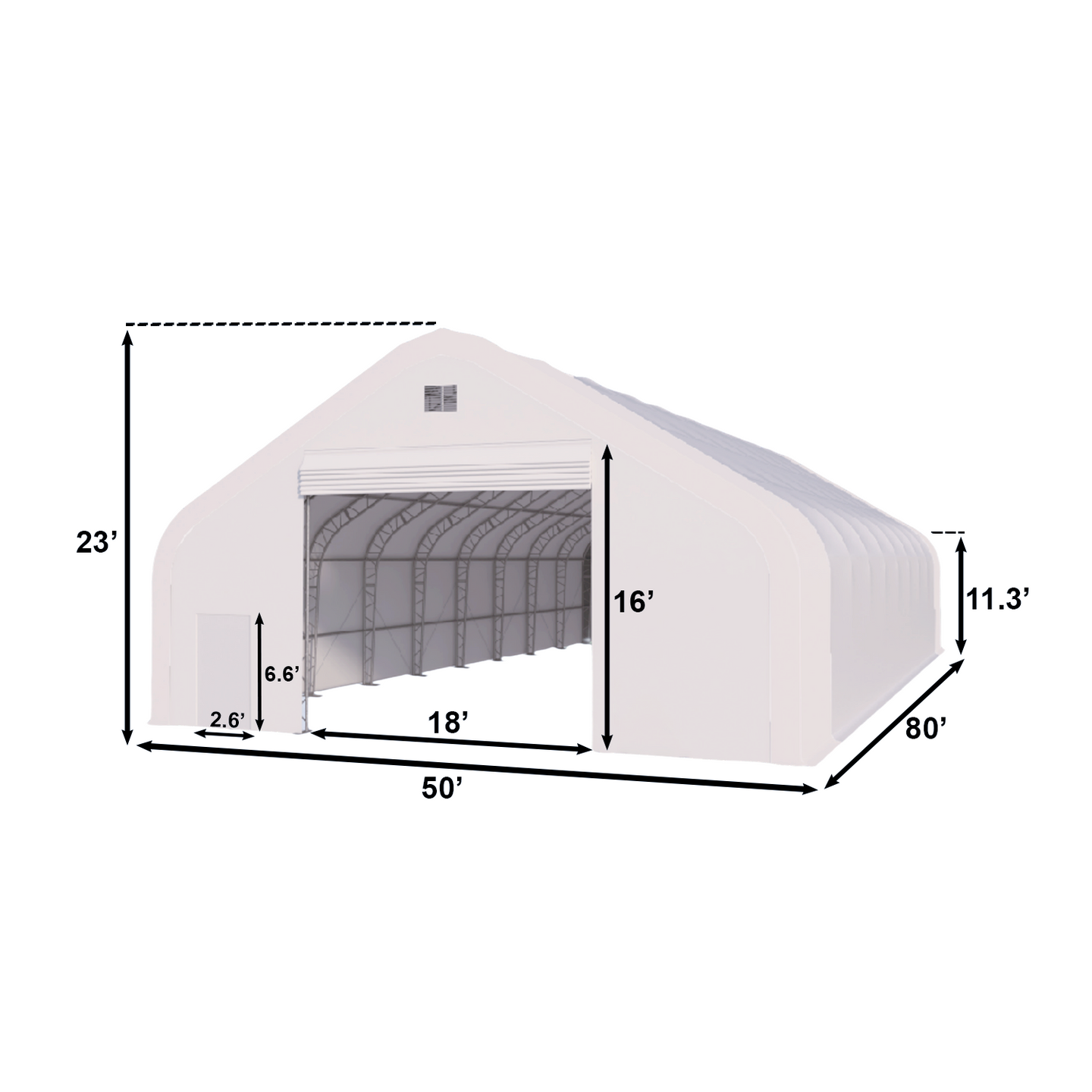

• Dimensions (WxLxH): 50' x 80' x 23'
• Side-wall height: 11.3 ft
• Door size (WxH) front & rear: 18' x 16'
• Door type: Mechanical Rollup Door

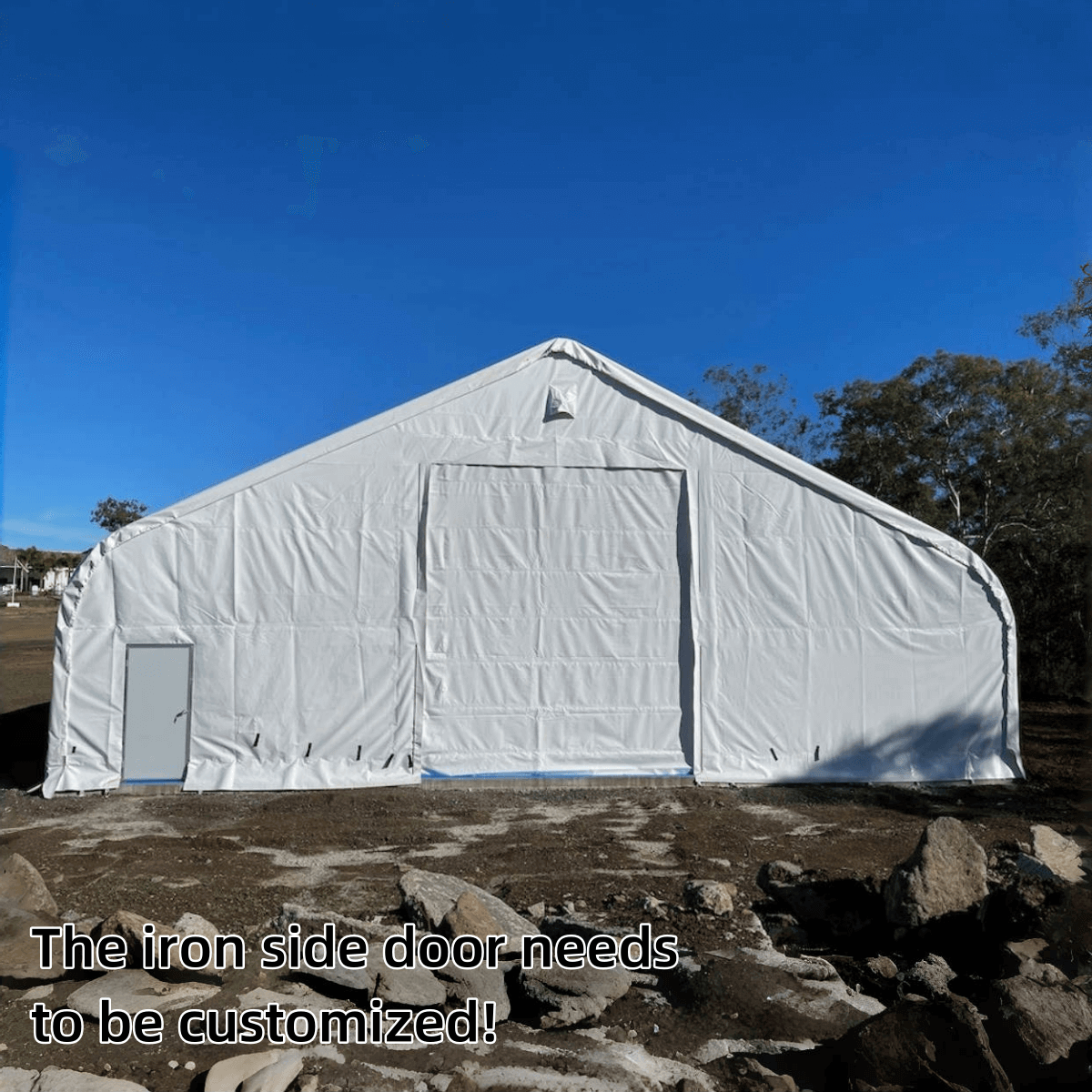

• Man door (WxH): 2.6' x 6.6'

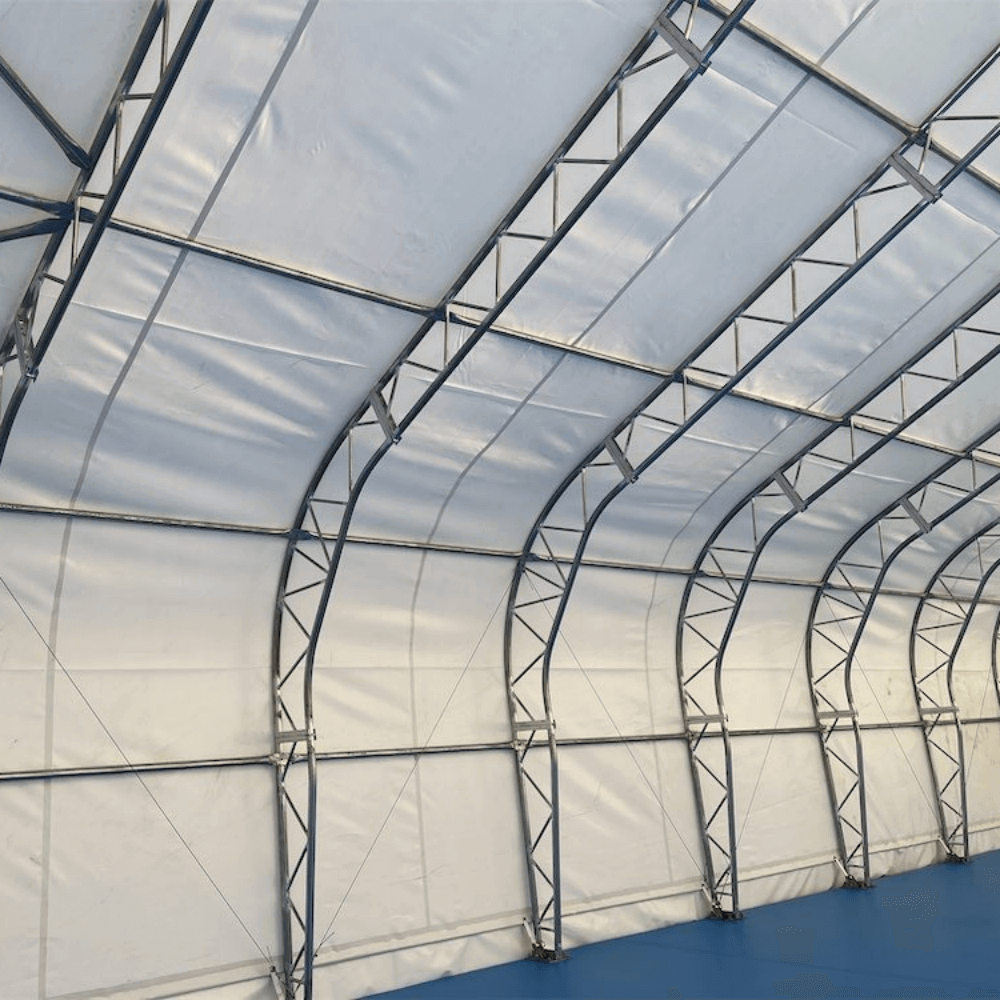

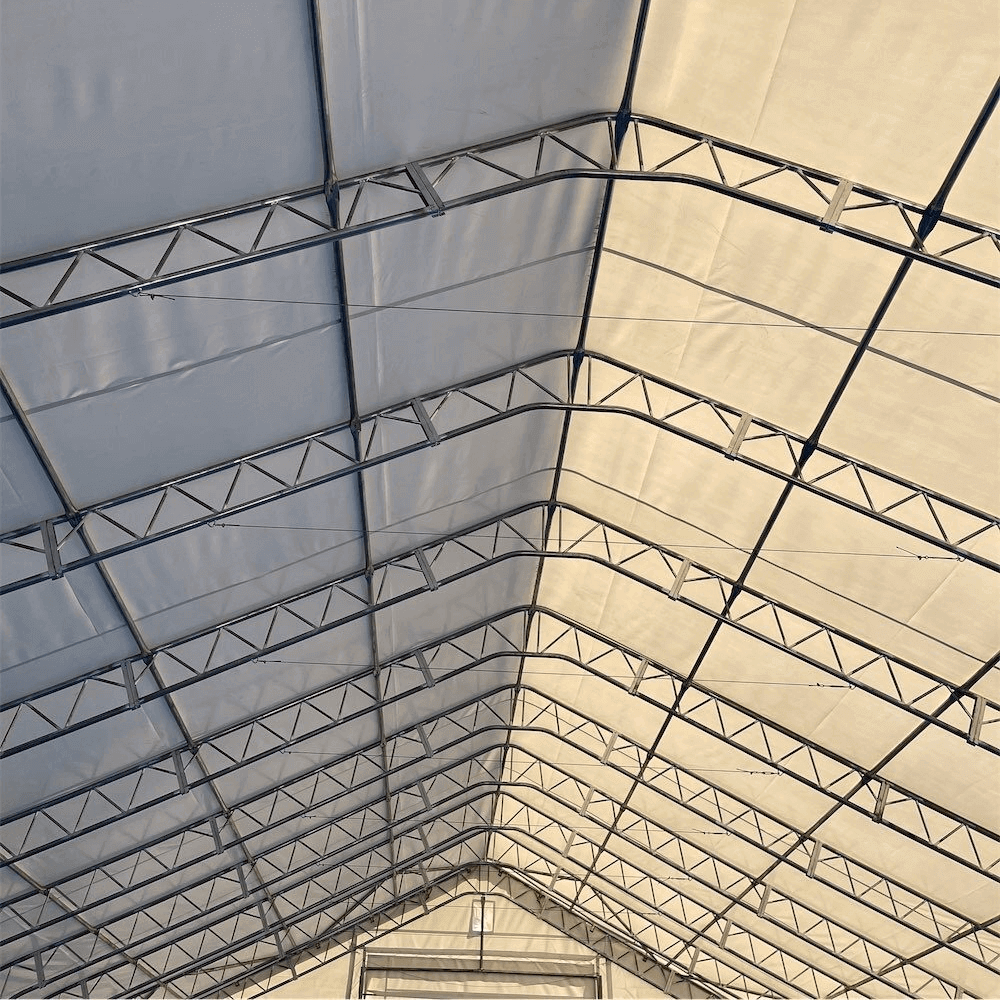

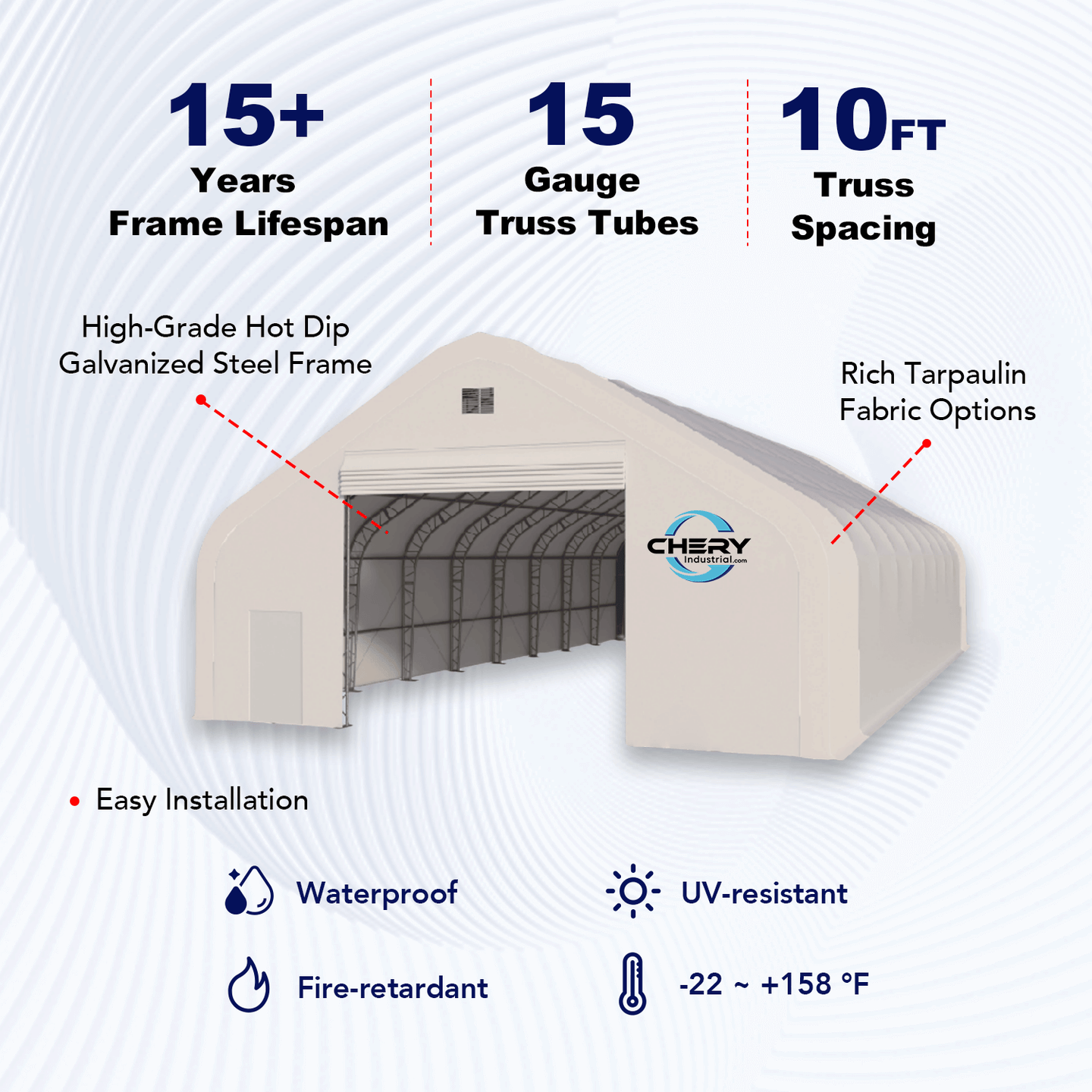

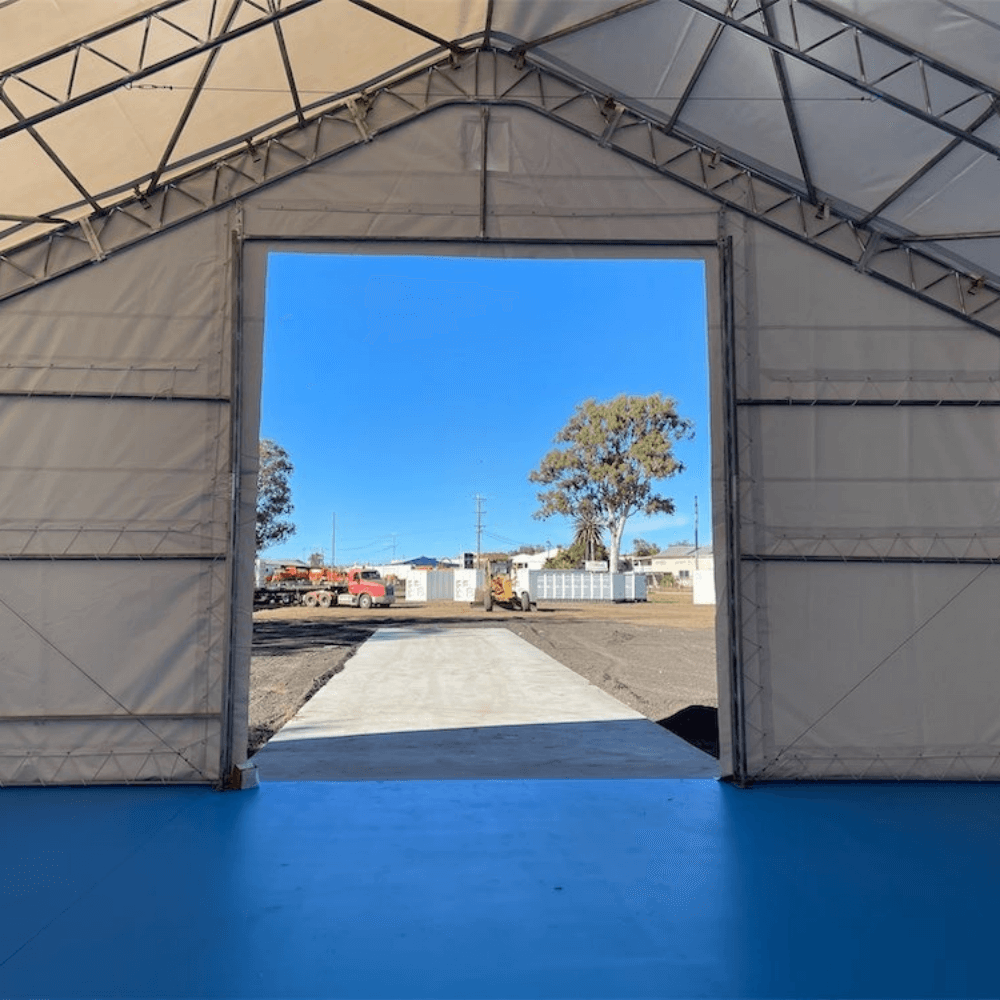

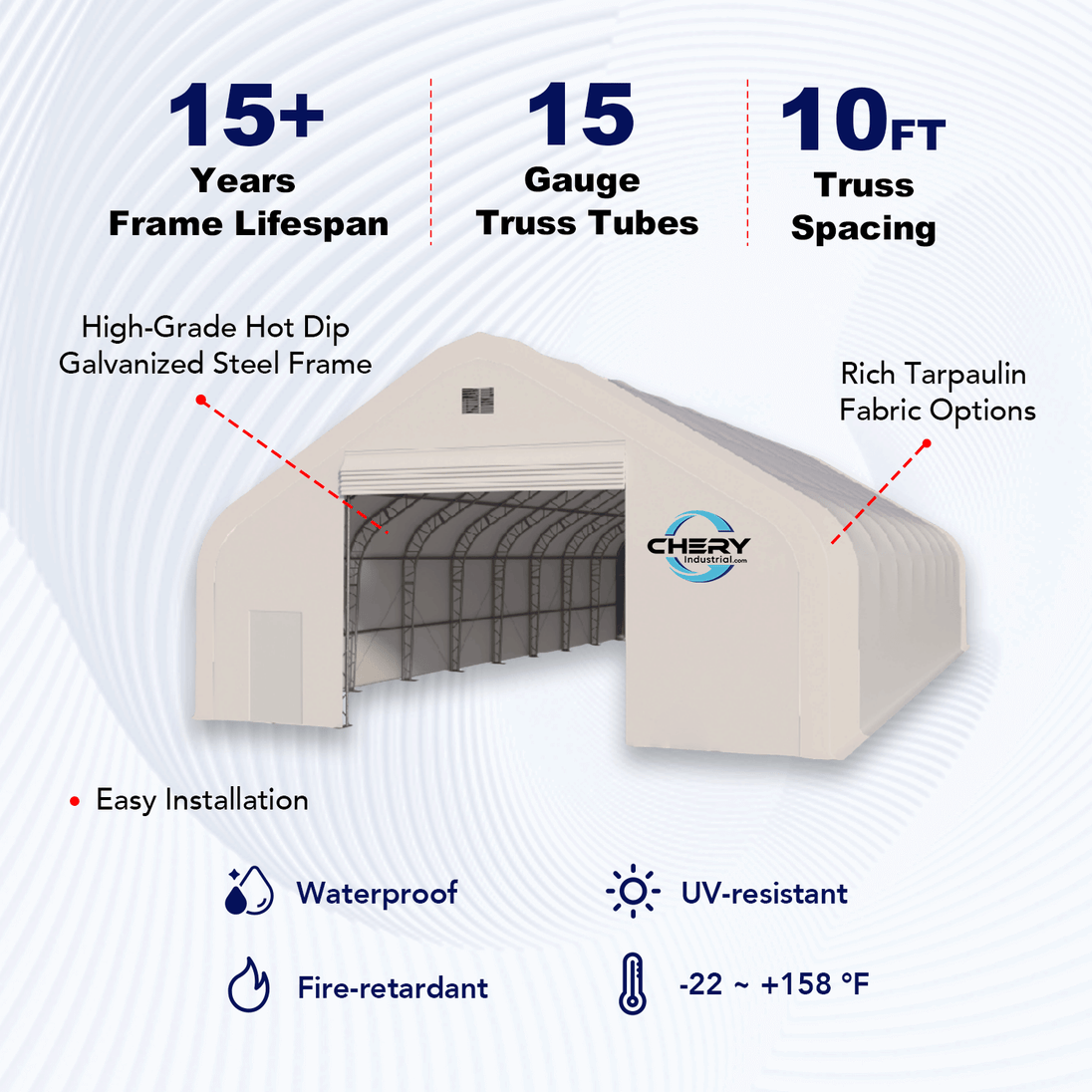

• Frame: Double Truss Galvanized Tube
• Steel frame: Hot Dip Galvanized Steel
• Truss tube: 15 Gauge
• Tarp Fabric: PE or PVC
• Tarp Color (customizable): White with Green/Red Edge
• Temperature resistance: -22 to +158 °F
• Arch Ø: Ø 60 x 1.8 mm
• Purlin Ø: Ø 60 x 1.5 mm
• Arch Spacing: 10 ft
• Number of Arch: 9

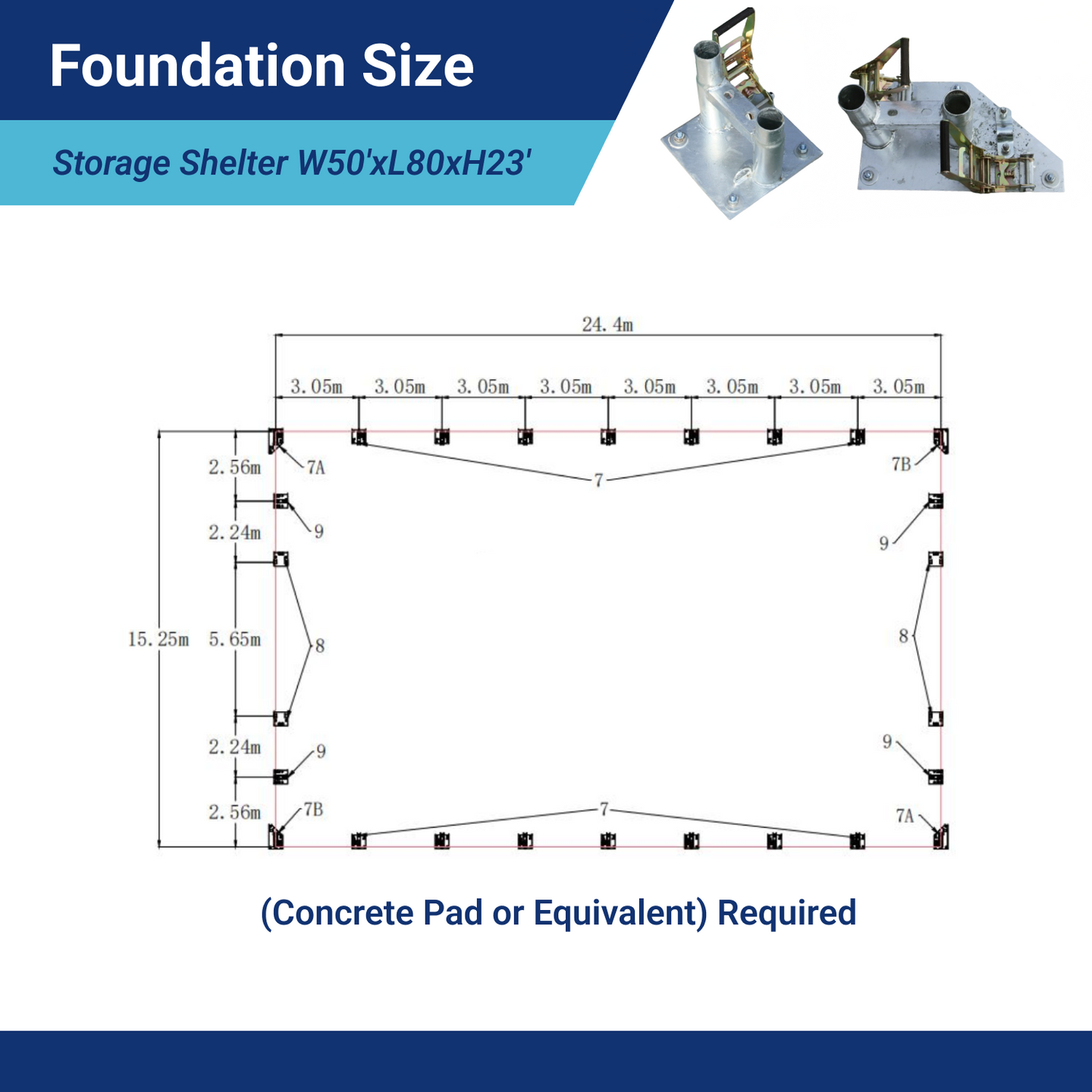

• Number of Anchor plates: 18
• Tension System: Pipe and Ratchet Tie-Down System
• Average assembly time for DIY with 4 persons: 5 Days

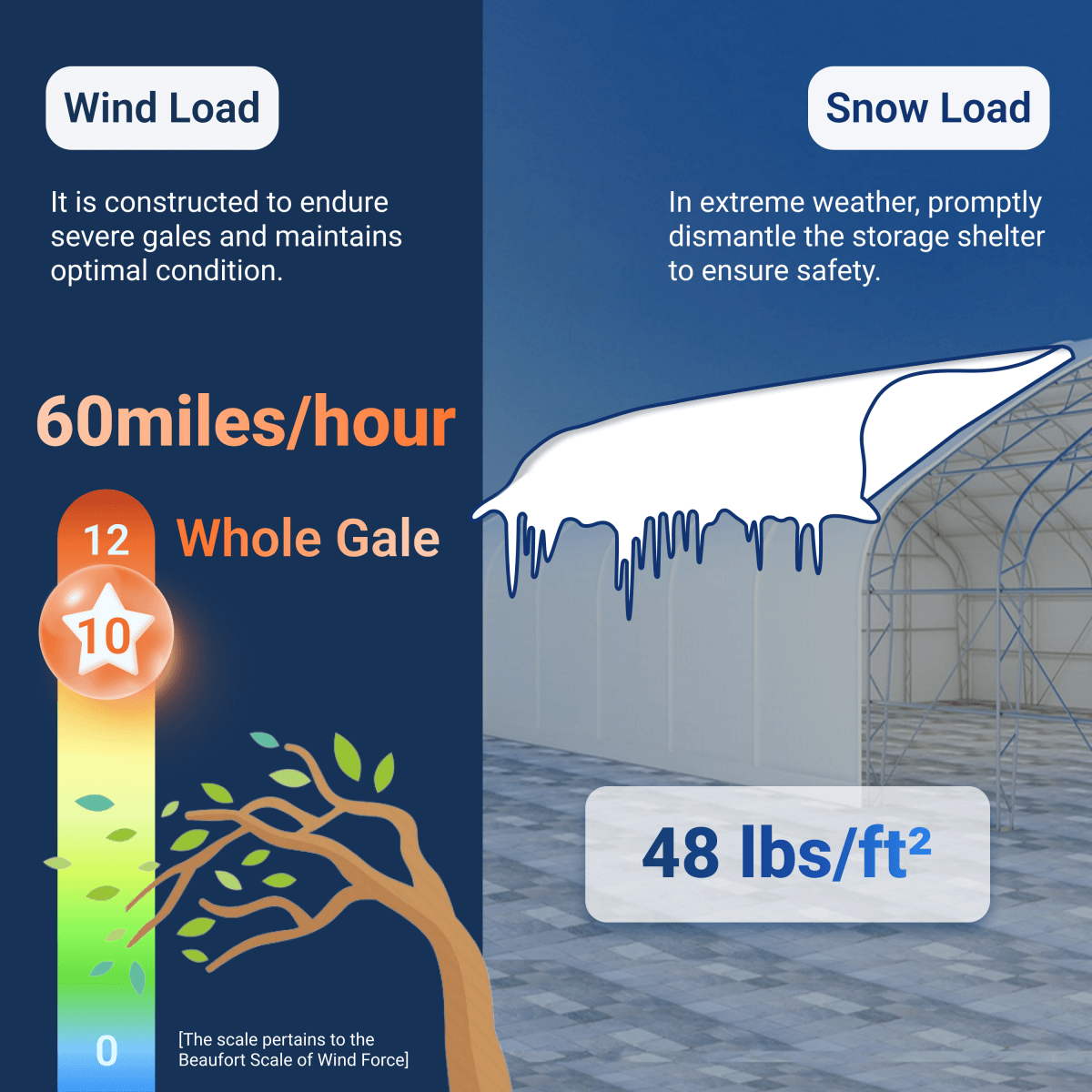

• Snow Load: 48 lbs/ft²
• Wind Load: 60 miles/h
• Tarp lifespan: 7-10 years, depending on fabric and environment
• Frame lifespan: 15+ Years
• Warranty: PE 2 Years; PVC 8 Years
• Fabric (Optional): 11oz/m² PE, 16oz/m² PVC, 23oz/m² PVC, 26oz/m² PVC, 32oz/m² PVC; contact us to order
• Country of Origin: China
