Chery Industrial | W50'xL100'xH23' Double Truss Storage Shelter | SS000162

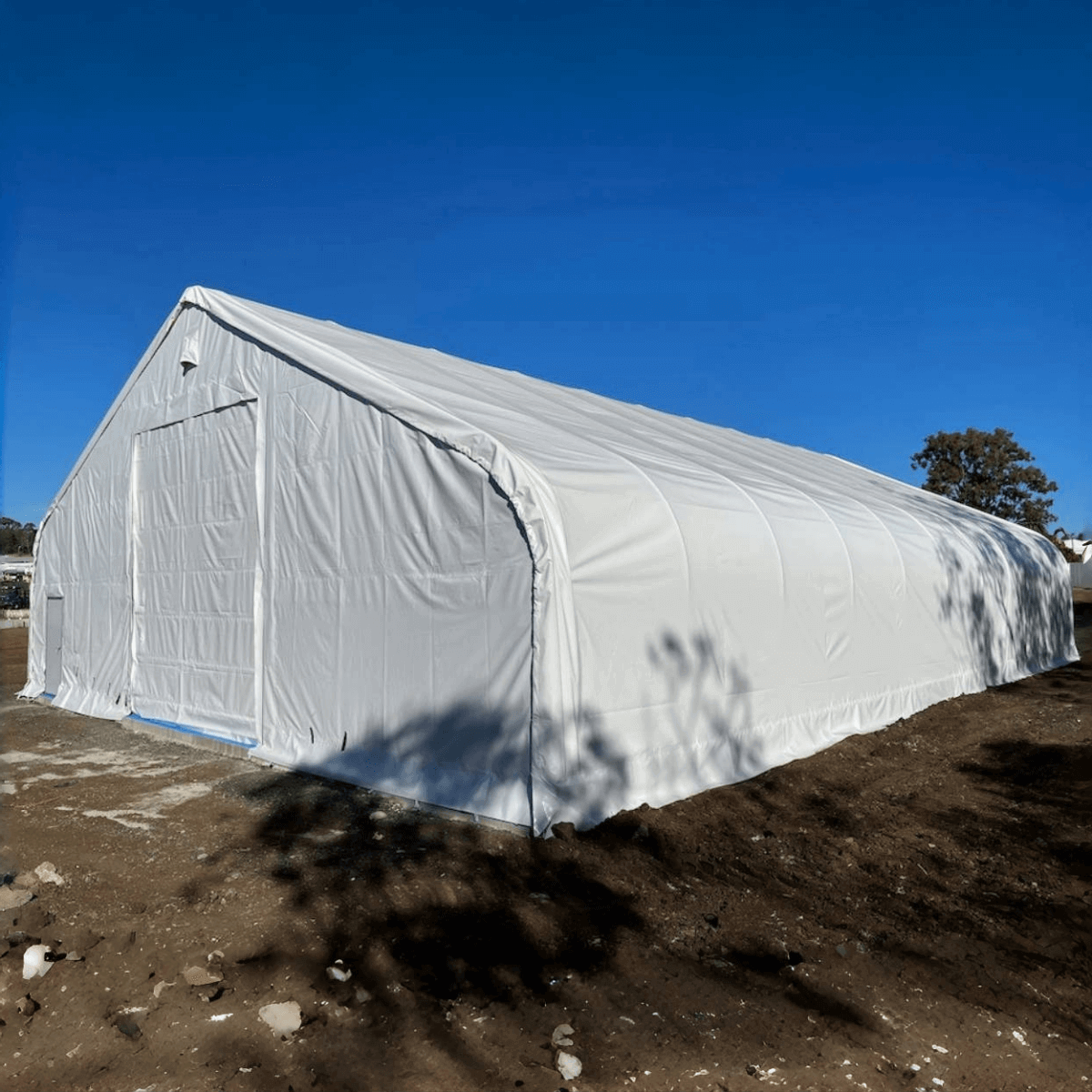

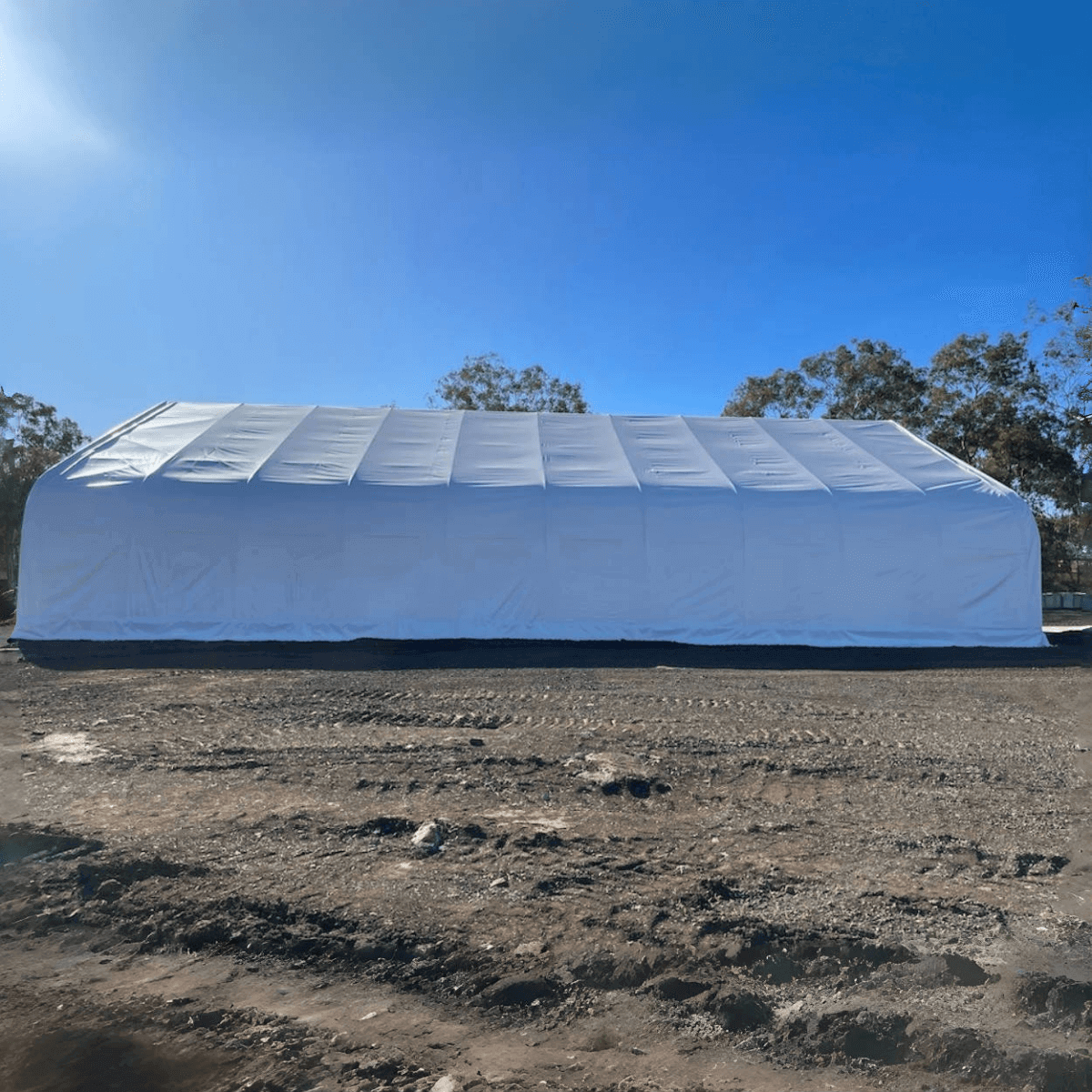

Gold Mountain Storage Shelter W50'xL100'xH23' - Double Truss

Overview

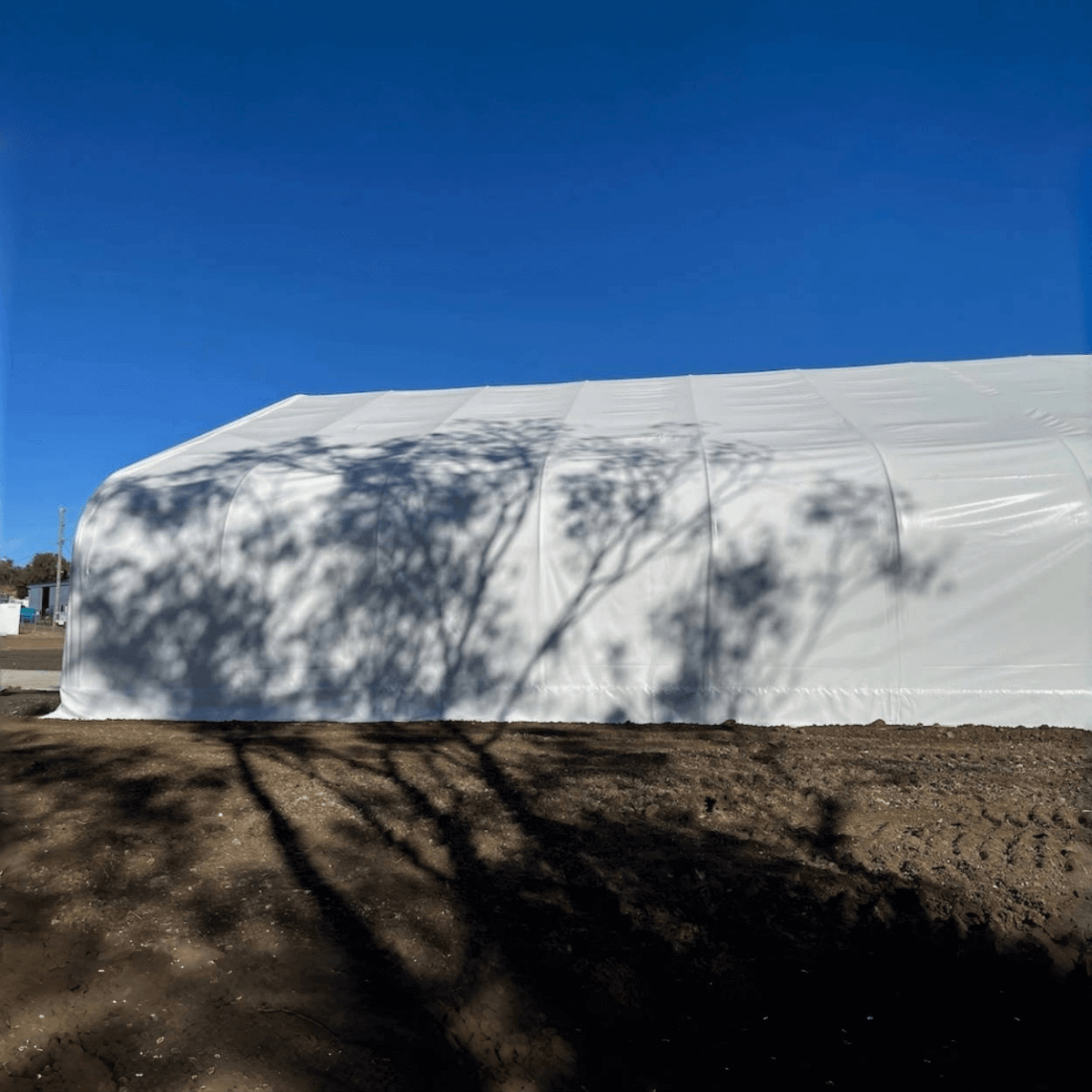

Versatile shelter for agriculture, farms, auto storage, events, and more. Its steel frame handles up to 60 mph winds, sun, and heavy snow. Great for protecting cars, boats, RVs, equipment, and supplies. The peaked roof helps snow slide off. PVC fabric lasts longer and resists weather better than PE.

Benefits

• Large footprint: 50'x100' with 23' height for flexible use.
• Wind rated up to 60 mph; weather-ready design.
• Peaked roof aids snow shedding.
• PVC fabric lasts longer and resists weather better than PE.
• Protects vehicles, equipment, and supplies.
• Durable galvanized steel frame resists rust and corrosion.
• Low maintenance with a long lifespan.

Features

• No building permits required.
• Provides unlimited storage space with a 50' wide, 100' long, and 23' high footprint.
• Suitable for residential and commercial use.
• Galvanized steel structure is resistant to rust and corrosion.
• Weatherproof (snow, storm, wind, water), UV resistant, and fire retardant.
• No need for electricity during the day; the PVC cover provides natural light.

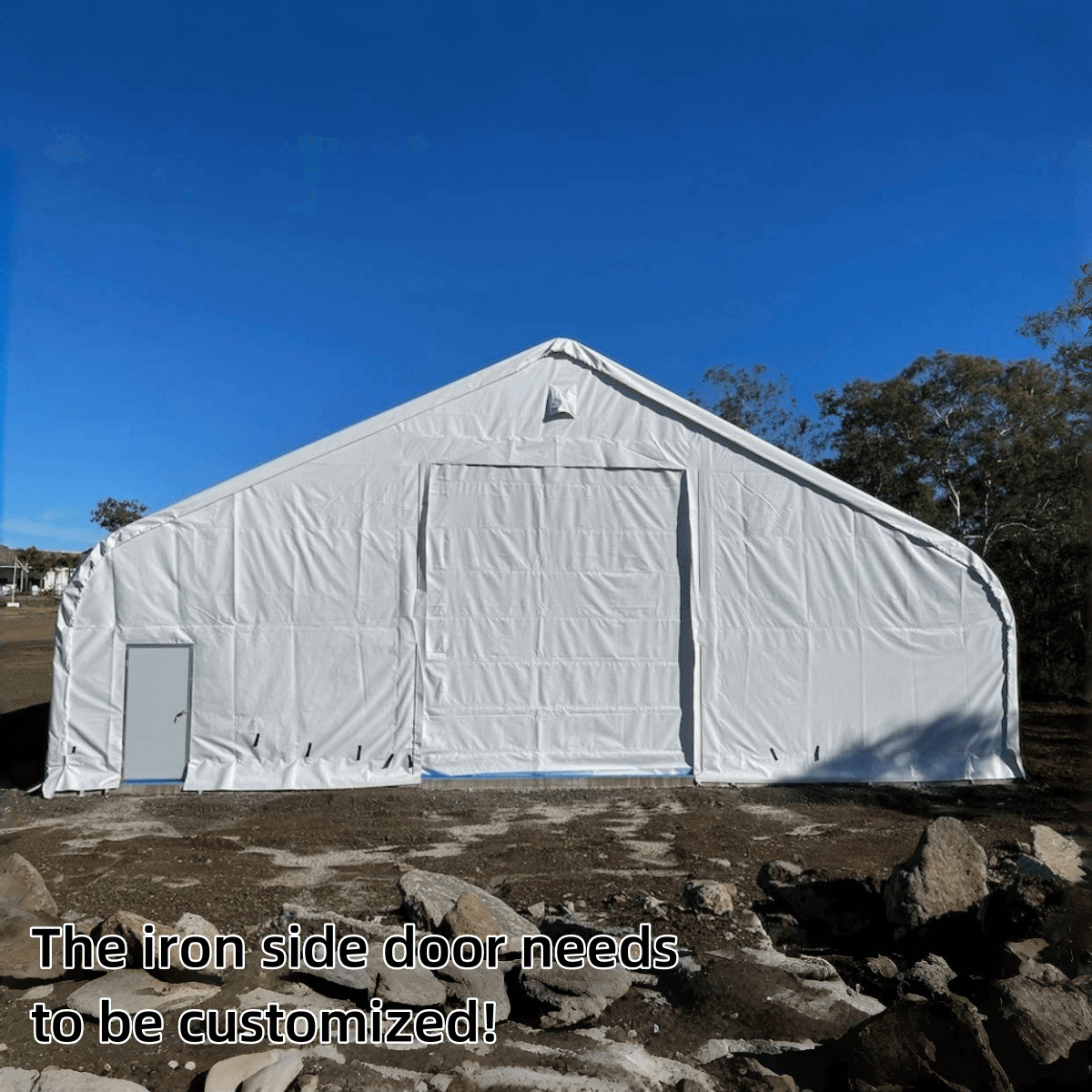

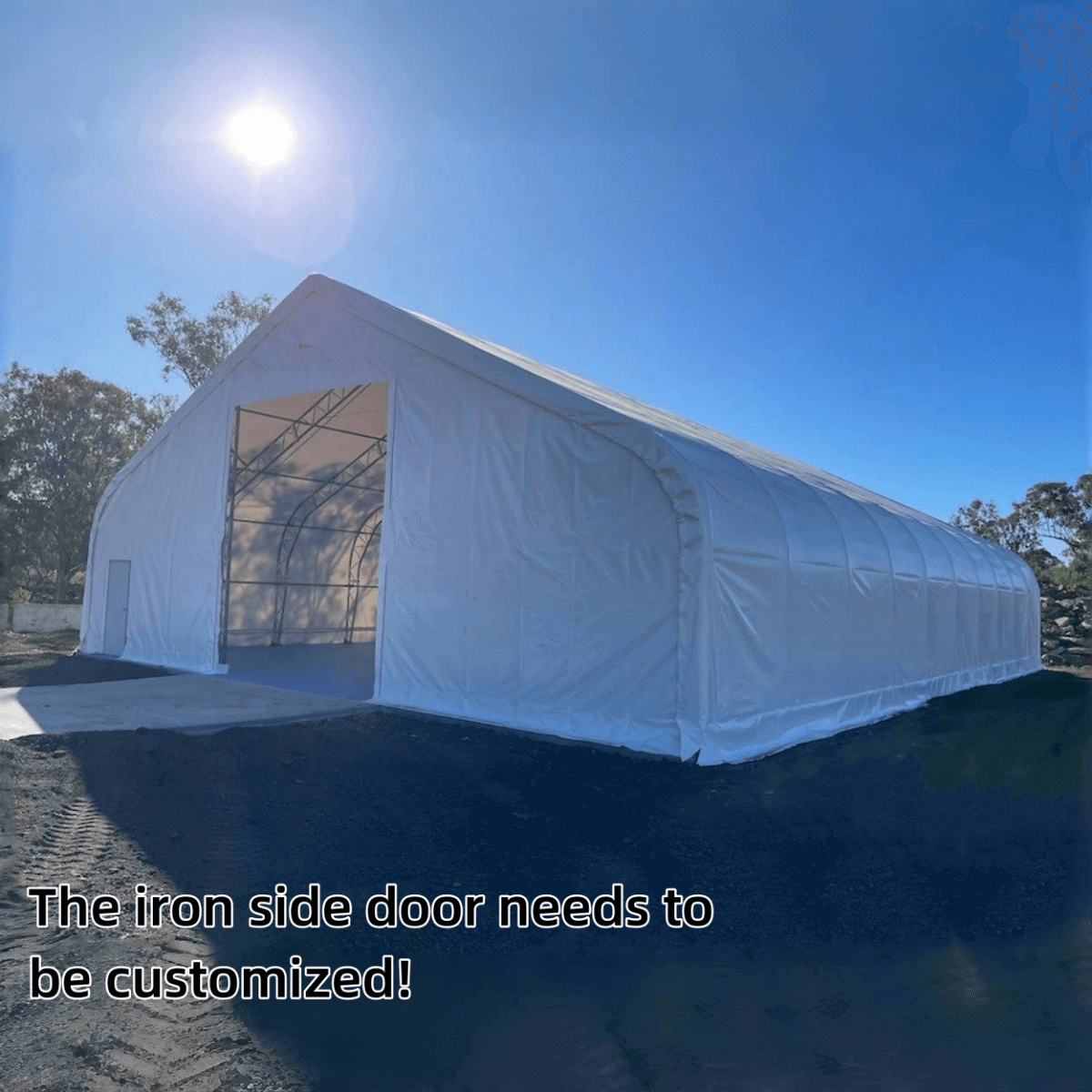

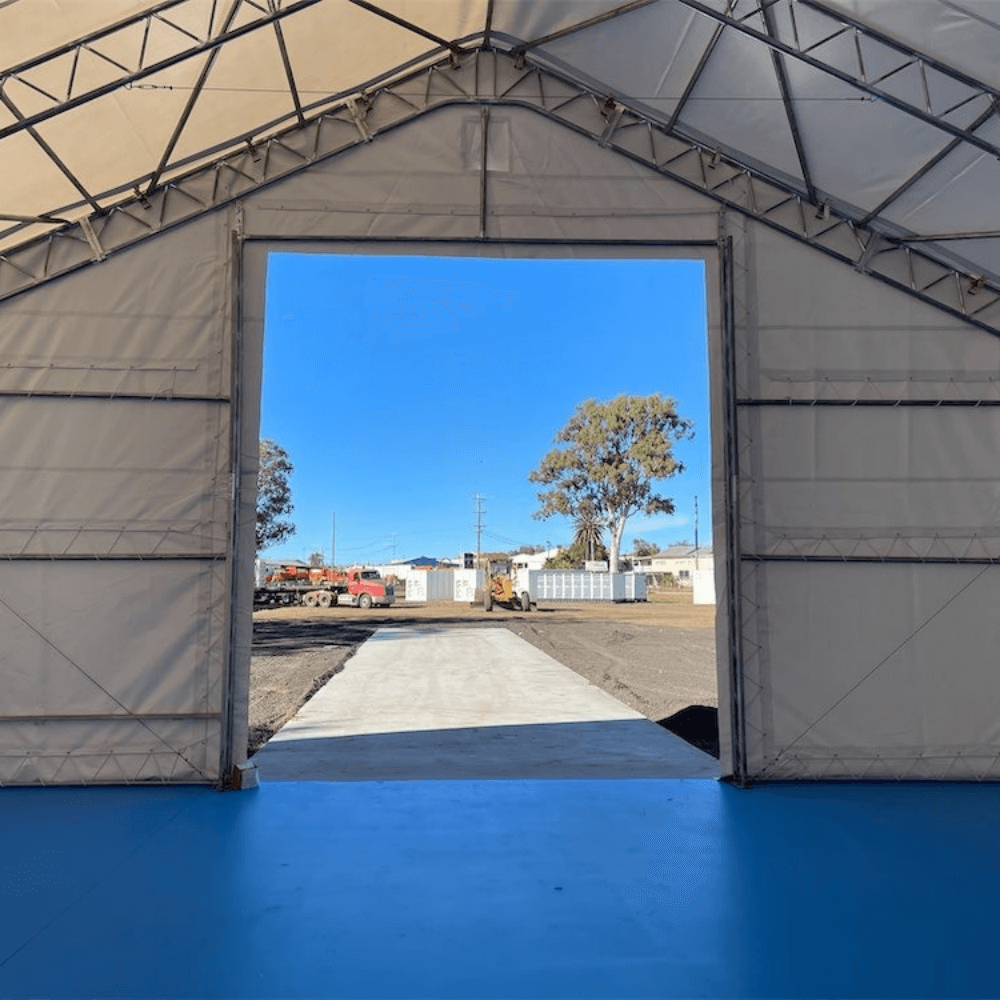

• Easy entry and exit with double doors at both ends.

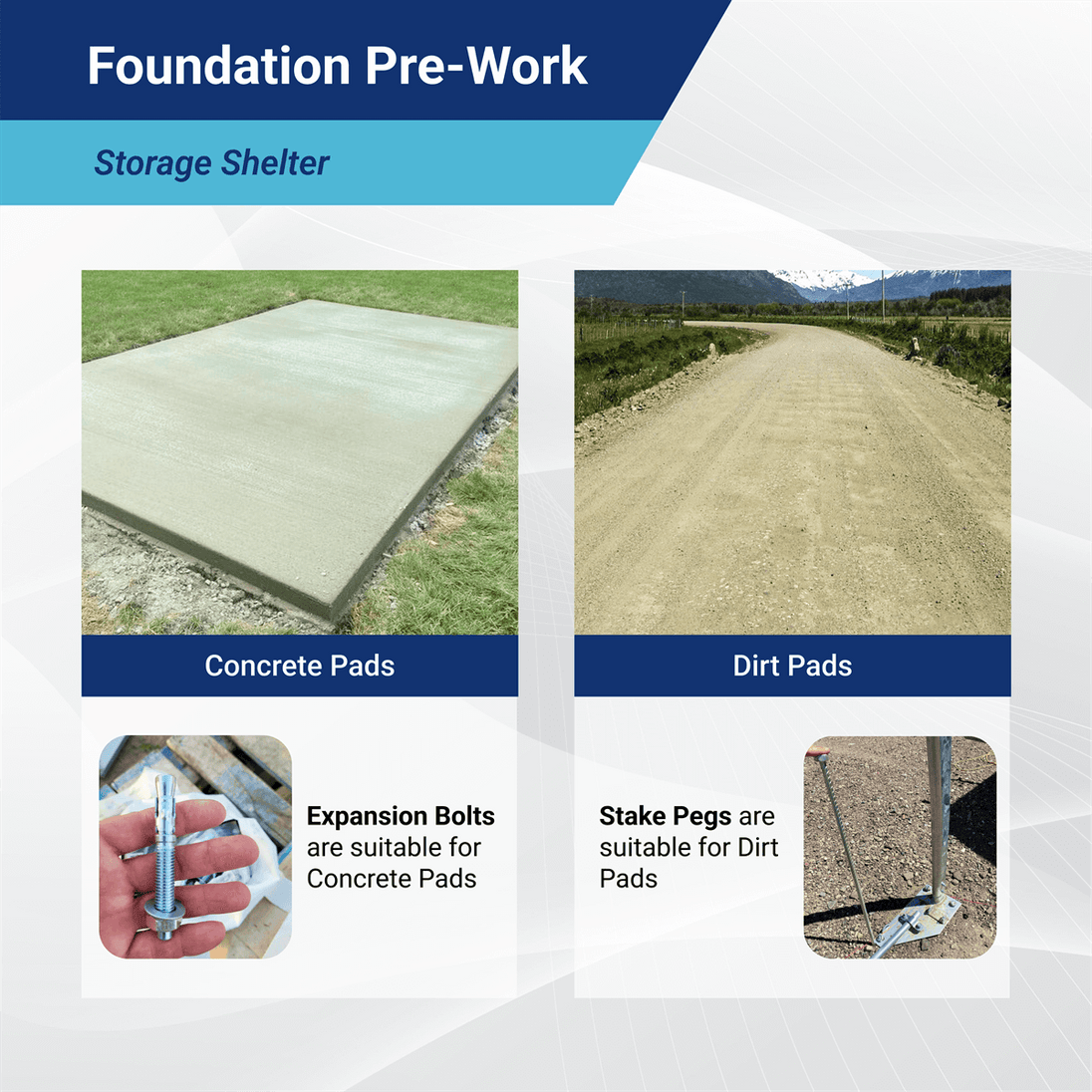

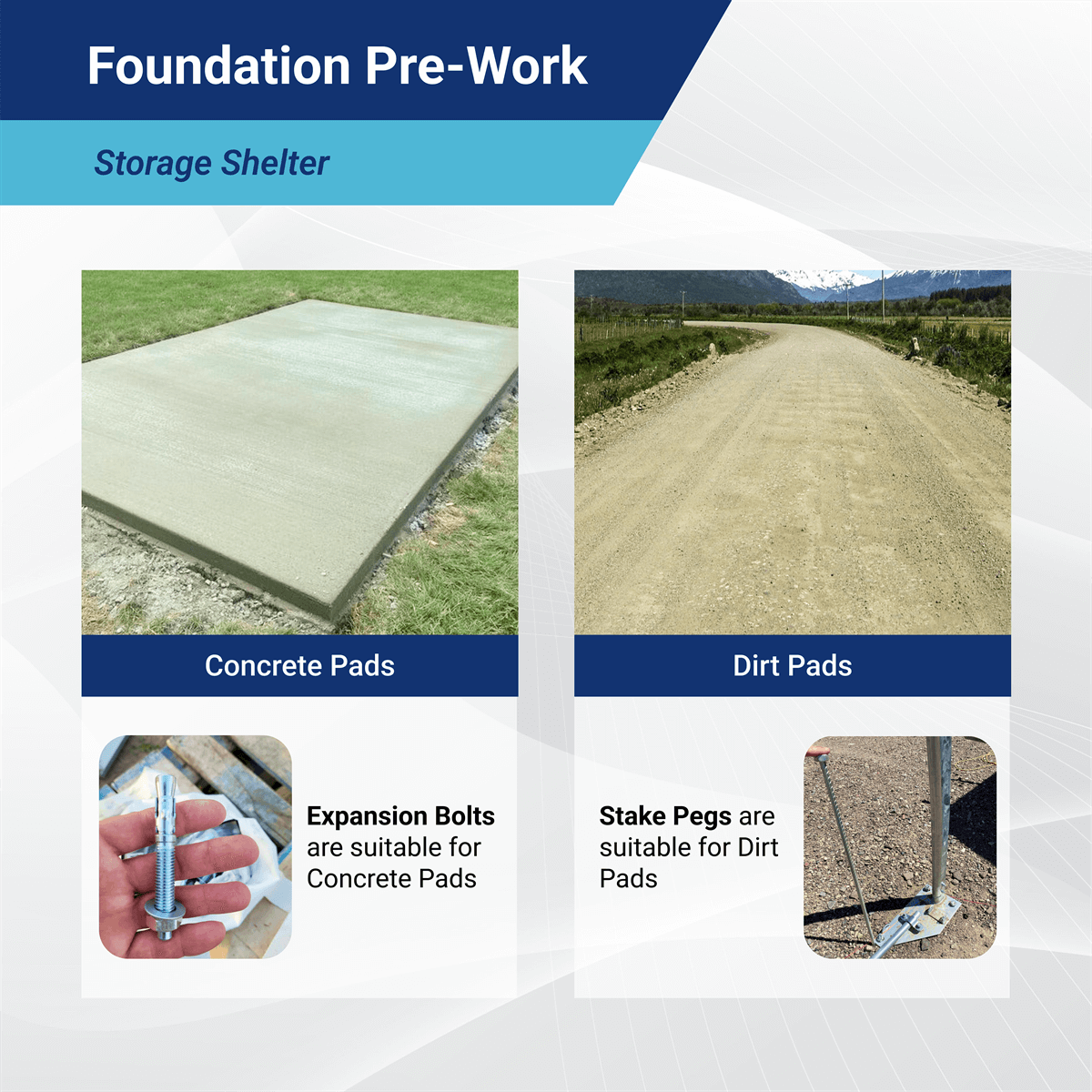

• Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, contact customer service to place an order.

Specifications

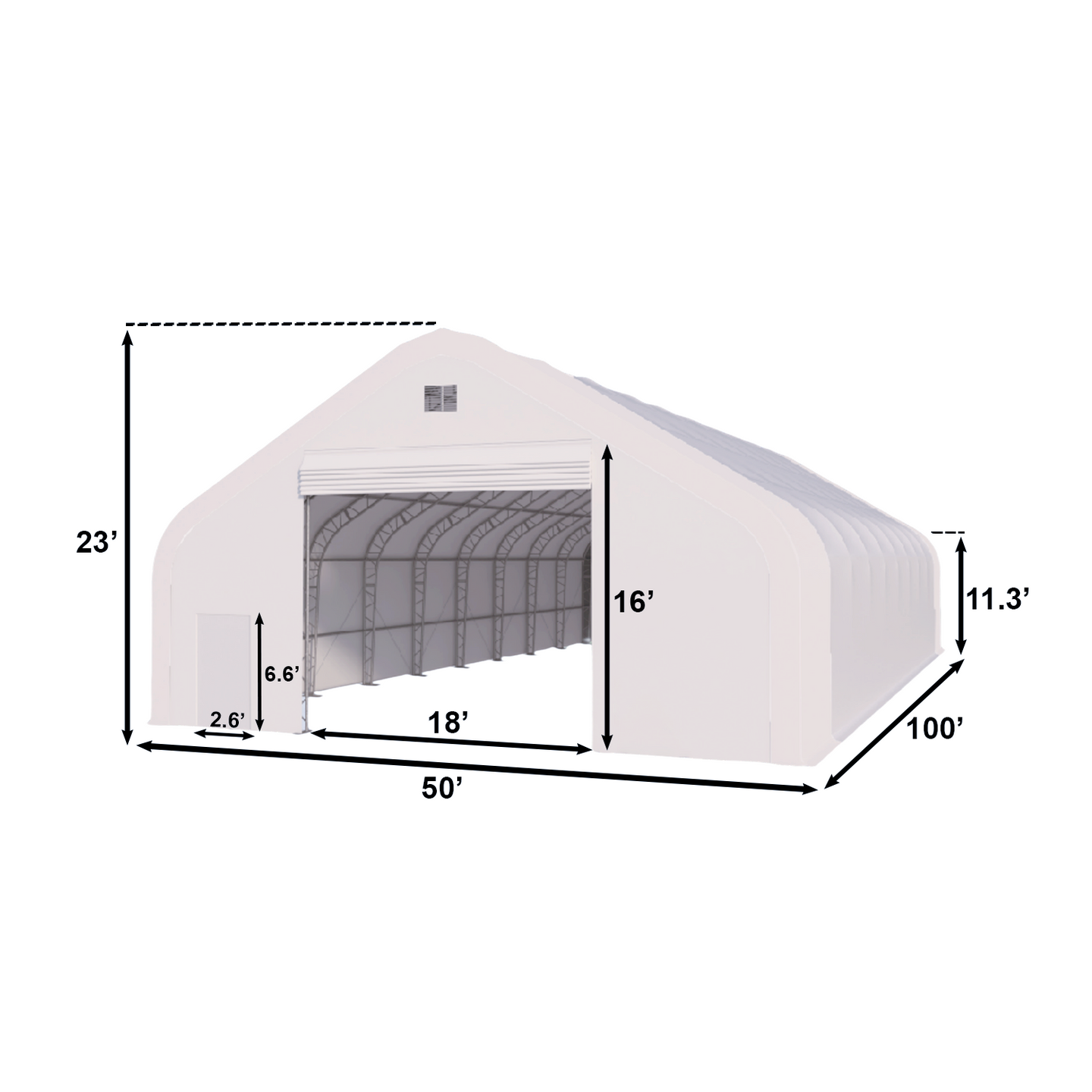

• Dimensions (WxLxH): 50'x100'x23'
• Side-wall Height: 11.3 ft

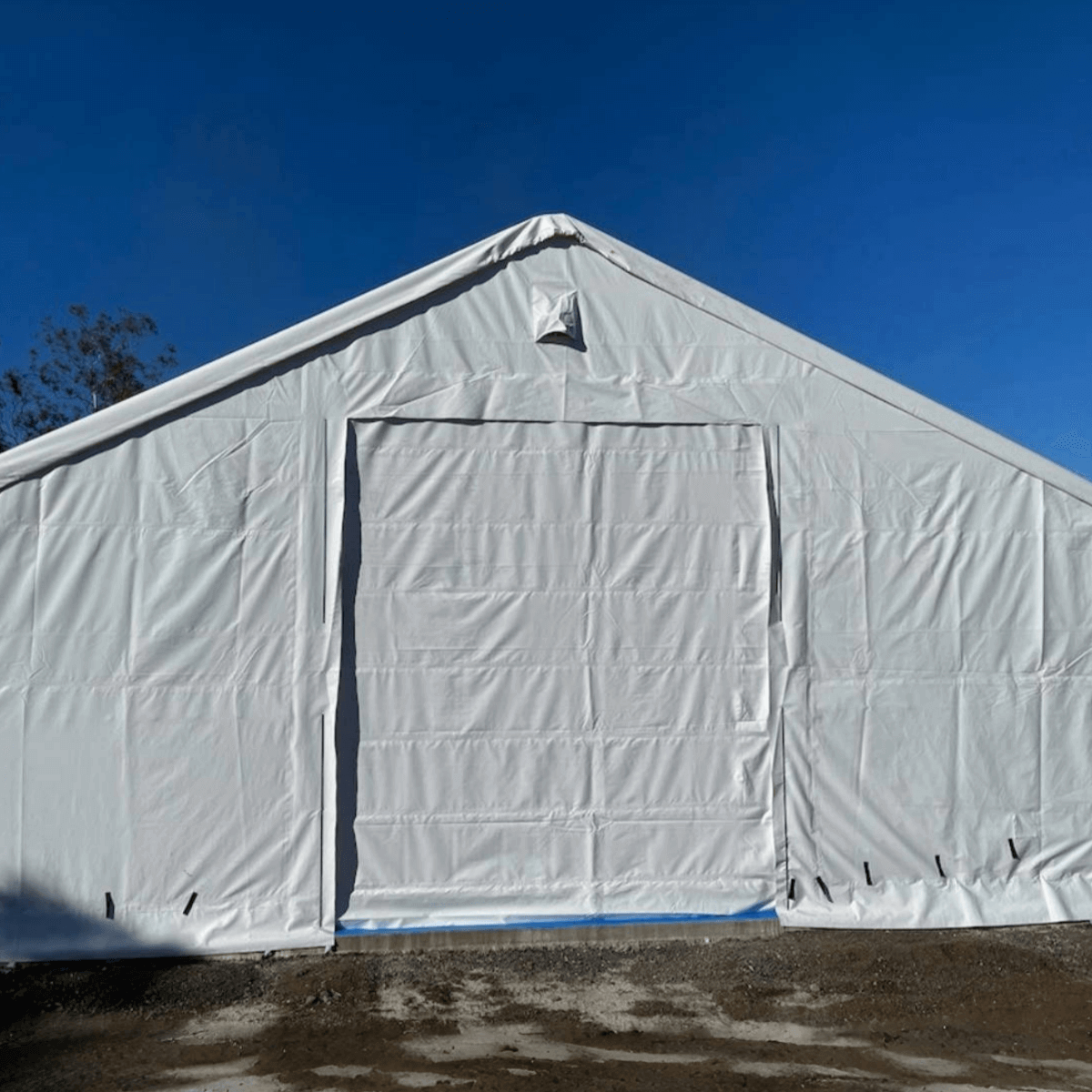

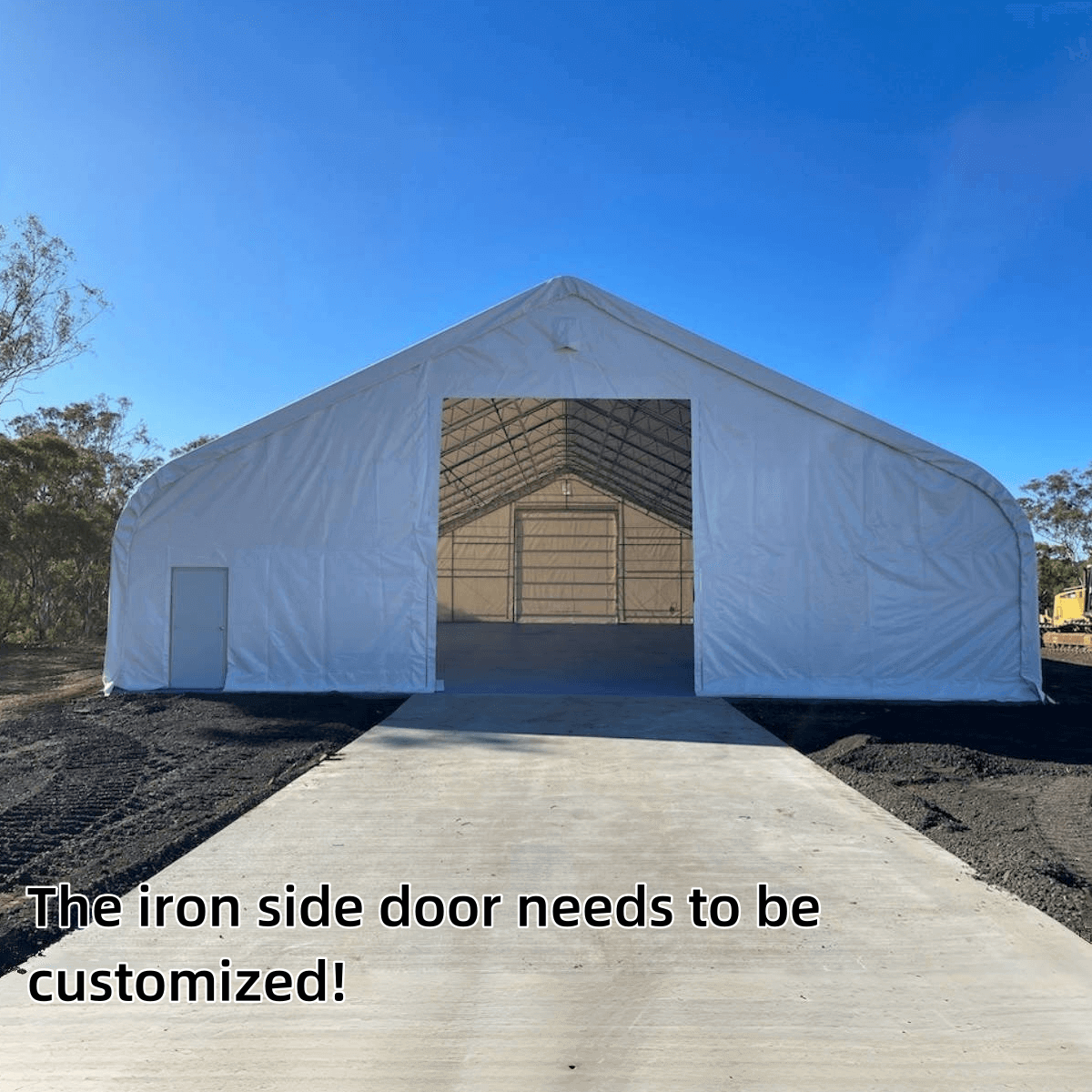

• Door size (Front & Rear): 18'x16'
• Door Type: Mechanical Rollup Door

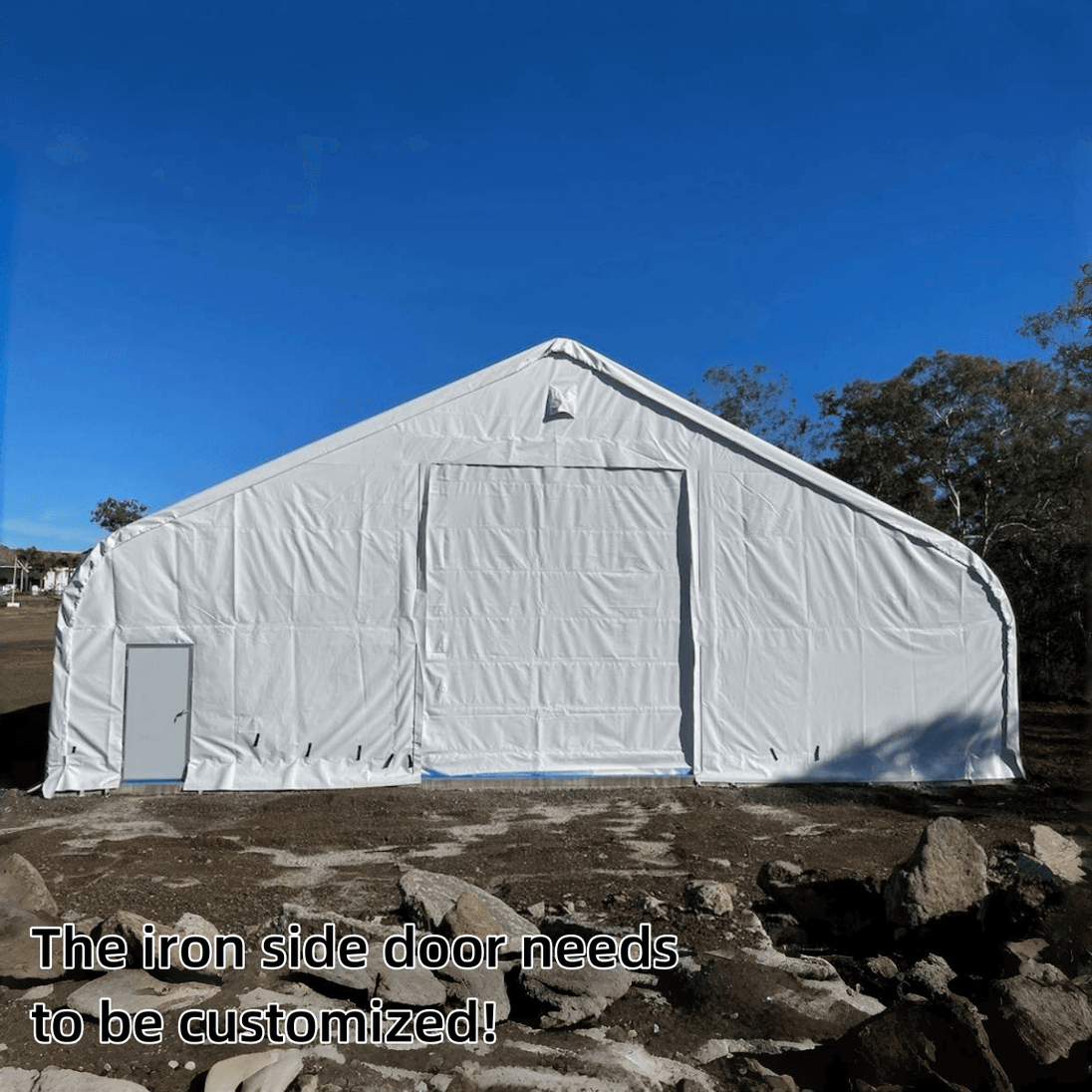

• Man Door (WxH): 2.6'x6.6'

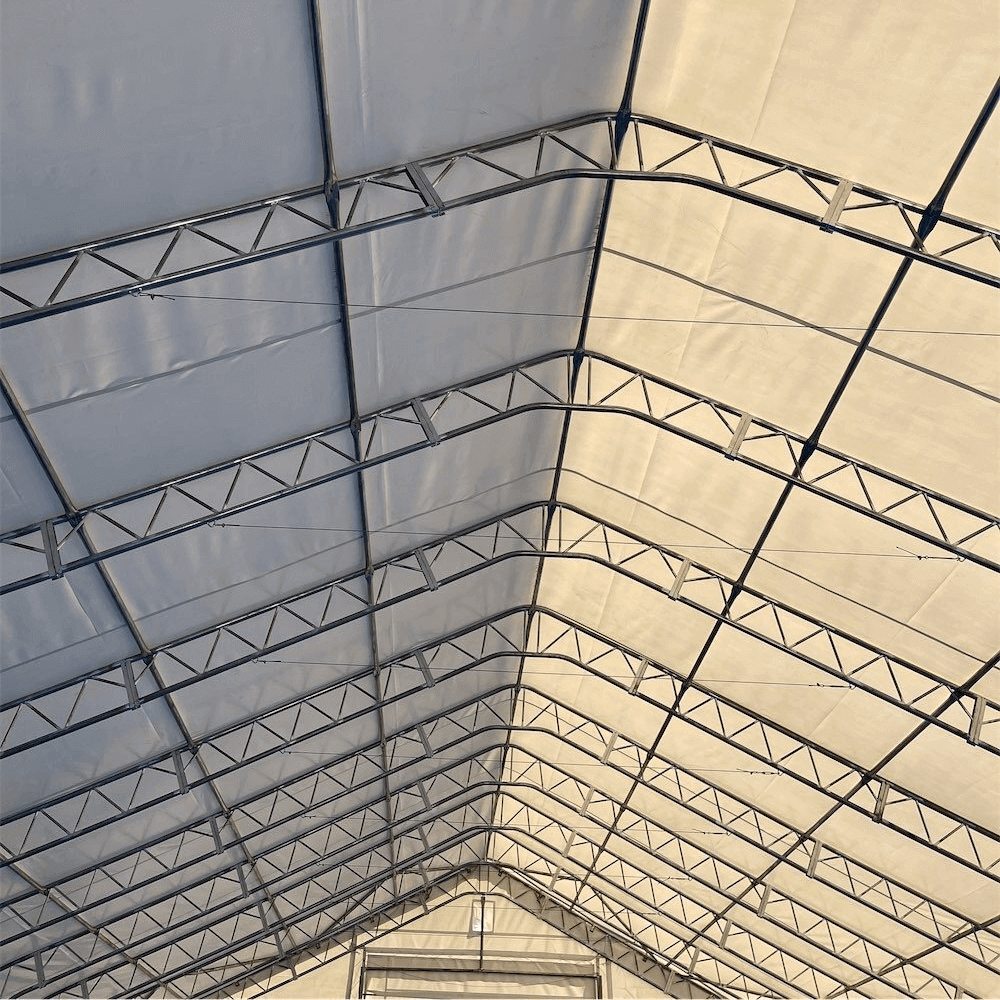

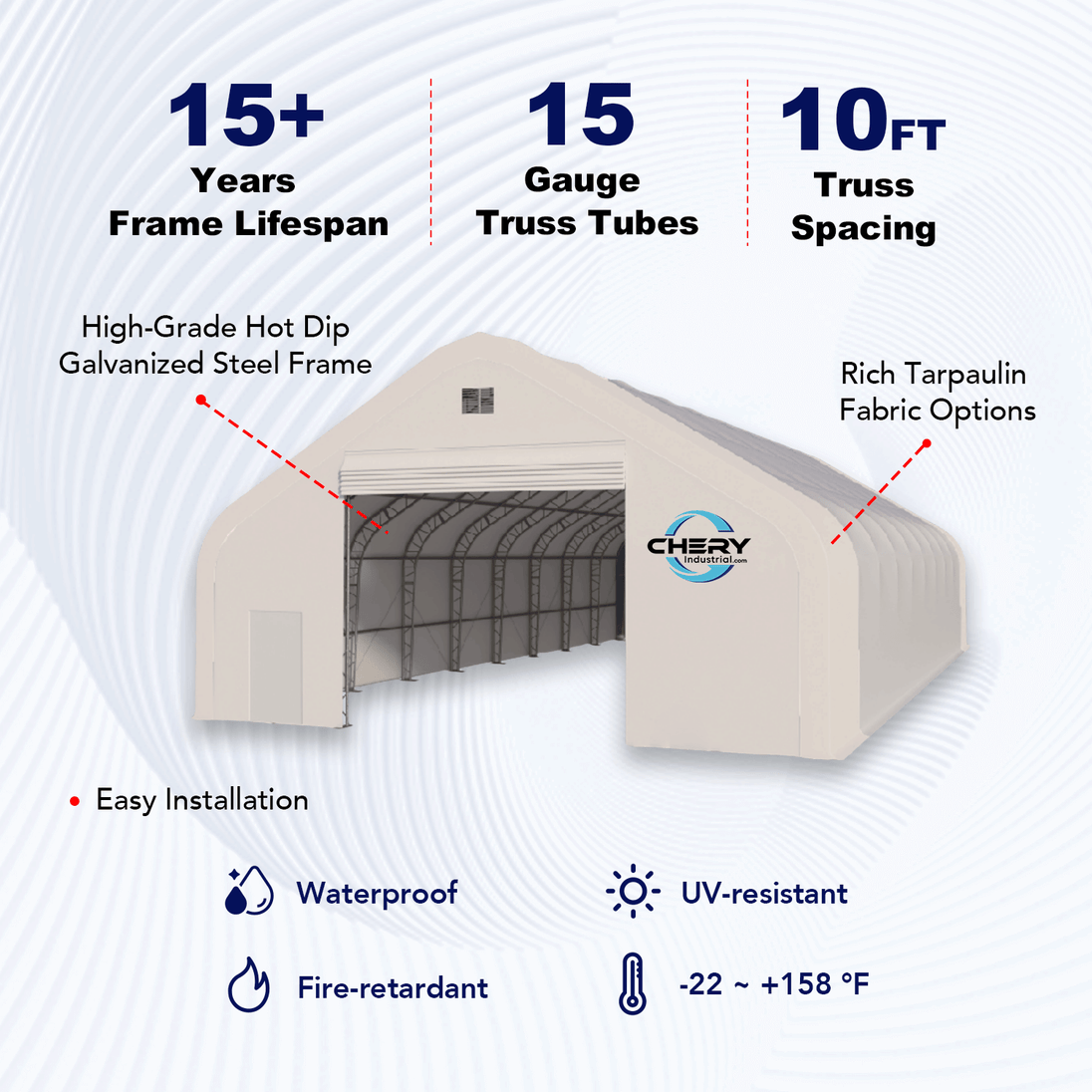

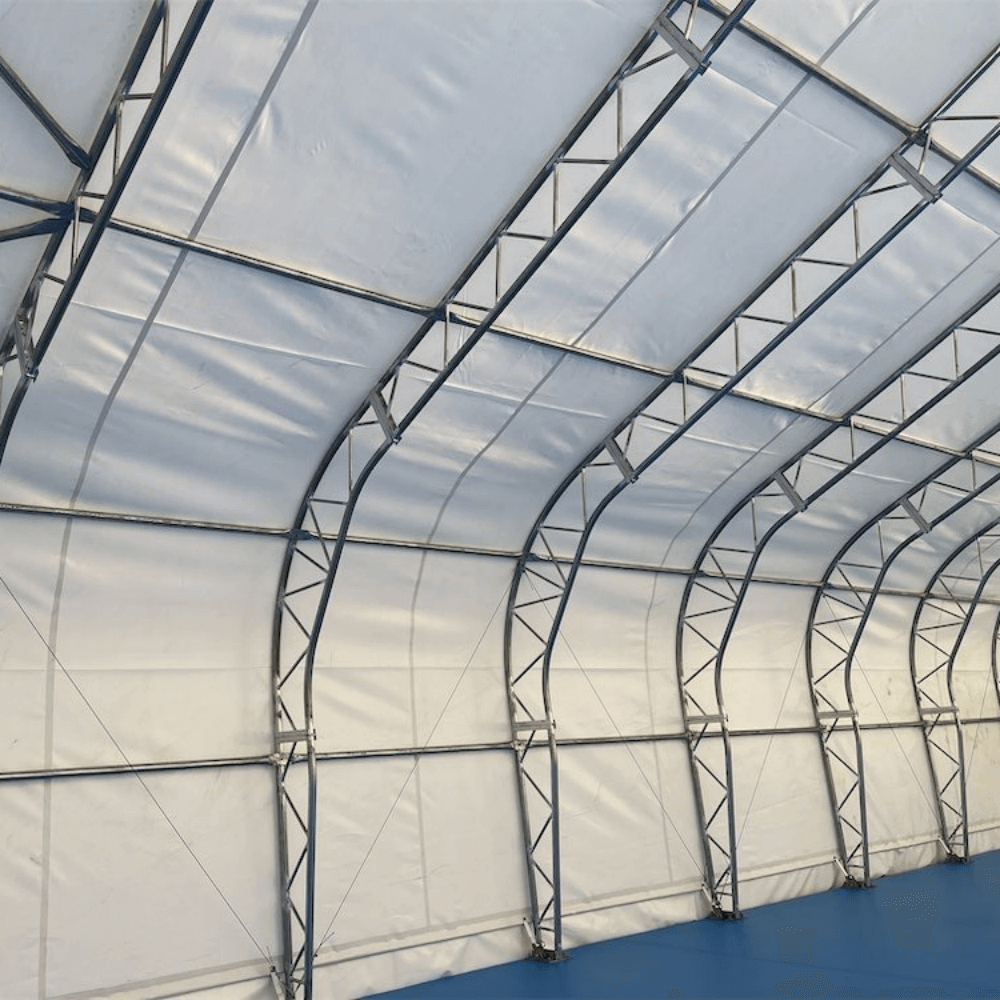

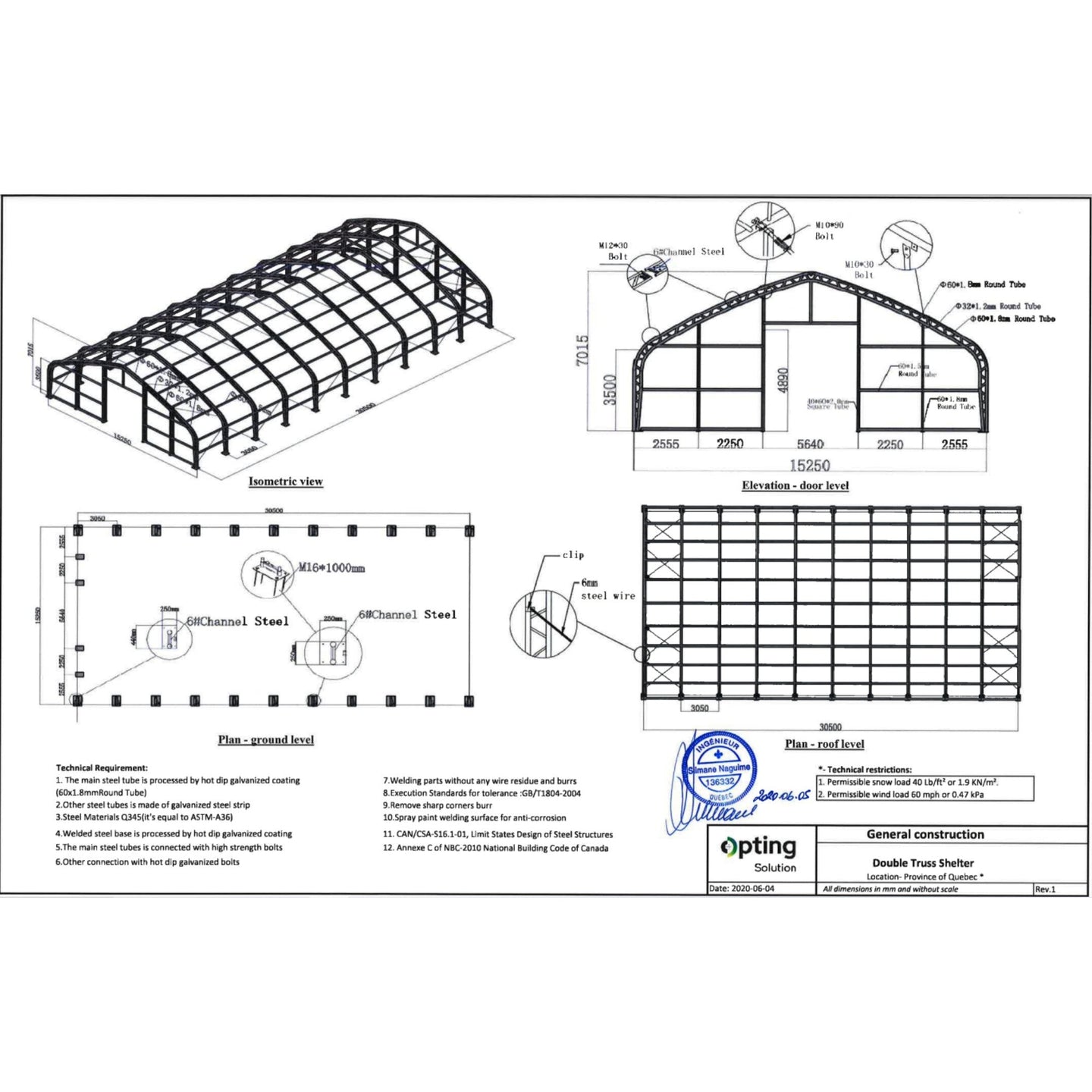

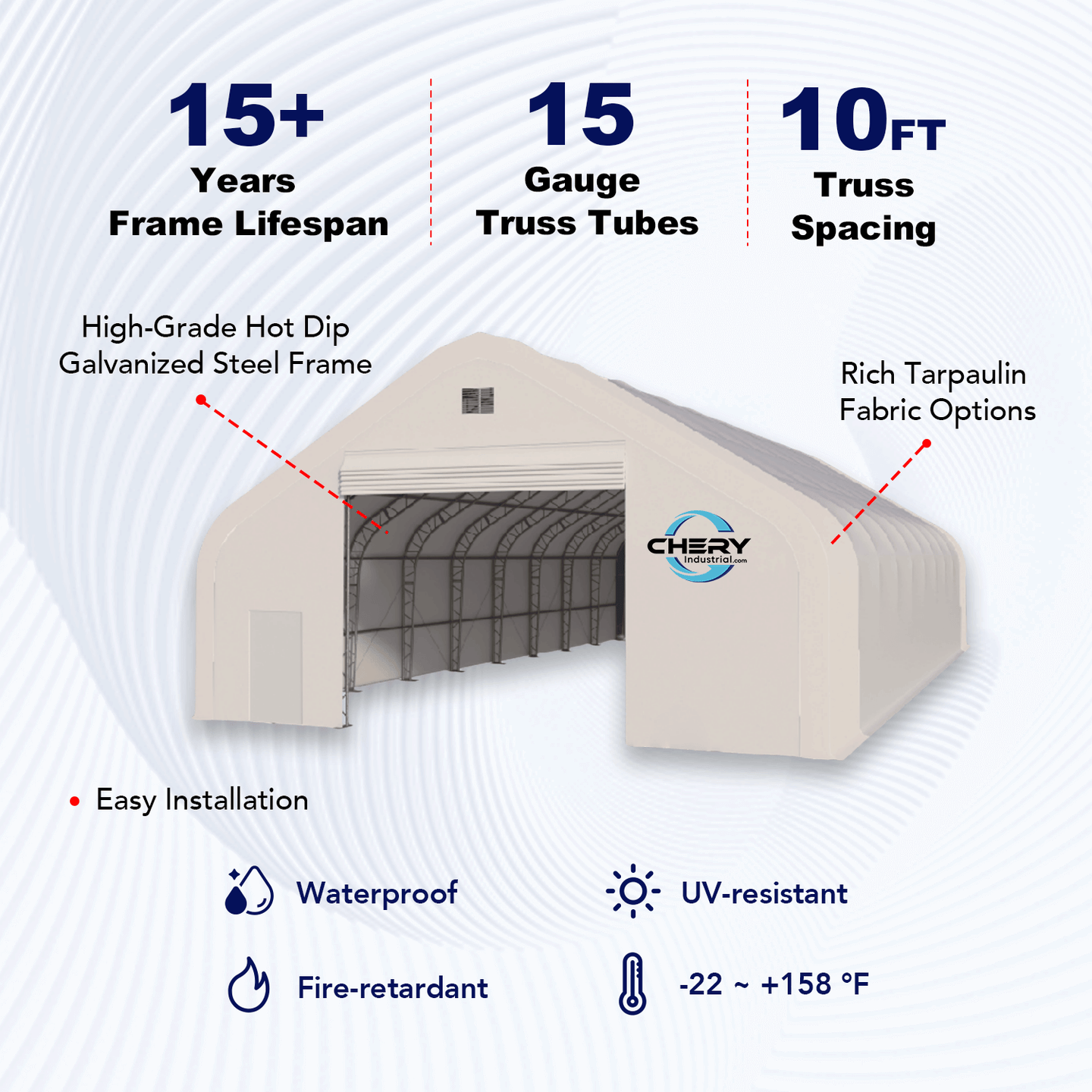

• Frame: Double Truss Galvanized Tube
• Steel Frame: Hot Dip Galvanized Steel
• Truss tube: 15 Gauge
• Tarp Fabric: PE or PVC
• Tarp Color (customizable): White with Green/Red Edge
• Temperature resistance: -22 to +158 F
• Arch Ø: ?60x1.8mm
• Purlin Ø: ?60x1.5mm
• Arch Spacing: 10 ft
• Number of Arch: 11

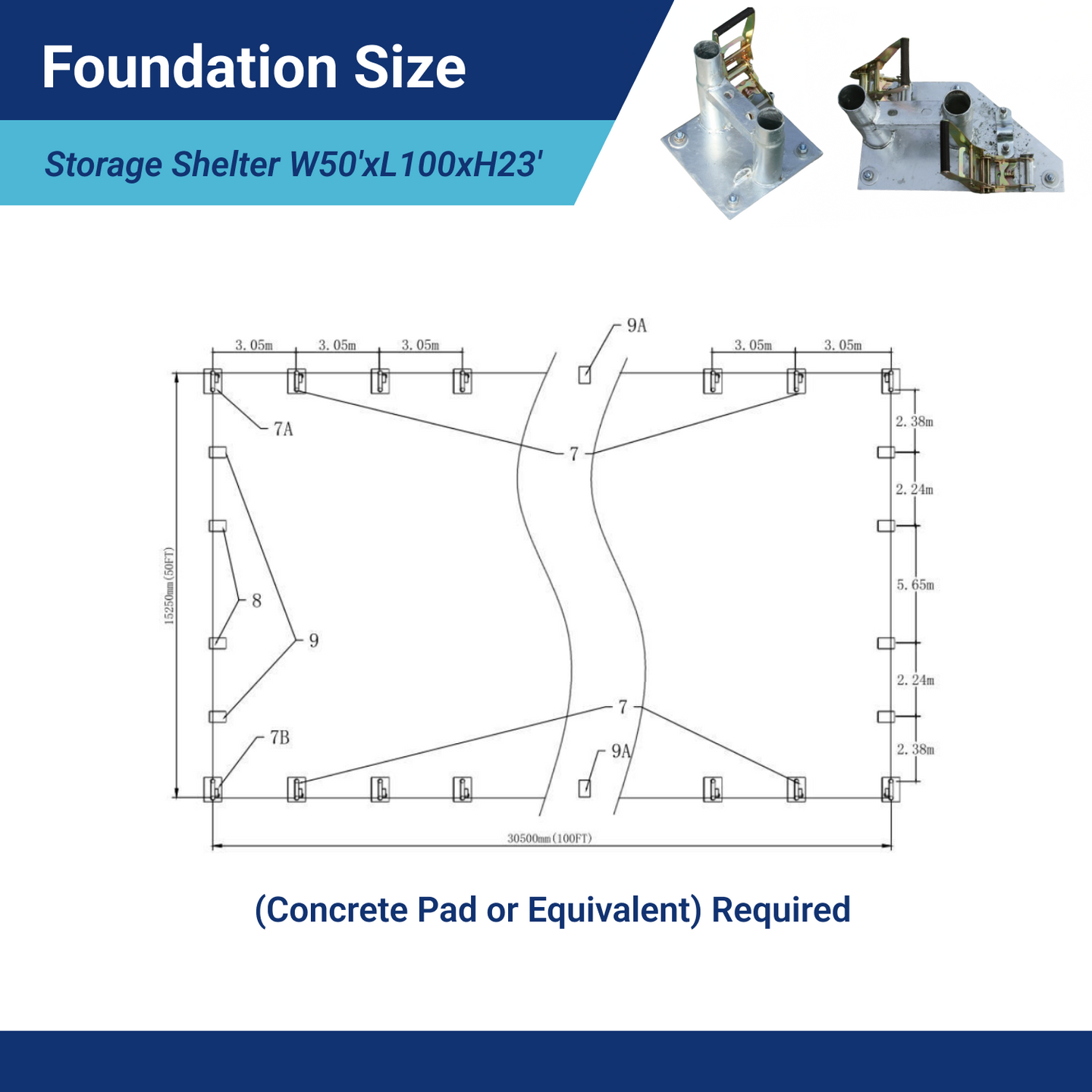

• Number of Anchor plates: 22
• Tension System: Pipe and Ratchet Tie-Down System
• Average assembly time for DIY with 4 persons: 5 Days

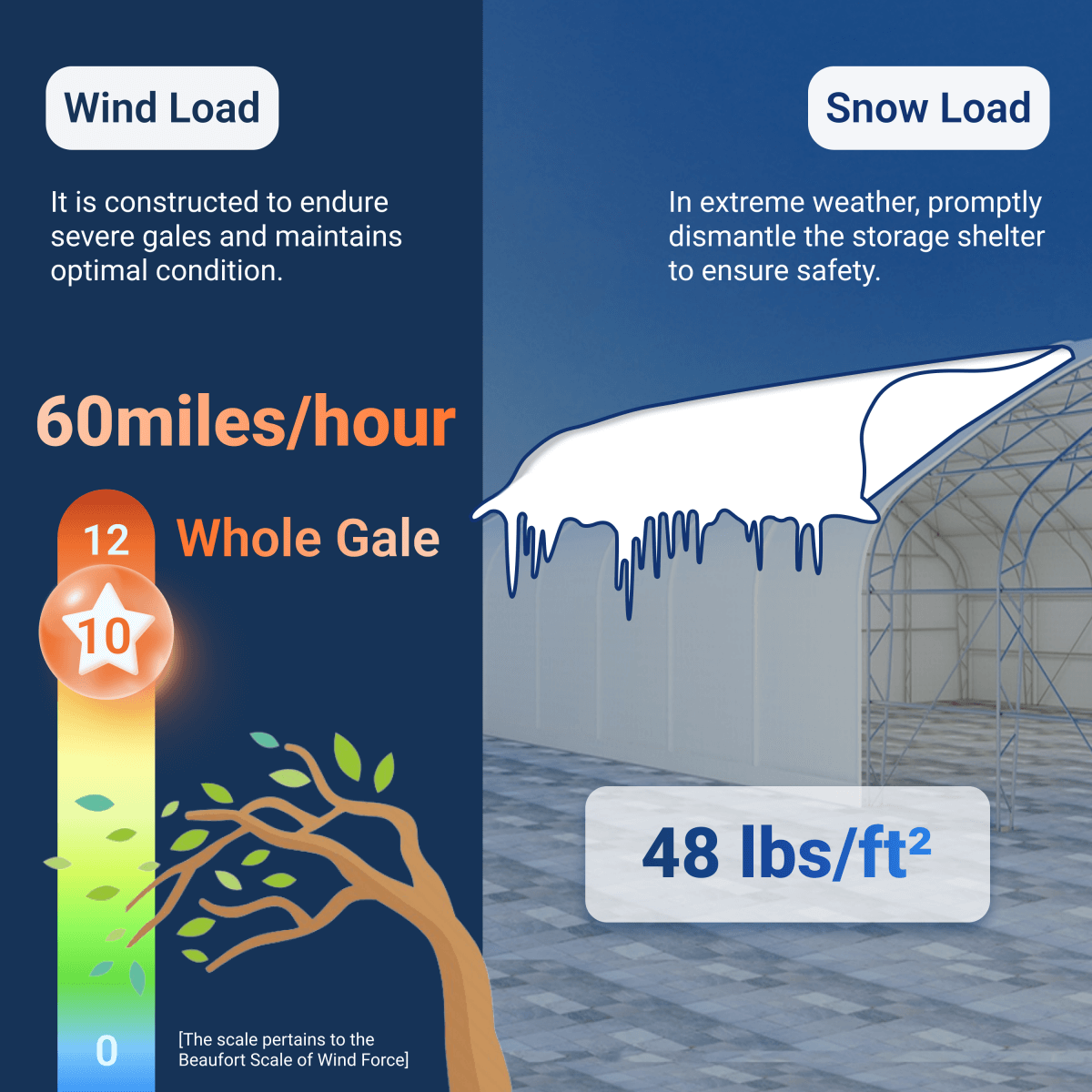

• Snow Load: 48 lbs/ft²
• Wind Load: 60 mph
• Tarp lifespan: 7-10 years
• Frame lifespan: 15+ Years
• Warranty: PE: 2 Years; PVC: 8 Years
• Fabric (Optional):
  • Economical: 11oz/m² (300 gsm) PE Tarpaulin
  • Heavy Duty: 16oz/m² (450 gsm) PVC Tarpaulin
  • Heavy Duty: 23oz/m² (650 gsm) PVC Tarpaulin
  • Heavy Duty: 26oz/m² (750 gsm) PVC Tarpaulin
  • Heavy Duty: 32oz/m² (900 gsm) PVC Tarpaulin
  • Please contact us to order.
• Country of Origin: China
