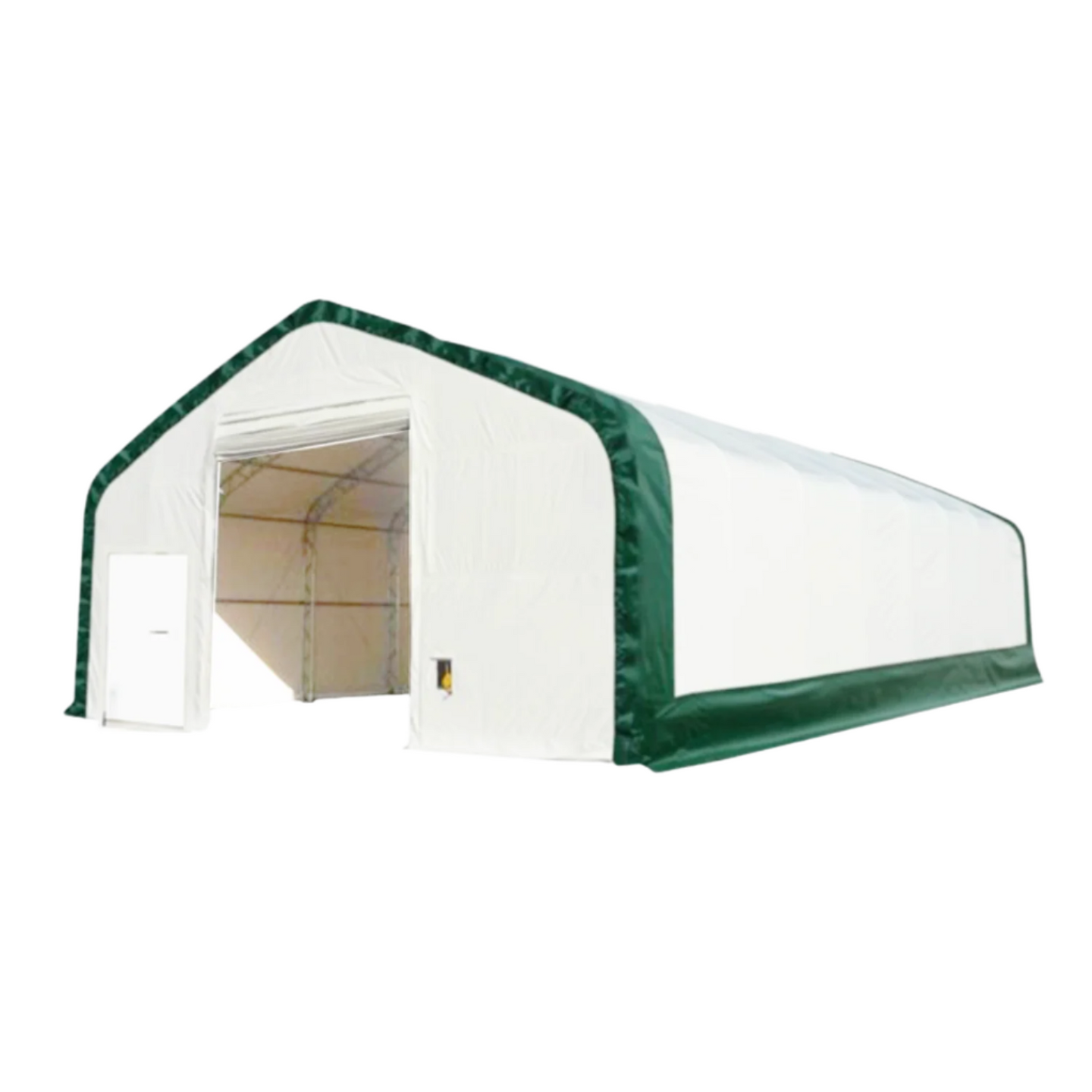

Gold Mountain Storage Shelter W40'xL80'xH23' - Double Truss PVC Cover

Overview

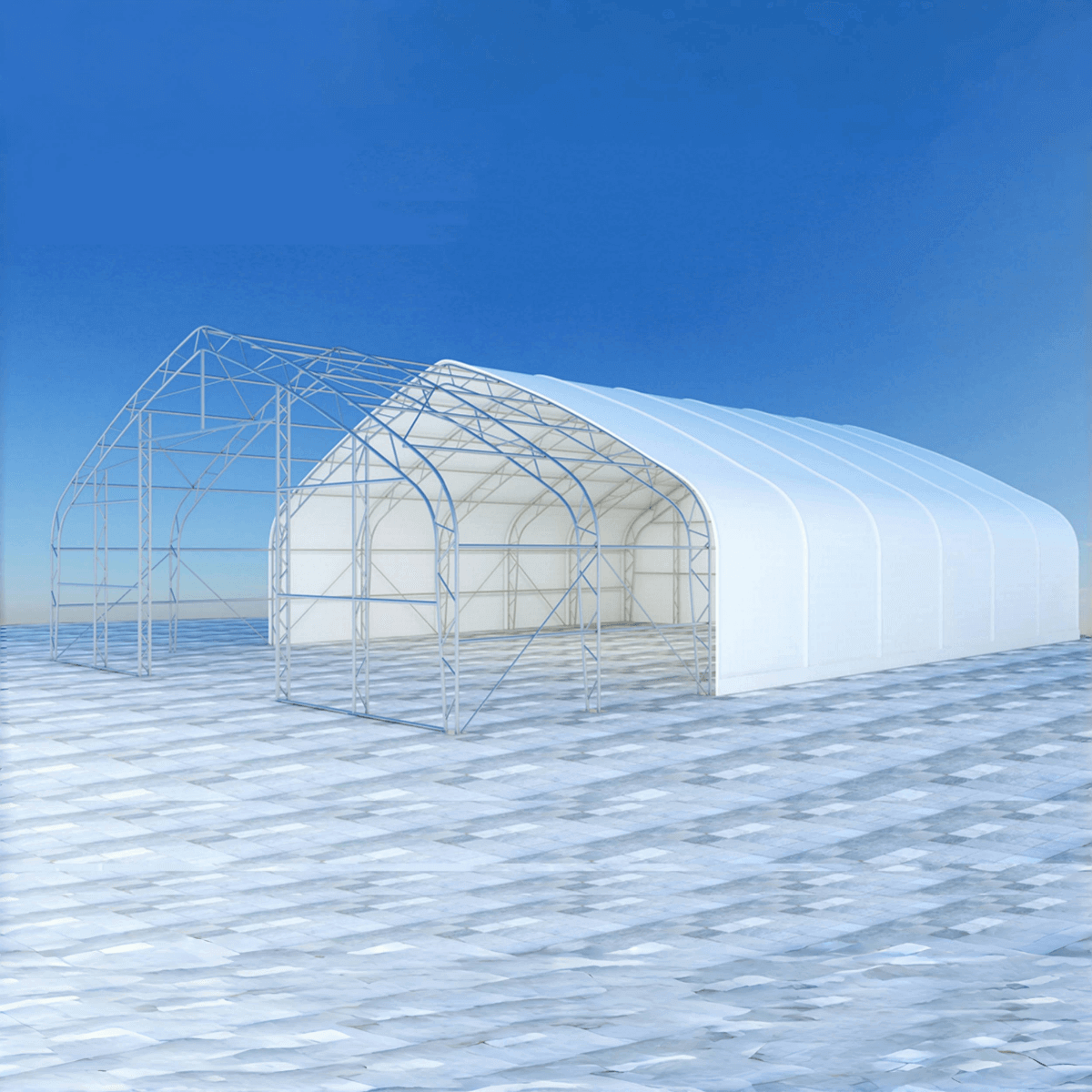

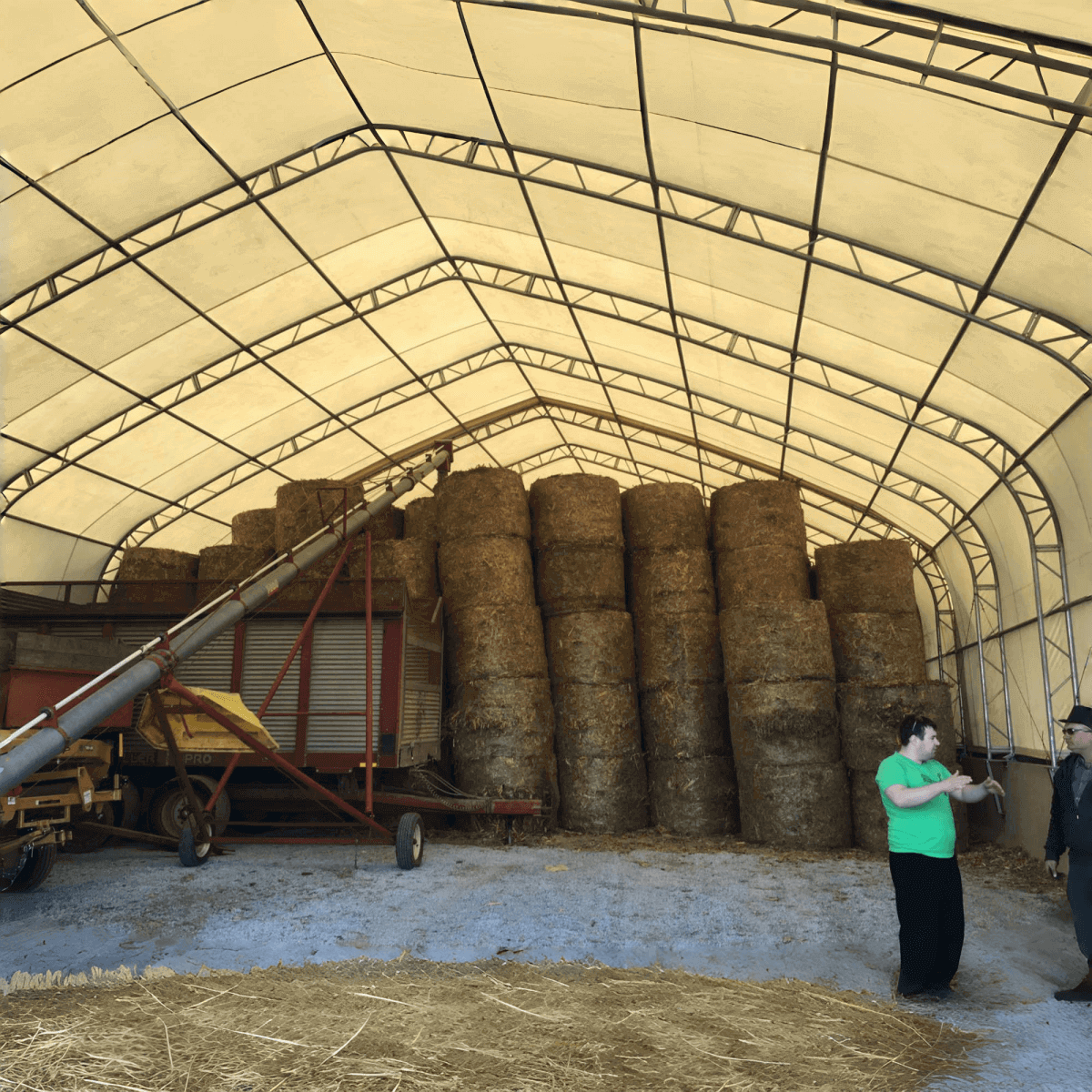

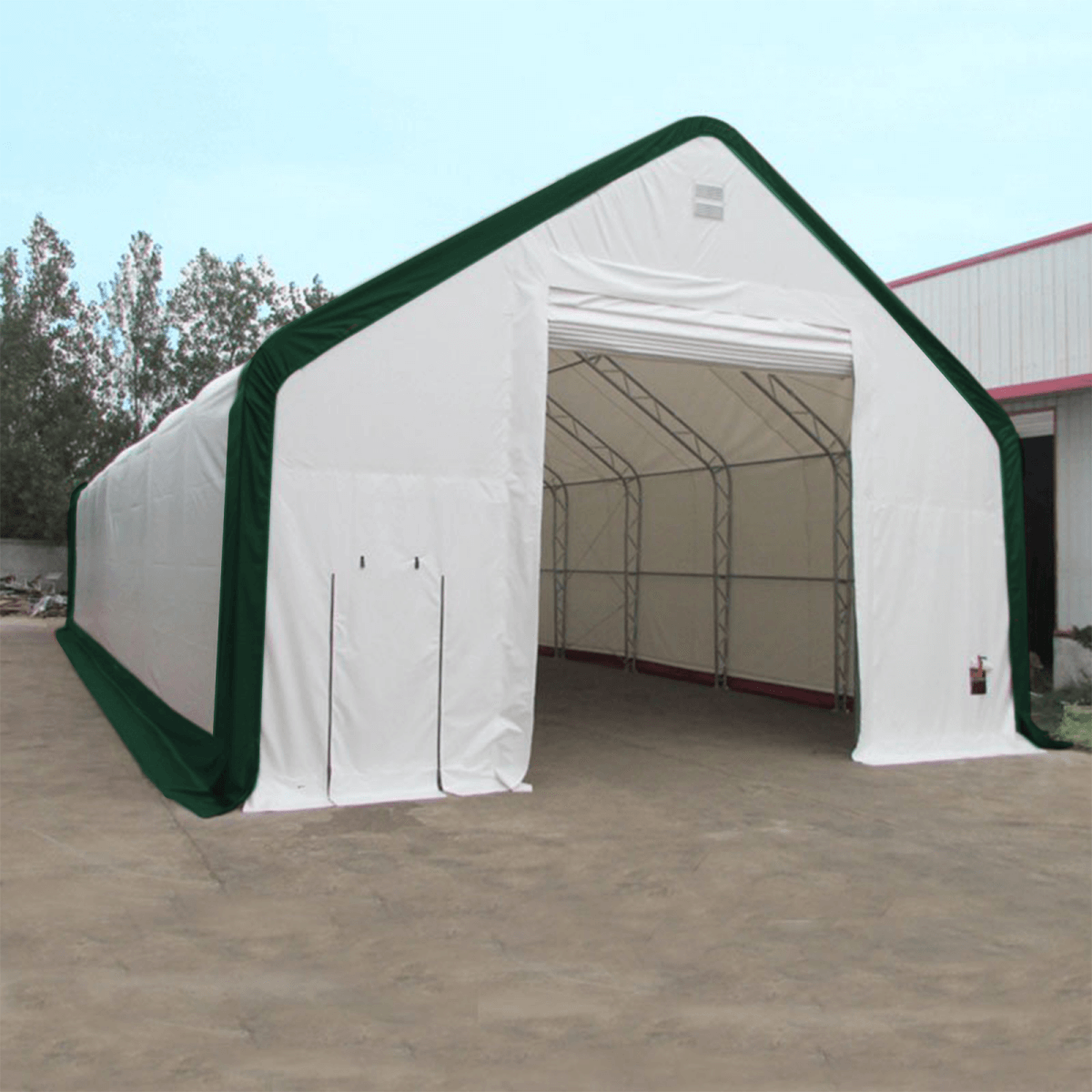

The Gold Mountain Storage Shelter W40'xL80'xH23' with a double-truss PVC cover is a versatile shelter for agriculture, farms, vehicle storage, events, and more. Its steel frame handles up to 50 mph winds, sun, heavy snow, and tough weather. It's ideal for cars, boats, RVs, buses, helicopters, equipment, and supplies. It offers peak or dome designs for snow removal and extra space. The PVC fabric lasts longer than PE and resists weather effects for a long lifespan.

Benefits

• No building permits required.
• Easy to set up and install.
• Portable for moving to new locations.
• Two large doors for easy entry and exit.
• Fabric blocks UV radiation and provides natural light.
• Galvanized steel frame helps resist harsh weather.

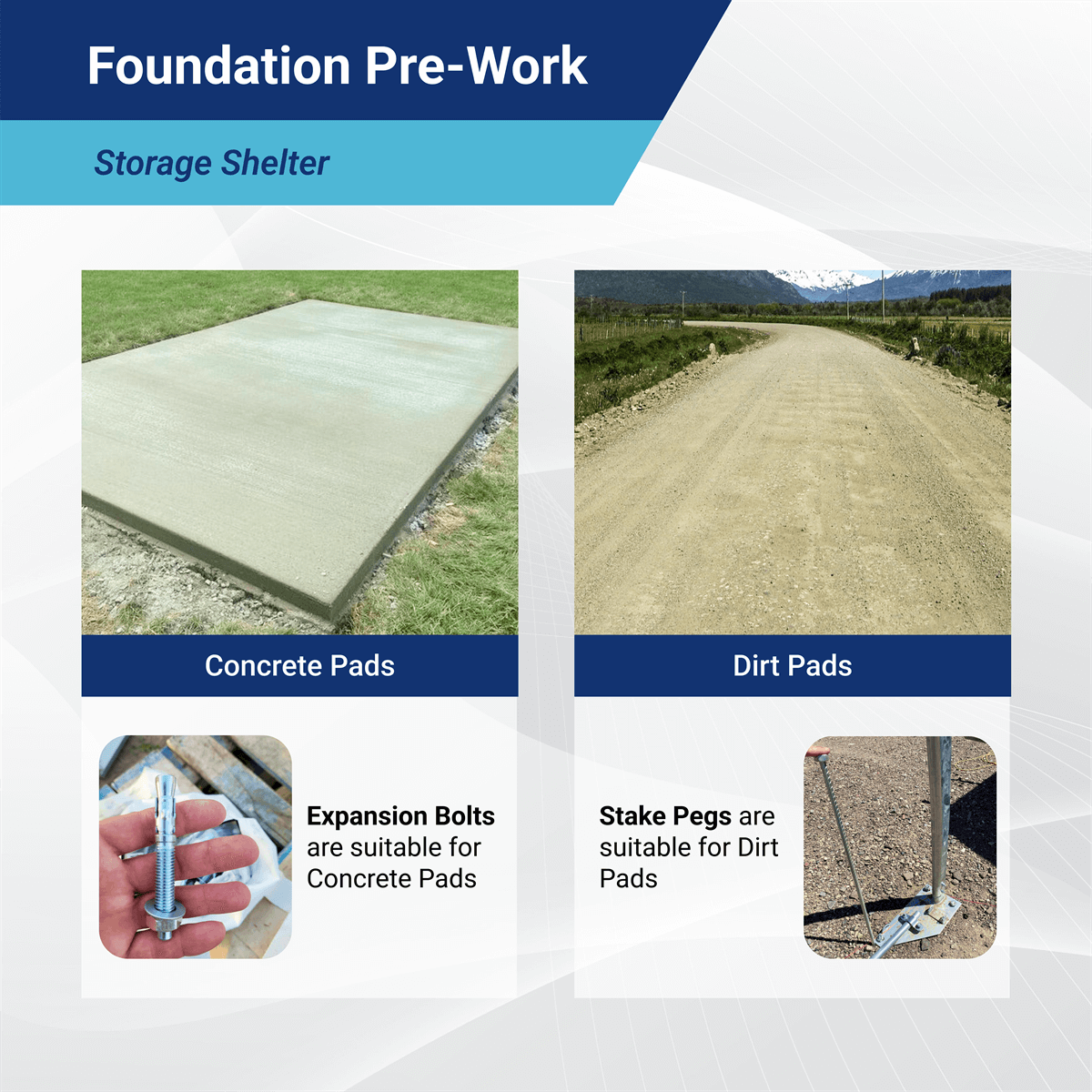

• Stake pegs are replaced by expansion bolts. If you need stake pegs, contact customer service to place an order.

Features

• No building permits required.
• Easy to set up and install.
• Portable for moving to new locations.
• Two large doors allow entry and exit more easily.
• Fabric cover blocks UV radiation and provides natural light.
• A galvanized steel frame helps the shelter to resist severe weather conditions.
• Suitable for several purposes.

Specifications

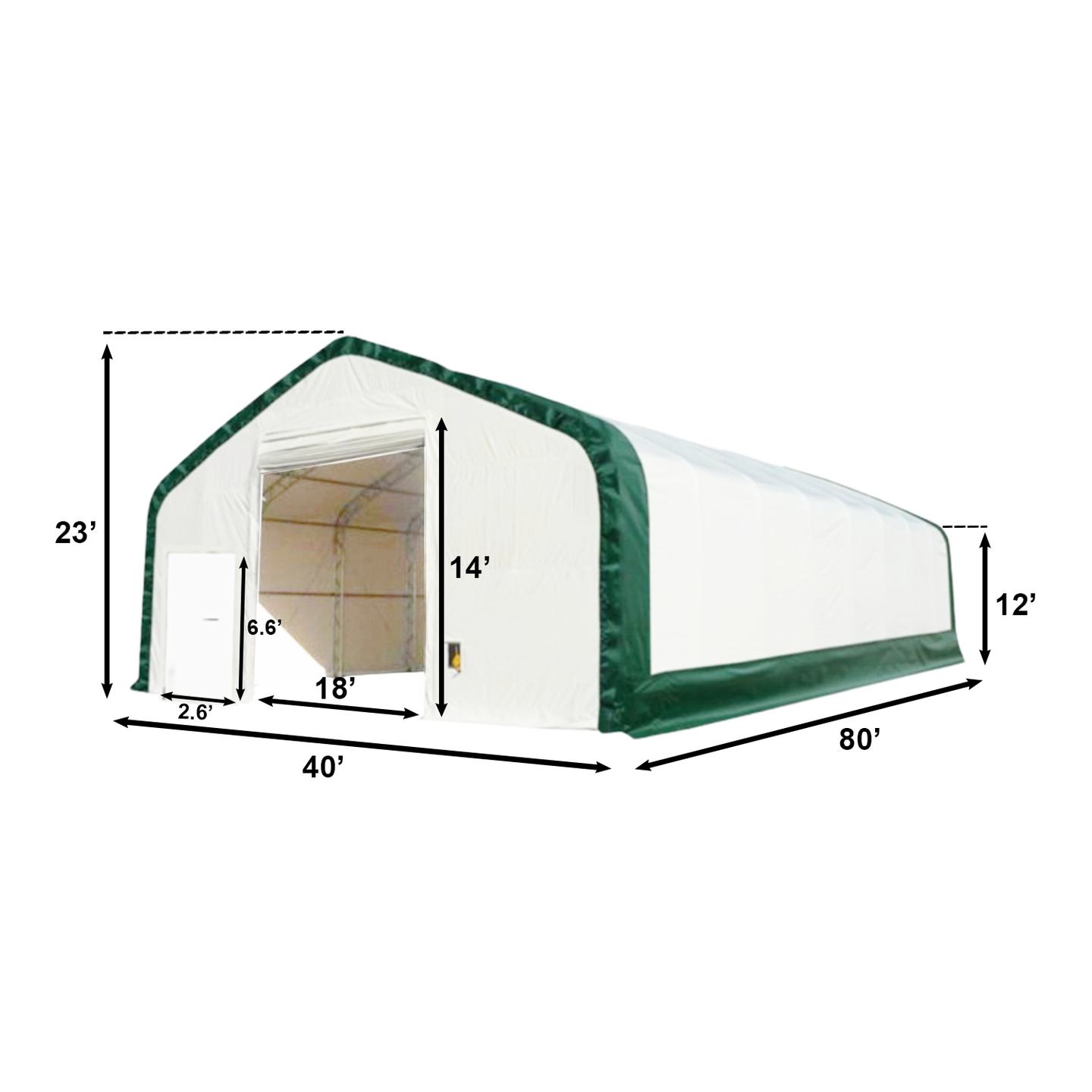

• Dimensions (WxLxH): 40'x80'x23'
• Side-wall height: 12 ft

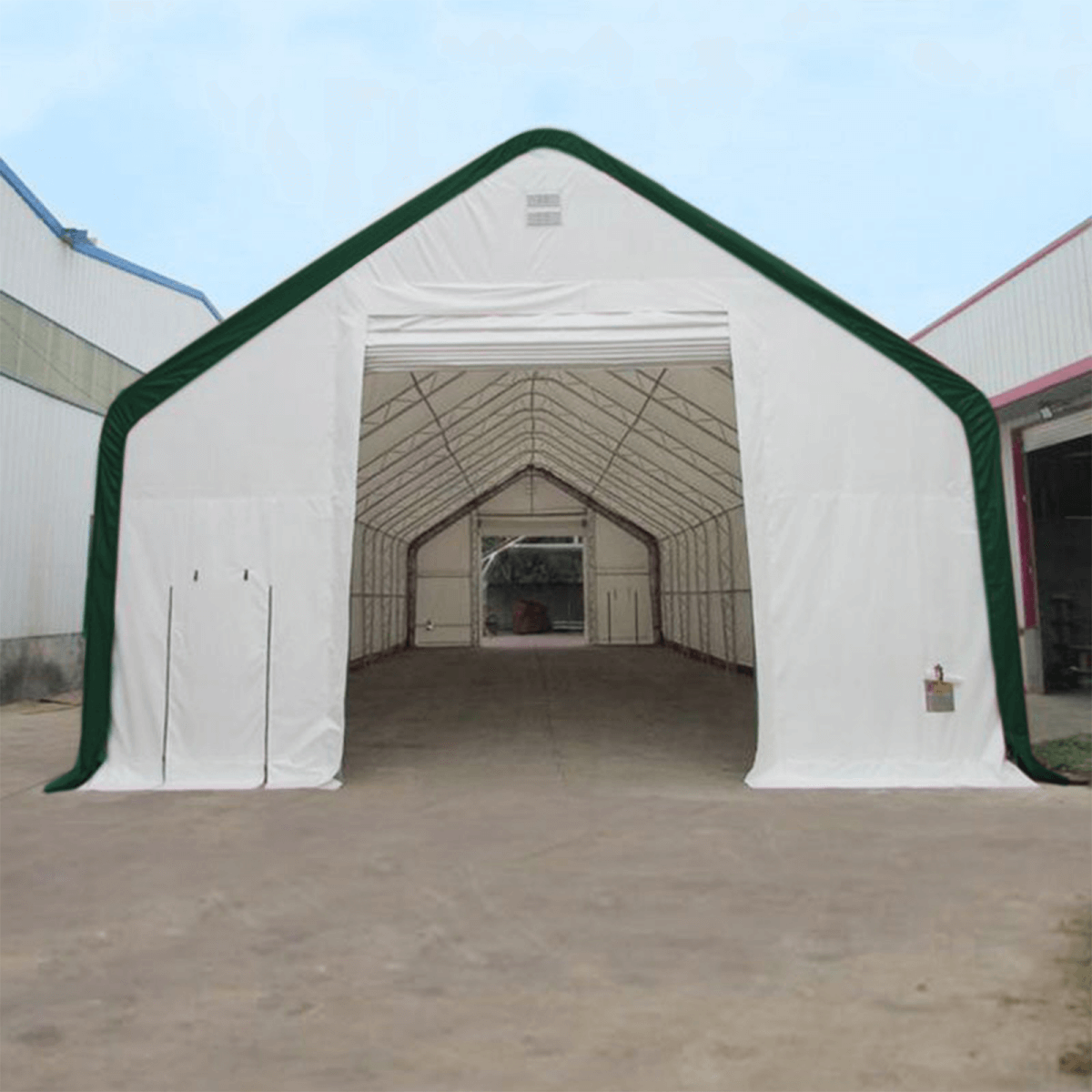

• Door size (WxH) (Front & Rear): 18'x14'

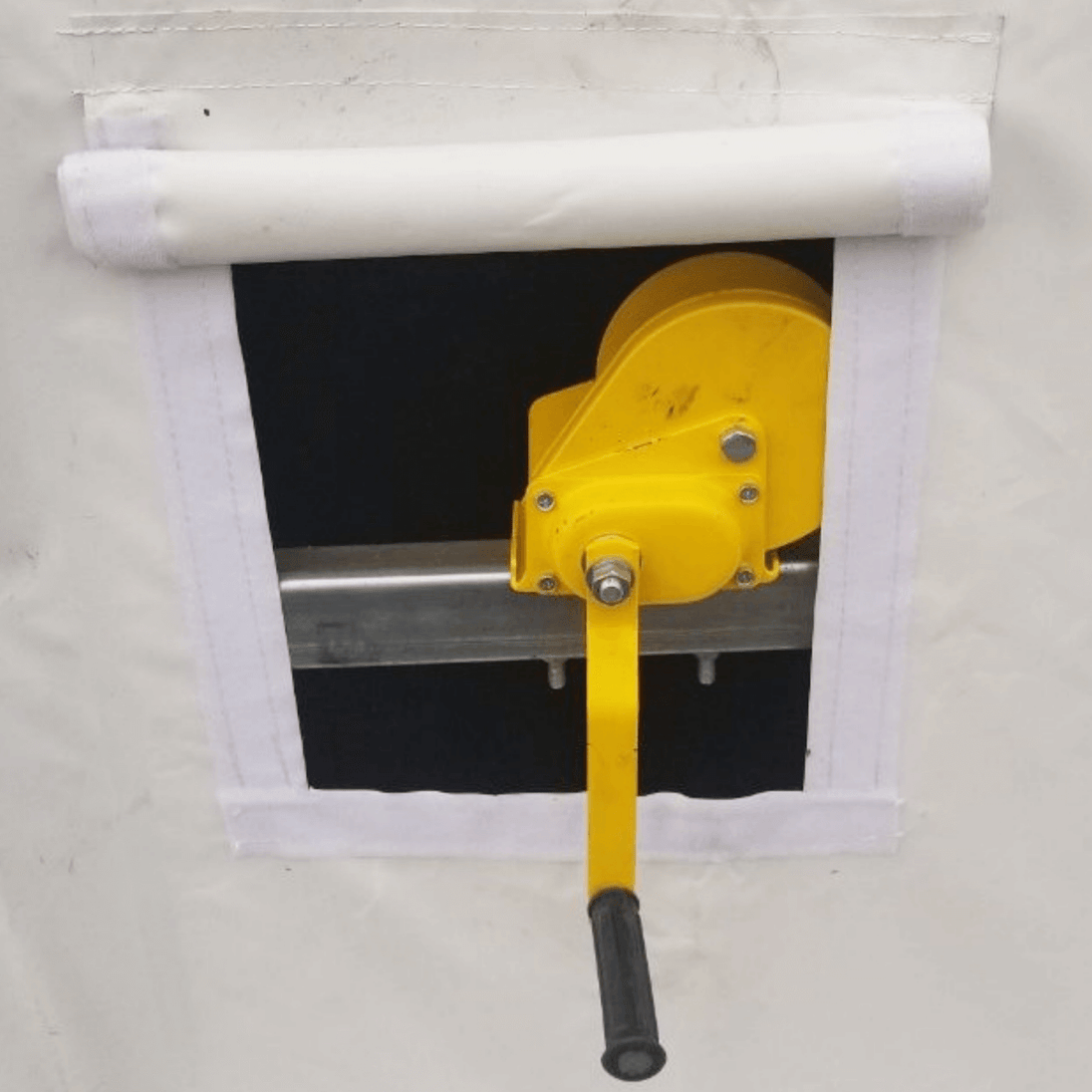

• Door type: Mechanical Rollup Door
• Man door (WxH): 2.6'x6.6'

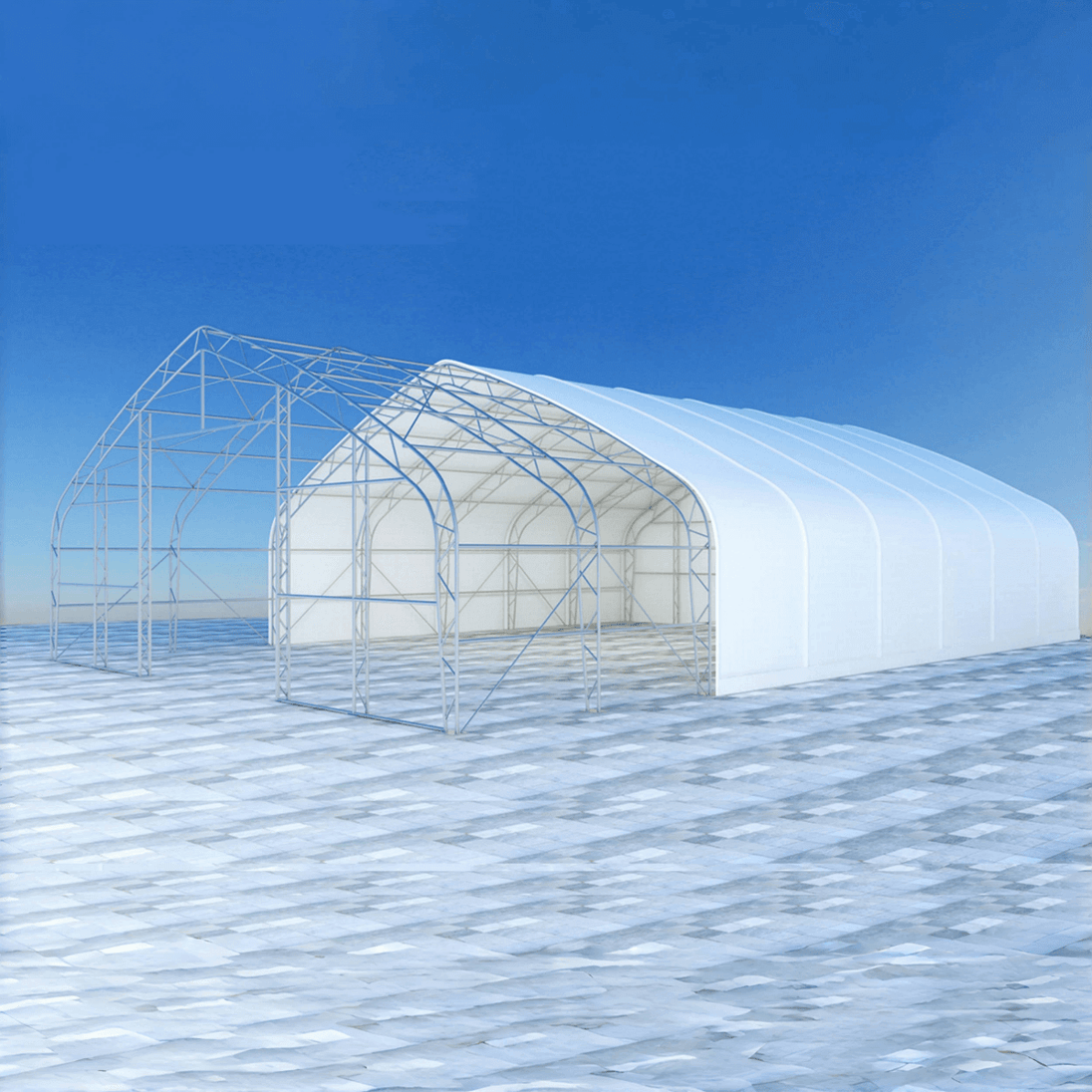

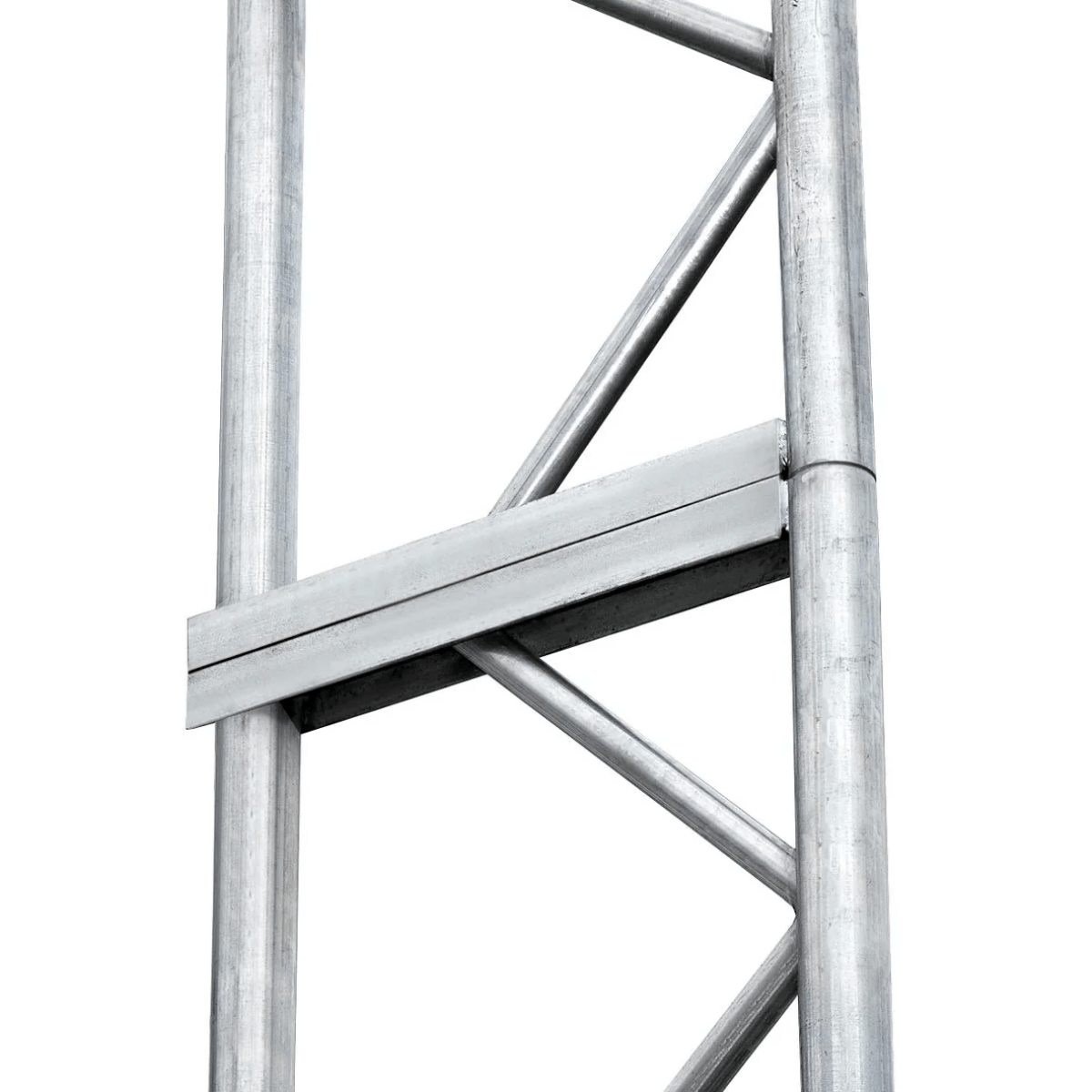

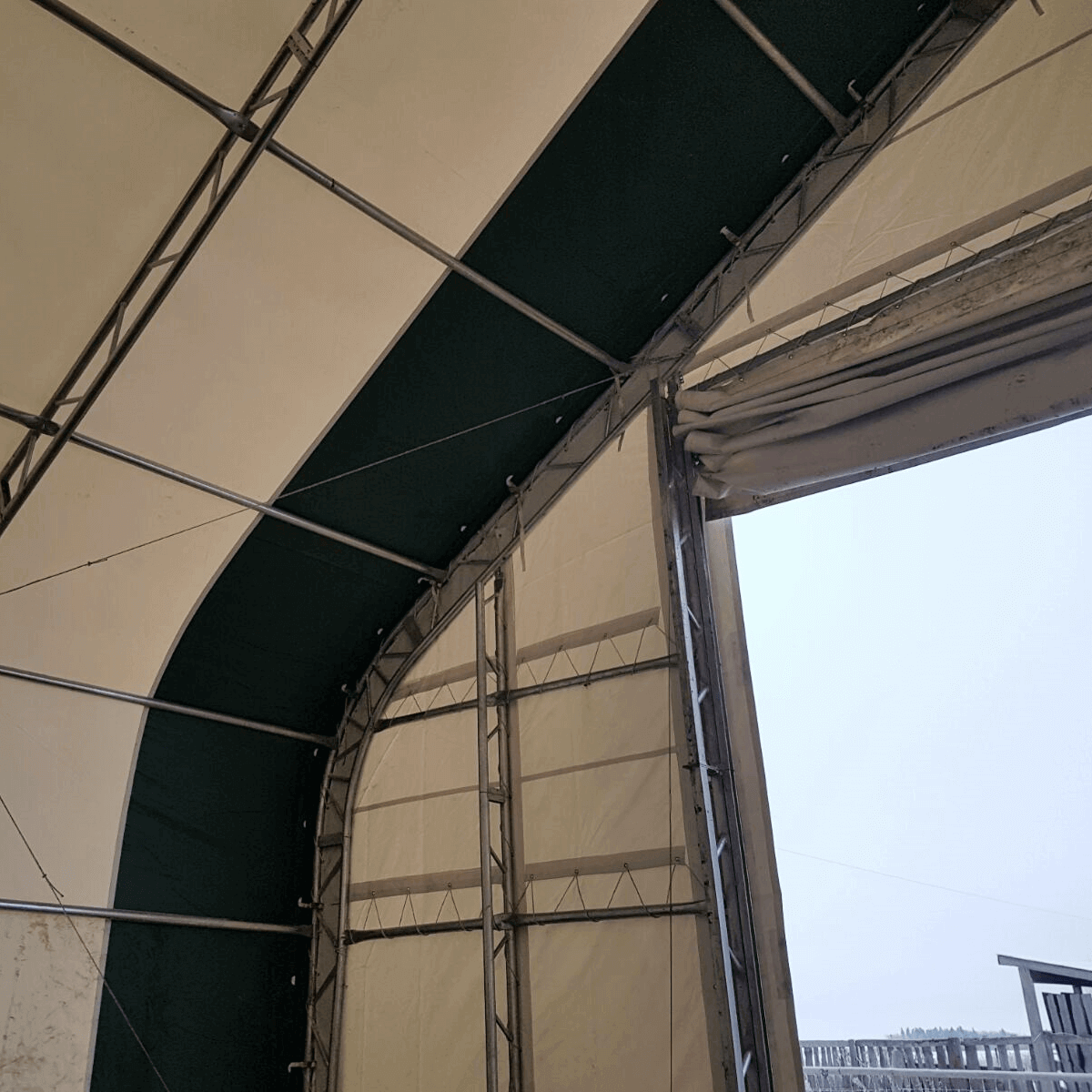

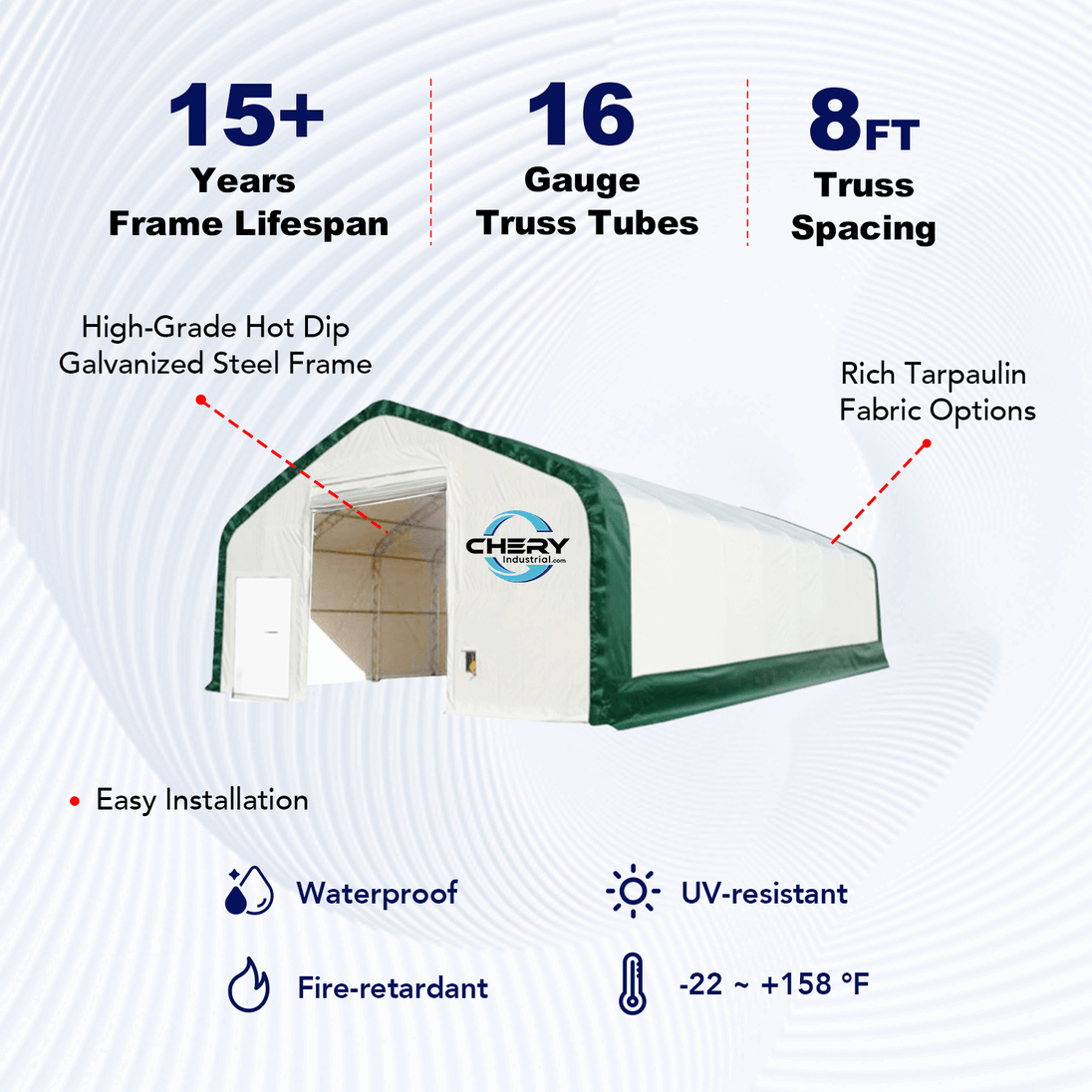

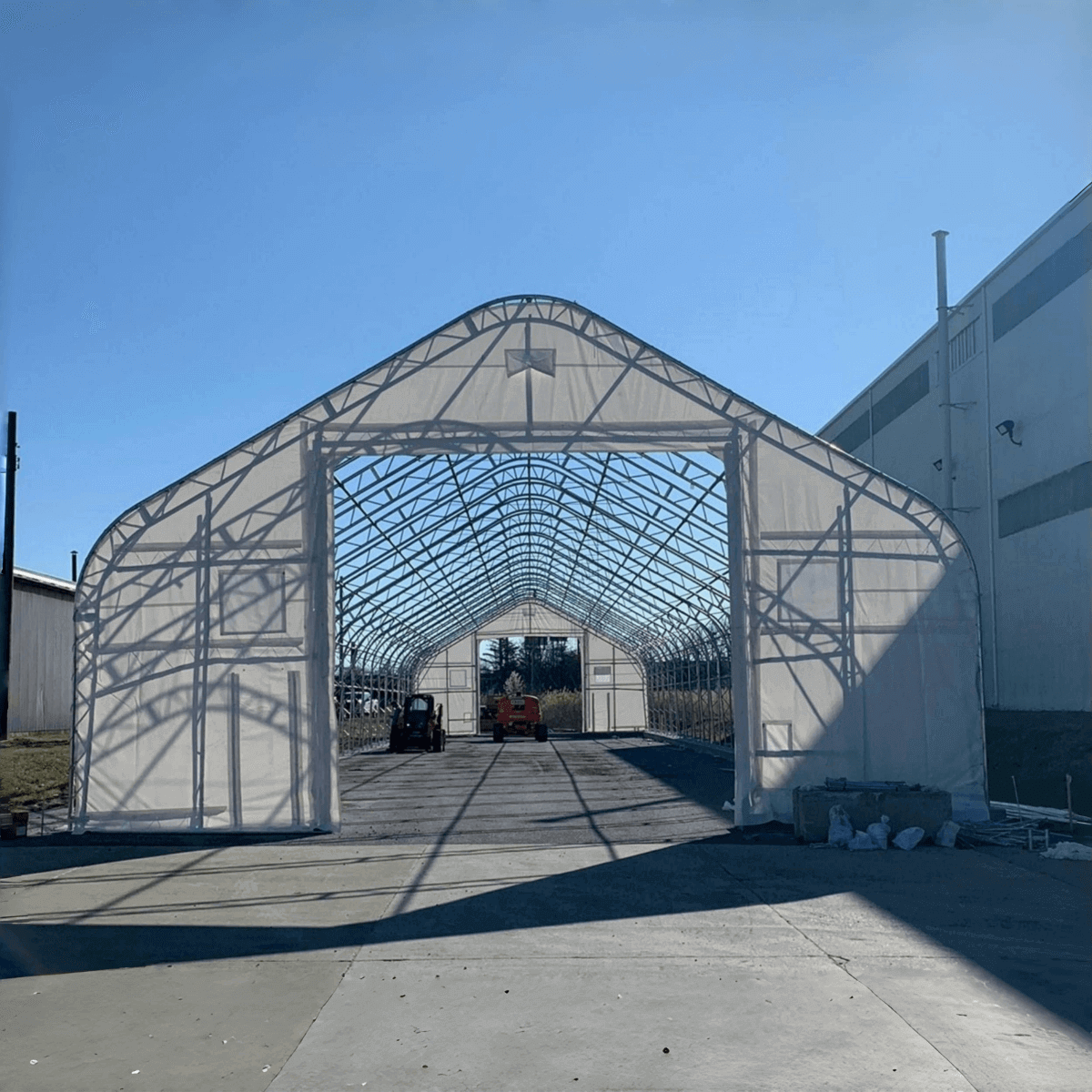

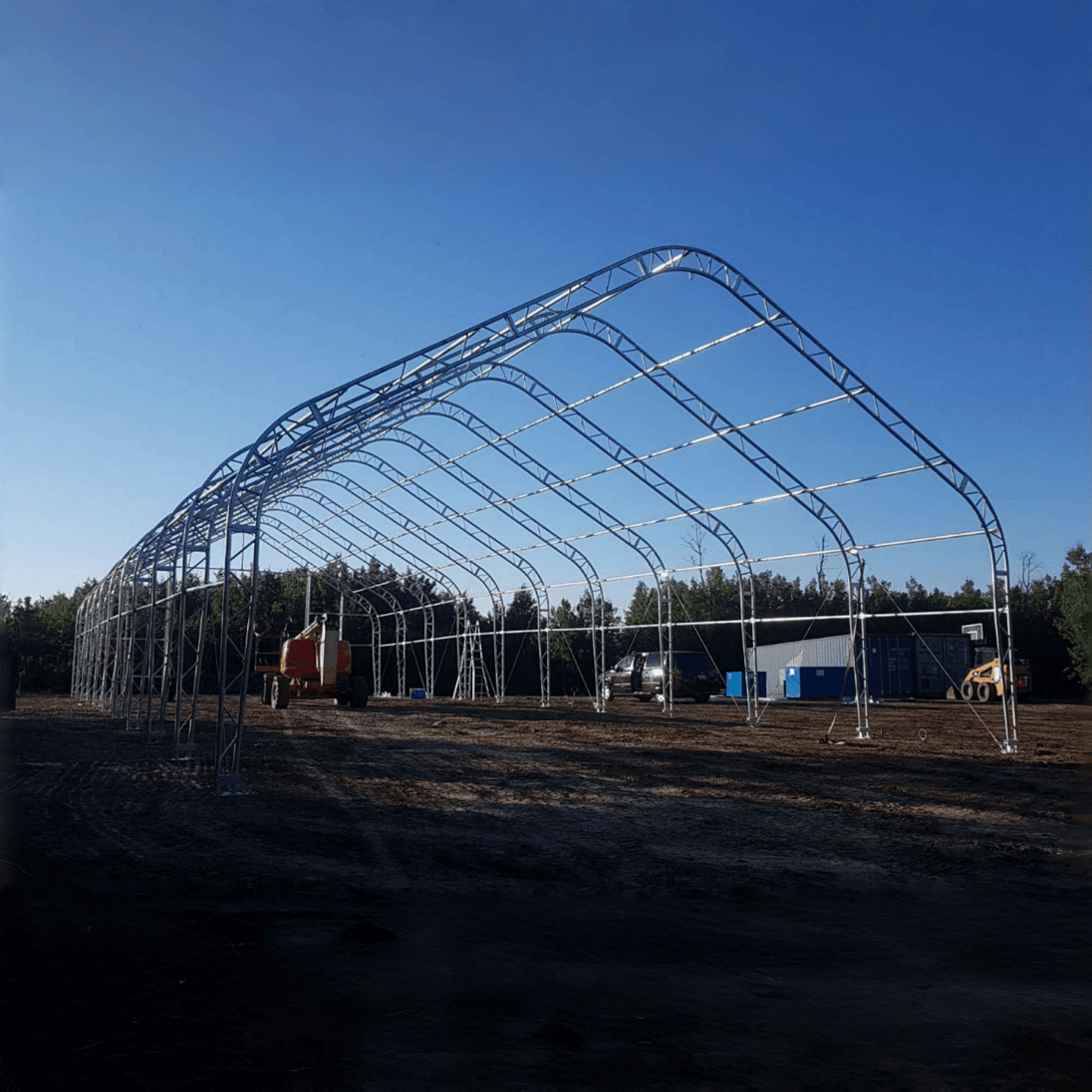

• Frame: Double Truss Galvanized Tube
• Steel frame: Hot Dip Galvanized Steel
• Truss tube: 16 Gauge
• Tarp fabric: PE or PVC
• Tarp color (customizable): White with Green/Red Edge
• Temperature resistance: -22 to +158 F
• Arch Ø: ? 60x1.5mm
• Purlin Ø: ? 60x1.5mm
• Arch spacing: 8 ft
• Number of arch: 11

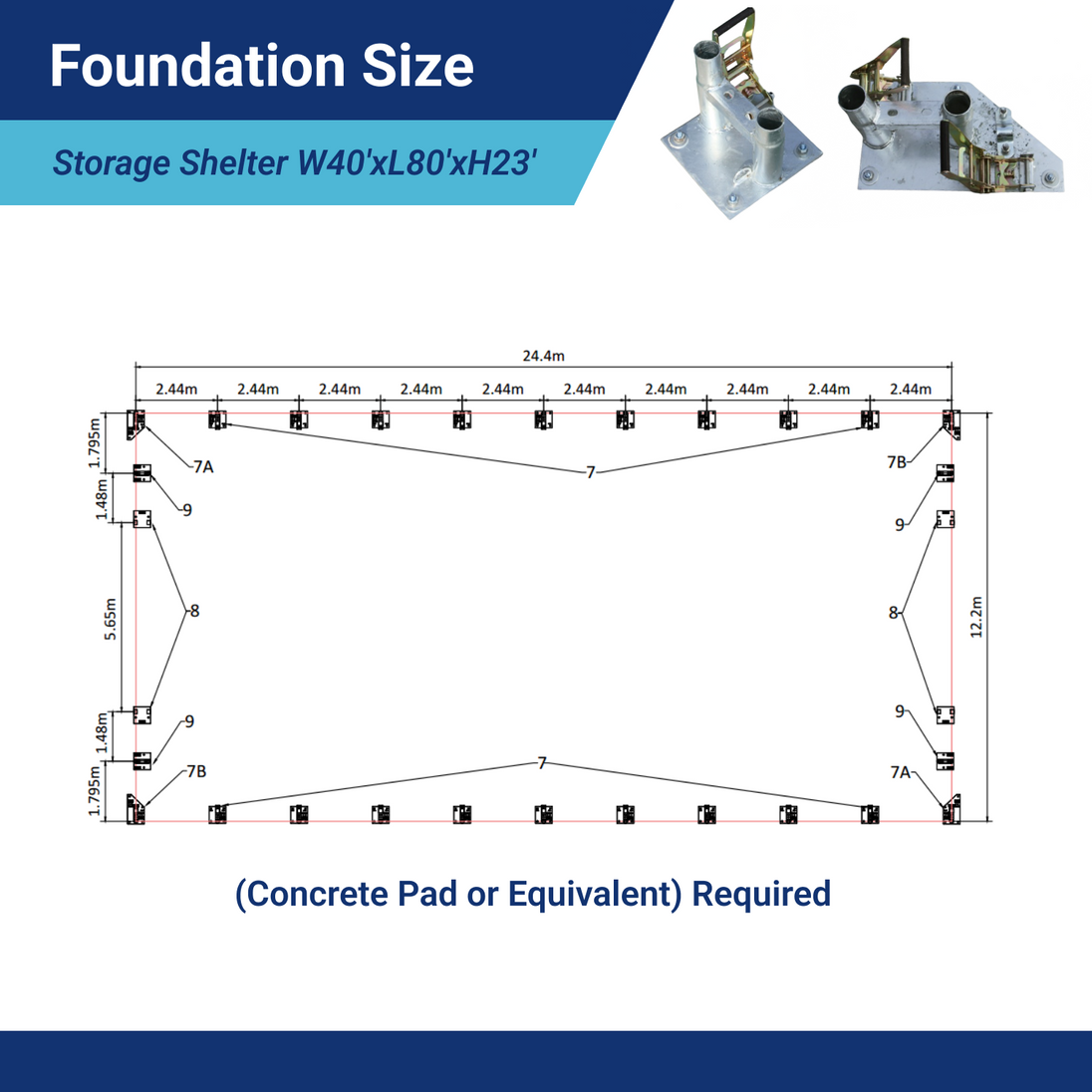

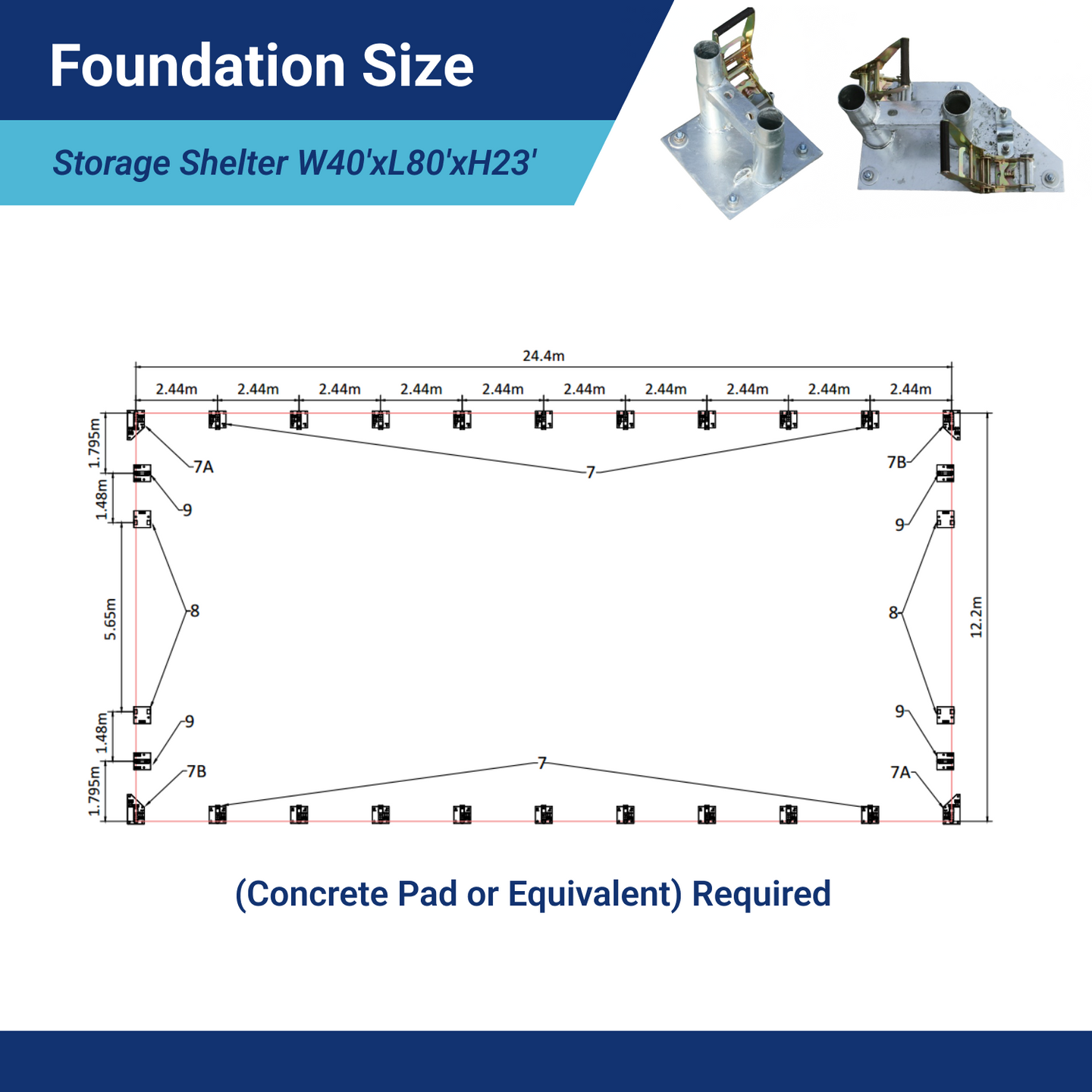

• Number of anchor plates: 22

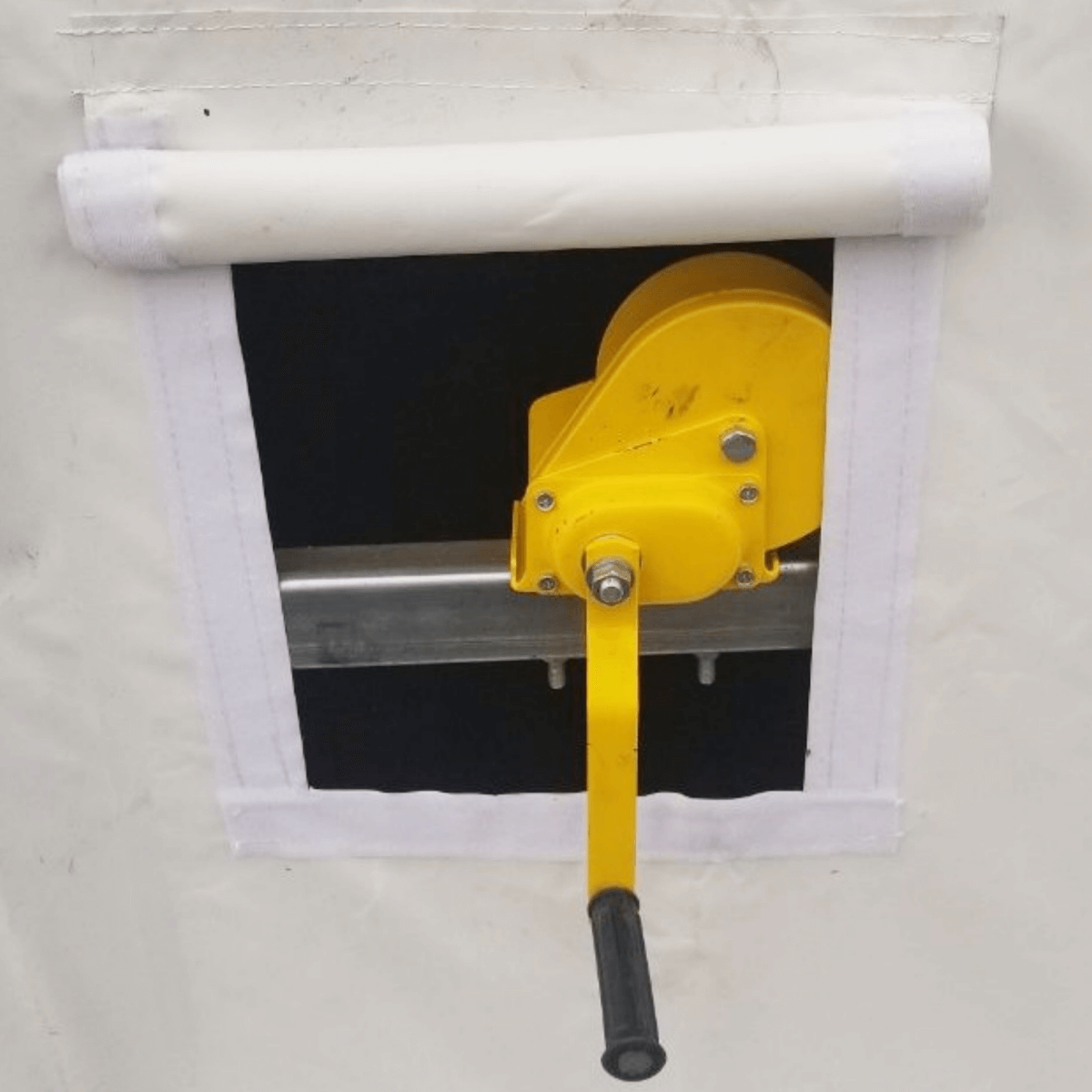

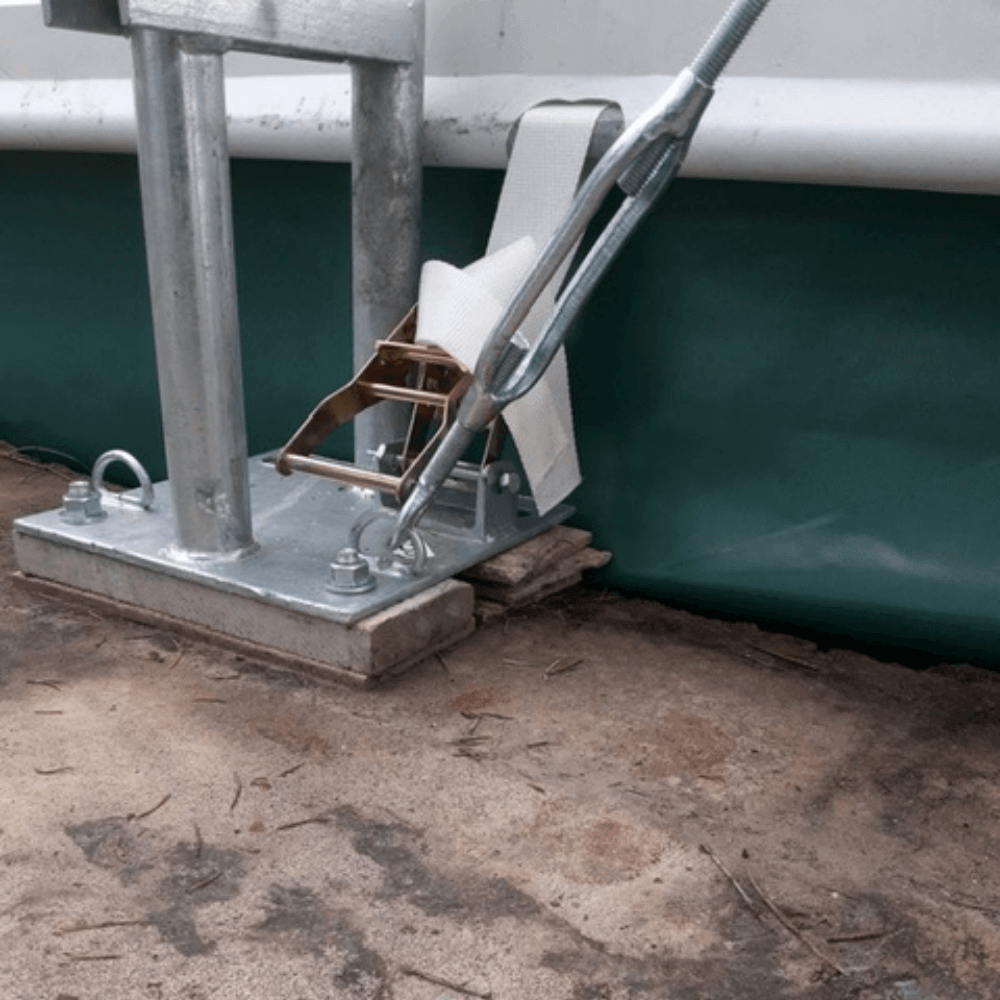

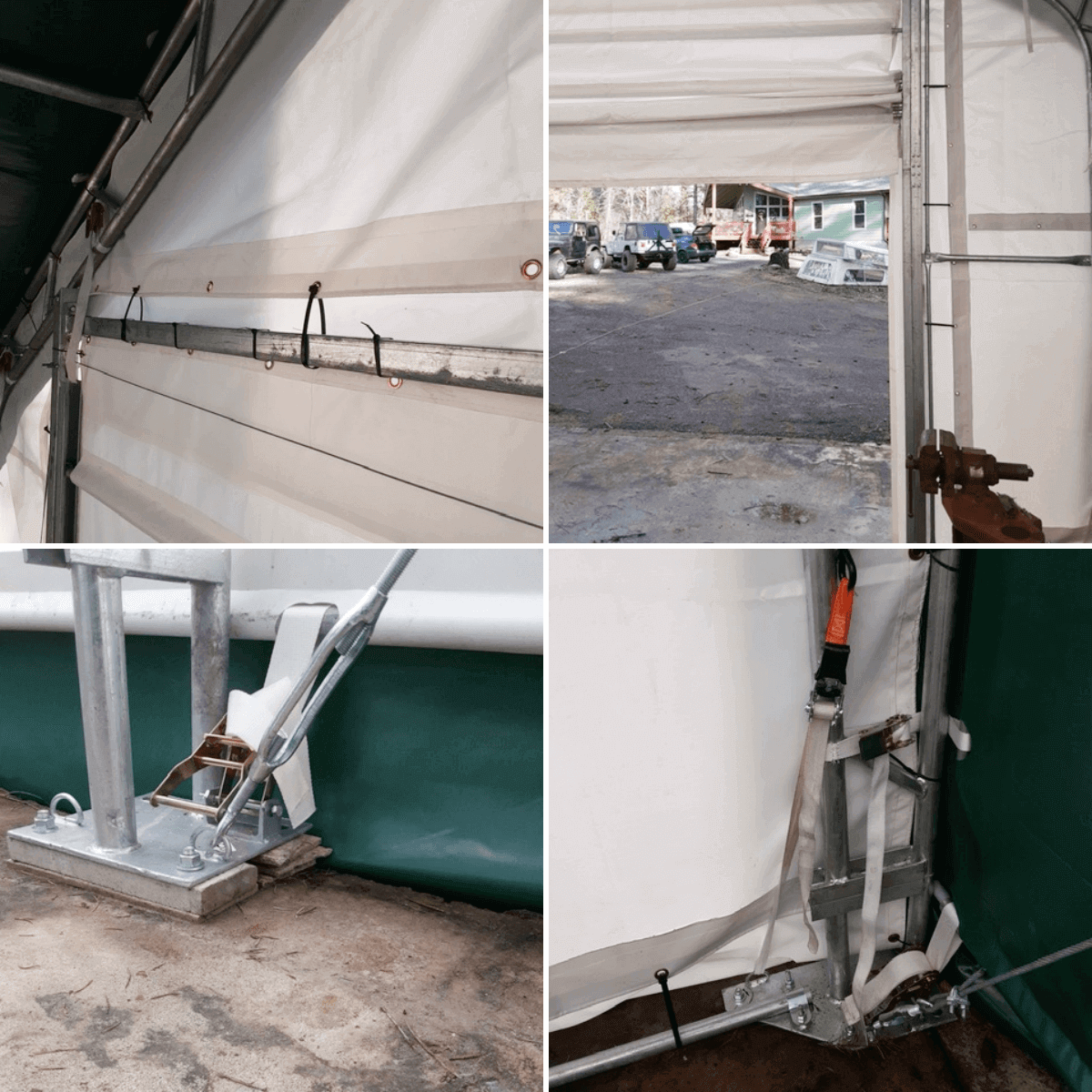

• Tension system: Pipe and Ratchet Tie-Down System
• Average assembly time for DIY with 4 persons: 4 Days
• Snow load: 48 lbs/ft²
• Wind load: 60 mph
• Tarp lifespan: 7-10 years, depending on fabric and environmental conditions
• Frame lifespan: 15+ Years
• Warranty: PE 2 Years; PVC 8 Years
• Fabric (Optional)
  • Economical - 11oz/m² (300 gsm) PE Tarpaulin Fabric
  • Heavy Duty - 16oz/m² (450 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 23oz/m² (650 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 26oz/m² (750 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 32oz/m² (900 gsm) PVC Tarpaulin Fabric
  • Please contact us to order.
• Country of Origin: China
