Chery Industrial | W40'xL80'xH21' Double Truss Storage Shelter, 8' Truss Spacing | SUISS408021DPOZ188FT

Double Truss Storage Shelter 40'x80'x21'

Overview

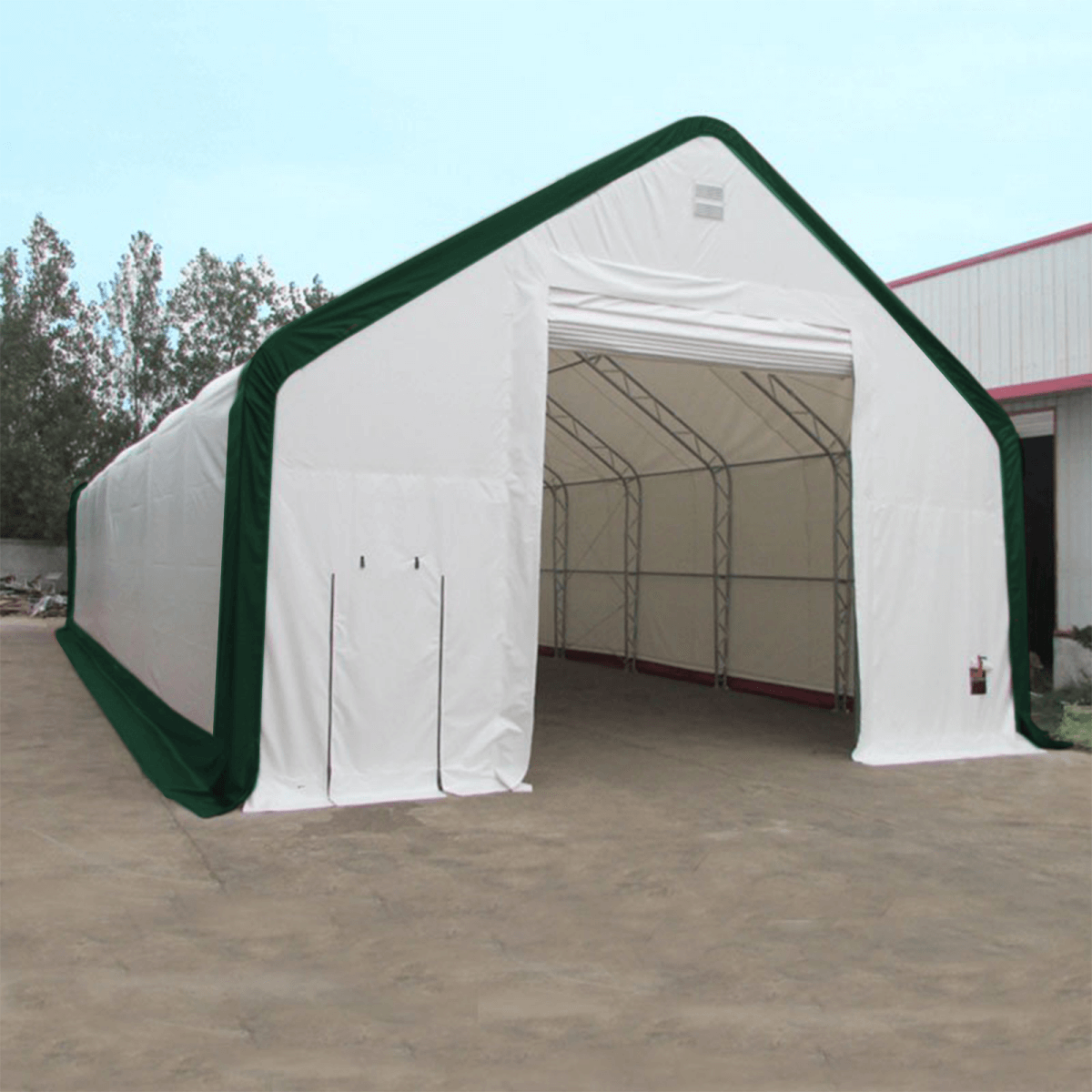

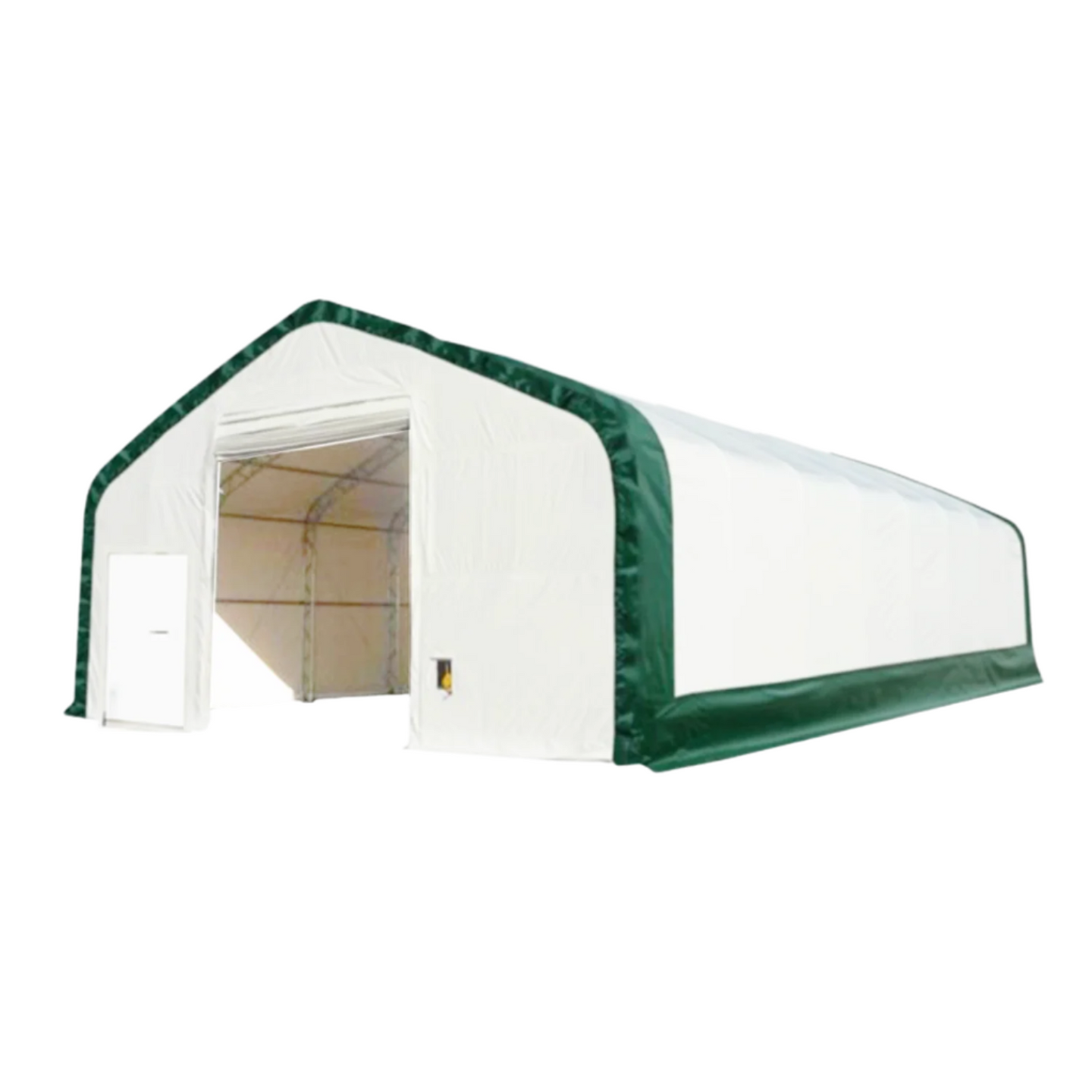

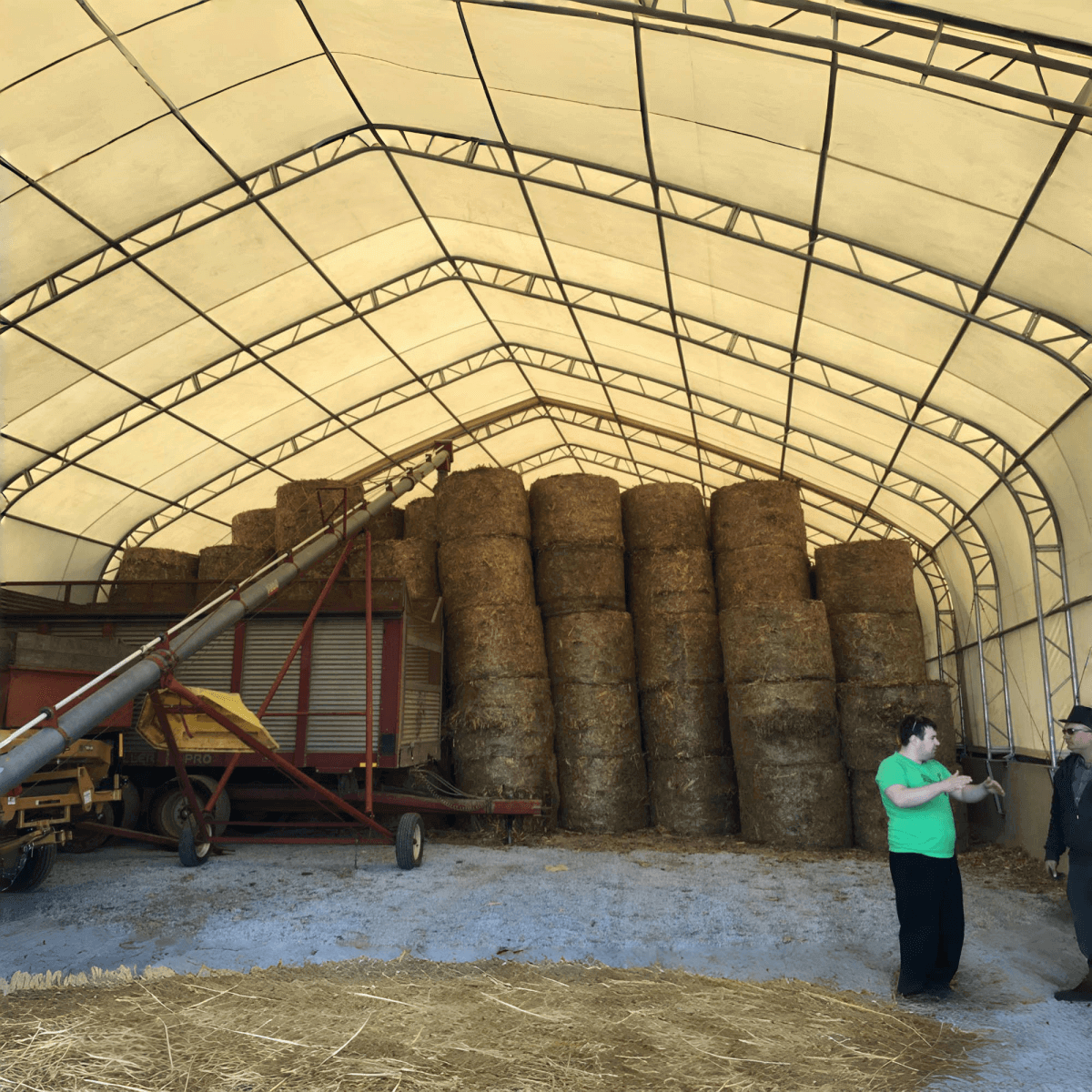

This shelter measures 40' wide, 80' long, and 21' high. It uses 8 ft truss spacing for stability and is designed to protect vehicles, equipment, and supplies from the elements with a durable, long-lasting frame.

Benefits

• Large storage area with clear 40' W x 80' L x 21' H dimensions.
• Stable design thanks to 8 ft truss spacing.
• Durable, rust-resistant galvanized steel frame.
• Weatherproof, UV resistant, and fire retardant materials.
• Natural light through the tarp so you don’t rely on electricity during the day.

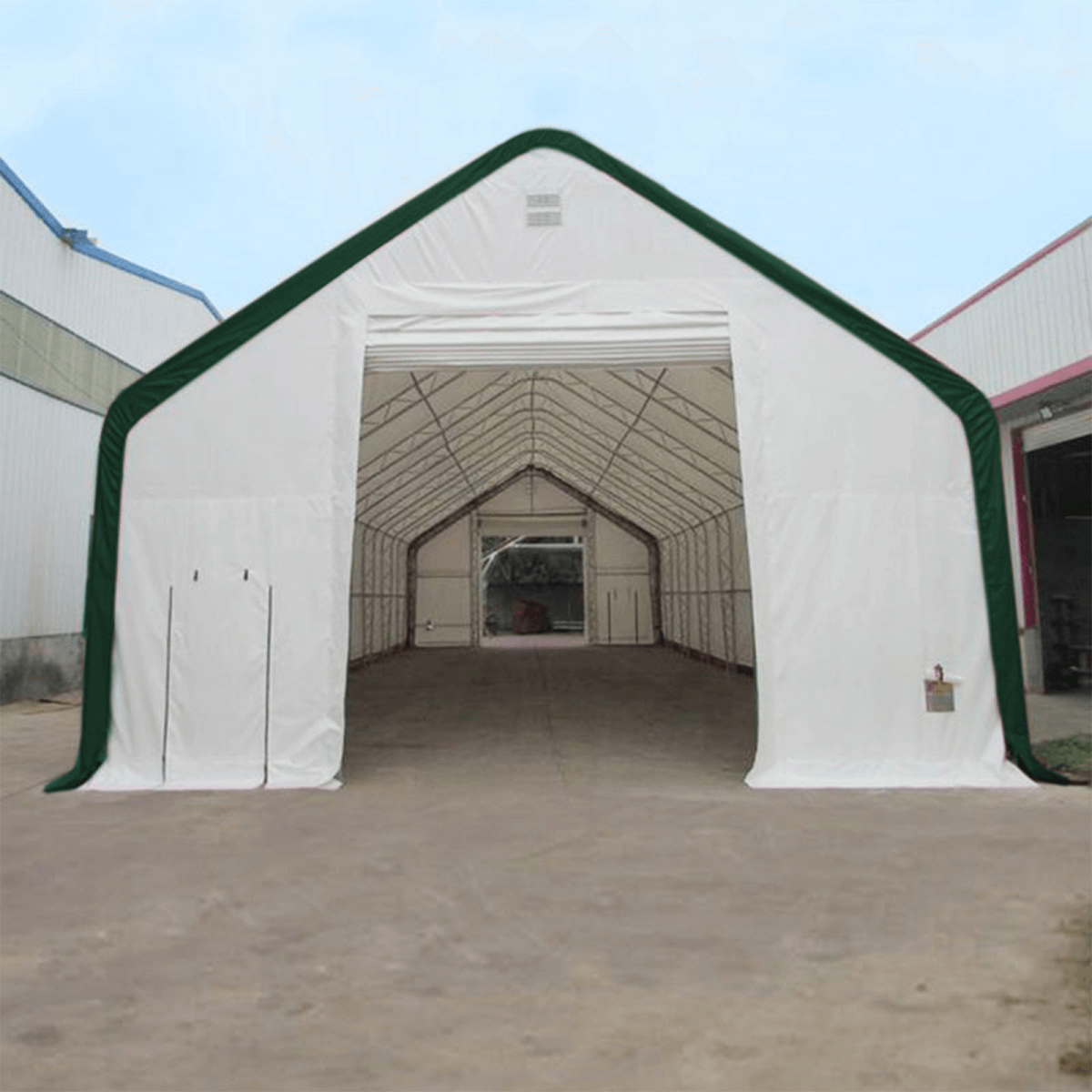

• Double doors at both ends allow easy entry and exit.

Features

• No building permits required.
• Provides ample storage space with 40' width, 80' length, and 21' height.
• Suitable for residential and commercial use.
• Galvanized steel structure resists rust and corrosion.
• Weatherproof, UV resistant, and fire retardant.
• PVC cover lets in daylight without electricity.
• Double doors at both ends for easy access.

Specifications

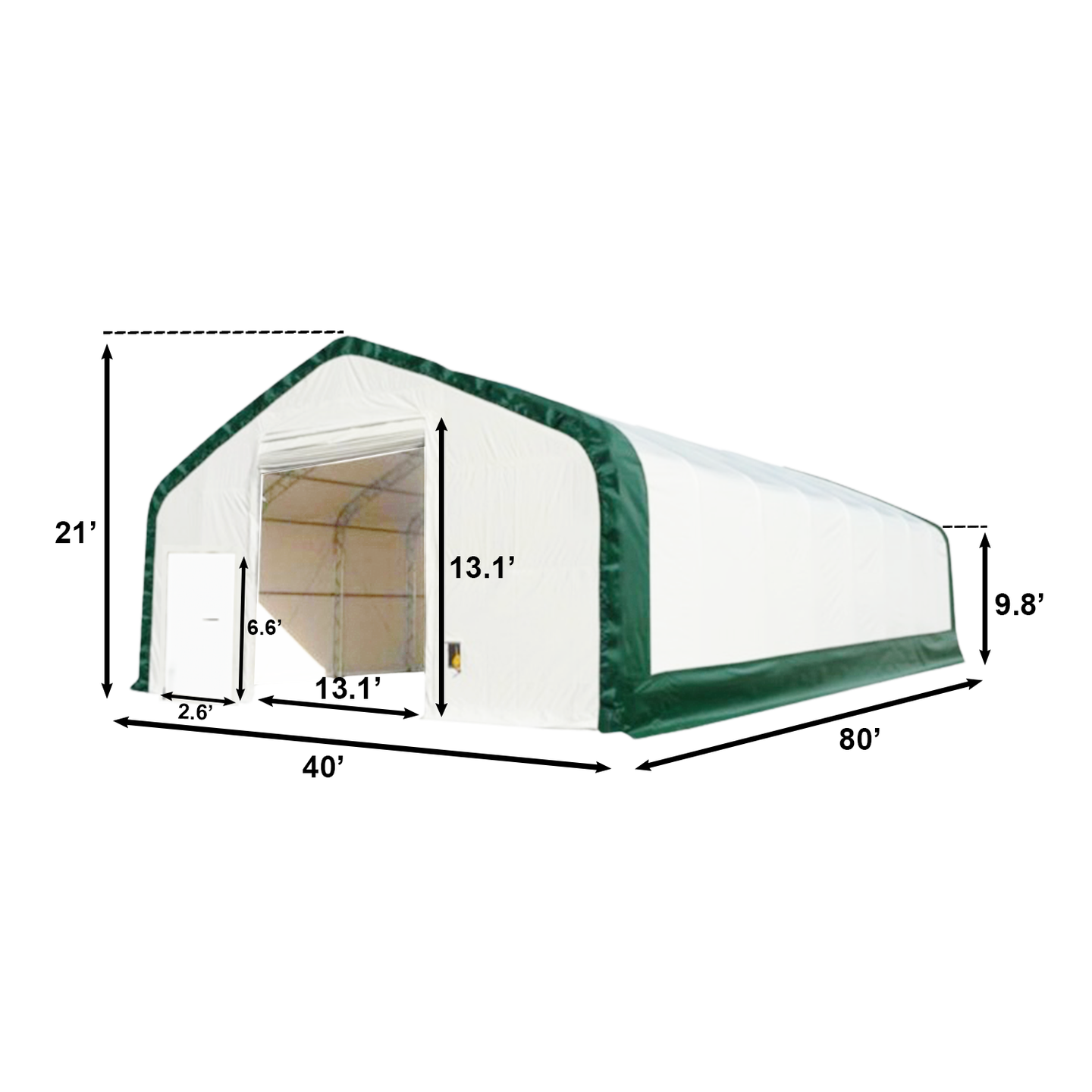

• Dimensions (WxLxH): 40' x 80' x 21'
• Side-wall height: 9.8 ft
• Door size (WxH) front & rear: 13.1' x 13.1'
• Door type: Mechanical rollup door
• Man door (WxH): 2.6' x 6.6'

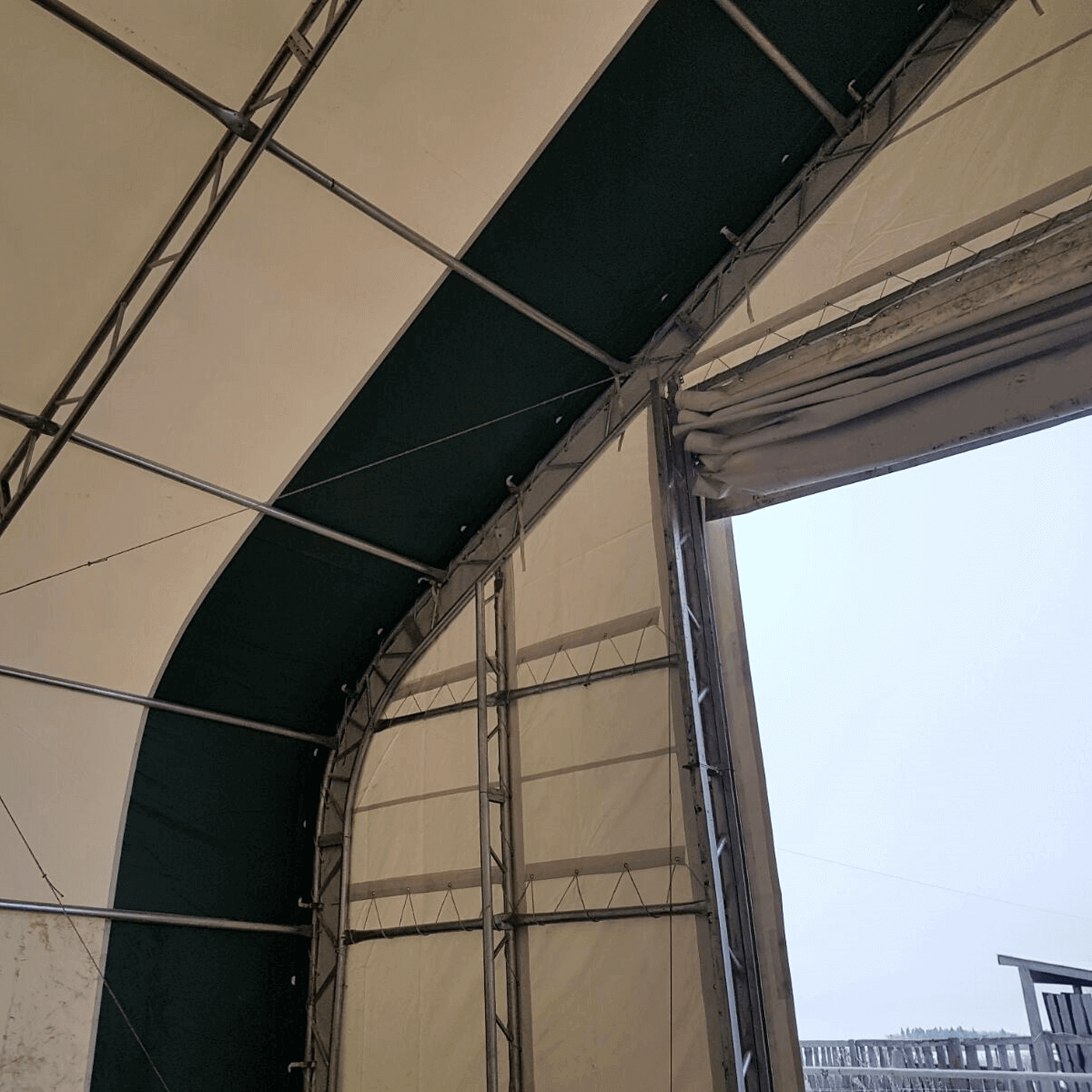

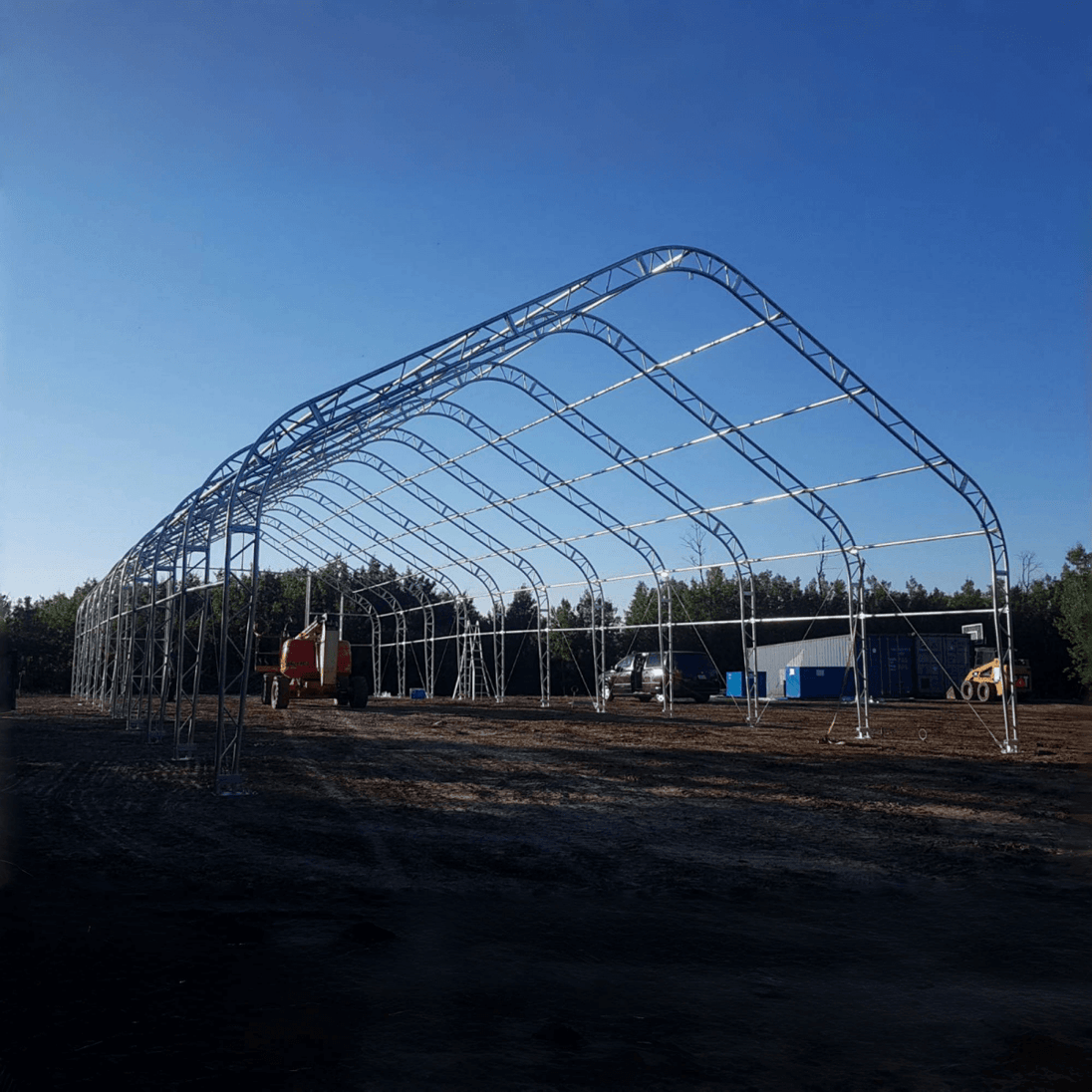

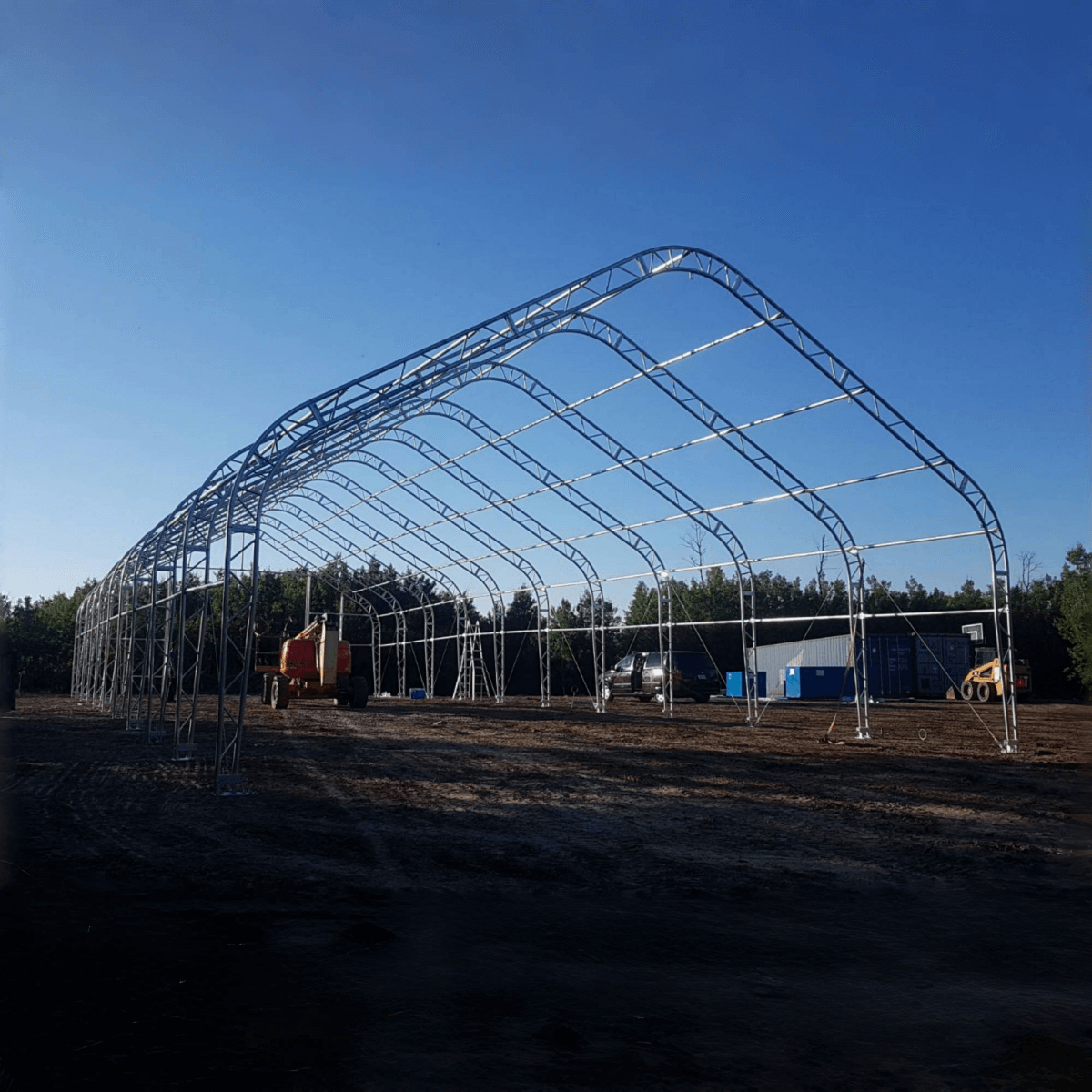

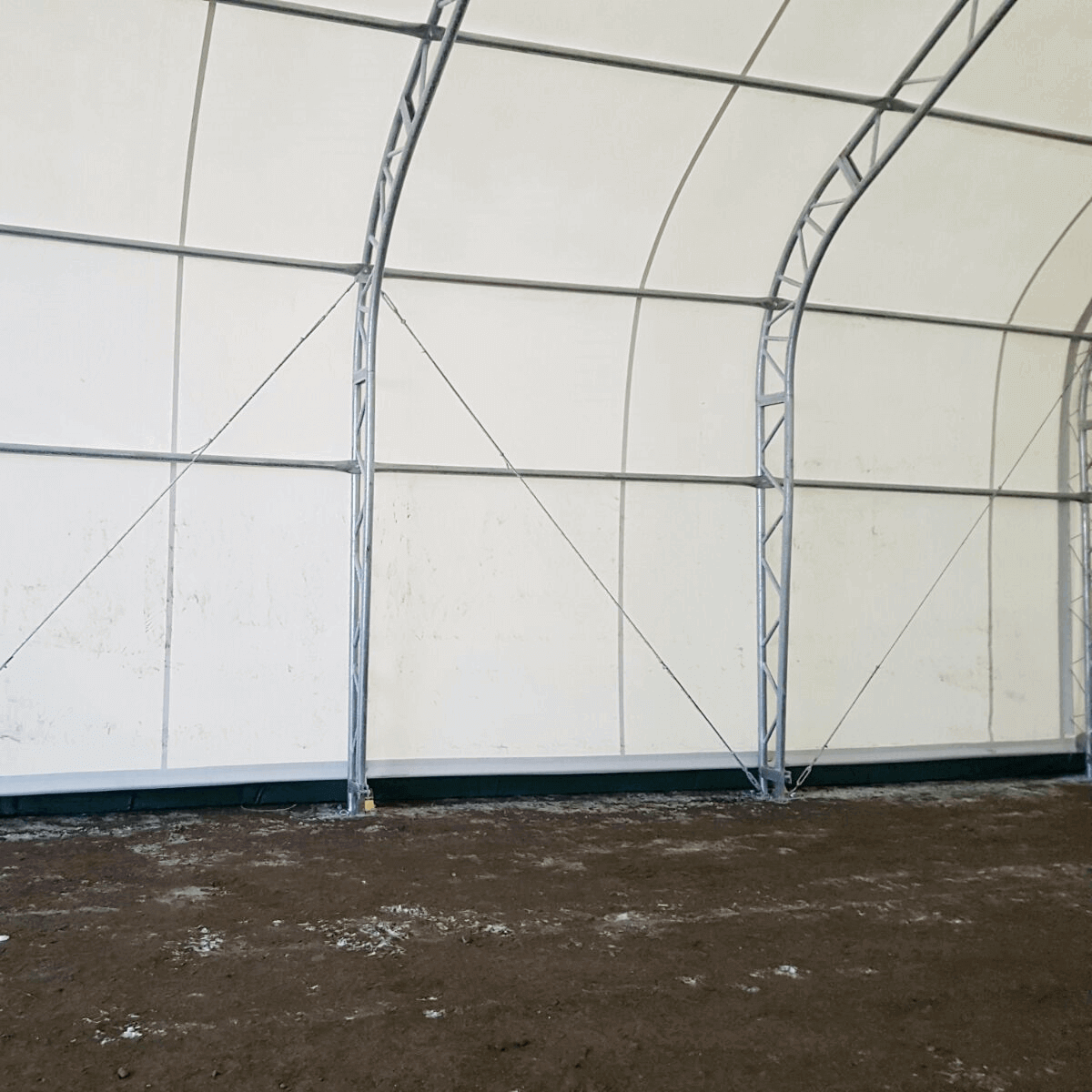

• Frame: Double truss galvanized tube
• Steel frame: Hot Dip Galvanized Steel
• Truss tube: 16 Gauge
• Tarp fabric: PE or PVC
• Tarp color (customizable): White with Green/Red Edge
• Temperature resistance: -22 to +158 °F
• Arch Ø: ?60 x 1.5 mm
• Purlin Ø: ?60 x 1.5 mm
• Arch spacing: 8 ft
• Number of arches: 11
• Number of anchor plates: 22

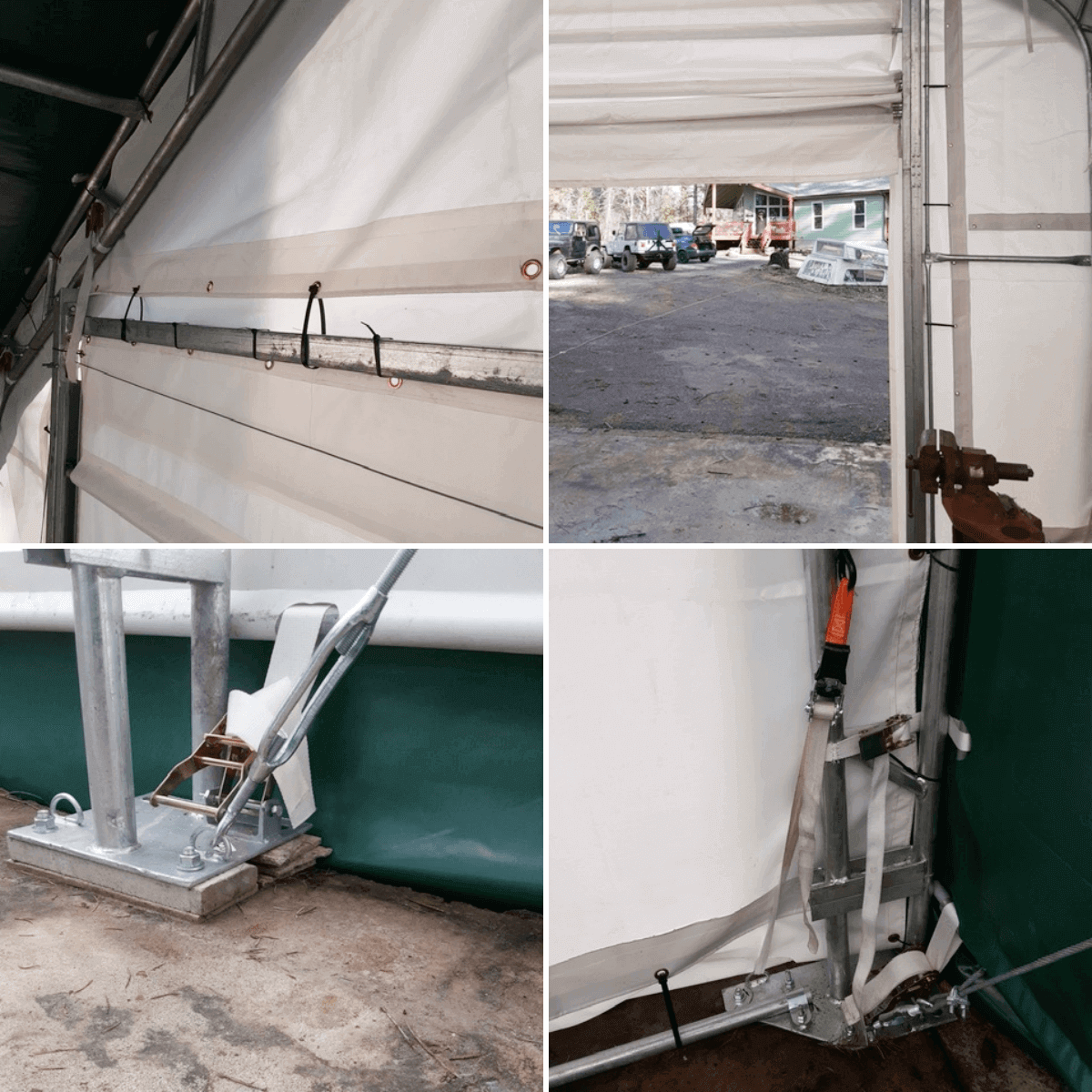

• Tension system: Pipe and ratchet tie-down
• Average assembly time for DIY with 4 persons: 4 days
• Snow load: 48 lbs/ft²
• Wind load: 60 mph
• Tarp lifespan: 7–10 years, depending on fabric and conditions

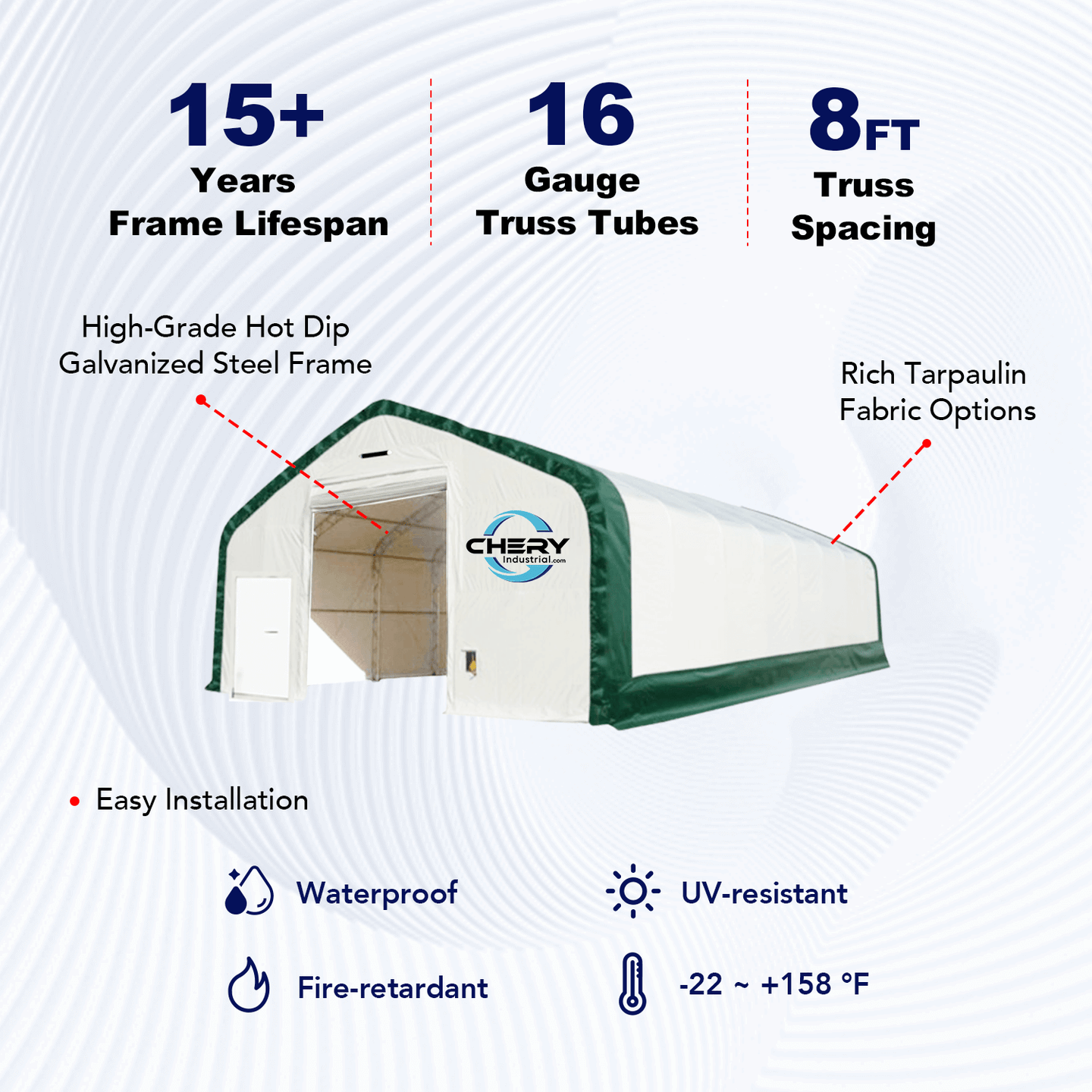

• Frame lifespan: 15+ years
• Warranty: PE 2 years; PVC 8 years
• Fabric options (optional):
  • 11 oz/m² (300 gsm) PE tarpaulin
  • 16 oz/m² (450 gsm) PVC tarpaulin
  • 23 oz/m² (650 gsm) PVC tarpaulin
  • 26 oz/m² (750 gsm) PVC tarpaulin
  • 32 oz/m² (900 gsm) PVC tarpaulin
  • Contact us to order
• Country of origin: China
