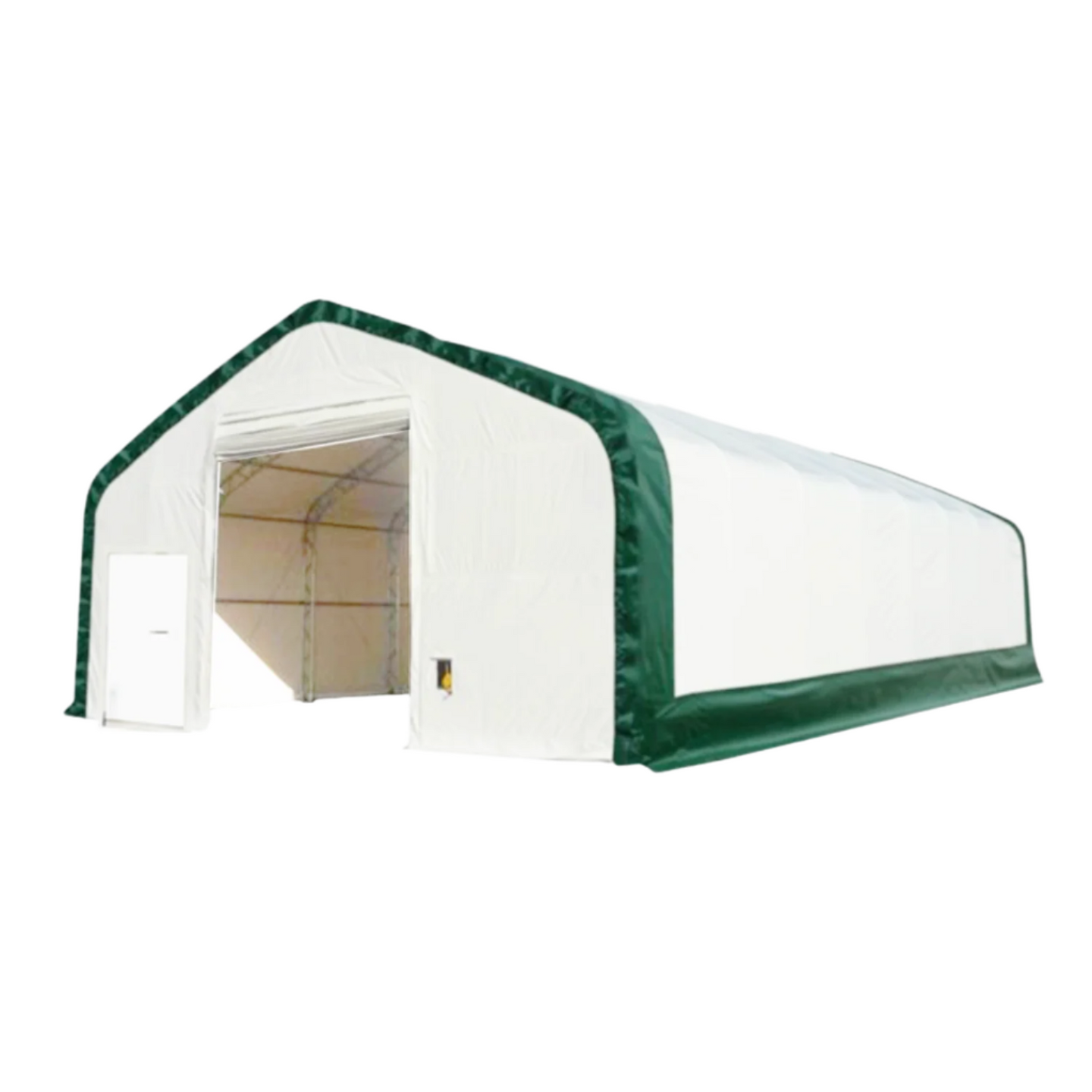

Gold Mountain Storage Shelter W40'xL80'xH21' - Double Truss

Overview

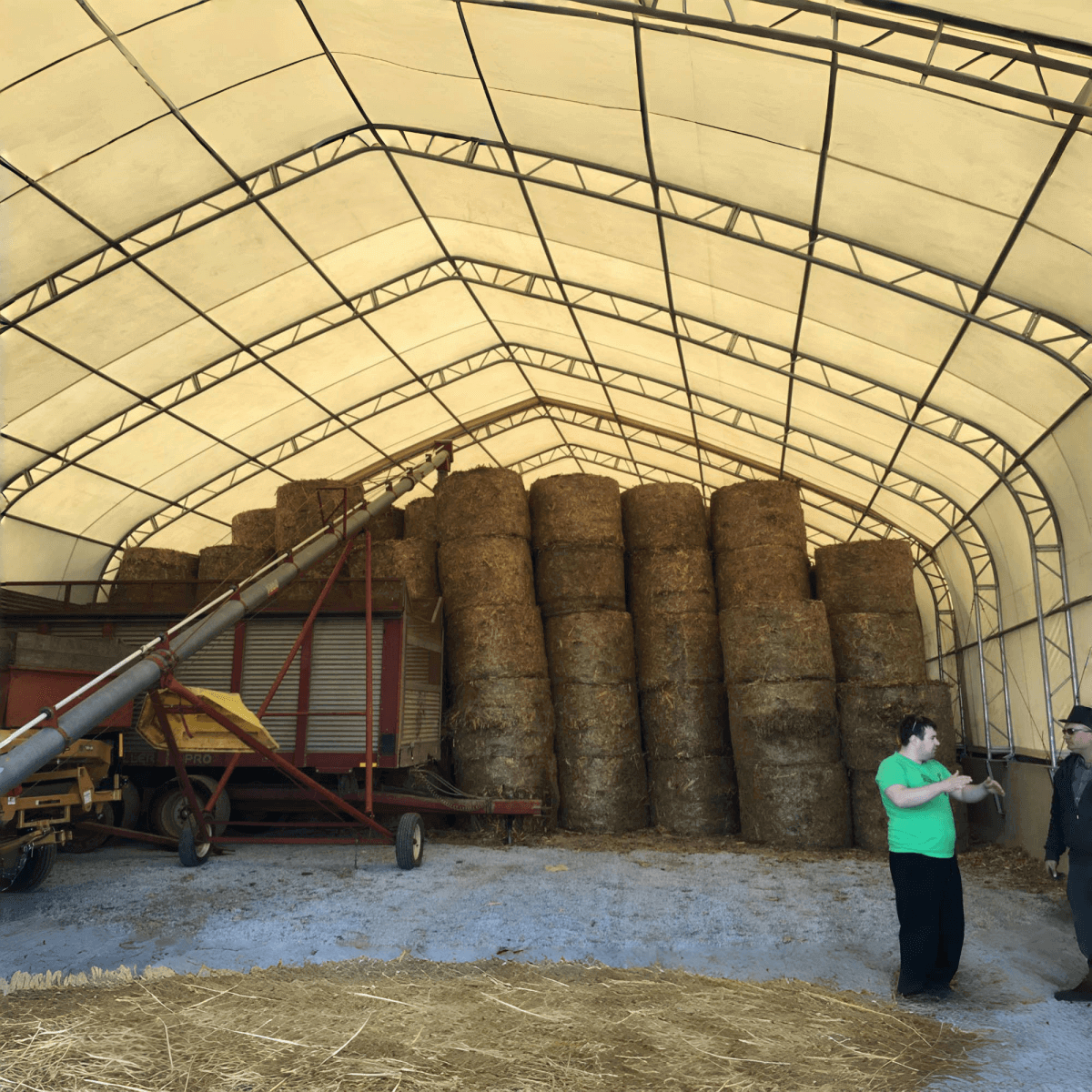

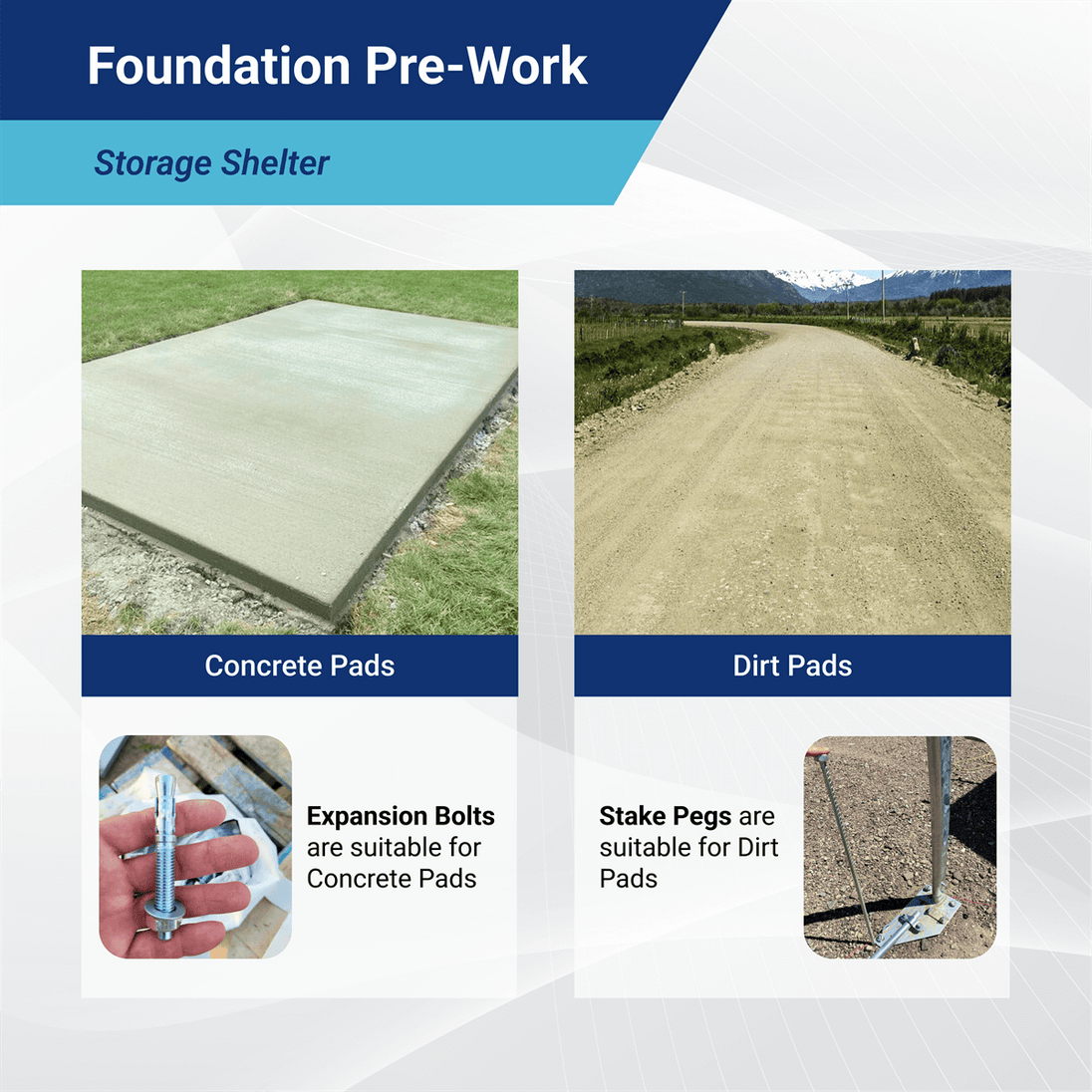

A big, weather-ready shelter for farms, construction sites, and auto shops. Built with galvanized steel tubes, it stands up to tough weather. The peak helps with snow removal and the dome adds usable space. PVC fabric lasts longer than PE and resists weather better. Note: stake pegs are replaced by expansion bolts. If you need stake pegs, contact customer service to place an order. This shelter is a reliable way to store and protect valuables.

Benefits

• No building permits required.*
• Huge space: 40' wide, 80' long, 21' high.
• Versatile for residential or commercial use.
• Galvanized steel frame resists rust and corrosion.
• Weatherproof, UV resistant, and fire retardant.
• PVC cover lets in natural light; no electricity needed during the day.

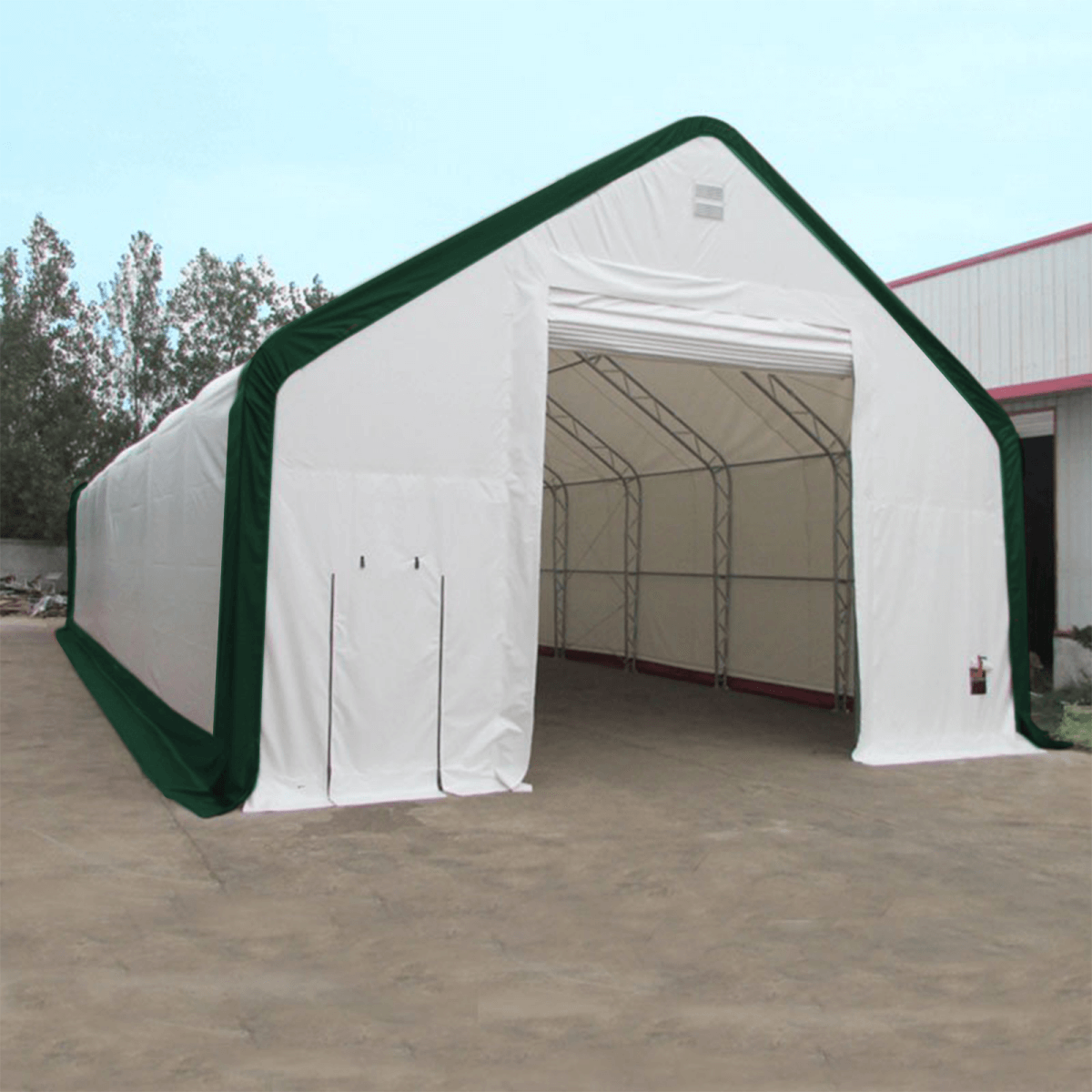

• Double doors at both ends for easy entry and exit.

Features

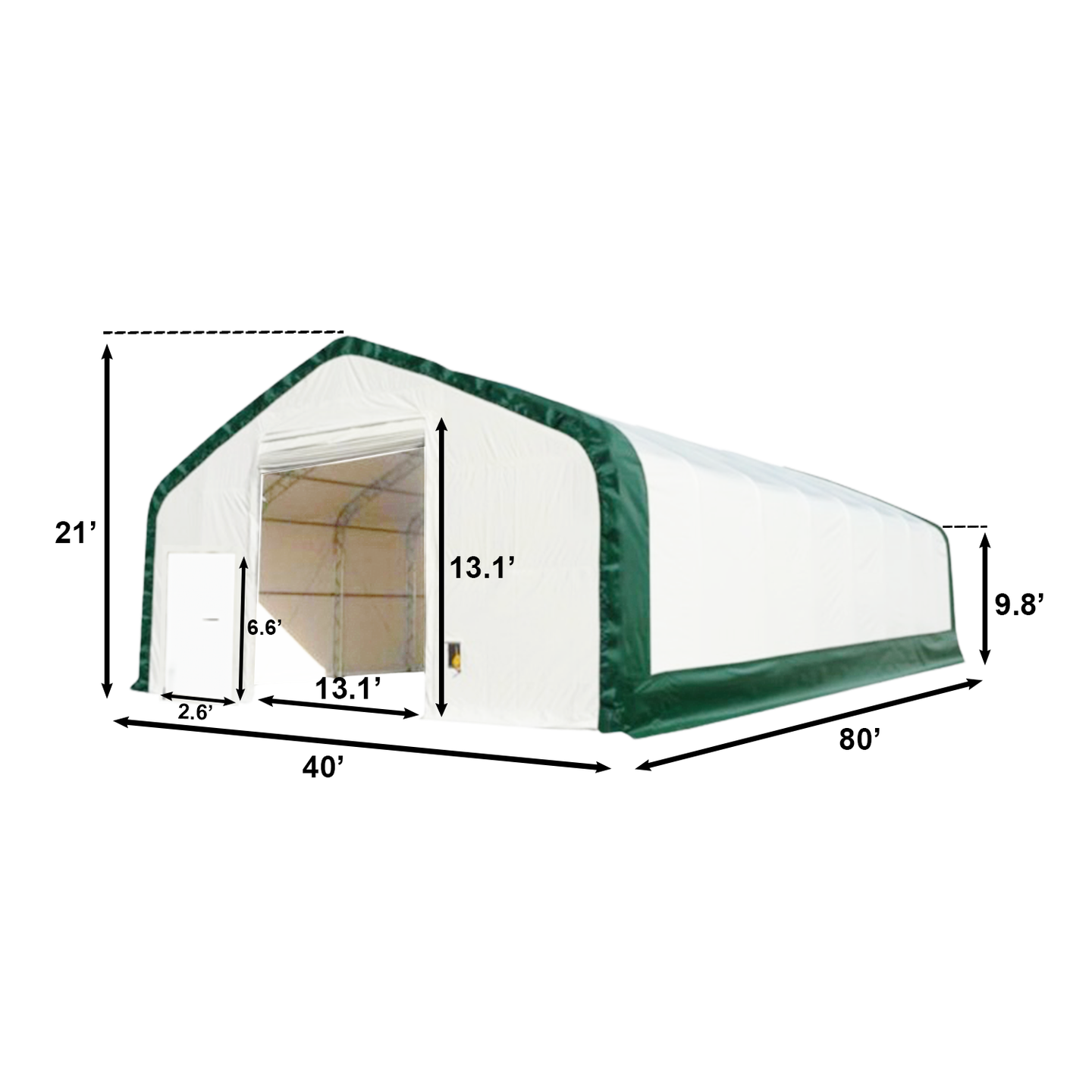

• Dimensions: 40' x 80' x 21' (WxLxH); side-wall height 9.8 ft.

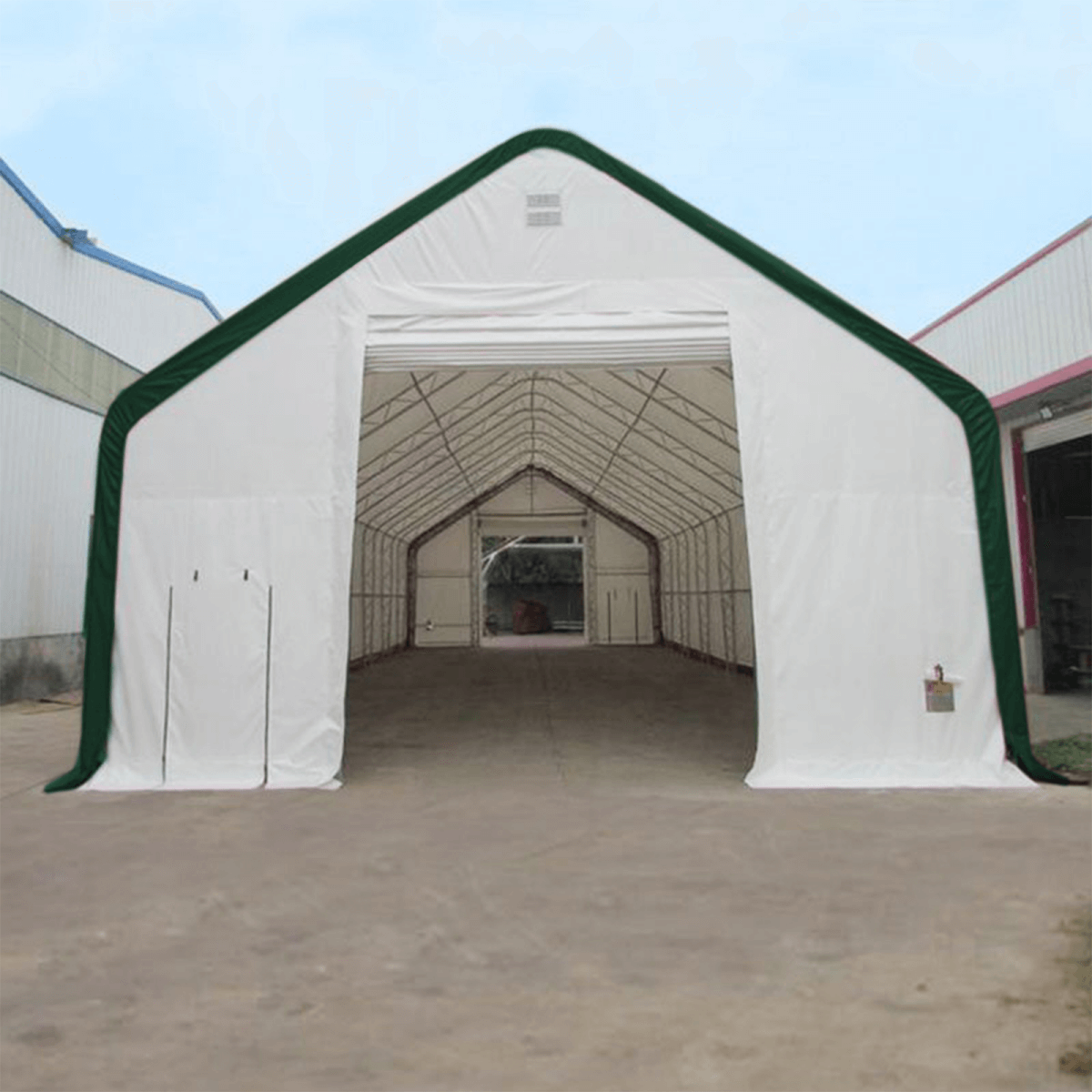

• Door sizes: 13.1' x 13.1' (front & rear).

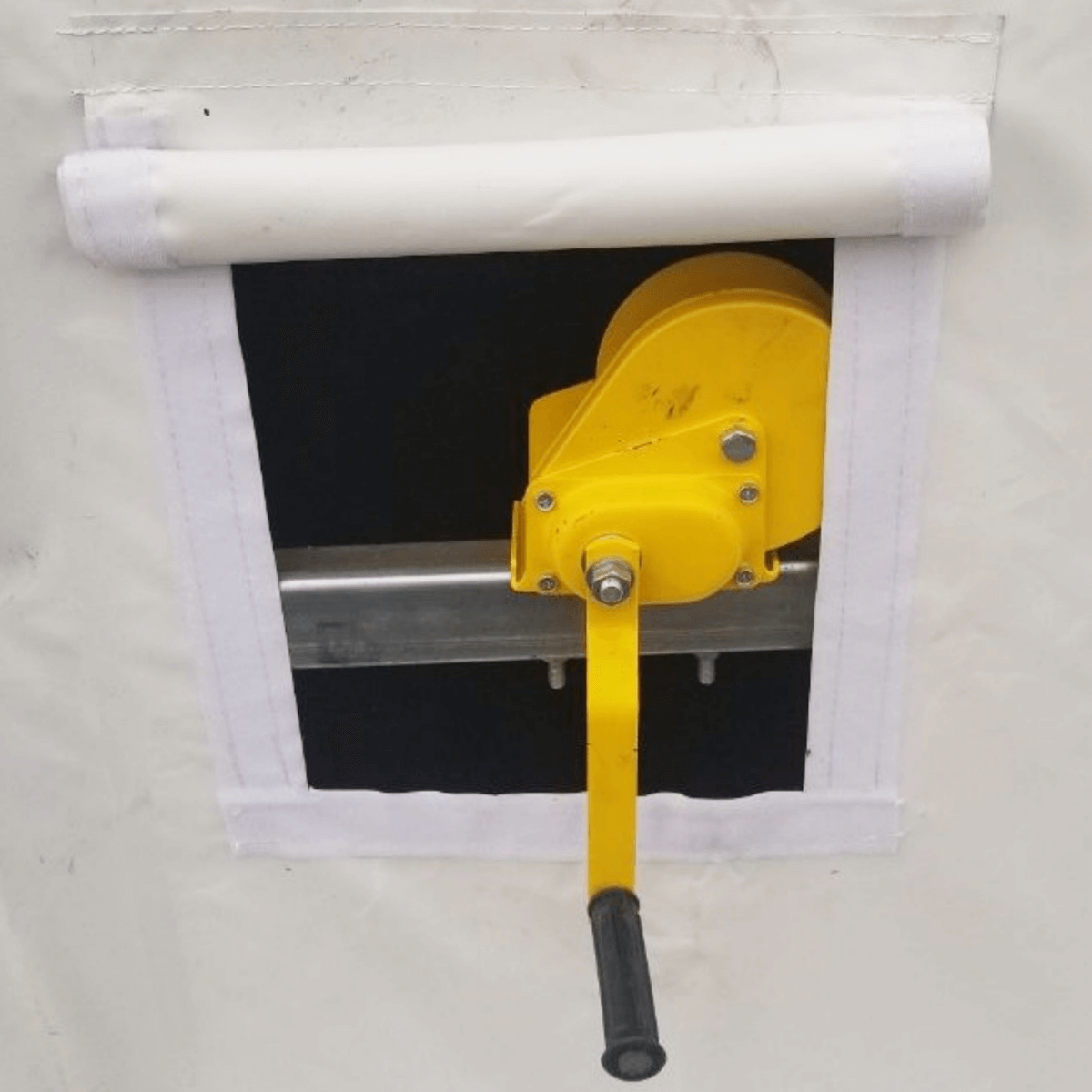

• Door type: Mechanical Rollup Door; Man door: 2.6' x 6.6'.

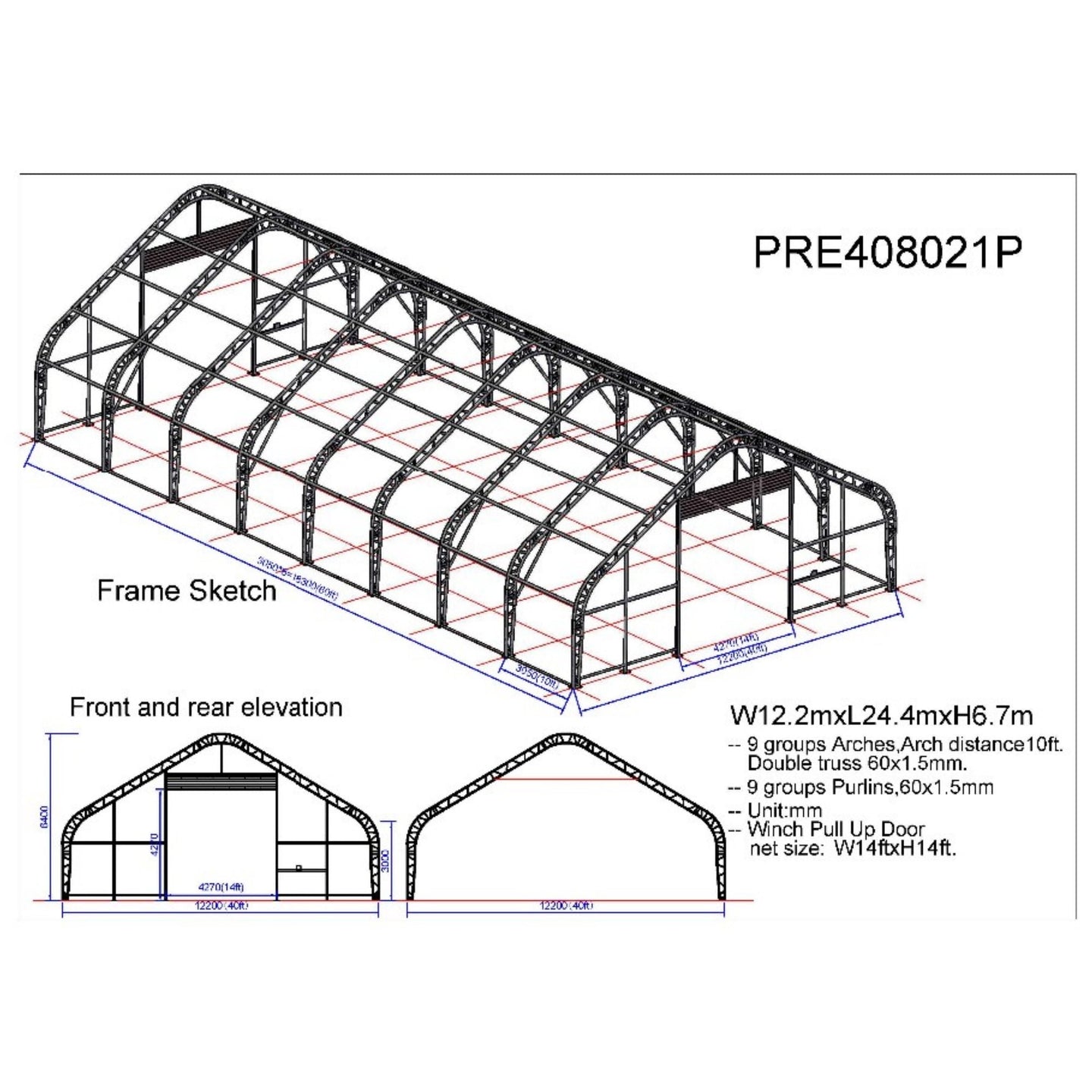

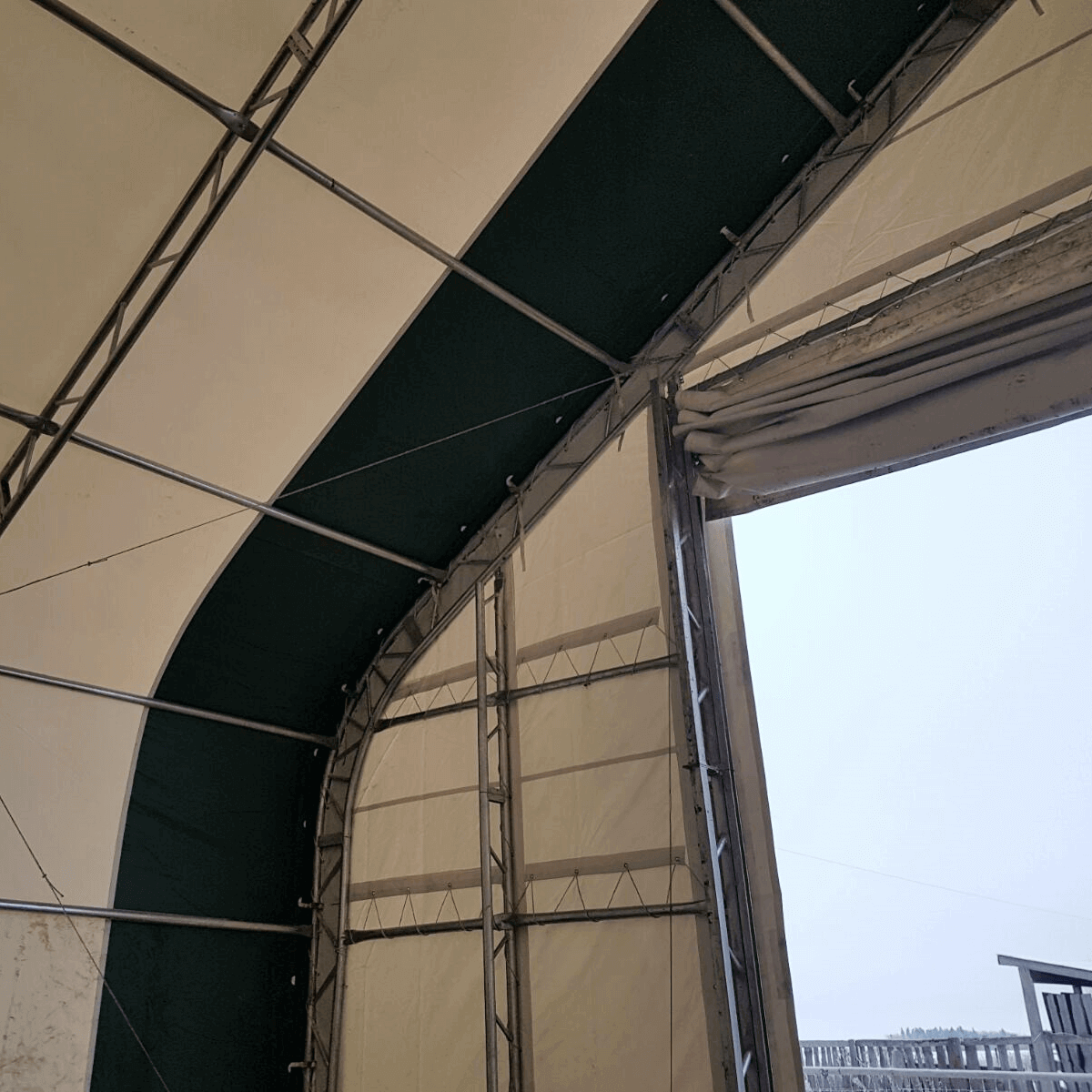

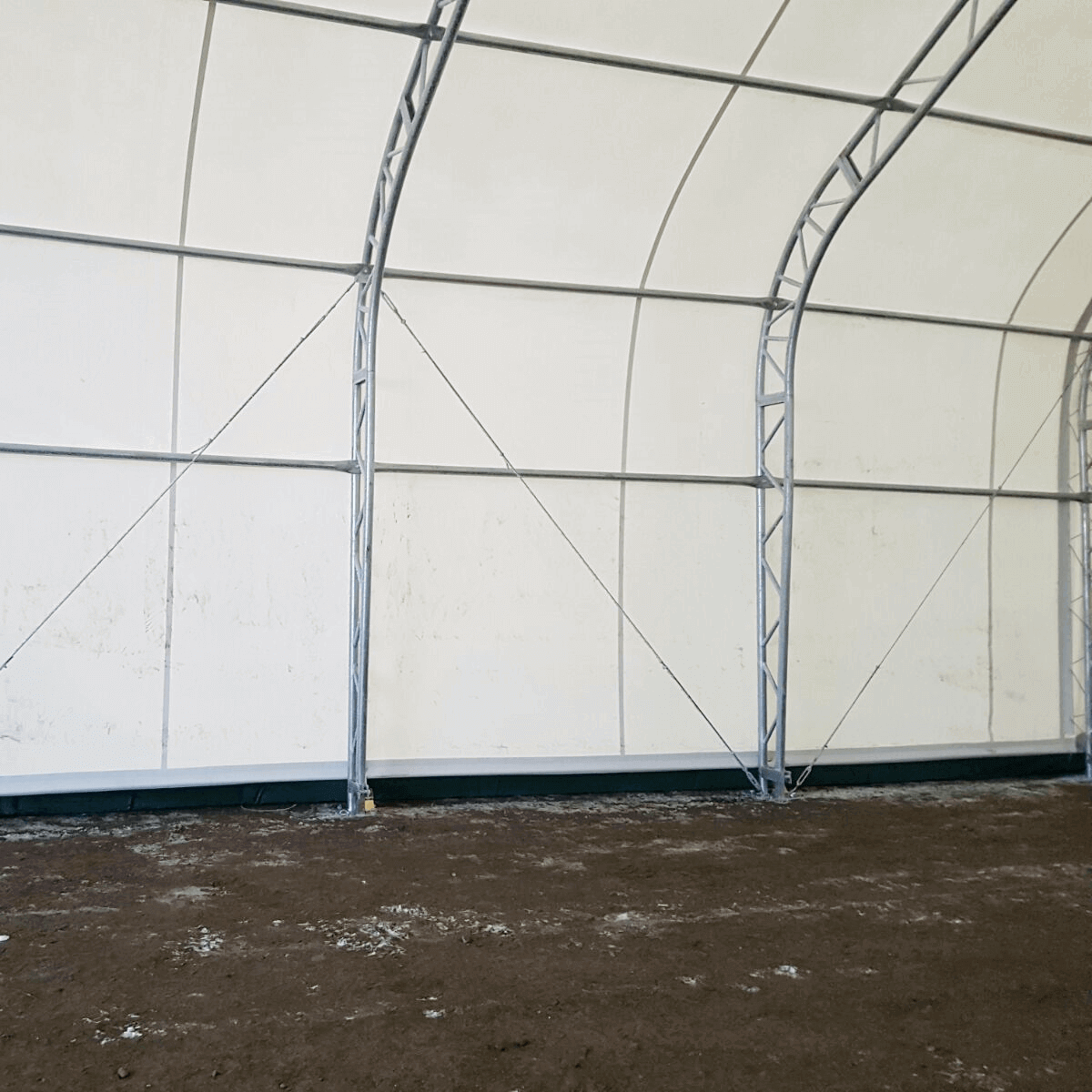

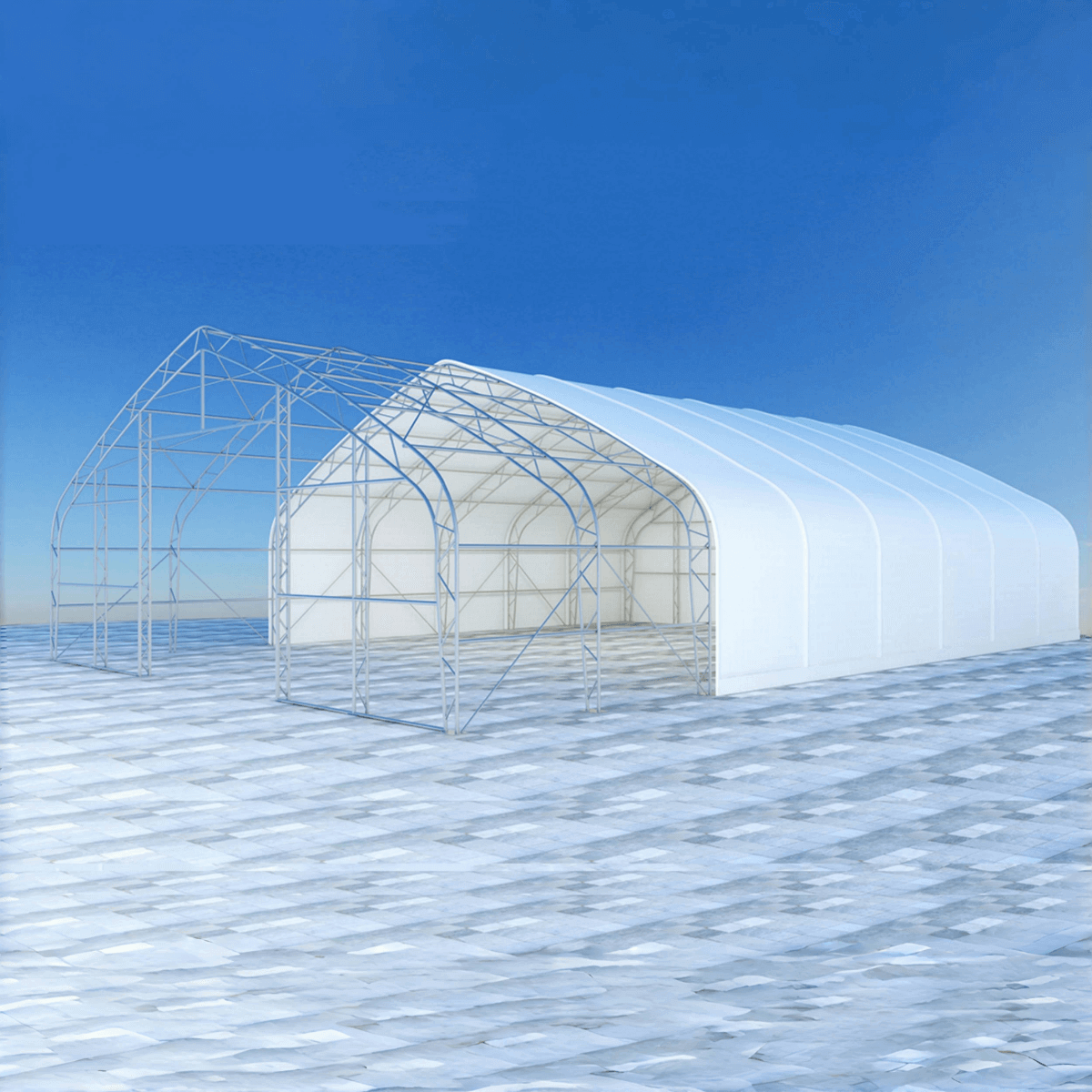

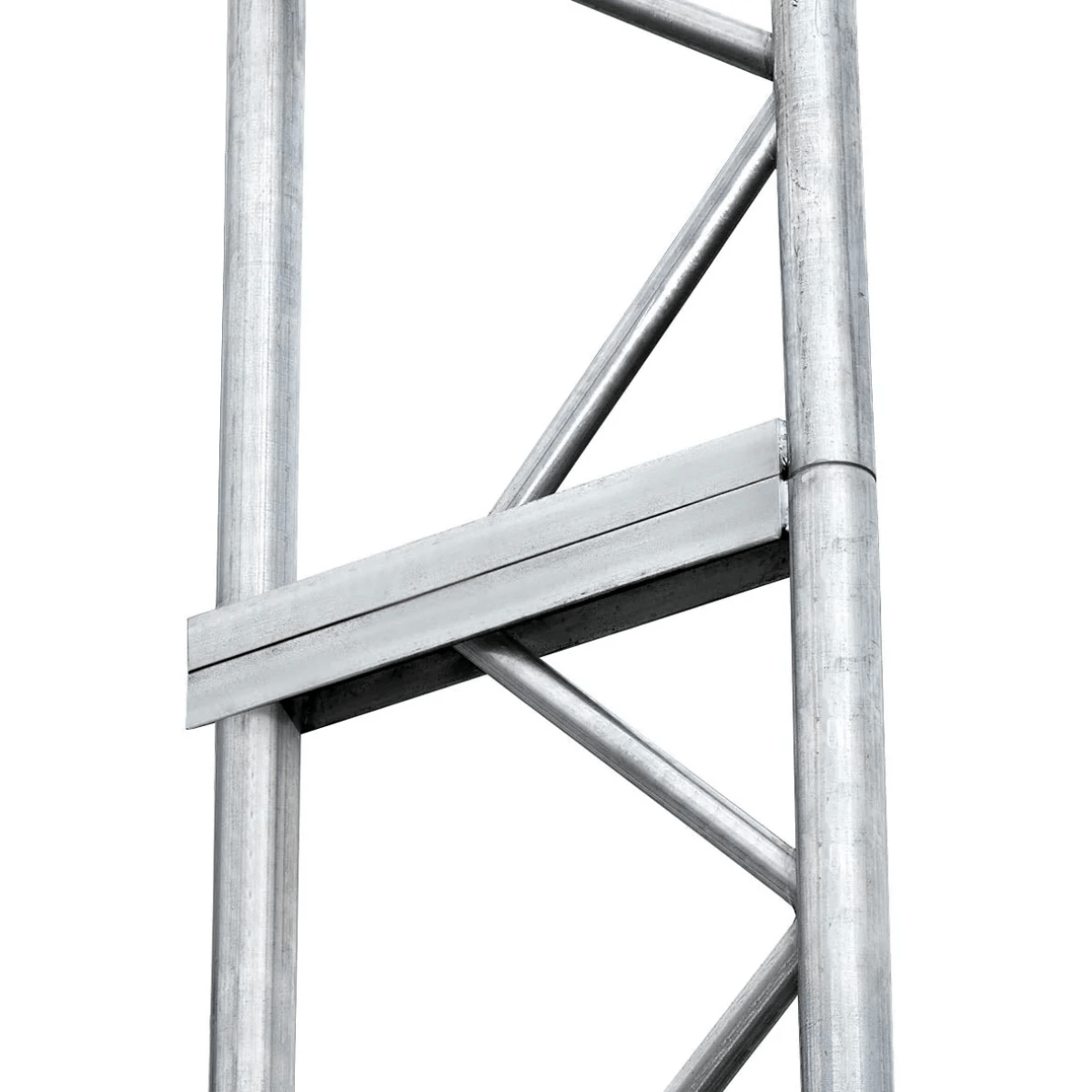

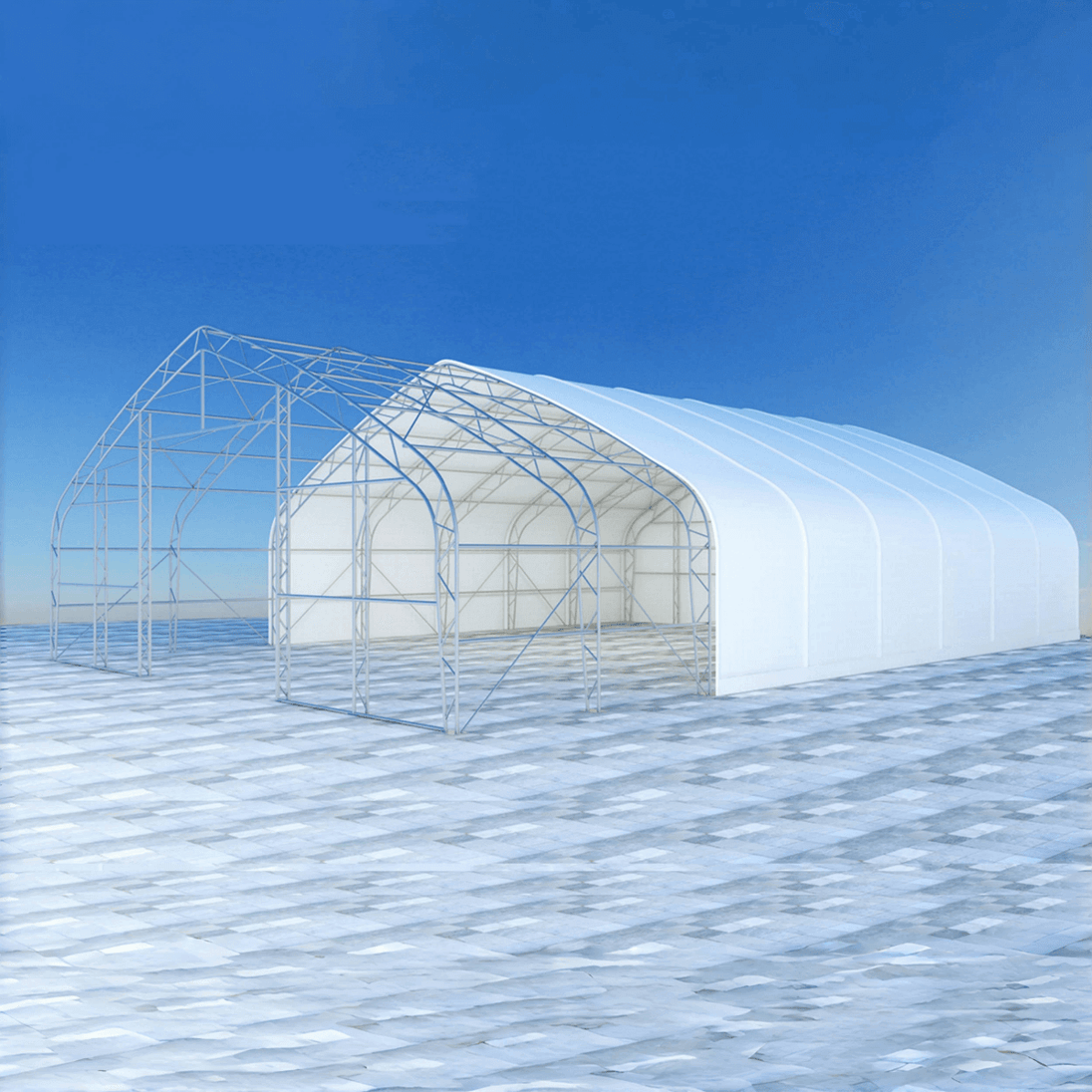

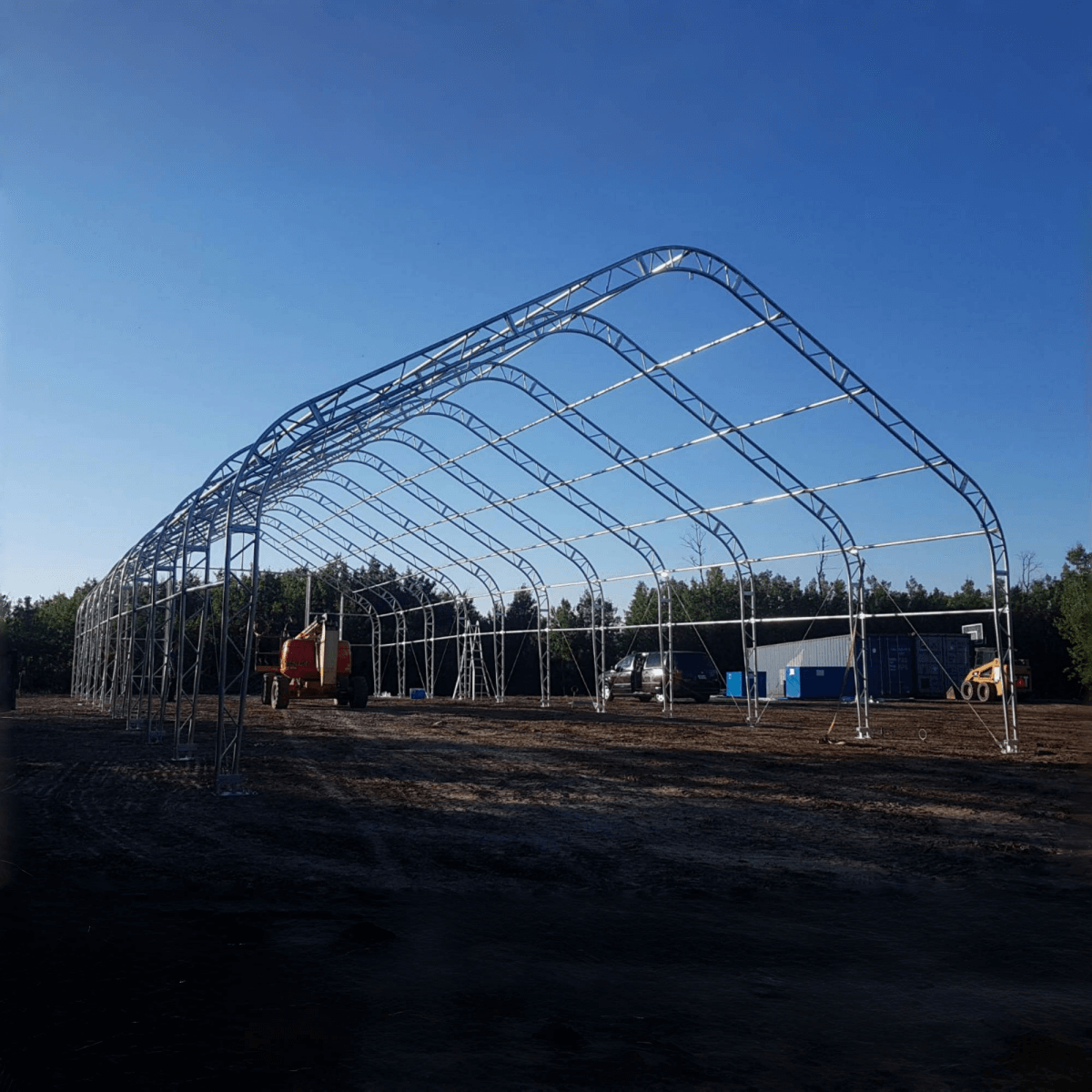

• Frame: Double Truss Galvanized Tube; Steel Frame: Hot Dip Galvanized.
• Truss tube: 16 Gauge.
• Tarp Fabric: PE or PVC (PVC is stronger and longer-lasting).
• Tarp Color: White with Green/Red Edge.
• Temperature resistance: -22 to +158 °F.
• Arch Ø: 60 x 1.5 mm; Purlin Ø: 60 x 1.5 mm.

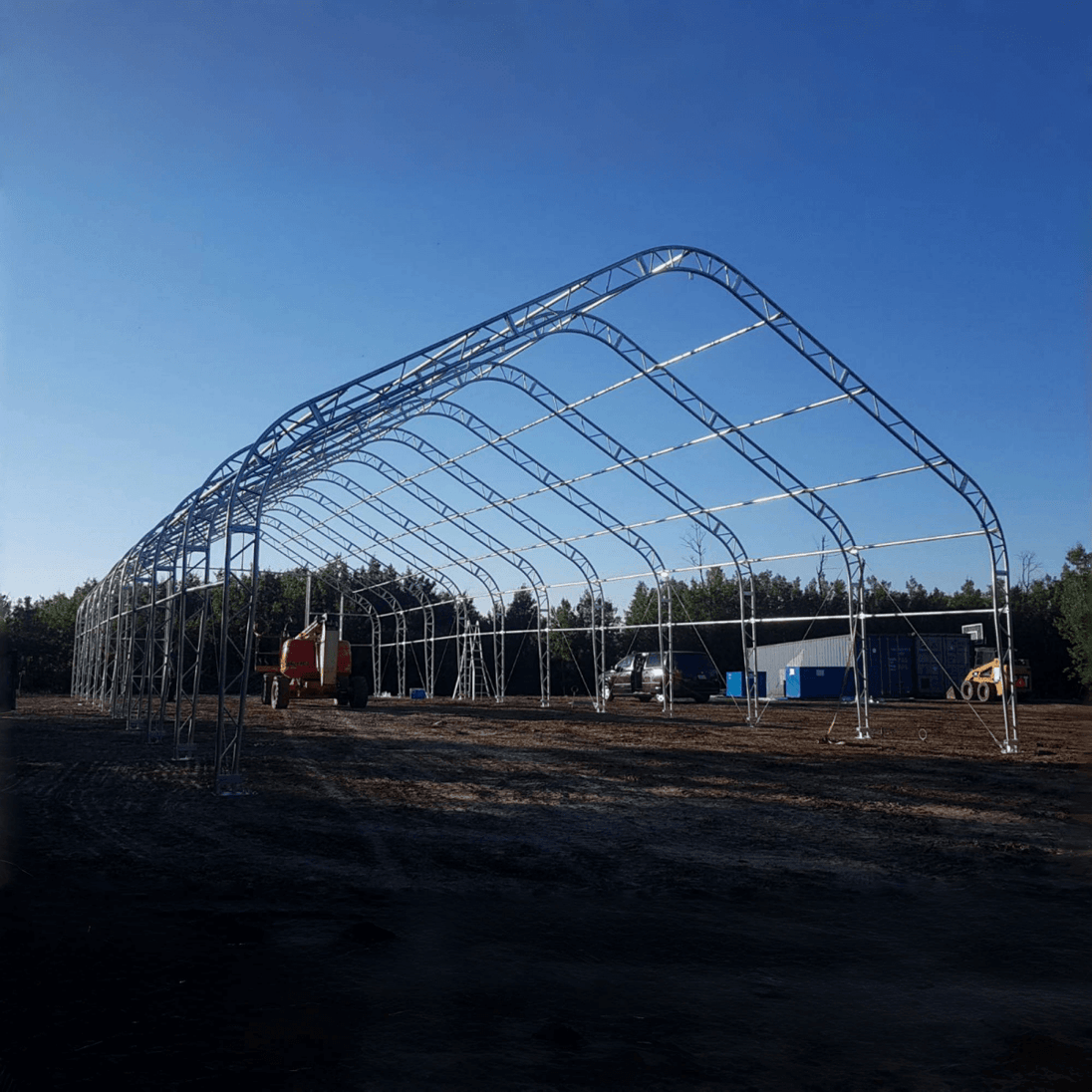

• Arch Spacing: 10 ft; Number of Arch: 8; Number of Anchor plates: 16.

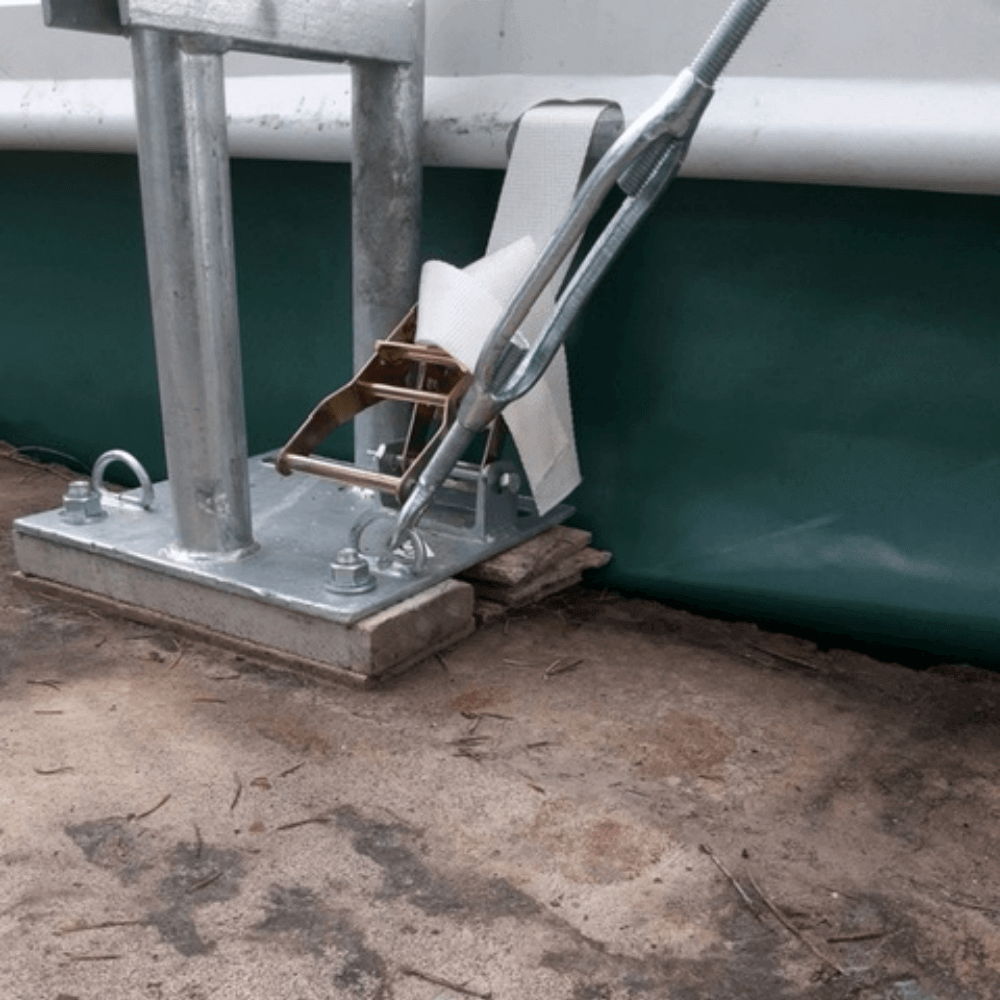

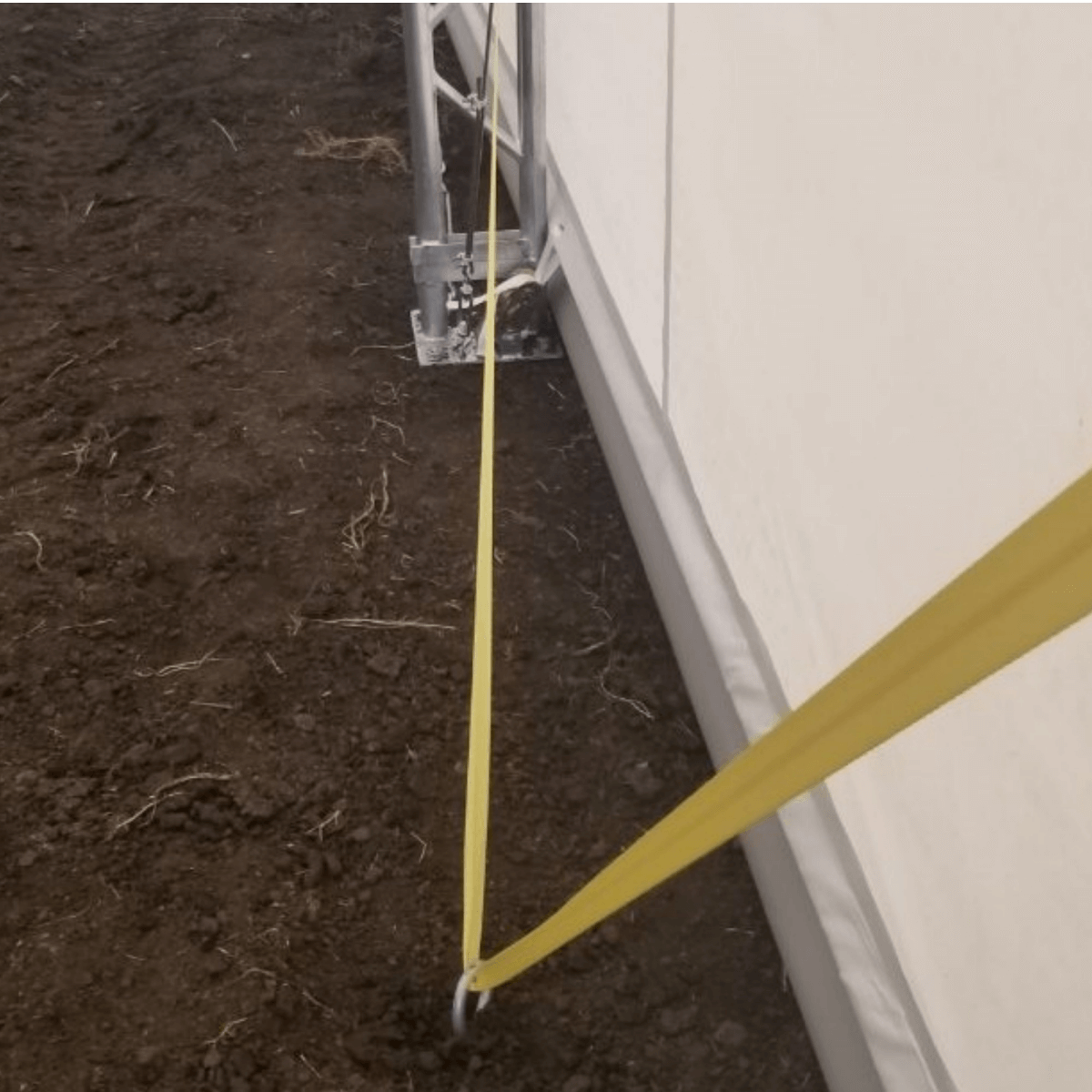

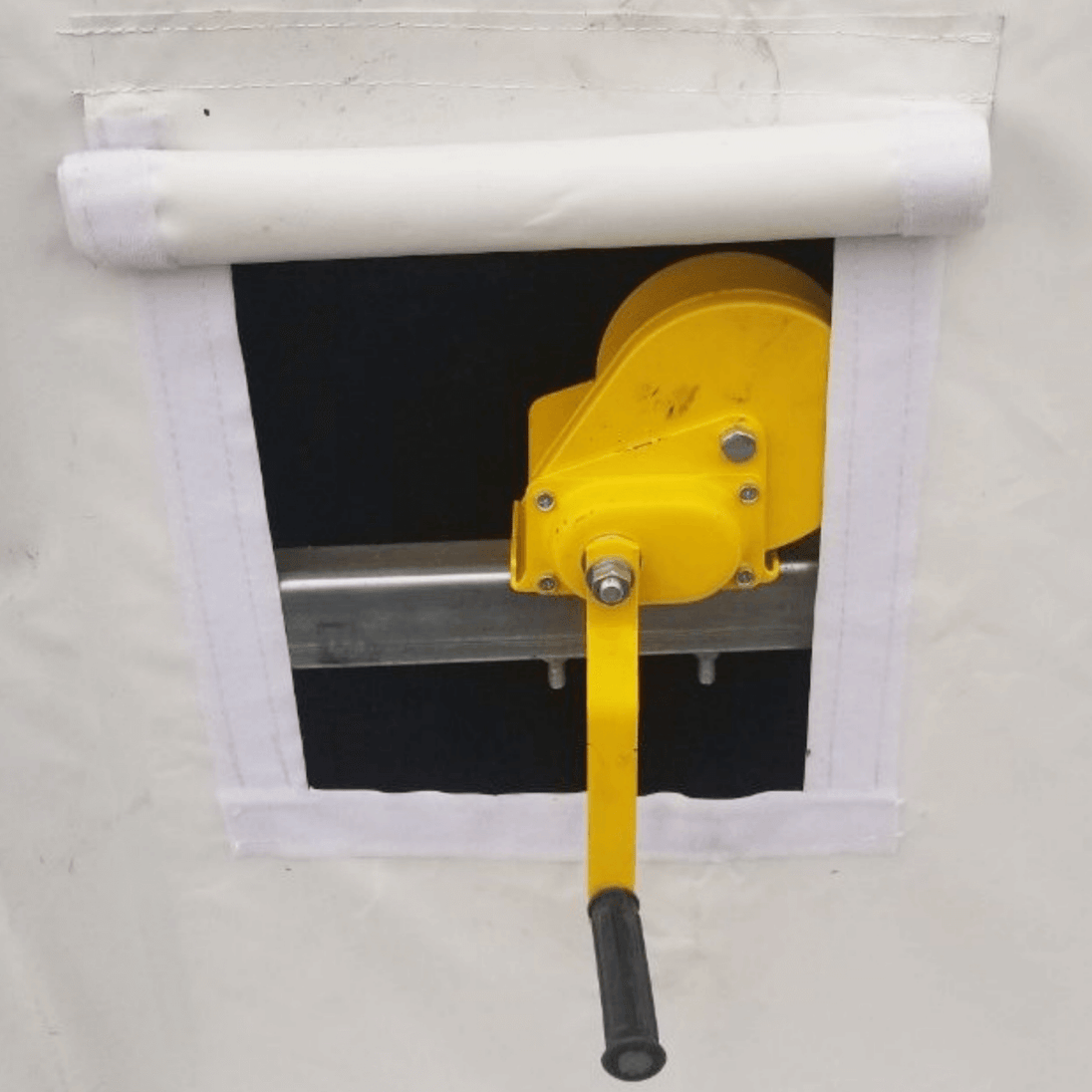

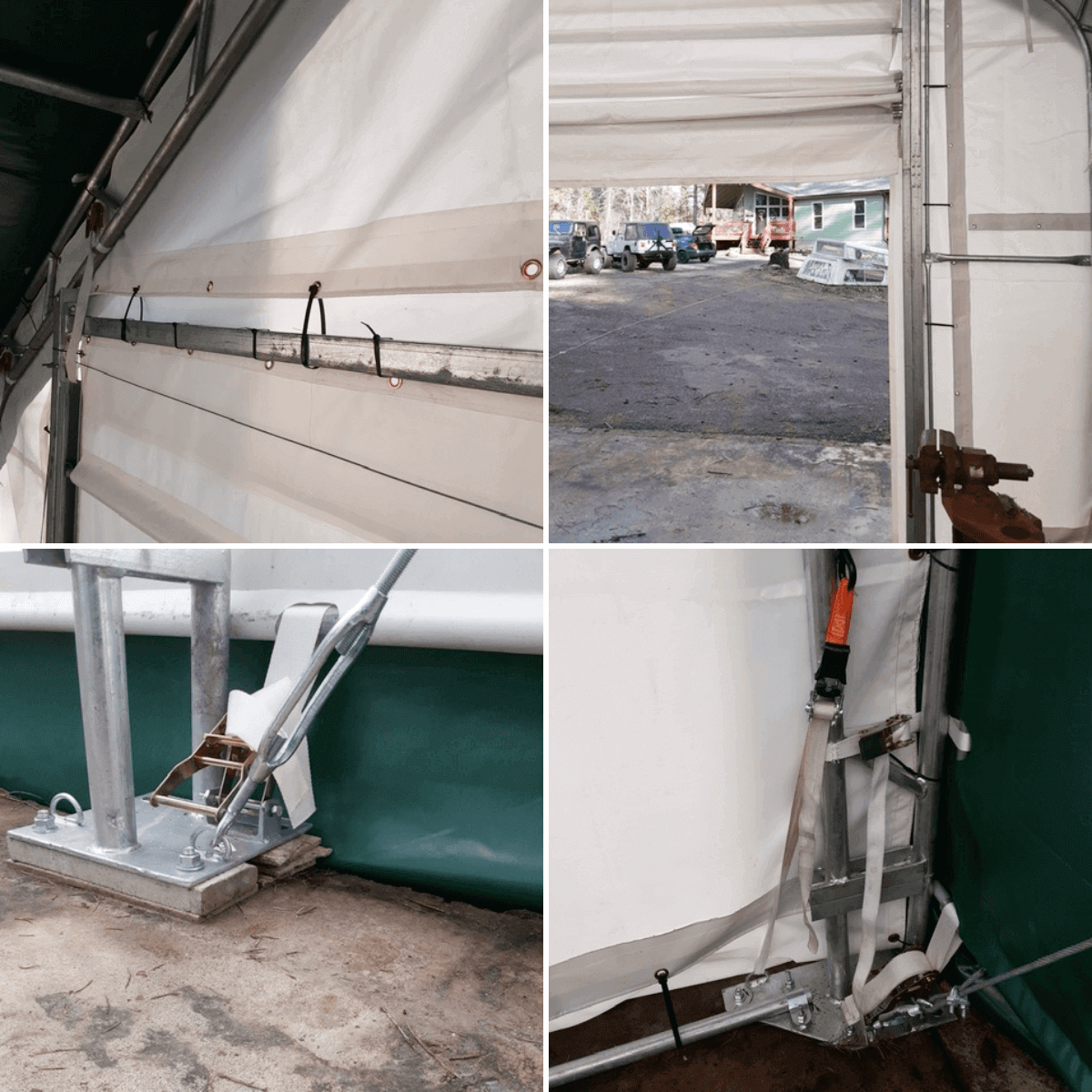

• Tension System: Pipe and Ratchet Tie-Down System.
• Average assembly time for DIY with 4 persons: 4 Days.
• Snow load: 48 lbs/ft²; Wind load: 60 mph.
• Tarp lifespan: 7–10 years (depends on fabric and conditions).
• Frame lifespan: 15+ years.
• Warranty: PE 2 Years; PVC 8 Years.
• Fabric (Optional): 11oz PE; 16oz PVC; 23oz PVC; 26oz PVC; 32oz PVC. Contact to order.
• Country of origin: China.

Specifications

• Dimensions (WxLxH): 40' x 80' x 21'
• Side-wall height: 9.8 ft
• Door size (Front & Rear): 13.1' x 13.1'
• Door type: Mechanical Rollup Door
• Man door (WxH): 2.6' x 6.6'
• Frame: Double Truss Galvanized Tube
• Steel frame: Hot Dip Galvanized Steel
• Truss tube: 16 Gauge
• Tarp fabric options: PE or PVC
• Tarp color: White with Green/Red Edge
• Temperature resistance: -22 to +158 °F
• Arch Ø: 60 x 1.5 mm
• Purlin Ø: 60 x 1.5 mm
• Arch spacing: 10 ft
• Number of arches: 8

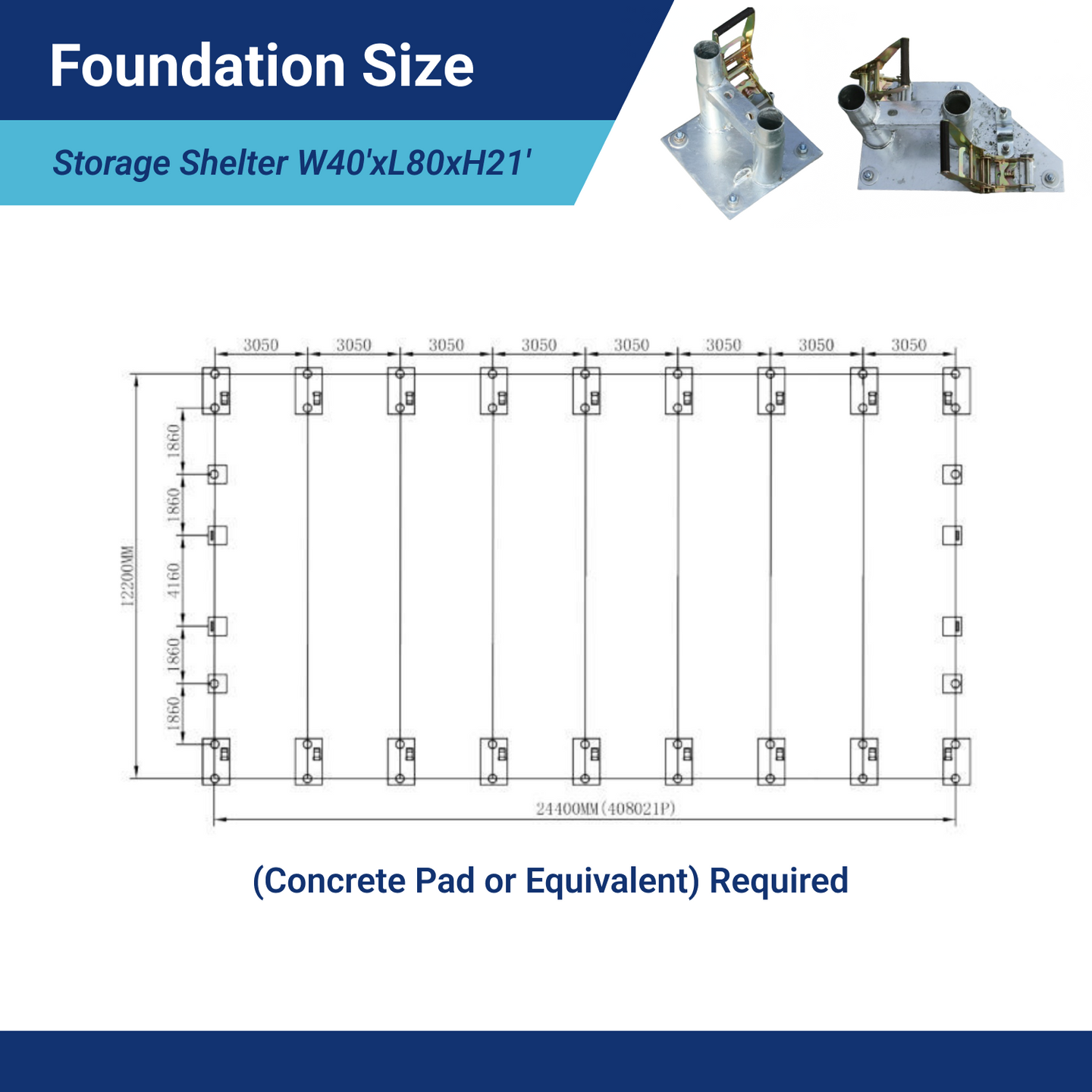

• Number of anchor plates: 16
• Tension system: Pipe and Ratchet Tie-Down
• Average assembly time (4 people): 4 Days
• Snow load: 48 lbs/ft²
• Wind load: 60 mph
• Tarp lifespan: 7–10 years
• Frame lifespan: 15+ years
• Warranty: PE 2 Years; PVC 8 Years
• Fabric (Optional): 11oz PE; 16oz PVC; 23oz PVC; 26oz PVC; 32oz PVC
• Country of origin: China
