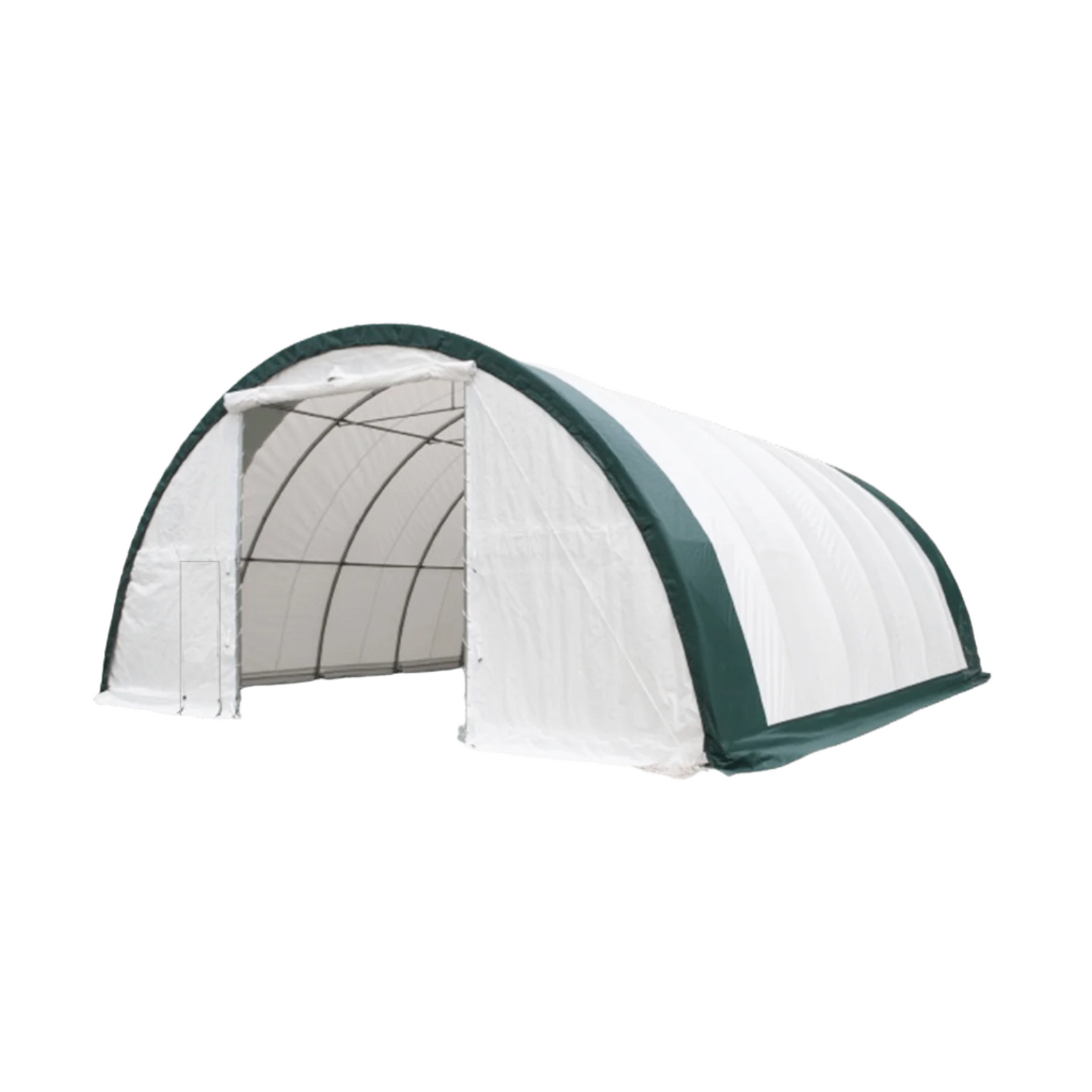

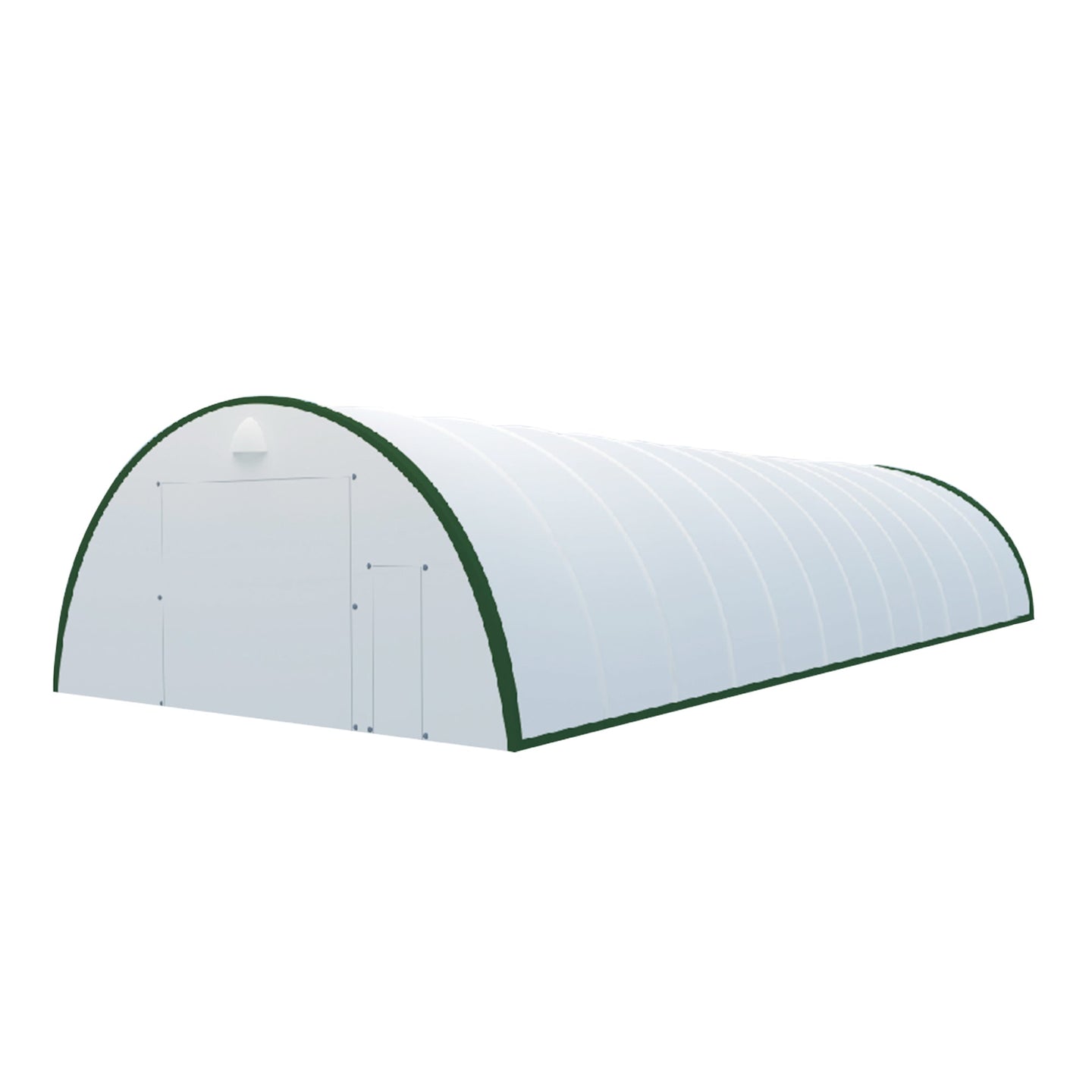

Gold Mountain Single Truss Arch Storage Shelter W40'xL80'xH20'

Overview

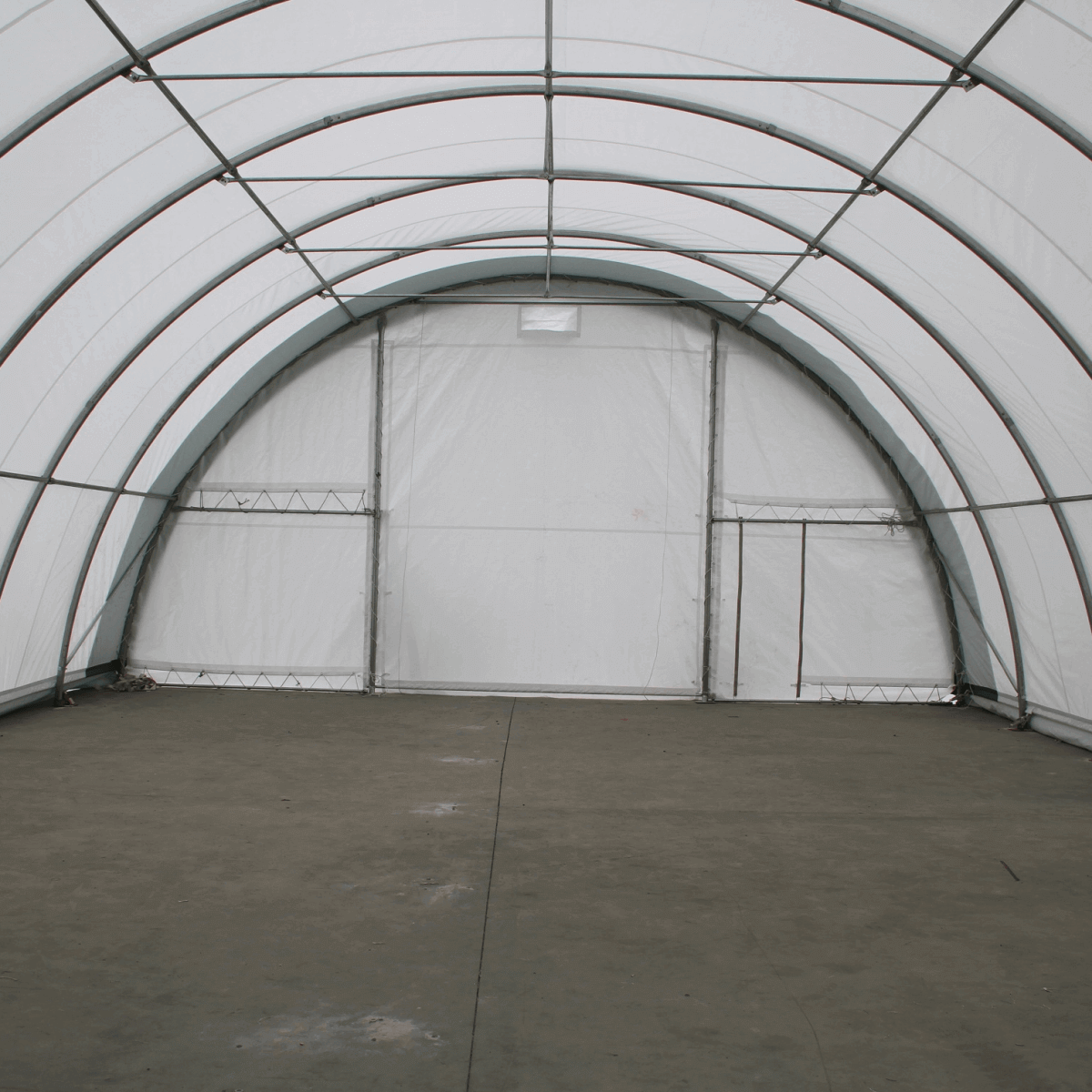

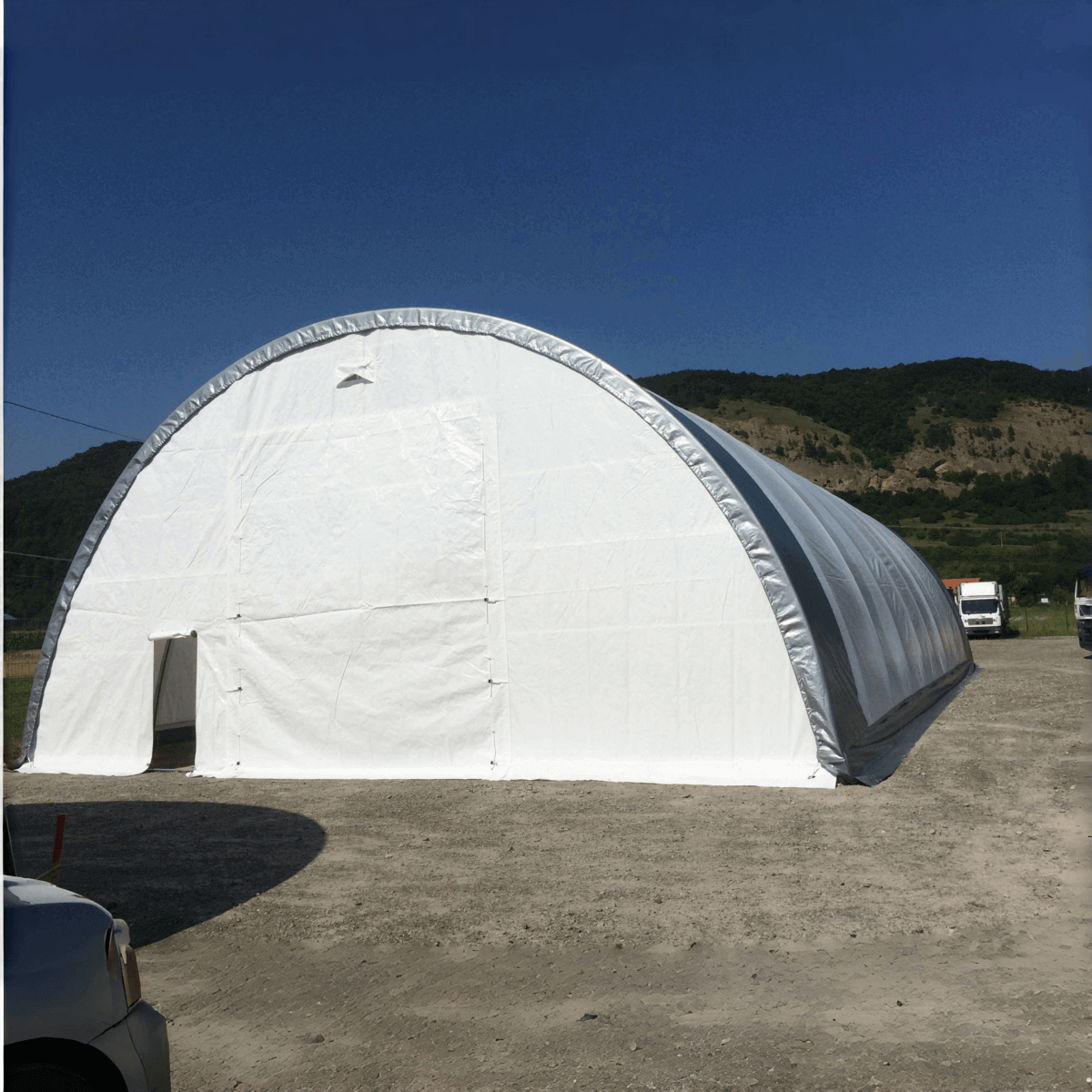

Outdoor storage shelter for agricultural and industrial use. Good for warehouses, workshops, and storing grain, sand, coal, raw materials, equipment, and livestock. It maximizes space with a 40' x 80' footprint and 20' height. Practical storage that goes up, not out.

Benefits

• Large, open interior for bulk storage (40' x 80' x 20').
• Freestanding design. No walls required.
• Durable frame: galvanized steel and 14 gauge arch tube.
• Weather protection: tarp fabrics options resistant to water, UV, and fading.
• High load capacity: snow load 42 lb/ft² and wind load up to 50 mph.
• Long-term value: tarp 7–10 years; frame 15+ years.
• Average assembly time: about 4 days with a four-person crew.
• No building permits required in many locations.

Features

• No building permits required.
• Resistant toward water, UV, and fading.
• Average cover lifespan: 7–10 years depending on conditions.

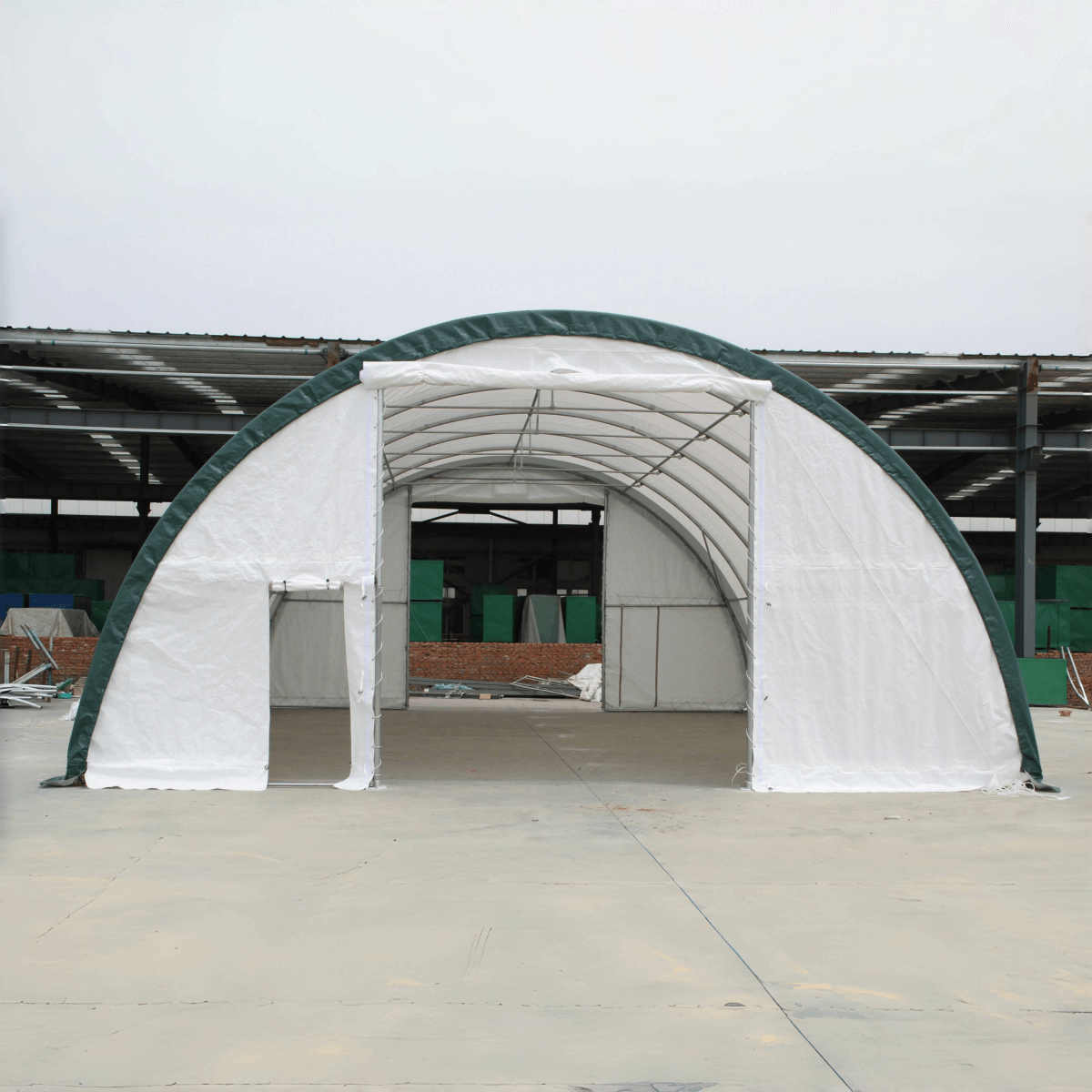

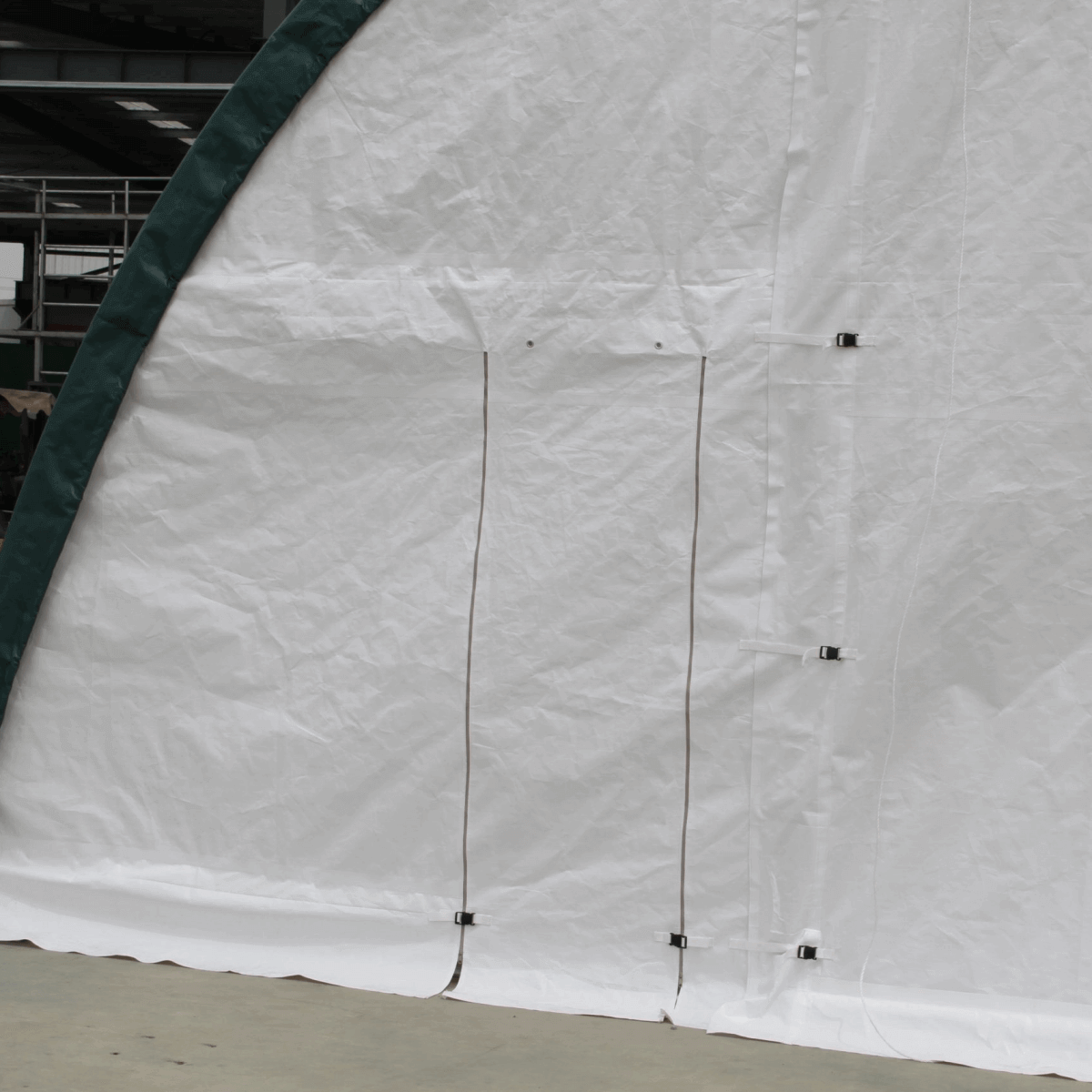

• Mechanical doors at two ends.
• Large capacity for trucks, automobiles, and bulk storage.
• Protect belongings from wind, snow, and rain.
• CSA/TUV Snow Rating Test Report and SGS fabric certificate.

Specifications

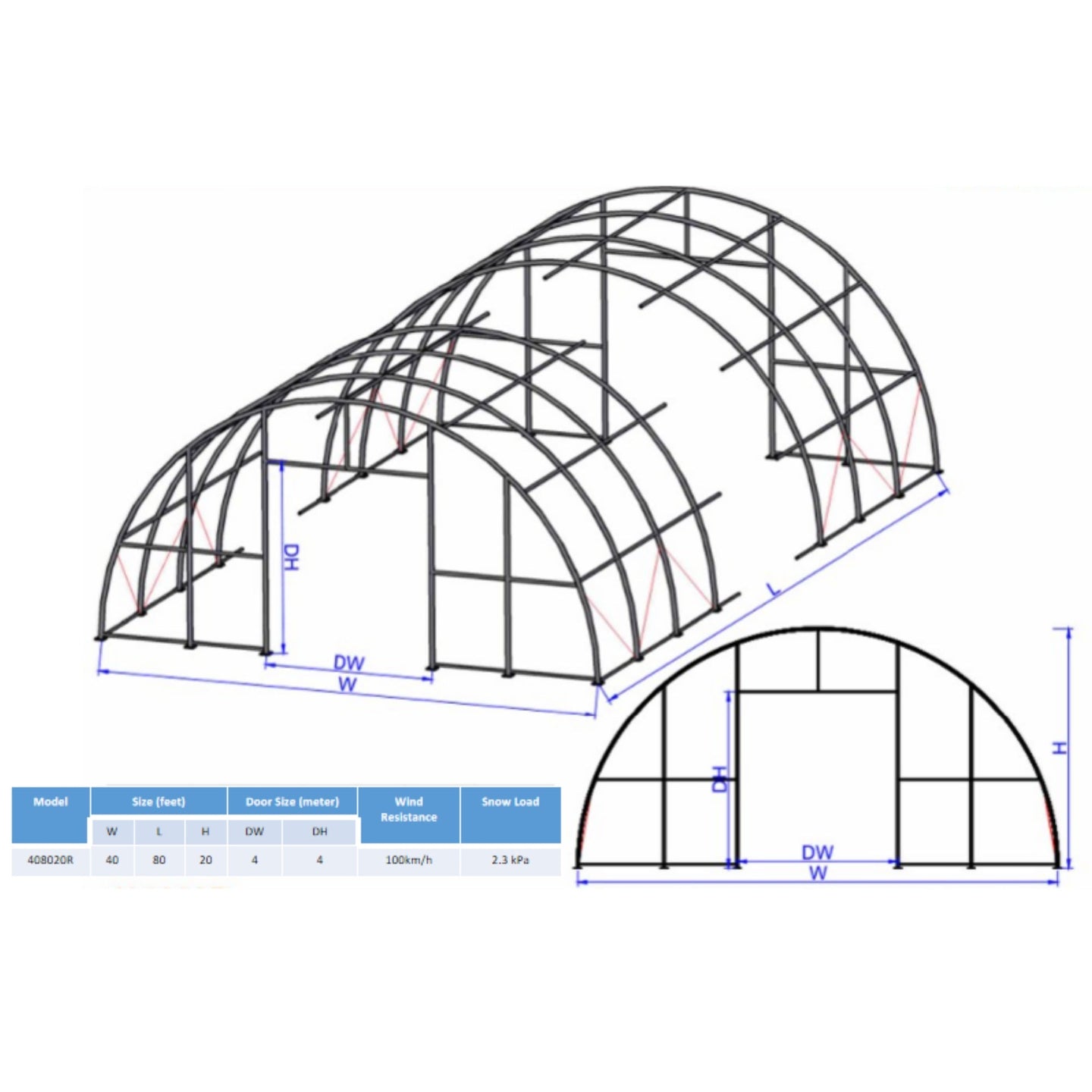

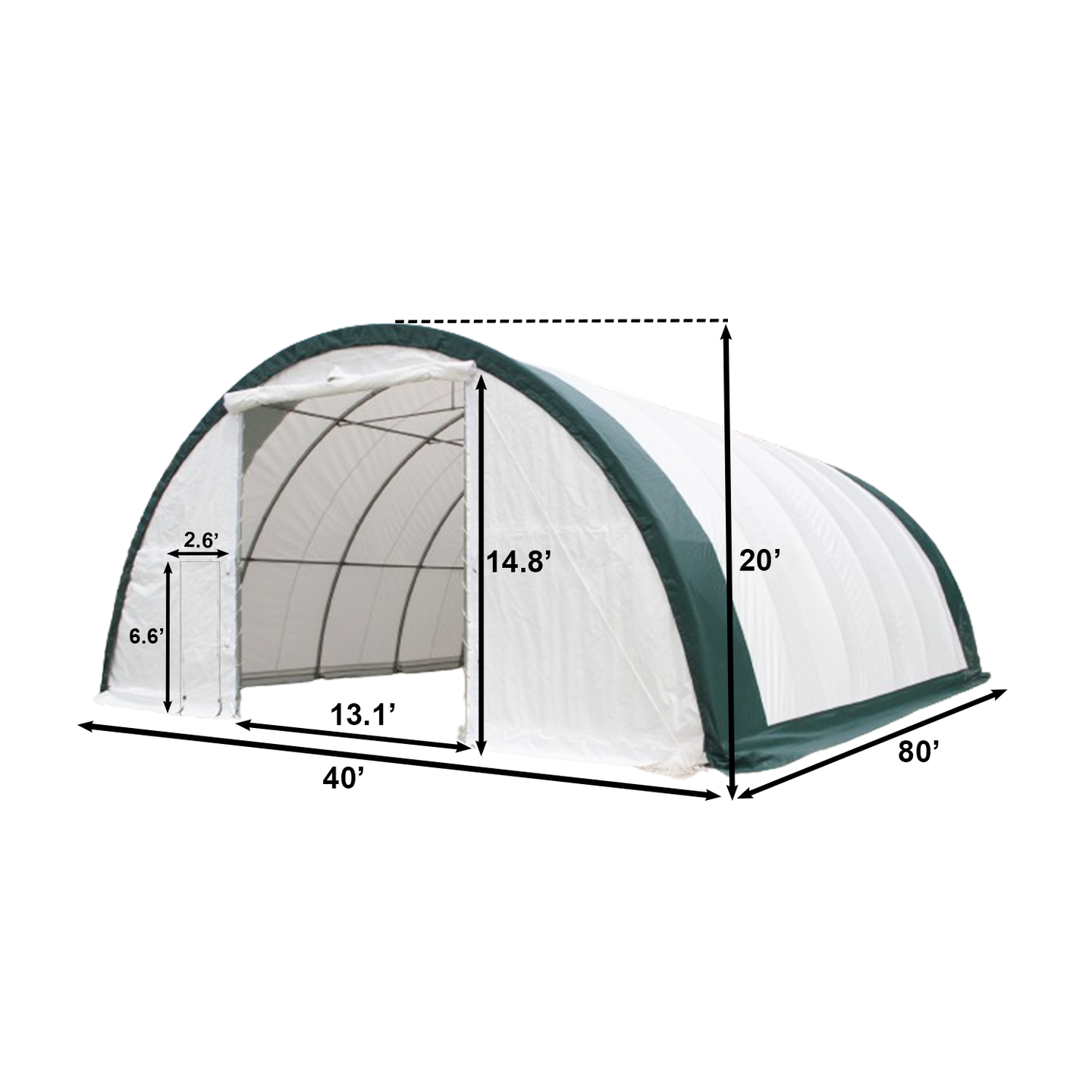

• Dimensions (WxLxH): 40' x 80' x 20'
• Door size (Front & Rear): 13.1' x 14.8'
• Door Type: Rope Pullup Door
• Man Door (WxH): 2.6' x 6.6'
• Frame: Single Truss Galvanized Tube
• Steel Frame: Hot Dip Galvanized Steel
• Truss tube: 14 Gauge
• Tarp Fabric: PE or PVC
• Tarp Color (customizable): White with Green/Red Edge
• Temperature resistance: -22 to +158 °F
• Arch Ø: 56x86x2 mm
• Purlin Ø: 48x1.5 mm
• Arch Spacing: 6.56 ft
• Number of Arch: 13

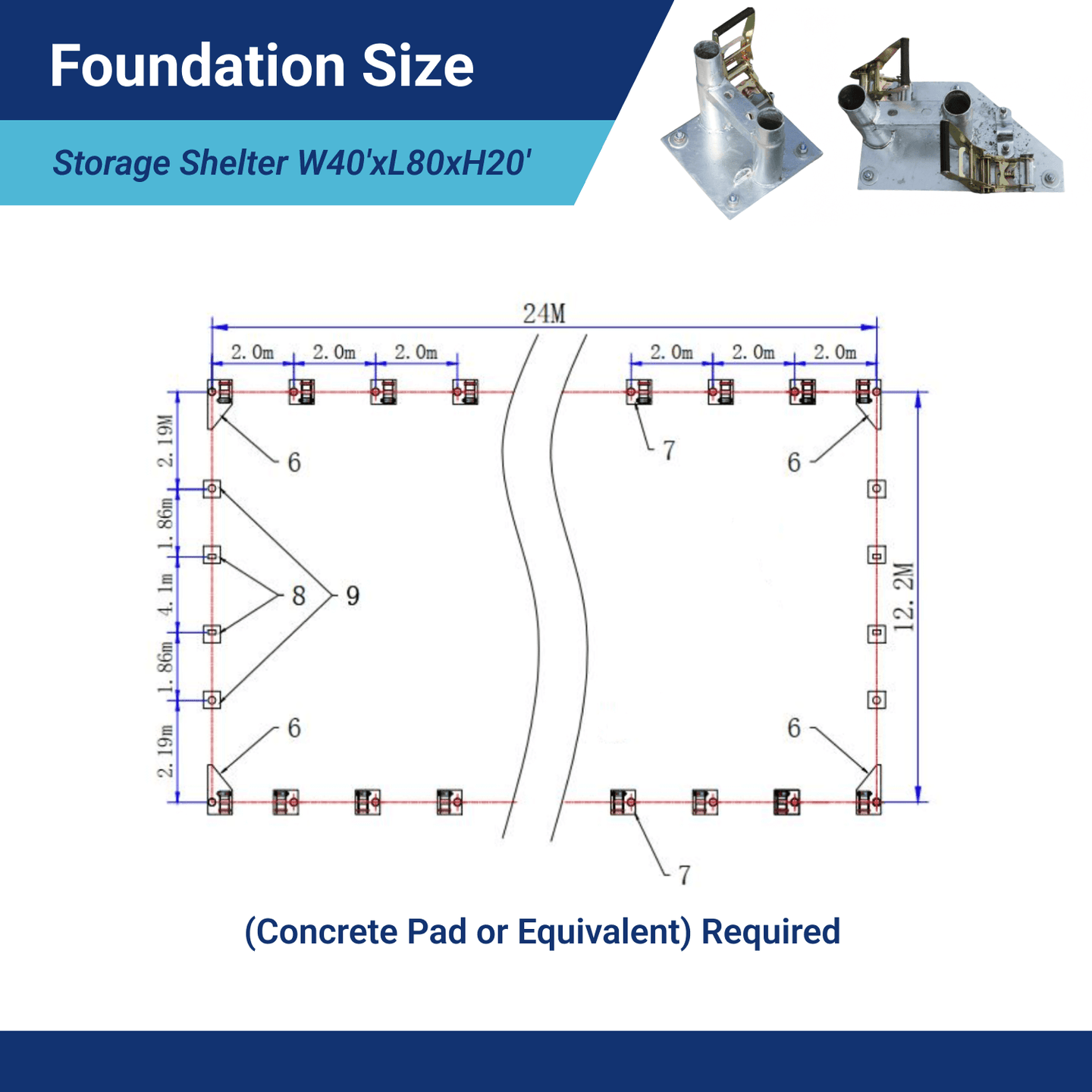

• Number of Anchor plates: 26

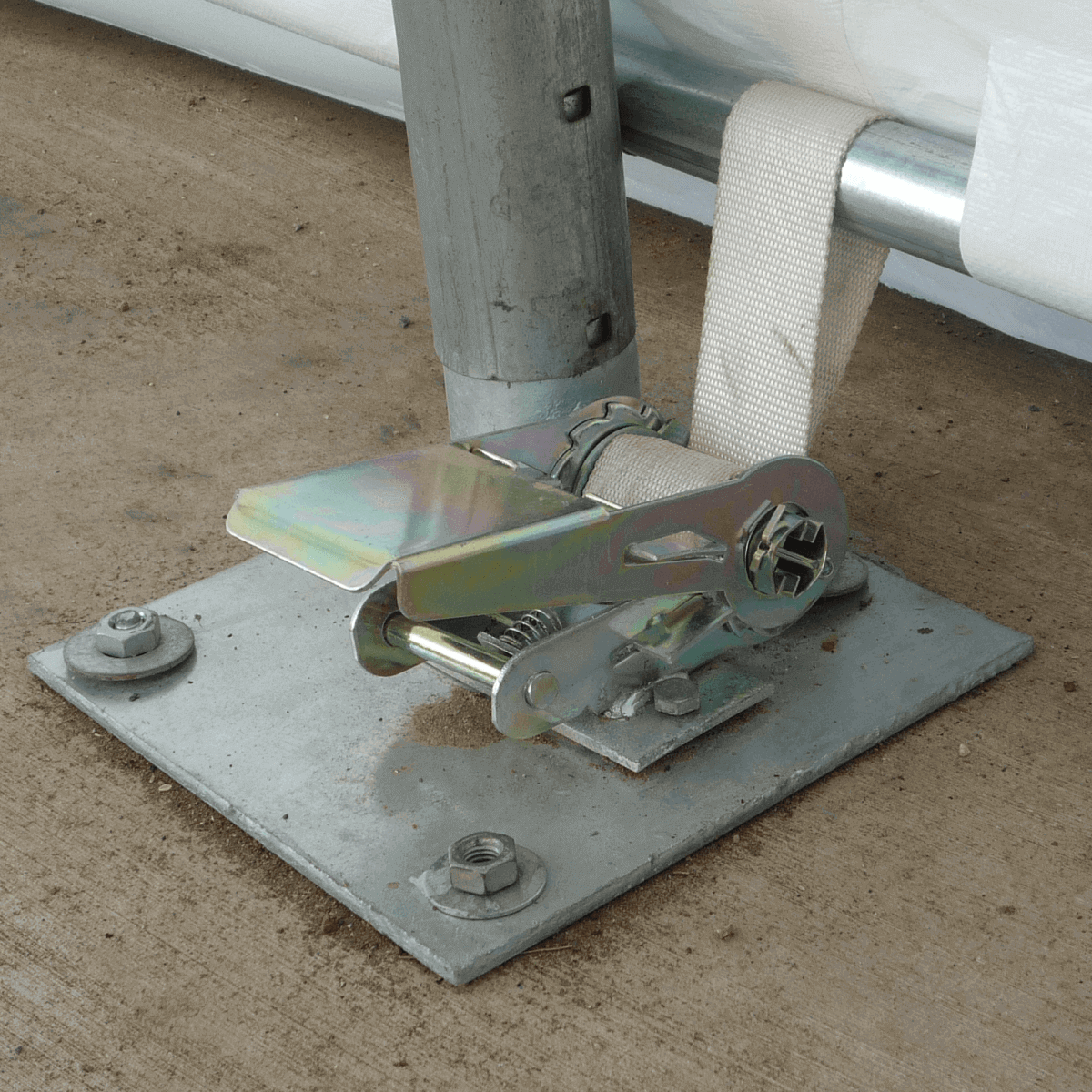

• Tension System: Pipe and Ratchet Tie-Down System
• Average assembly time: 4 days with 4 people
• Snow Load: 42 lb/ft²
• Wind Load: 50 mph
• Tarp lifespan: 7–10 years (depends on fabric and environment)
• Frame lifespan: 15+ years
• Warranty: PE 2 years; PVC 8 years
• Fabric options: 11 oz/m² (300 gsm) PE; 16 oz/m² (450 gsm) PVC; 23 oz/m² (650 gsm) PVC; 26 oz/m² (750 gsm) PVC; 32 oz/m² (900 gsm) PVC
• Country of Origin: China
