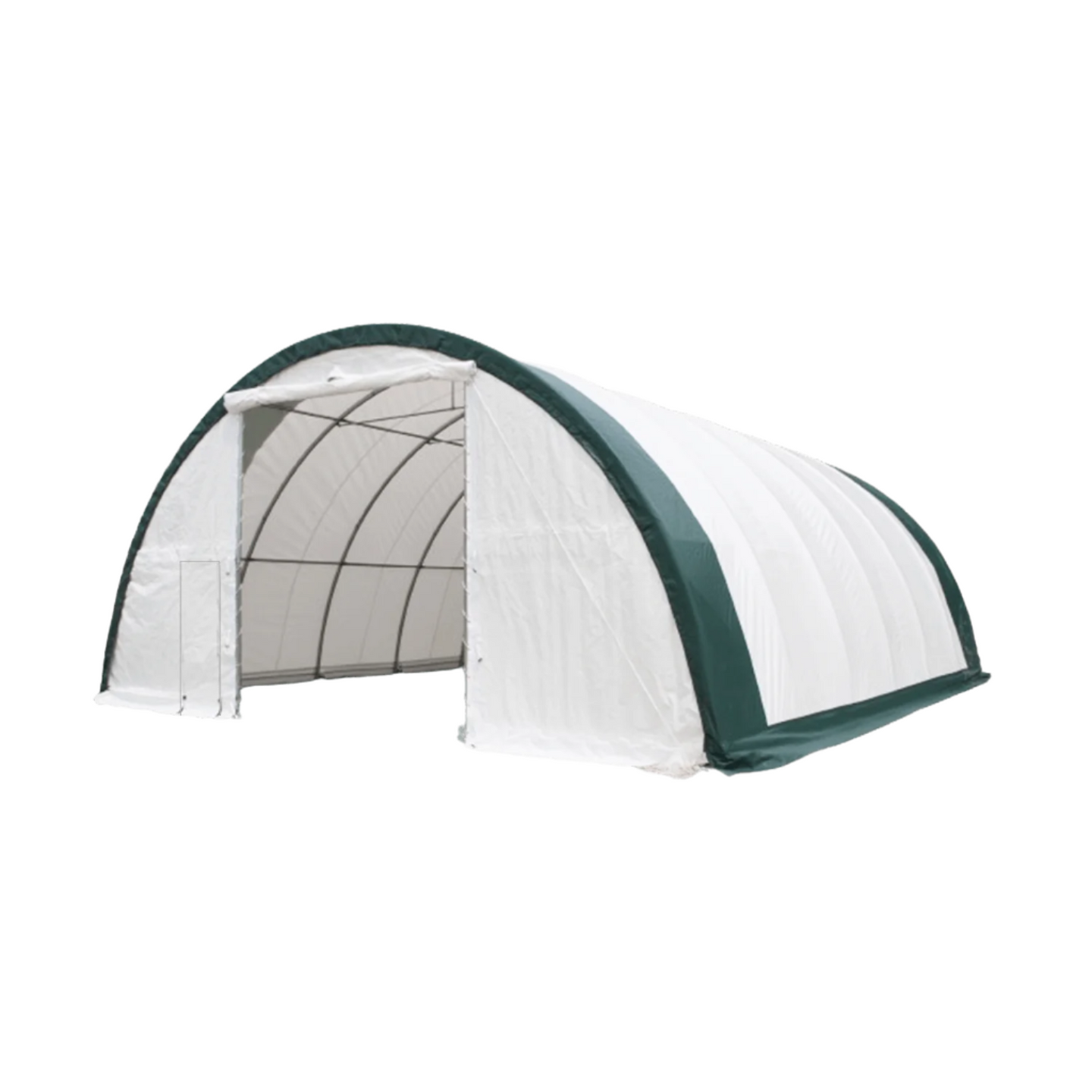

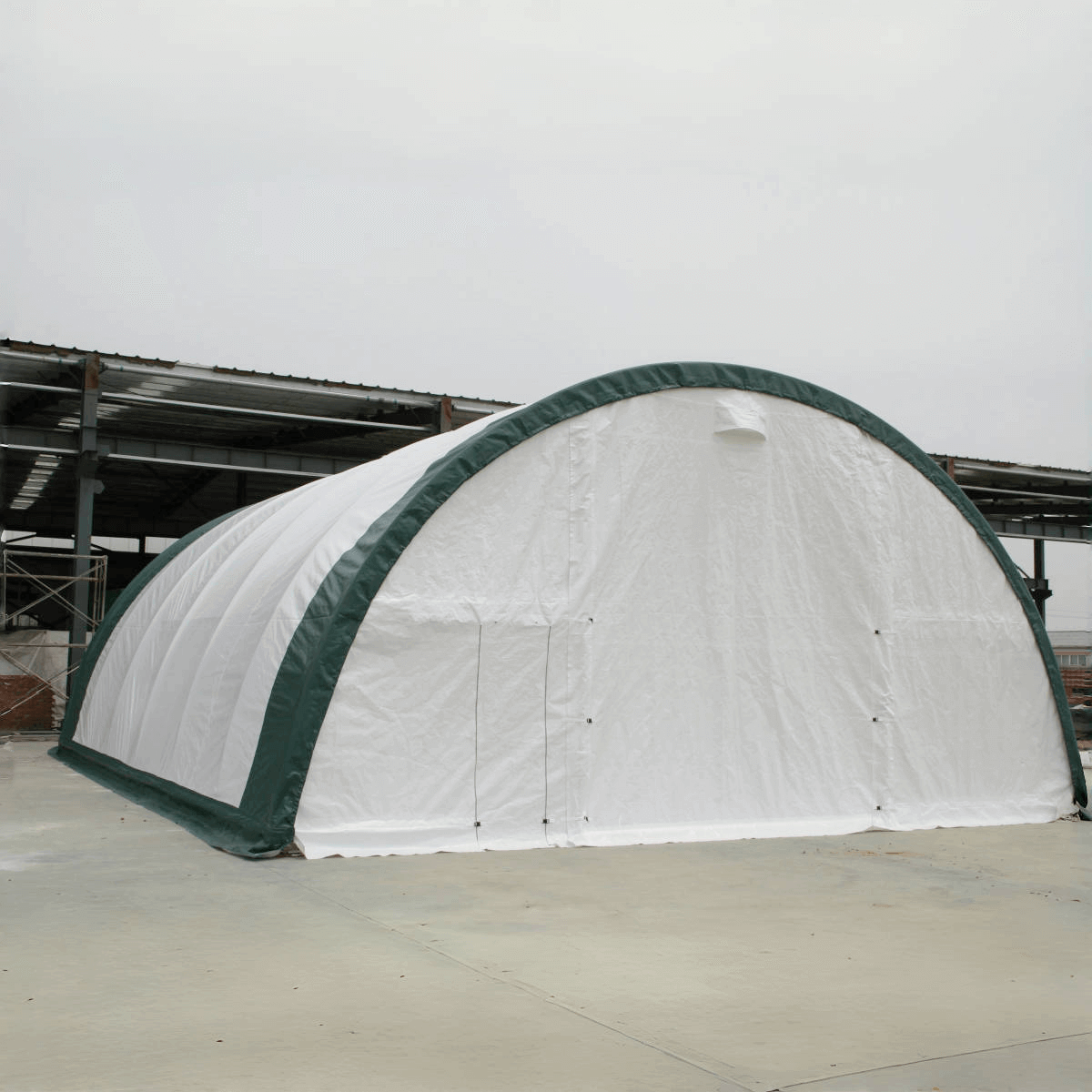

The Gold Mountain Single Truss Arch Storage Shelter W30'xL65'xH15'

Overview

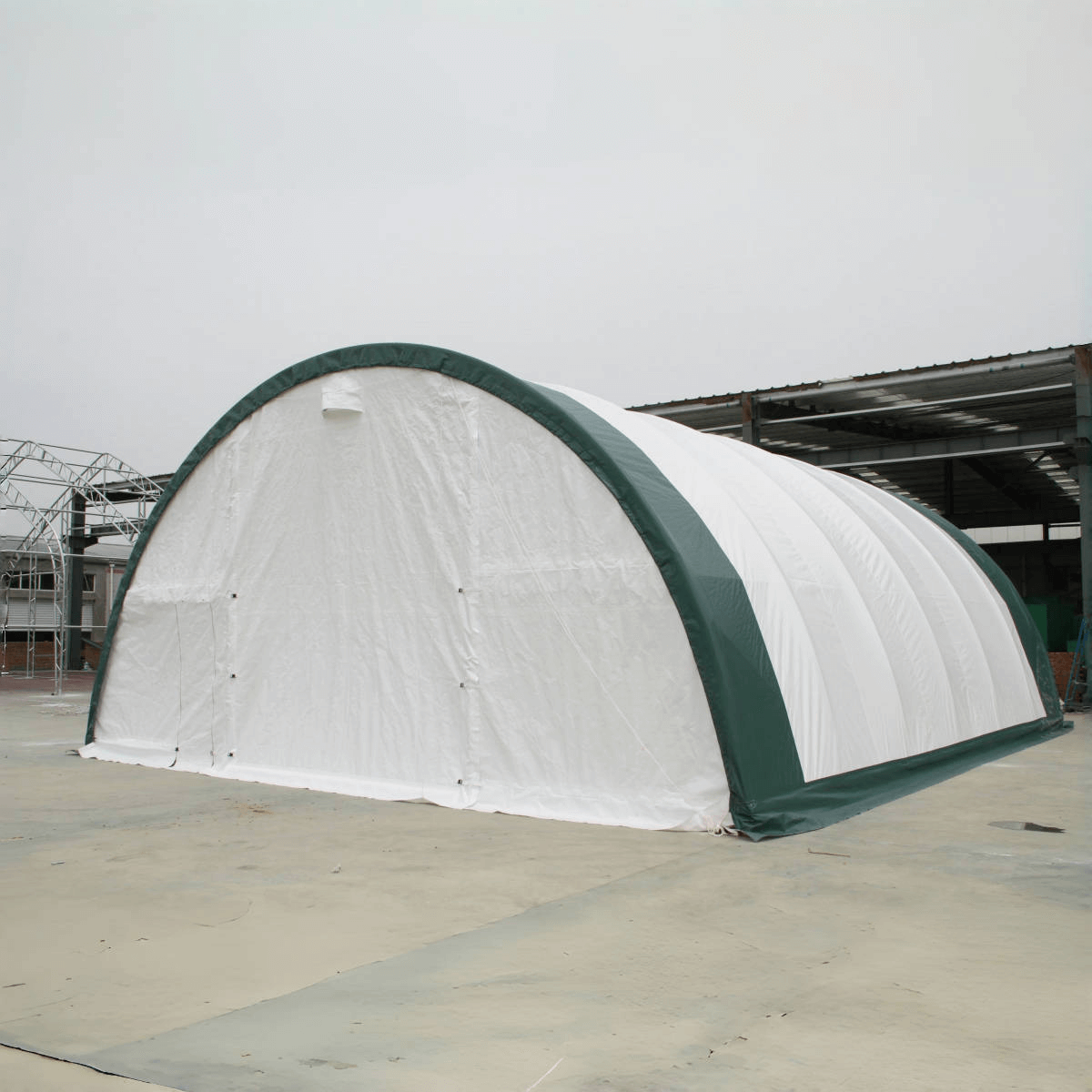

The Gold Mountain storage shelter features dual-end openings and is waterproof and UV-resistant, ideal for humid coastal areas. It’s easy to assemble and built to withstand weather, offering durable protection for vehicles, equipment, and event spaces. Suitable for agricultural, industrial, and commercial use, it serves many outdoor needs, including vehicle storage, warehouse facilities, and event venues like weddings and activities.

Benefits

• Dual-end openings for easy access.
• Waterproof and UV-resistant protection.
• Easy to assemble.
• Durable shelter for vehicles, equipment, and spaces.
• Versatile for agricultural, industrial, and commercial use.
• No building permits required in many cases.
• Snow removal is the owner’s responsibility if it doesn’t slide off automatically.

Features

• No building permits required*.
• Resistant to water, UV, and fading.
• Freestanding style.
• Large capacity for trucks, automobiles, and bulk storage.
• Protects belongings from wind, snow, and rain.
• CSA/TUV Snow Rating Test Report.
• SGS fabric certificate.
• Certificate: SGS.
• Average tarp lifespan of 7–10 years, depending on fabric and conditions.

Specifications

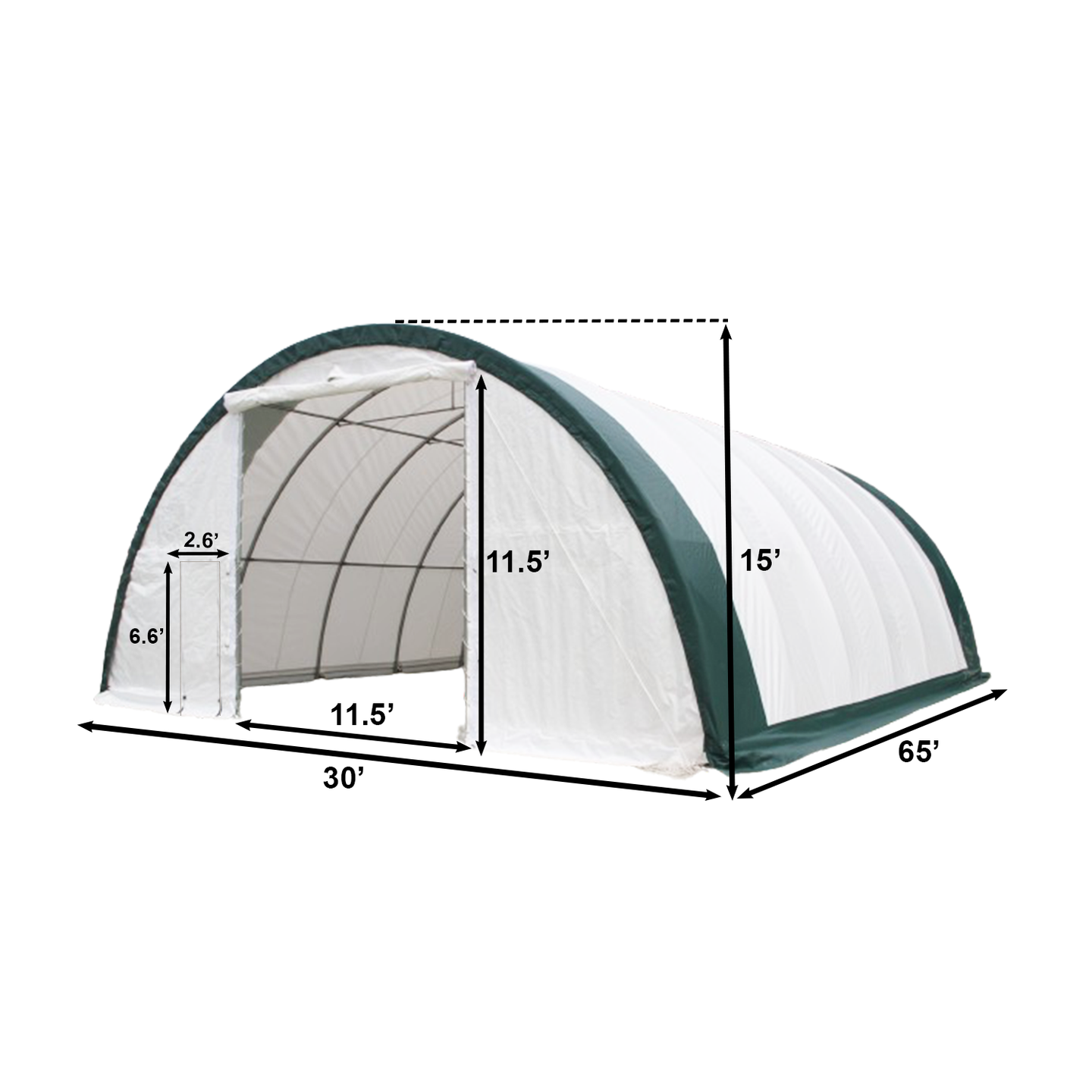

• Dimensions (WxLxH): 30'x65'x15'

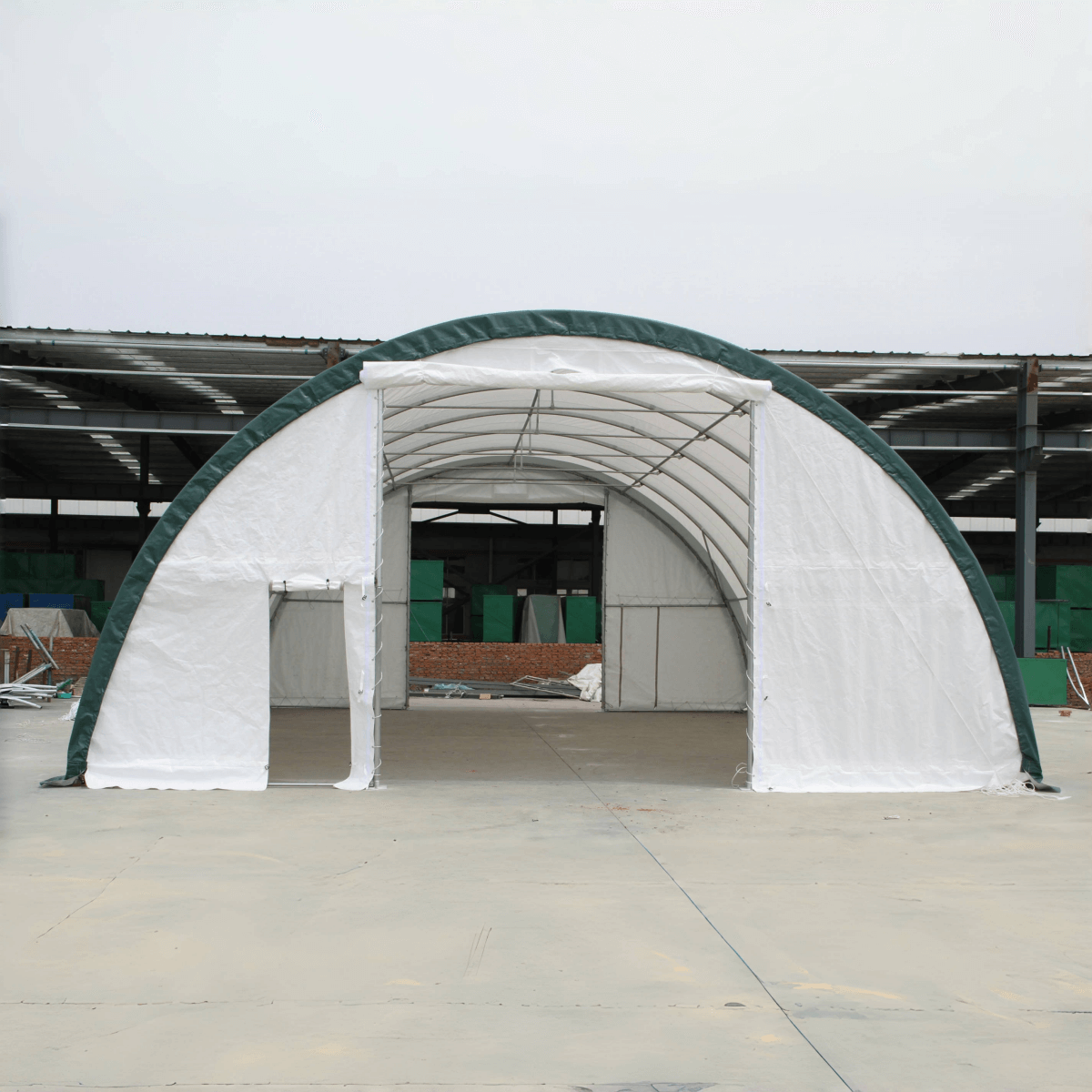

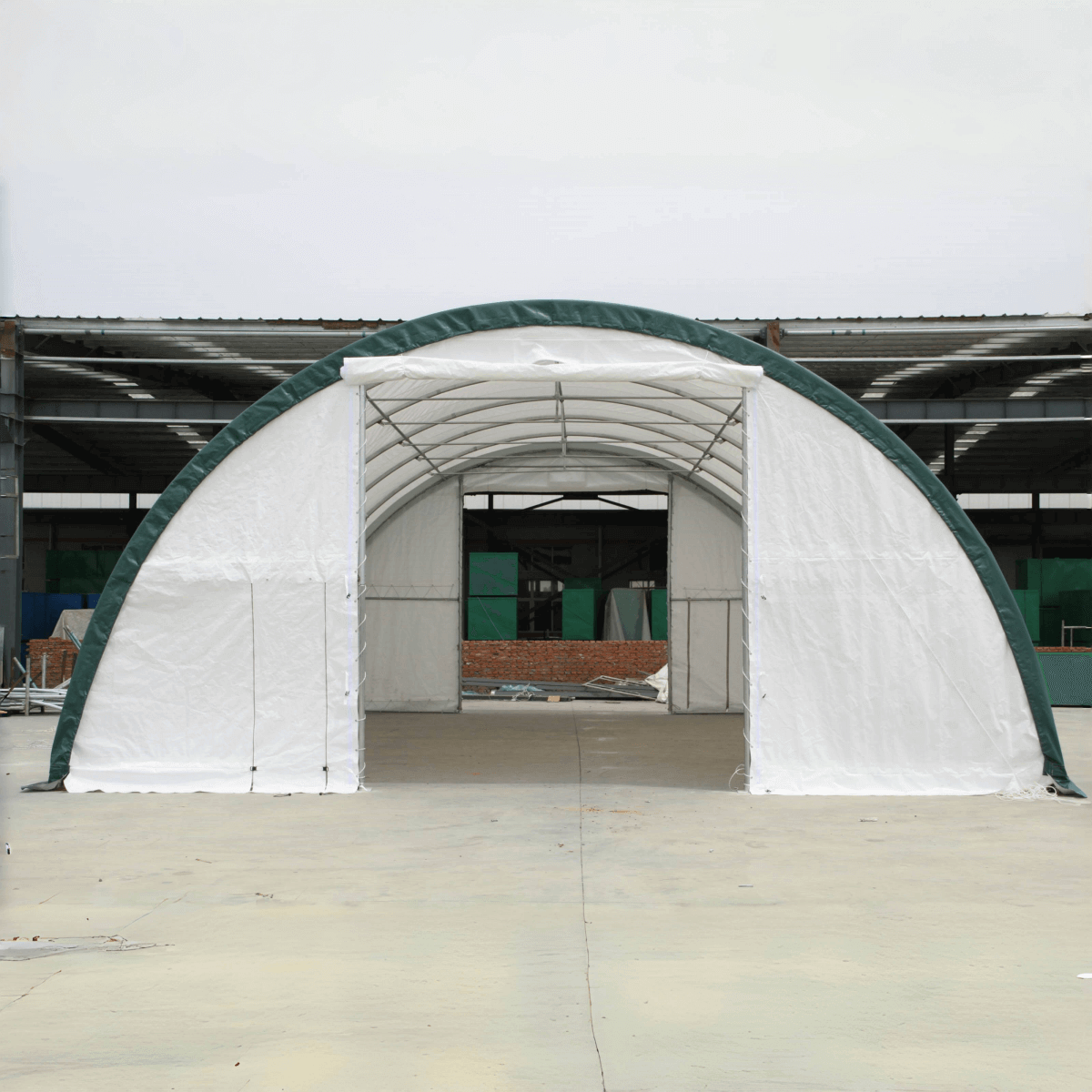

• Door size (Front & Rear): 11.5'x11.5'
• Door Type: Rope Pullup Door

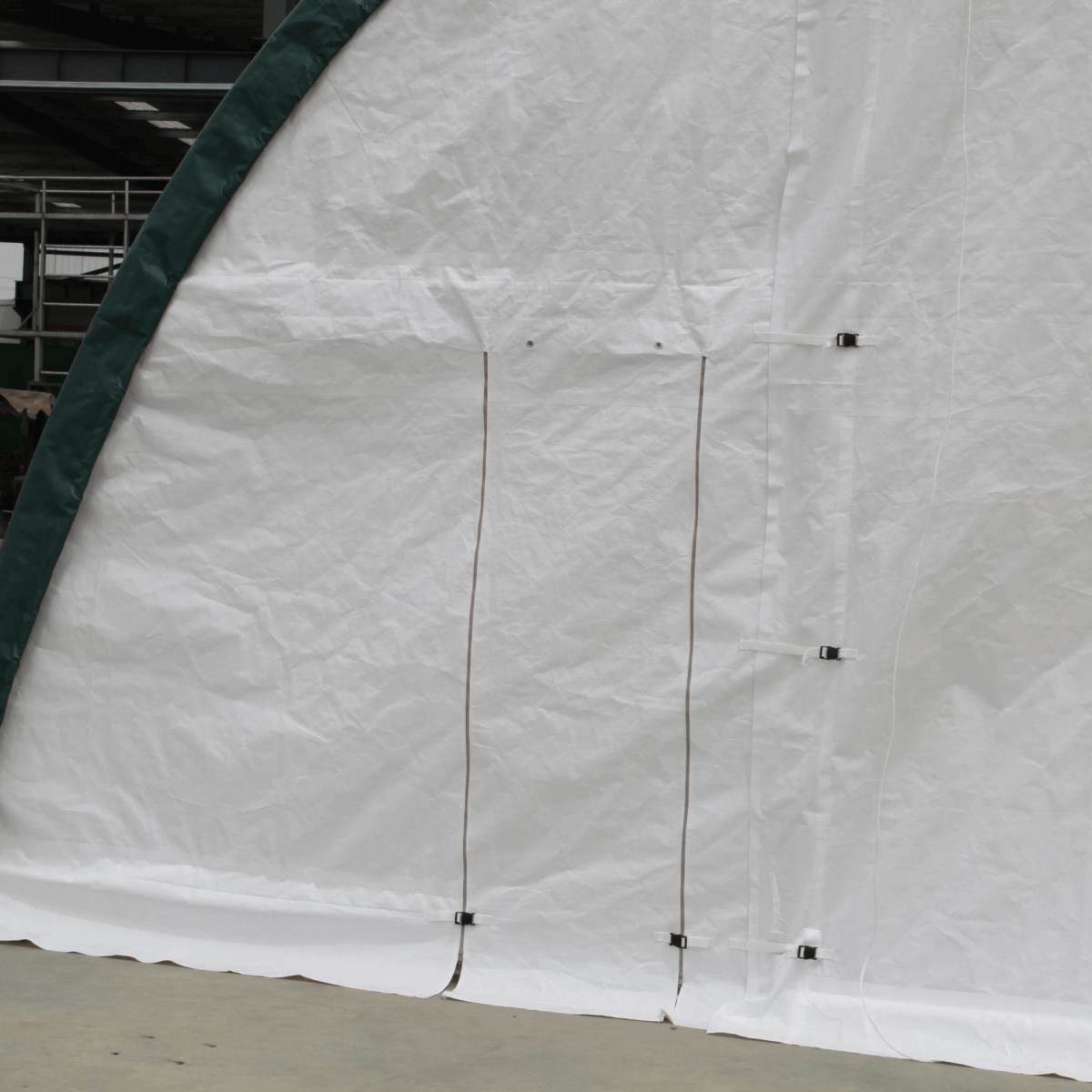

• Man Door (WxH): 2.6'x6.6'

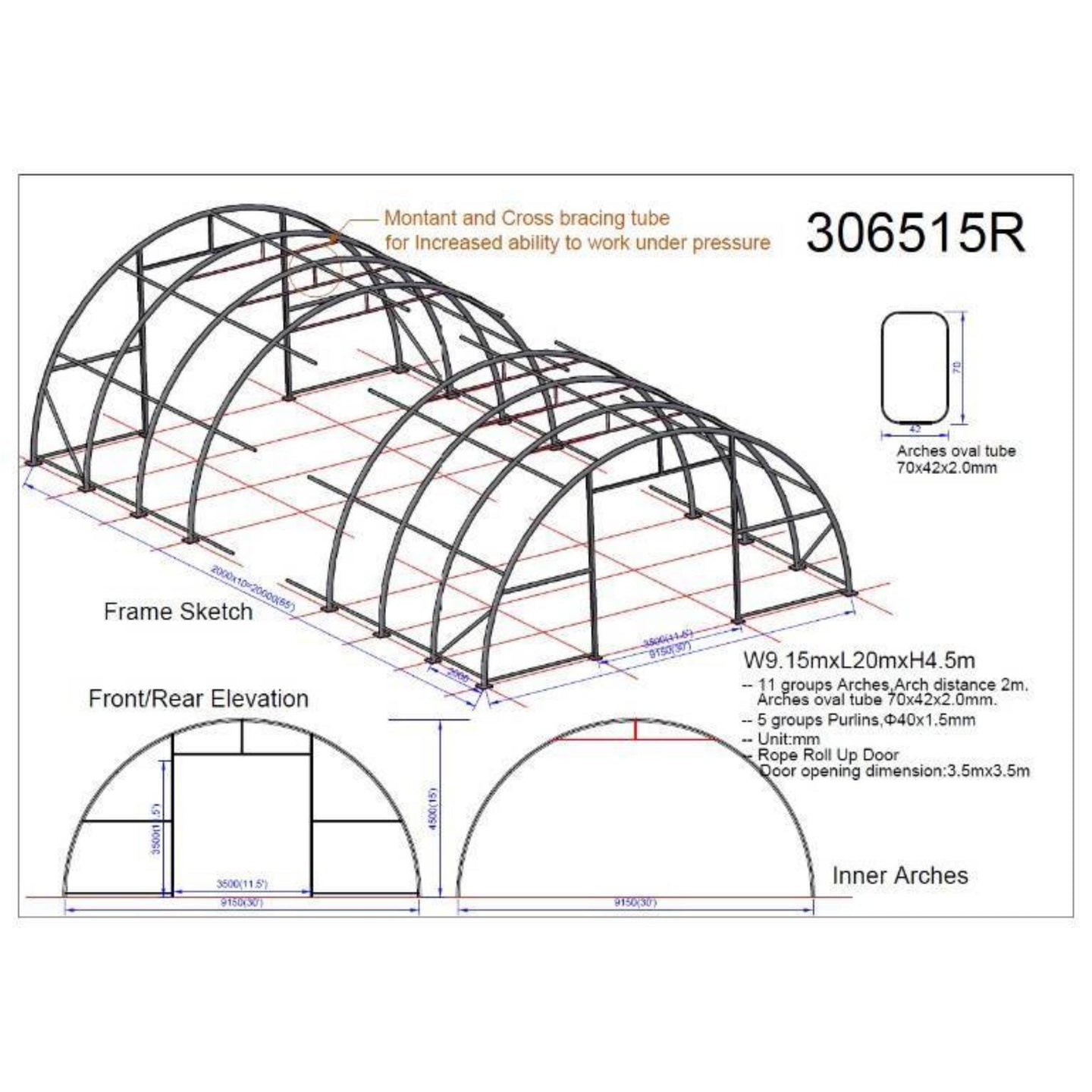

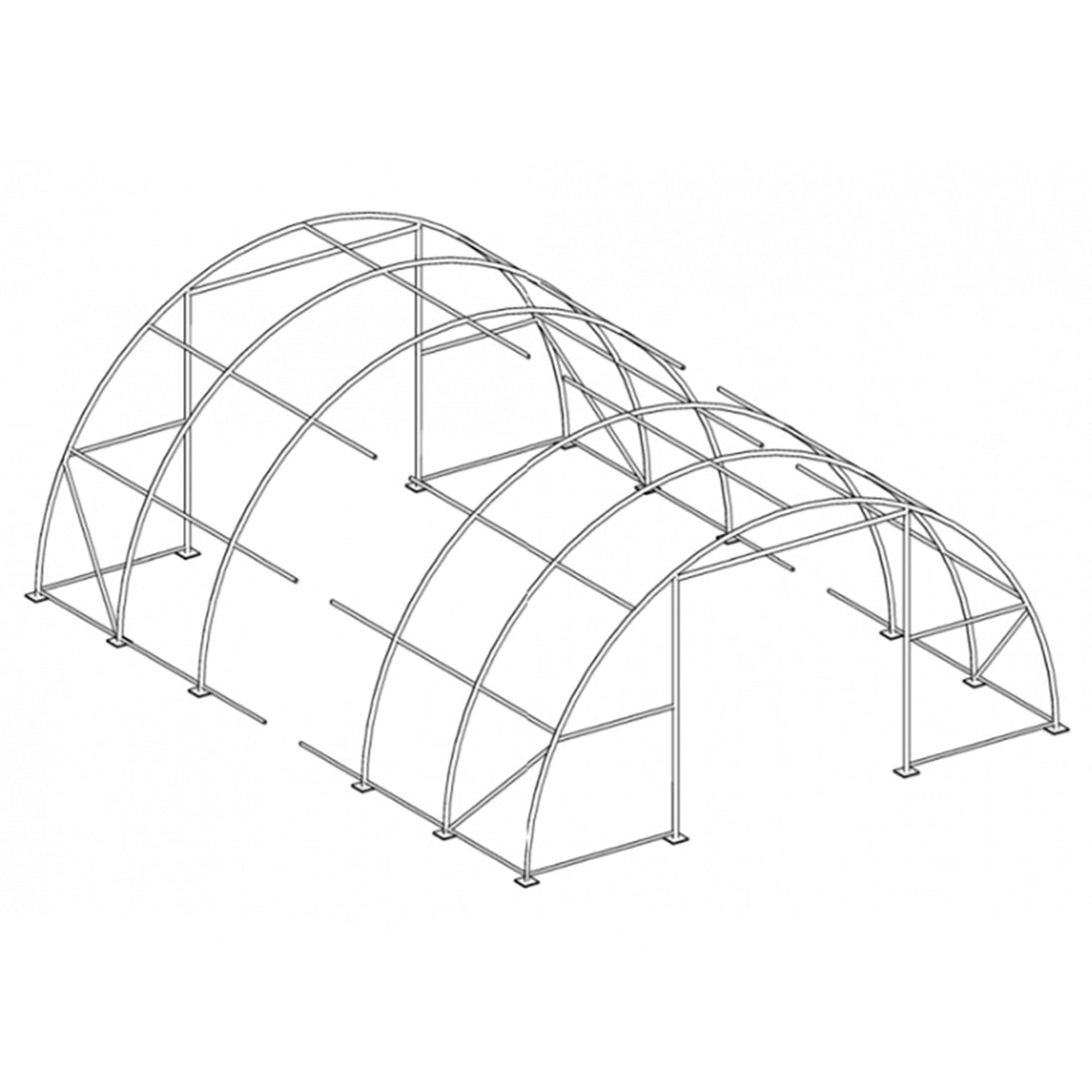

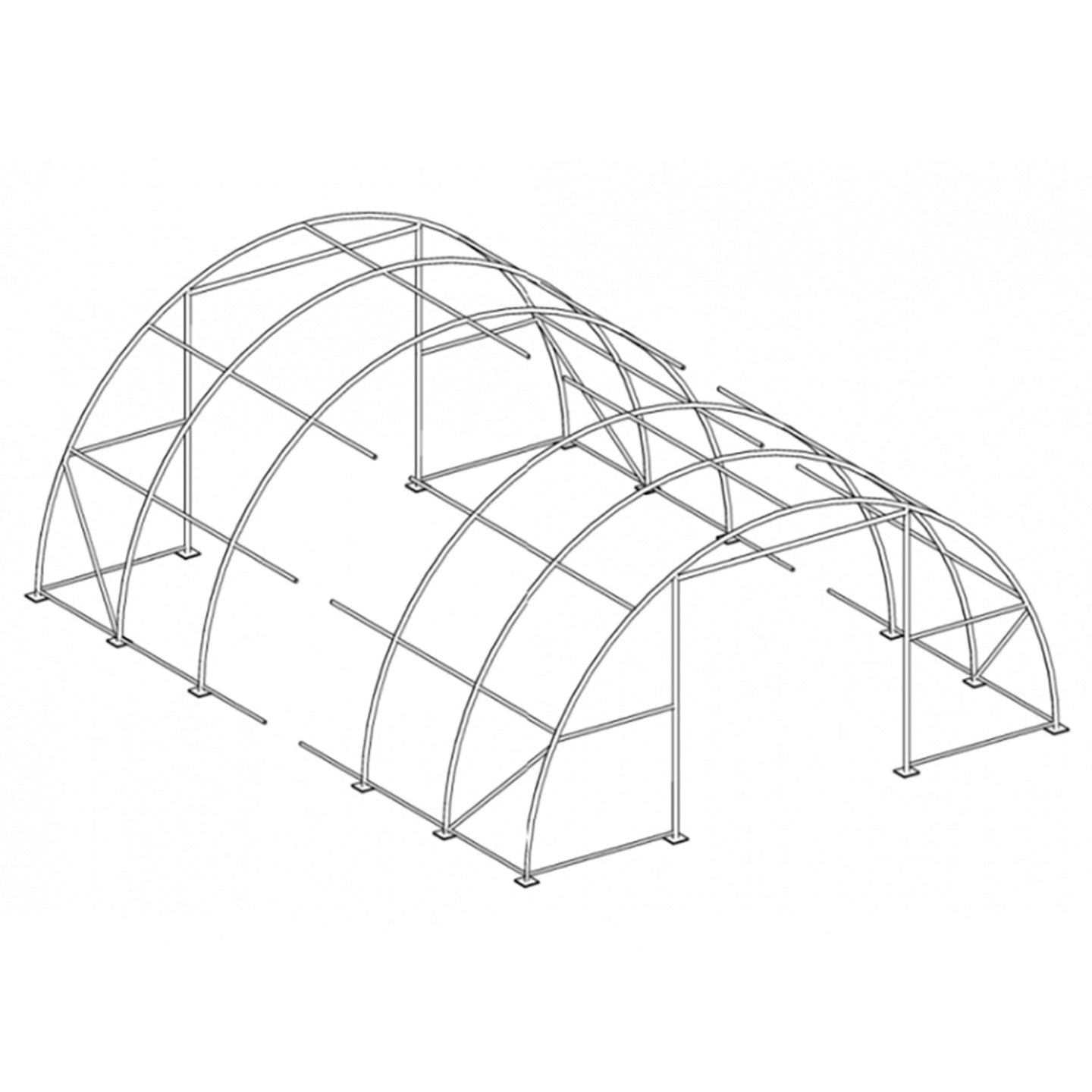

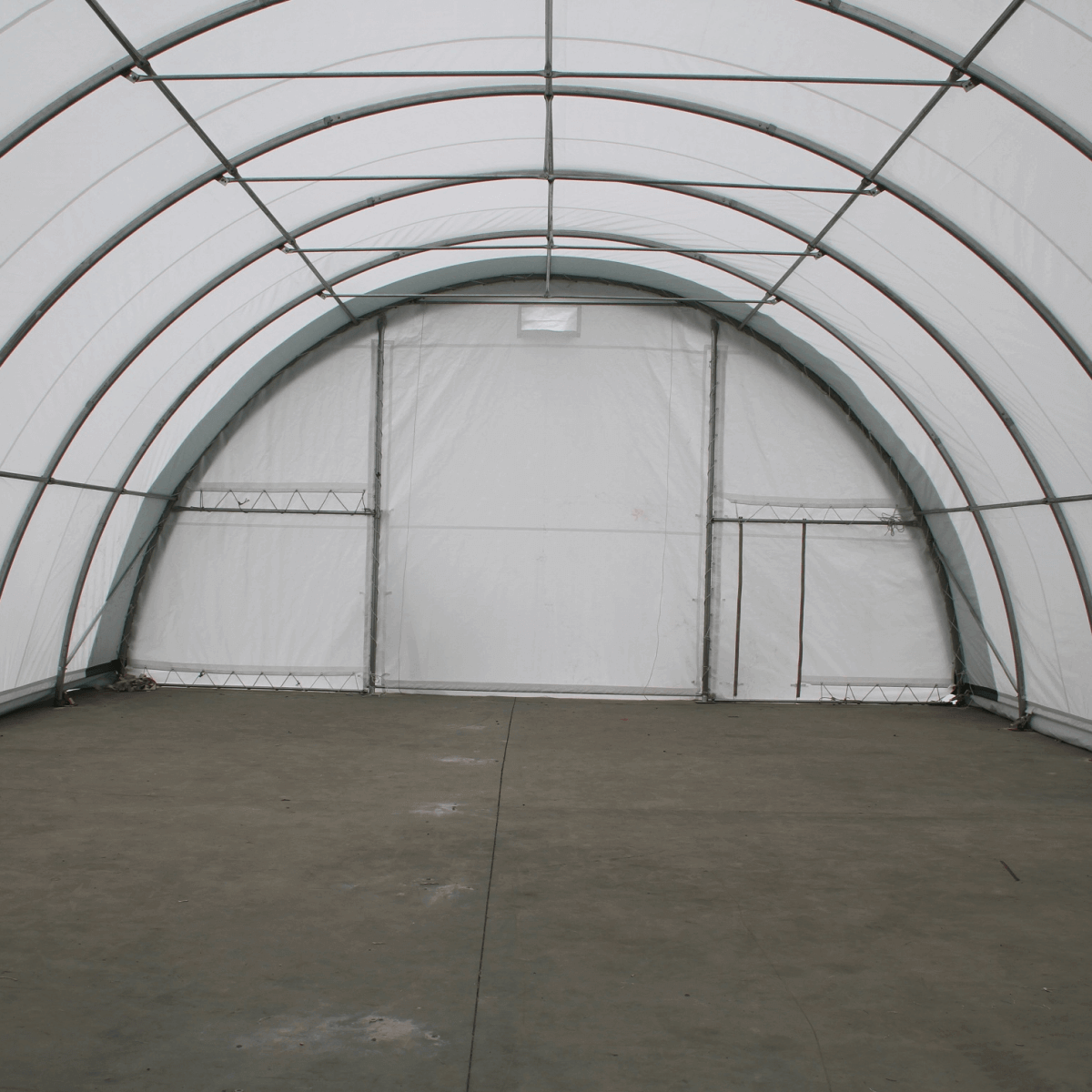

• Frame: Single Truss Galvanized Tube
• Steel Frame: Hot Dip Galvanized Steel
• Truss tube: 14 Gauge
• Tarp Fabric: PE or PVC
• Tarp Color (customizable): White with Green/Red Edge
• Temperature resistance: -22 to +158 °F
• Arch Ø: ? 70x42x2mm
• Purlin Ø: ? 40x1.5mm
• Arch Spacing: 6.56 ft
• Number of Arch: 11

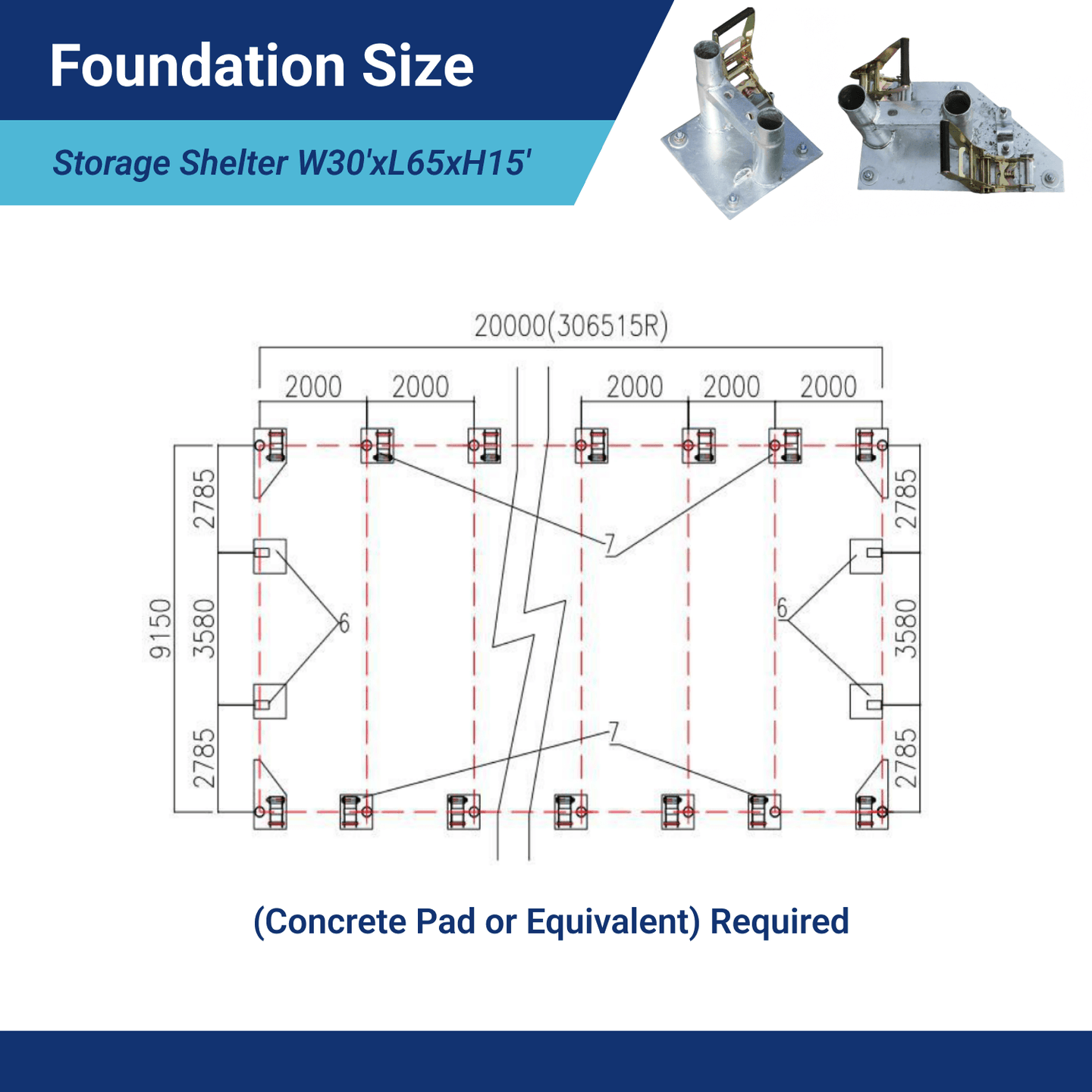

• Number of Anchor plates: 22

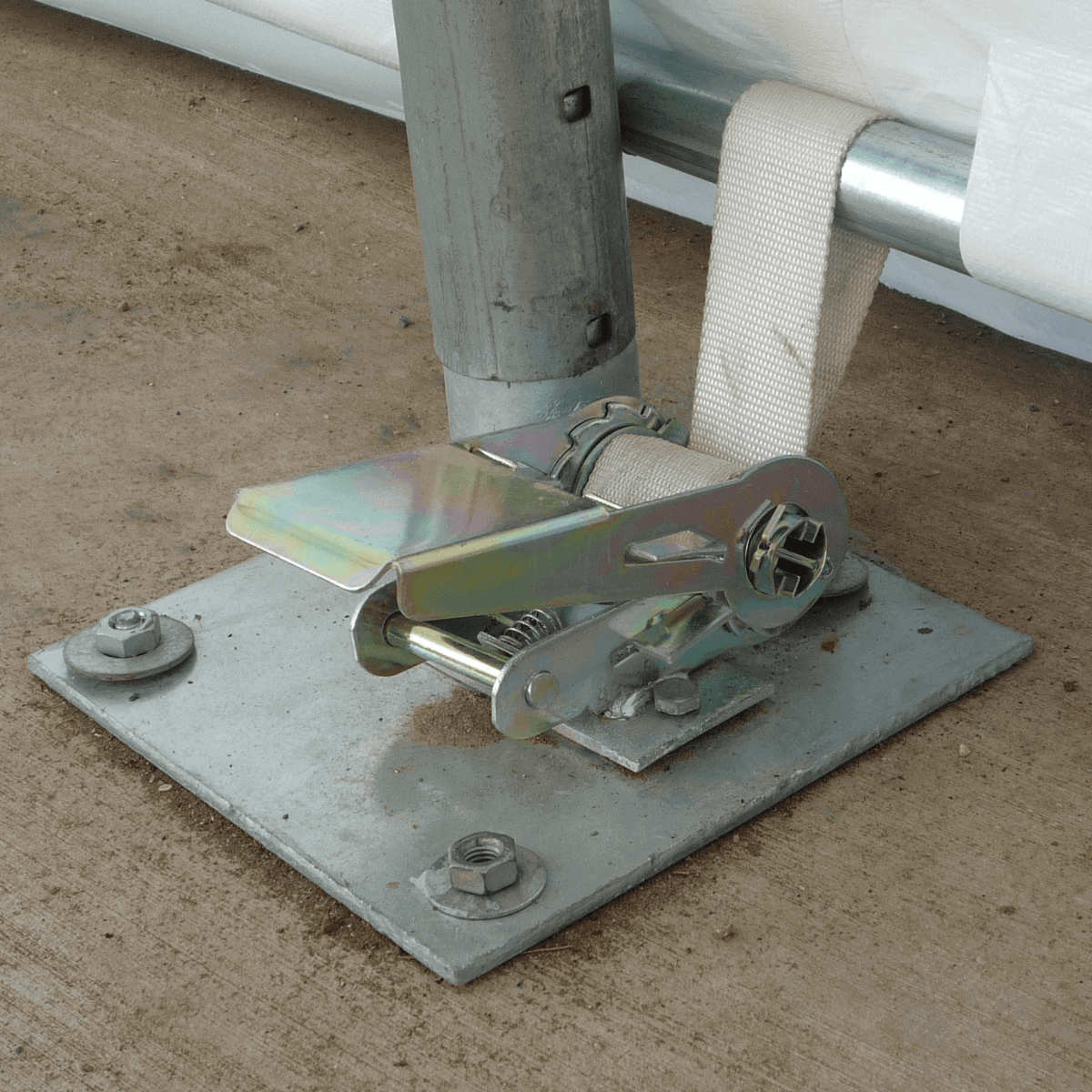

• Tension System: Pipe and Ratchet Tie-Down System
• Average assembly time with 4 people: 3 Days
• Snow Load: 42 lbs/ft²
• Wind Load: 50 miles/h
• Tarp lifespan: 7–10 years, depending on fabric and environmental conditions
• Frame lifespan: 15+ Years
• Warranty: PE 2 Years; PVC 8 Years
• Fabric (Optional): 11oz/m² (300 gsm) PE; 16oz/m² (450 gsm) PVC; 23oz/m² (650 gsm) PVC; 26oz/m² (750 gsm) PVC; 32oz/m² (900 gsm) PVC
• Country of Origin: China
