Chery Industrial | W30'xL60'xH20' Double Truss Storage Shelter | SUISS306020DPOZ18

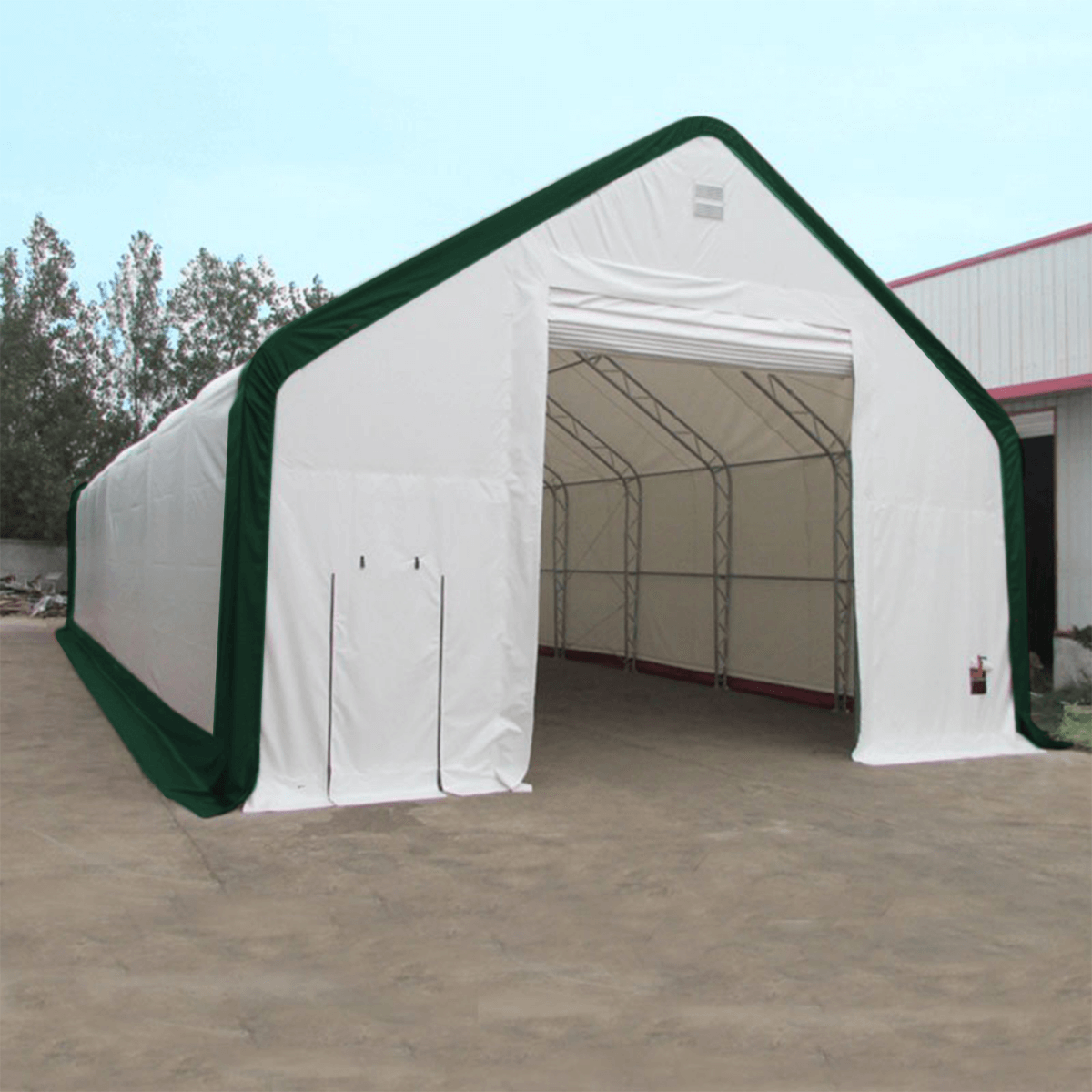

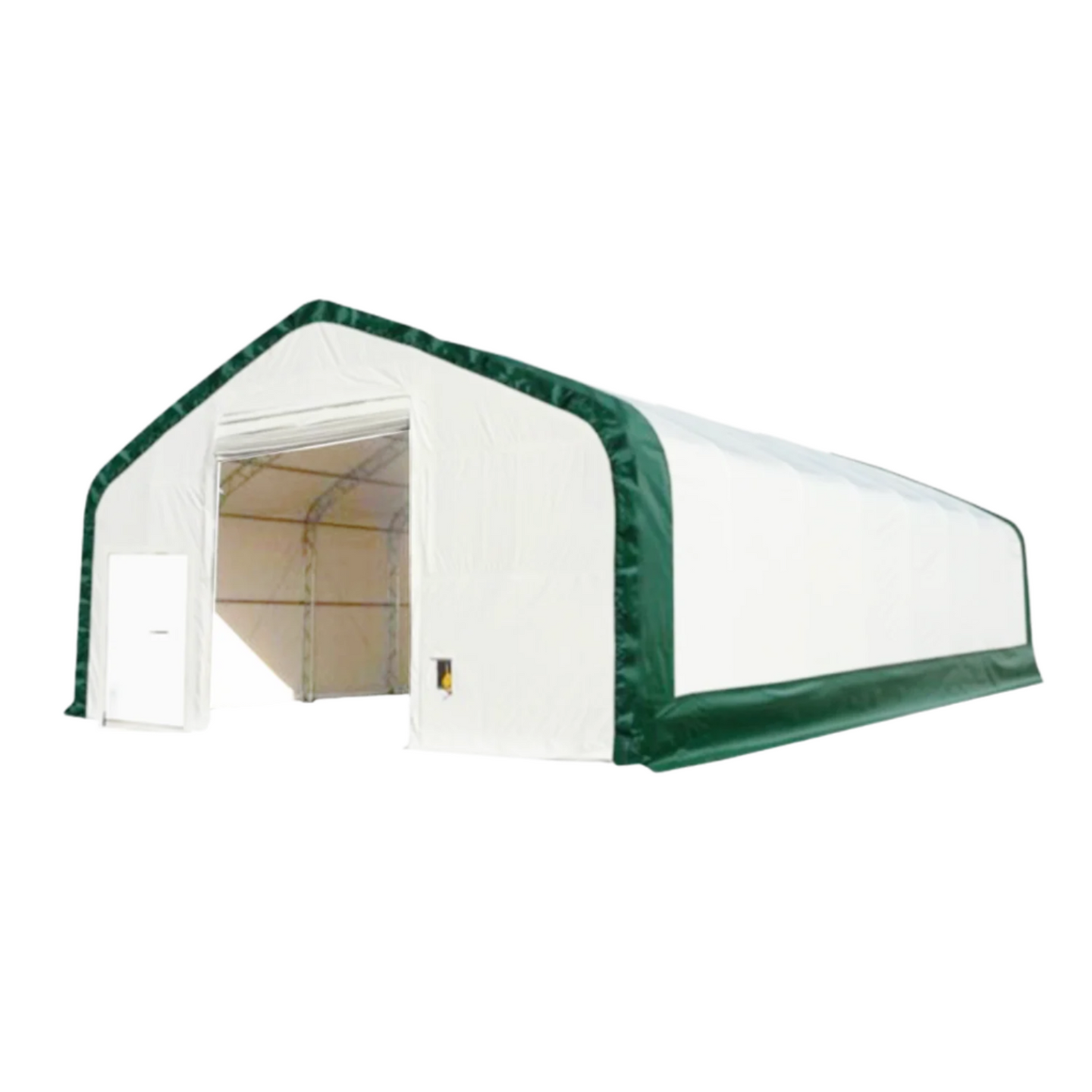

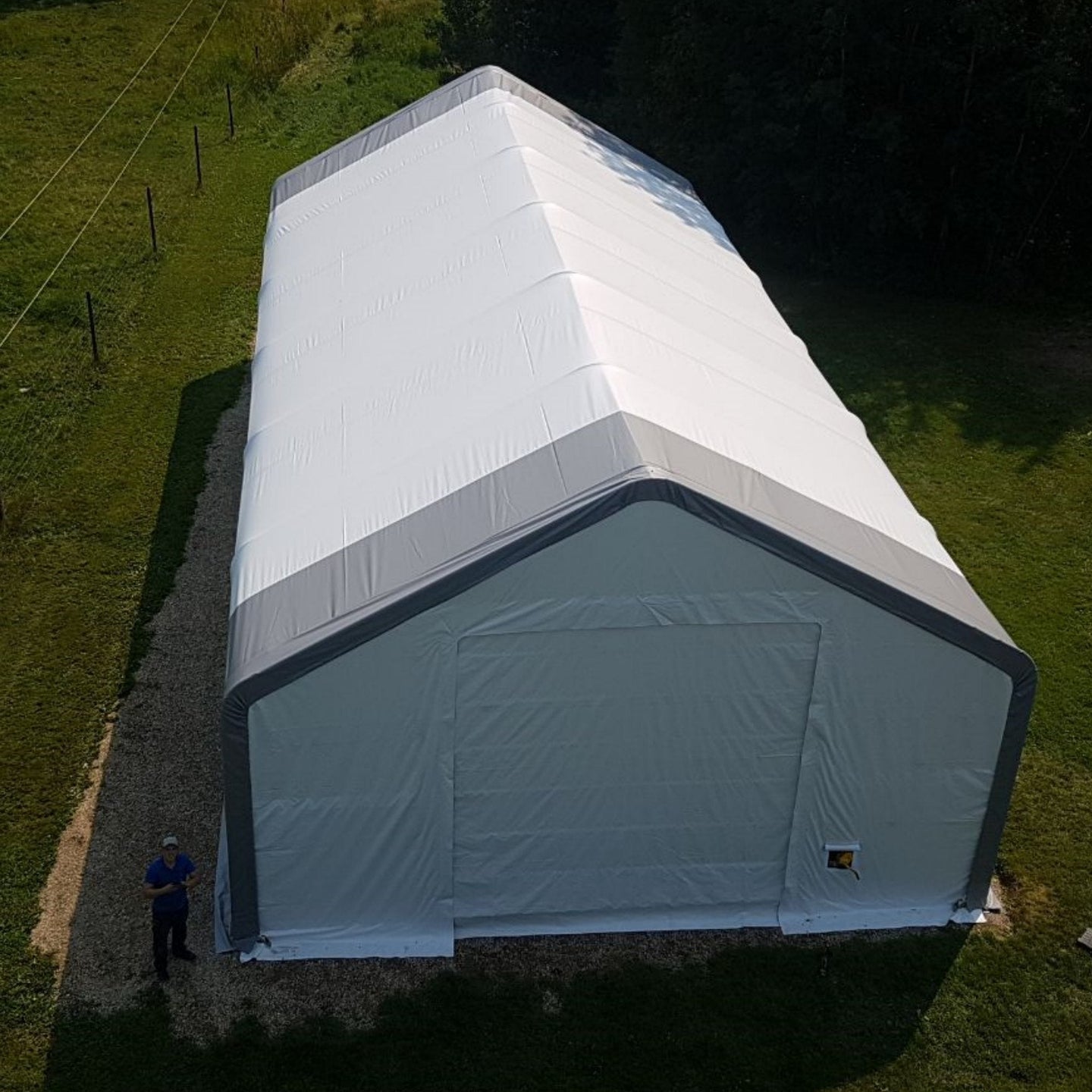

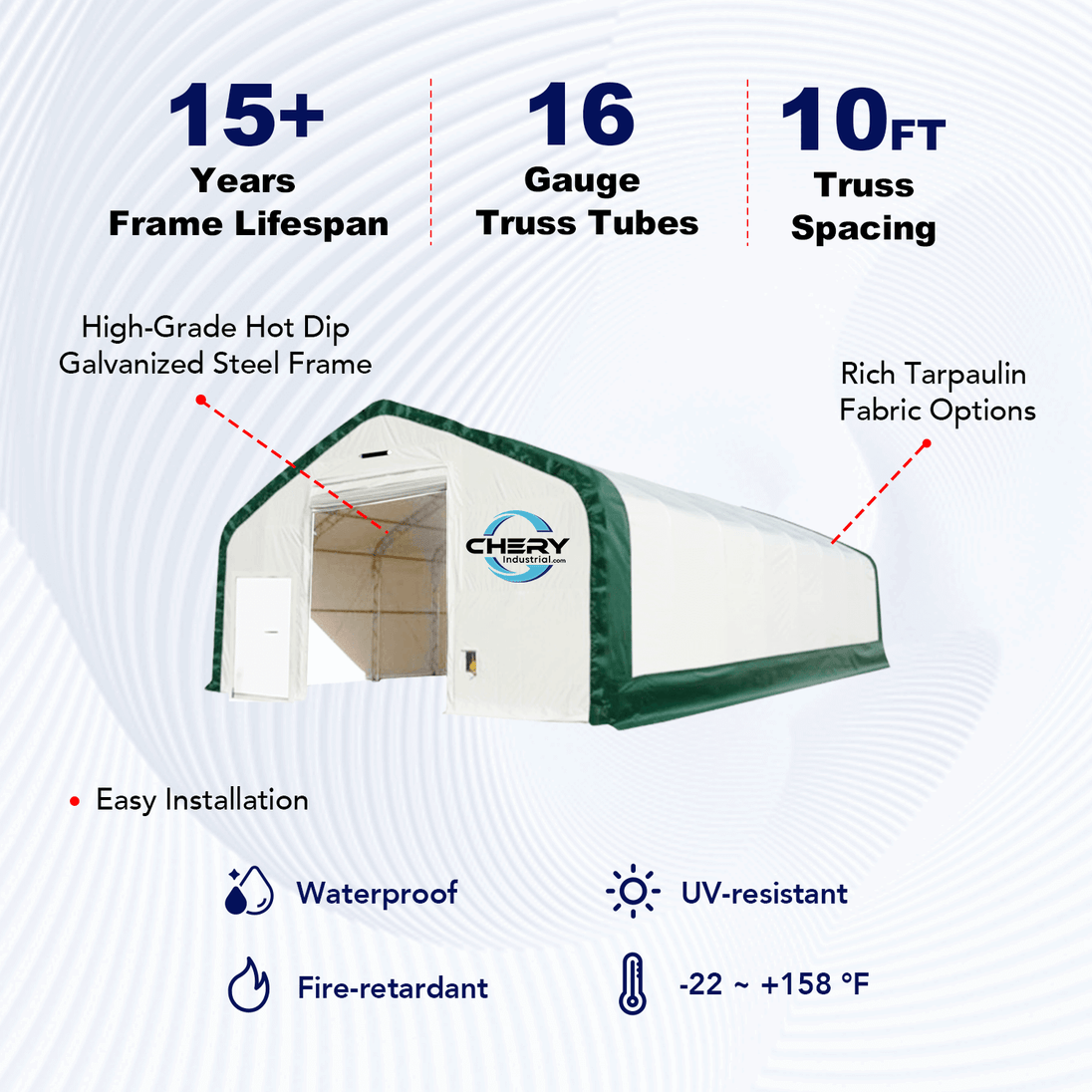

Gold Mountain Storage Shelter W30'xL60'xH20' - Double Truss PVC

Overview

Robust protection for vehicles, tools, equipment, and industrial needs. Built for North America’s toughest weather. The PVC fabric is stronger and longer lasting than PE and lets daylight in. The peak design helps with snow removal, improving longevity.

Benefits

• Protects cars, tools, equipment, and materials from the elements.
• Weather-ready: resists snow, storms, sun, wind, and rain.
• PVC fabric is stronger and longer lasting than PE and allows daylight inside.
• Peak design aids faster snow removal and extends life.

Features

• No building permits required*
• 100% waterproof and snow resistant; stable under storm conditions
• Portable and easy to install and dismantle

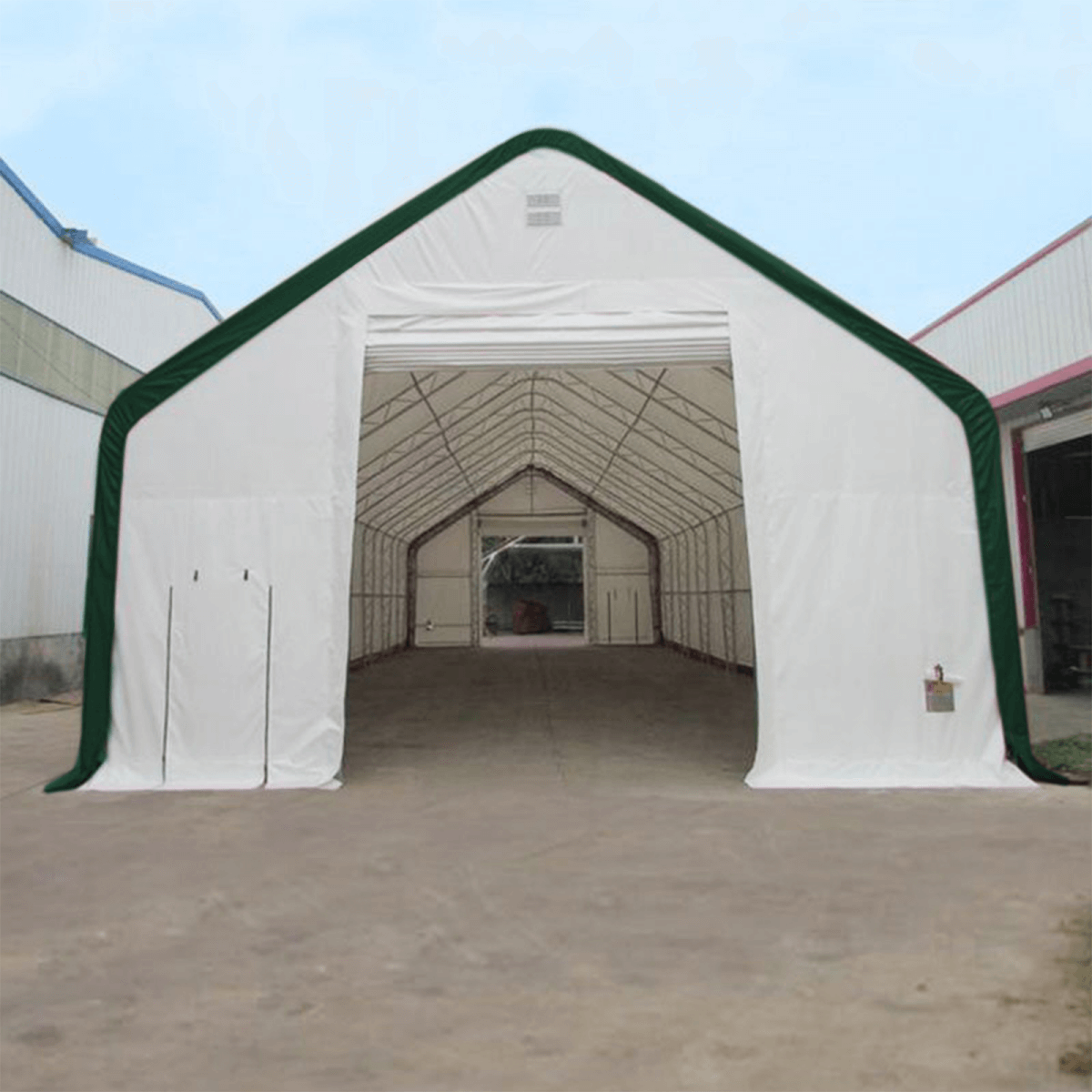

• Two large doors at both ends for easy entry and exit
• PVC fabric blocks UV radiation and provides natural light
• Galvanized steel frame helps resist severe weather
• Suitable for industrial, agricultural, outdoor events, vehicle cover, and more

Specifications

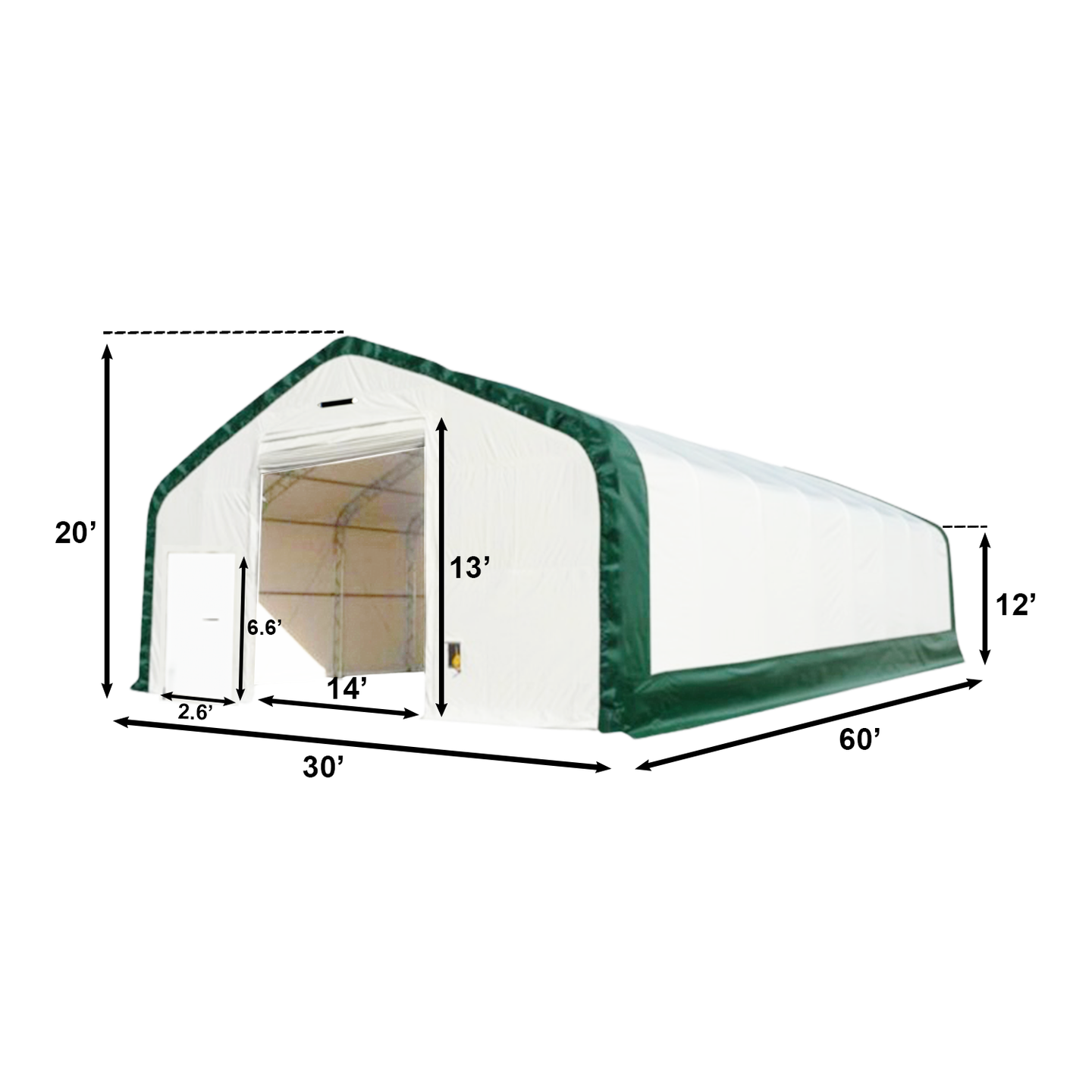

• Dimensions (WxLxH): 30'x60'x20'
• Side-wall height: 12 ft
• Door size (WxH) Front & Rear: 14'x13'

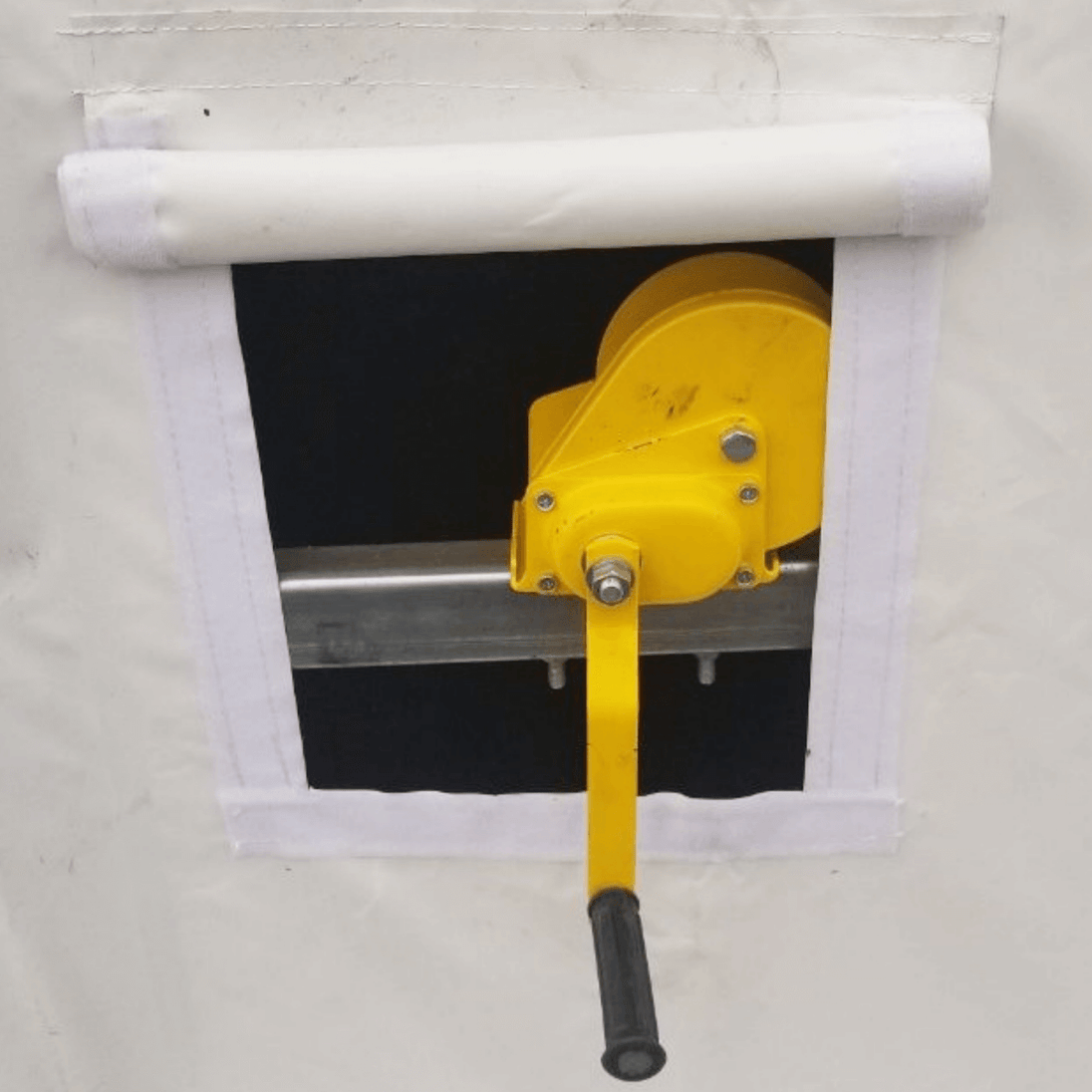

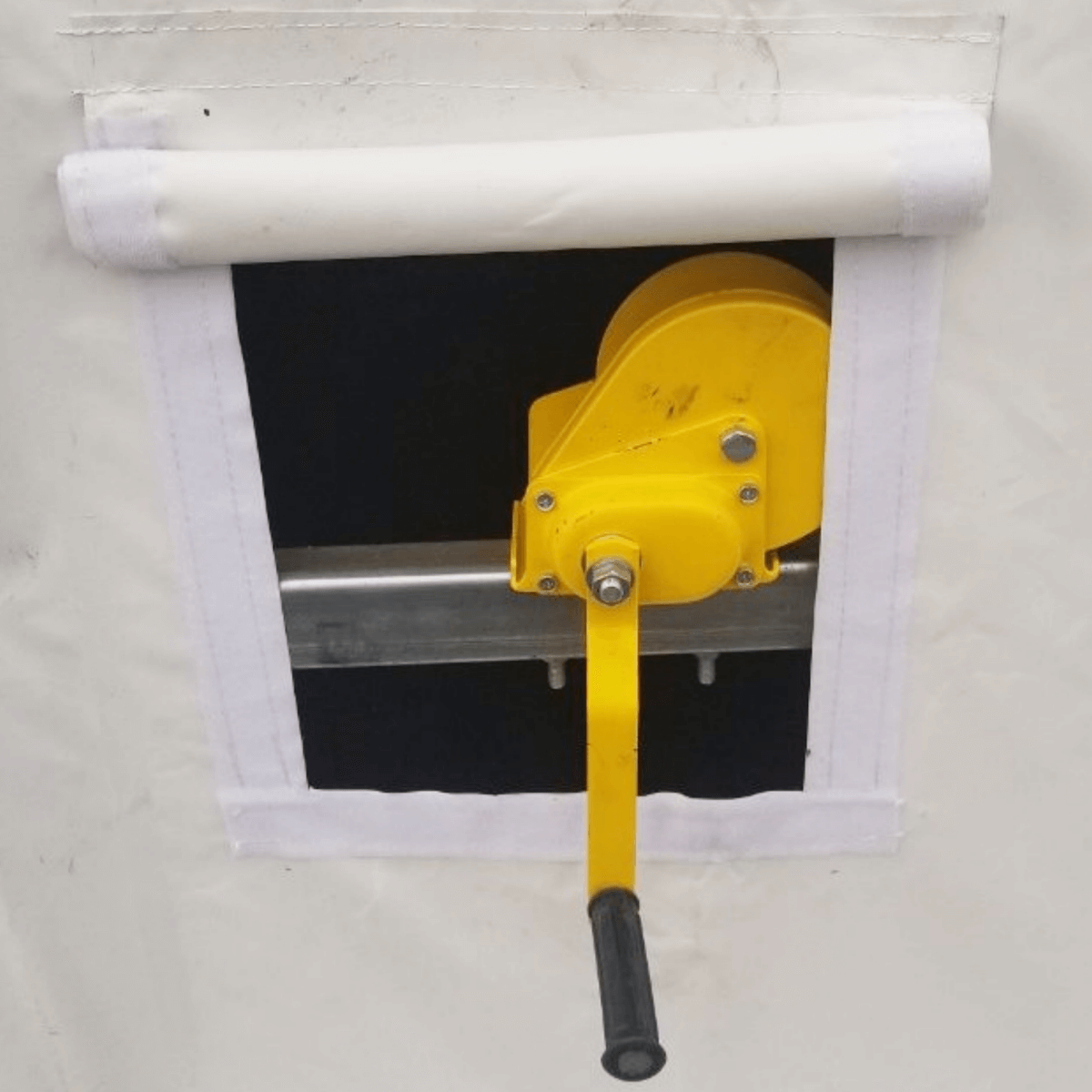

• Door type: Mechanical Rollup Door
• Man door (WxH): 2.6'x6.6'

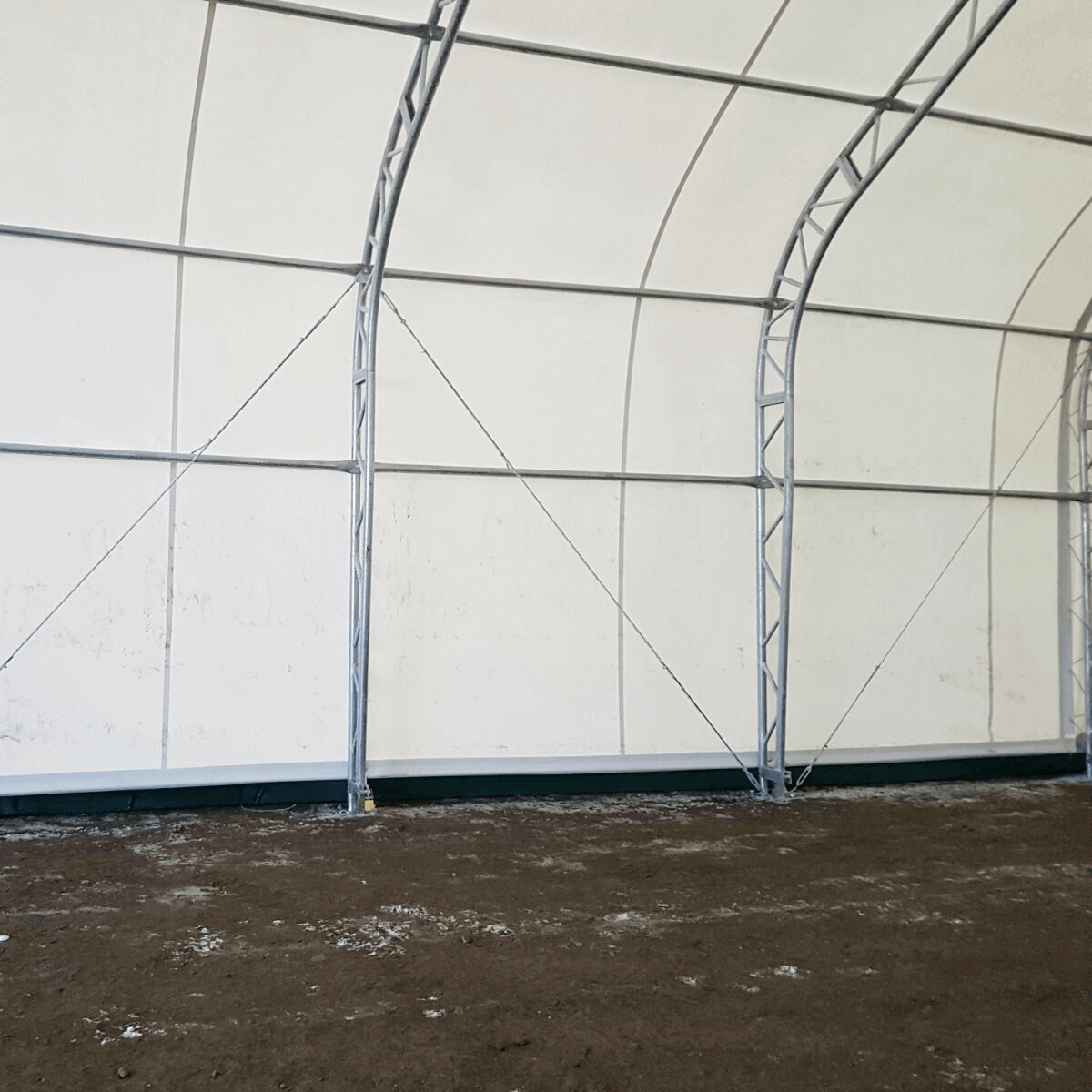

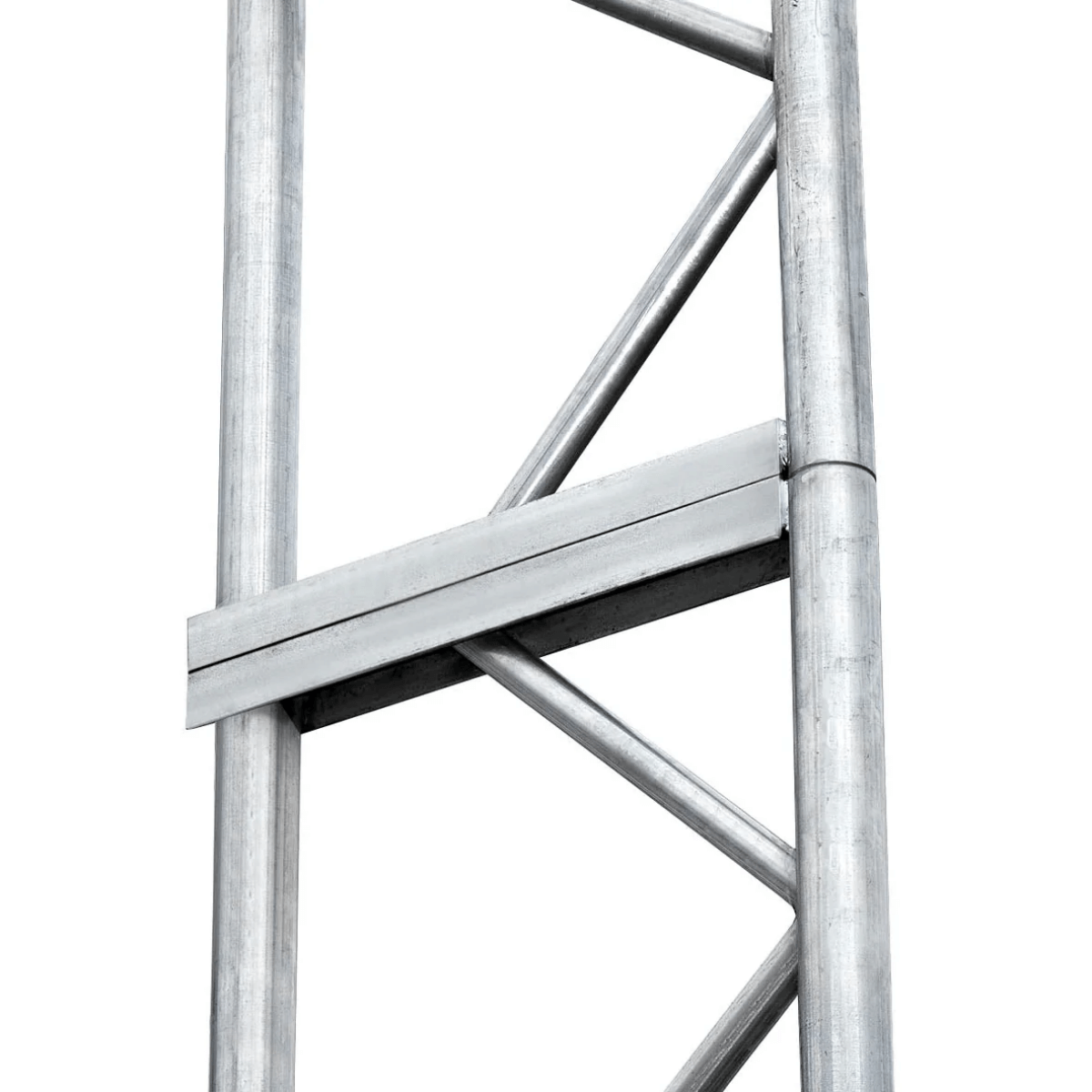

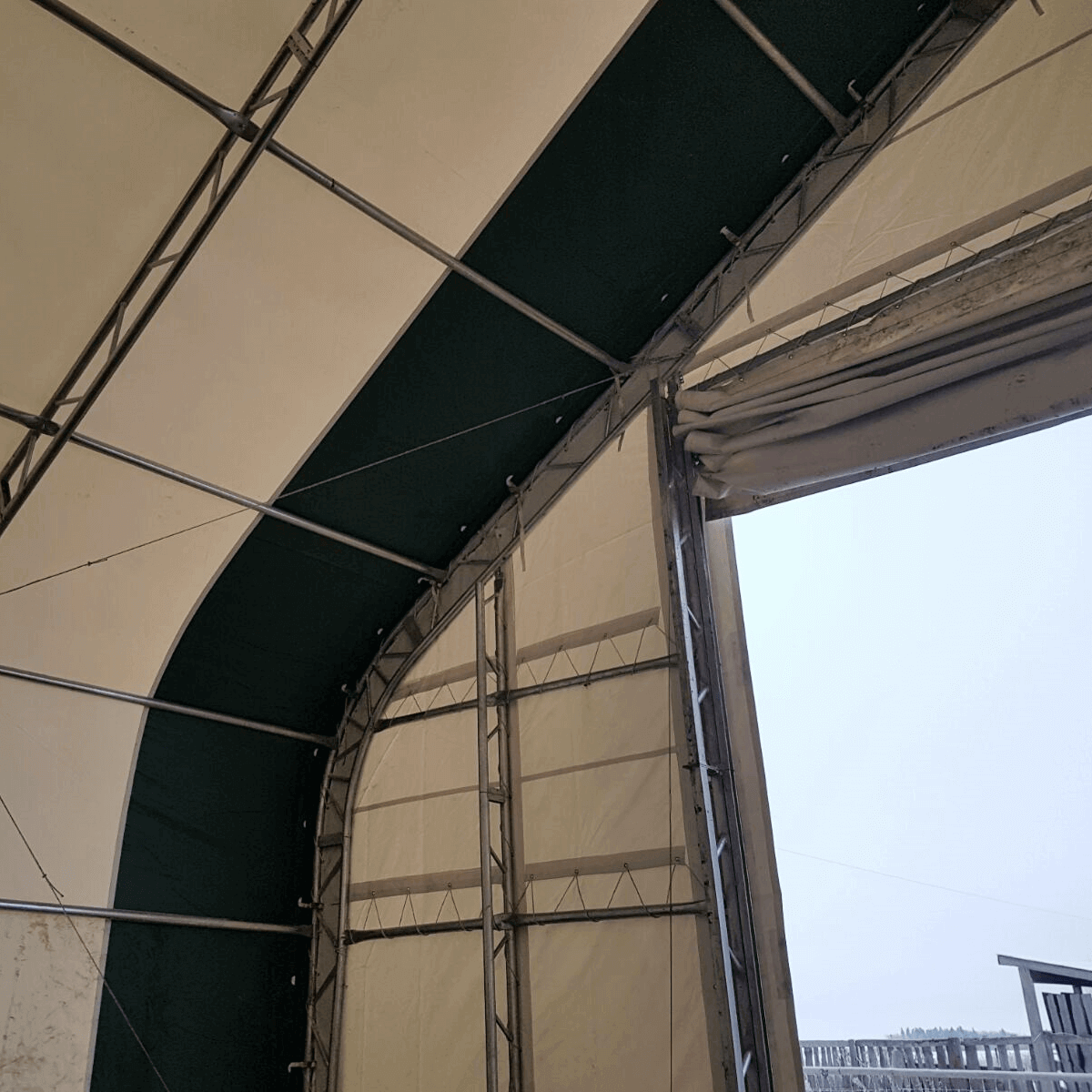

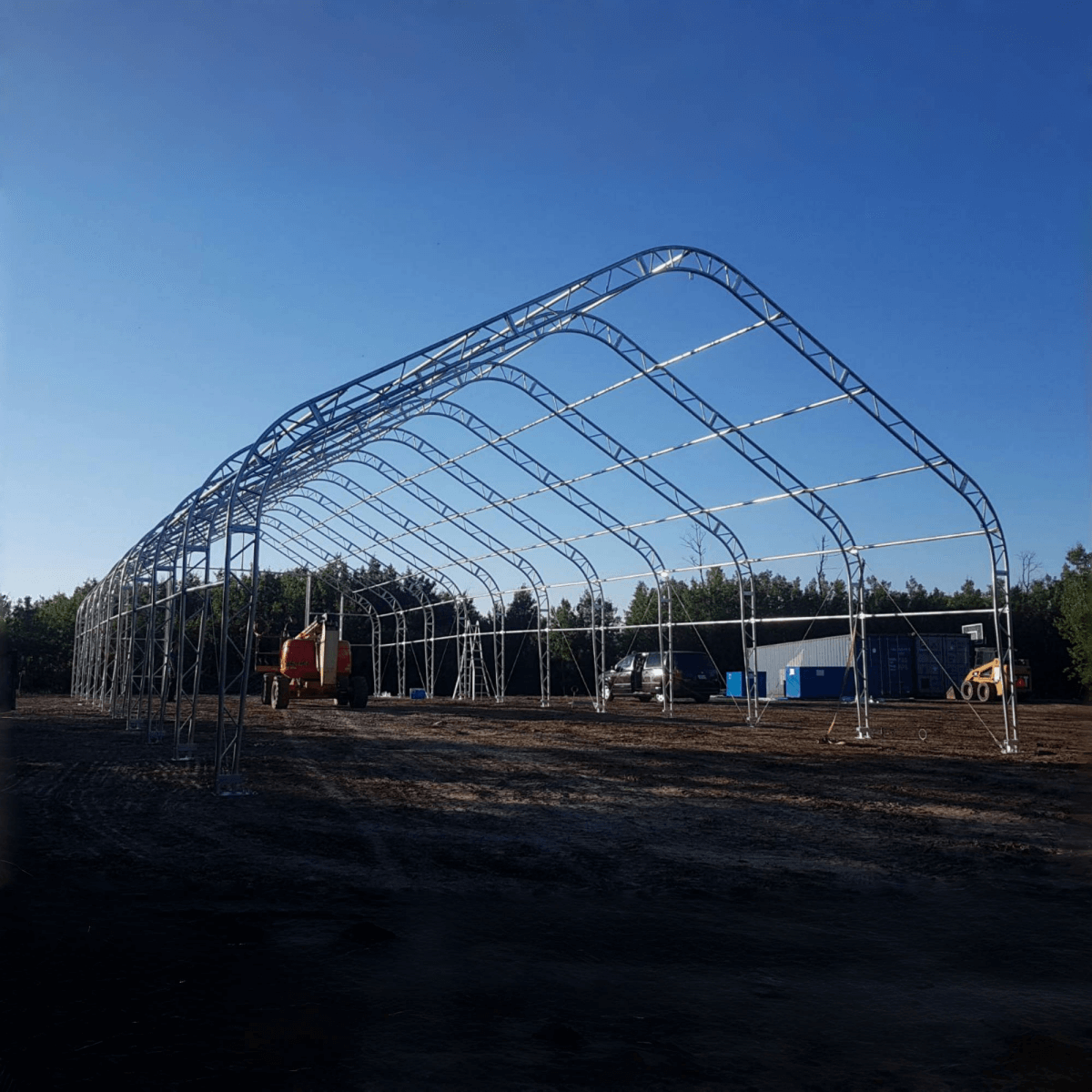

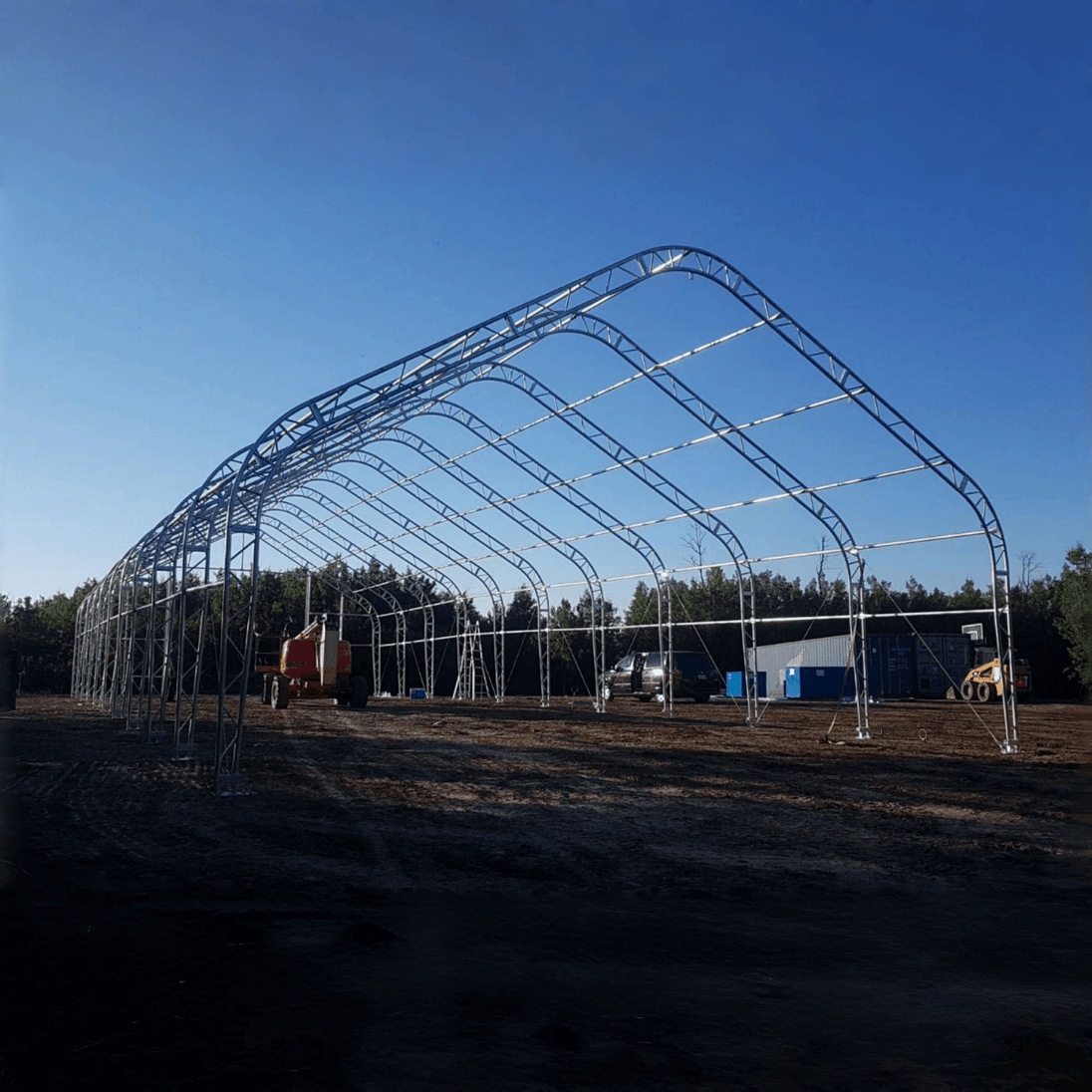

• Frame: Double Truss Galvanized Tube
• Steel frame: Hot Dip Galvanized Steel
• Truss tube: 16 Gauge
• Tarp Fabric: PE or PVC
• Tarp Color (customizable): White with Green/Red Edge
• Temperature resistance: -22 to +158 F
• Arch Ø: 48x1.5 mm
• Purlin Ø: 48x1.5 mm
• Arch Spacing: 10 ft
• Number of Arch: 7

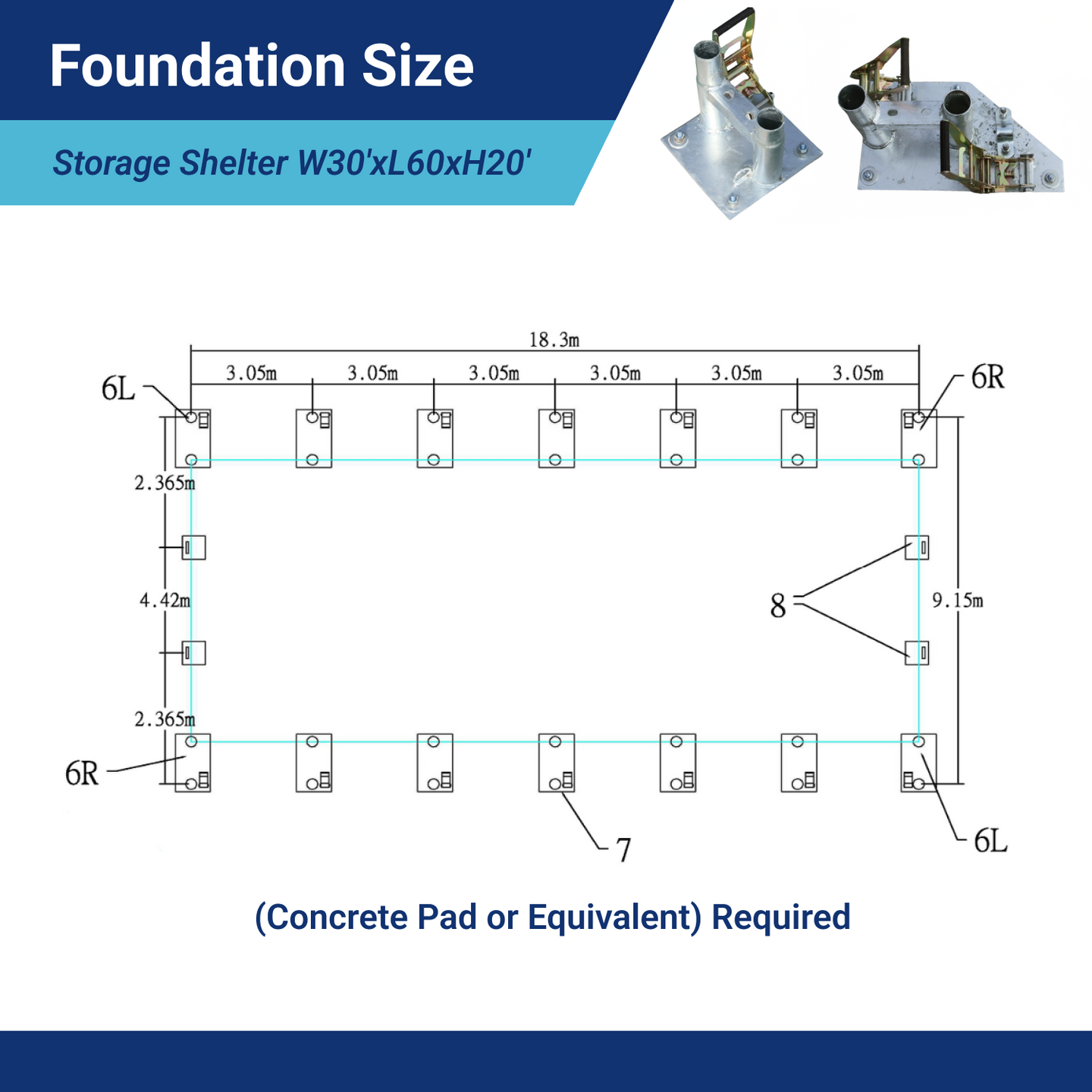

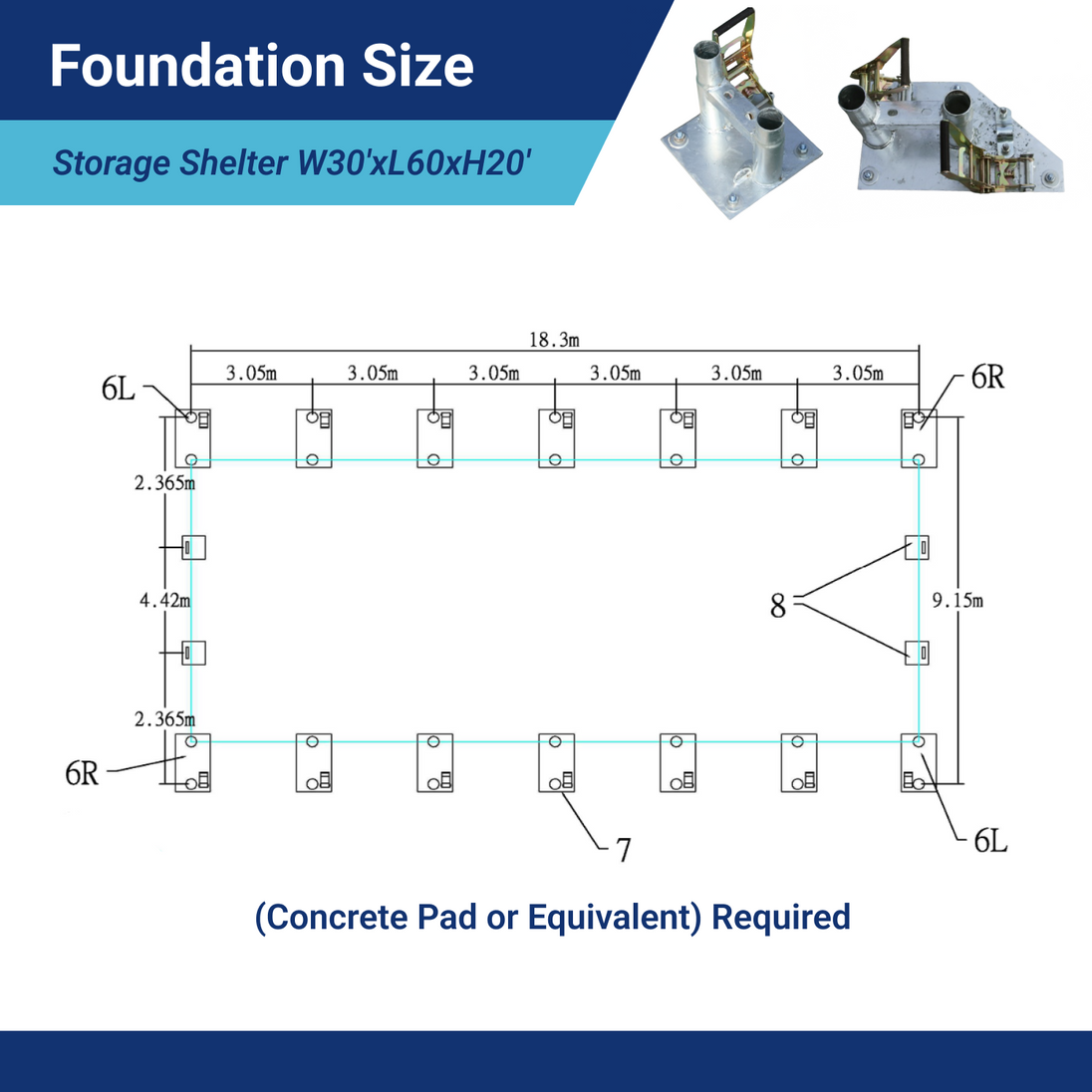

• Number of Anchor plates: 14

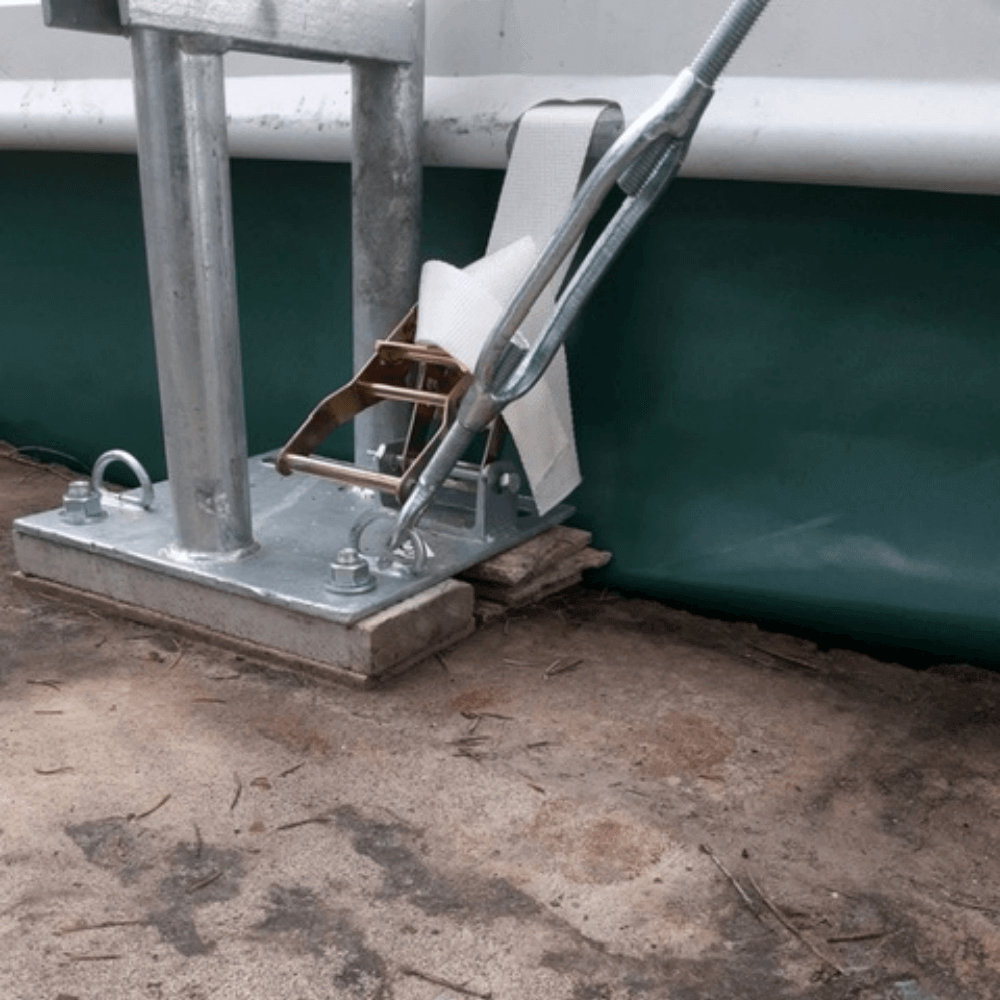

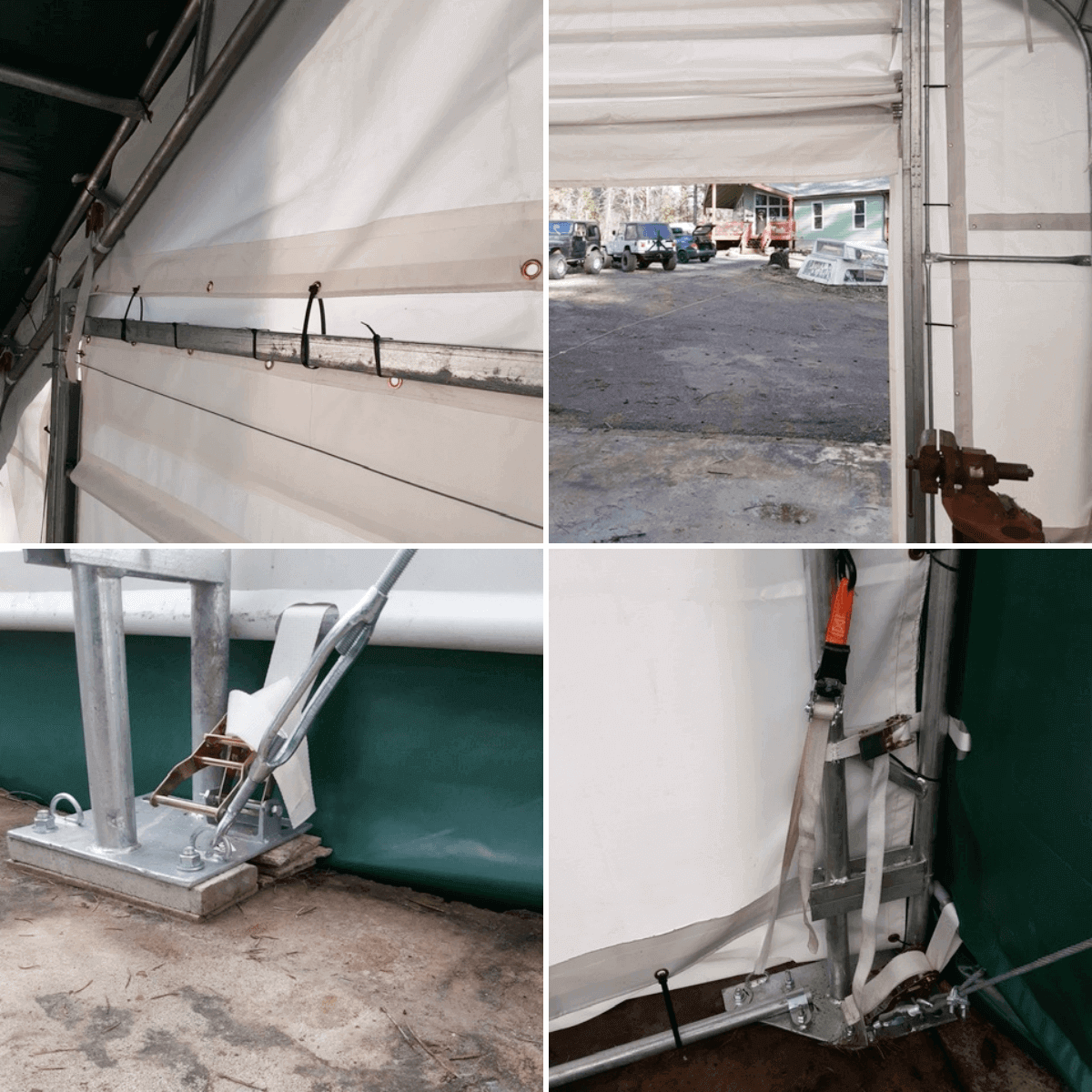

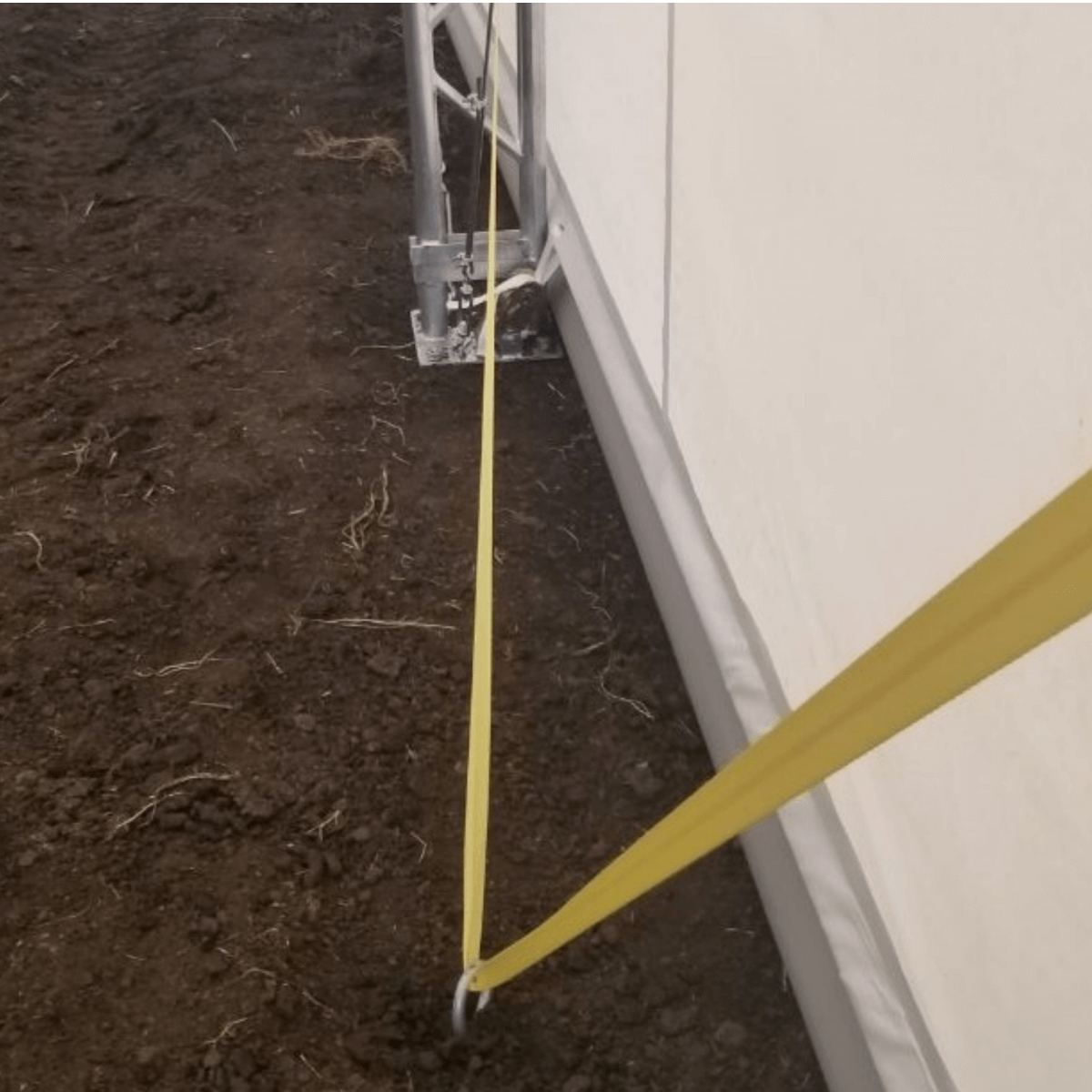

• Tension System: Pipe and Ratchet Tie-Down System
• Average assembly time for DIY with 4 persons: 3 Days

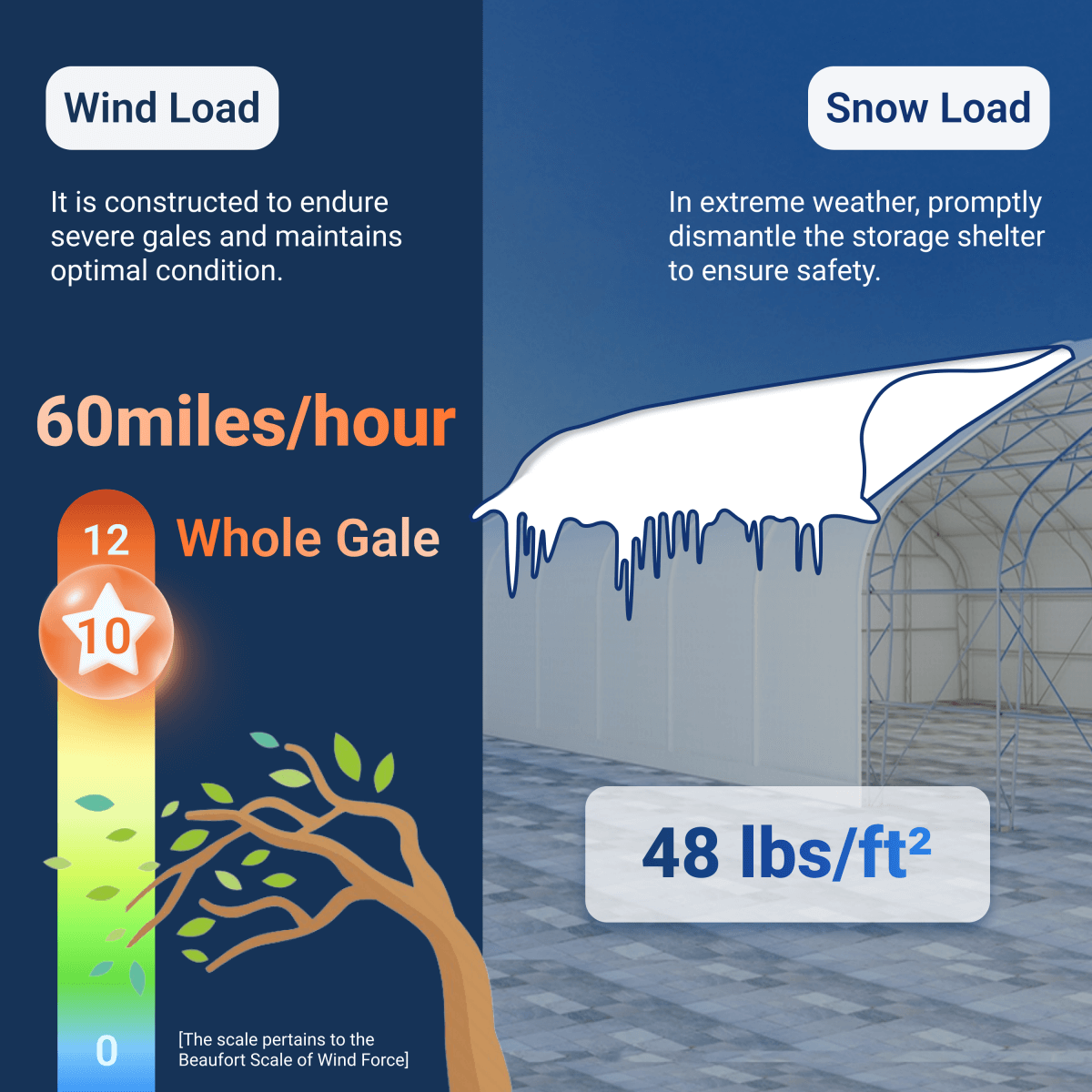

• Snow Load: 48 lbs/ft^2
• Wind Load: 60 mph
• Tarp lifespan: 7-10 years, depending on fabric and environment
• Frame lifespan: 15+ Years
• Warranty: PE: 2 Years; PVC: 8 Years
• Fabric (Optional): 11oz/m^2 (300 gsm) PE; 16oz/m^2 (450 gsm) PVC; 23oz/m^2 (650 gsm) PVC; 26oz/m^2 (750 gsm) PVC; 32oz/m^2 (900 gsm) PVC. Please contact us to order.
• Country of Origin: China
