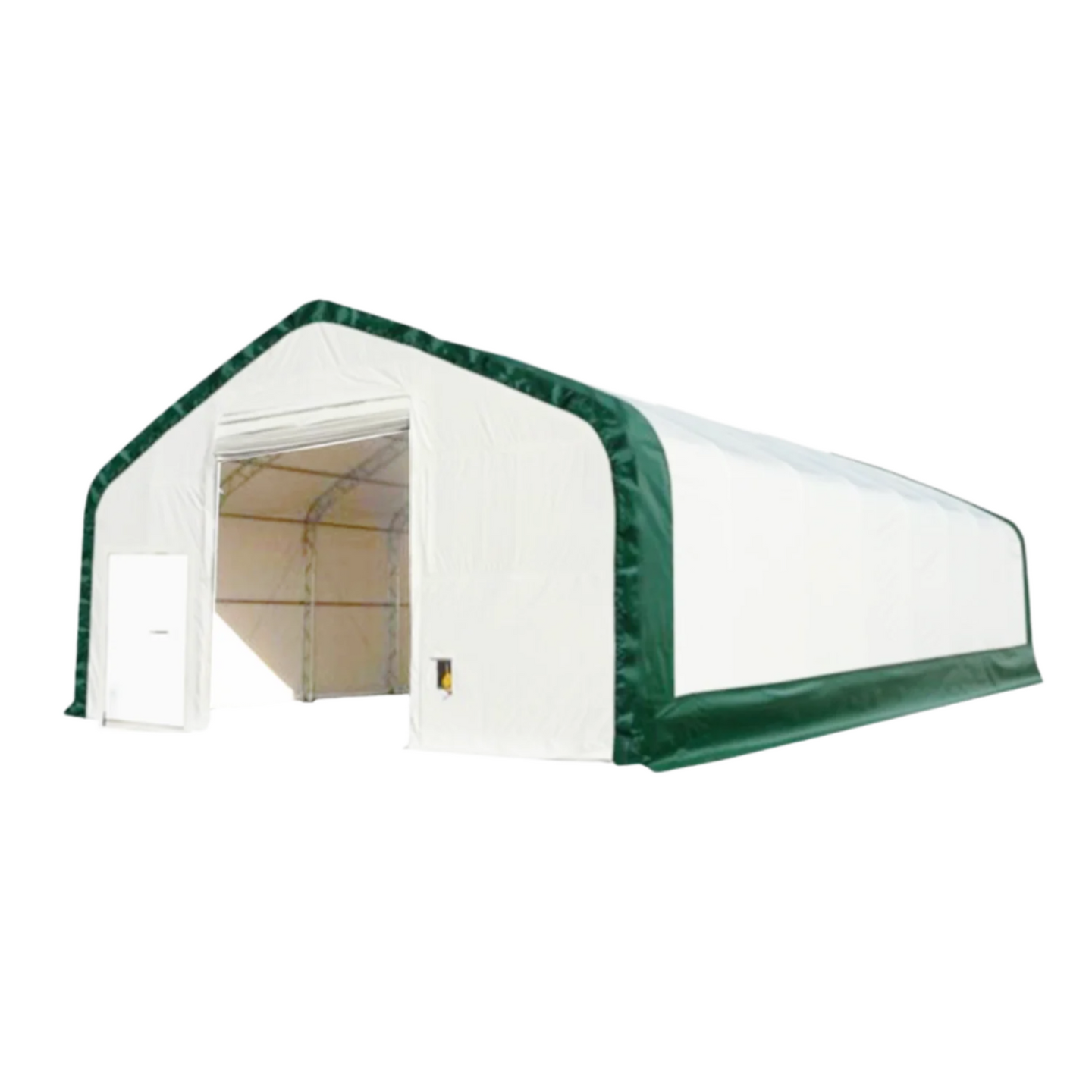

Gold Mountain Storage Shelter W30'xL40'xH20' - Double Truss

Overview

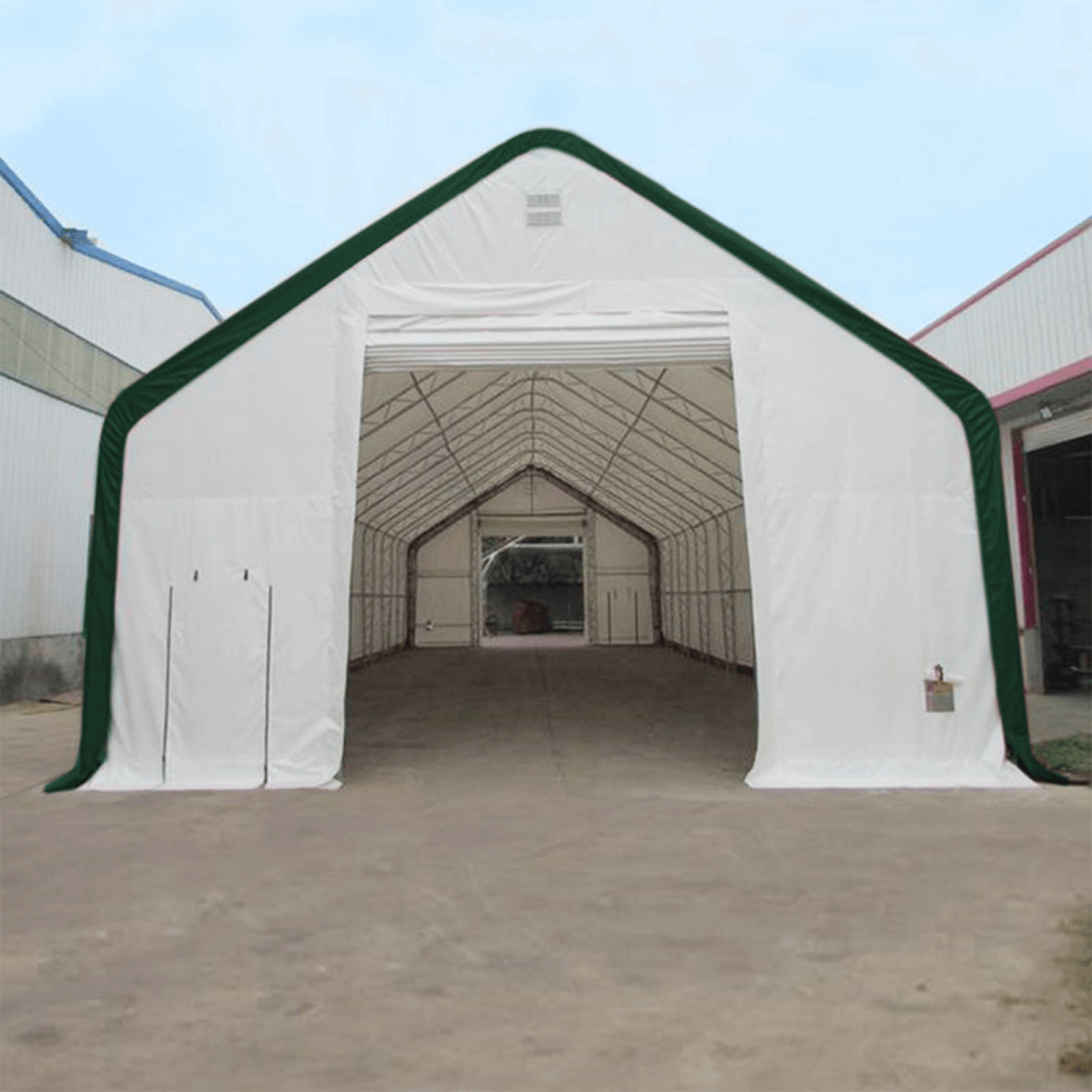

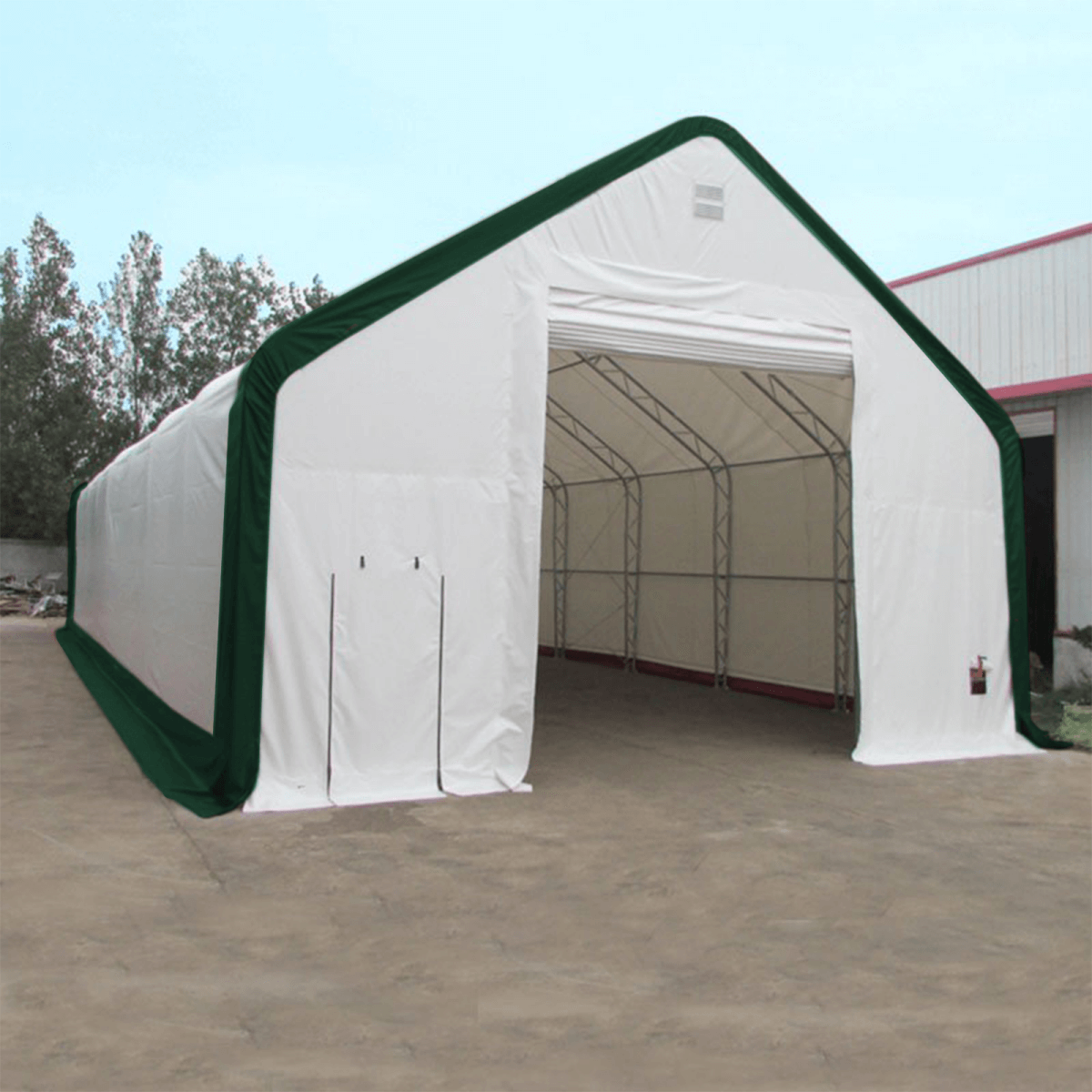

The Gold Mountain Storage Shelter W30’xL40’xH20’ - Double Truss is ready for agriculture, auto storage, events, and more. It stands up to 60 mph winds, sun, and heavy snow. The peak design helps with snow removal, and the dome adds extra space. Built with a durable galvanized frame and weather-resistant tarp fabric, it’s a simple, solid shelter. Great for cars, boats, RVs, equipment, and supplies.

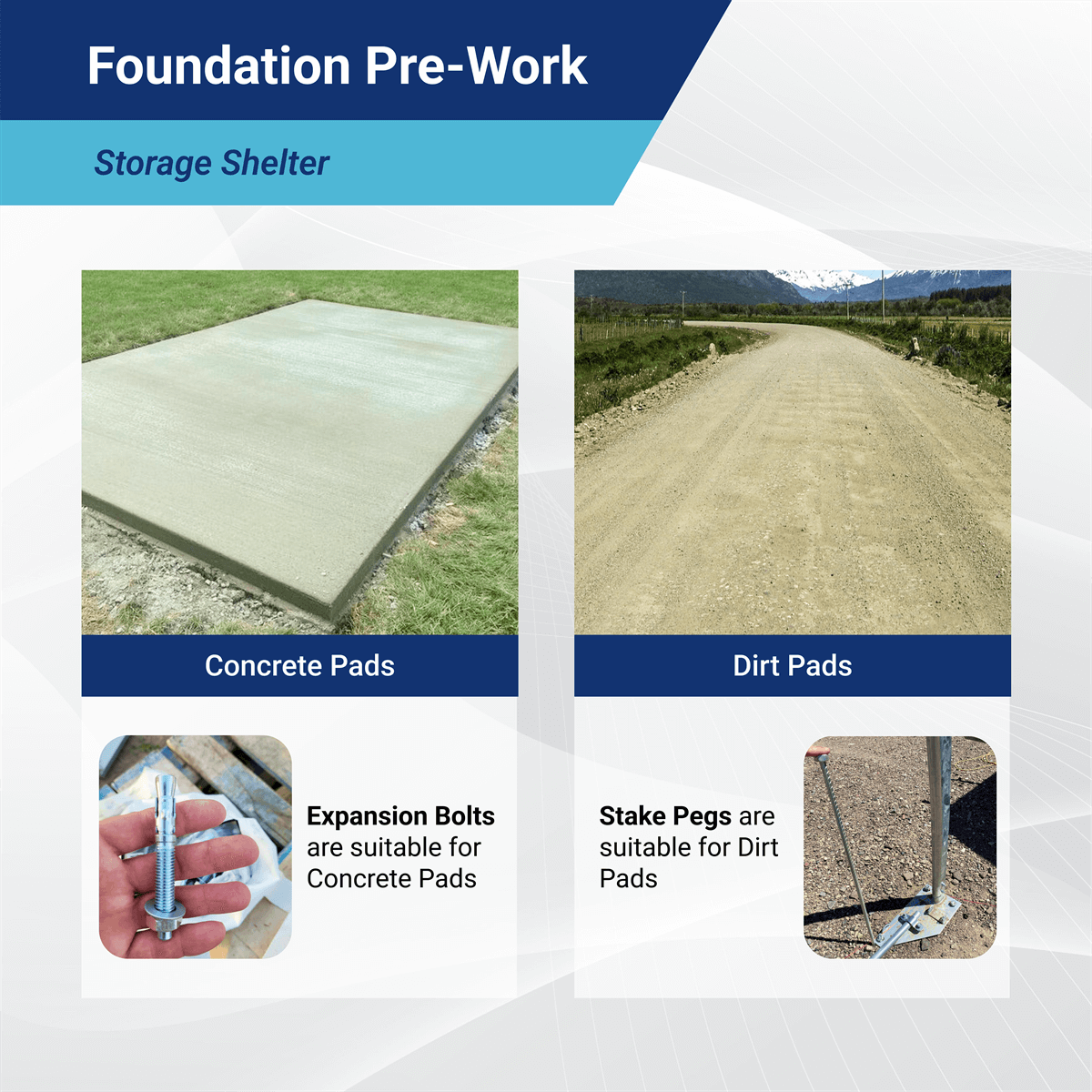

Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, contact customer service to place an order.

Benefits

• Withstands up to 60 mph winds and heavy snow.
• Peak and dome design create extra space and easier snow removal.
• Weather-resistant tarp fabric options (PVC or PE).
• Durable galvanized frame for long life.
• Easy to set up and portable for moving locations.
• No building permits required in many cases.
• UV-blocking fabric with natural light inside.
• Suitable for cars, boats, RVs, equipment, and supplies.

Features

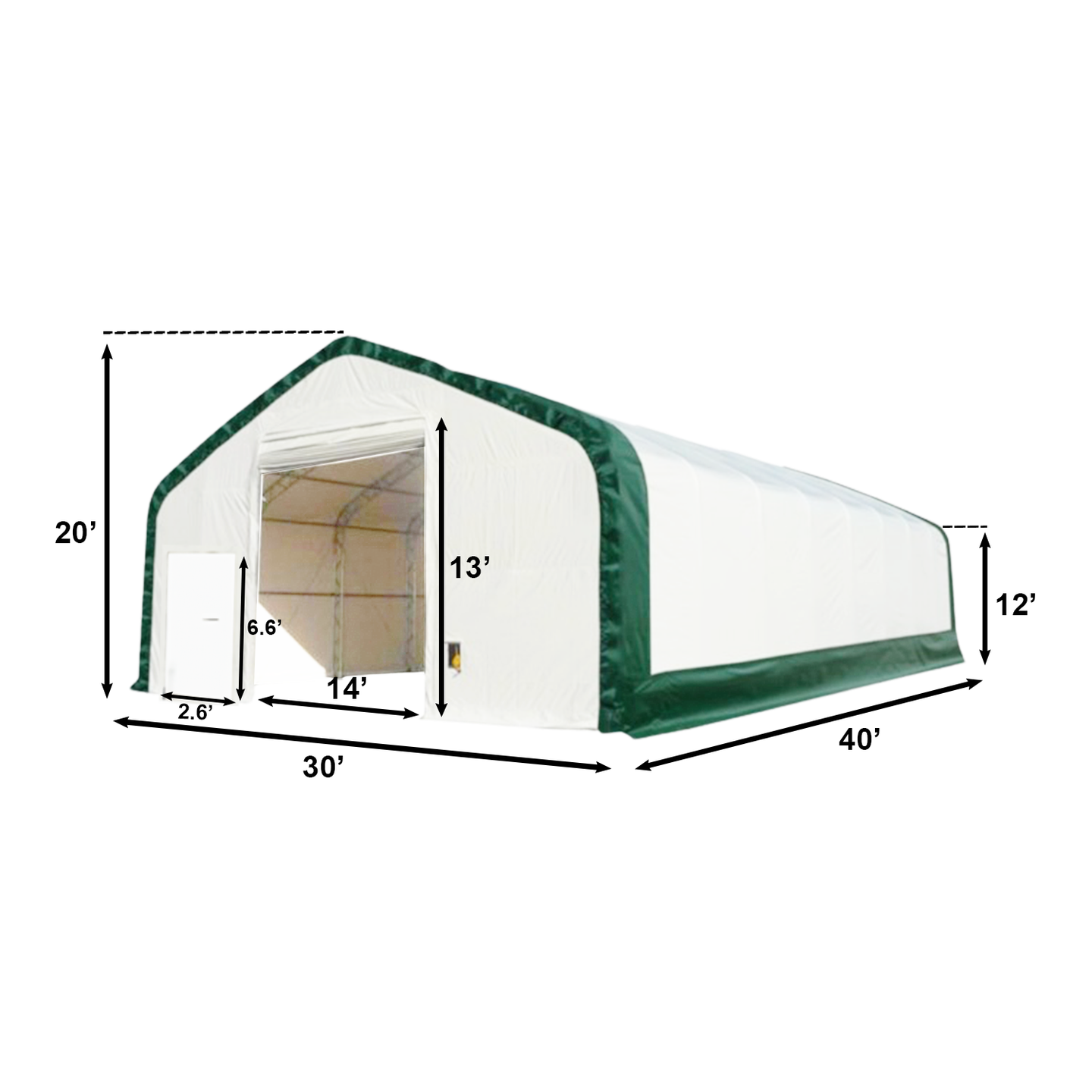

• Dimensions: 30' x 40' x 20' (W x L x H)
• Side-wall height: 12 ft
• Door size (Front & Rear): 14' x 13'

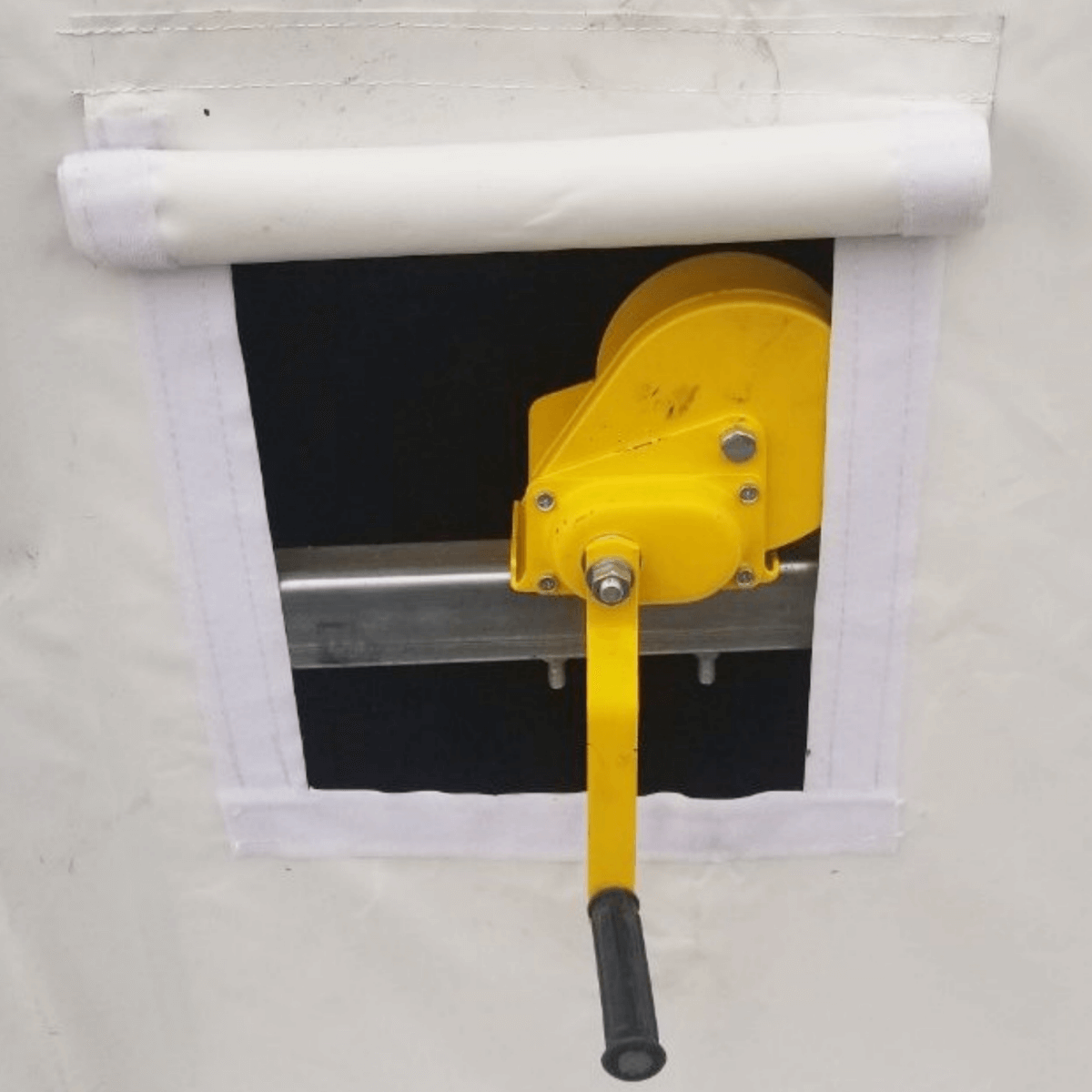

• Door Type: Mechanical Rollup Door
• Man Door: 2.6' x 6.6'

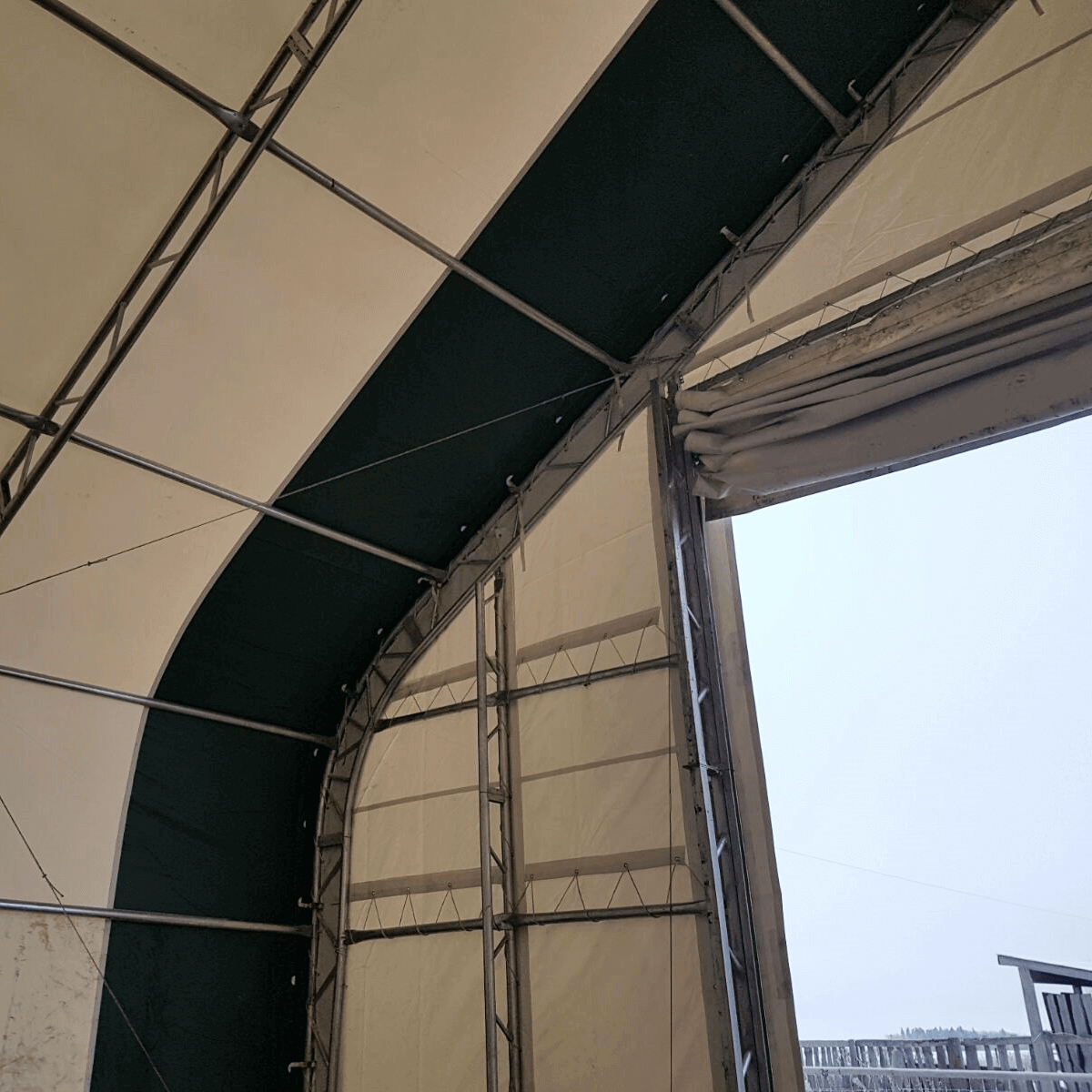

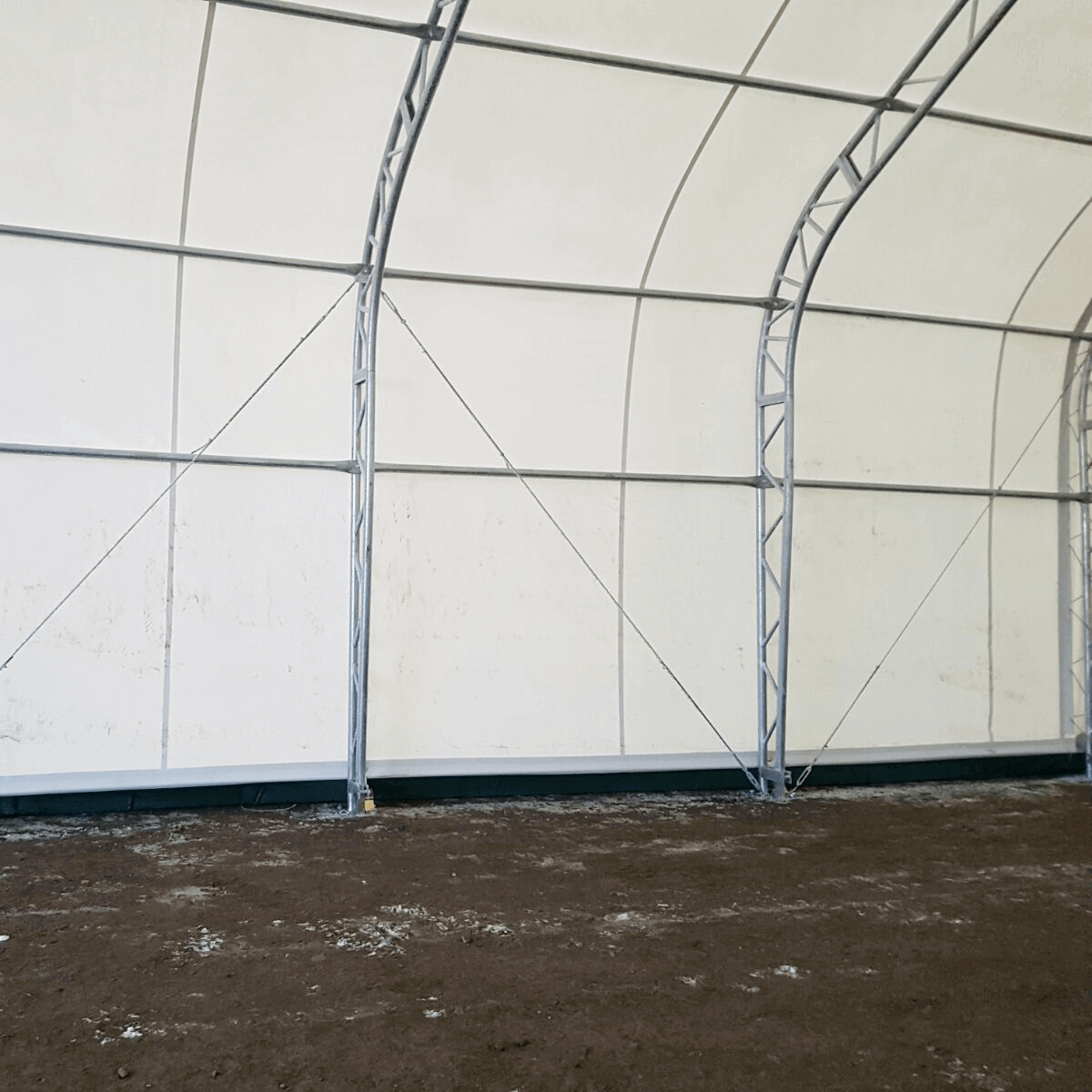

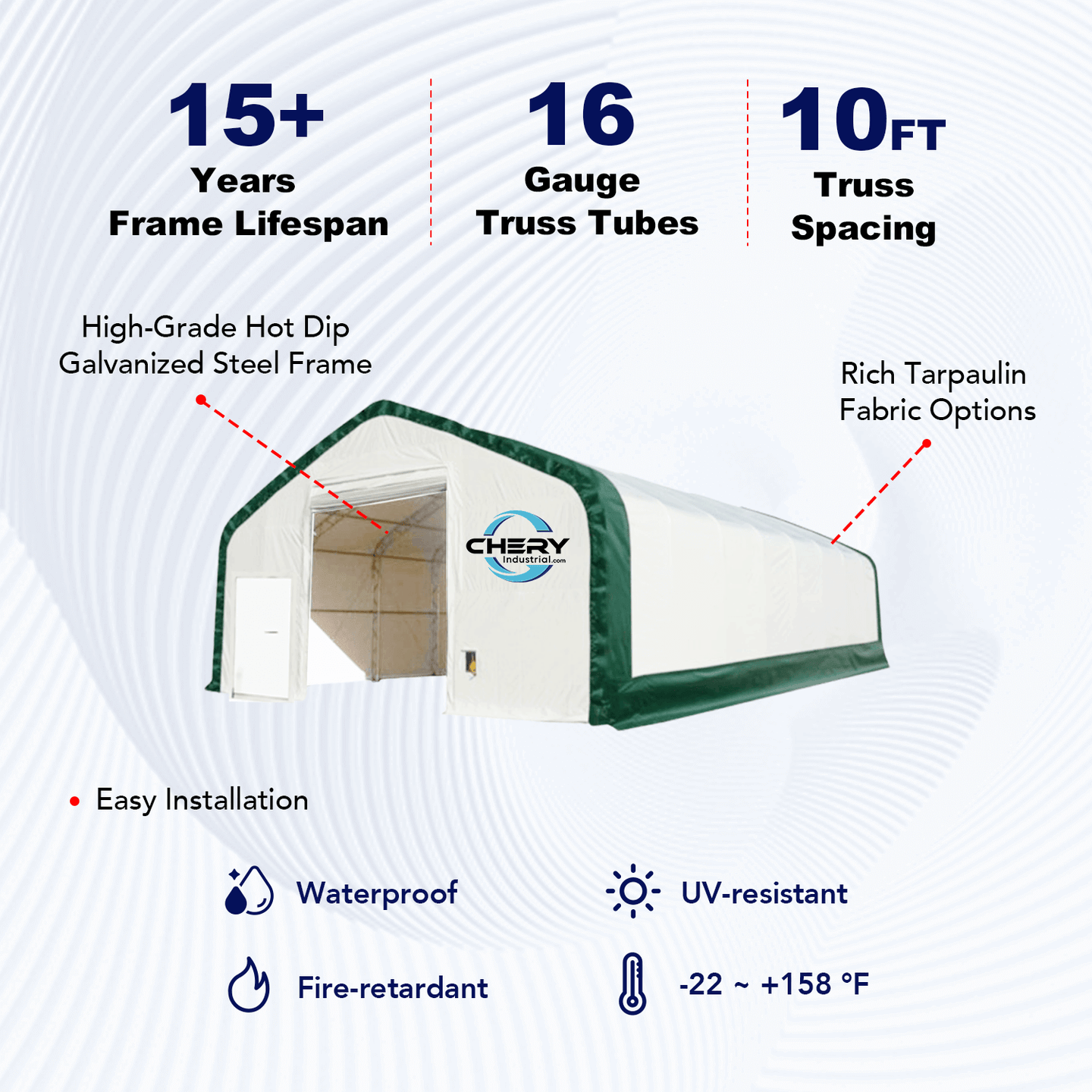

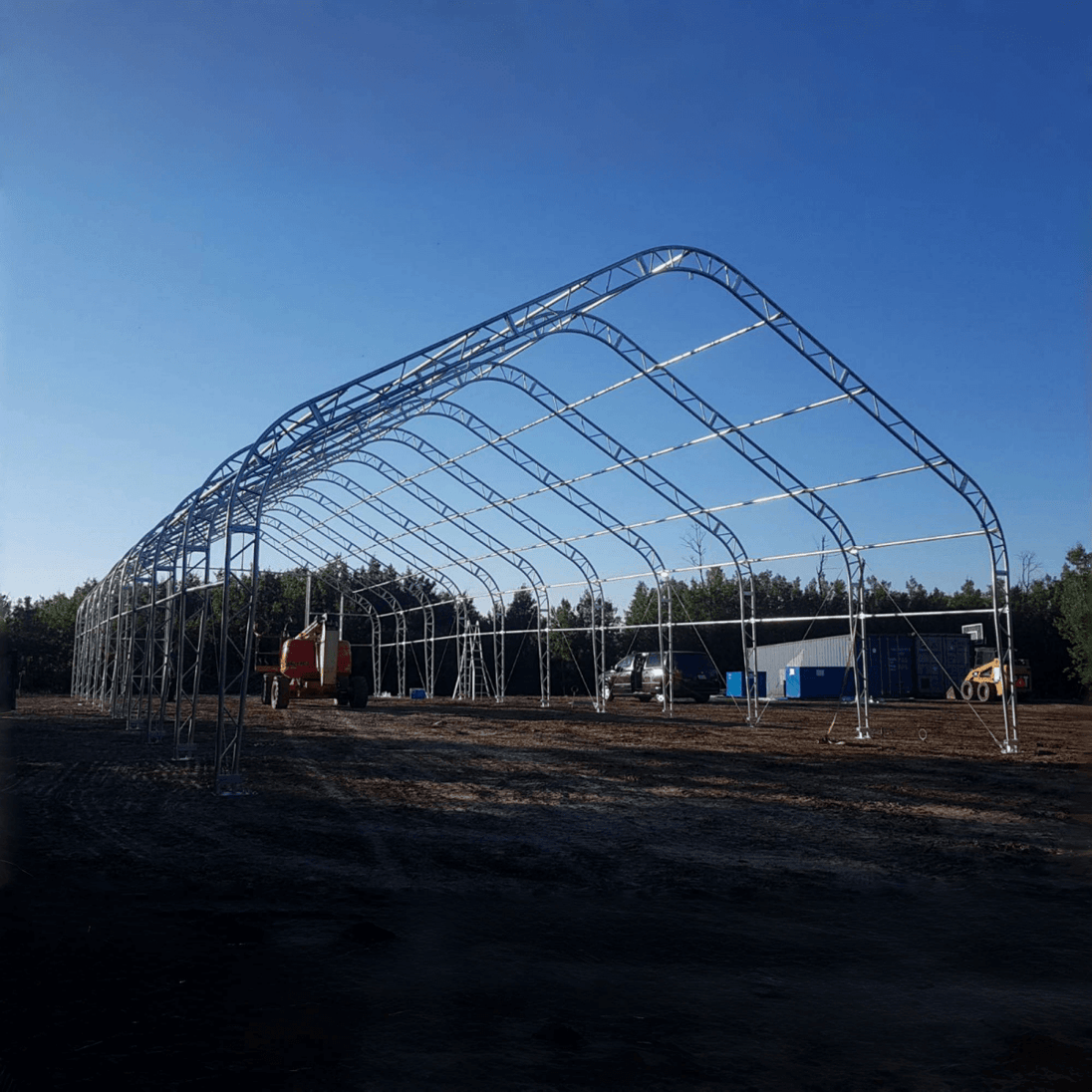

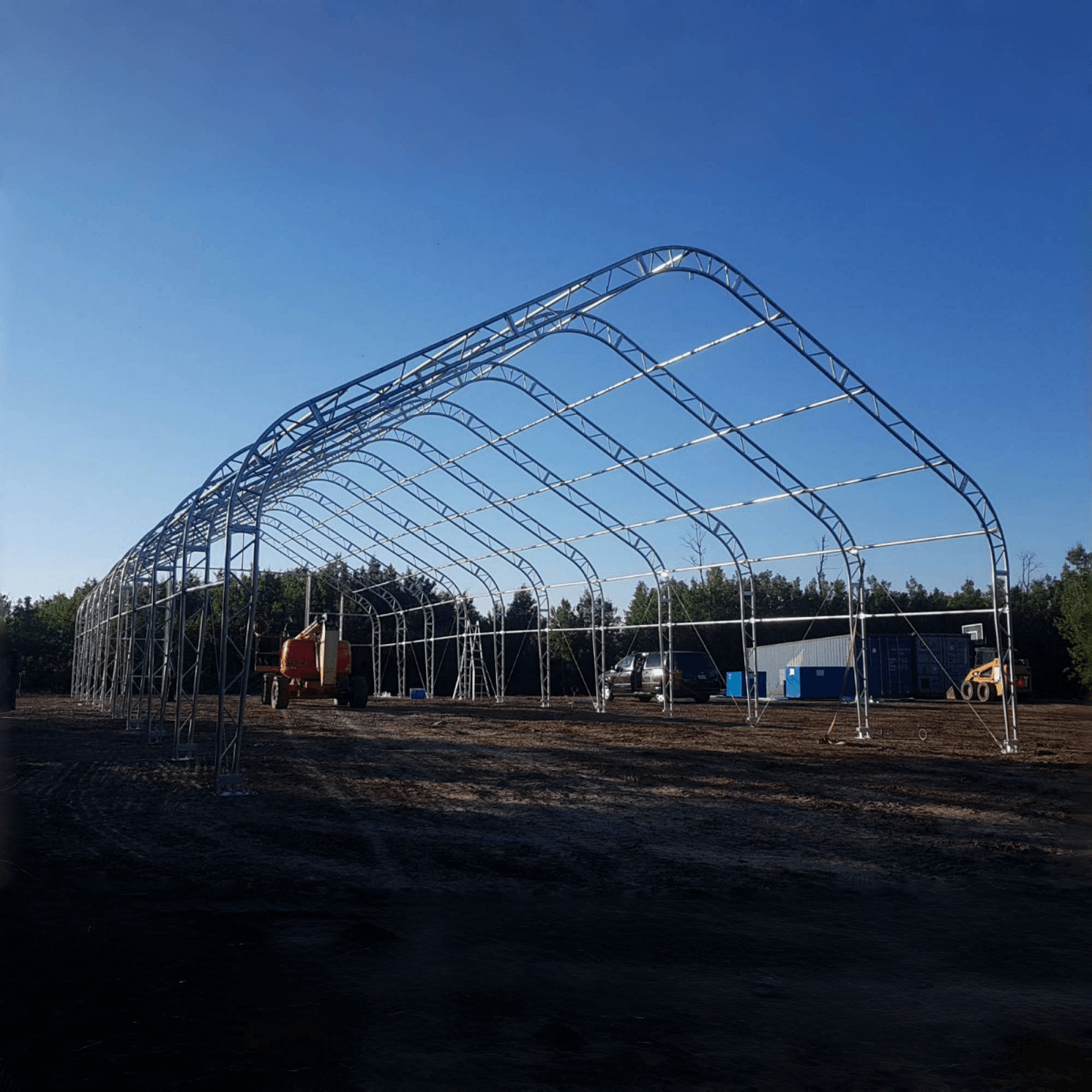

• Frame: Double Truss Galvanized Tube
• Steel Frame: Hot Dip Galvanized Steel

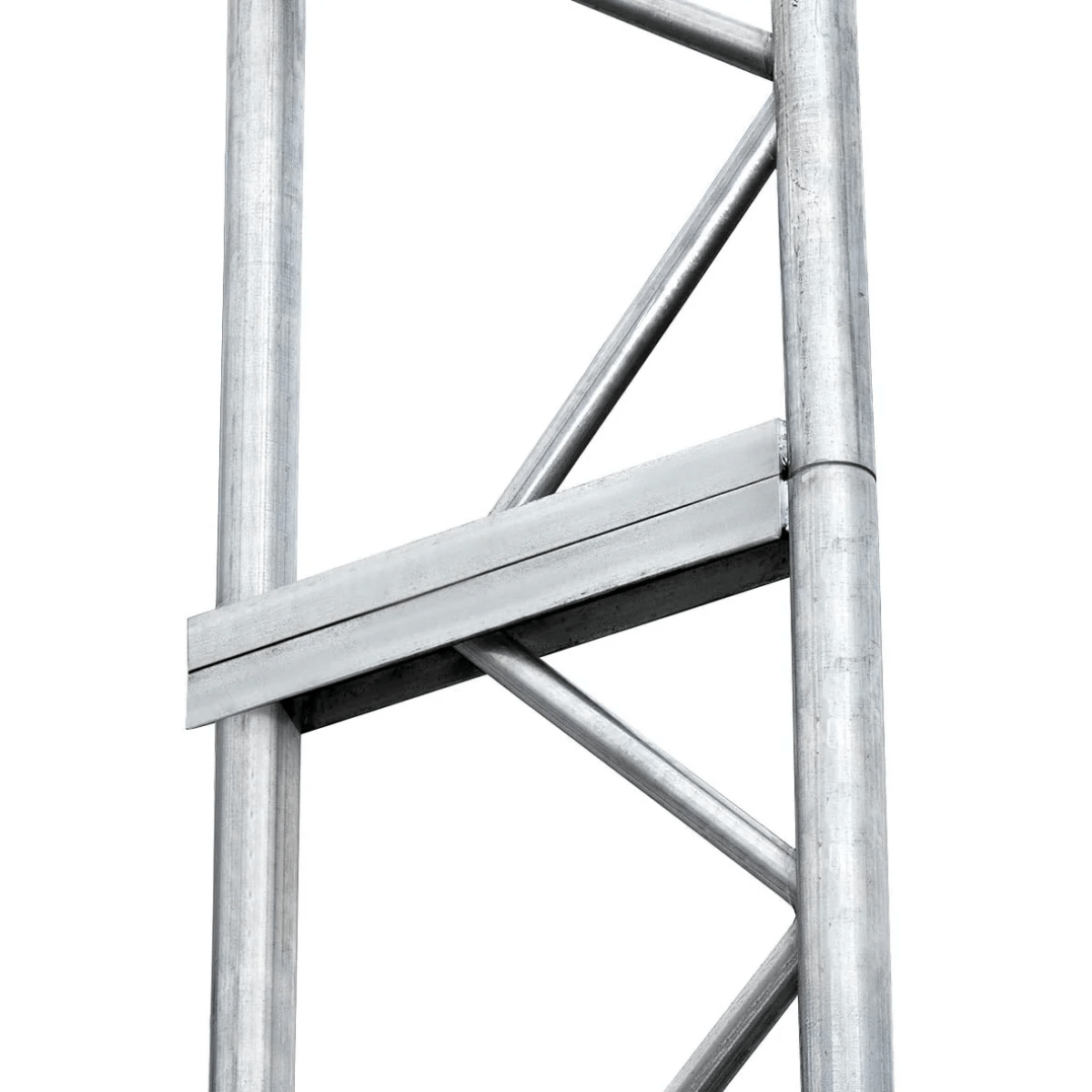

• Truss tube: 16 Gauge
• Tarp Fabric: PE or PVC
• Tarp Color (customizable): White with Green/Red Edge
• Temperature resistance: -22 to +158 F
• Arch Ø: ? 48 x 1.5 mm
• Purlin Ø: ? 48 x 1.5 mm
• Arch Spacing: 10 ft
• Number of Arch: 5

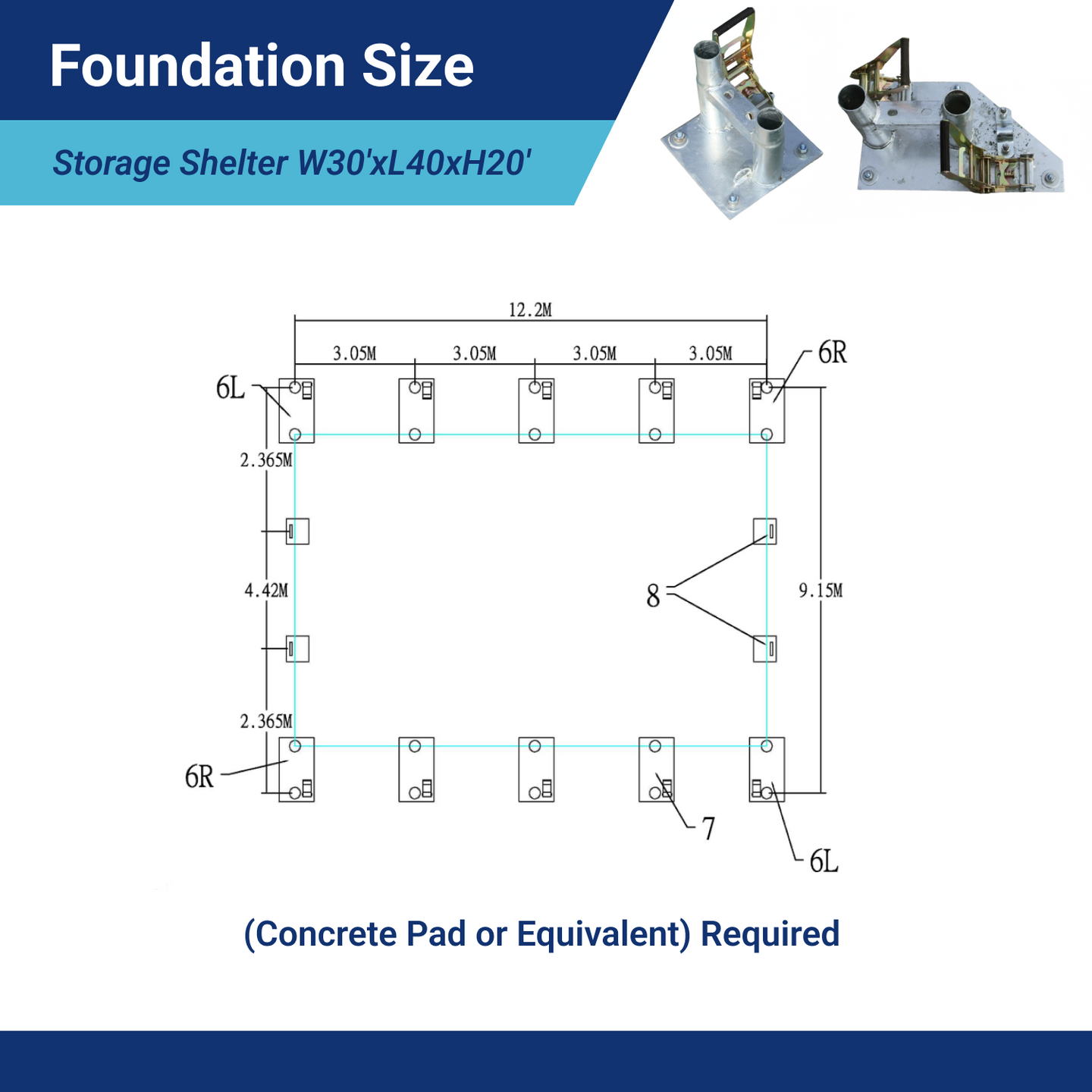

• Number of Anchor plates: 10

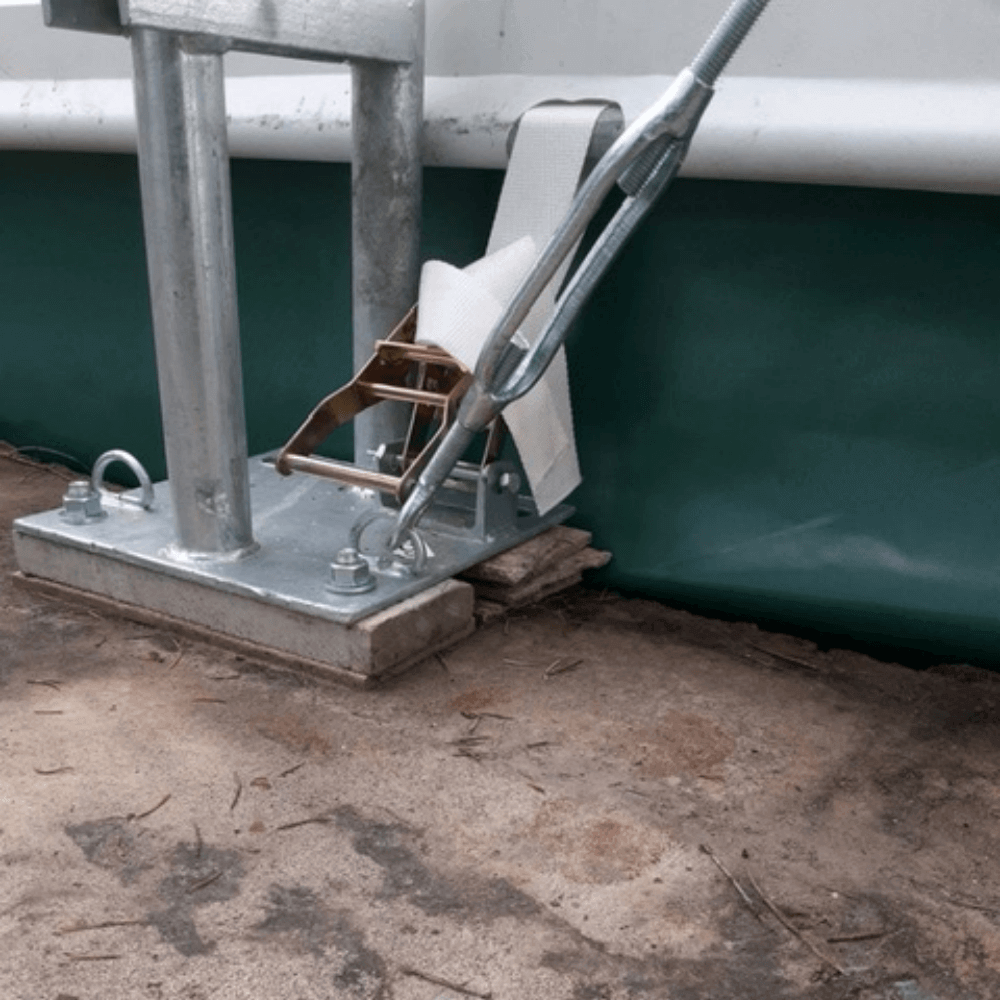

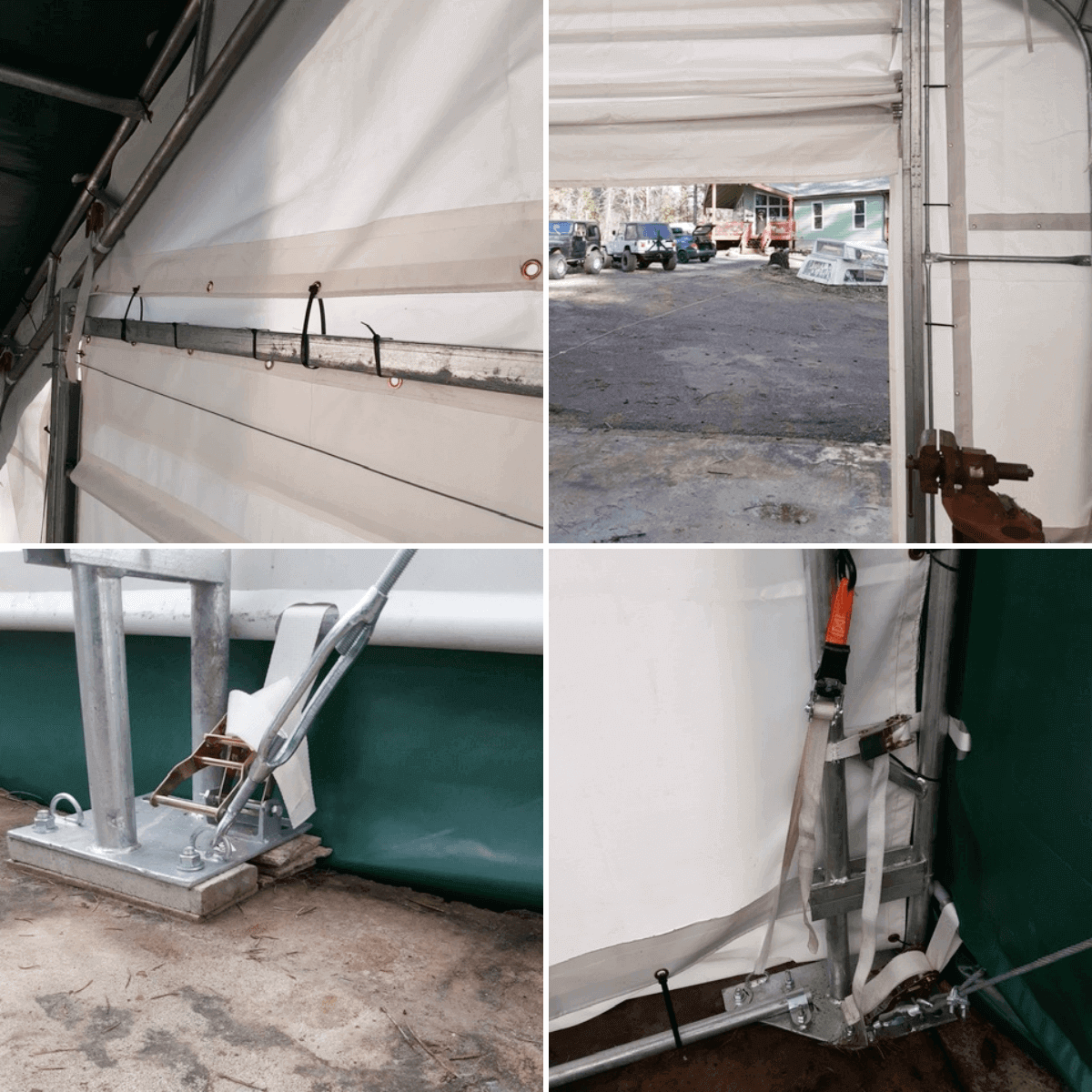

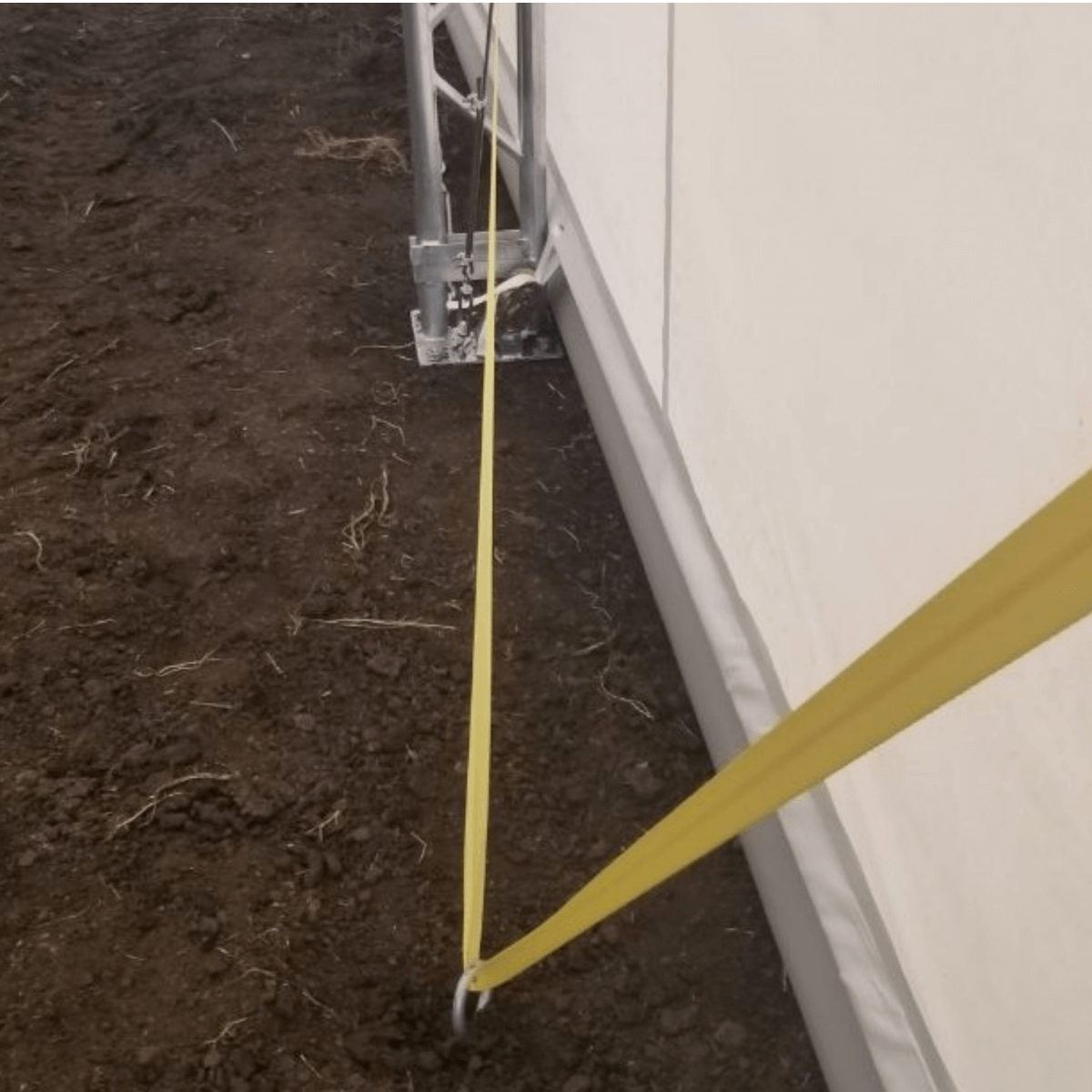

• Tension System: Pipe and Ratchet Tie-Down System

Specifications

• Average assembly time for DIY with 4 persons: 3 Days

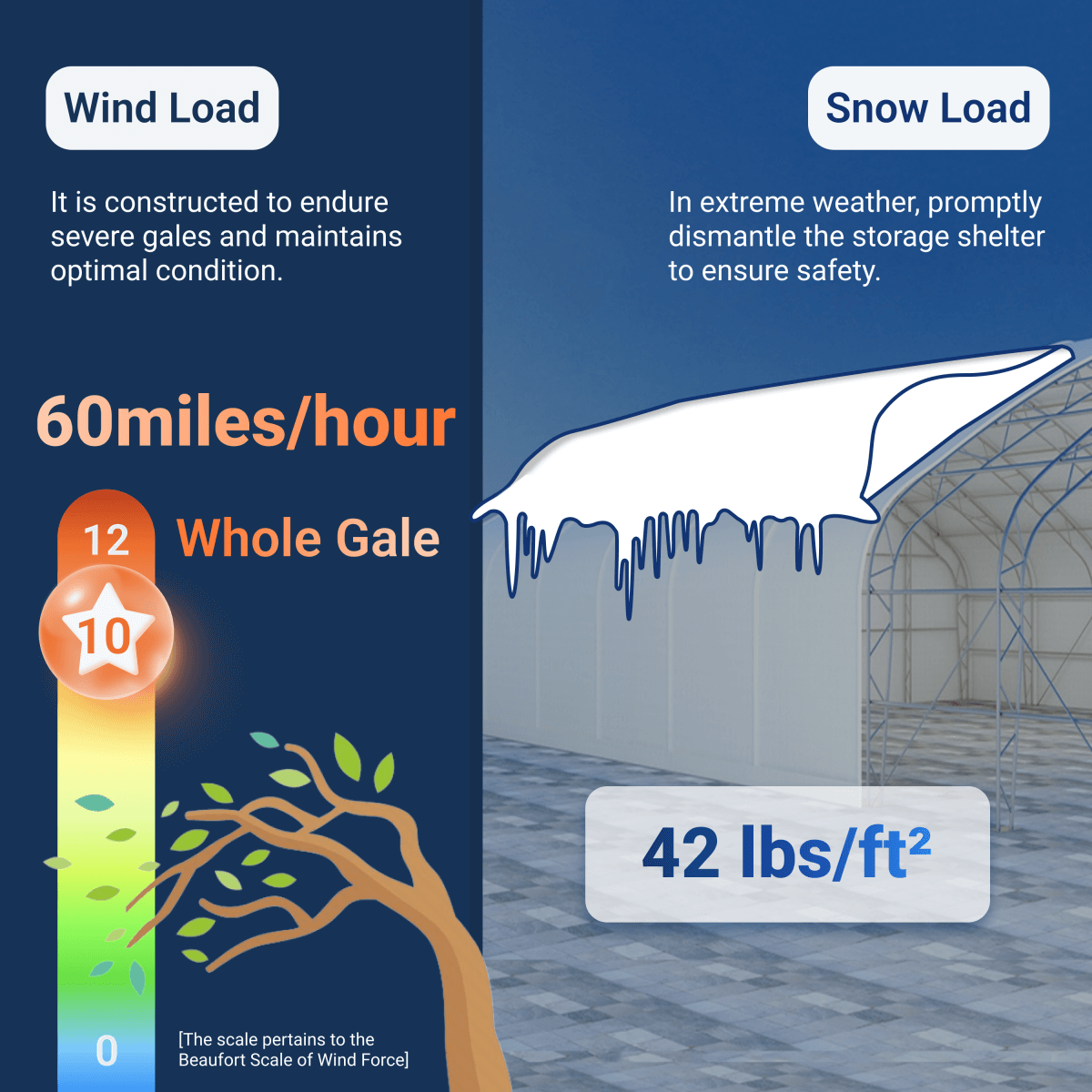

• Snow Load: 42 lbs/ft²
• Wind Load: 60 mph
• Tarp lifespan: 7–10 years (depends on fabric and environment)
• Frame lifespan: 15+ Years
• Warranty: PE 2 Years; PVC 8 Years
• Fabric (Optional): 11oz/m² PE; 16oz/23oz/26oz/32oz PVC tarpaulin options
• Country of Origin: China
