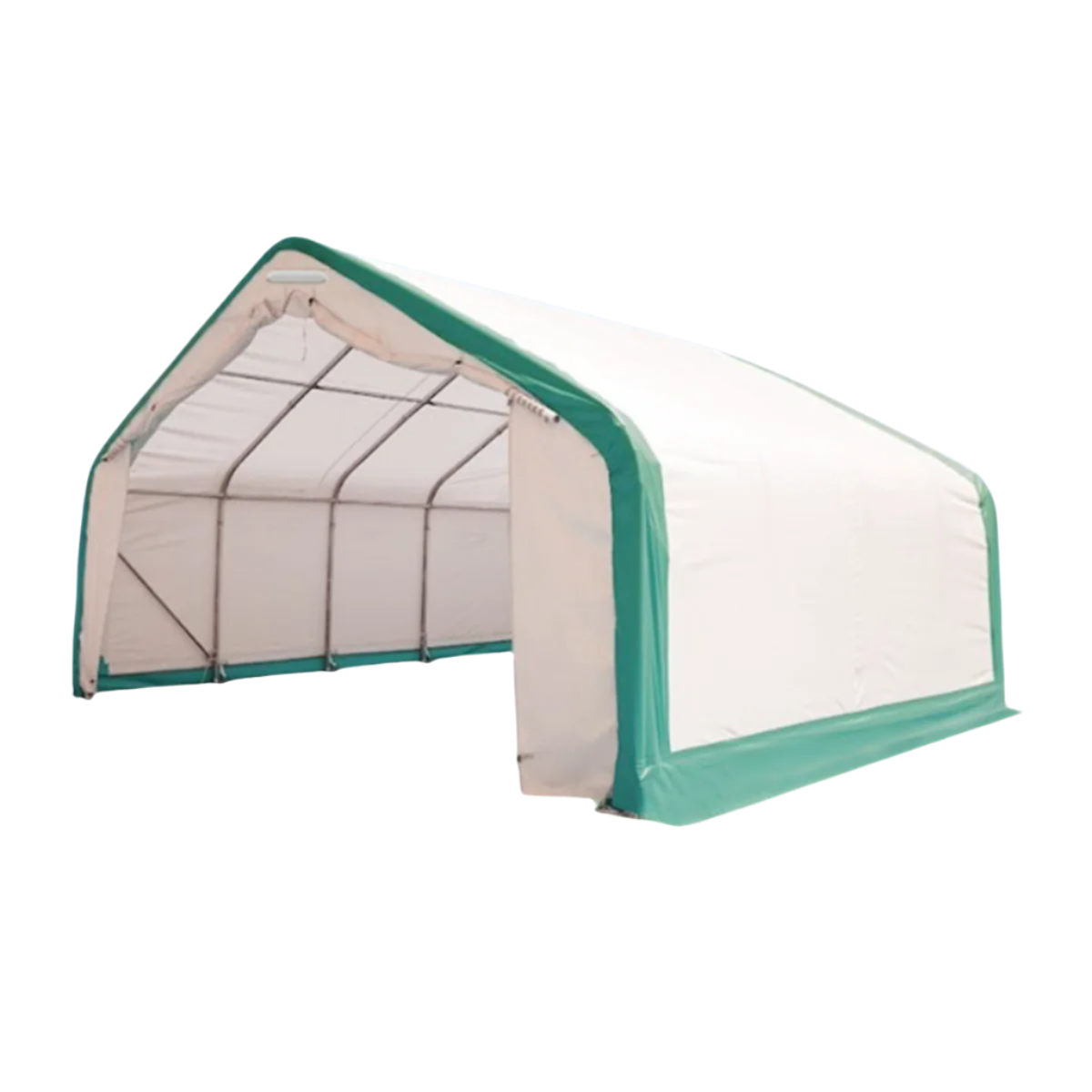

Gold Mountain Storage Shelter W20'xL40'xH12' - Single Truss

Overview

The shelter provides all?weather protection from storms, snow, rain, and sun. Great for vehicles, materials, tools, and events. It comes with a 3-year warranty. The peak design helps with snow removal, and the PVC fabric lasts longer than PE. This shelter covers a range of storage needs and aims for long?lasting protection.

Benefits

• All?weather protection for vehicles, equipment, and supplies
• Durable PVC tarpaulin lasts longer than PE in harsh conditions
• Peak roof design aids snow removal
• Galvanized frame resists rust and corrosion
• 3?year warranty for peace of mind
• Easy to set up and dismantle

Features

• No building permits required*
• Suitable for agriculture, farms, events, film sets, garages, and vehicle storage
• Galvanized steel frame resists rust and corrosion
• Weatherproof, UV resistant, and fire retardant
• PVC tarp provides bright natural light and can help reduce lighting costs
• Double doors at both ends for easy entry and exit
• Engineered design with advanced technology
• Easy to install or dismantle and transport to new locations

Specifications

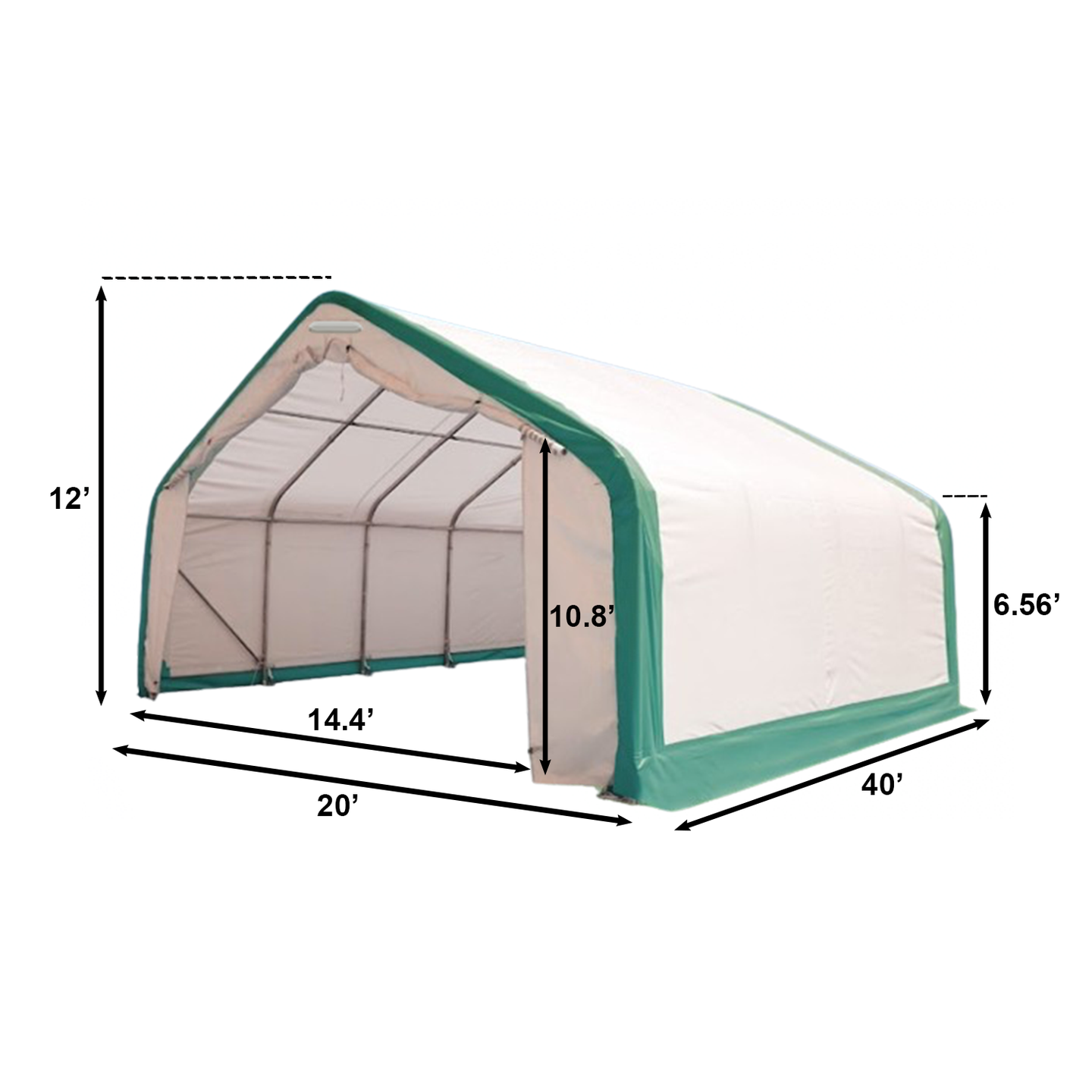

• Dimensions (WxLxH): 20' x 40' x 12'
• Side-wall height: 6.56 ft
• Door size (WxH) front & rear: 14.4' x 10.8'
• Door type: Zipper rollup door

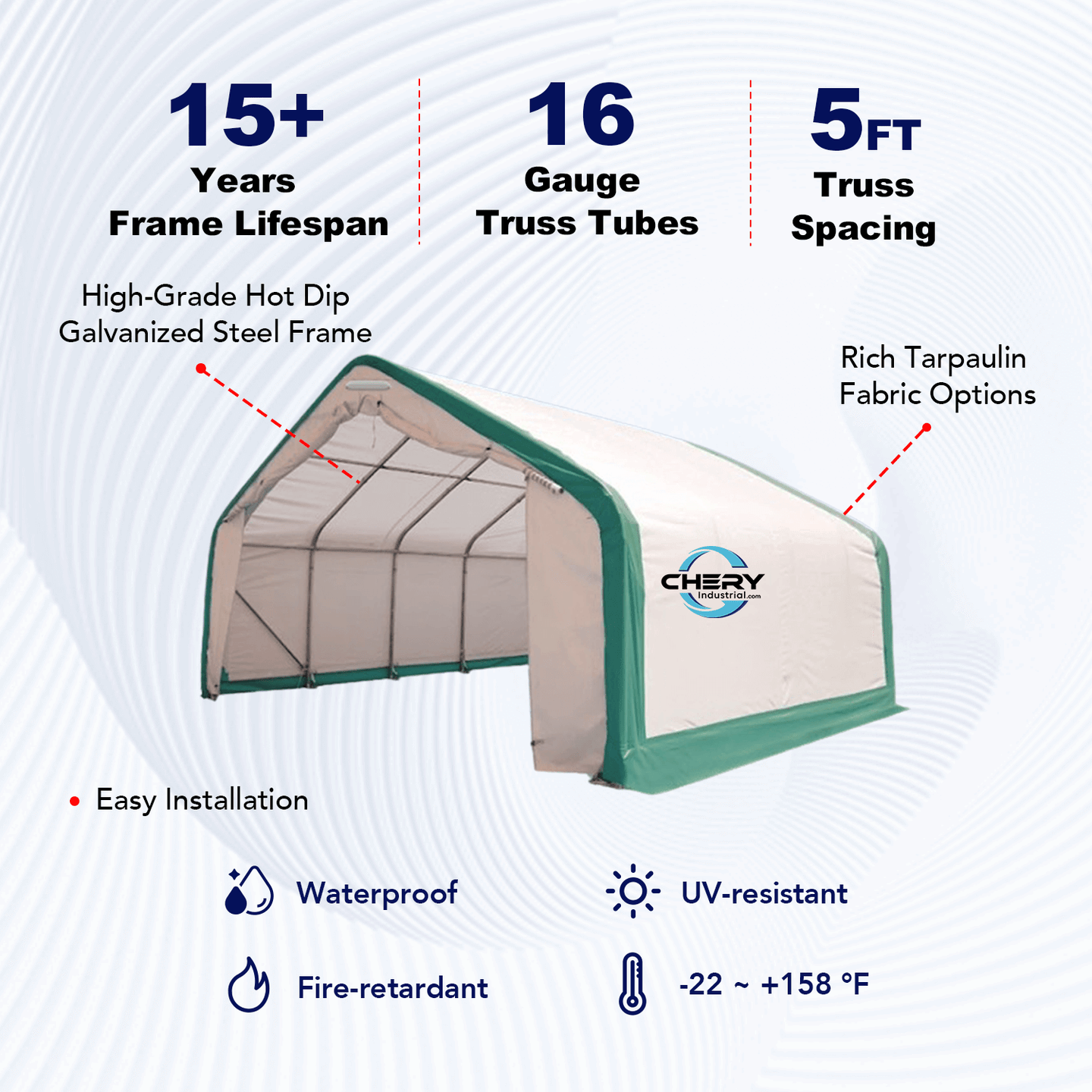

• Frame: Single Truss galvanized tube
• Steel frame: Hot dip galvanized steel
• Truss tube: 16 gauge
• Tarp fabric: PE or PVC
• Tarp color (customizable): White with green/red edge
• Temperature resistance: -22 to +158 F
• Arch Ø: 70 x 42 x 1.5 mm
• Purlin Ø: 40 x 1.2 mm
• Arch spacing: 5 ft
• Number of arches: 9

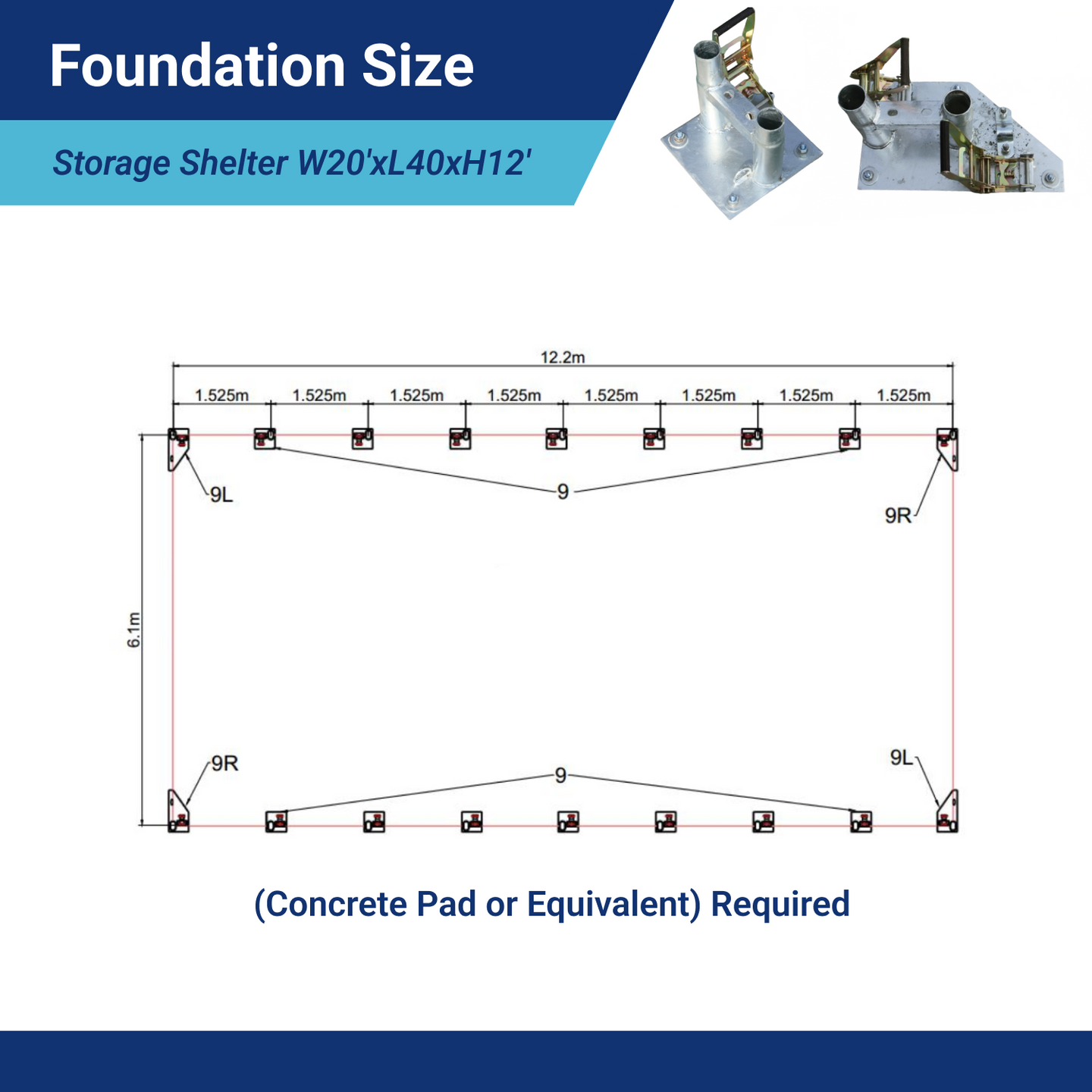

• Number of anchor plates: 18

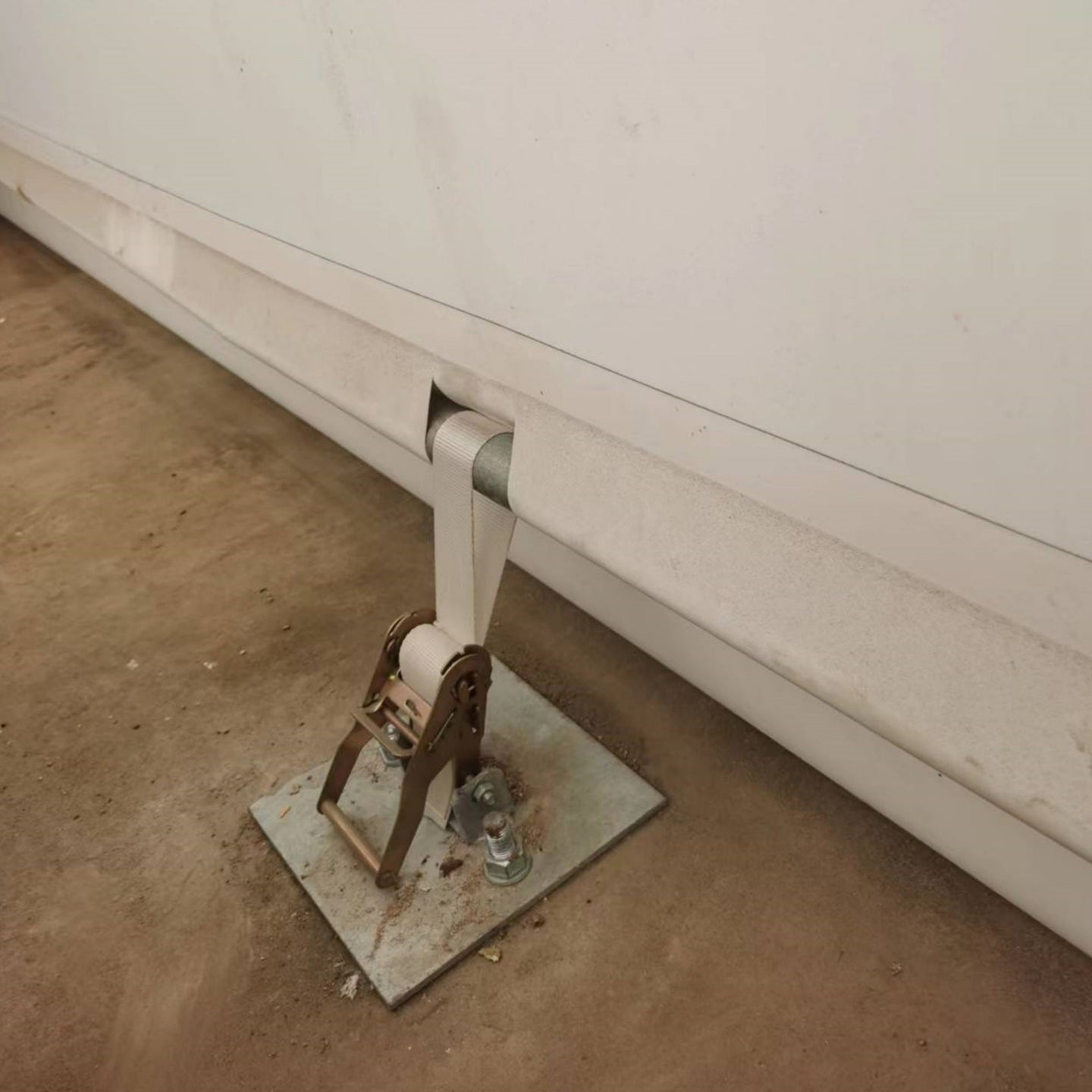

• Tension system: Pipe and ratchet tie?down
• Average assembly time (DIY with 4 persons): 2 days

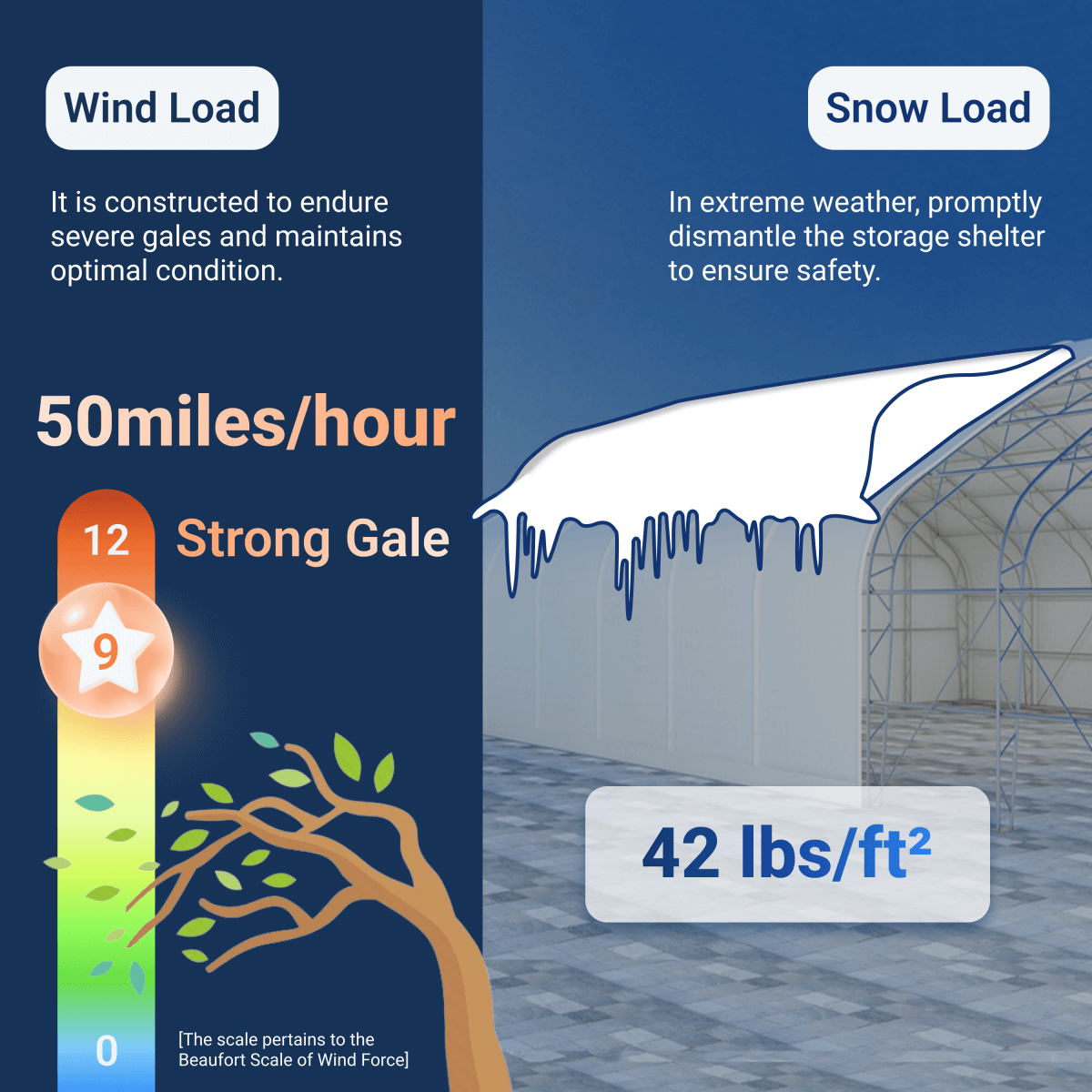

• Snow load: 42 lbs/ft²
• Wind load: 50 mph
• Tarp lifespan: 7–10 years (depends on fabric and environment)
• Frame lifespan: 15+ years
• Warranty: PE tarps – 2 years; PVC tarps – 8 years
• Fabric options: Economical 11 oz/m² (300 gsm) PE; Heavy?duty PVC tarps at 16 oz/m² (450 gsm), 23 oz/m² (650 gsm), 26 oz/m² (750 gsm), 32 oz/m² (900 gsm); contact us to order
• Country of origin: China
