Chery Industrial | W20'xL33'xH16' Double Truss Storage Shelter | SUISS203316DPOZ15

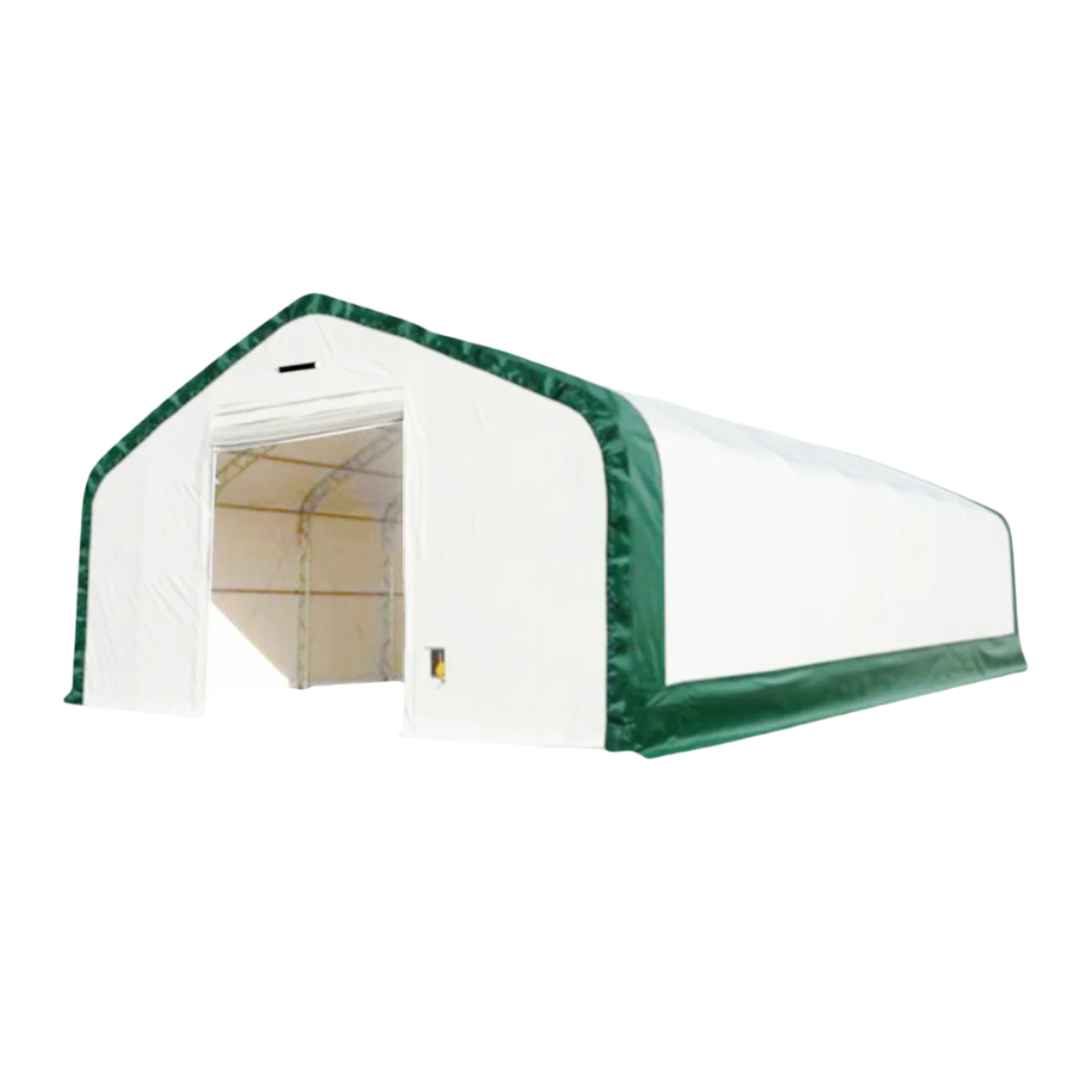

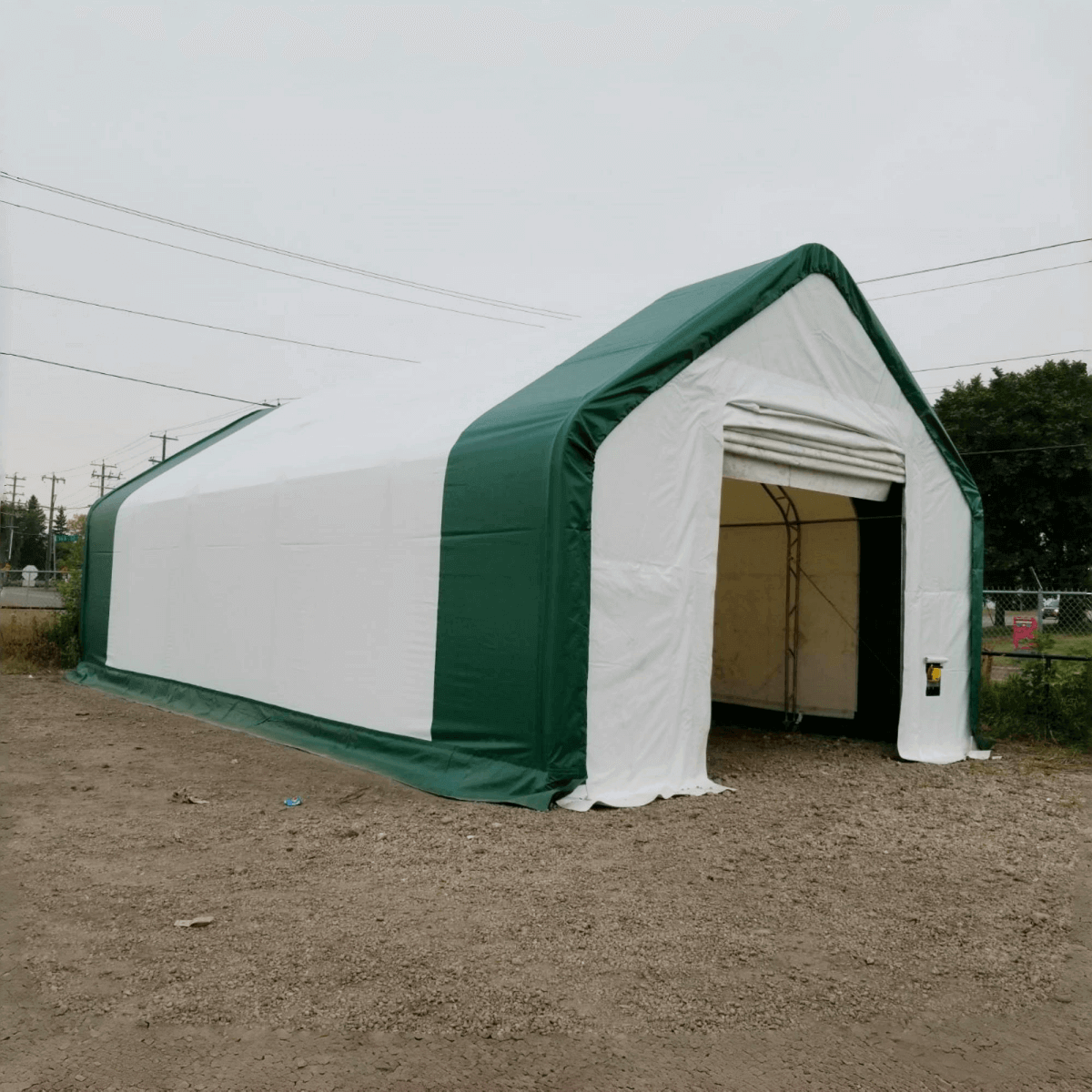

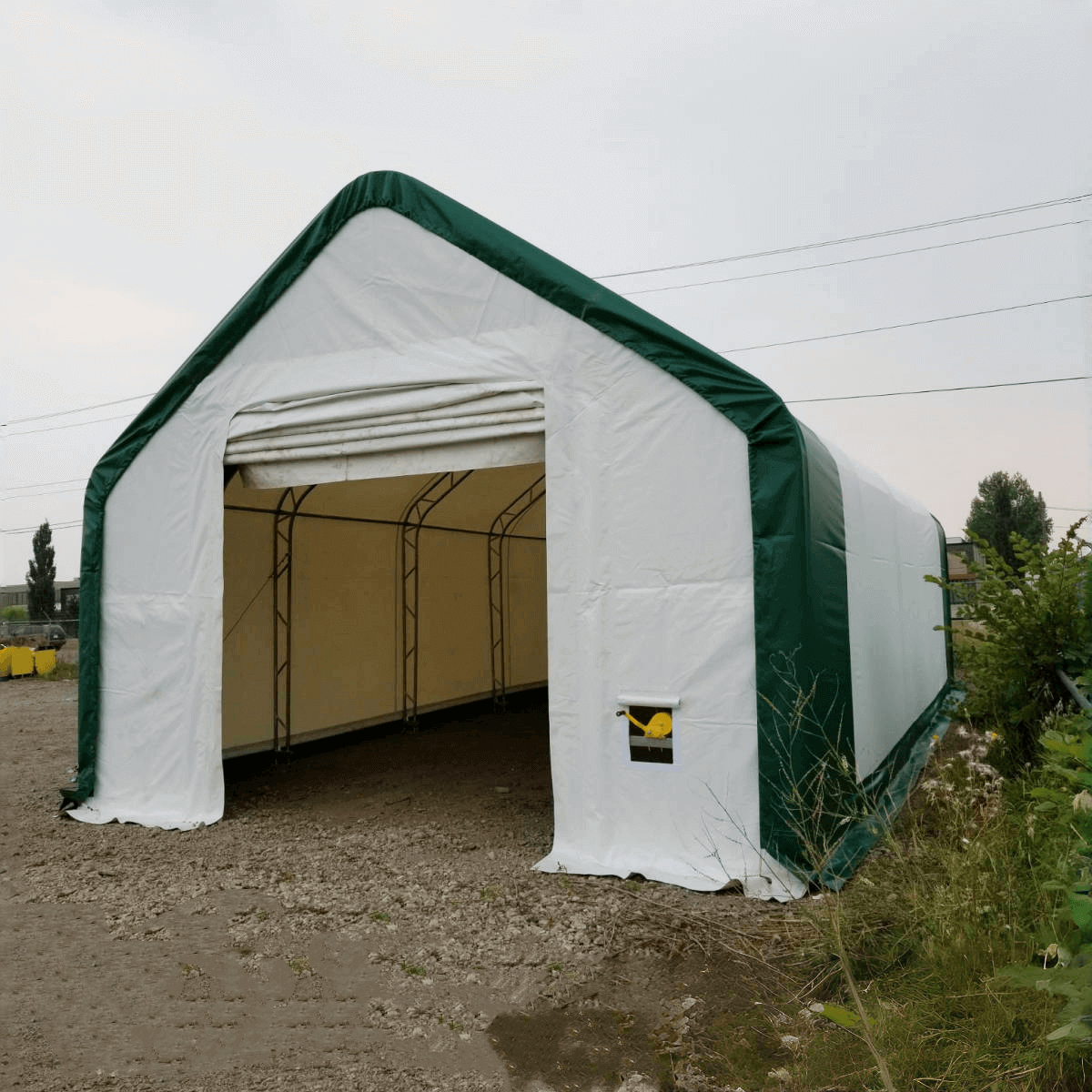

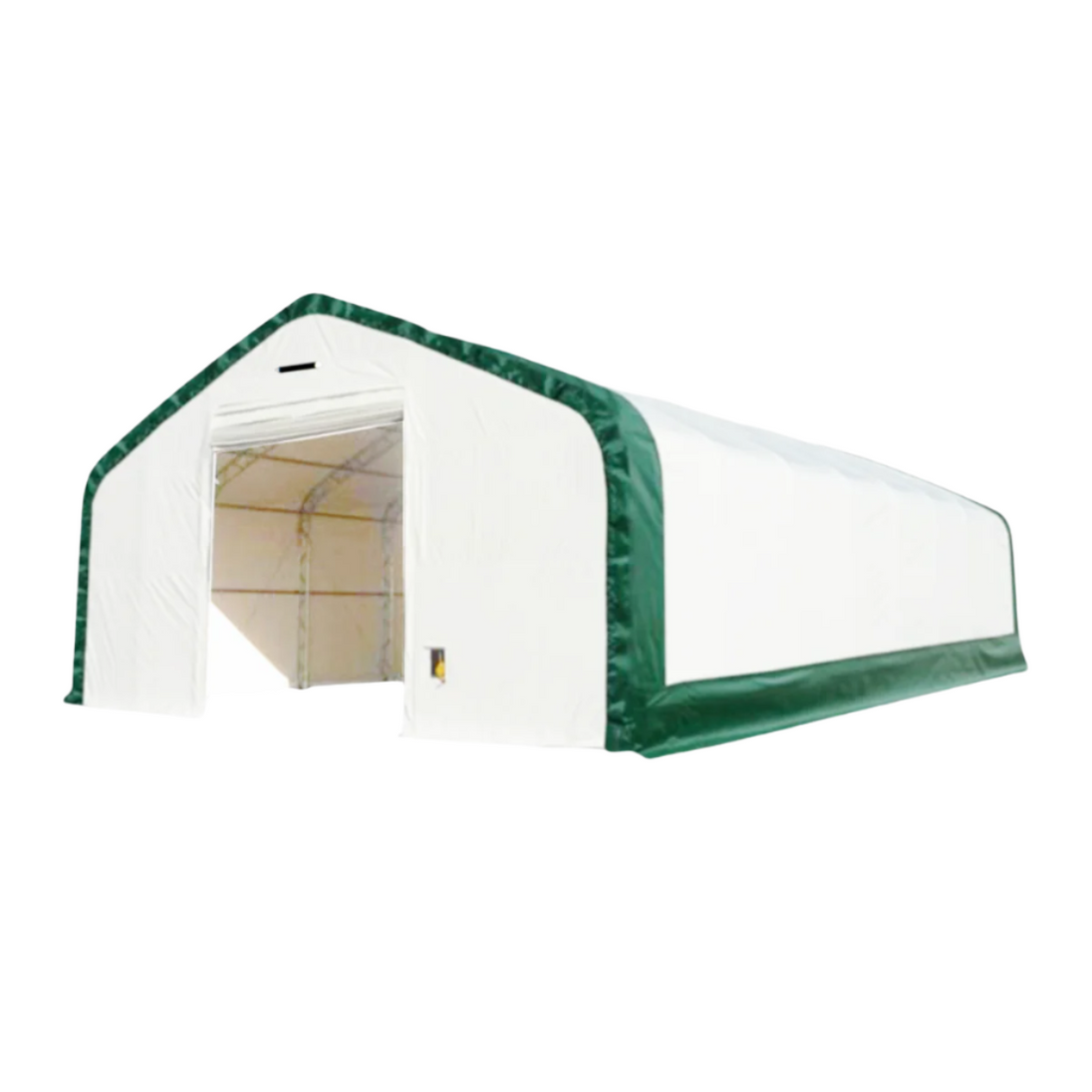

Gold Mountain Storage Shelter W20'xL33'xH16' - Double Truss

Overview

Robust shelter for autos, tools, equipment, and industrial gear. Built to outlast North America’s wild winters and unpredictable weather. PVC fabric lets daylight in while keeping the bad stuff out. The peak design helps snow slide off faster.

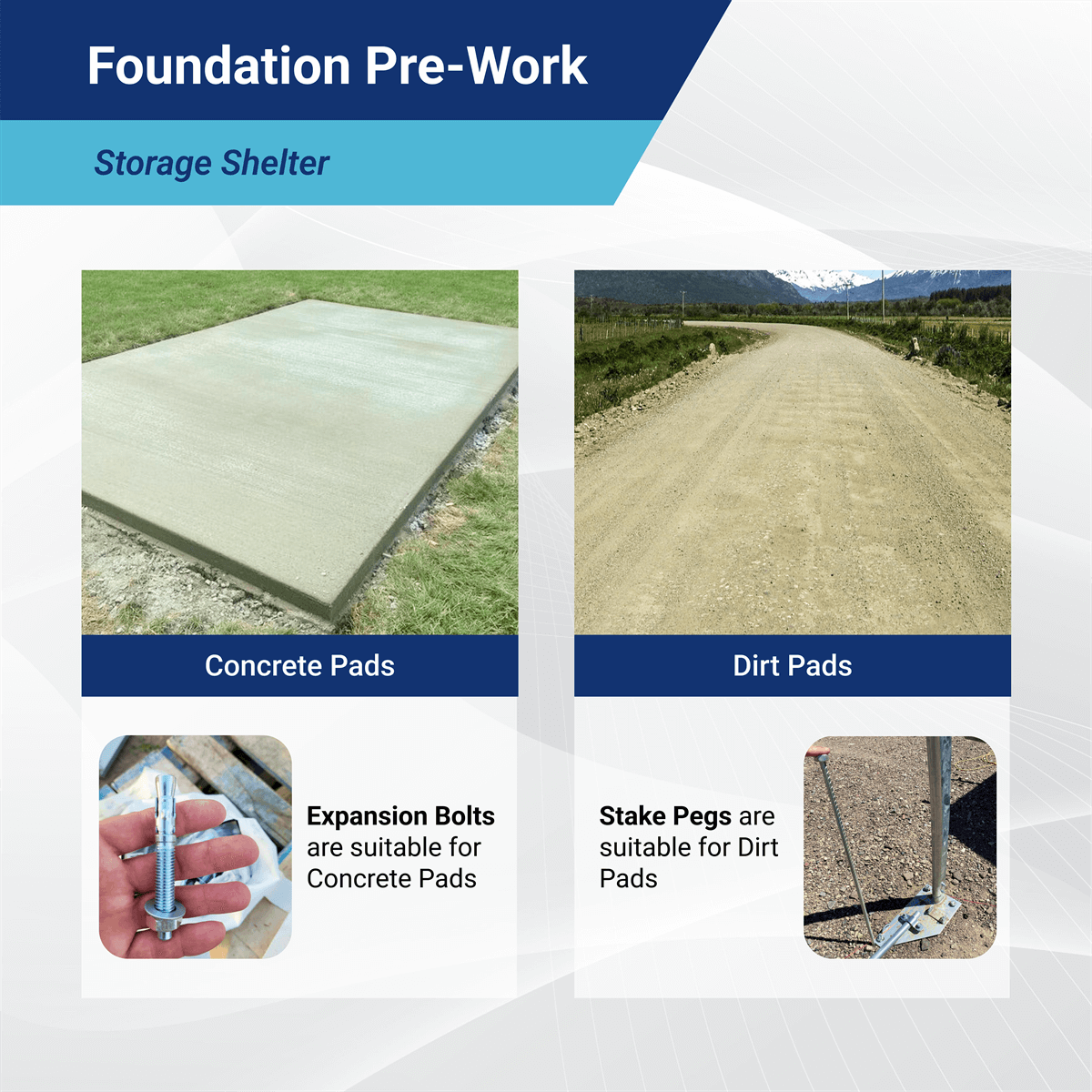

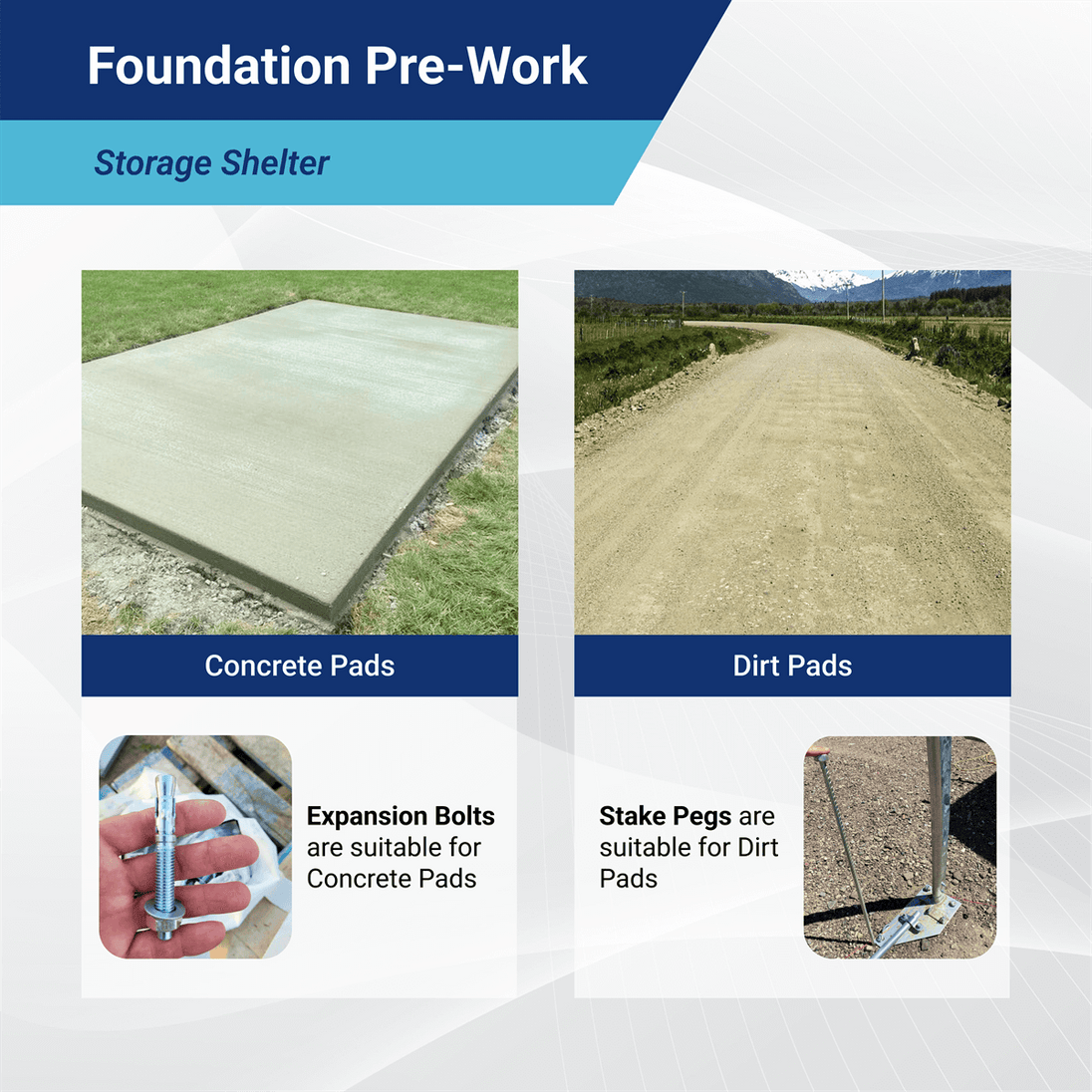

Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, contact customer service to place an order.

Benefits

• Protects vehicles, tools, equipment, materials, and machinery.
• Weather-ready against snow, wind, rain, and sun.
• PVC tarp is stronger and longer-lasting than PE.
• Lets in daylight while providing shelter.
• Snow slides off more easily with the peak design.
• Portable and easy to relocate.

Features

• No building permits required.*
• Easy to set up and install.
• Portable for moving to new locations.

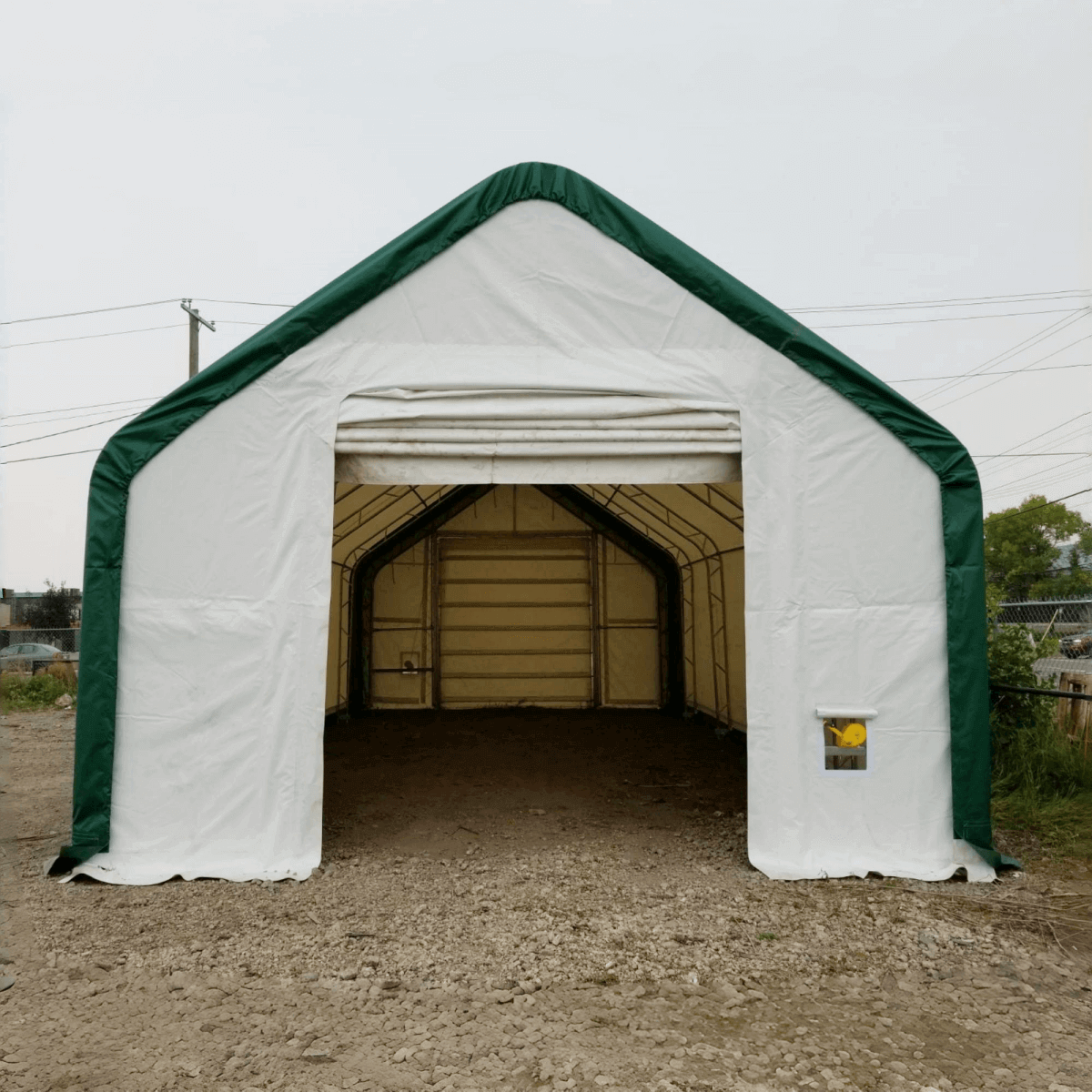

• Two large doors for easy entry and exit.
• Fabric cover blocks UV radiation and provides natural light.
• Galvanized steel frame resists harsh weather.
• Suitable for several purposes.

Specifications

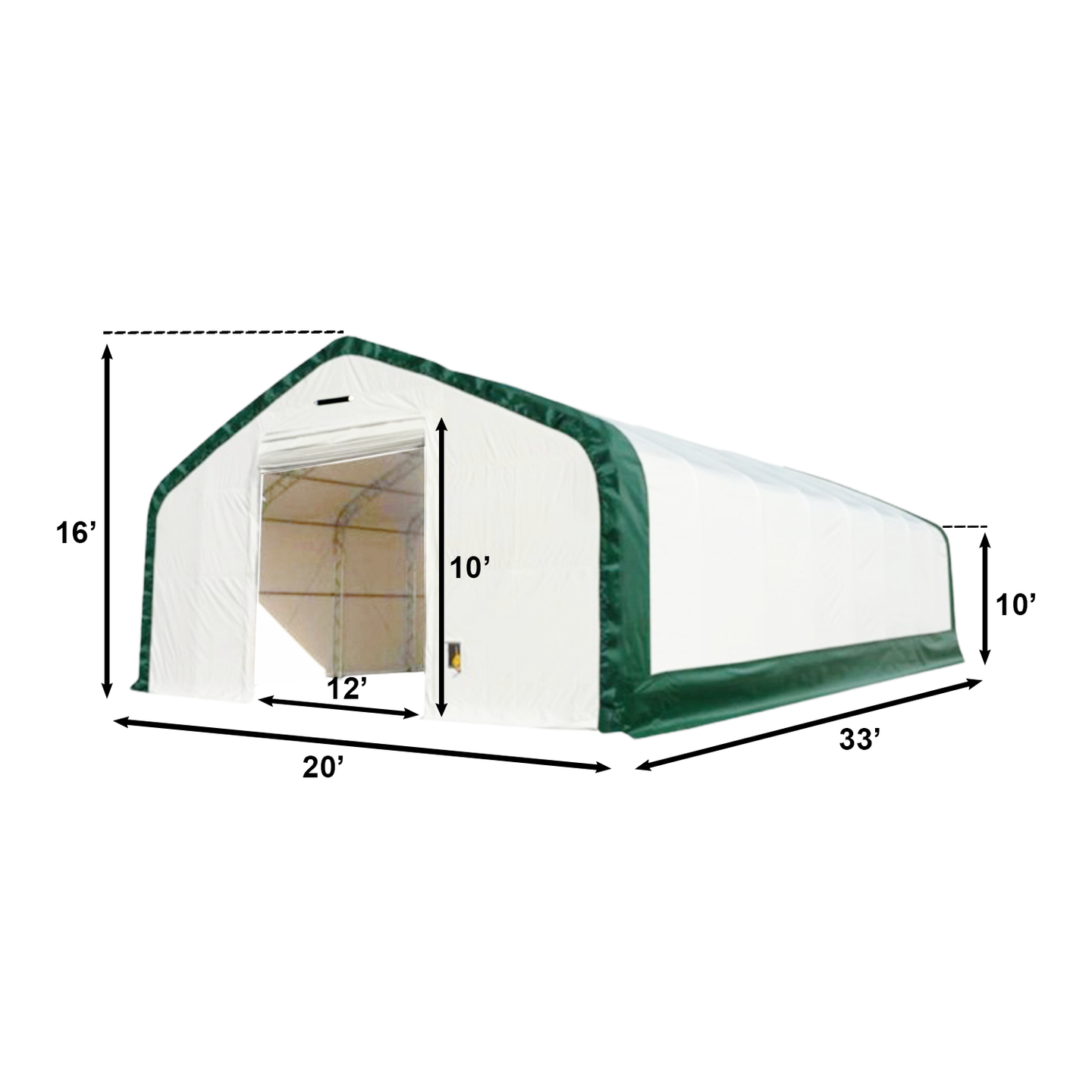

• Dimensions (WxLxH): 20'x33'x16'
• Side-wall Height: 10 ft
• Door size (WxH) Front & Rear: 12'x10'
• Door Type: Mechanical Rollup Door

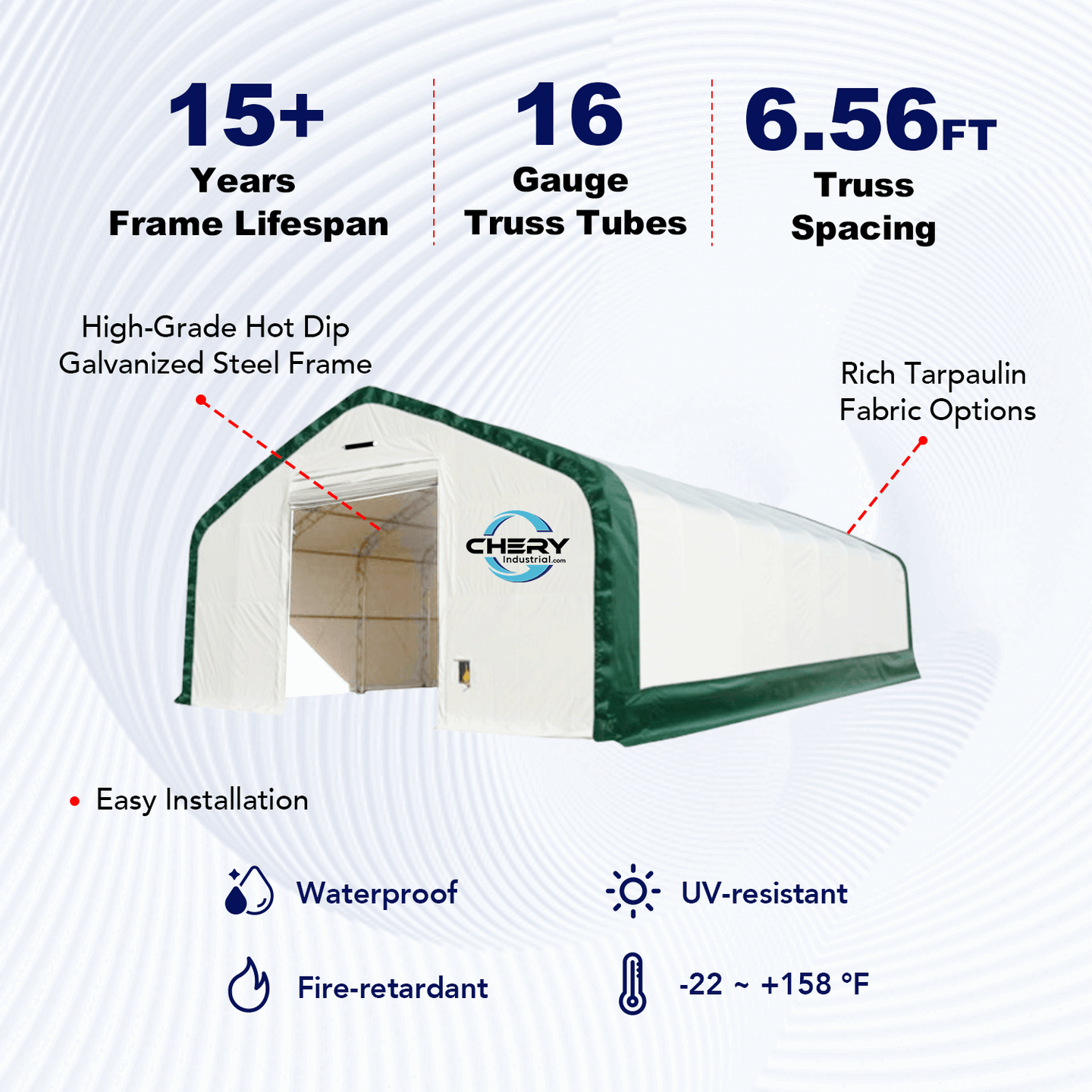

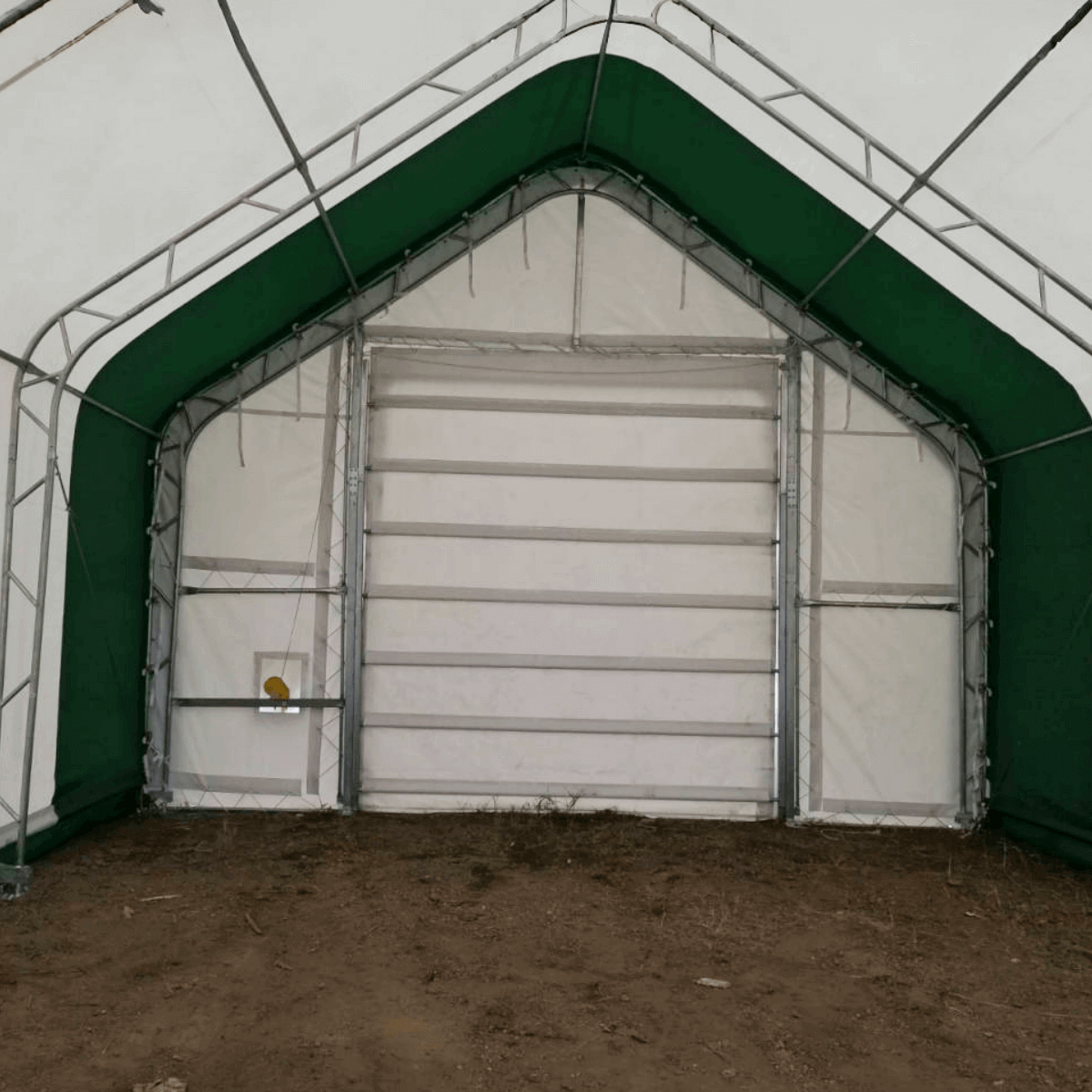

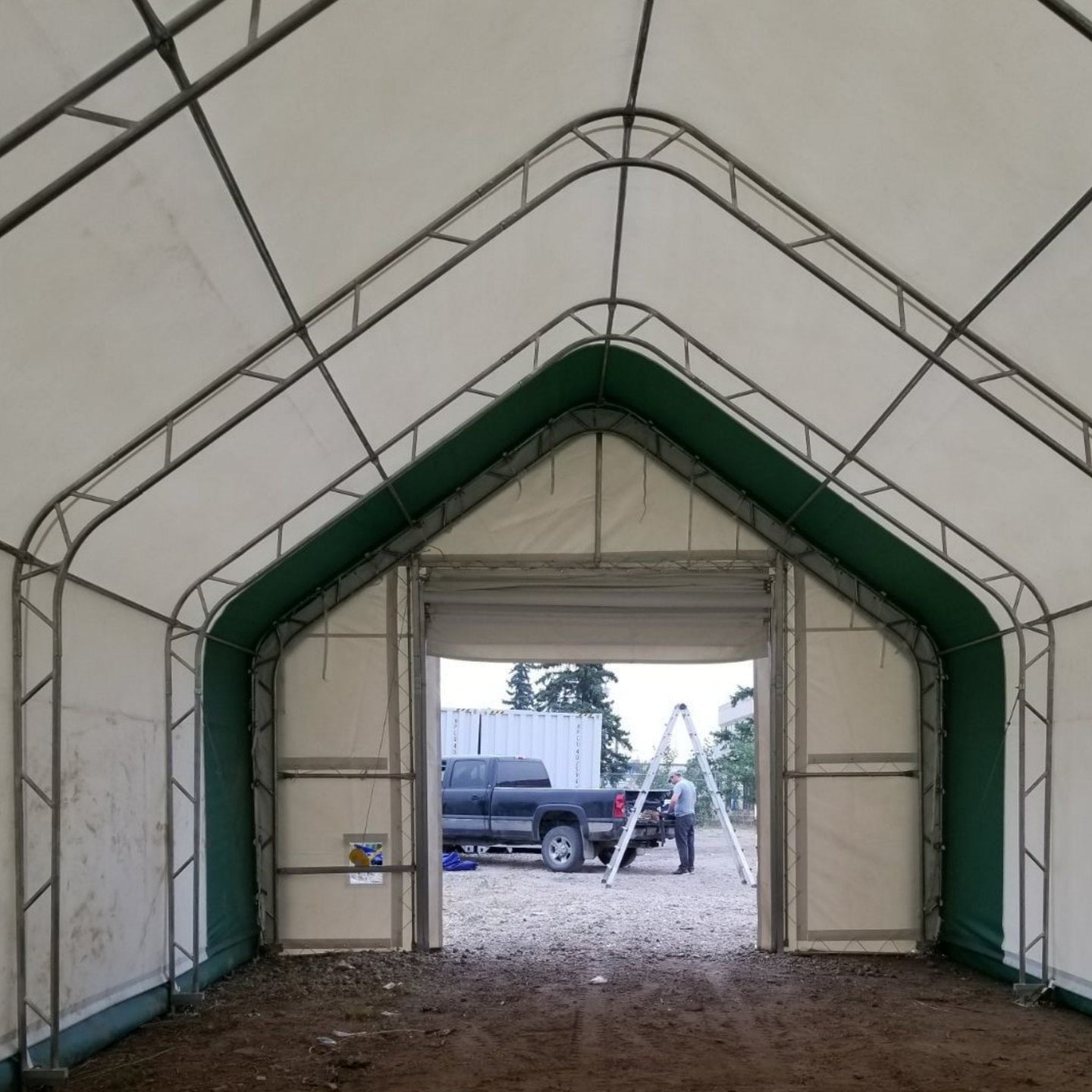

• Frame: Double Truss Galvanized Tube
• Steel Frame: Hot Dip Galvanized Steel
• Truss tube: 16 Gauge
• Tarp Fabric: PE or PVC
• Tarp Color (customizable): White with Green/Red Edge
• Temperature resistance: -22 to +158 F
• Arch Ø: ? 40x1.5mm
• Purlin Ø: ? 40x1.5mm
• Arch Spacing: 6.56 ft
• Number of Arch: 6

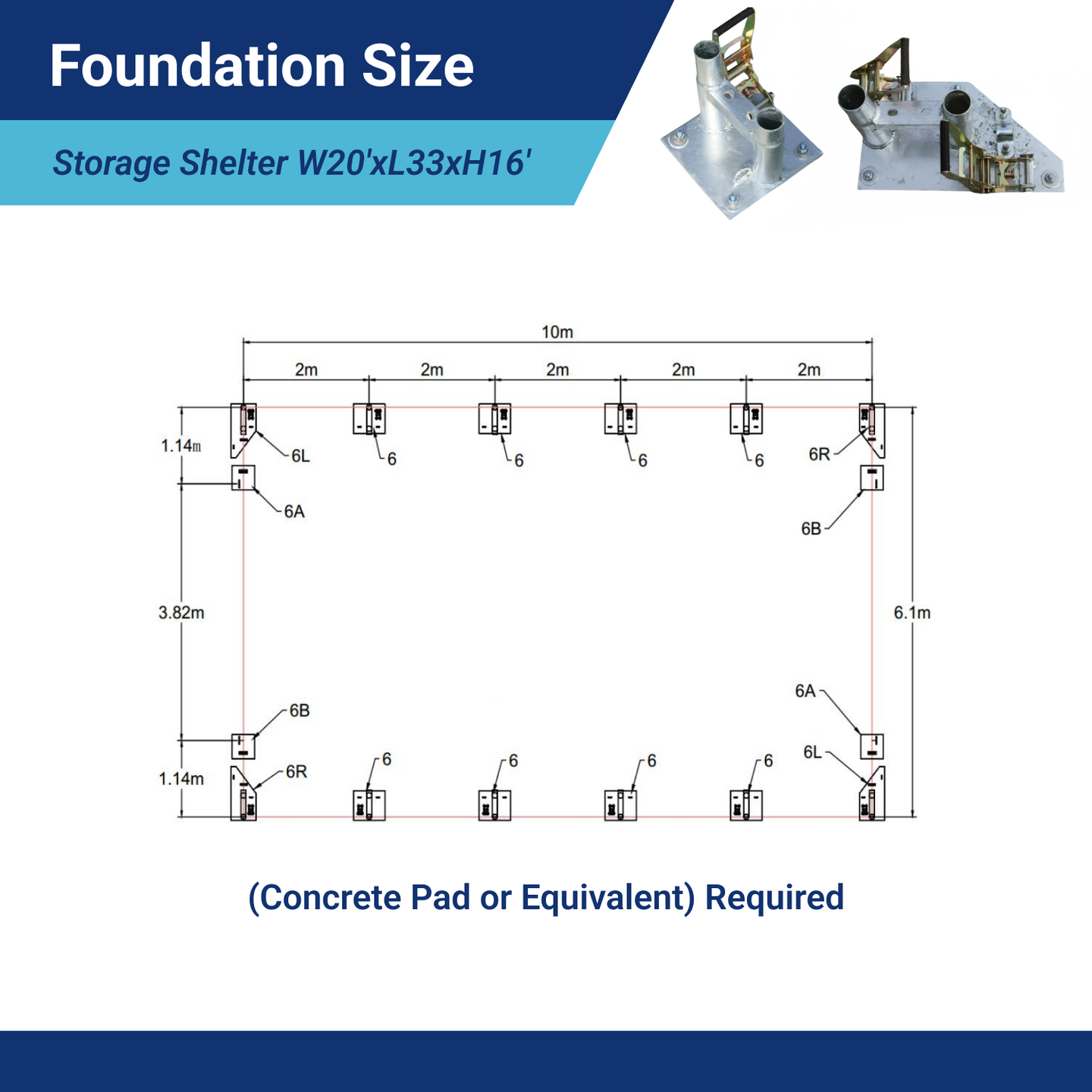

• Number of Anchor plates: 12

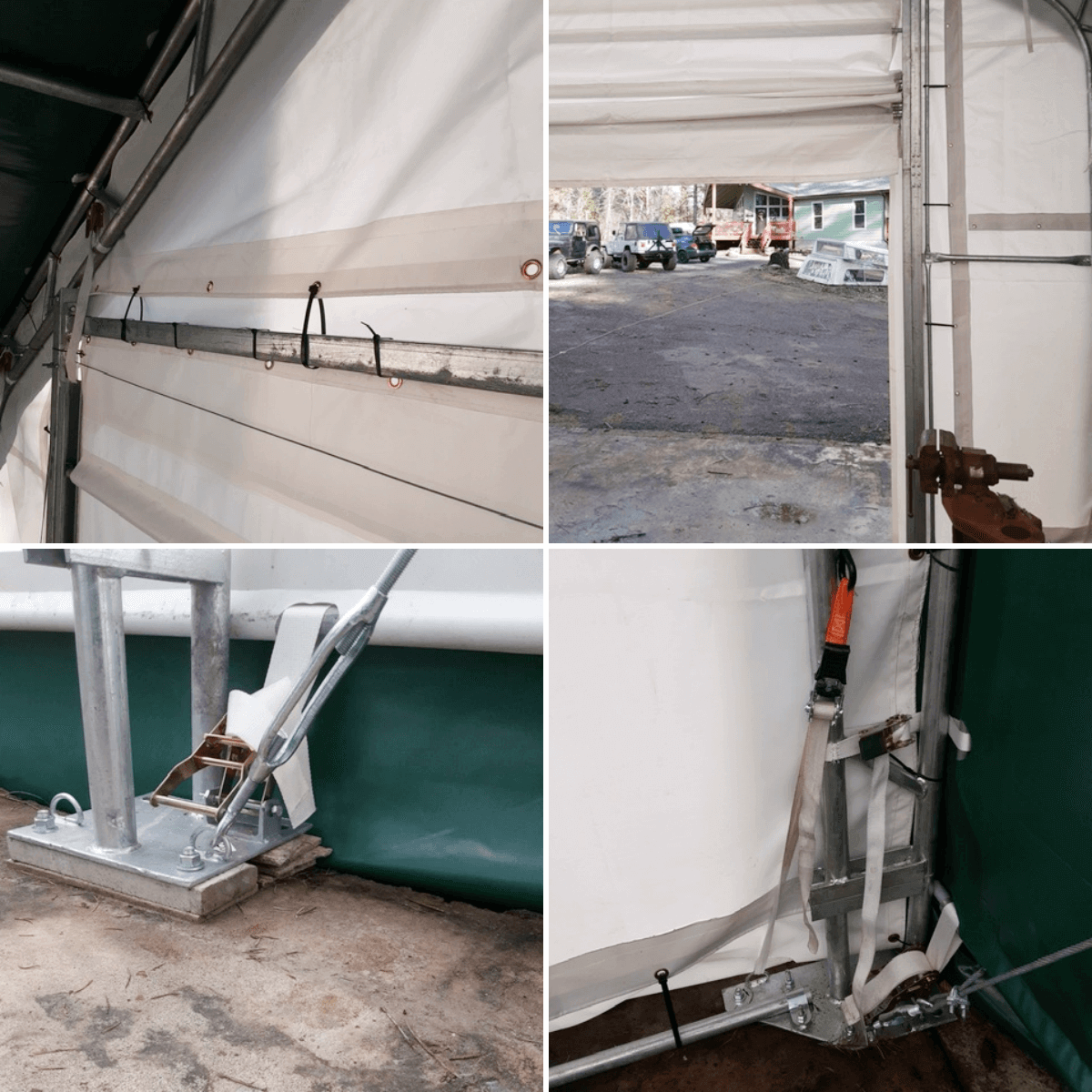

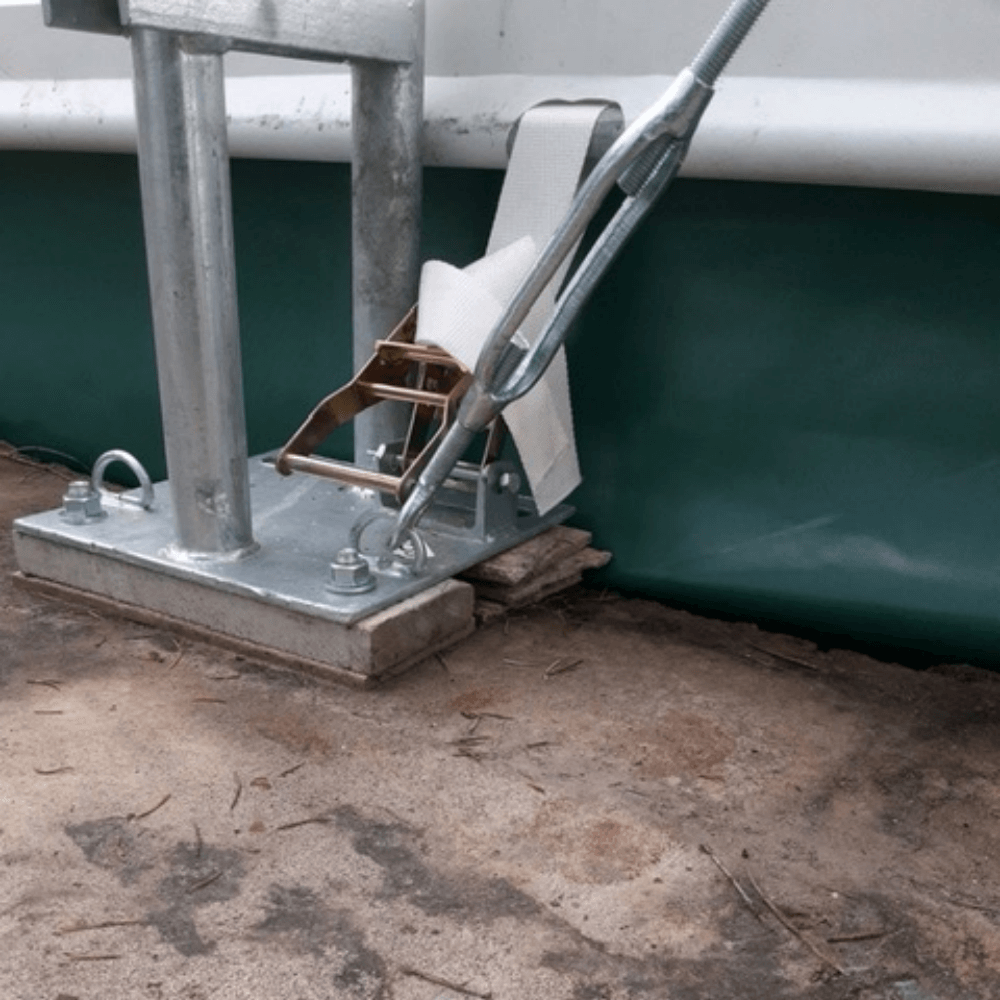

• Tension System: Pipe and Ratchet Tie-Down System
• Average assembly time for DIY with 4 persons: 1 Day

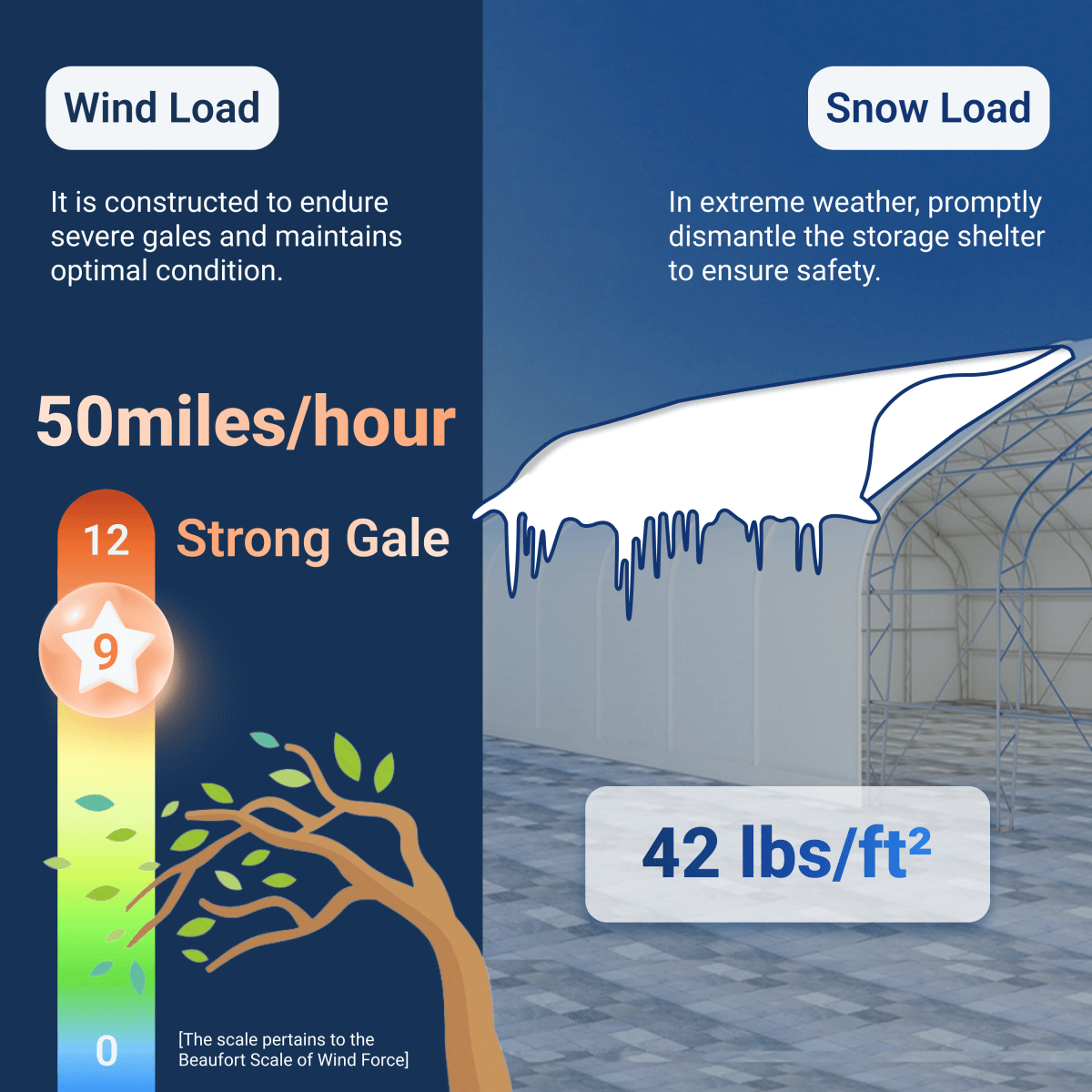

• Snow Load: 42 lbs/ft²
• Wind Load: 50 miles/h
• Tarp lifespan: 7-10 years, depending on fabric and environmental conditions
• Frame lifespan: 15+ Years
• Warranty: PE: 2 Years; PVC: 8 Years
• Fabric (Optional)
  • Economical - 11oz/m² (300 gsm) PE Tarpaulin
  • Heavy Duty - 16oz/m² (450 gsm) PVC Tarpaulin
  • Heavy Duty - 23oz/m² (650 gsm) PVC Tarpaulin
  • Heavy Duty - 26oz/m² (750 gsm) PVC Tarpaulin
  • Heavy Duty - 32oz/m² (900 gsm) PVC Tarpaulin
  • Please contact us to order.
