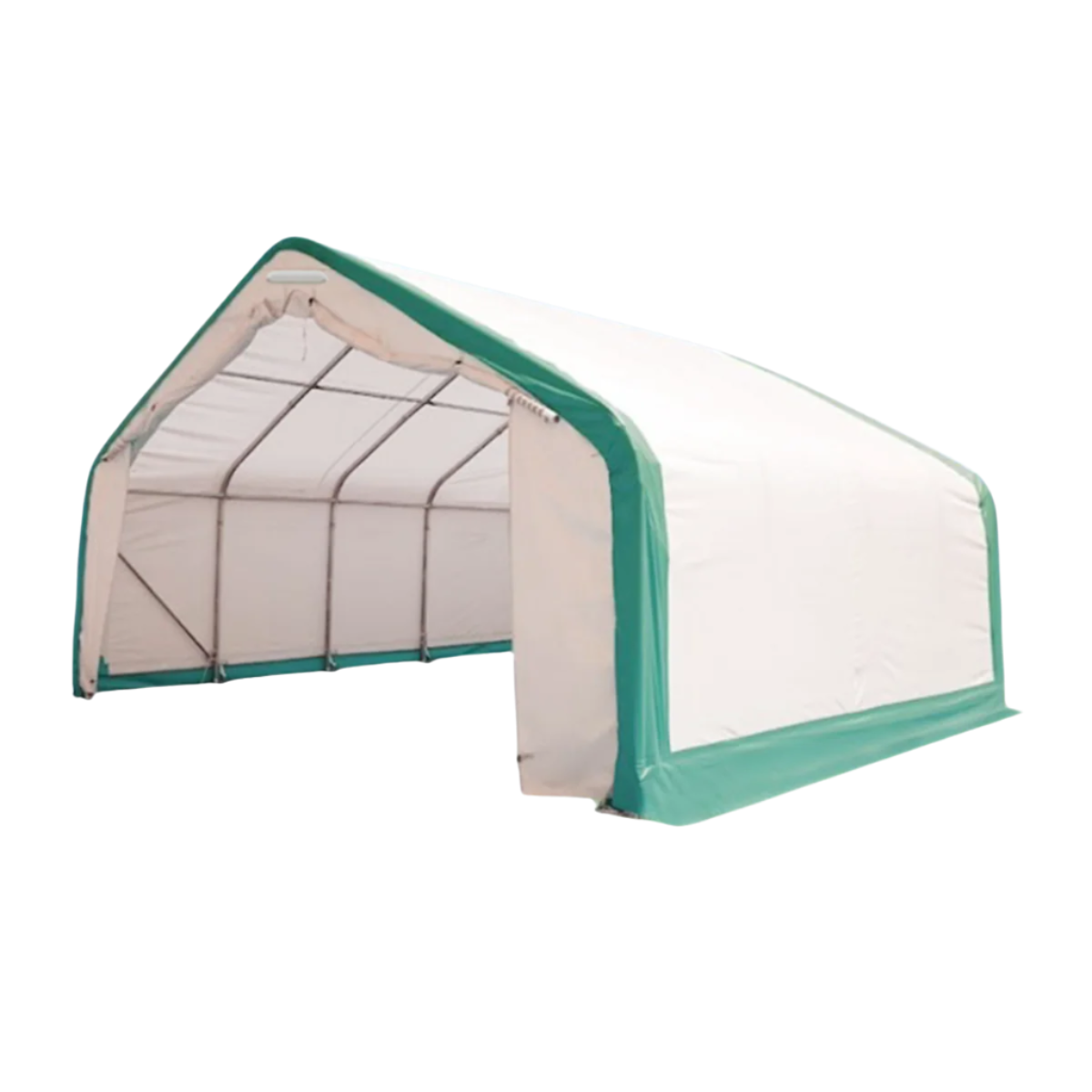

Gold Mountain Storage Shelter W20'xL20'xH12'

Overview

The Gold Mountain Storage Shelter W20’xL20’xH12’ is built for storage and protection. It works for agriculture, car storage, events, and more. Its steel frame handles up to 50 mph winds, heavy snow, and harsh weather. It’s ideal for cars, boats, RVs, buses, campers, equipment, tools, and supplies. The peak design helps snow slide off faster. PVC tarps are stronger than PE and last longer.

Benefits

• Versatile storage for residential or commercial use.
• Durable, weatherproof design guards against snow, wind, rain, and UV.
• PVC tarps offer longer life than PE tarps.
• No building permits required for most uses.
• Double doors at both ends allow easy entry and exit.

Features

• No building permits required*.
• Provides unlimited storage space with 20’ width, 20’ length, and 12’ height.
• Suitable for different purposes, from residential to commercial.
• Galvanized steel structure built to last; resistant to rust and corrosion.
• Weatherproof (snow, storm, wind, water), UV resistant, and fire retardant.
• PVC cover provides natural light without electricity.
• Easy entry and exit with double doors at both ends.

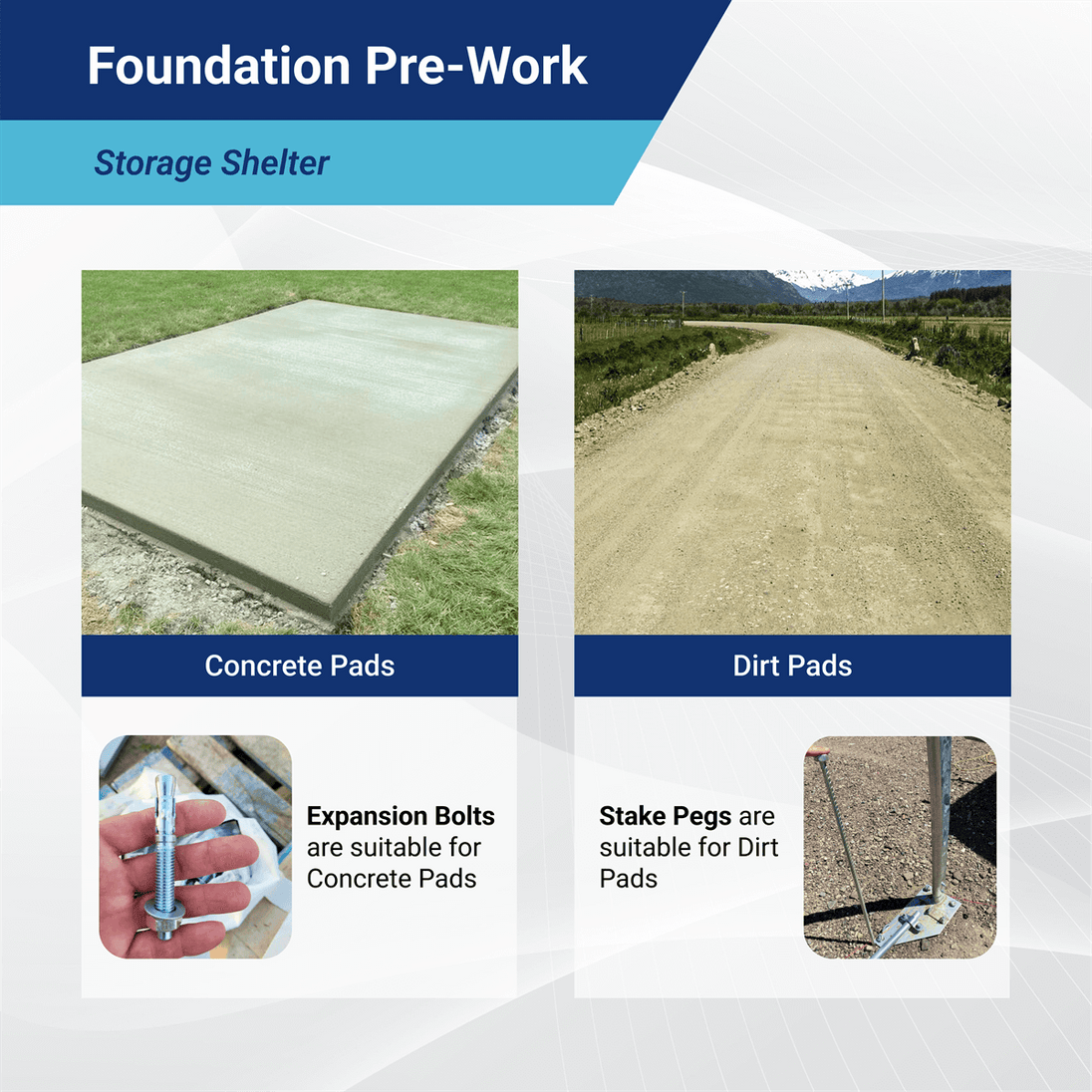

• Stake pegs replaced by expansion bolts. If you need stake pegs, contact customer service to place an order.

Specifications

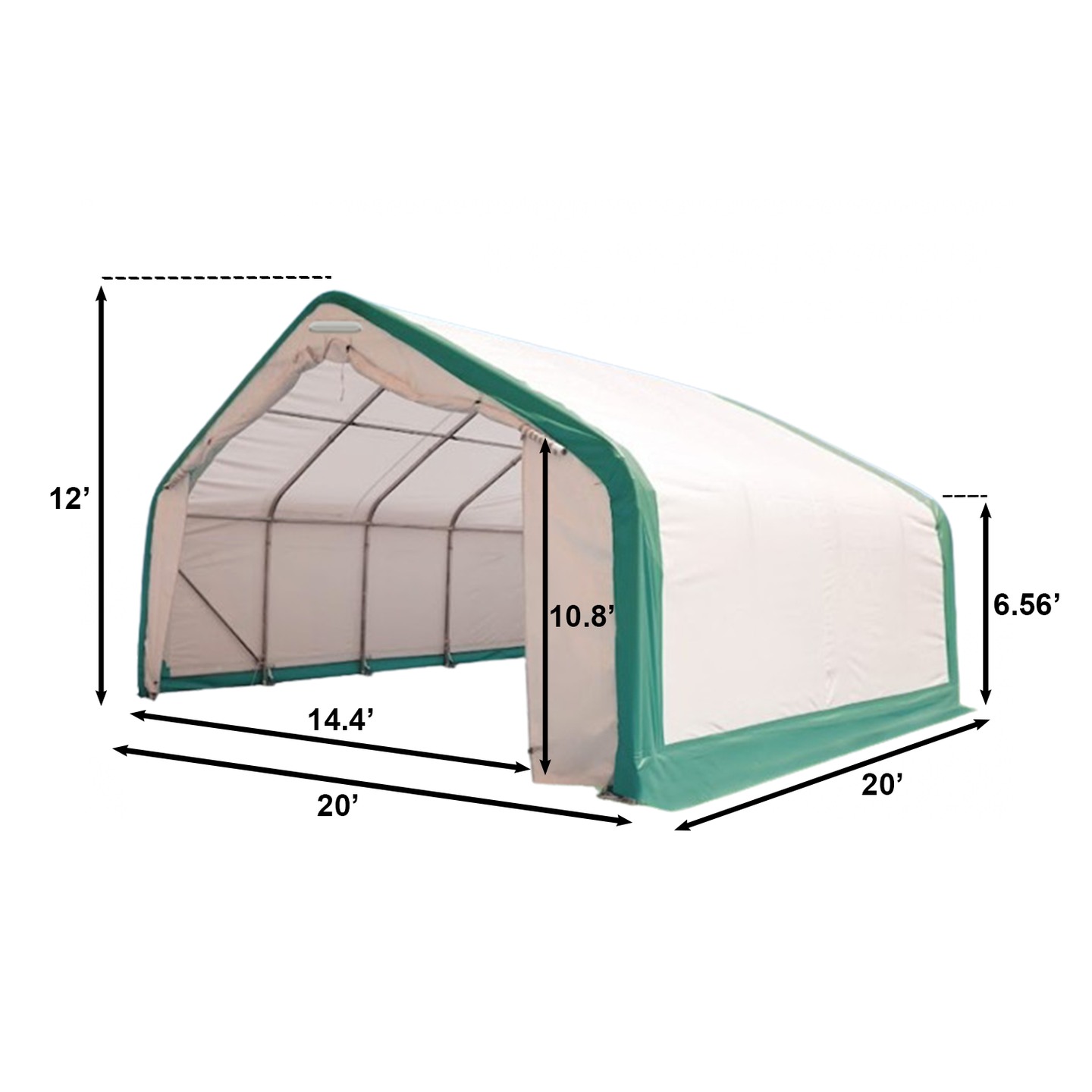

• Dimensions (WxLxH): 20’ x 20’ x 12’
• Side-wall height: 6.56 ft
• Door size (WxH) (Front & Rear): 14.4’ x 10.8’
• Door type: Zipper Rollup Door

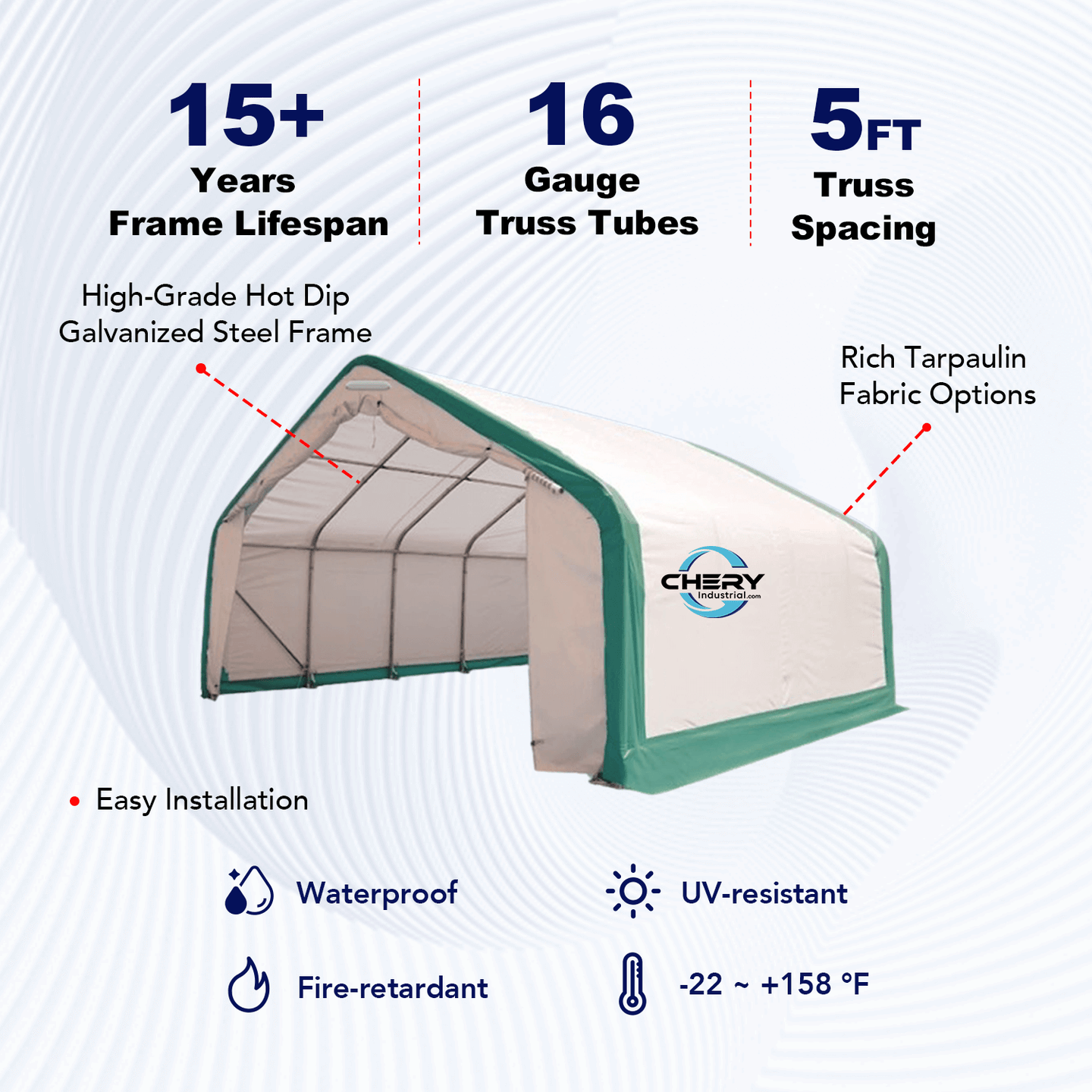

• Frame: Single Truss Galvanized Tube
• Steel frame: Hot Dip Galvanized Steel
• Truss tube: 16 Gauge
• Tarp fabric: PE or PVC
• Tarp color (customizable): White with Green/Red Edge
• Temperature resistance: -22 to +158 °F
• Arch Ø: ?70 x 42 x 1.5 mm
• Purlin Ø: ?40 x 1.2 mm
• Arch spacing: 5 ft
• Number of arches: 5

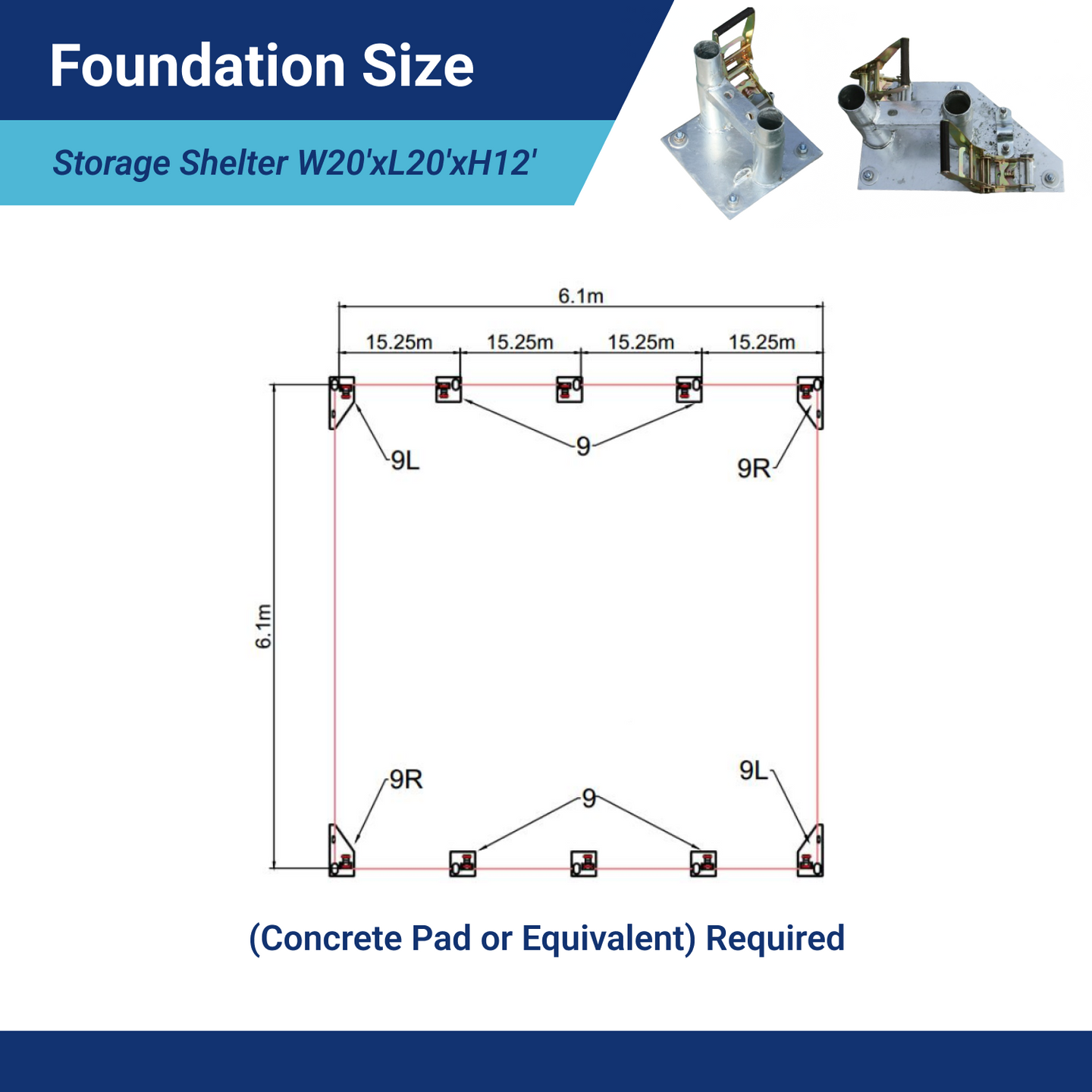

• Number of anchor plates: 10

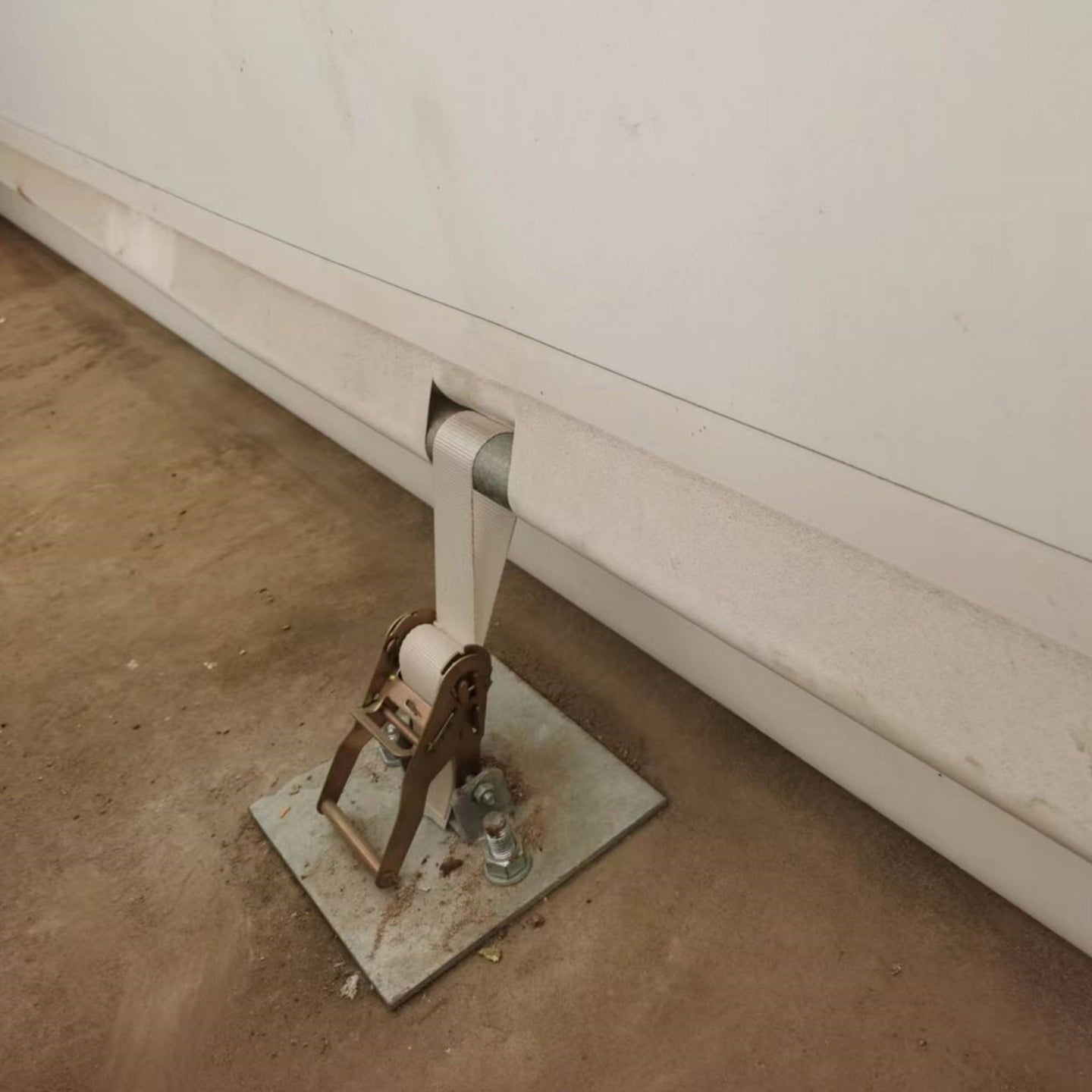

• Tension system: Pipe and ratchet tie-down
• Average assembly time (DIY with 4 people): 1 Day
• Snow load: 42 lbs/ft²
• Wind load: 50 mph
• Tarp lifespan: 7–10 years, depending on fabric and conditions
• Frame lifespan: 15+ years
• Warranty: PE 2 years; PVC 8 years
• Fabric (Optional): 11oz/m² (300 gsm) PE; 16oz/m² (450 gsm) PVC; 23oz/m² (650 gsm) PVC; 26oz/m² (750 gsm) PVC; 32oz/m² (900 gsm) PVC
• Country of origin: China
