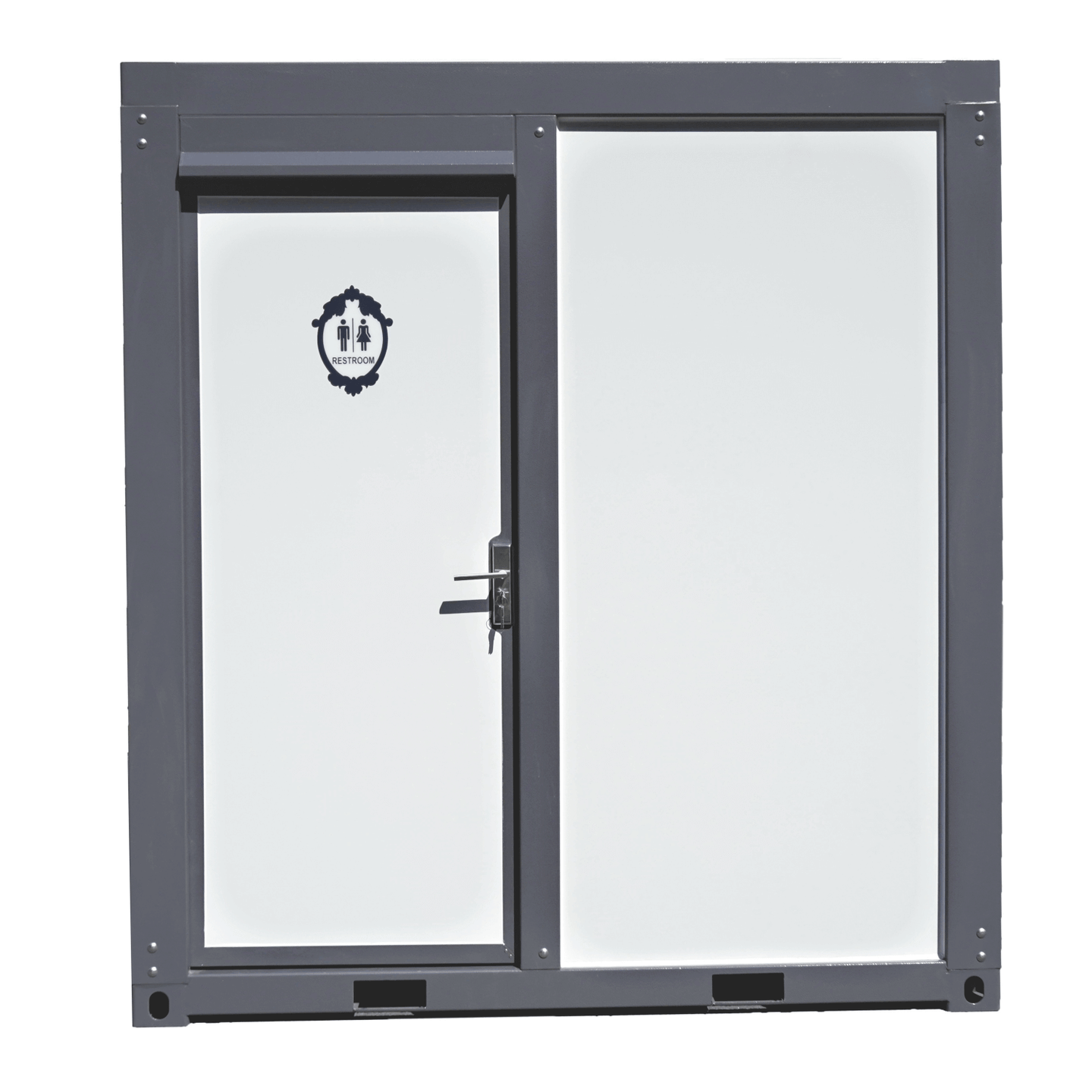

Bastone Portable Toilet with Fan-shaped Door Shower

Overview

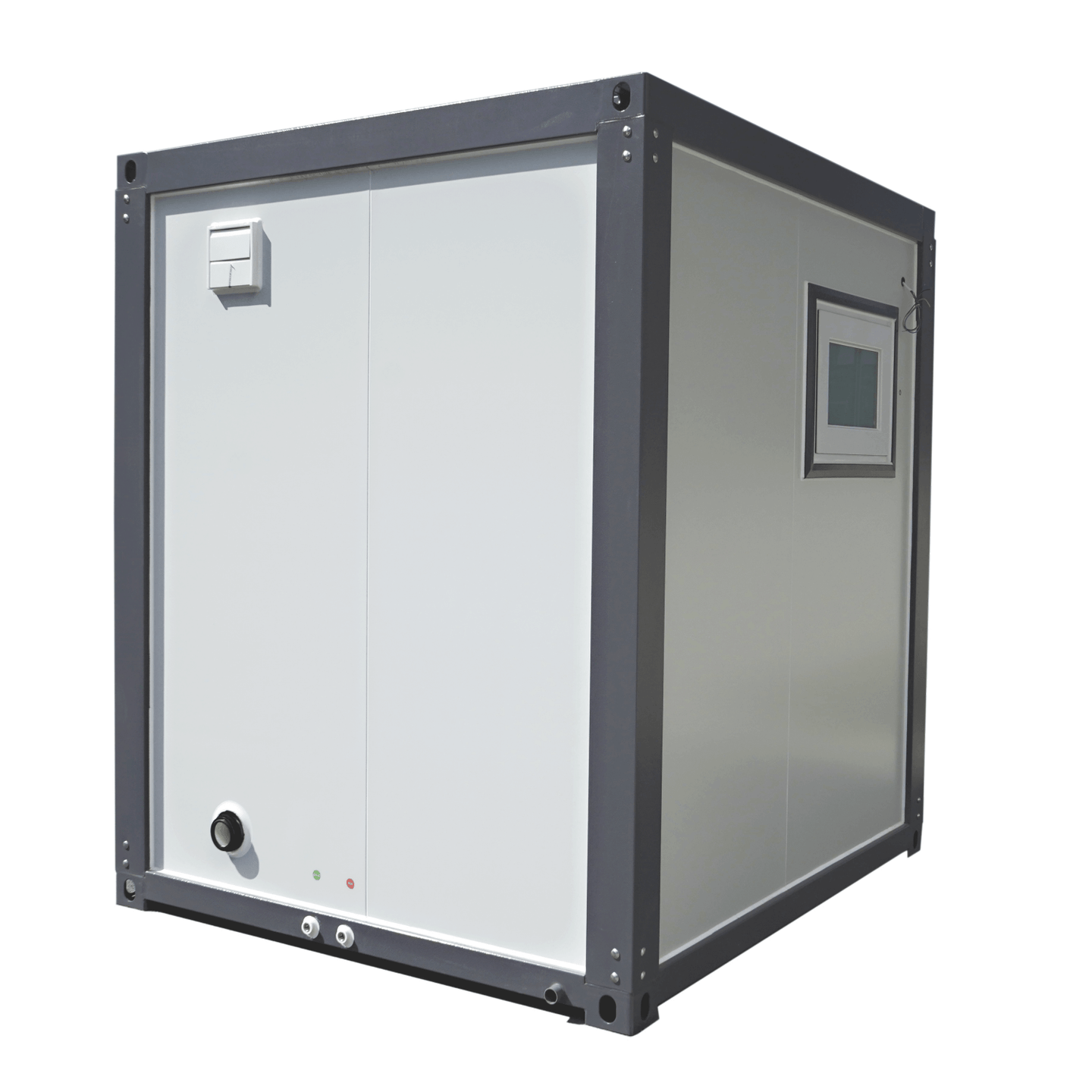

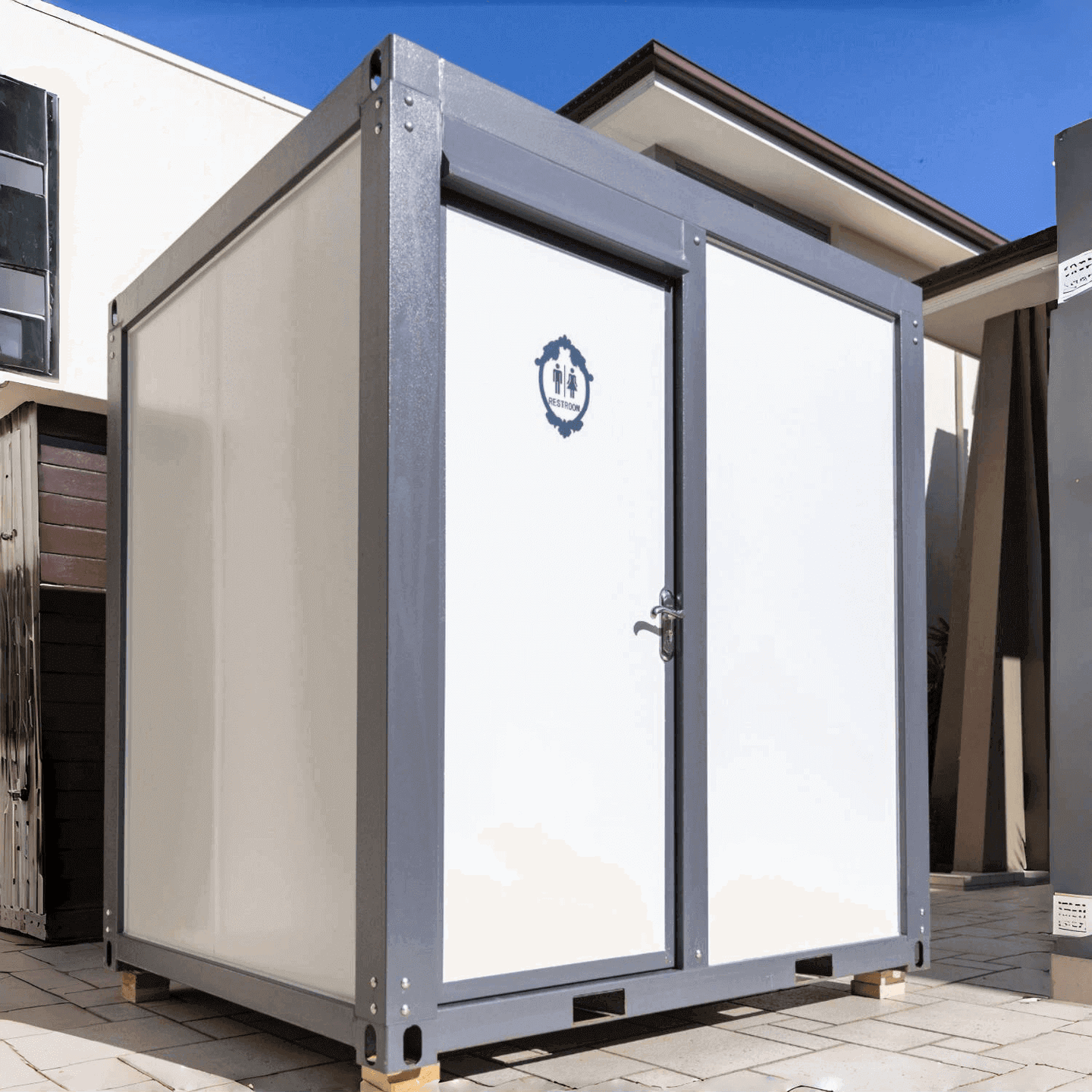

A standalone mobile bathroom unit for outdoor living. It combines a toilet, sink, and shower in a compact, easy-to-transport package. Designed for convenience and simple setup on outdoor adventures.

Benefits

• All-in-one unit with toilet, sink, and shower
• Compact and transportable for camping and outdoor activities
• Durable steel frame with insulated panels
• Built-in ventilation, lighting, and power options
• Forklift pockets and lifting lugs for easy handling
• Designed to work with standard water and waste connections on site
• Relatively straightforward setup with basic tools

Features

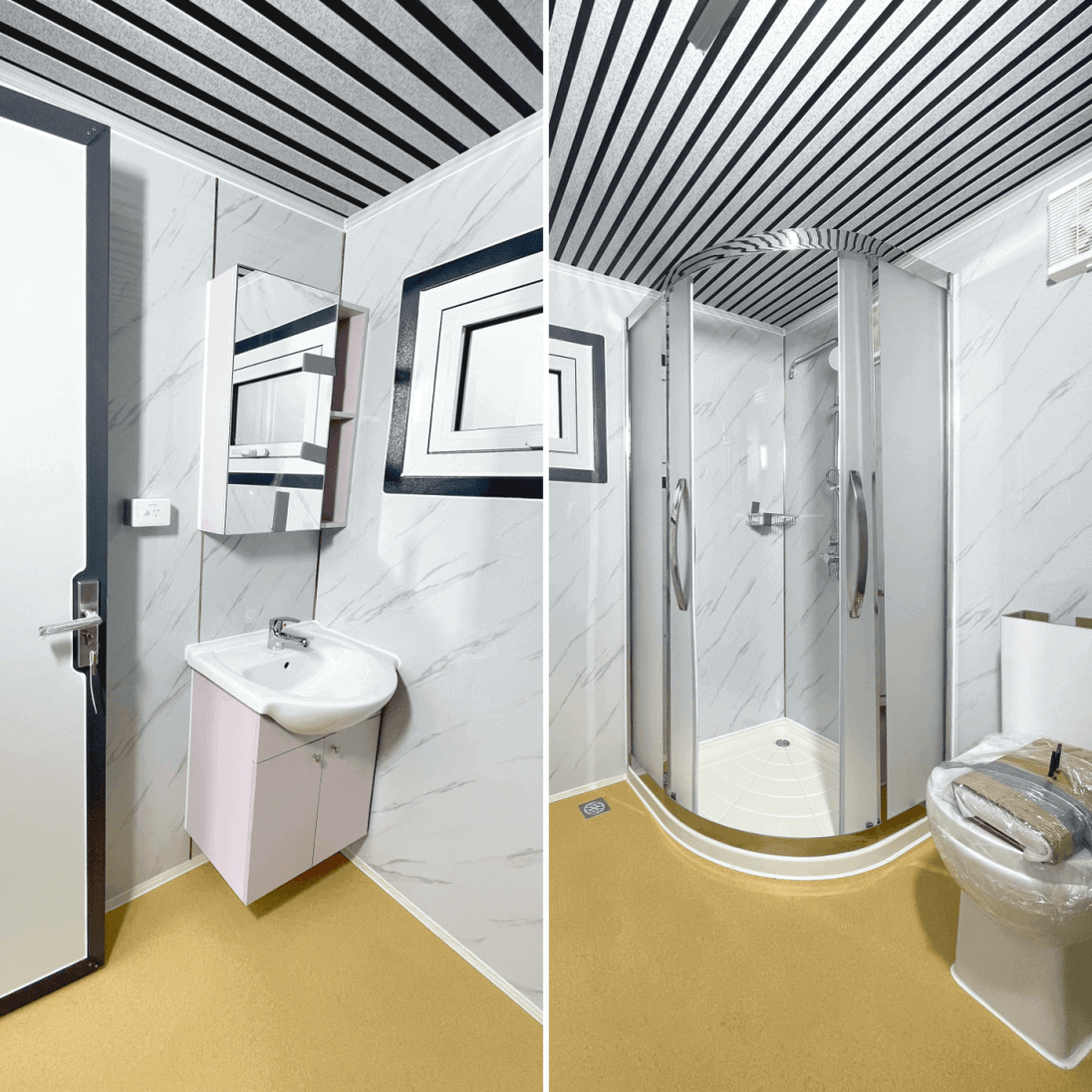

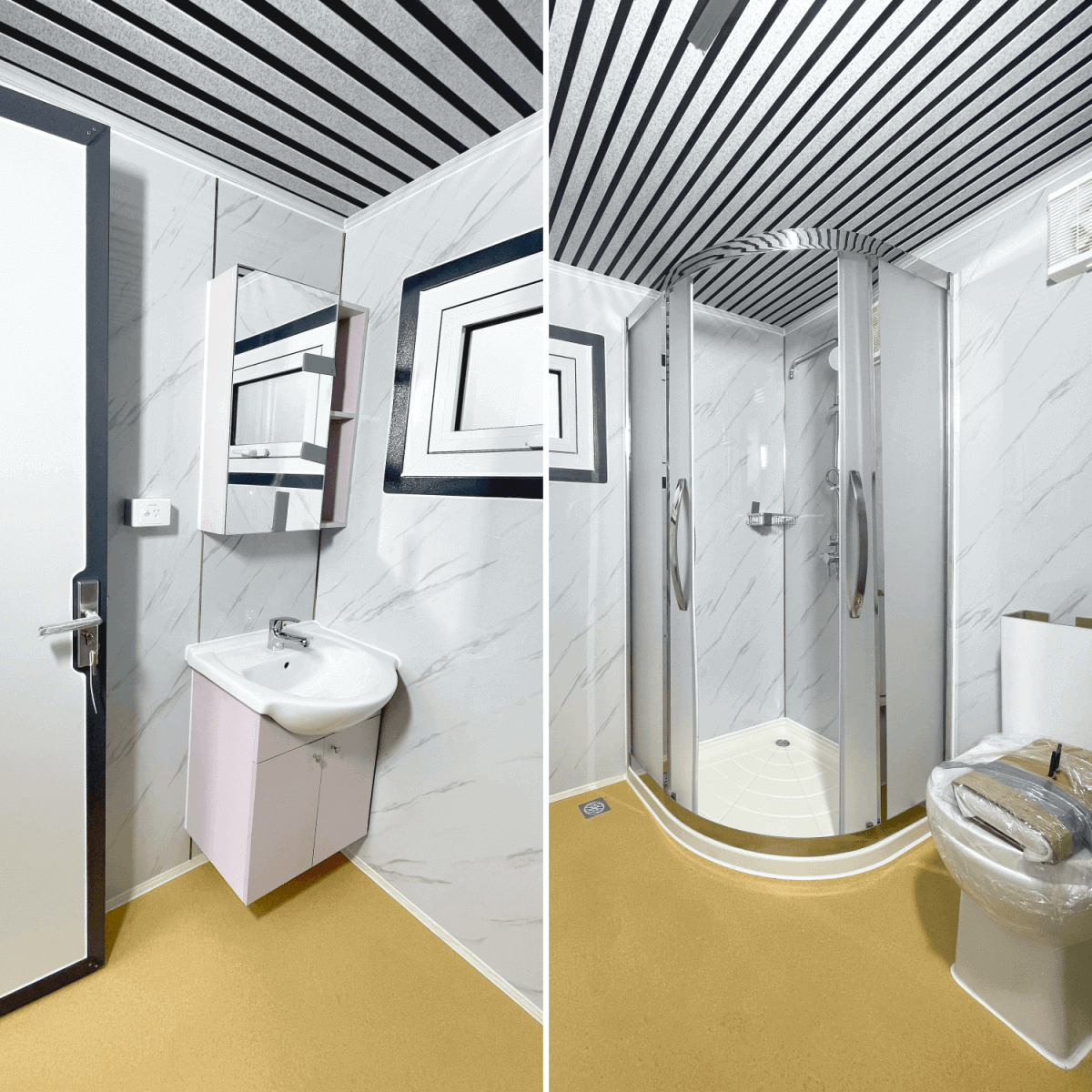

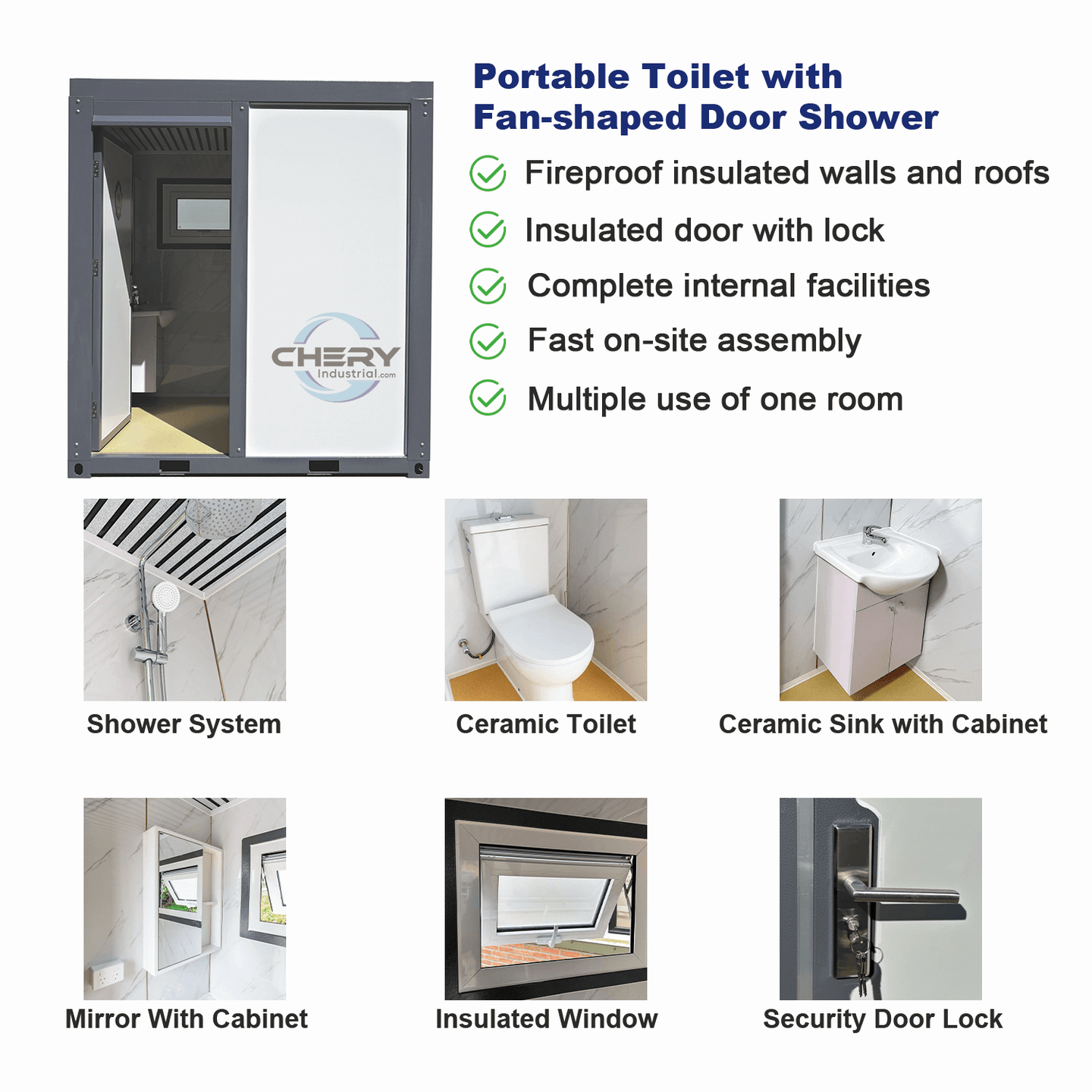

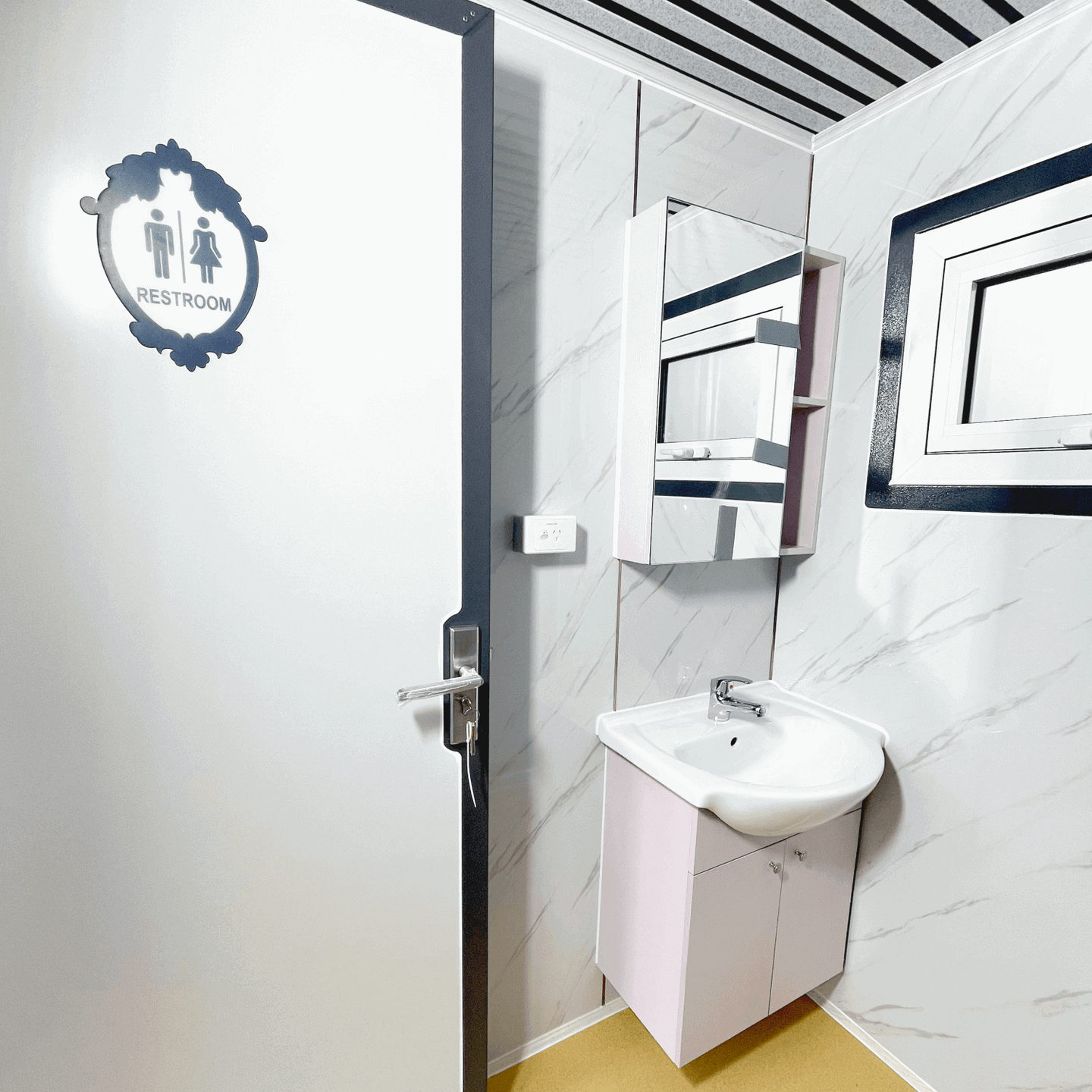

• Toilet with ceramic bowl and tank; ceramic vanity sink with faucet
• Shower fixtures and paper dispenser

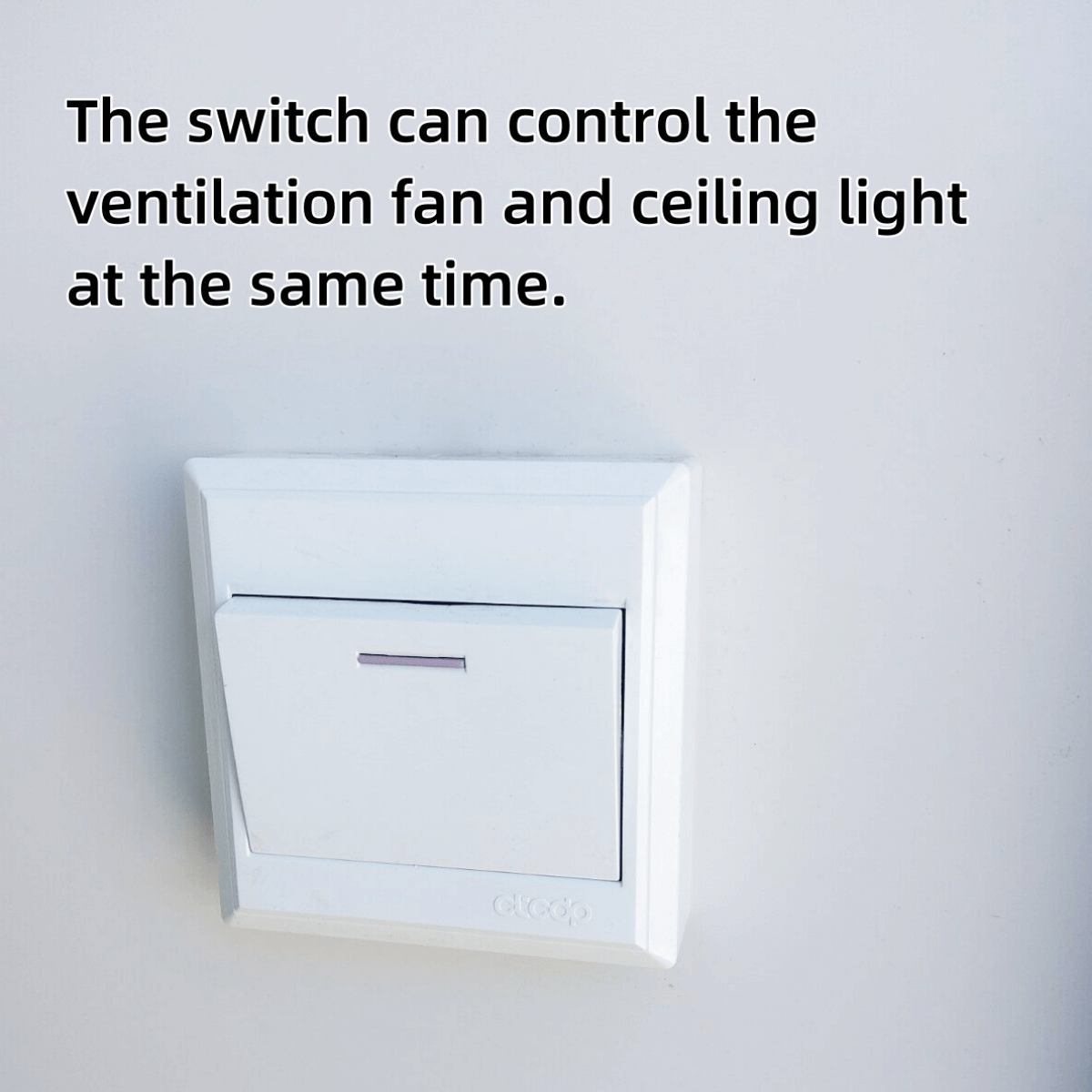

• Power outlet with dual USB; 110V electric vent fan; internal light

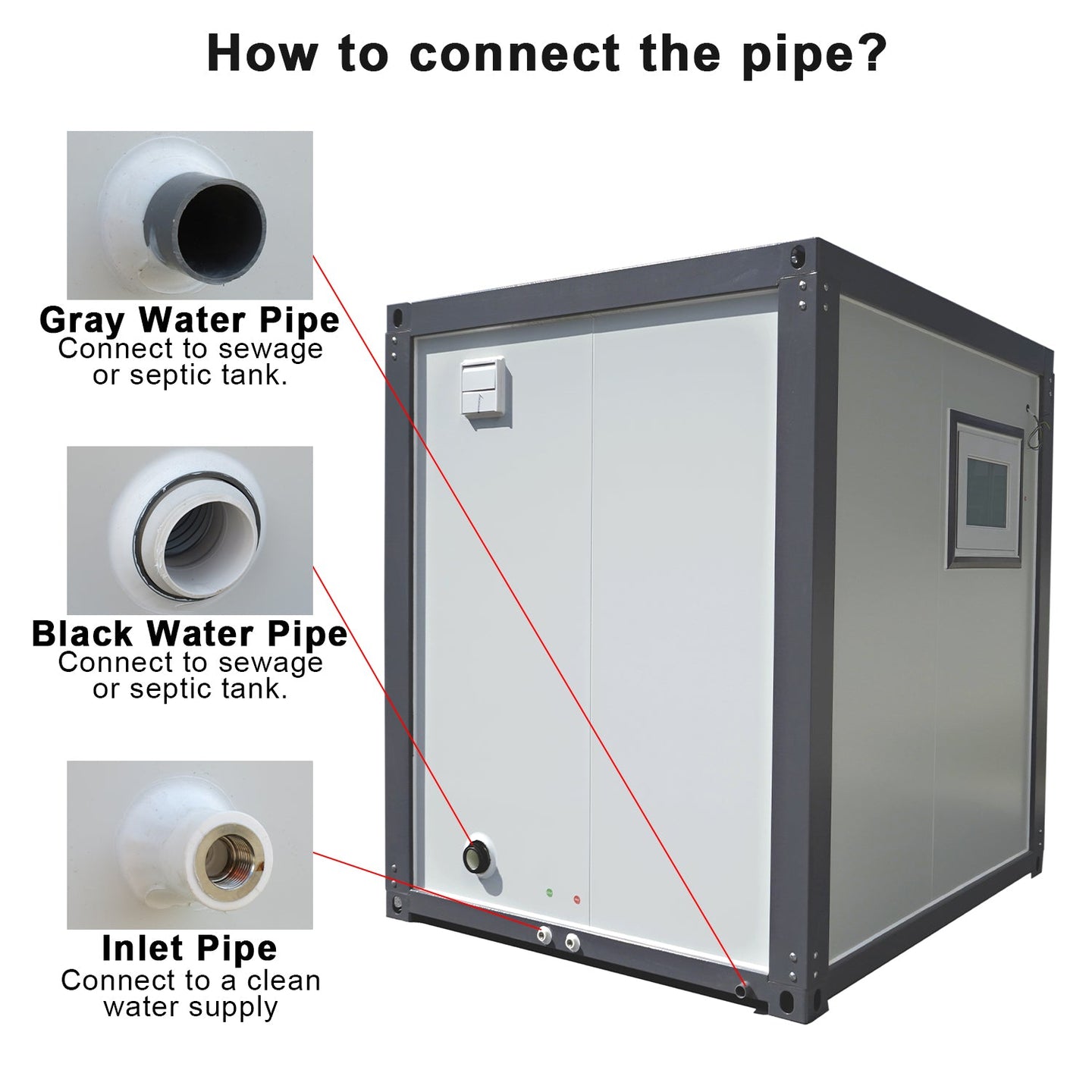

• 1/2" female inlet ports for hot & cold water
• 3" black water/waste exhaust flexible hose; 1" PVC water outlet exhaust port
• Power breaker; locking door with keys; hinged window
• Visual signage for men/women; lifting eyes; forklift pockets

Specifications

• Model: Mobile Toilets with shower—Fan-shaped Door

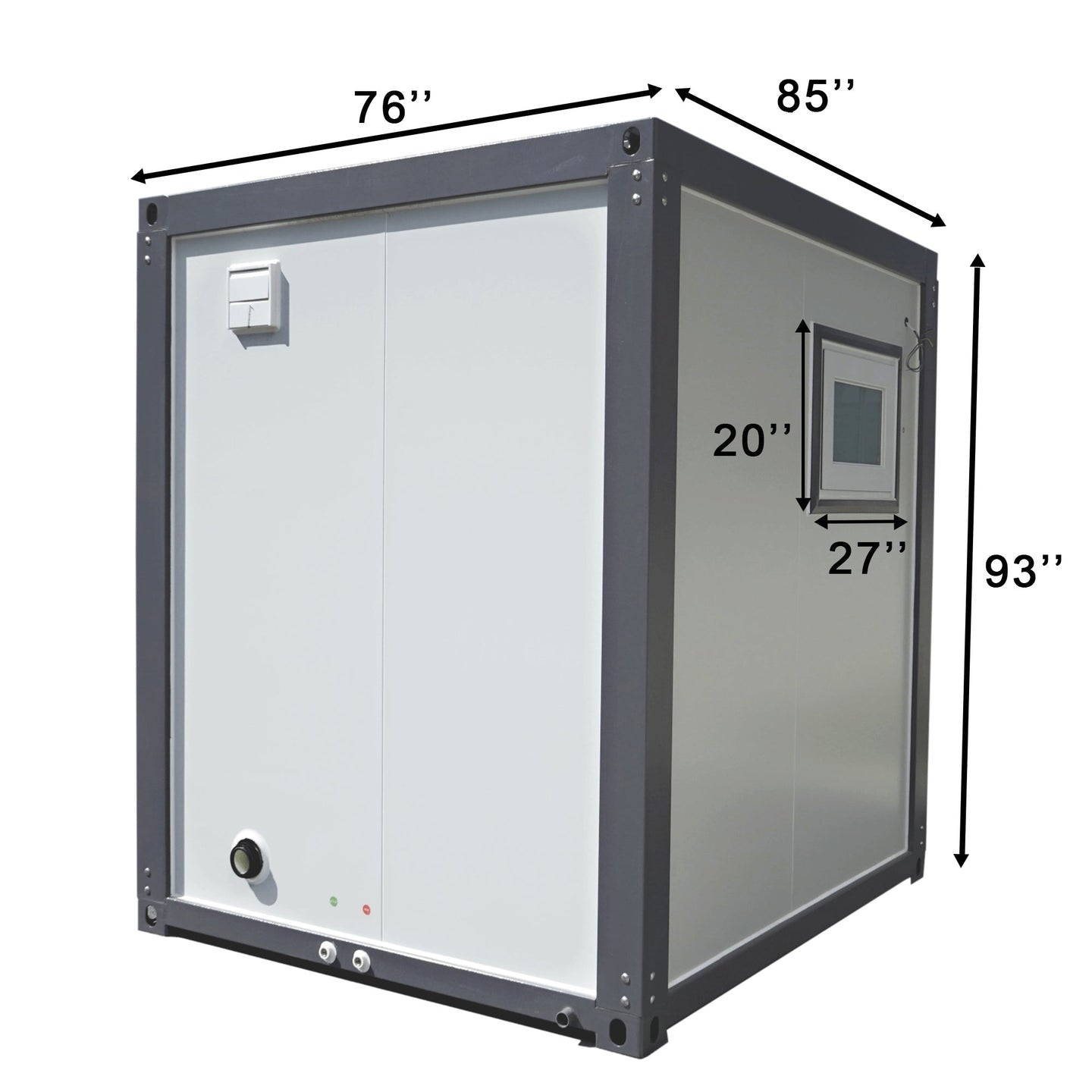

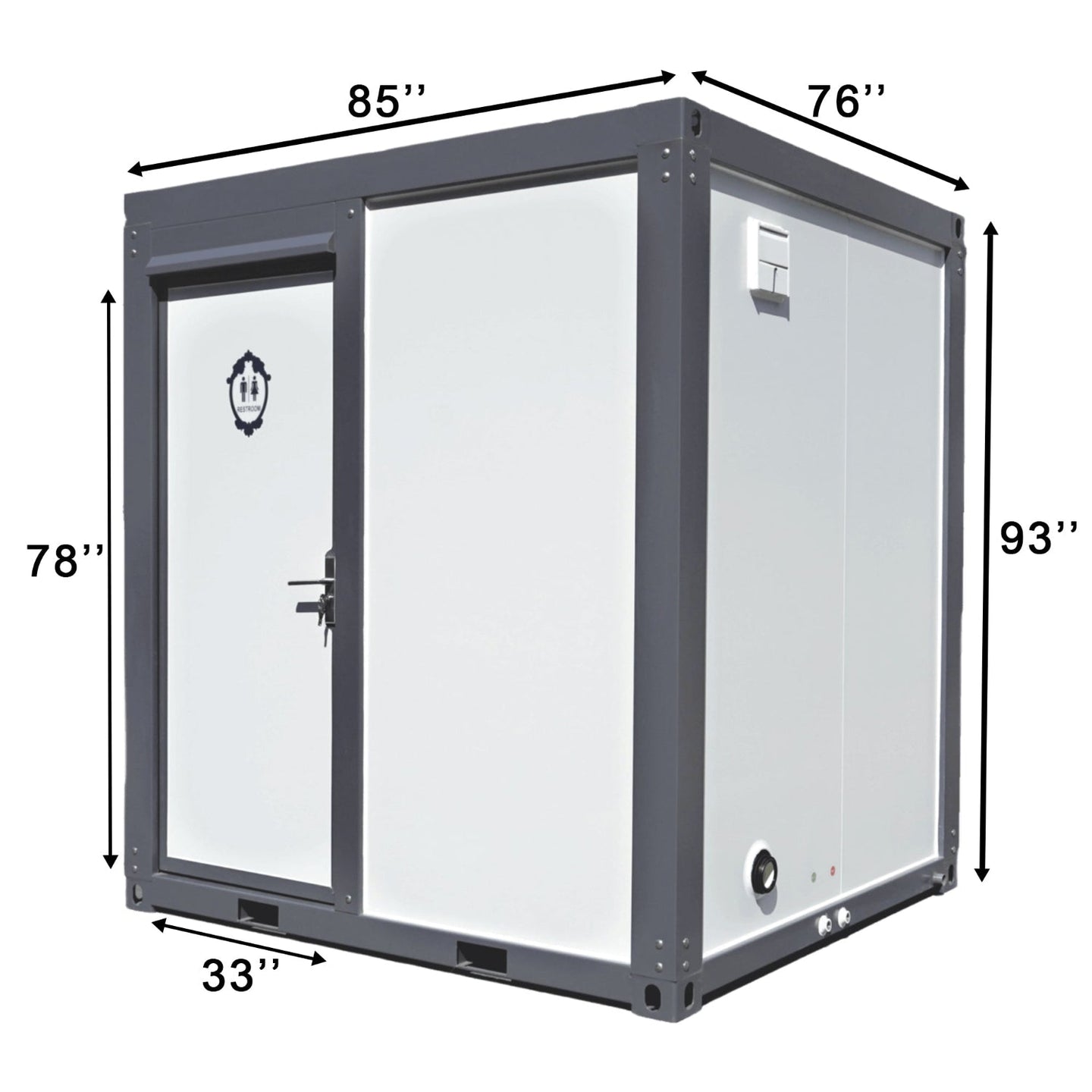

• Dimension (LxWxH): 85" x 76" x 93"

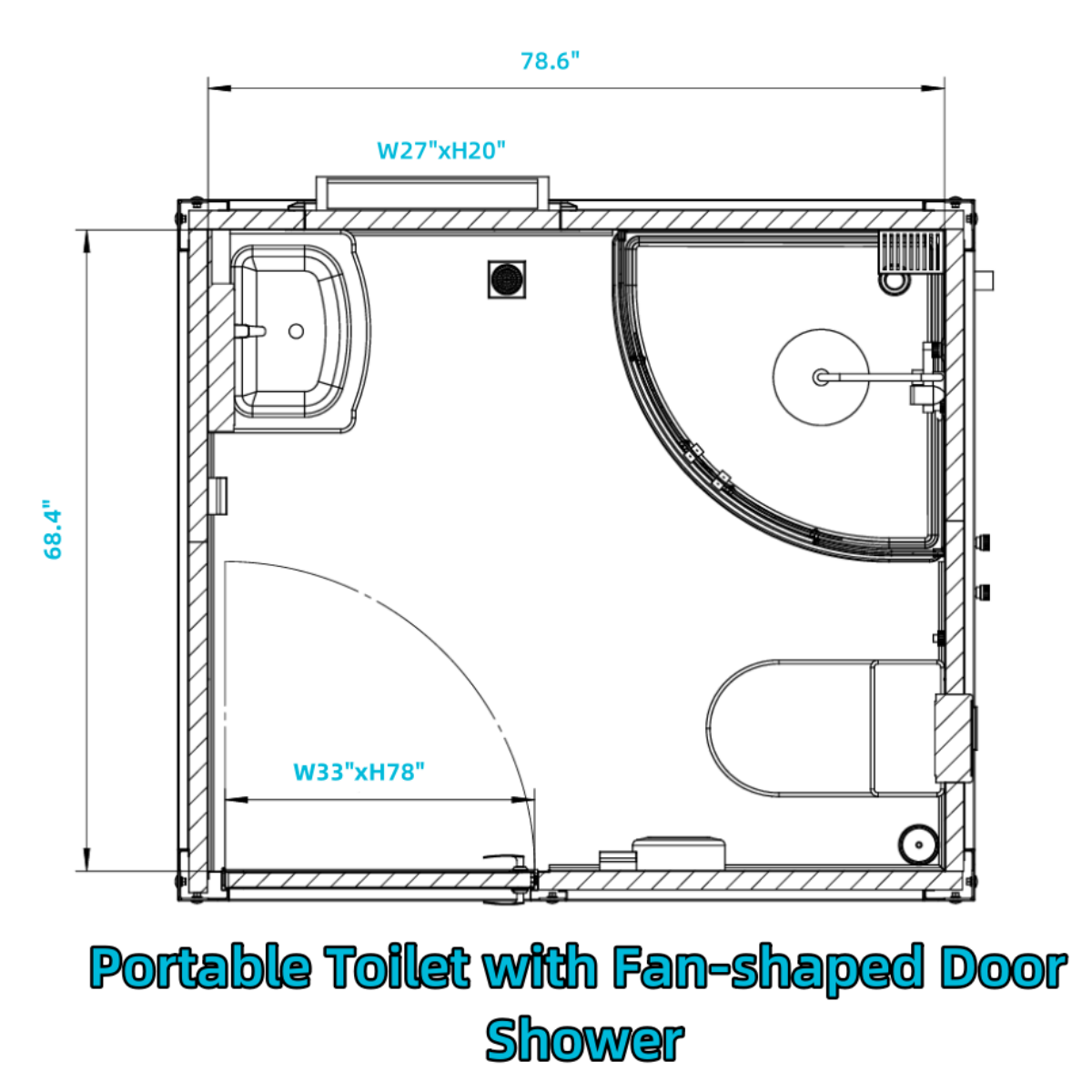

• Interior Dimension (LxW): 78.6" x 68.4"
• Door Size: W 33" x H 78"
• Net Area: 37.3 ft²

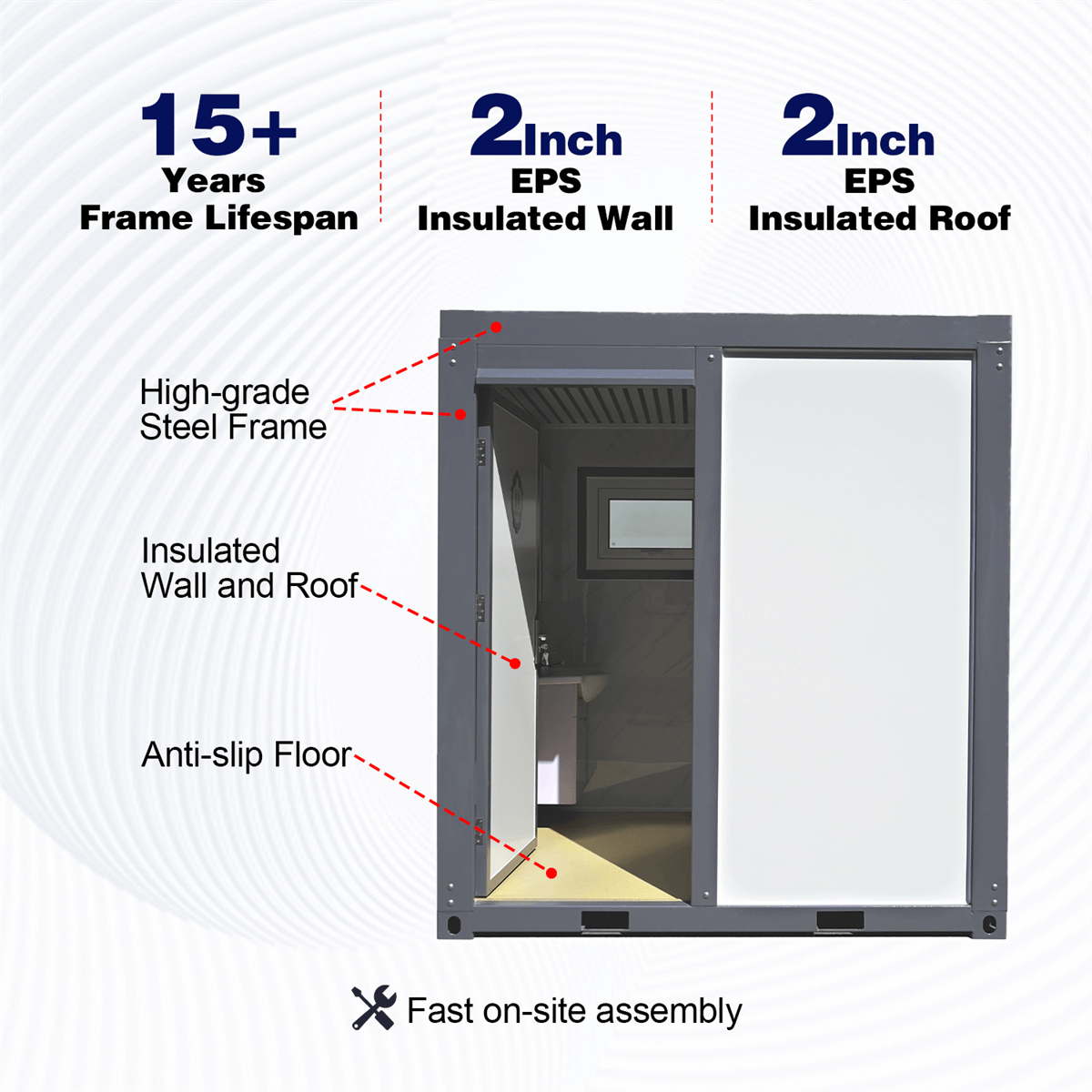

• Frame: Steel
• Surface Coating: High-Temperature Resistant Paint
• Roof Material: 2-inch EPS fire-resistant & insulated roof panels
• Wall Material: 2-inch EPS fire-resistant & insulated wall panels
• Floor Material: Anti-skid and wear-resistant floor leather + Hard PVC board
• R-value: 7.09 ~ 8.27
• Doors: EPS Composite Panel; Inward Opening Door
• Circuit Breaker Spec: 13 ~ 16 Amps
• Power Supply: 110V ~ 220V
• Wire info: 3 core 2.5 sqmm
• Wiring Instructions: White Wire (Neutral); Black Wire (Live); Green or Yellow-green Wire (Earth)
• Flush volume: 1.6 gpf
• Inlet Pipe Material: PPR Pipe
• Inlet Pipe Inner diameter: 4/5 inch
• Outlet Pipe Material: PVC Pipe
• Outlet Pipe Inner diameter: Gray Water Pipe 1-1/2 inch; Black Water Pipe 3 inch
• Lowest Pipe Working Temperature: 14°F
• Fire-proof Level: B2
• Wind Load: 56 MPH
• Snow Load: 125 lb/ft²

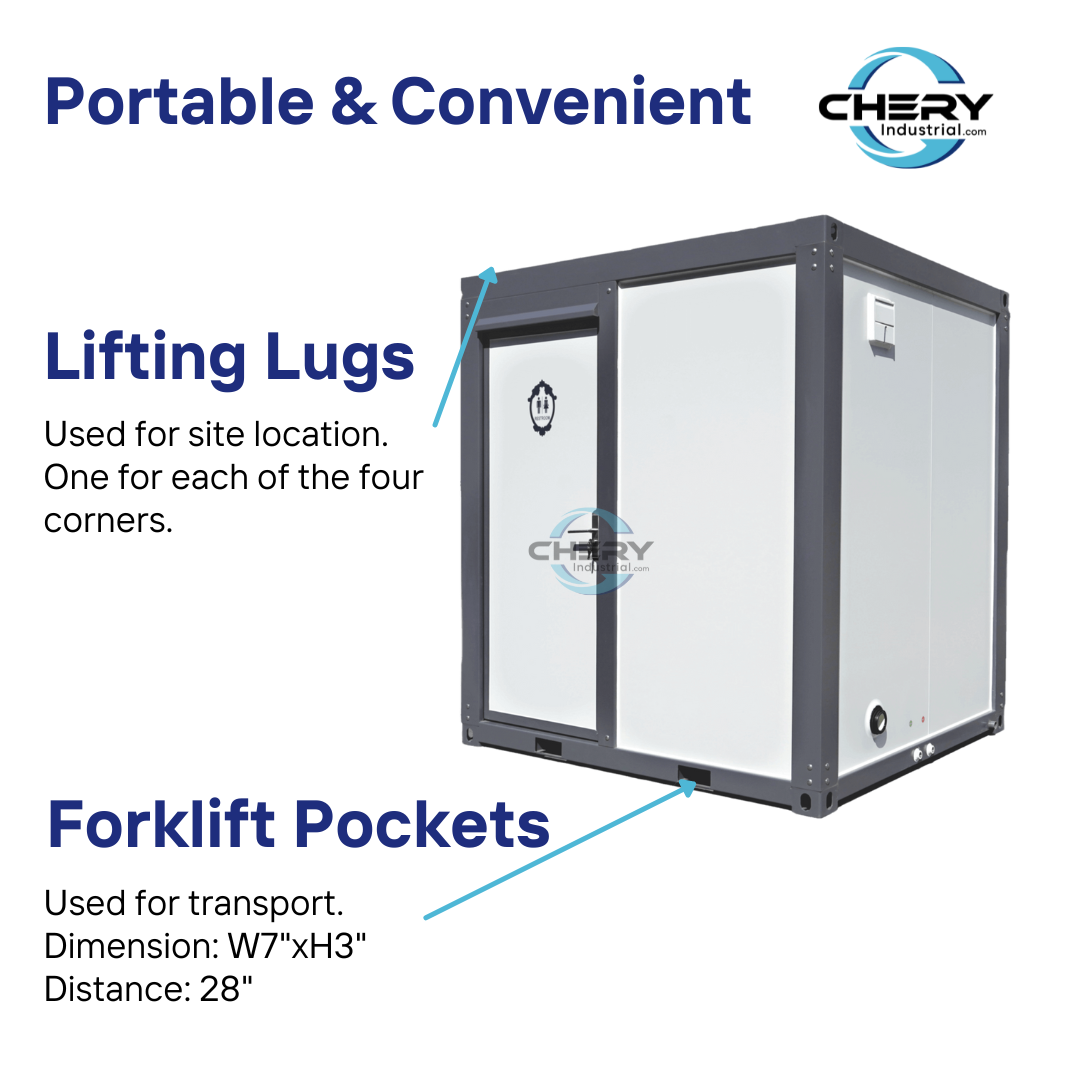

• Forklift Pockets: Dimension W7" x h4"; Distance between pockets: 28"
• Lifespan: 15+ Years
• Warranty: 1 Year
