Chery Industrial | Portable Restroom w/ Showers | PM000124

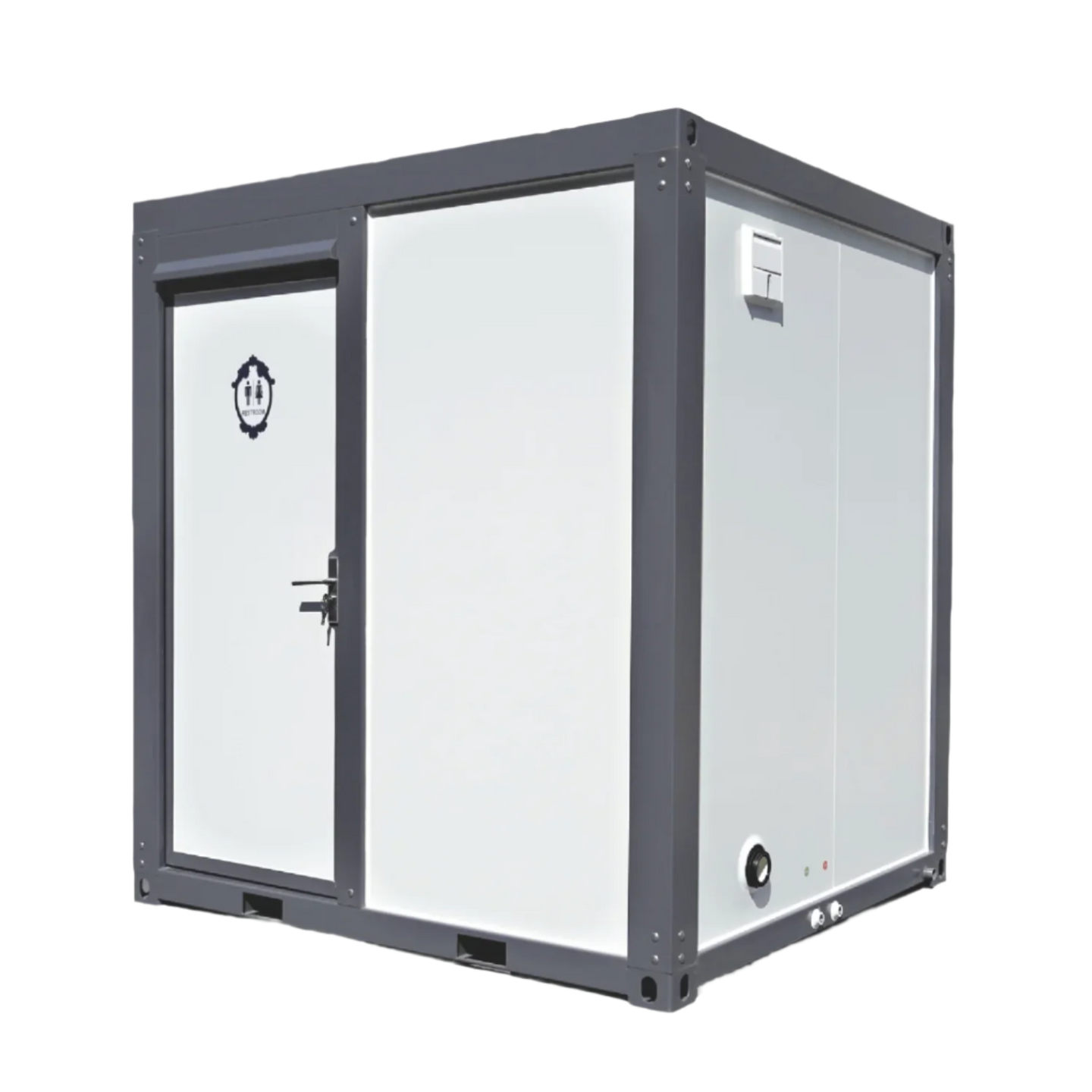

Bastone Portable Restroom with Shower

Overview

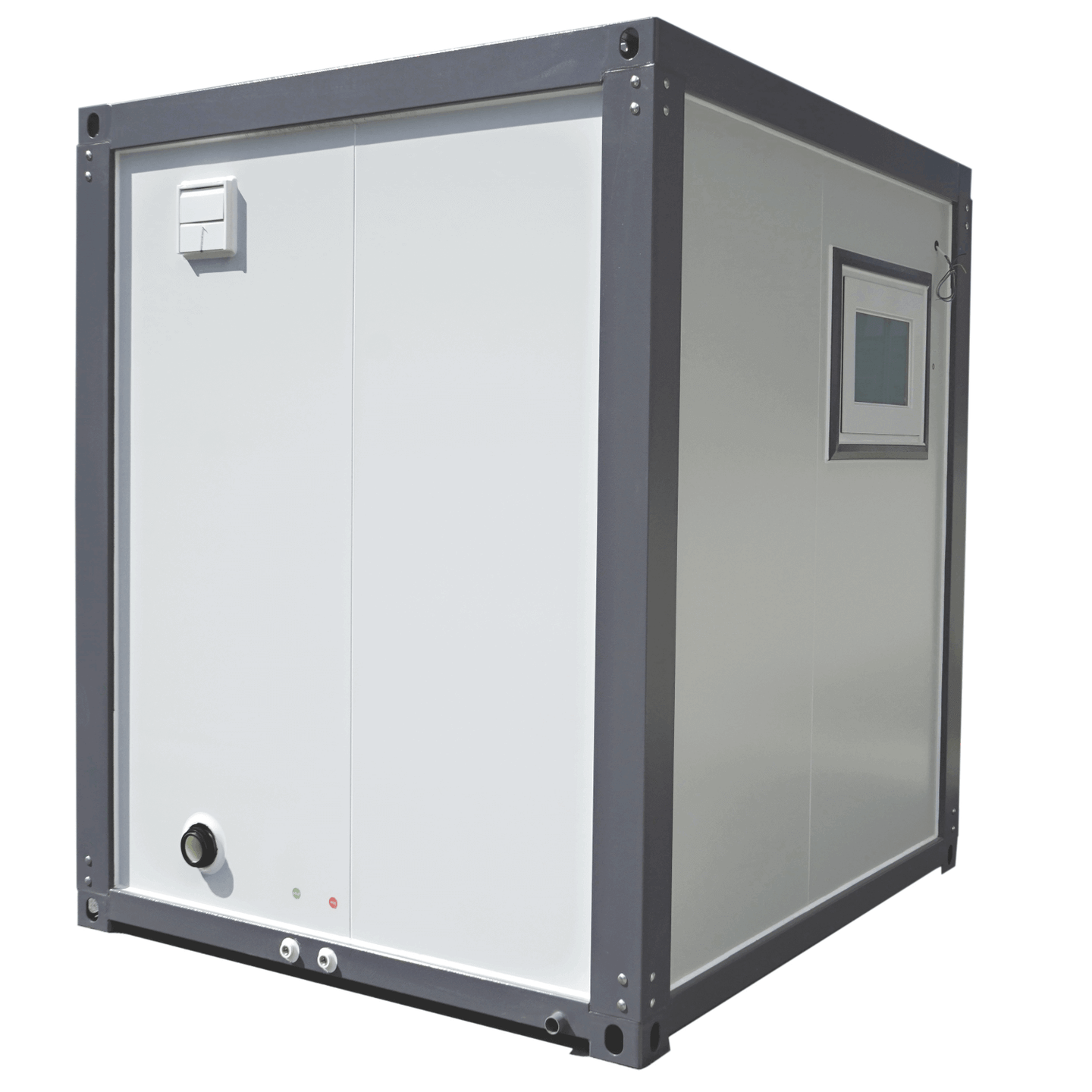

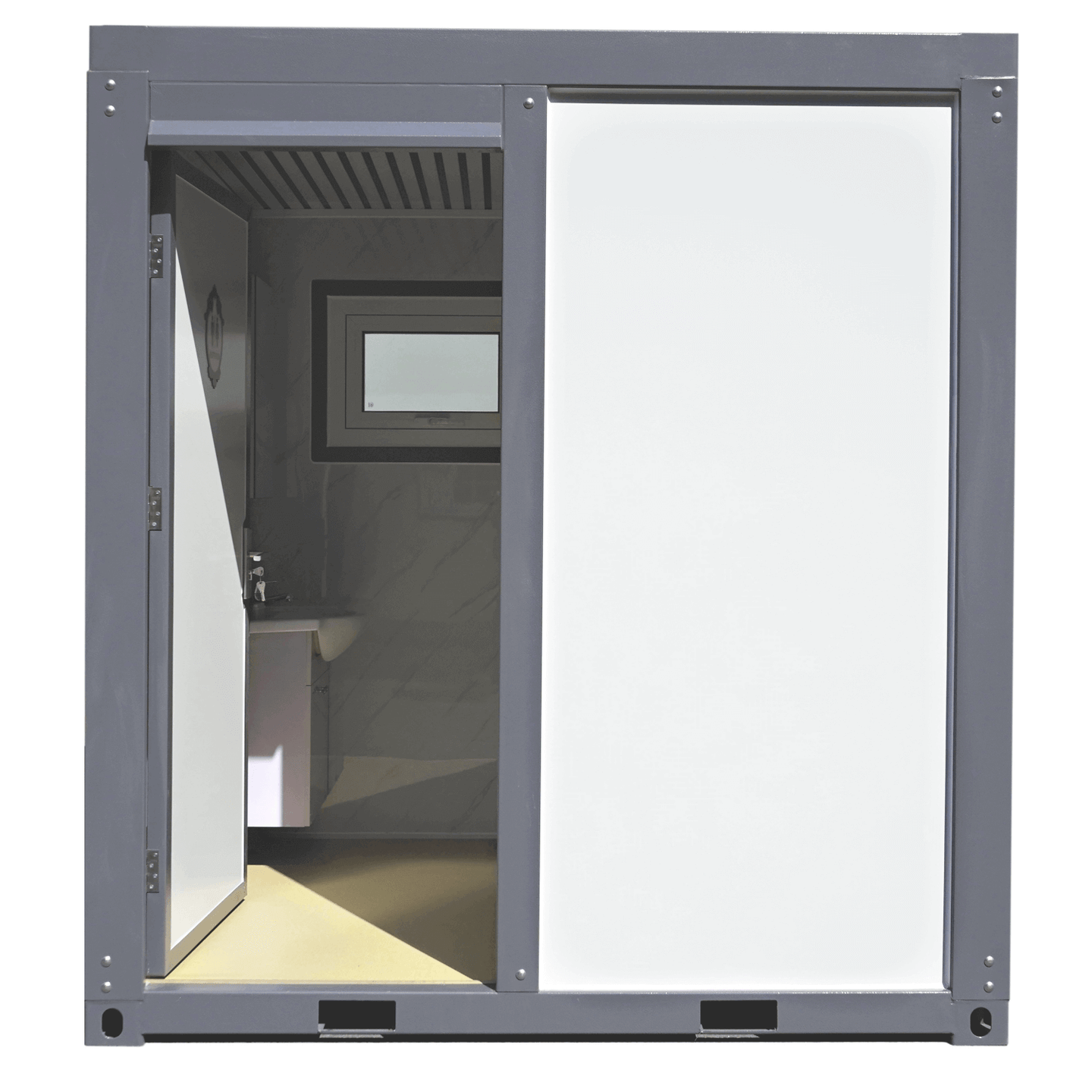

The Bastone Portable Restroom with Shower is built for outdoor use. It’s a stand-alone bathroom unit that’s practical and easy to operate. The compact design combines a toilet, sink, and shower in one unit. It requires a 110V power source, a water supply, and a septic system to handle waste from the toilet. The interior has a modern look that adds a touch of style to the setup.

Benefits

• All-in-one bathroom: toilet, sink, and shower in a compact package.
• Stand-alone unit ideal for camping, construction sites, and events.
• Requires 110V power, water supply, and an optional septic tie-in for full operation.
• Durable build with a modern interior design.

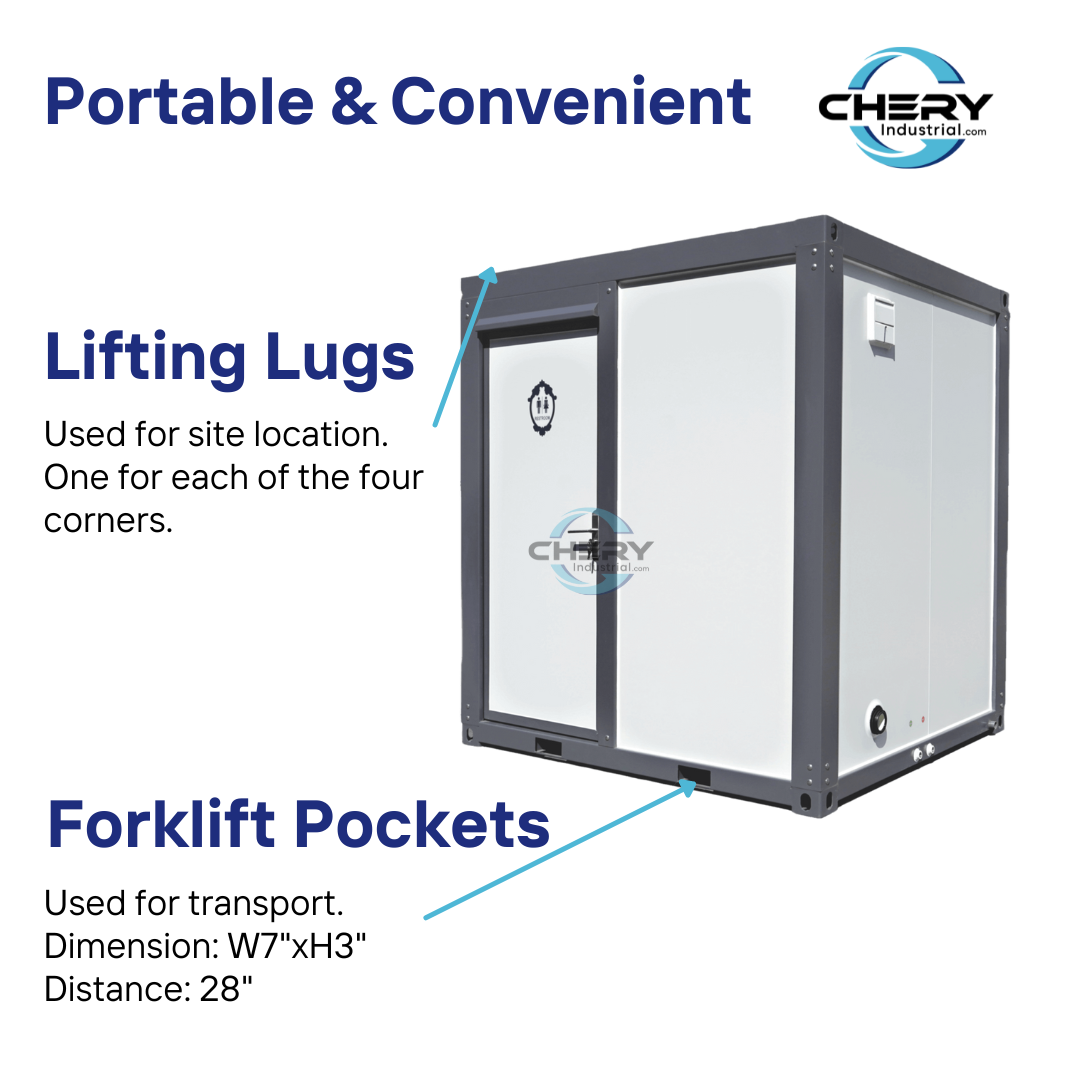

• Ready for transport with forklift pockets and lifting eyes.

Features

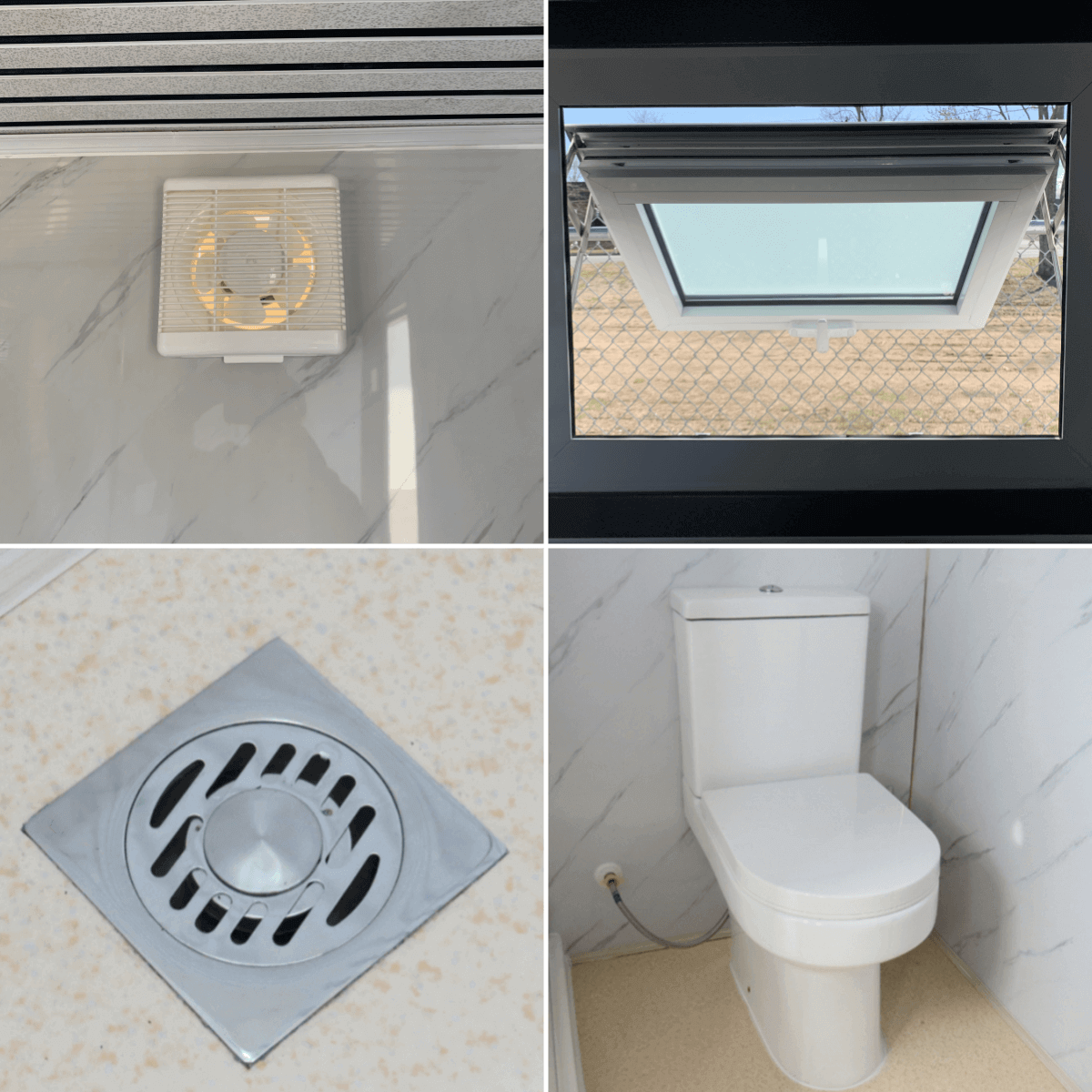

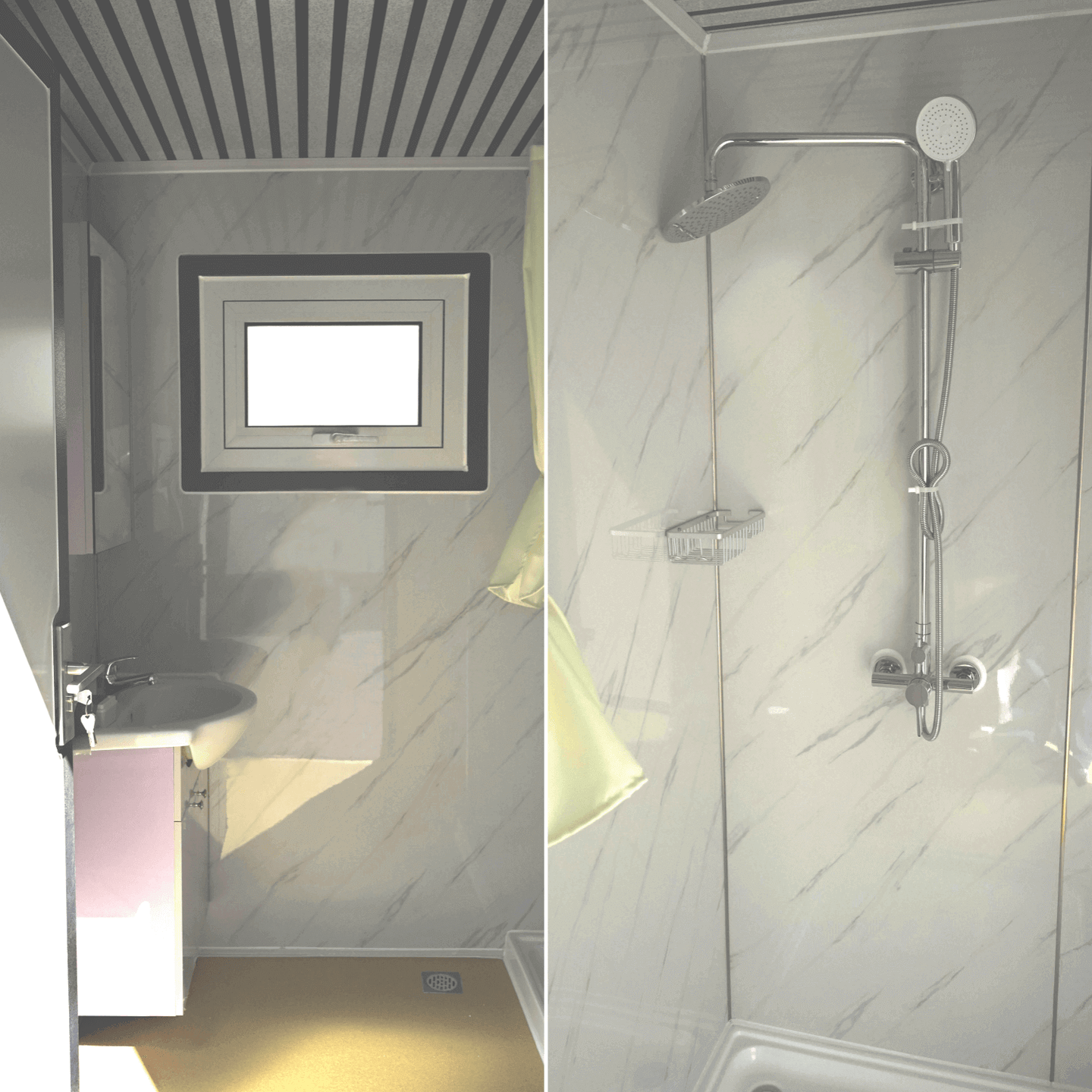

• Toilet with Ceramic Bowl & Tank, Ceramic Vanity Sink with Faucet
• Shower fixtures, shower curtain, and paper dispenser

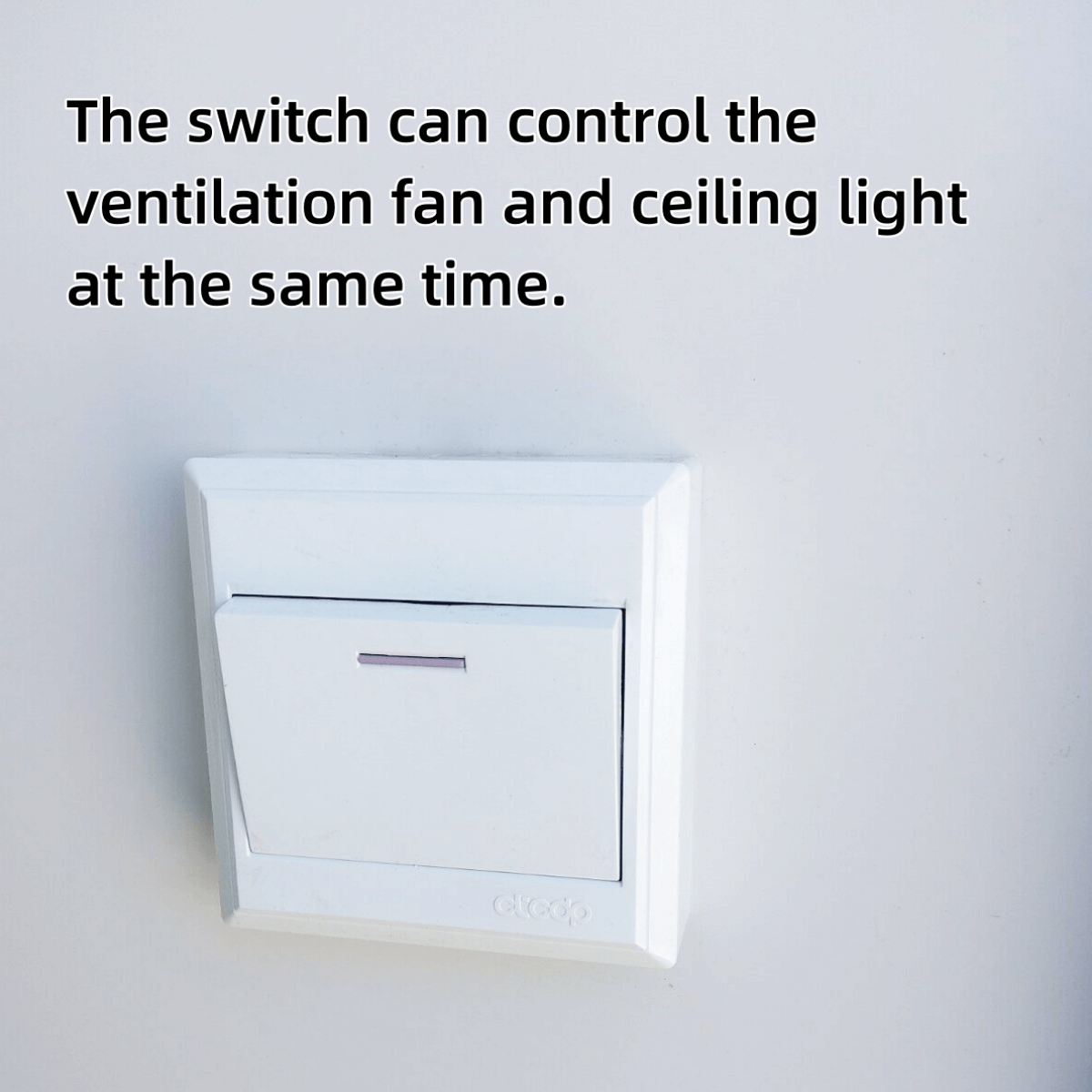

• Power outlet with dual USB, 110V electric vent fan, and internal light

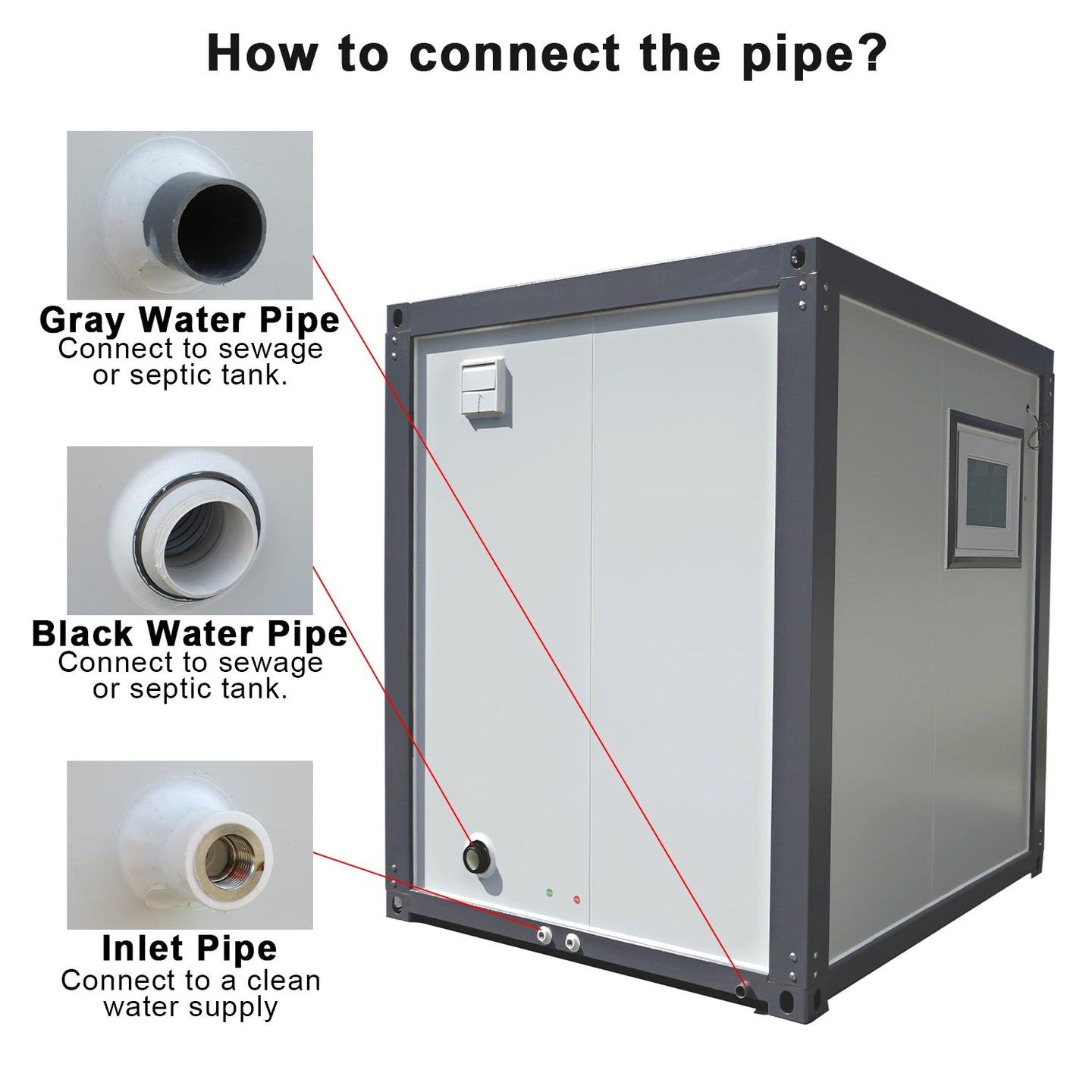

• 1/2" female inlet ports for hot & cold water
• 3" black water/waste exhaust flexible hose (slides onto 3" PVC pipe)
• 1" PVC water outlet exhaust port (for sink & shower water)
• Power breaker, locking door with keys, hinged window
• Visual men/women signage, lifting eyes, forklift pockets

Specifications

• Model: Portable Restroom w/ Showers

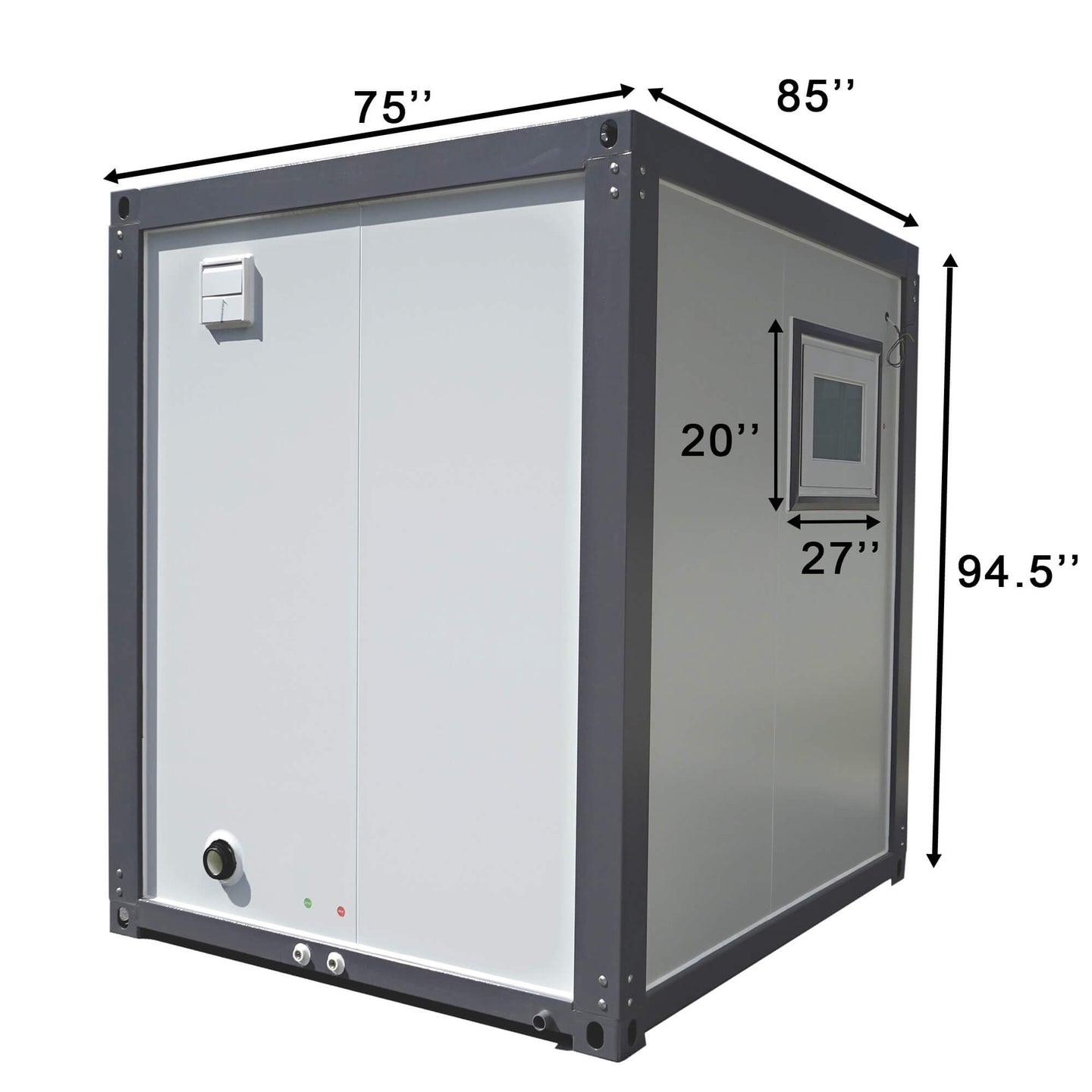

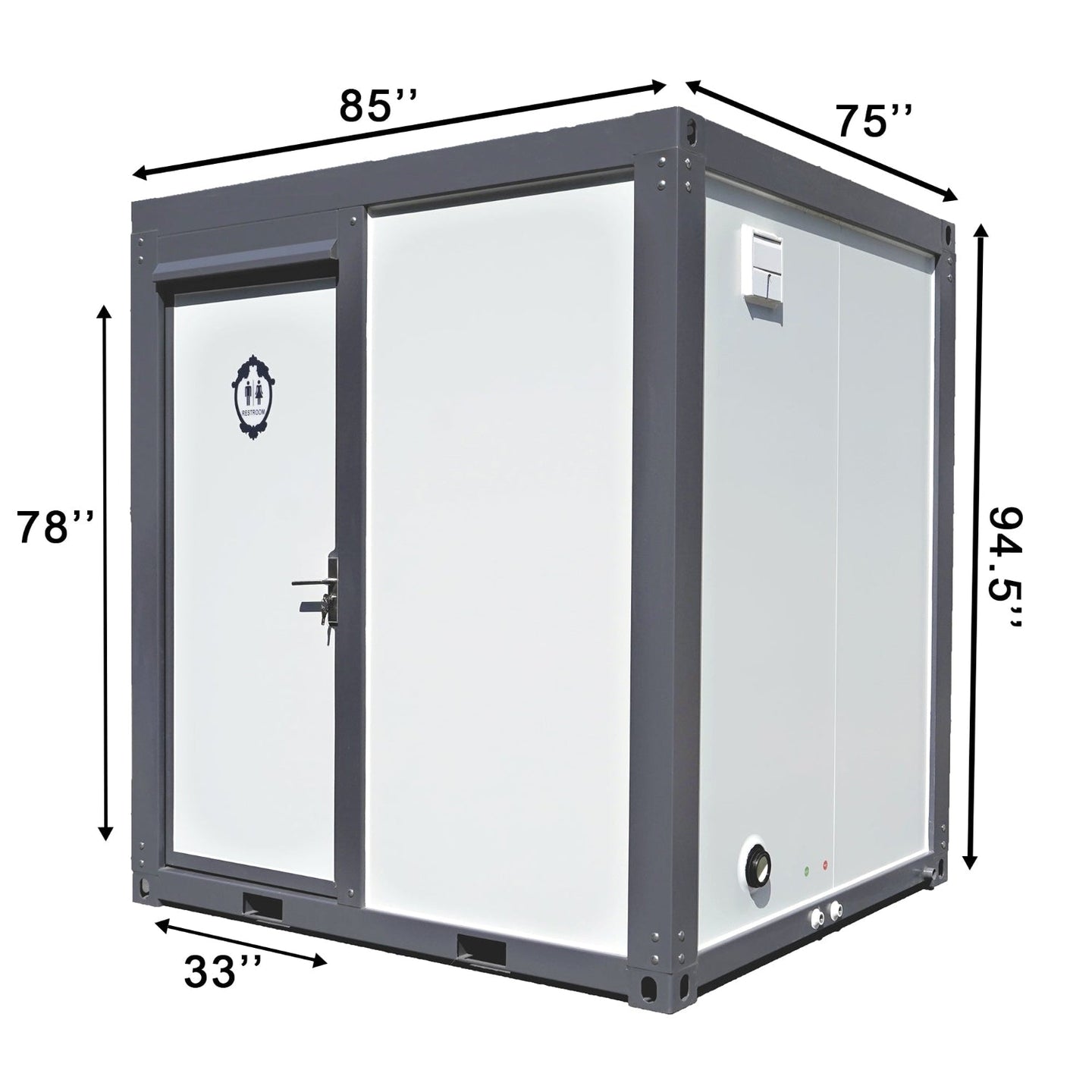

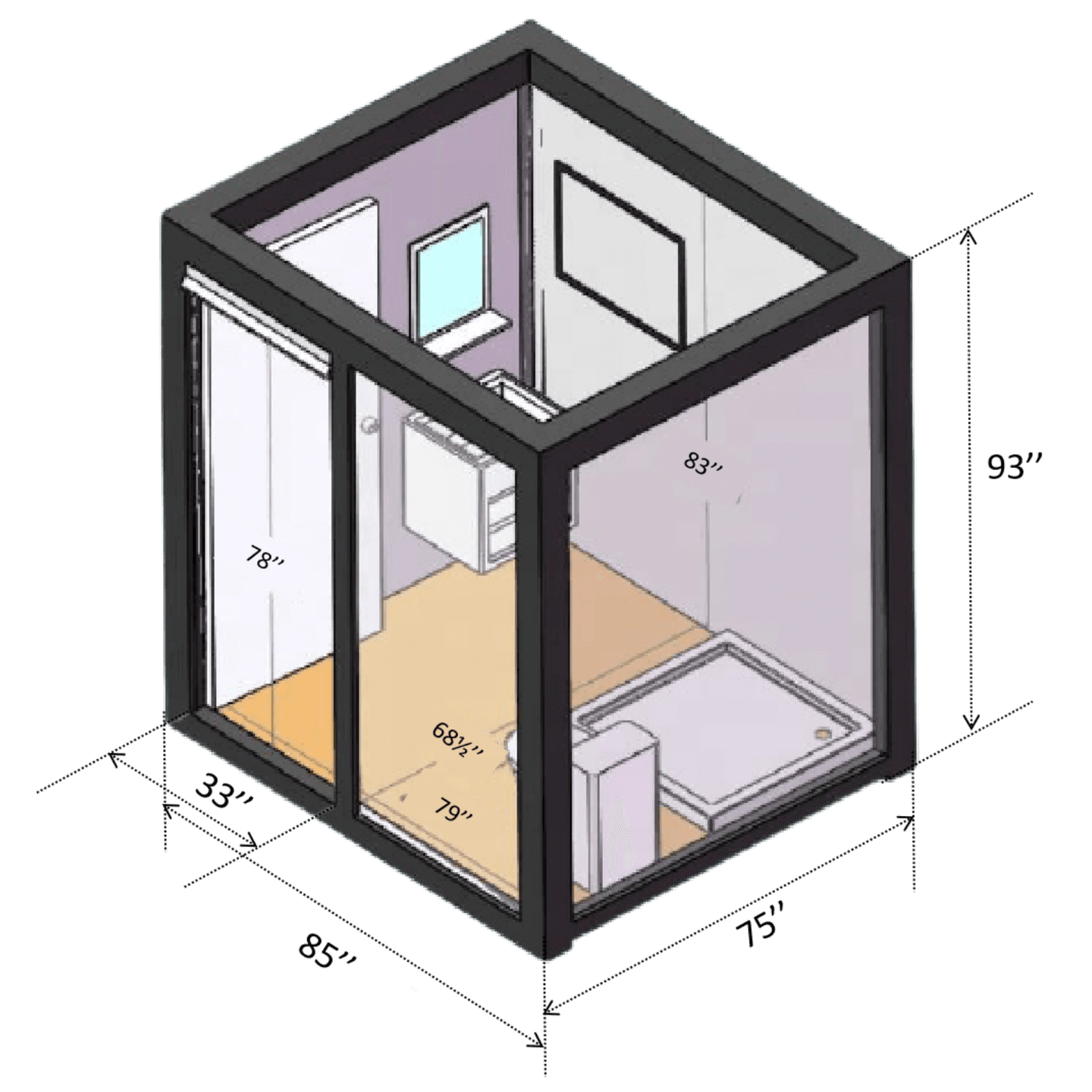

• Dimension (LxWxH): 85" x 75" x 94.5"

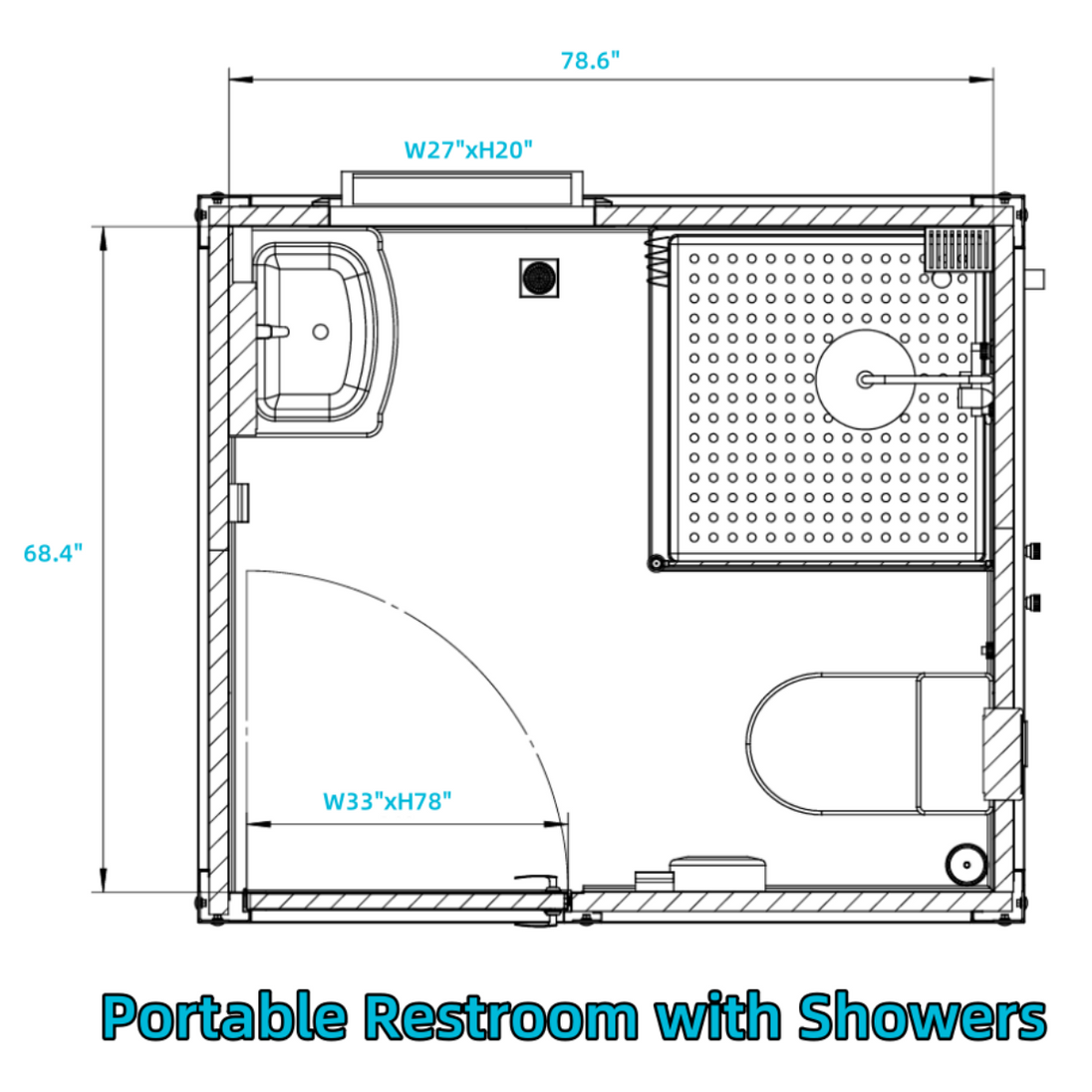

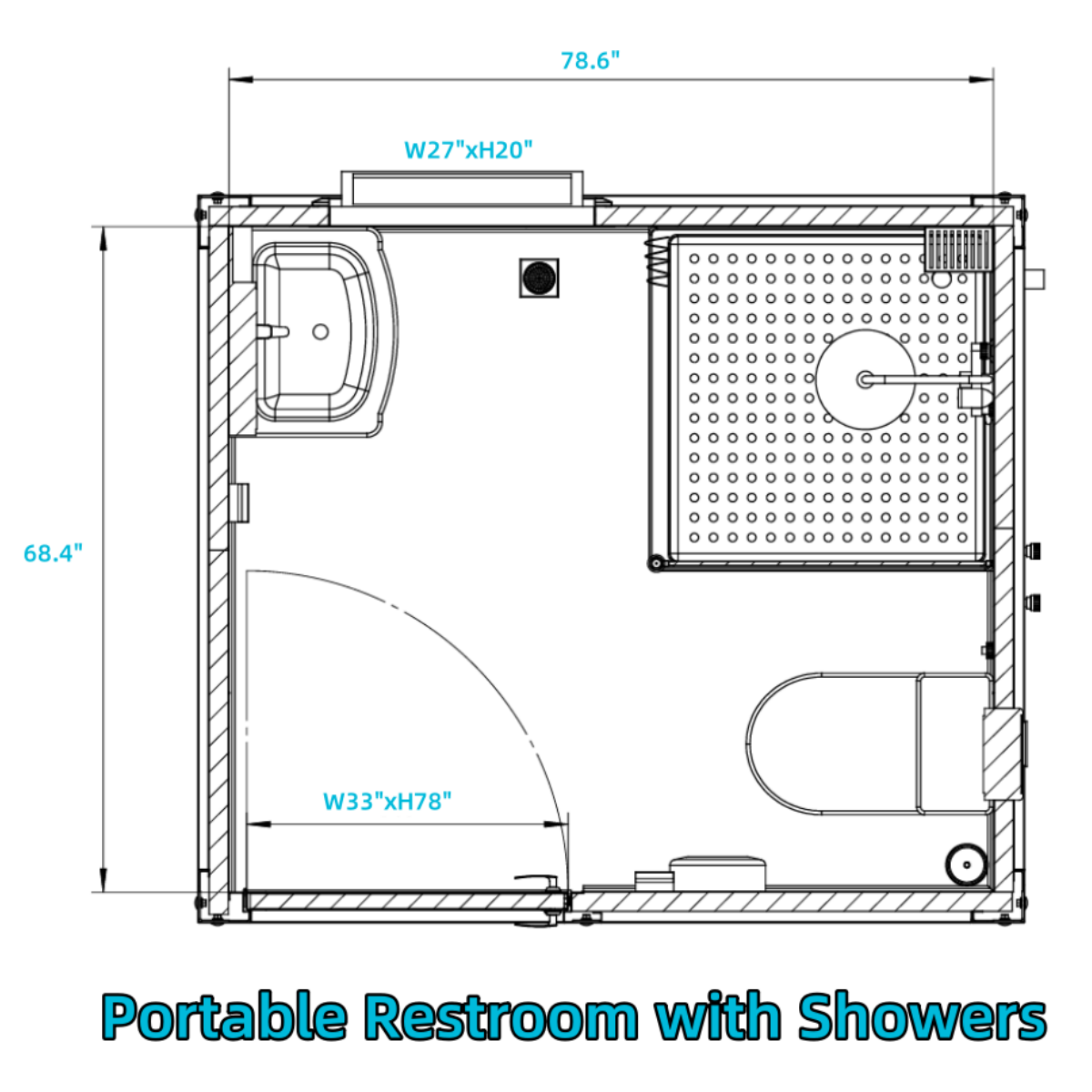

• Interior Dimension (LxW): 78.6" x 68.4"

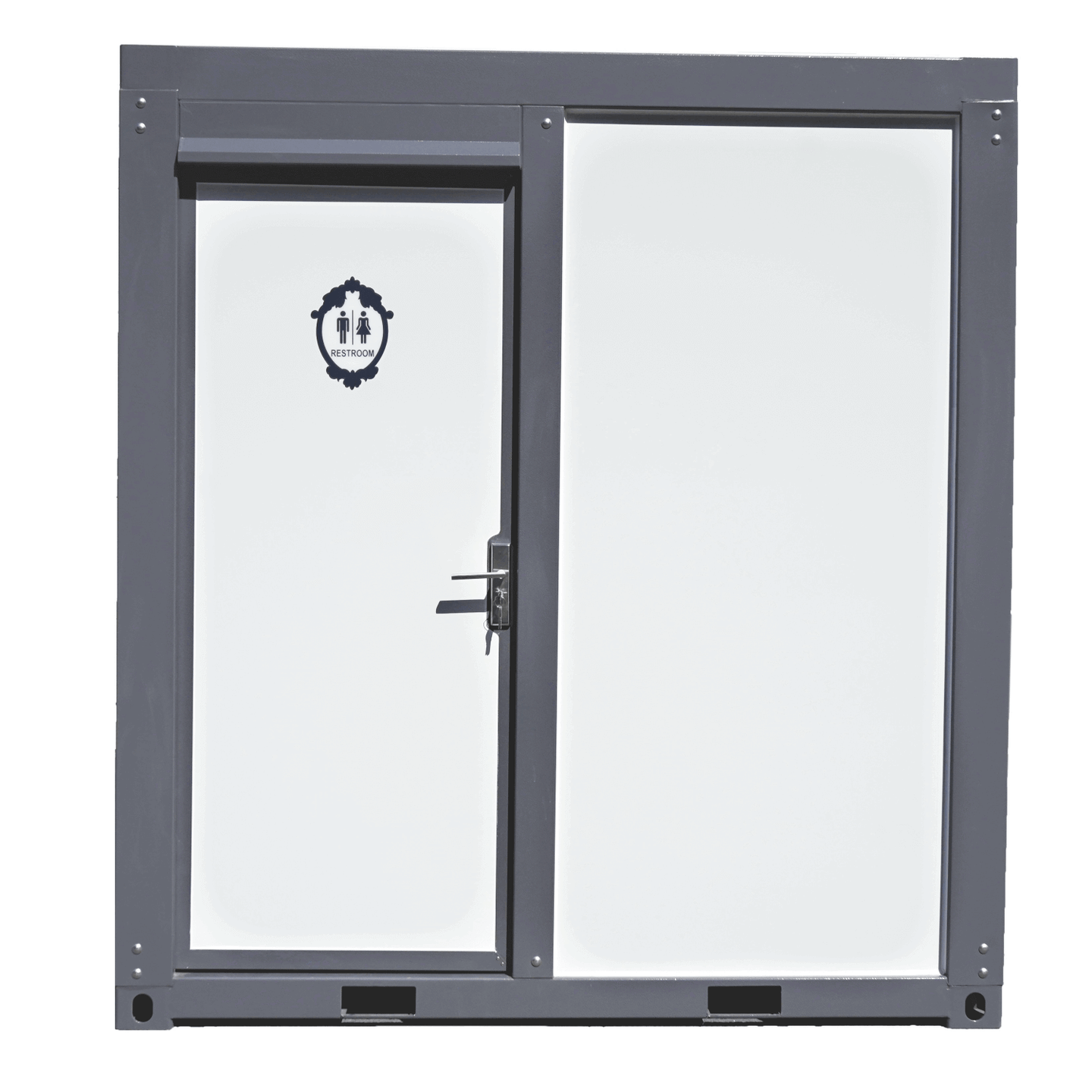

• Door Size: W 33" x H 78"
• Net Area: 37.3 ft²
• Frame: Steel
• Surface Coating: High-Temperature Resistant Paint
• Roof Material: 2-inch EPS fire-resistant & insulated wall panels
• Wall Material: 2-inch EPS fire-resistant & insulated wall panels
• Floor Material: Anti-skid and wear-resistant floor leather + Hard PVC board
• R-value: 7.09 ~ 8.27
• Doors: EPS Composite Panel; Inward Opening Door
• Circuit Breaker Spec: 13 ~ 16 Amps
• Power Supply: 110V ~ 220V
• Wire info: 3 core 2.5 sqmm
• Wiring Instructions: White Wire (Neutral); Black Wire (Live); Green or Yellow-green Wire (Earth)
• Flush Volume: 1.6 gpf
• Inlet Pipe Material: PPR Pipe
• Inlet Pipe Inner Diameter: 4/5 inch
• Outlet Pipe Material: PVC Pipe
• Outlet Pipe Inner Diameter: Gray Water Pipe 1 1/4 inch; Black Water Pipe 3 inch
• Lowest Pipe Working Temperature: 14°F (if iced, use 122°F water to melt)
• Fire-proof Level: B2
• Wind Load: 56 MPH
• Snow Load: 125 lb/ft²
• Forklift Pockets: Dimension: W7" x h4"; Distance between pockets: 28"
• Lifespan: 15+ Years
• Warranty: 1 Year
