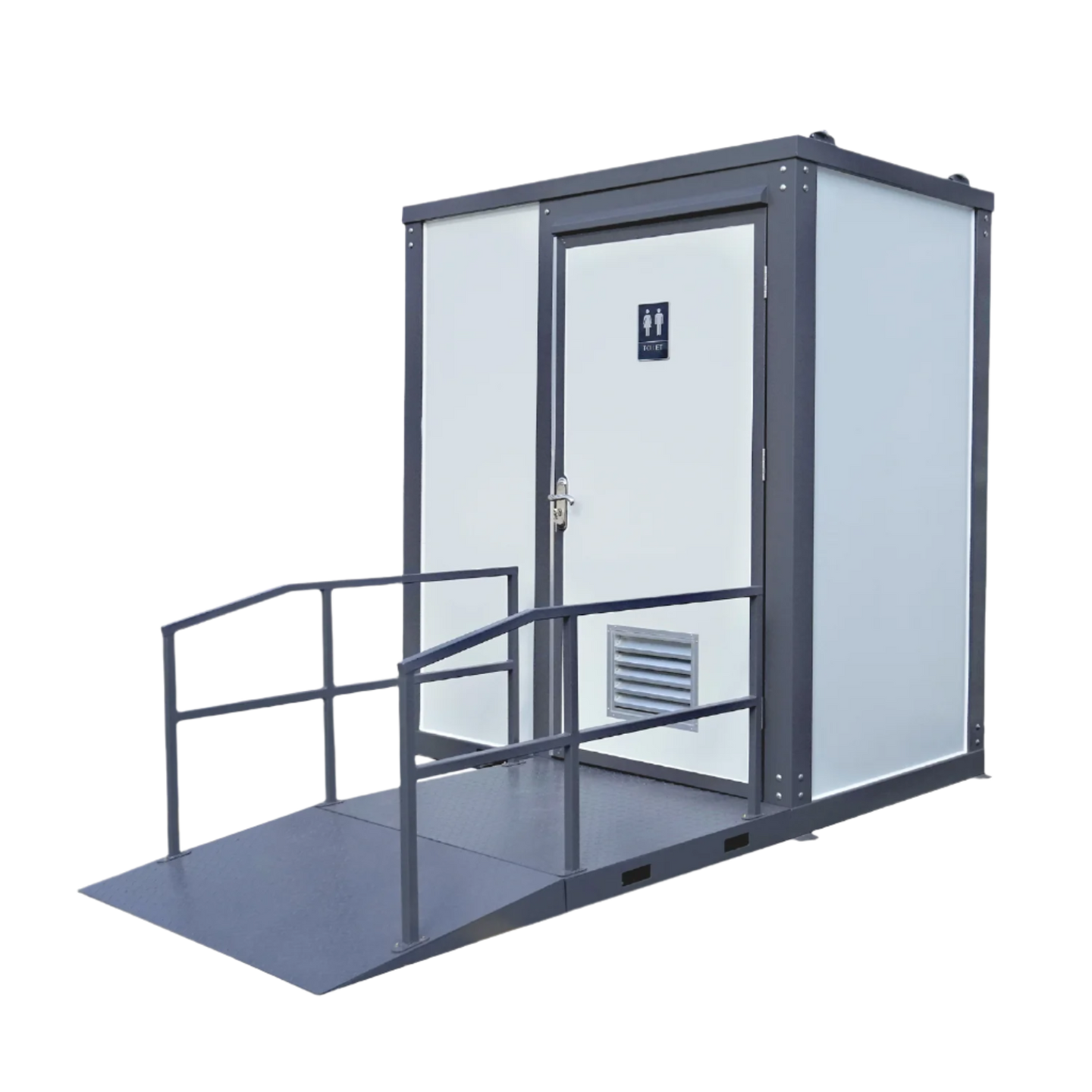

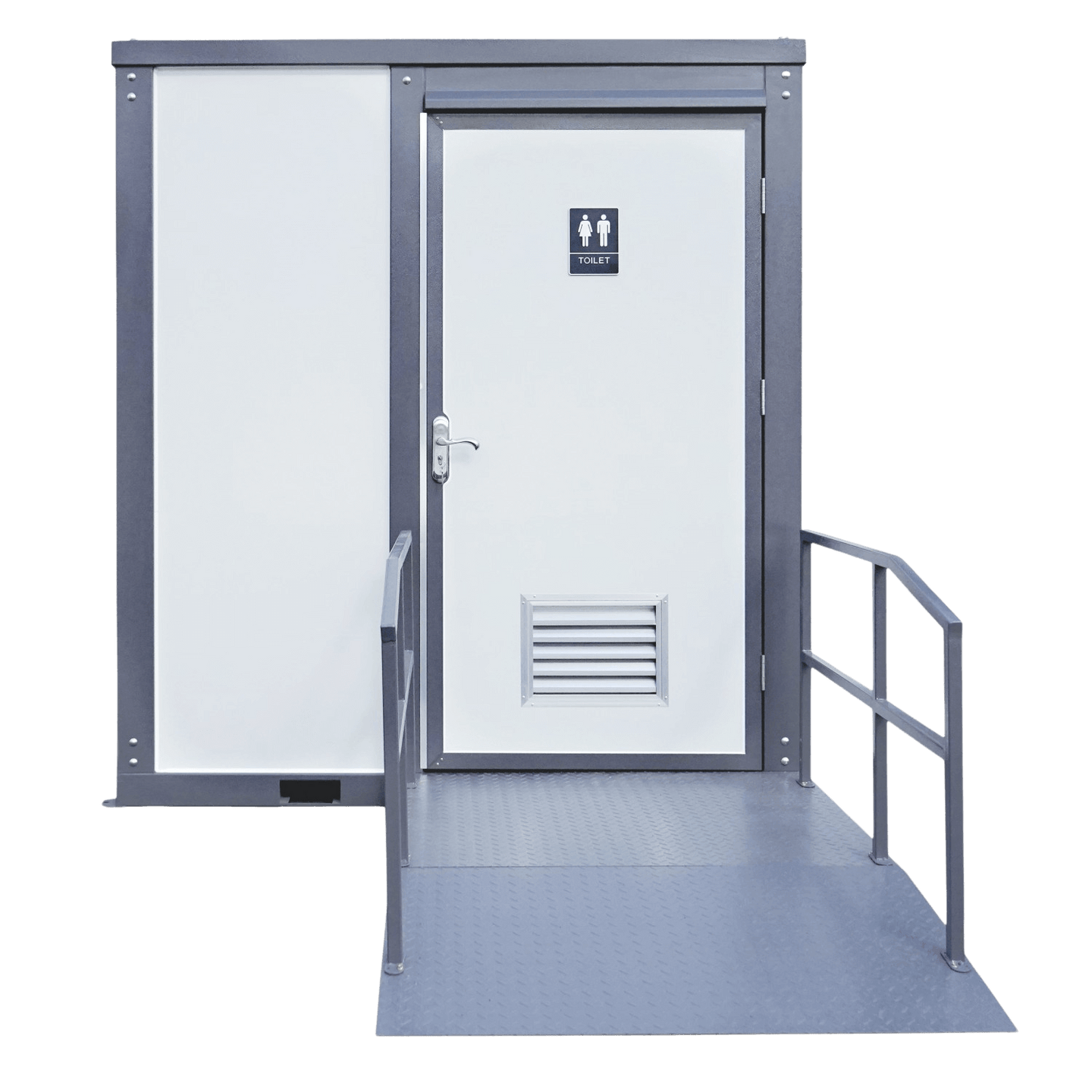

Bastone Handicap-Accessible Portable Restroom

Overview

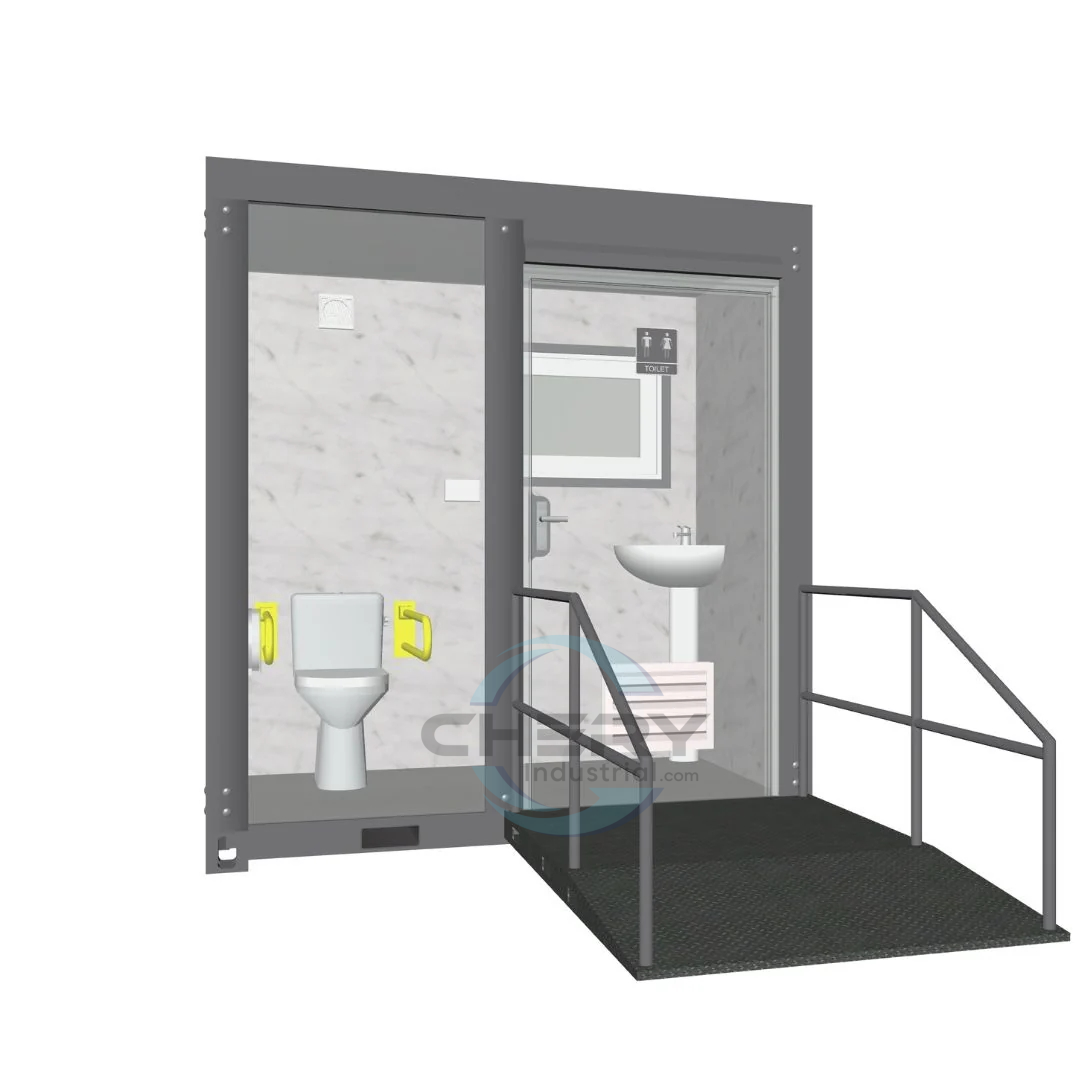

We provide the Bastone Handicap-Accessible Portable Restroom for businesses and individuals who need it. It features tool-free removable arms beside the toilet for flexibility and a wider interior to fit a full-size wheelchair and move around inside the stall.

Benefits

• Wheelchair accessibility with tool-free removable arms.

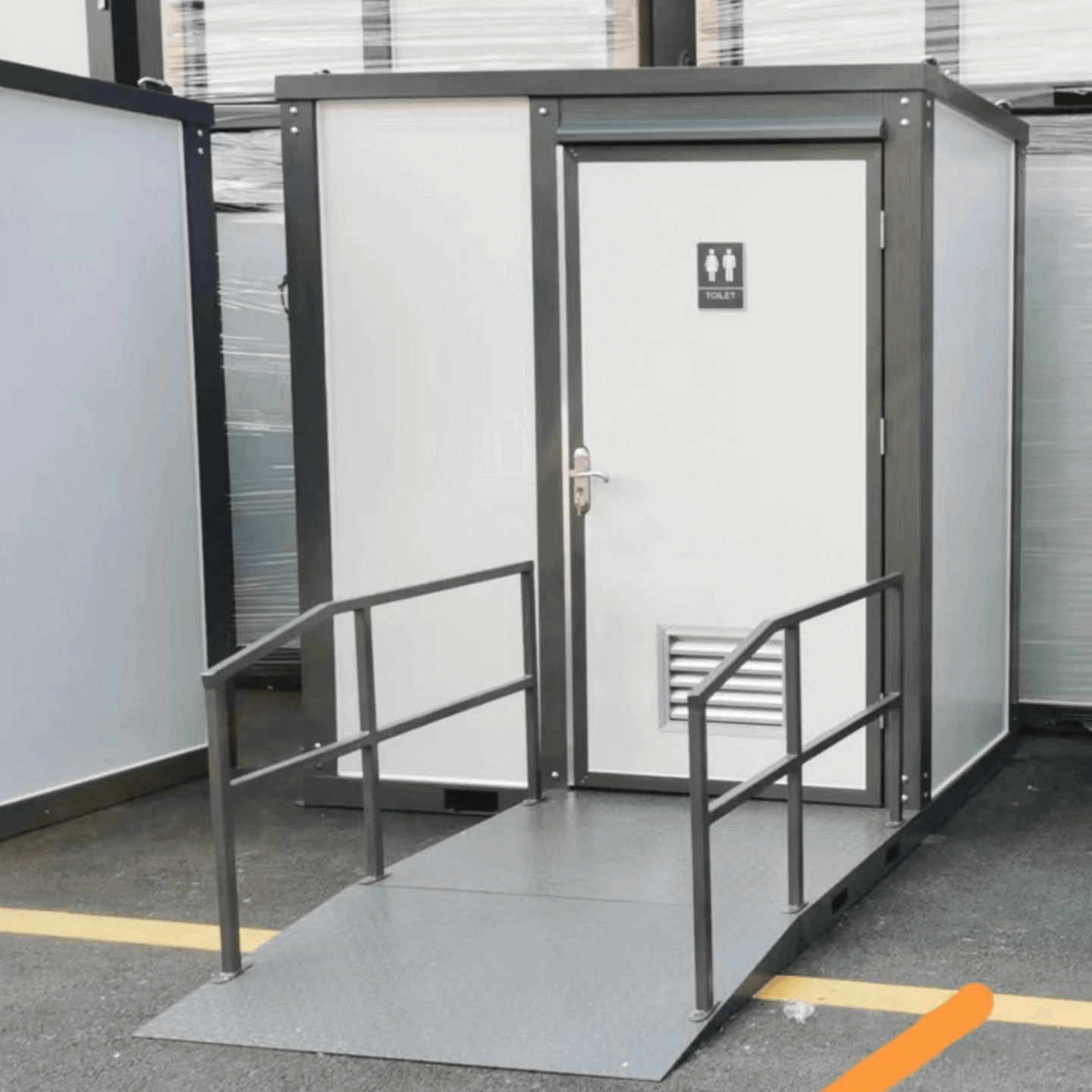

• Ramp stored inside the unit for easy access.
• Spacious interior designed for safe, comfortable maneuvering.
• Durable steel frame with high-temperature resistant coating.
• Versatile power and water connections for on-site use.

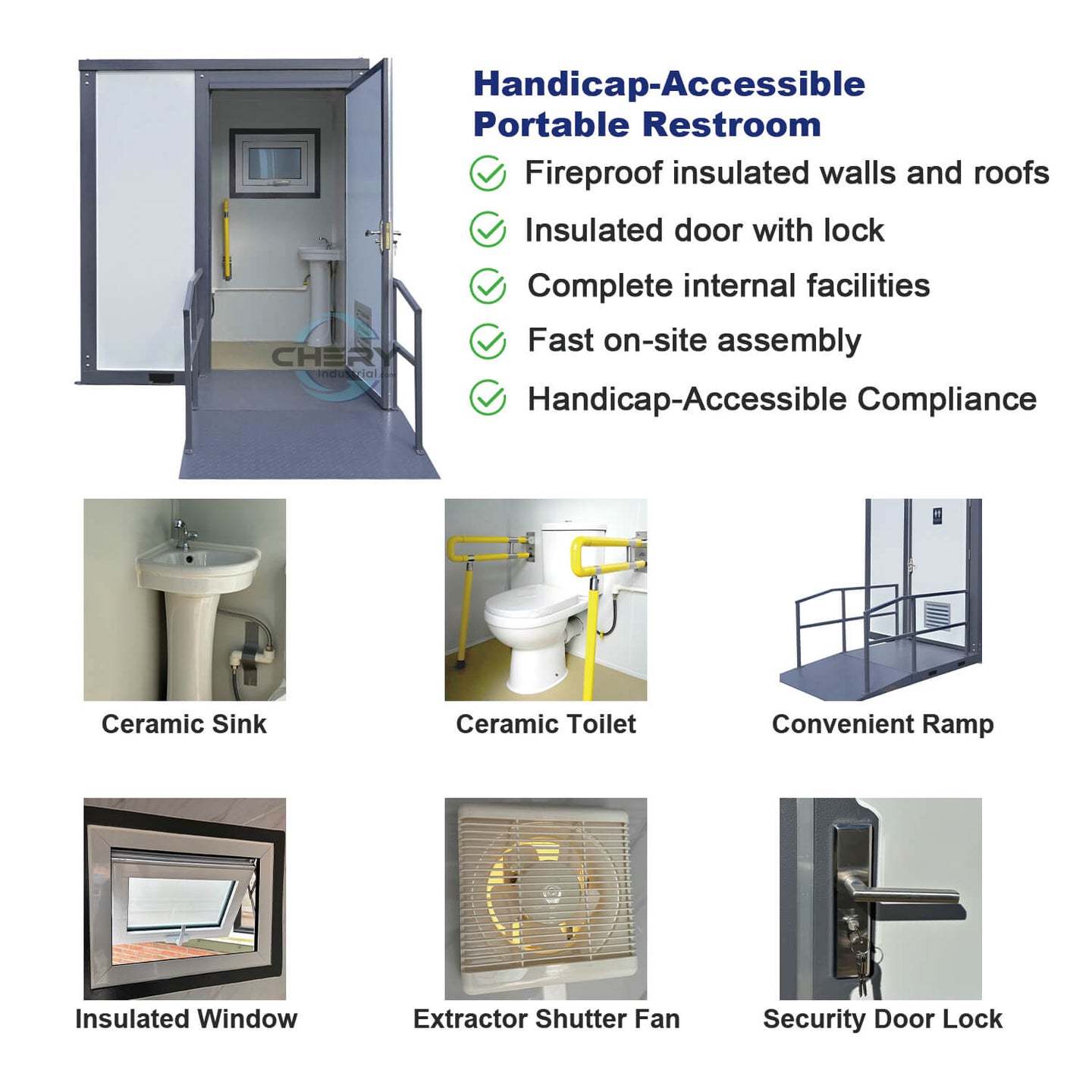

Features

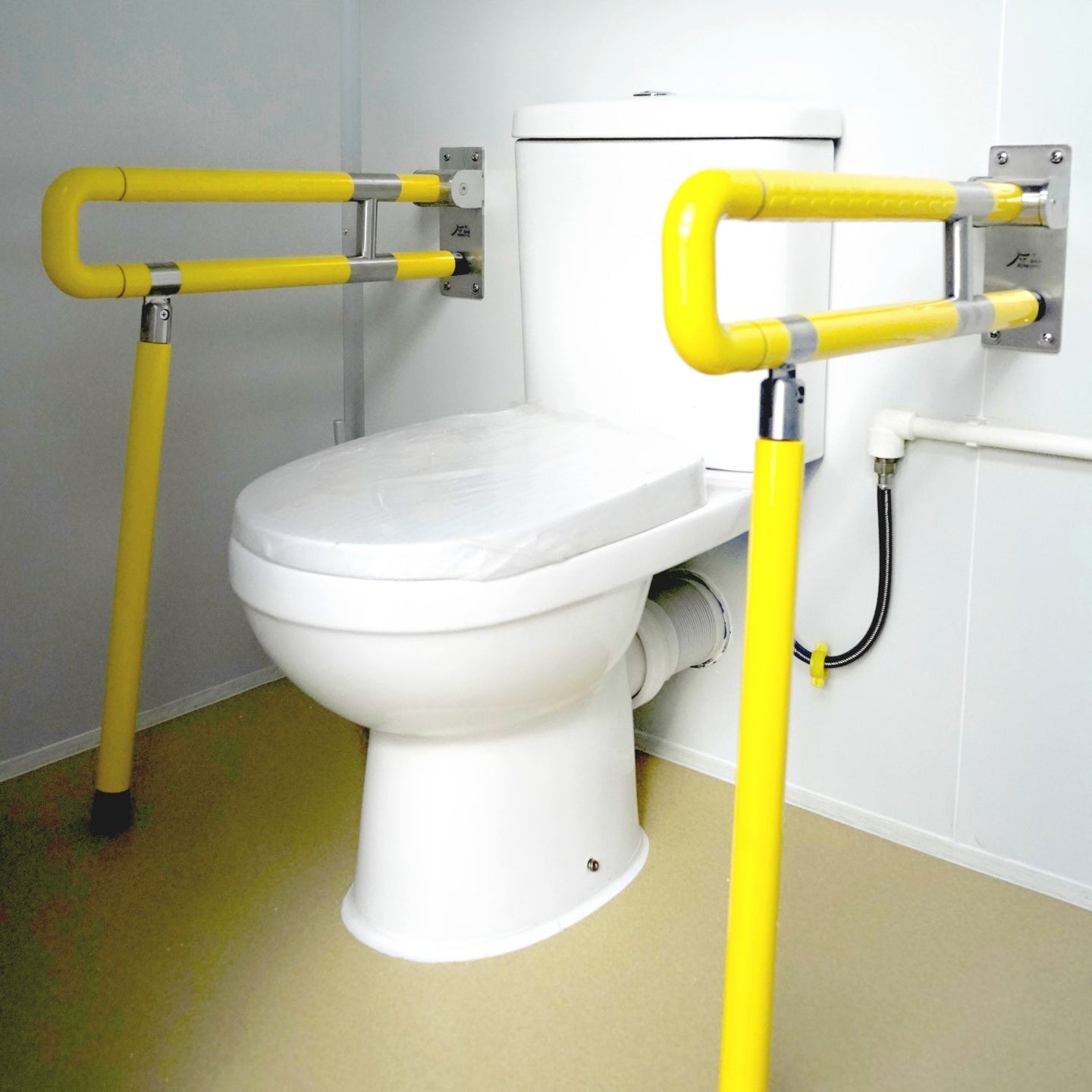

• Tool-free removable arms for wheelchair accessibility.
• Ramp comes inside the unit.

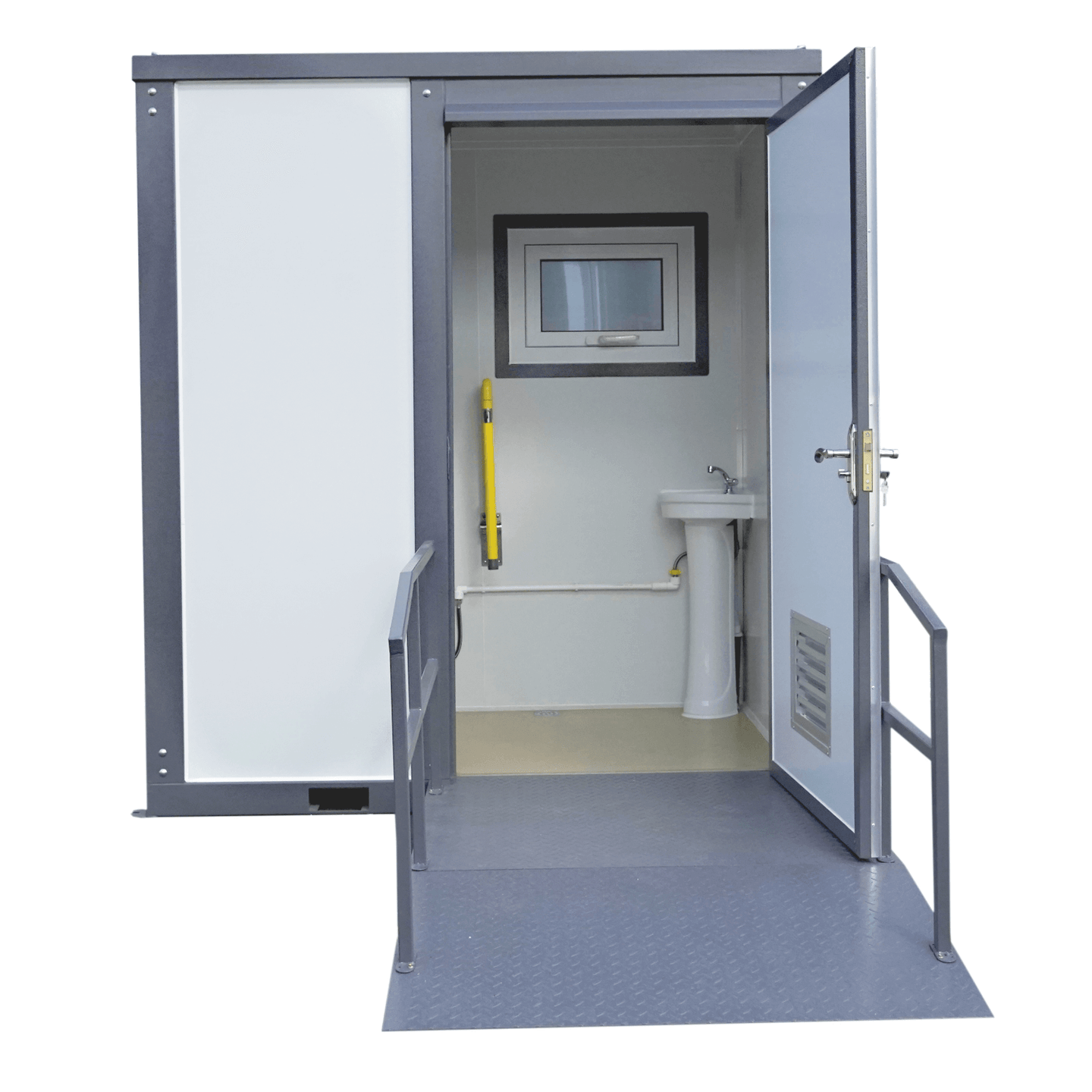

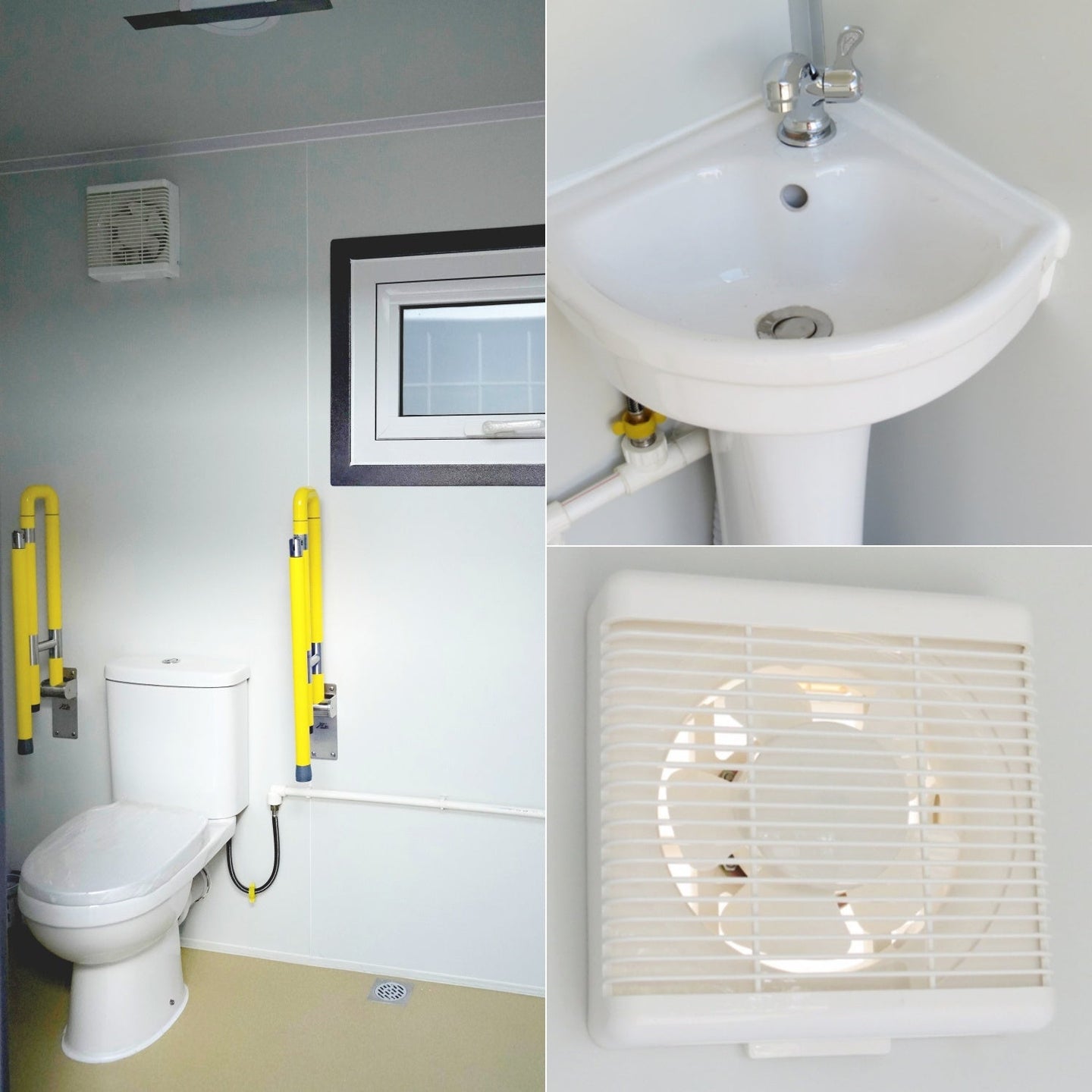

• Toilet with ceramic bowl and tank; ceramic vanity sink with faucet.

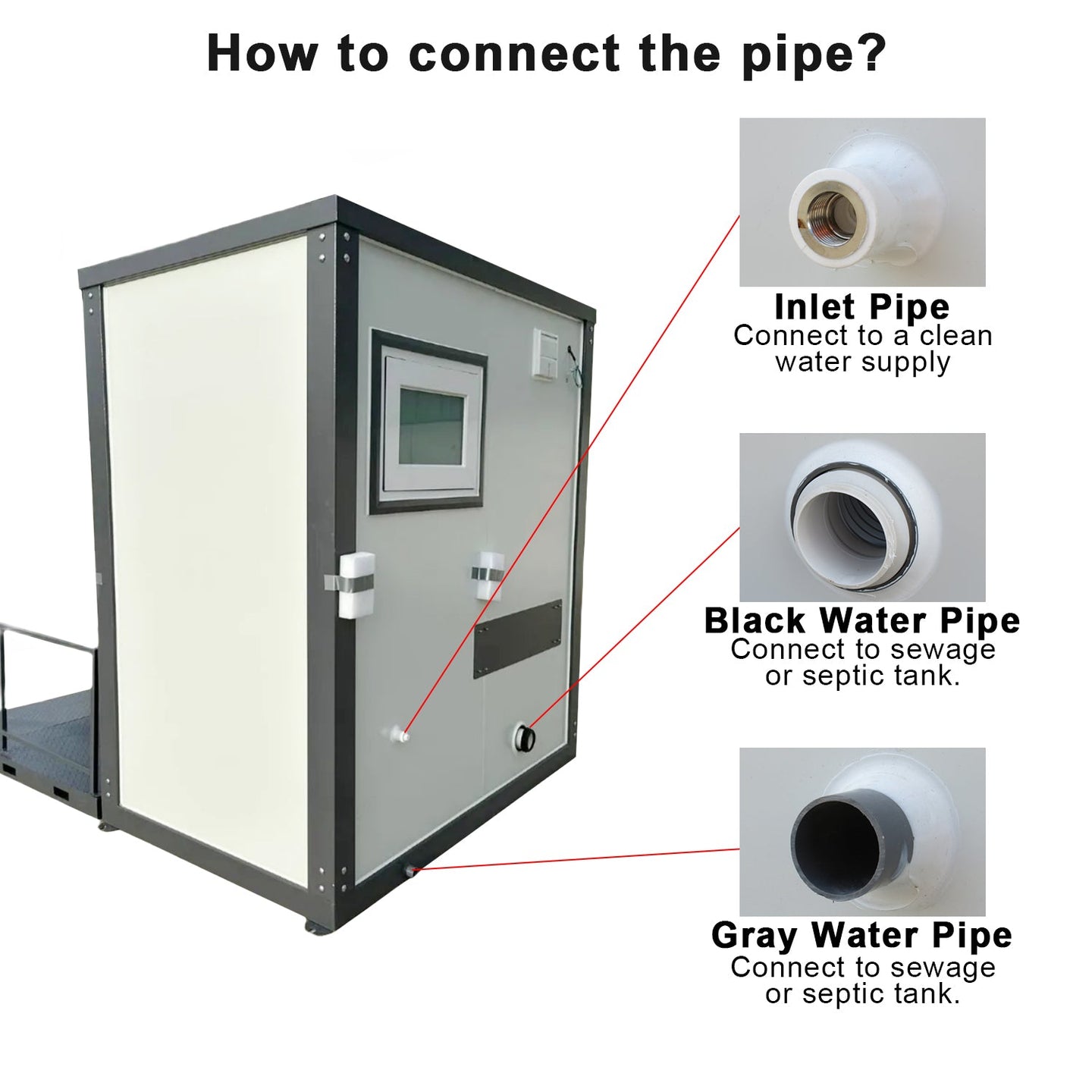

• 1/2" female inlet ports for cold water.
• 3" black water/waste exhaust flexible hose; compatible with 3" PVC pipe for waste.
• 1" PVC water outlet exhaust port.
• Locking door with keys; hinged window.

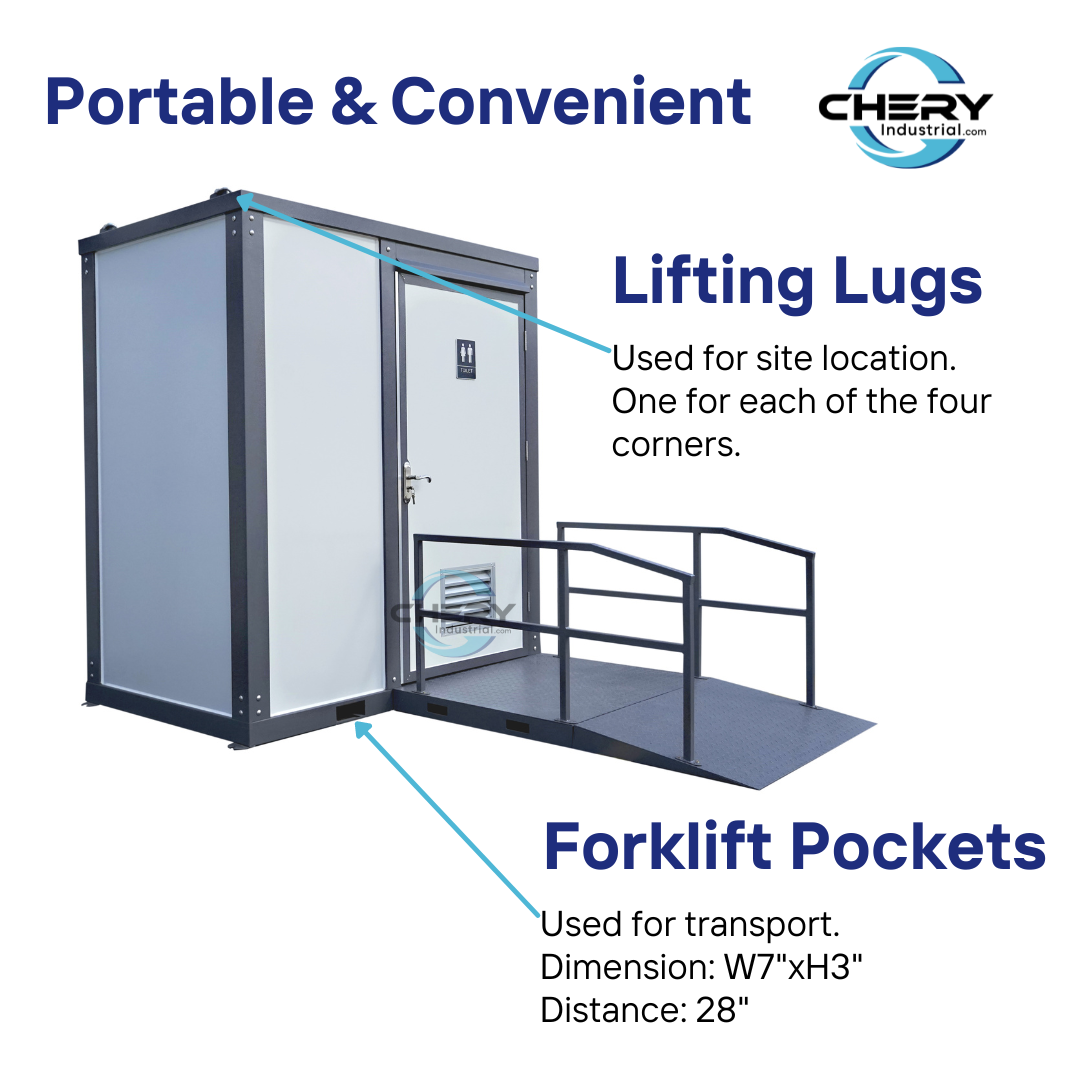

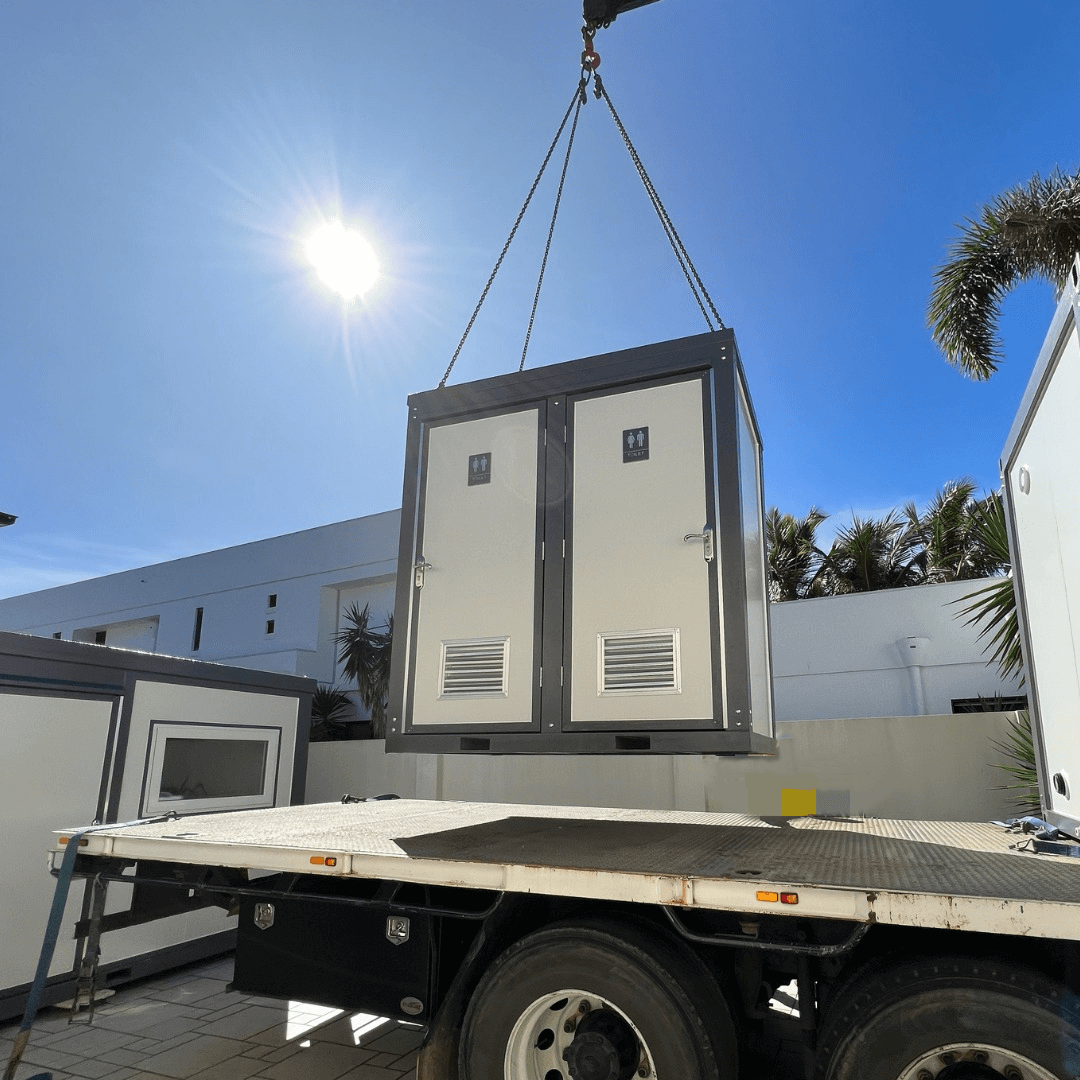

• Lifting eyes and forklift pockets for transport.

Specifications

• Model: Handicap-Accessible Portable Restroom

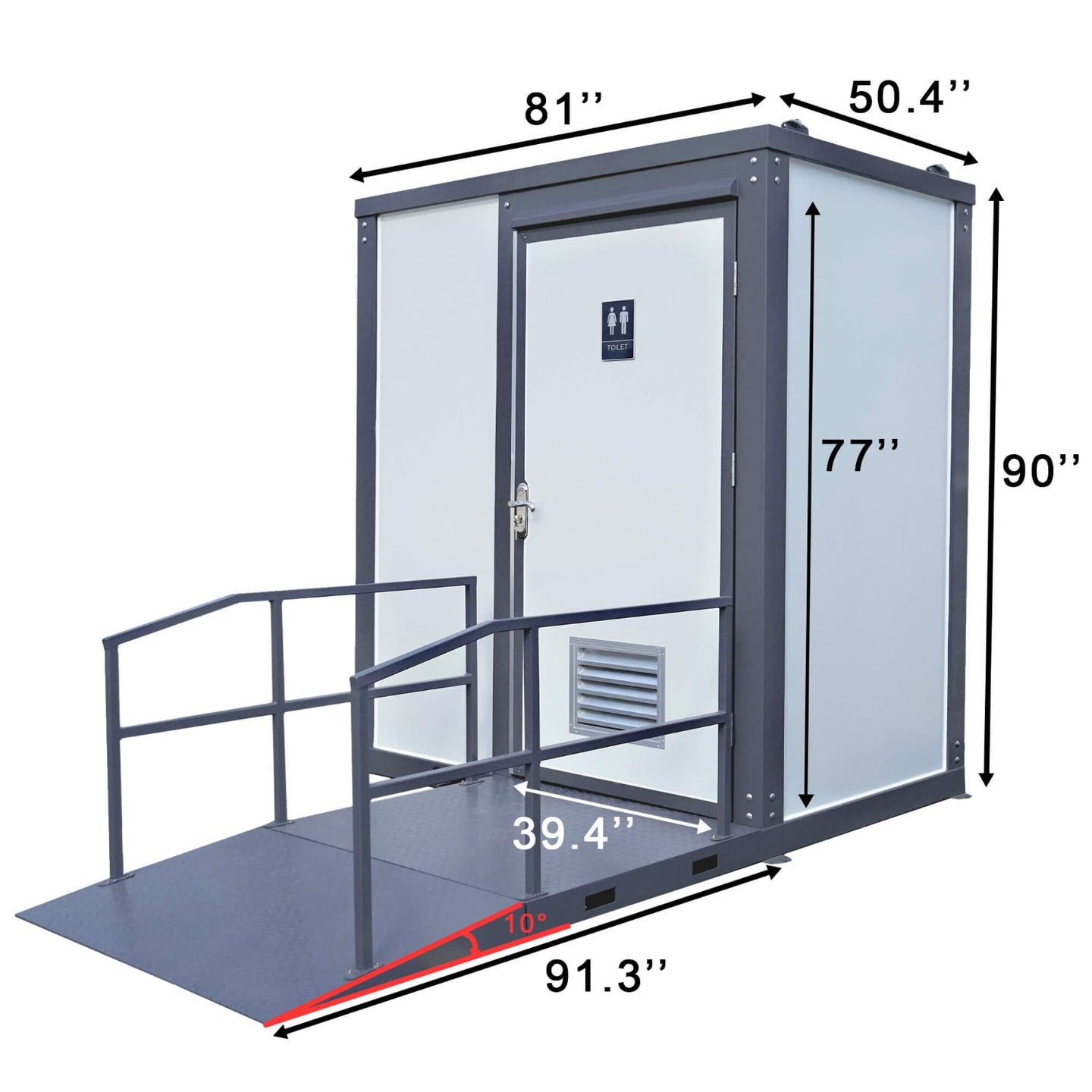

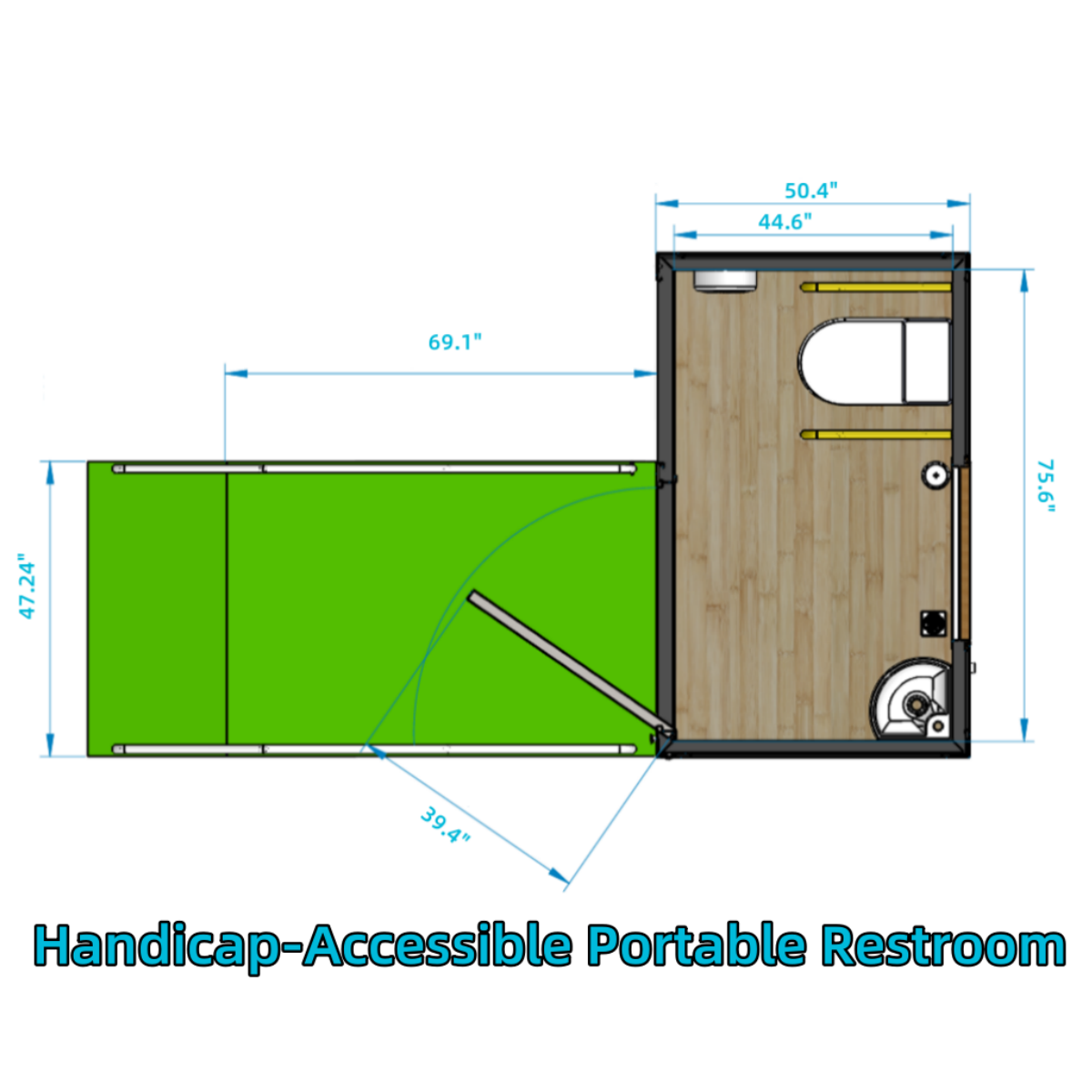

• Dimensions (LxWxH): 81" x 50.4" x 90"
• Interior Dimensions (LxWxH): 75.6" x 44.6" x 84.6"
• Door Size: W 39.4" x H 77"
• Net Area: 23.4 ft²

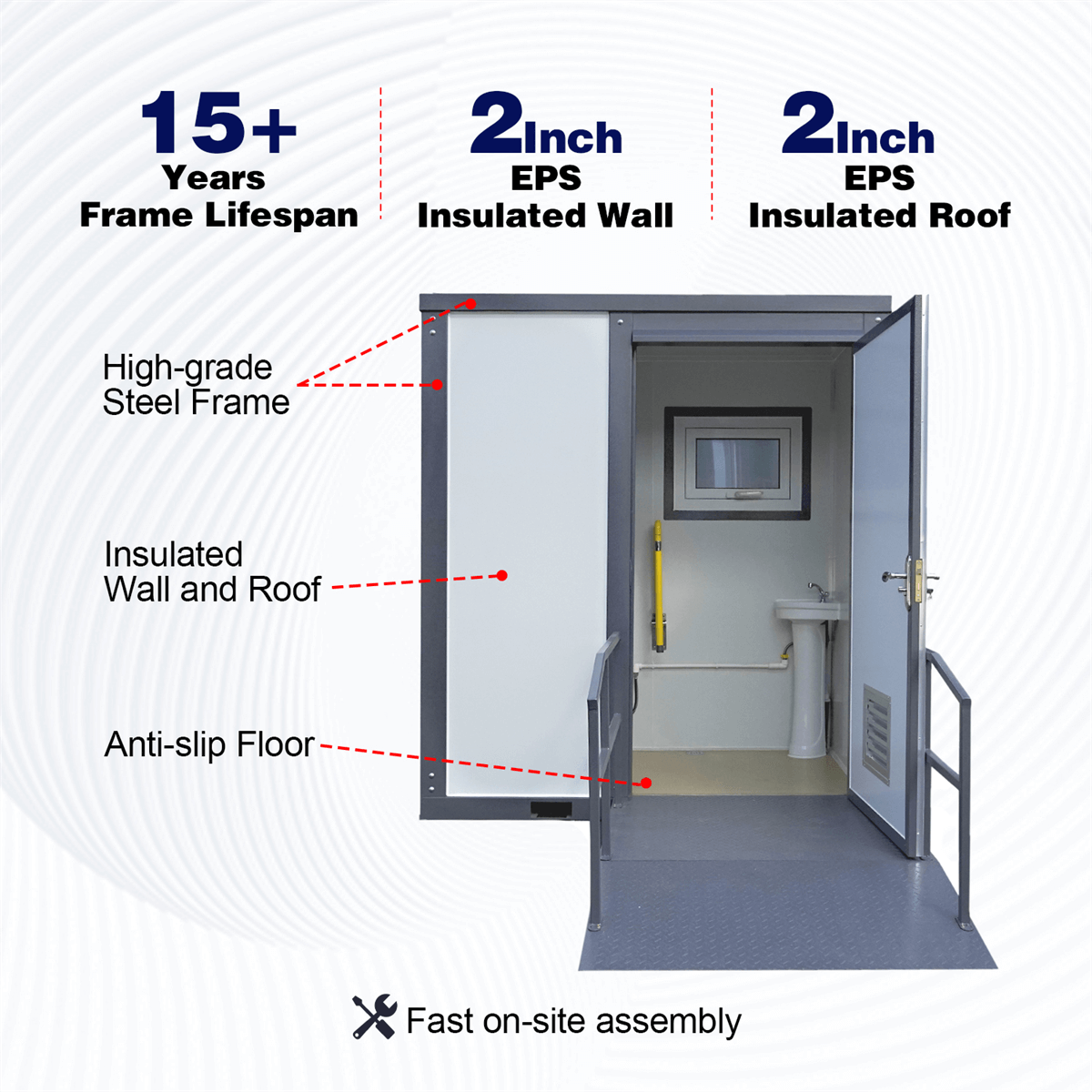

• Frame: Steel
• Surface Coating: High-Temperature Resistant Paint
• Roof Material: 2-inch EPS fire-resistant & insulated roof panels
• Wall Material: 2-inch EPS fire-resistant & insulated wall panels
• Floor Material: Anti-skid and wear-resistant floor leather + hard PVC board
• R-value: 7.09 ~ 8.27
• Doors: EPS Composite Panel; outward Opening Door
• Circuit Breaker Spec: 13–16 Amps
• Power Supply: 110V–220V
• Wire Info: 3 core 2.5 sqmm
• Wiring Instructions: White = Neutral; Black = Live; Green or Yellow-green = Earth
• Flush Volume: 1.6 gpf
• Inlet Pipe Material: PPR Pipe
• Inlet Pipe Inner Diameter: 4/5 inch
• Outlet Pipe Material: PVC Pipe
• Outlet Pipe Inner Diameter: Gray Water Pipe 1-¾ inch; Black Water Pipe 3 inch
• Lowest Pipe Working Temperature: 14°F (if iced, use 122°F water to melt)
• Fire-proof Level: B2
• Wind Load: 56 MPH
• Snow Load: 125 lb/ft²
• Forklift Pockets: W7" x h4"; distance between pockets: 28"
• Lifespan: 15+ Years
• Warranty: 1 Year
