Fortified 50'x40'x17' Double Truss Container Shelter

Overview

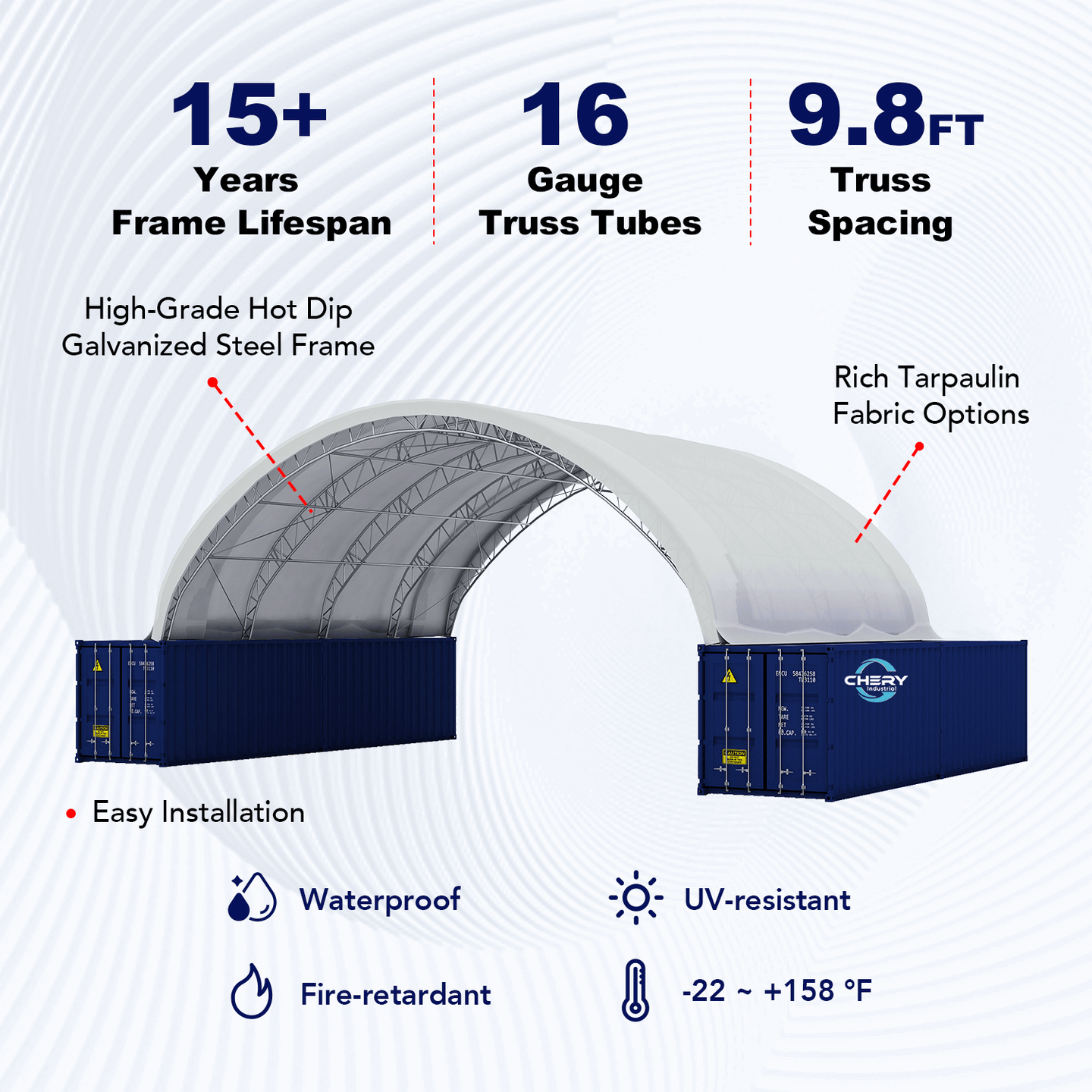

Built for extreme durability and high-performance protection, this shelter is designed to withstand harsh conditions and heavy use. Its arch features a shrink head and jacket for added strength, while diagonal steel pipes on both sides boost stability. With Arch Ø60x1.5 and Purlin Ø48x1.5, it delivers solid structural integrity against wind, snow, and environmental stressors.

Benefits

• Extreme durability for harsh conditions and heavy use
• Long-term value: frame lasts 15+ years; tarpaulins 7–10 years depending on fabric
• Strong wind and snow resistance from the double-truss design
• Safety and compliance: PFAS-free tarpaulin and EU REACH compliant
• DIY-friendly installation with clear steps and fast setup

Features

• Model: C504017 Fortified Container Shelter

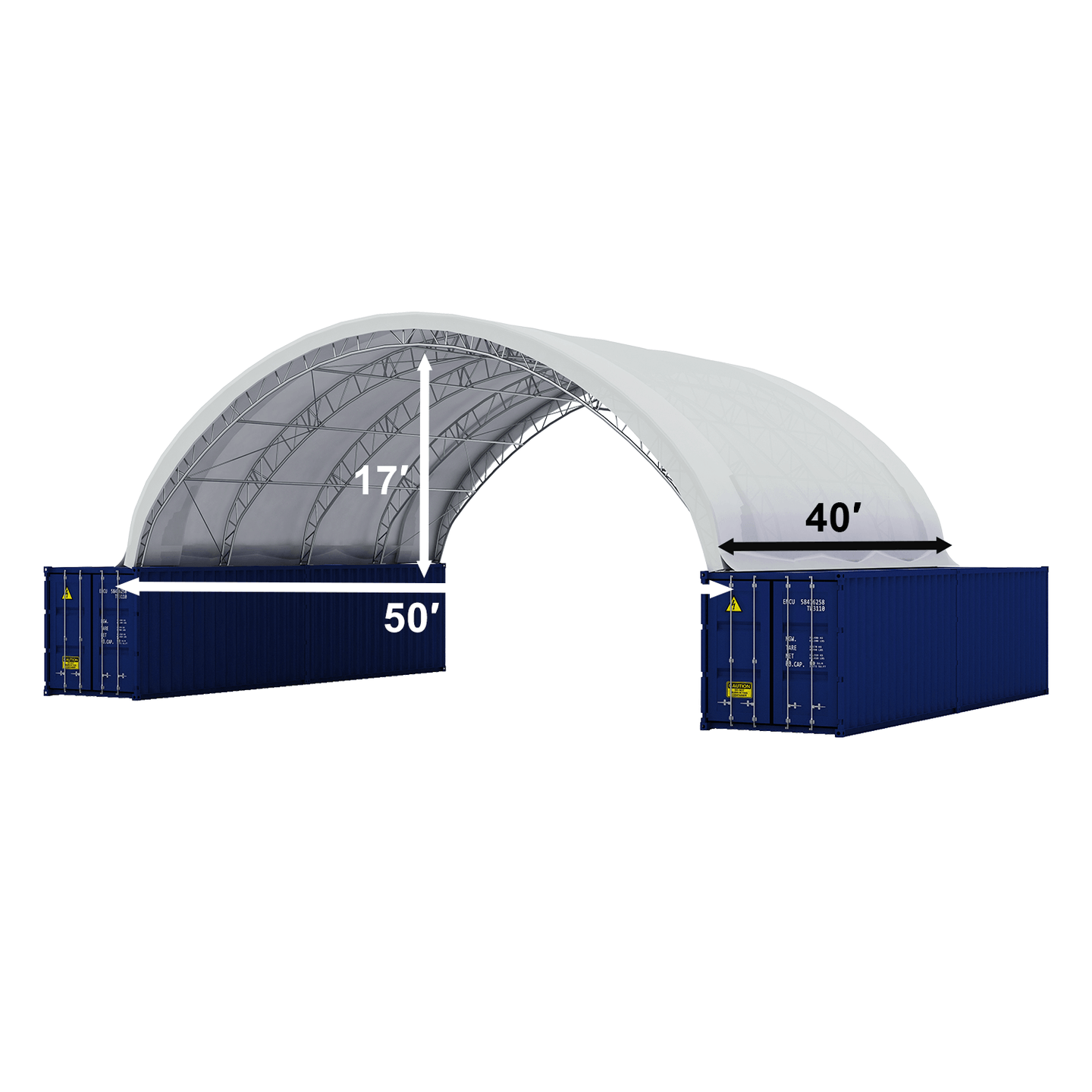

• Dimension: W50xL40xH17 ft
• Frame: Double Truss Galvanized Tube
• Steel Structure: High-Grade Hot Dip Galvanized Steel
• Fabric options:
  • 11oz/m² (300 gsm) PE tarpaulin
  • 15oz/m² (450 gsm) PVC tarpaulin
  • 22oz/m² (610 gsm) PVC tarpaulin
  • 23oz/m² (650 gsm) PVC tarpaulin
  • 32oz/m² (900 gsm) PVC tarpaulin
• Fabric features: Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning
• Temperature range: -22 to +158 °F
• Arch Interval: 9.8 ft
• Arch Ø: Ø60x1.5
• Purlin Ø: Ø48x1.5
• Tension System: Pipe and Ratchet Tie-Down System
• Easy Installation: Twist lock and clamp installation
• Weld: Base plates need to be welded on the containers
• Around DIY assembly: Shelter ~3 days; wall installations ~0.5 day per wall
• Safety: PFAS-free tarpaulin and EU REACH compliant
• Tarp Lifespan: 7–10 years
• Frame Lifespan: 15+ years
• Warranty: PE 2 years; PVC 8 years

Specifications

• Notes: Lifespan refers to material durability, not installation.
• Notes: Sudden weather changes can affect structural integrity. Check forecasts and follow usage guidelines.
• Snow-prone regions: double-truss framing is recommended.
• Package Size: LxWxH (inches) and Weight (lb) vary by configuration. Forklift or equivalent may be required for unloading.
• Welding: base plates must be welded to container supports.
• Front/back walls (optional) can be added as needed.
• Note: Installation time and complexity may vary with site conditions.
