Fortified 20' x 40' Double Truss Container Shelter

Overview

The Fortified 20'x40' Double Truss Container Shelter is built for stability. It has a reinforced structure for wind resistance, making it stronger than standard models. It’s designed for heavy-duty protection and long-term coverage of equipment, vehicles, and materials in industrial, agricultural, and commercial settings. It’s easy to install on shipping containers.

Purchase Notes: Out of stock, please wait 2-3 months.

Benefits

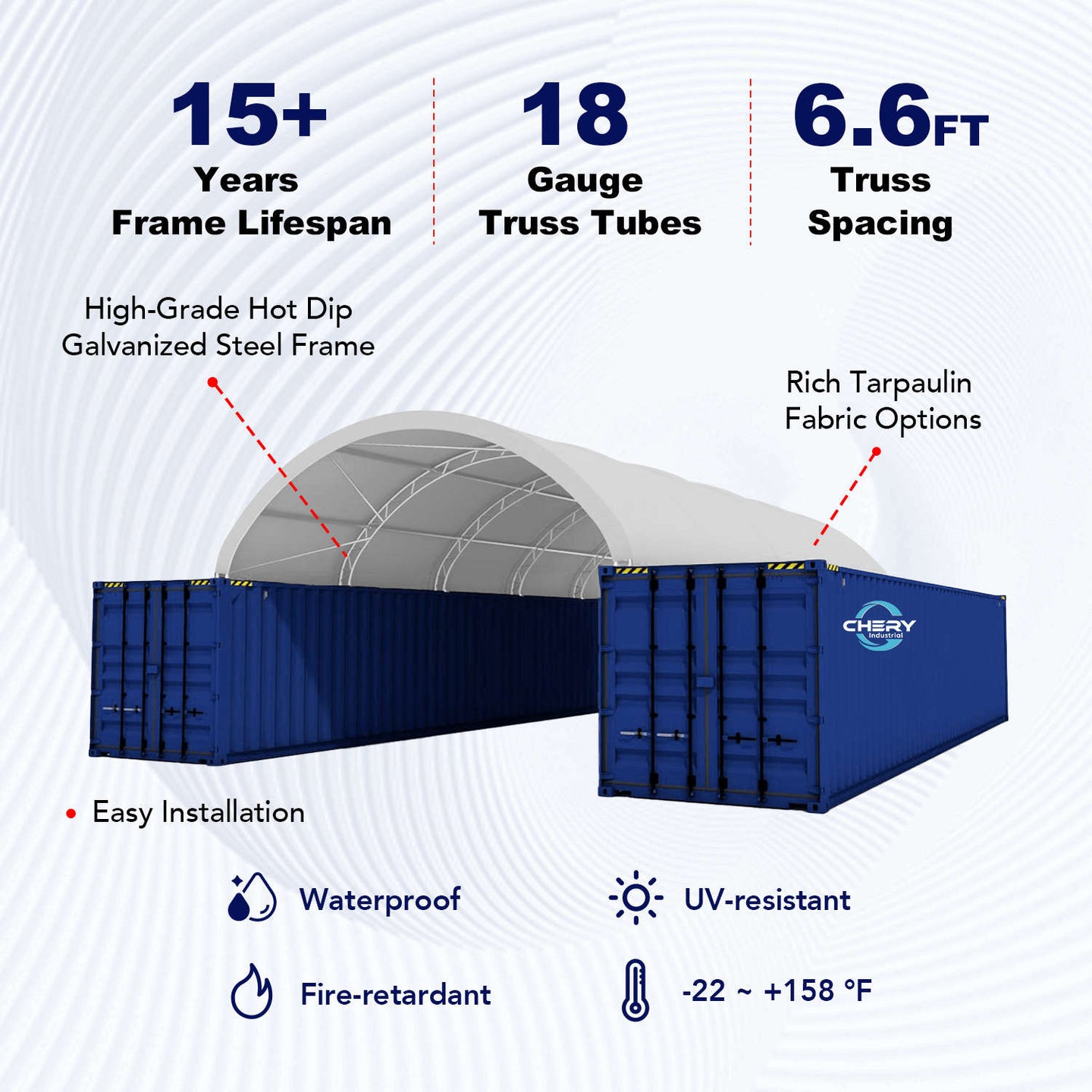

• Reinforced structure for stability and wind resistance
• Heavy-duty protection against harsh weather
• Easy installation on shipping containers
• Long-term coverage for equipment, vehicles, and materials
• Suitable for industrial, agricultural, and commercial settings

Features

• Frame: Double Truss Galvanized Tube
• Steel Structure: High-Grade Hot Dip Galvanized Steel
• Fabric options:
  • 11 oz/m² (300 gsm) Polyethylene (PE) tarpaulin
  • 15 oz/m² (450 gsm) PVC tarpaulin
  • 22 oz/m² (610 gsm) PVC tarpaulin
  • 23 oz/m² (650 gsm) PVC tarpaulin
  • 32 oz/m² (900 gsm) PVC tarpaulin
• Fabric features: Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning
• Temperature resistance: -22 to +158 °F
• Arch Interval: 6.6 ft
• Arch Ø: Ø32×1.2 mm
• Purlin Ø: Ø40×1.2 mm
• Tension system: Pipe and Ratchet Tie-Down System
• Easy installation: Twist lock and clamp installation
• Safety: PFAS-free and EU REACH compliant
• Interior space: No pole inside; 100% usable interior space
• DIY assembly: Shelter ~2 days; Front/back wall ~0.5 day per wall
• Warranty: PE 2 years; PVC 8 years
• Tarp lifespan: 7–10 years; Frame lifespan: 15+ years

Specifications

• Model: C2040 Dome Container Shelter

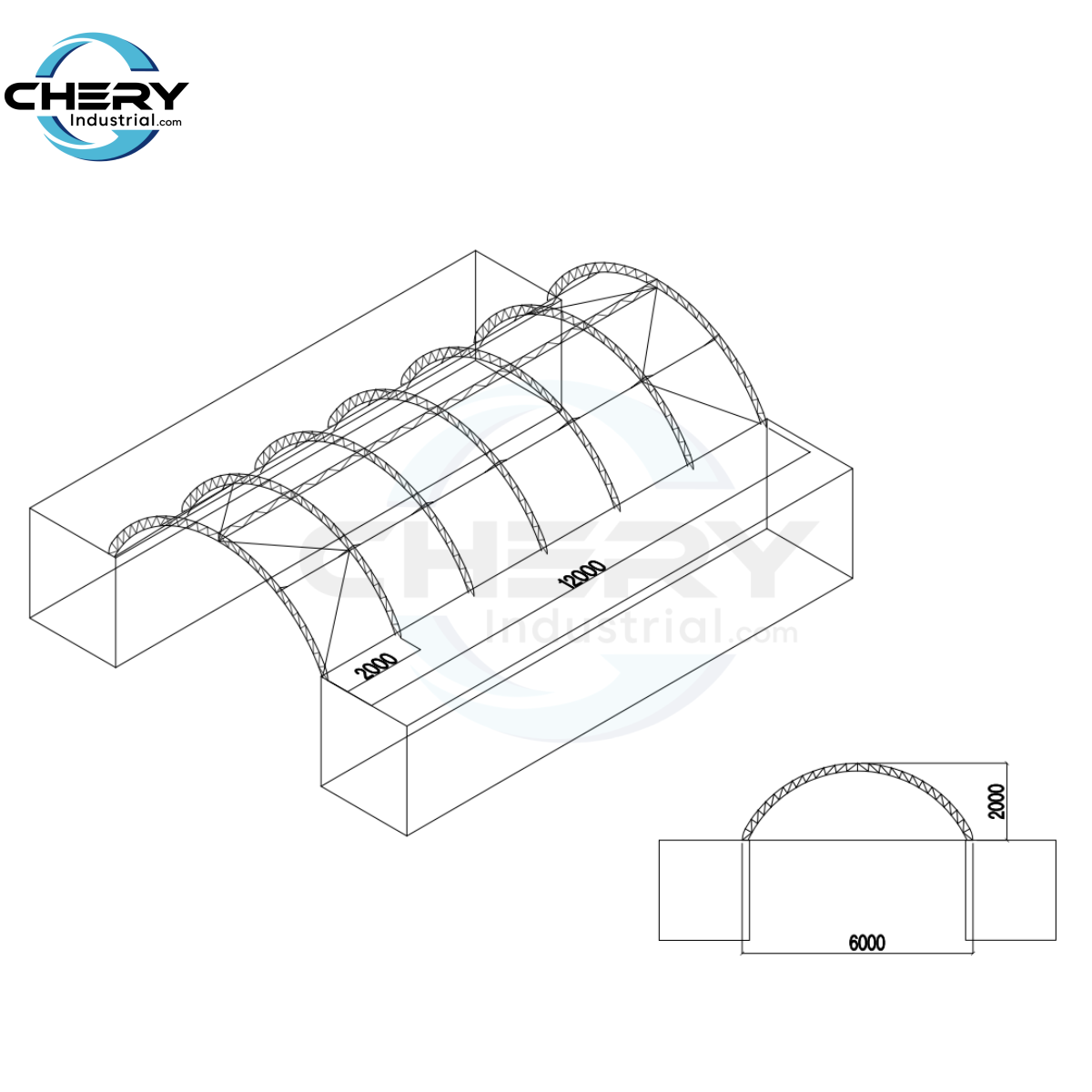

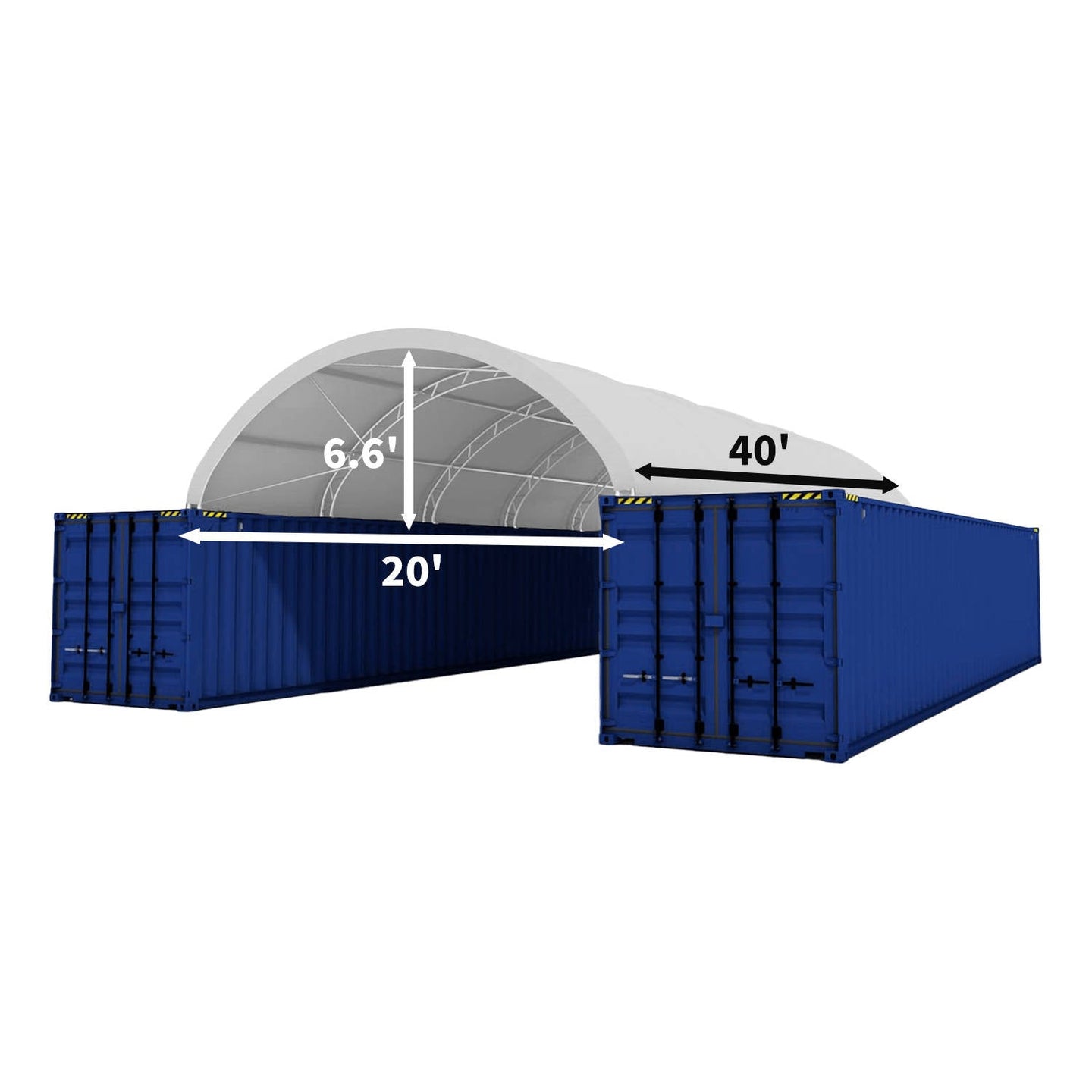

• Dimension (ft): W20 x L40 x H6.6
• Frame: Double Truss Galvanized Tube
• Steel structure: High-Grade Hot Dip Galvanized Steel
• Fabric options: 11 oz/m² PE; 15–32 oz/m² PVC tarpaulin
• Fabric features: Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning
• Temperature resistance: -22 to +158 °F
• Front/Back walls: Optional
• Arch Interval: 6.6 ft
• Arch Ø: Ø32×1.2 mm
• Purlin Ø: Ø40×1.2 mm
• Tension system: Pipe and Ratchet Tie-Down System
• Easy installation: Twist lock and clamp installation
• Average assembly time (DIY with 4 people): Shelter 2 days; Front/back walls 0.5 day per wall
• Safety: PFAS-free and EU REACH compliant
• Tarp lifespan: 7–10 years
• Frame lifespan: 15+ years
• Warranty: PE 2 years; PVC 8 years
